This article serves as a comprehensive guide to elliptical tank heads, crucial components in the construction of pressure vessels and storage tanks. We will explore their design, applications, manufacturing processes, and the stringent ASME standards they adhere to. Whether you are an engineer, a fabricator, or simply curious about the world of tank construction, this guide provides valuable insights into the world of elliptical tank heads and flanged and dished heads. This article is worth reading because it distills complex engineering concepts into easily digestible information, helping you understand how these tank components ensure safety and efficiency in various industries.

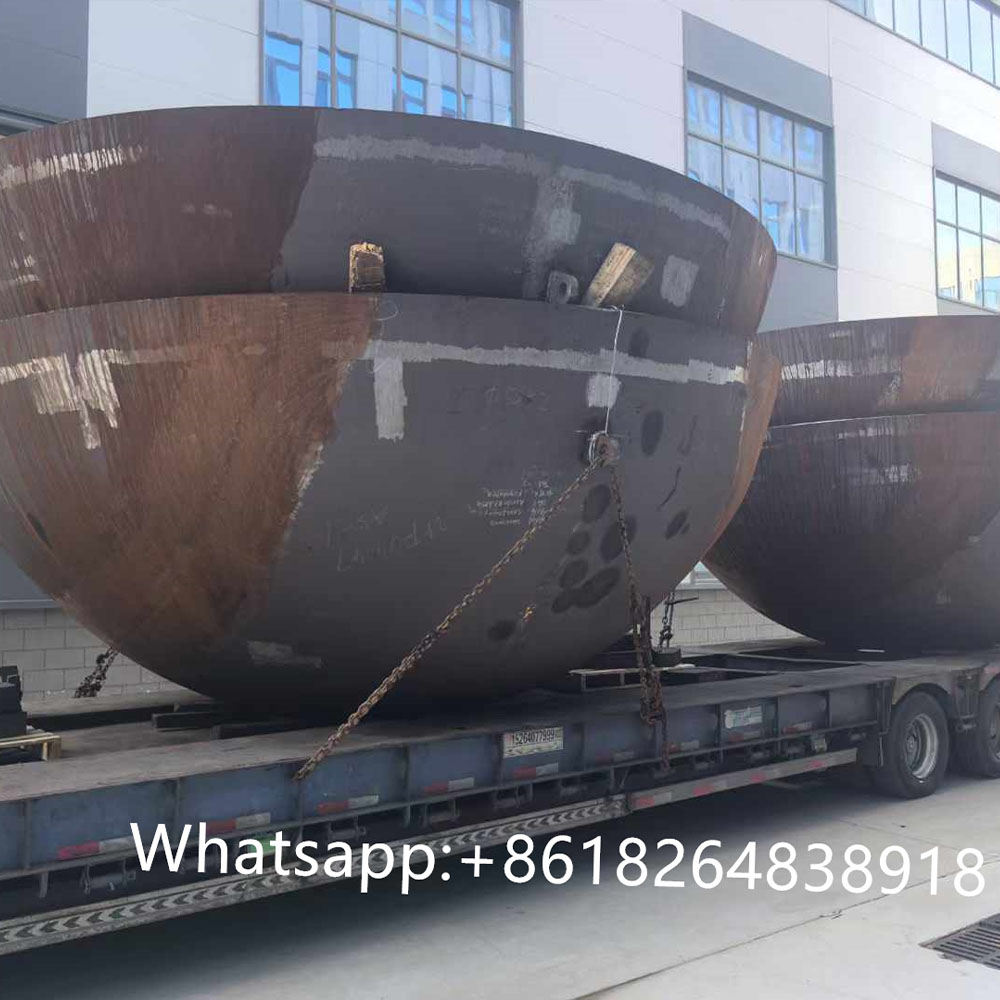

Tank heads, also known as vessel heads or dish ends, are the end caps on a cylindrical tank. Elliptical tank heads, specifically, are a type of tank head that has an elliptical shape. These tank heads are crucial components of pressure vessels and storage tanks, providing a sealed end that can withstand significant internal pressure. The elliptical shape, also called semi elliptical, offers a good compromise between cost, space, and strength compared to other shapes such as hemispherical heads or conical heads.
The importance of elliptical tank heads lies in their ability to safely contain fluids or gas under pressure. A properly designed and fabricated elliptical tank head ensures the structural integrity of the entire tank system. Poorly manufactured tank heads can lead to catastrophic failures, resulting in property damage, environmental hazards, and even loss of life. The efficiency of the elliptical shape contributes to the overall design and functionality of the tank. Their use and durability are vital to the longevity and safety of the entire vessel.
Elliptical tank heads find applications across various industries due to their balance of strength and cost-effectiveness. In the petroleum industry, they are frequently used in storage tanks, pressure vessels for refining processes, and transportation tanks. The chemical industry also utilizes them for storing and processing a wide range of chemicals, often requiring resistance to corrosive substances. These heads are also common in the gas industry for storing compressed gas.
Beyond these core industries, elliptical tank heads are found in food processing equipment, pharmaceutical manufacturing, and even in water treatment plants. Any application that involves the storage or processing of liquids or gas under pressure is a potential candidate for elliptical tank heads. The ability of these tank heads to handle significant pressure and provide a reliable seal makes them indispensable components in these diverse industrial settings. The selection of specific steel and alloy types ensures the heads are suitable for particular conditions.
While elliptical tank heads are versatile, other types of tank heads offer different advantages depending on the application. Hemispherical heads, for example, are the strongest shape for resisting pressure due to their uniform stress distribution. They are often used in high-pressure applications like reactors and aerospace components. However, they are also more expensive to fabricate than Elliptical Heads.
Conical heads, as the name suggests, have a cone-shaped end. They are commonly used where drainage is important or where a transition in diameter is needed. Flat heads, while simple to manufacture, are typically limited to low-pressure applications because they tend to deflect significantly under pressure. Dished heads are used in a wide range of applications. Each type of tank head, including the flanged and dished heads, has its own set of advantages and disadvantages, making the selection process crucial for optimal performance and safety.
The choice of material for elliptical tank heads is critical and depends on the application, operating conditions, and the properties of the fluid or gas being contained. Steel is the most common material, with various grades of carbon steel and stainless steel being widely used. Carbon steel offers a good balance of strength, weldability, and cost-effectiveness, making it suitable for many general applications.

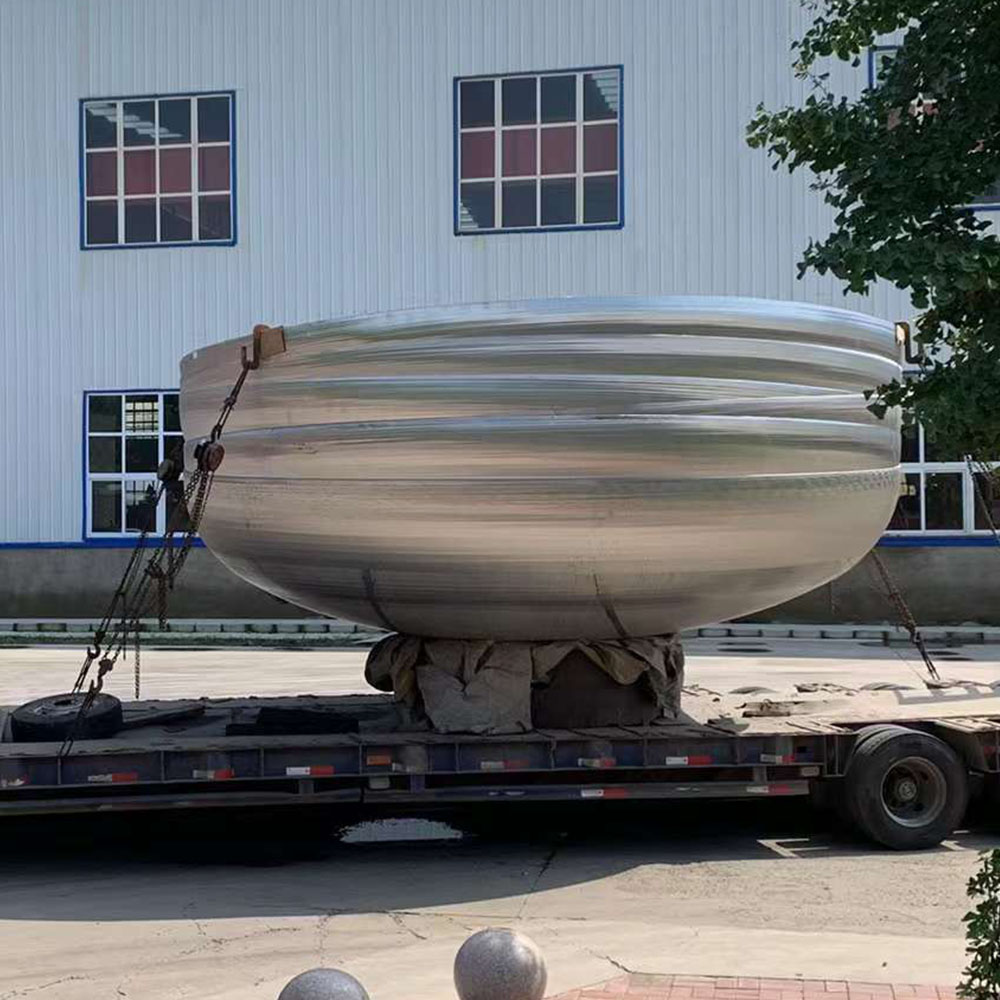

Stainless steel provides superior corrosion resistance, making it ideal for applications involving corrosive chemicals, food processing, and pharmaceuticals. Other materials, such as alloy steel, are used for specialized applications requiring high strength at elevated temperatures or resistance to specific chemicals. The selection of the material also considers factors like weldability, formability, and the a.s.m.e code requirements. The carbon and stainless options provide a broad range of choices to meet specific needs.

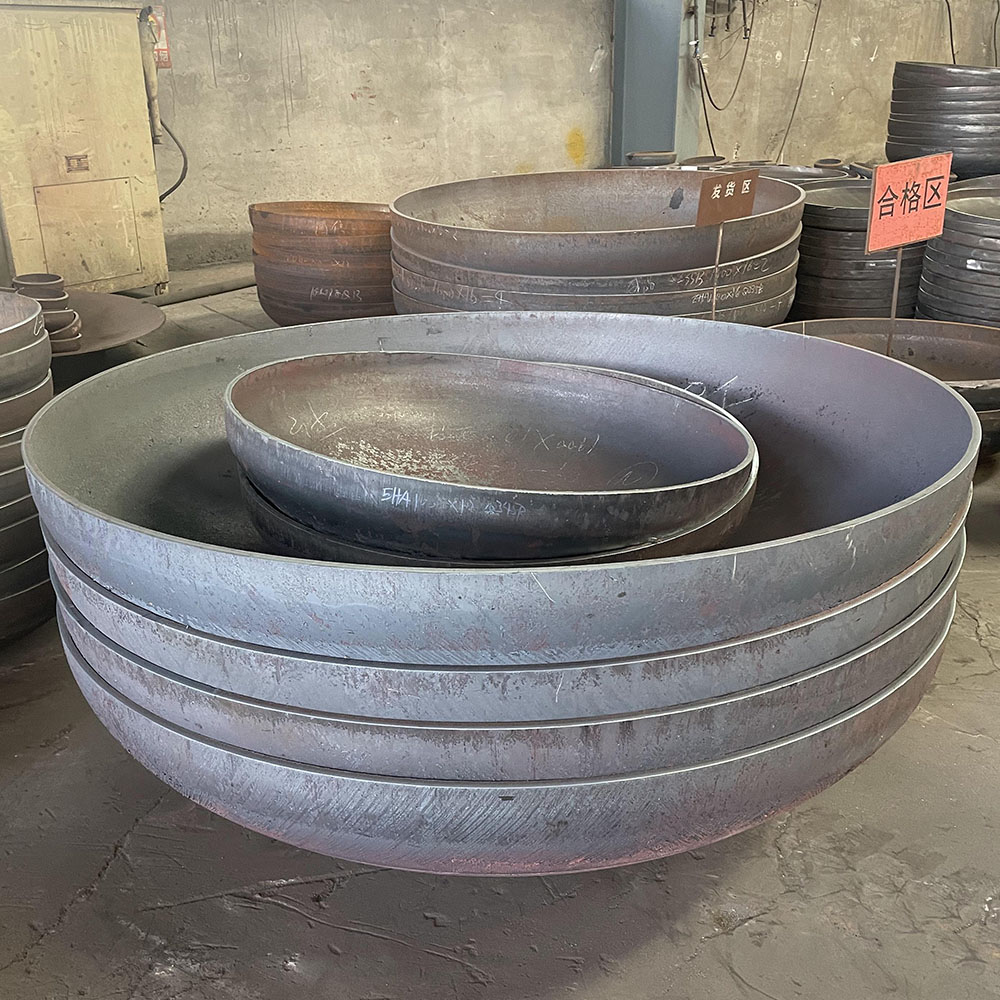

The manufacturing process of elliptical tank heads typically involves forming a metal plate into the desired shape using a combination of cold forming and hot forming techniques. Cold forming is used for smaller diameters and thinner plates, while hot forming is necessary for larger diameters and thicker plates. The process begins with cutting the steel plate to the appropriate size and shape. Then, the plate is placed in a hydraulic press or a spinning machine, where it is gradually formed into the elliptical shape. Dish forming is a critical step.
Several techniques are used to form elliptical tank heads. The most common is pressing, where the metal plate is pressed between dies to achieve the desired shape. Another method is spinning, where the plate is rotated at high speed while a roller applies pressure to gradually form the elliptical profile. After forming, the tank head undergoes trimming, welding, and other finishing processes to meet the required dimensions and tolerances. The fabrication of the elliptical tank head is fabricated to have a certain shape instead of a particular dish radius or knuckle radius.
ASME (American Society of Mechanical Engineers) sets the industry standards for the design, fabrication, and inspection of pressure vessels and their components, including elliptical tank heads. The ASME Boiler and Pressure Vessel Code (BPVC) provides comprehensive guidelines to ensure the safety and reliability of these systems. The ASME code, specifically Section VIII, Division 1, covers the requirements for pressure vessel design, materials, fabrication, examination, inspection, and testing. The ASME flanged ensures quality and compliance.
Compliance with ASME standards is crucial for manufacturers of elliptical tank heads. These standards dictate the allowable stresses, material requirements, welding procedures, and non-destructive examination methods to be used. The ASME certification demonstrates that a manufacturer has the necessary expertise and quality control systems in place to produce tank heads that meet the highest safety and performance standards. Adhering to these standards minimizes the risk of failure and ensures the long-term integrity of the pressure vessel. The standard is a.s.m.e.
Designing an elliptical tank head involves several critical considerations to ensure it can withstand the intended operating conditions. One of the most important factors is the internal pressure the tank will experience. This pressure determines the required thickness of the tank head, as well as the material grade needed. The diameter of the tank is also a key factor, as larger diameters require thicker plates to resist the same pressure.
Other design considerations include the operating temperature, the type of fluid or gas being contained, and any external loads that the tank may be subjected to. The shape of the elliptical head itself, specifically the ratio between the major and minor axes of the ellipse, also affects its strength and stress distribution. Engineers must carefully analyze all these factors to select the appropriate dimensions, material, and manufacturing processes to ensure the safety and reliability of the tank head. The expertise of the engineer is crucial in these calculations.
The knuckle radius and dish radius are critical geometric parameters that influence the stress distribution and overall performance of flanged and dished heads, including elliptical tank heads. The dish radius, which is the radius of curvature of the main portion of the head, affects the overall volume and surface area of the tank head. A larger dish radius results in a shallower head, while a smaller dish radius results in a deeper head. Instead of a particular dish radius or knuckle radius certain shape instead of a particular dish.
The knuckle radius, on the other hand, is the radius of curvature at the transition between the dish and the cylindrical shell of the tank. A larger knuckle radius reduces stress concentrations at this transition point, resulting in a more uniform stress distribution and a higher pressure rating. However, a larger knuckle radius also increases the overall diameter of the tank head, which may be a constraint in some applications. Optimizing these radii is crucial for achieving the desired strength, weight, and cost characteristics of the tank head.
The cost of elliptical tank heads and flanged and dished heads is influenced by several factors, including the material, size, thickness, and manufacturing complexity. Stainless steel tank heads are generally more expensive than carbon steel ones due to the higher cost of the material. Larger diameters and greater thicknesses require more material and more processing time, leading to higher costs. Material costs are a significant aspect.
The manufacturing process also plays a significant role. Cold forming is typically less expensive than hot forming, but it is limited to smaller sizes and thinner materials. Complicated shapes and tight tolerances require more precision and skill, increasing the manufacturing cost. Finally, compliance with ASME standards adds to the cost due to the rigorous quality control and testing requirements. Obtaining a quote involves considering all these factors.
Here is a table summarizing the different factors influencing the cost of tank heads:
| Factor | Influence on Cost | Reason |
|---|---|---|
| Material | Higher cost for stainless steel | Stainless steel is more expensive than carbon steel. |
| Size (Diameter) | Higher cost for larger diameters | Requires more material and processing time. |
| Thickness | Higher cost for greater thicknesses | More material and more extensive forming processes. |
| Forming Method | Hot forming more costly than cold forming | Hot forming requires more energy and equipment. |
| Tolerance | Higher cost for tight tolerances | Requires more precision and potentially more re-work. |
| ASME Compliance | Higher cost | Requires rigorous quality control and testing. |
Here is a table outlining the estimated pressure capabilies based on head geometry:
| Head Type | Relative Pressure Capacity | Notes |
|---|---|---|
| Hemispherical | 100% | Highest pressure capacity due to uniform stress distribution. |
| Elliptical (2:1) | ~75% | Good balance of pressure capacity, cost, and space requirements. A 2:1 elliptical head has a major axis (diameter) twice as long as its minor axis (height). |
| Torispherical (Flanged and Dished Heads) | ~60% | Knuckle radius and dish radius affect pressure capacity; larger knuckle radii improve capacity. |
| Conical | Varies | Pressure capacity depends on cone angle; smaller angles offer higher capacity. Often requires reinforcement at the cone-cylinder junction. |
| Flat | Low | Limited to low-pressure applications; typically requires significant reinforcement. |
Selecting the right elliptical tank heads for your project requires careful consideration of several factors. First, determine the operating pressure and temperature of the tank. This will dictate the required material grade and thickness of the tank head. Next, consider the type of fluid or gas being contained and select a material that is compatible and resistant to corrosion.
Also, take into account any space constraints or design limitations. Elliptical tank heads offer a good balance of strength and space efficiency. However, other shapes like hemispherical heads may be more suitable for high-pressure applications where space is not a major concern. Finally, ensure that the chosen tank heads meet all applicable ASME standards and regulations. Consulting with an experienced tank head manufacturer can help you navigate these factors and select the optimal tank heads for your specific needs.
Here are 10 essential points to remember about Elliptical Tank Heads:
Purpose: Elliptical tank heads are end caps for tanks, crucial for containing fluids and gas under pressure.
Shape: Their elliptical form provides a balance of strength, space, and cost-effectiveness.
Materials: Steel (carbon and stainless) is commonly used, with selection depending on the application.
Industry Use: Widely used in petroleum, chemical, and other industries requiring pressure vessels.
ASME Standards: Adherence to ASME standards is vital for safety and reliability.
Design Considerations: Pressure, temperature, fluid type, and external loads affect the design.
Knuckle and Dish Radius: These radii impact stress distribution and head performance.
Cost Factors: Material, size, thickness, and manufacturing complexity all influence cost.
Selection Process: Consider operating conditions, fluid type, and ASME compliance when selecting.
Industry-Leading Expertise: Consult with experienced manufacturers for optimal selection.
