ASME – Elliptical Tank Heads
Customized size
Elliptical Dished Head
elliptical heads
Realiable quanlity
Affordable price

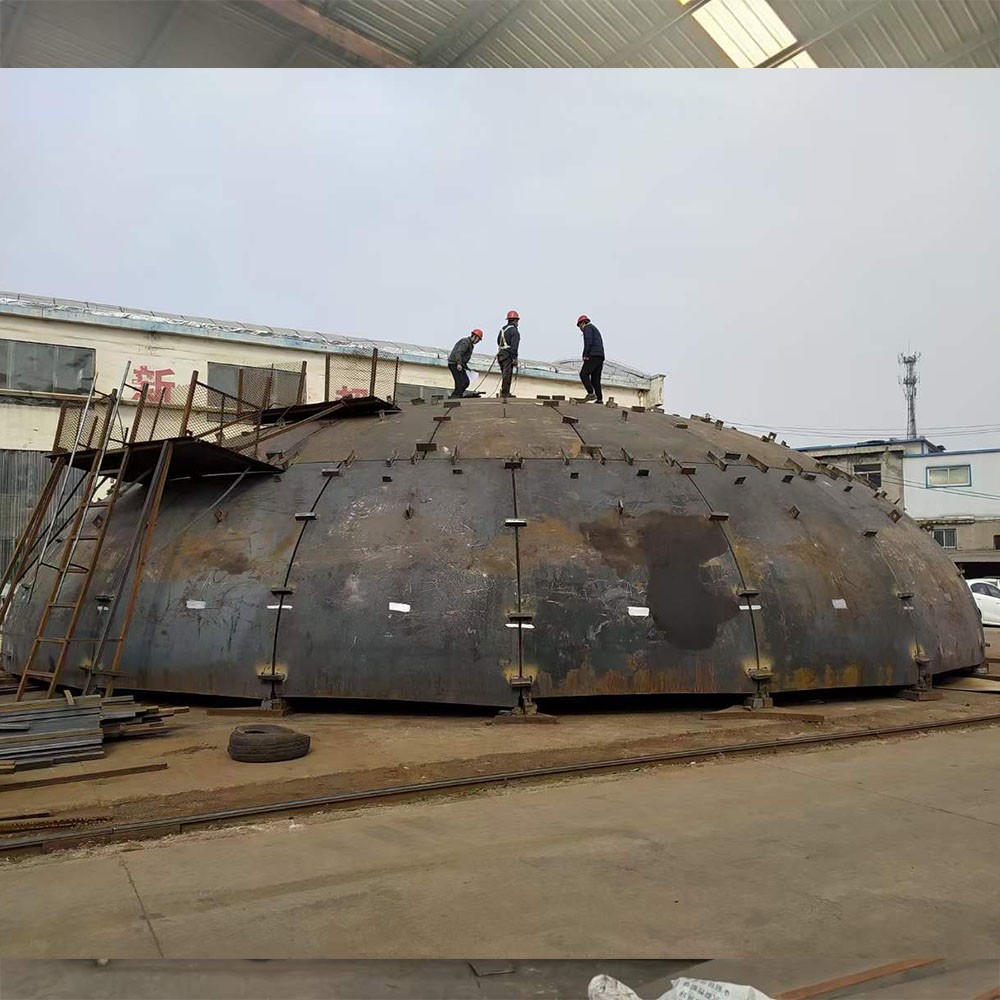

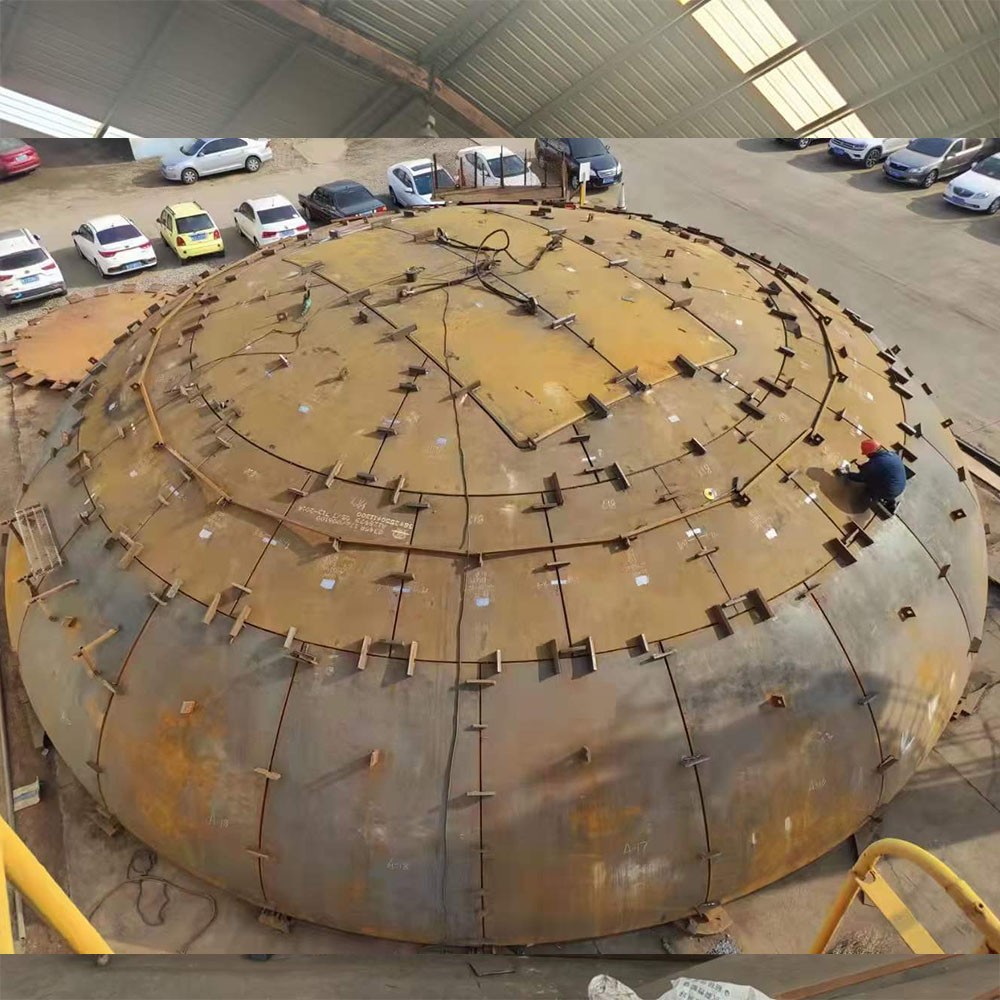

Haipei Industry is proud to introduce our high-performance 11500mm Diameter 28mm Thickness 2:1 Elliptical Tank Heads, designed for a wide range of industrial applications. These tank heads are precision-engineered to meet the demands of sectors such as oil and chemical industries, water conservancy, power generation, and more.
Diameter: 11,500mm (also available in sizes ranging from 89mm to 13,000mm)
Thickness: 28mm (with customizable thickness from 2mm to 400mm)
Shape: 2:1 Elliptical, offering optimal performance for medium-pressure tanks
Material Options: A variety of materials are available, including duplex steel, carbon steel, stainless steel, aluminum, titanium, and more, allowing for custom solutions tailored to your needs.

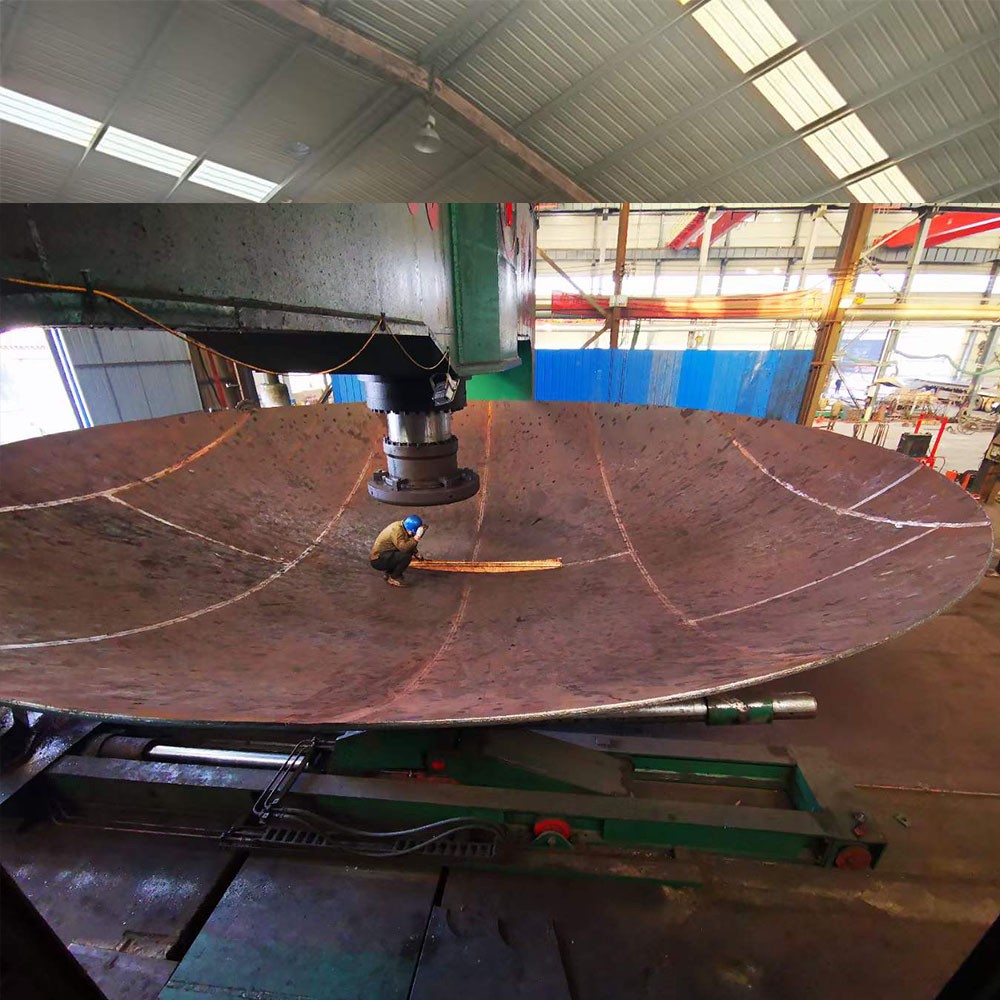

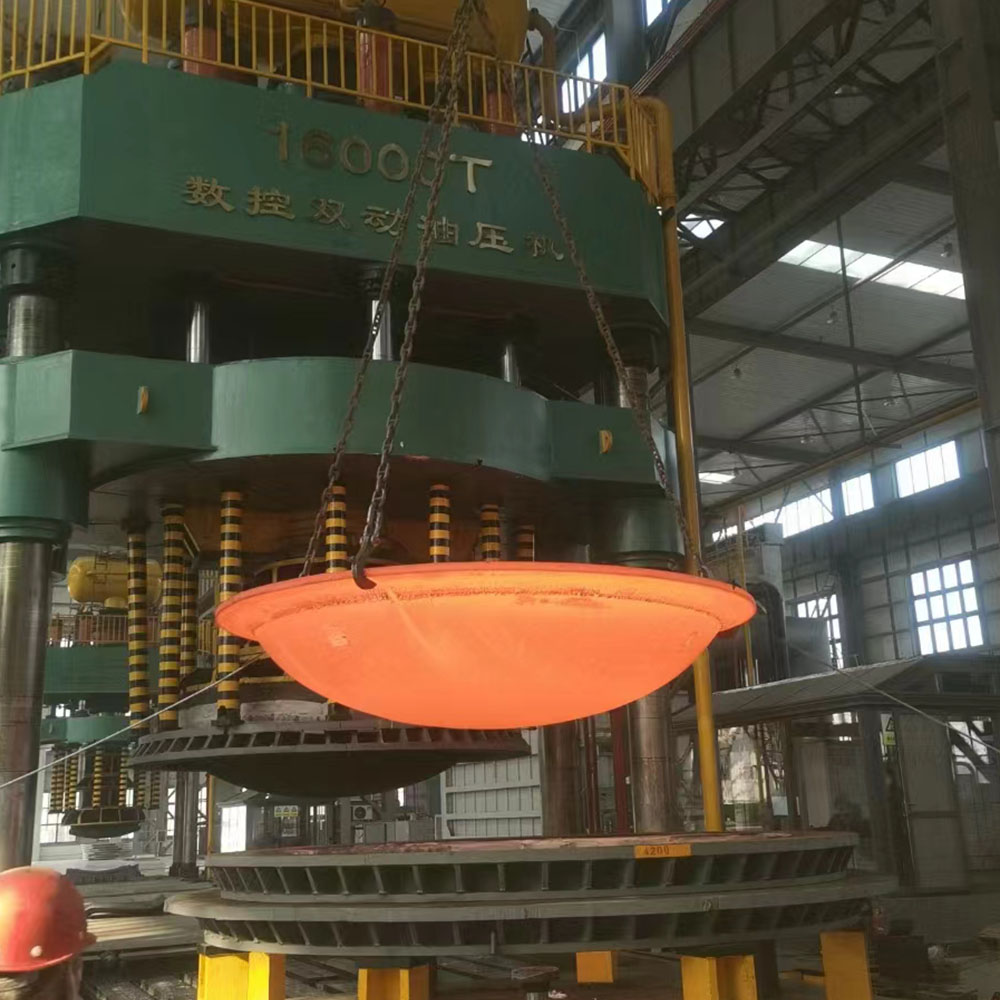

Technology: Manufactured using hot pressing and cold pressing techniques to ensure durability and precision.
Surface Treatment: Our tank heads undergo thorough sand blasting and pickling processes, ensuring a clean, smooth surface finish to minimize corrosion and enhance performance.
Customization: These tank heads can be custom-formed to meet your exact specifications, including punching options according to your drawings.
Applicable Standards: Compliant with ASME, PED, and GB standards.
Certifications: ISO9001, ISO45001, and OHSAS18001 certified, ensuring the highest quality and safety standards.
To guarantee the reliability and integrity of every unit, each tank head undergoes rigorous testing, including:
Ultrasonic Testing (UT)
Radiographic Testing (RT)
Magnetic Particle Testing (MT)
Penetrant Testing (PT)
Time of Flight Diffraction (TOFD)
These tests ensure our products meet the necessary performance standards and can be trusted in critical applications.
Our Elliptical Tank Heads are ideal for use in various industries and applications, including:
Heat Exchangers
Pressure Vessels
Power Generation
Desalination
Water Treatment
Chemical Processing
Oil Exploration & Gas Exploration
The 2:1 elliptical shape offers an economical solution for medium-pressure tanks, reducing metal thickness while maintaining structural integrity. These tank heads are engineered for high-performance, ensuring long-lasting, reliable operation in demanding environments.

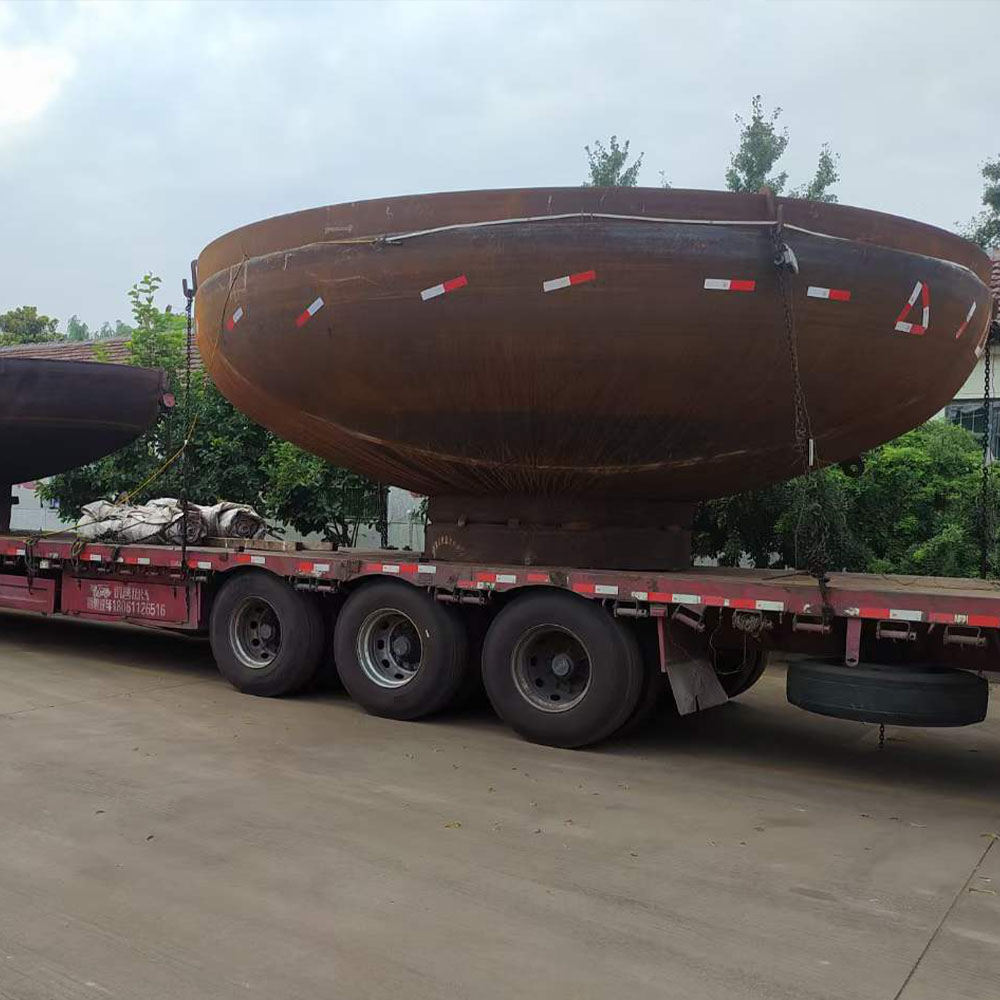

We offer secure packaging to ensure your products arrive safely, whether in wooden boxes, iron shelves, or as per your specific requirements. Our efficient shipping process ensures fast and reliable delivery to meet project deadlines.
Haipei Industry combines decades of expertise in manufacturing high-quality tank heads and components. With a focus on innovation and precision, we provide custom solutions tailored to your specific needs. Our products are built to last, ensuring peak performance in the most challenging environments.
For further inquiries or to discuss your project requirements, feel free to contact us today!
Company information
Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.
Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Our Services
We offer our products in the following materials:
Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)
Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)
Copper: O-Temper Material (Forming Only)
Aluminum: O-Temper Material (Forming Only)
Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.
Packaging & Shipping

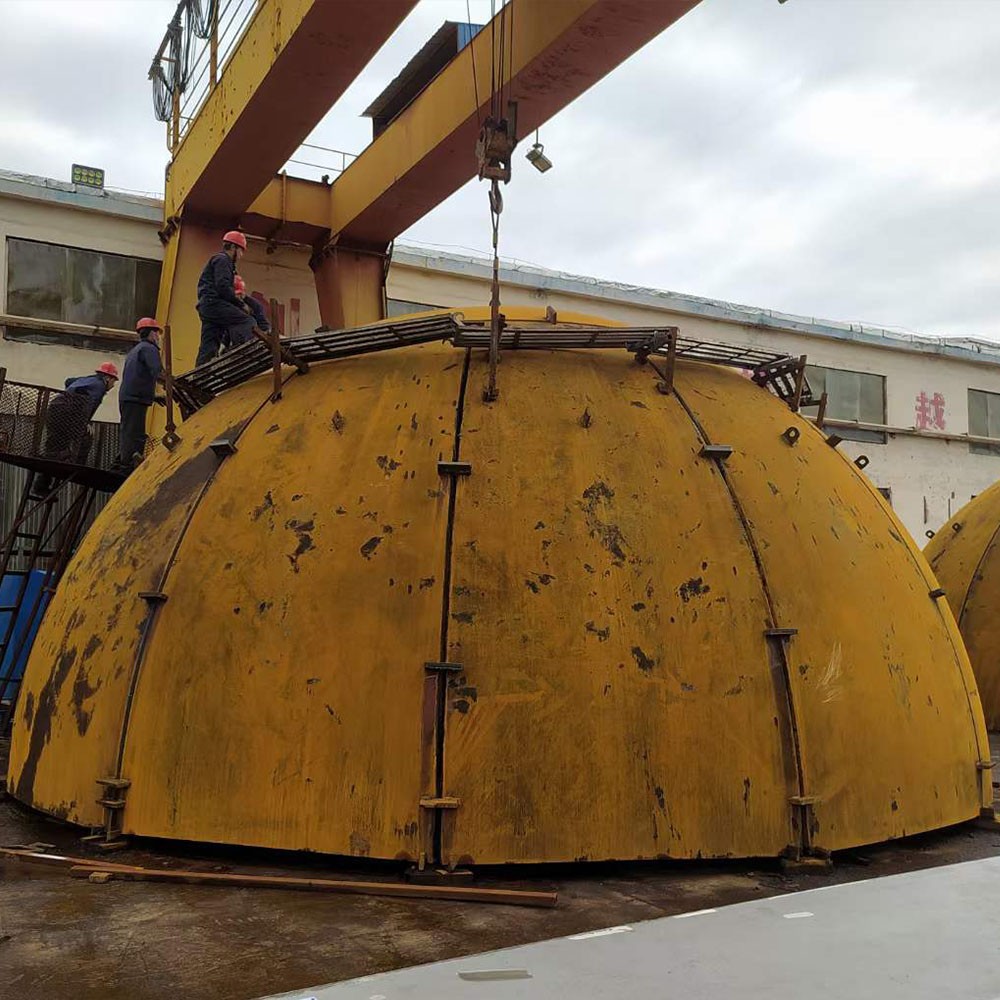

Carbon steel Hemispherical spherical head for Industrial hot blast stove
1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment
FAQ
Q: What’s the information should I provide when inquiry?
A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
Q: what are surface treatment of the product?
A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
Q: How do you ensure the quality of products?
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
Q: Can you help us matching related products?
A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
