Haipei Industry Dished Head dish head for pressure vessel The tank heads may be formed from cold pressed or formed Dished End has stresses formed into it and depending on the material it may need to be stress relieved once finished. Cold Pressed Dished Ends Cold pressing involves forming the dished ends at room temperature, using significant force to shape the material. This process is typically faster and more cost-effective than hot pressing, making it a popular choice for many applications.

Pressure Vessel Heads

Pressure vessels are used for a variety of purposes throughout the oil, gas and petrochemical industry, and material considerations are based around the gas or liquid being stored.

Pressure vessel heads and dished ends are essentially the same – the end caps of a pressure vessel tank or an industrial boiler. They are supplied with a flanged edge to make it easier for the fabricator to weld the head to the main body of the tank.

Torispherical Dished Ends

Torispherical dished ends are one of the many types of vessel ends which Masteel can produce, and they can be manufactured from a number of steel types including pressure vessel, boiler quality, chrome moly and stainless.

10% torispherical dished ends are the most popularwhere the knuckle radius represents 10% of the diameter of the cylinder. Torispherical head is used for all kinds of tanks and pressure vessel, which is made with stainless steel, carbon steel and alloy steel,etc. The torispherical dished heads are cold pressed or hot-formed, seamless and stress treated, Widely used in industrial storage or pressure vessels such as storage tanks, heat exchangers, towers, reactors, boilers and separations equipment. Hiapei Industry Metal product range: elliptical head, torispherical head, steel hemisphere and conical head, fire bowls, etc.

Semi–Ellipsoidal Dished Ends

2:1 Semi-Ellipsoidal dished heads are deeper and stronger than the more popular torispherical dished heads.

The greater depth results in the head being more difficult to form, and this makes them more expensive to manufacture. However, the cost is offset by a potential reduction in the specified thickness due to the dished head having greater overall strength and resistance to pressure.

Our pressure vessel, boiler quality, and HIC tested steels are available from stock

Much of these steels are already tested to stringent standards which means that in most cases, the steel is already available for supply

As we are already part of the mill stock production programs, if we don’t have the steel in stock, we can certainly get it quicker to you than if you were to source it elsewhere

We specialise in HIC resistant steel which is ideal for sour gas applications

Production Process of Heads:

Haipei Industry 2:1 Ellipsodial Head ASME Ellipsoidal Head 2:1 DIN 28013

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

Company Information

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

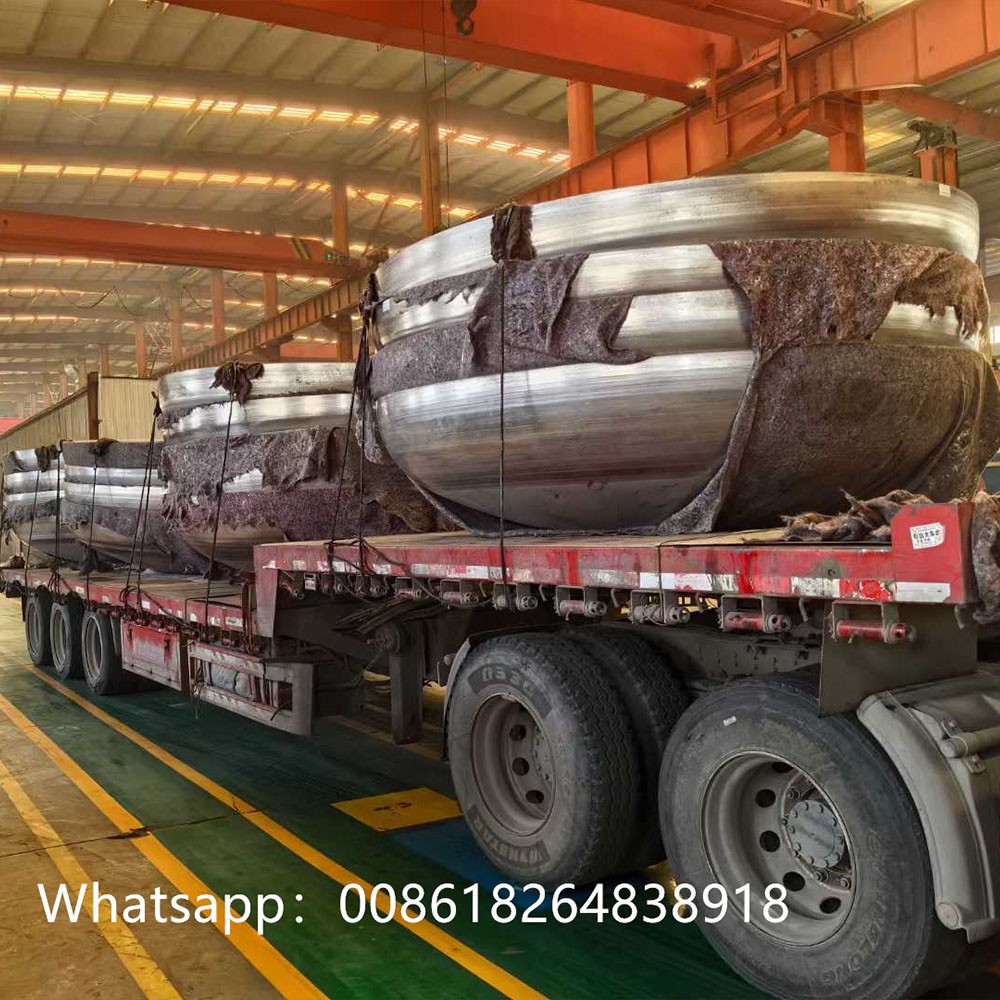

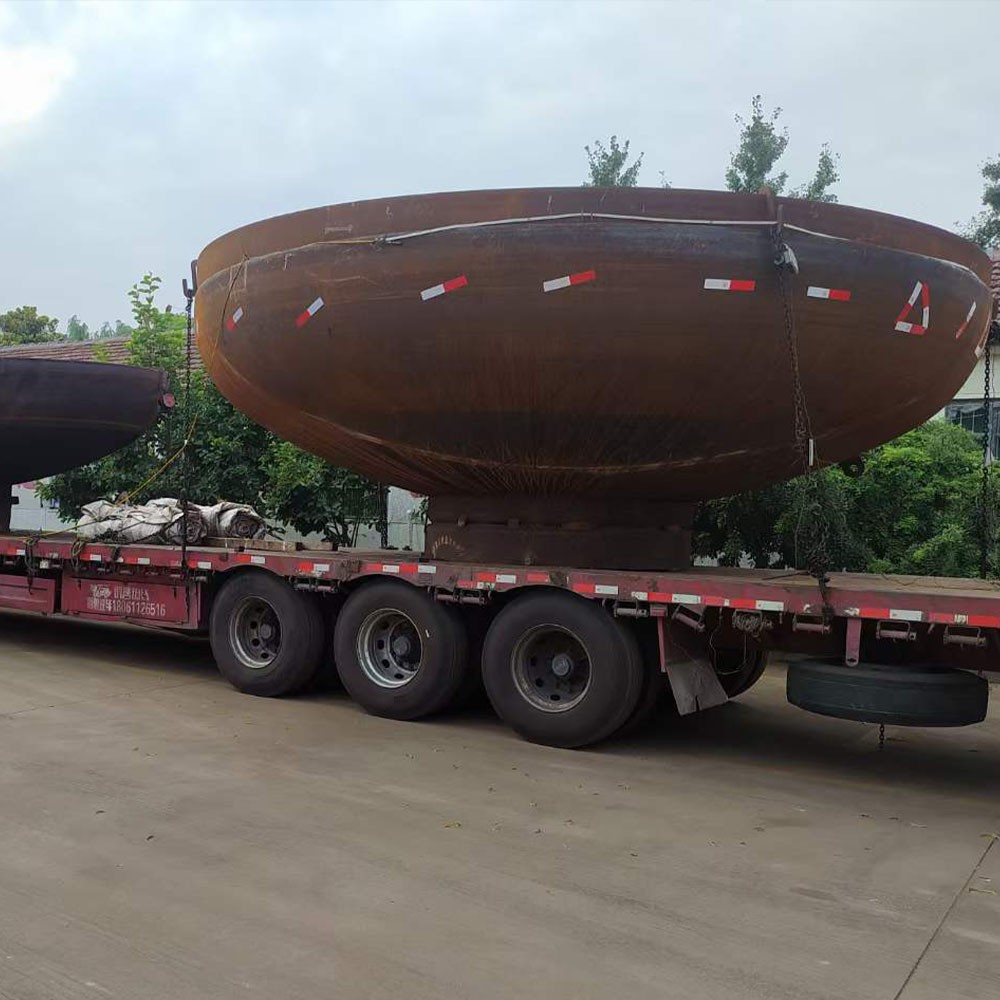

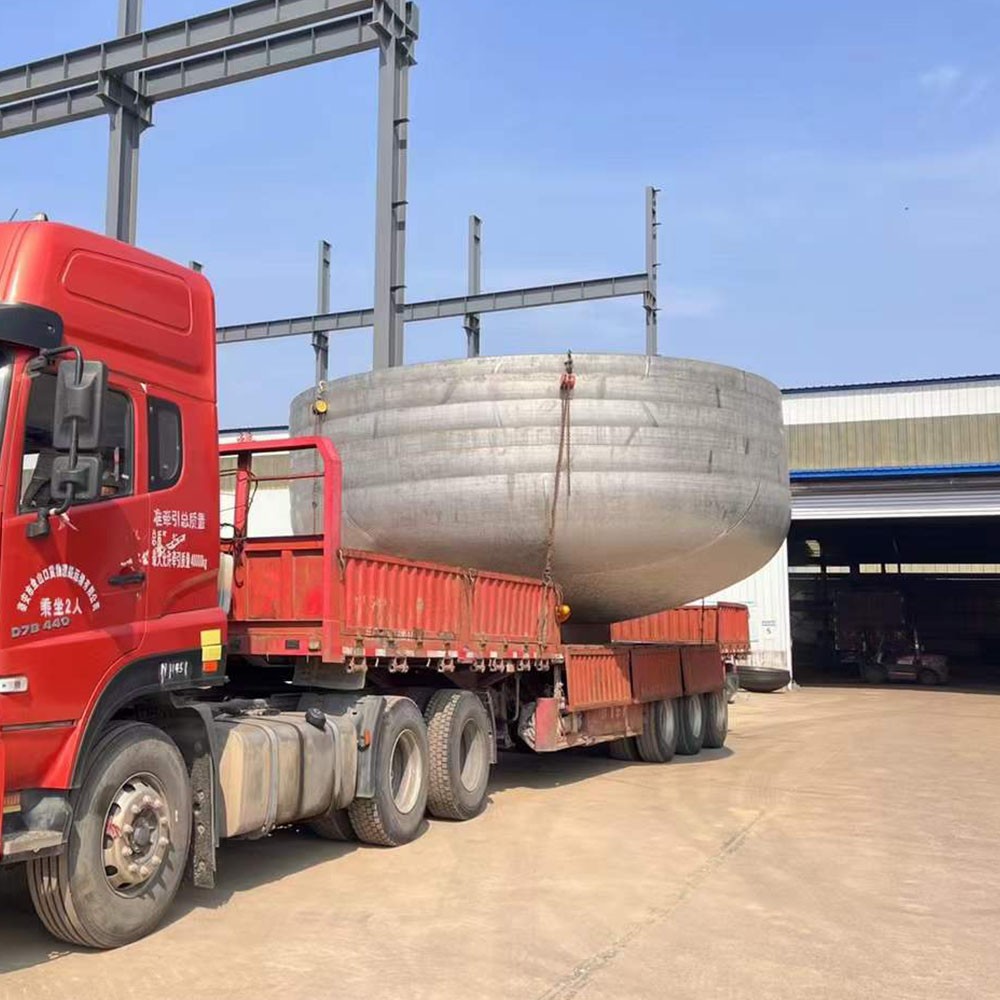

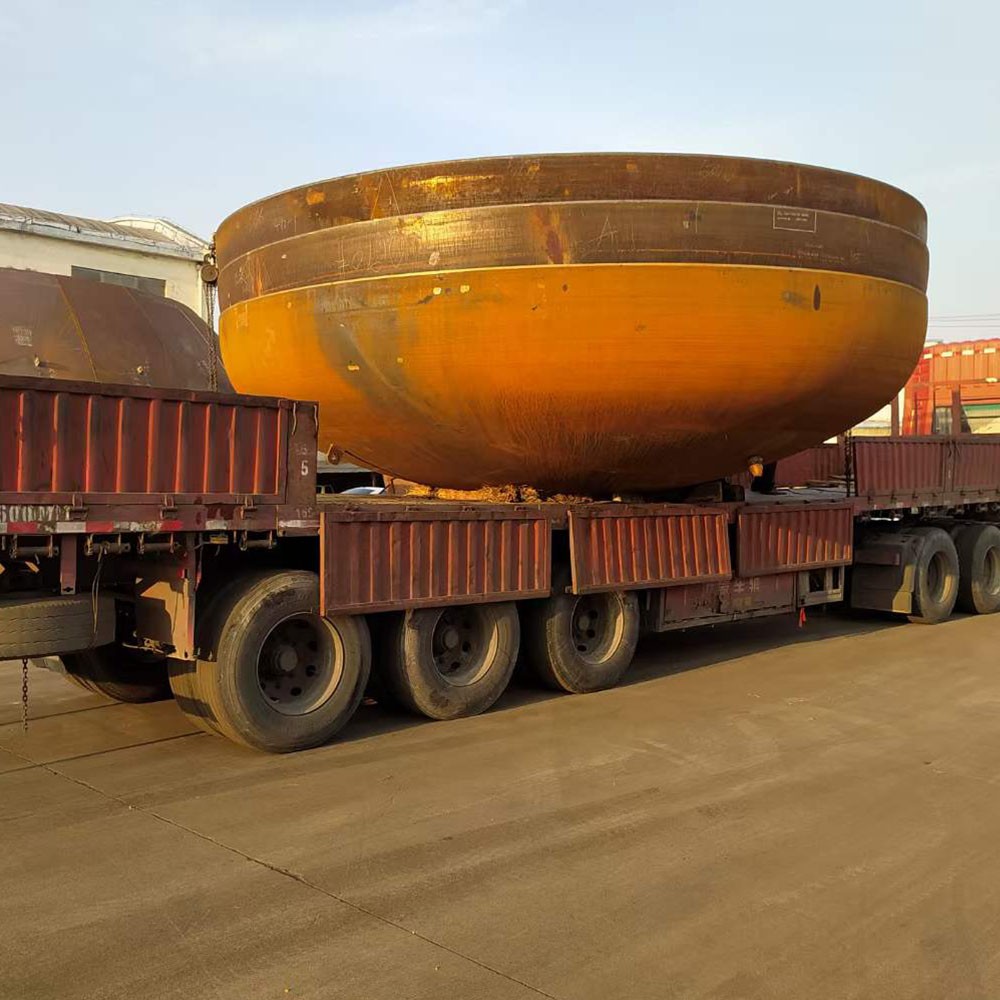

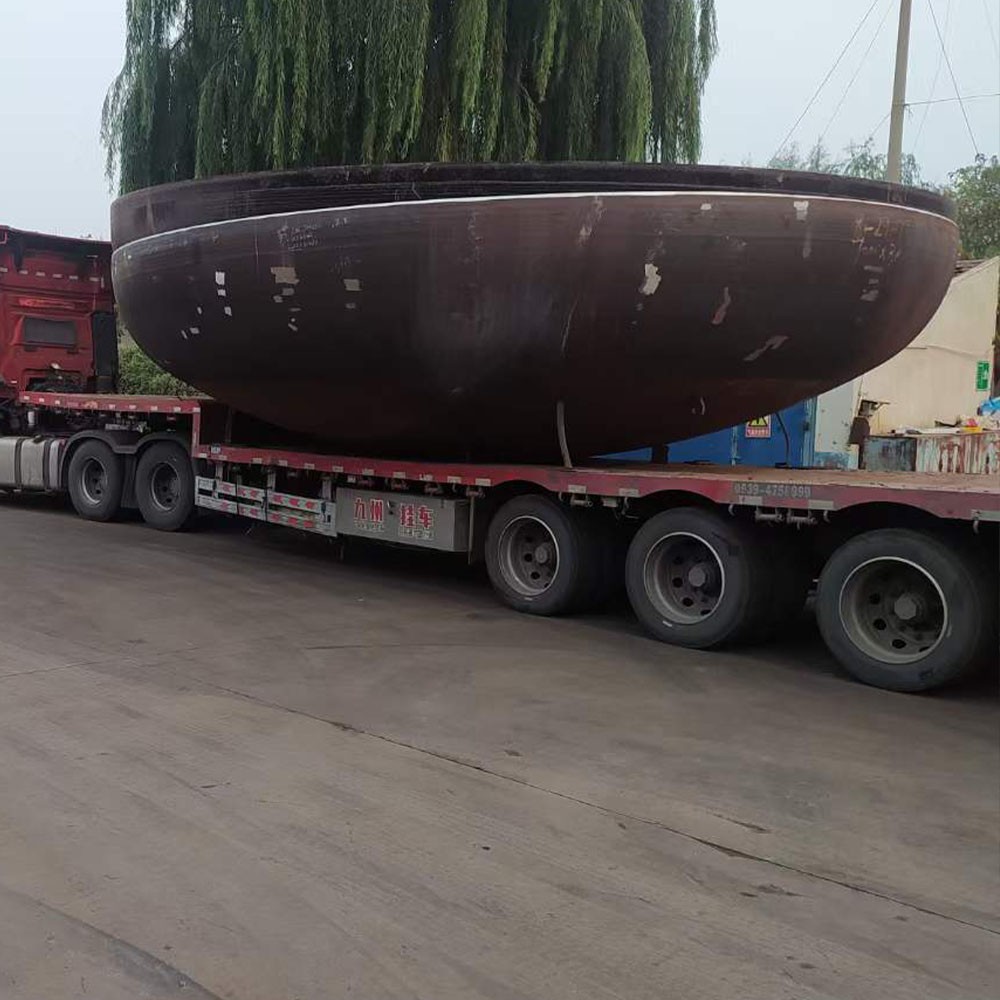

Packaging & Shipping

Haipei Industry 2:1 Ellipsodial Head ASME Ellipsoidal Head 2:1 DIN 28013

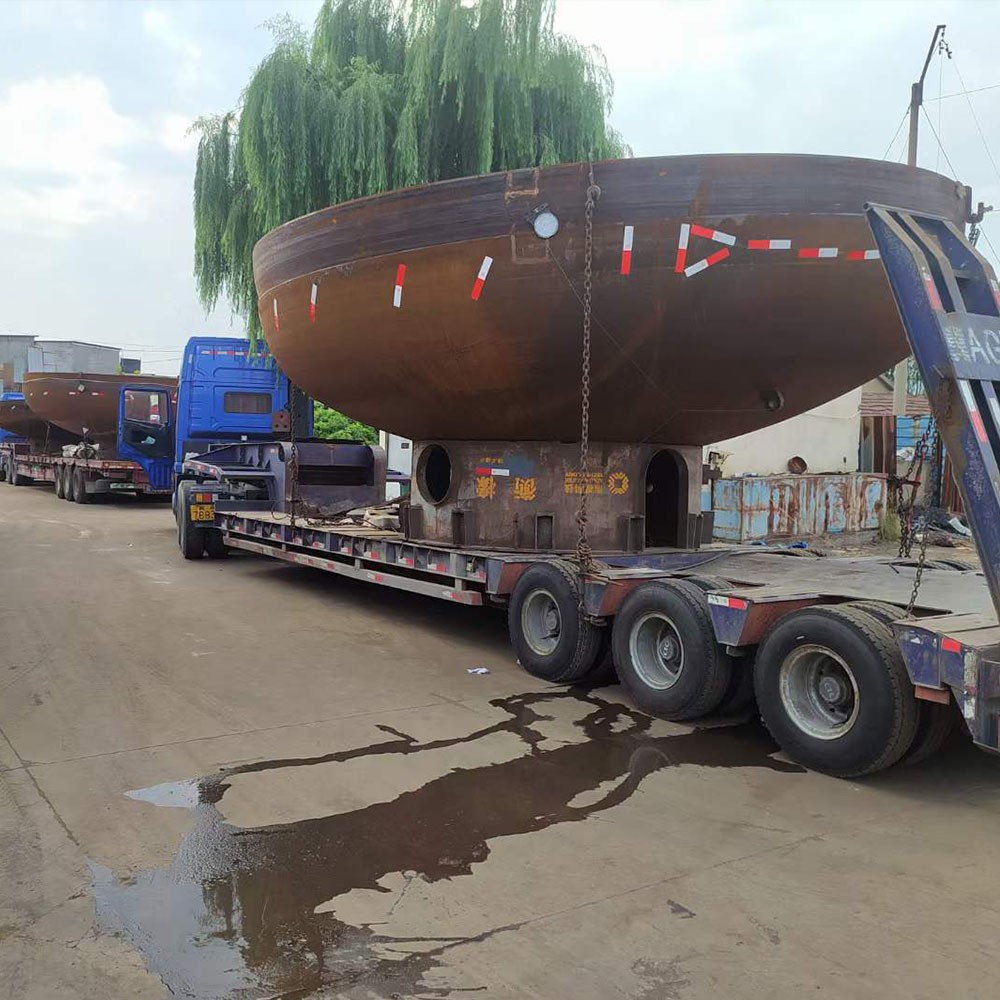

1, Shipment by bulk OD more then 5000mm

2, GP Containers for OD within 2200mm
3, FR Container OD within 4000mm
4, Iron Cage and wooden pallets accordingly.

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Product Description

1. Product Description

Ellipsoidal dish end (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. Our tank head can be customized according to your needs. We can choose the most suitable model for you depending on your demands on shape, thickness, material and diameter.

2. Main Features
- Elliptical head is composed of half ellipsoid and a cylindrical straight segments. The Straight section can avoid mutation of radius of curvature between the connection welds of the head and cylinder, thus improving the stress status of the welds.
- As The Meridian curvature change of ellipsoidal part of the tank head is smooth and continuous, the stress distribute uniformly.
- Easy to punch forming compared with the hemispherical head, because the depth of ellipsoidal head is smaller than the hemispherical head. (elliptical end cap)

3. Application
1. Pressure Vessel Industry      2. Petroleum Industry                   3. Chemical Industry
4. Pharmaceutical Industry       5. Sewage Treatment Industry      6. Food Industry
7. Nuclear Power Industry        8. Gas Industry                              9. Aerospace Industry
10. Machinery Industry            11. Construction Industry               12. Shipbuilding Industry
13. Cosmetic Industry             14. General Storage Industry         15. Steam Boiler Industry

4. Specifications

Hiapei Industry Elliptical Cap elliptical cap China Factory, Suppliers, Manufacturers. We also provide item sourcing and flight consolidation solutions  Hemispherical heads Welded Large Diameter Ellipsoidal Head End Cap Boiler End Cap Elliptical End Cap joggled head Steel Tank Heads Pressure Vessel Dish End Elliptical Cap Tank Head Asme 2:1 Elliptical Dished Head. Elliptical Head Pipe End Cap For Pressure Vessel Tank Bottom Stainless steel caps and heads semi-elliptical heads. Product specification: semi-elliptical head DIN 28013. Semi-ellipticall head according to DIN 28013. Whatsapp:008618264838918 #dishedhead #dishedend #ellipticalend #ellipticalcap #pressurevessel #ASMEhead #ellipticalhead #torisphericalcap #torisphericaleend #ellipsoidalhead #torisphericalhead  #ASMEcap  #ASMEend #sphericalhead #hemisphericalhead #conicalhead Whatsapp:008618264838918 #dishedhead #dishedend #ellipticalend #ellipticalcap #pressurevessel #ASMEhead #ellipticalhead #ellipsoidalhead #torisphericalhead Elliptical head: It is a head composed of rotating elliptical spherical surface and cylindrical straight section. The elliptic head is widely used in petroleum Dish End, Elliptical Head, Dished End Company 304 Stainless Steel Welded Head Elliptical Pipe Cap Customized Elliptical Head End Cap with Cladding Material Used for Pressure Vessel Industry The elliptical head, also known as the ellipsoidal head, is a highly versatile and reliable component in various industrial applications. high-quality ellipsoidal end caps from reliable suppliers.Steel End Cap Dished Elliptical Head for Propane Tank Head.

5. Why to Choose Us
- We provide advanced tank head manufacture technology to assure your tank head 100% quality stability.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port.
- 7 days x 24 hours service, within 24 hours reply / solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guaranty the tank head long lasting safety and reliability.
- We will consider your all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentations etc. So our respected Users feel so relaxed and easy to get the tank head well. (dished head)

6. FAQ
Q: Can you give us the technical drawing and data?
A: Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Q: Is it possible to know how is my product going on without visiting your company?
A: We will offer a detailed products schedule and send weekly reports with digital pictures and videos which show the machining progress.
Q: Are the products tested before shipping?
A: Yes, all of our products were inspected piece by piece and they are all qualified before shipping.
Q: What is the delivery time?
A: The delivery time is usually within 25 working days once deposits received and product drawing confirmed. If the size is too big, and bulk ship, and it may need more time.
Q: What is the packaging?
A: Wooden cases, steel racks or as per customer's requirement.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shipment.
