Haipei Industry is the leading manufacturer and supplier for the elliptical heads, elliptical dished heads, tank heads with free custom services.
Material | Carbon Steel;Stainless Steel; Aluminum; Exotic Alloys; Special Steel... |
Main Products | Torispherical; 2:1Semi Ellipsoidal; Hemispherical; Flat Bottom; Floating Heads; Tank Heads; Dish Heads; Dished Ends; Pipe Caps.... |
Surface Treatment | 1. Intermediate & Final stage Heat Treatments; |

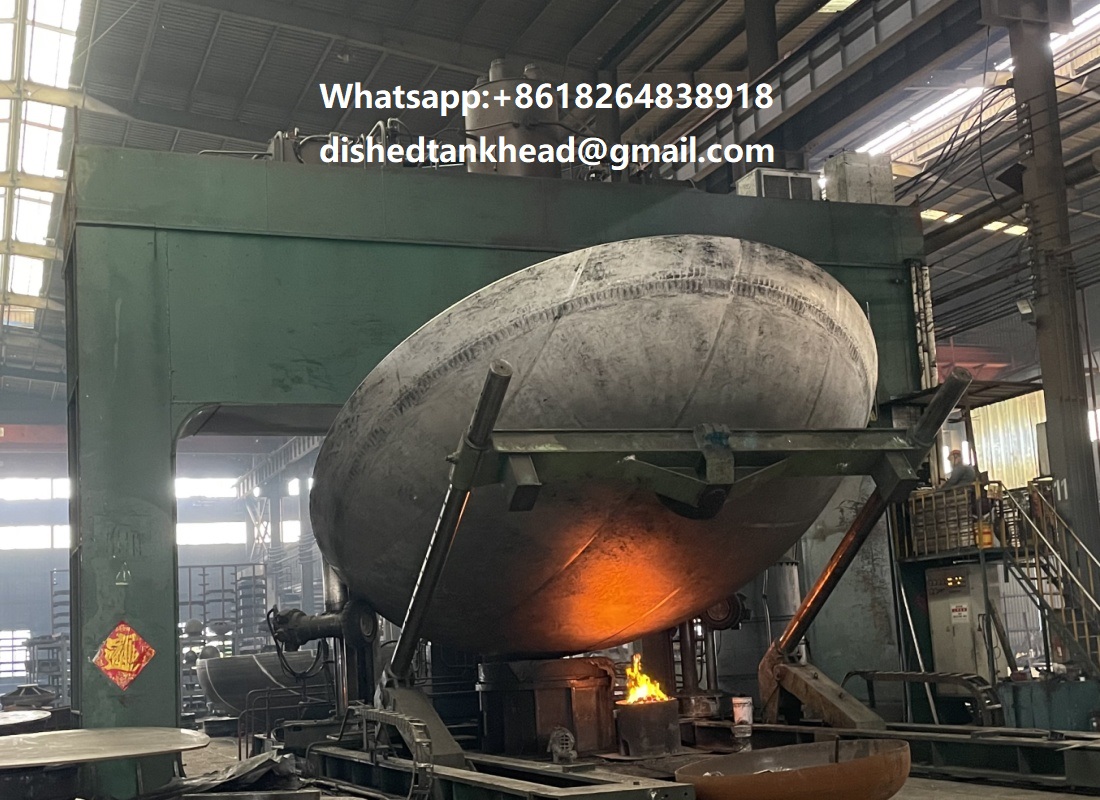

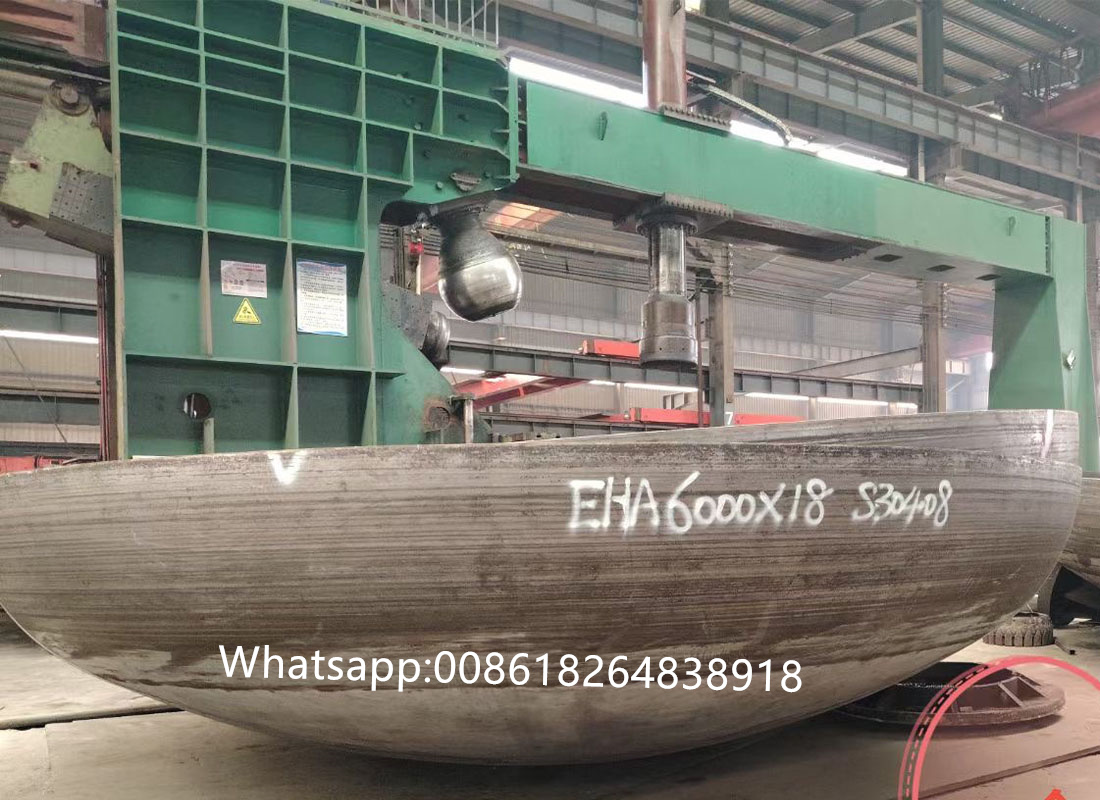

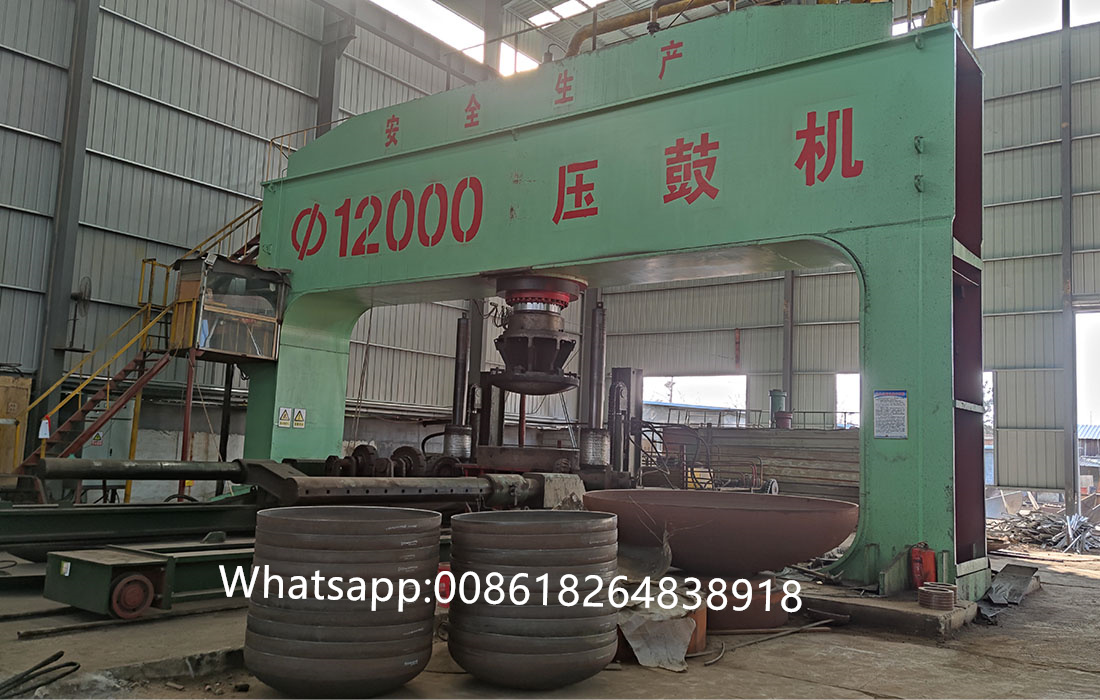

Technology | 1.Cold & Hot forming ; |
Test | 1. Liquid Penetrant Examination; |

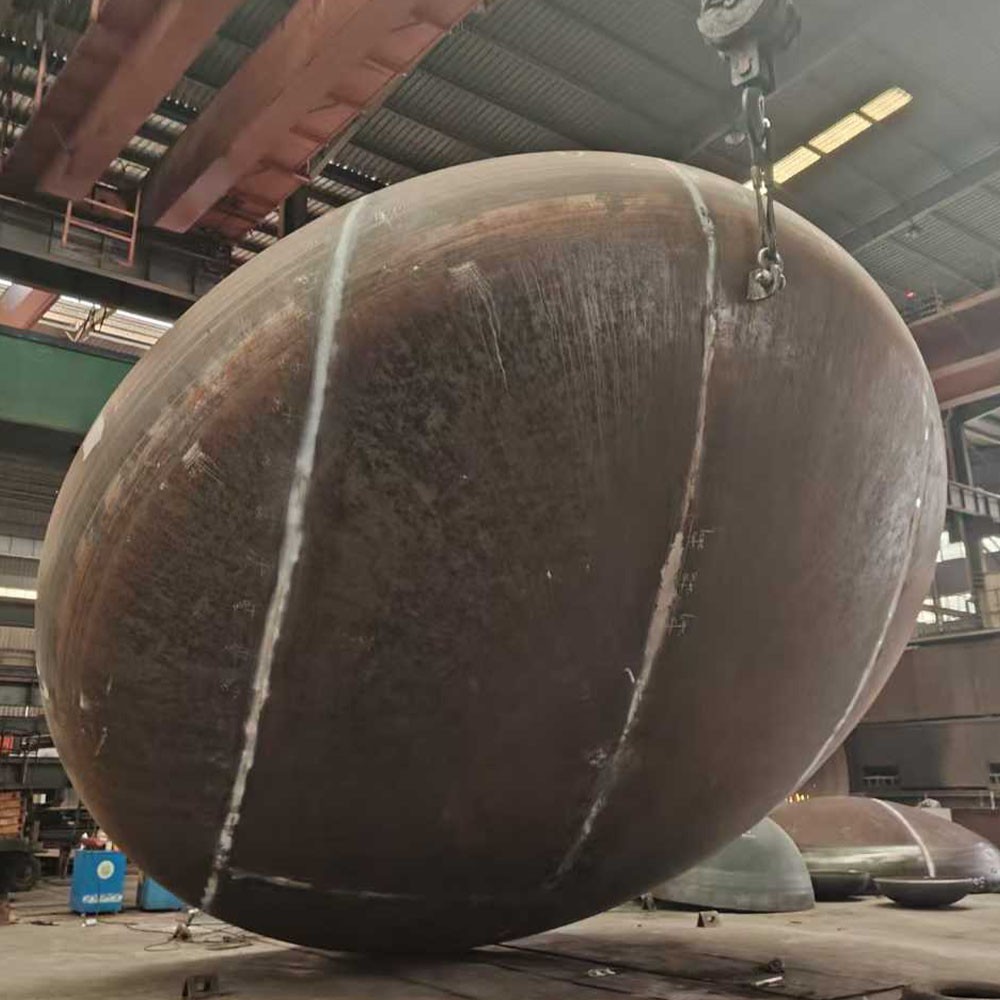

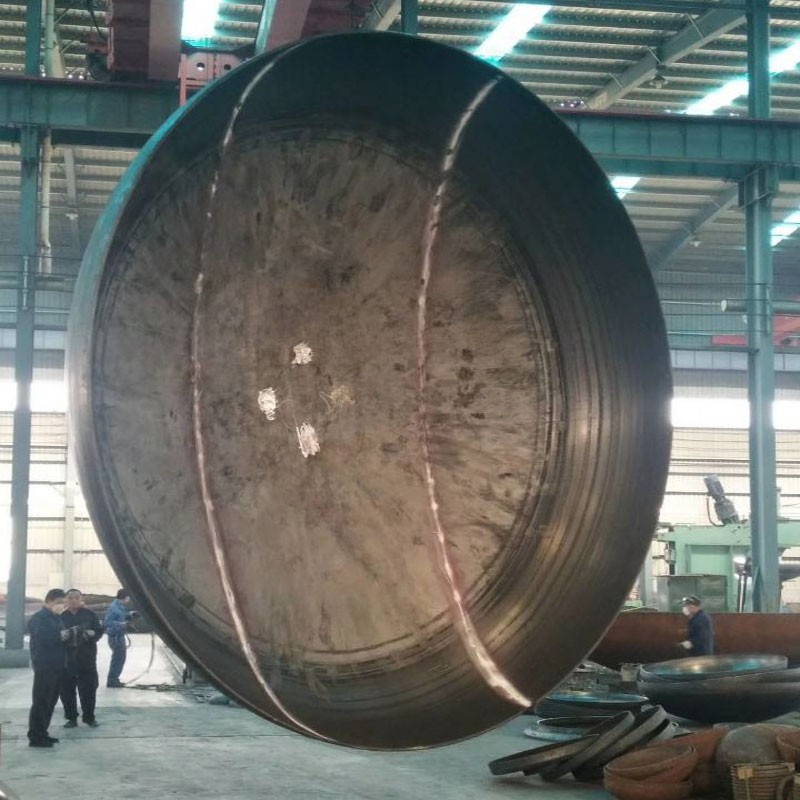

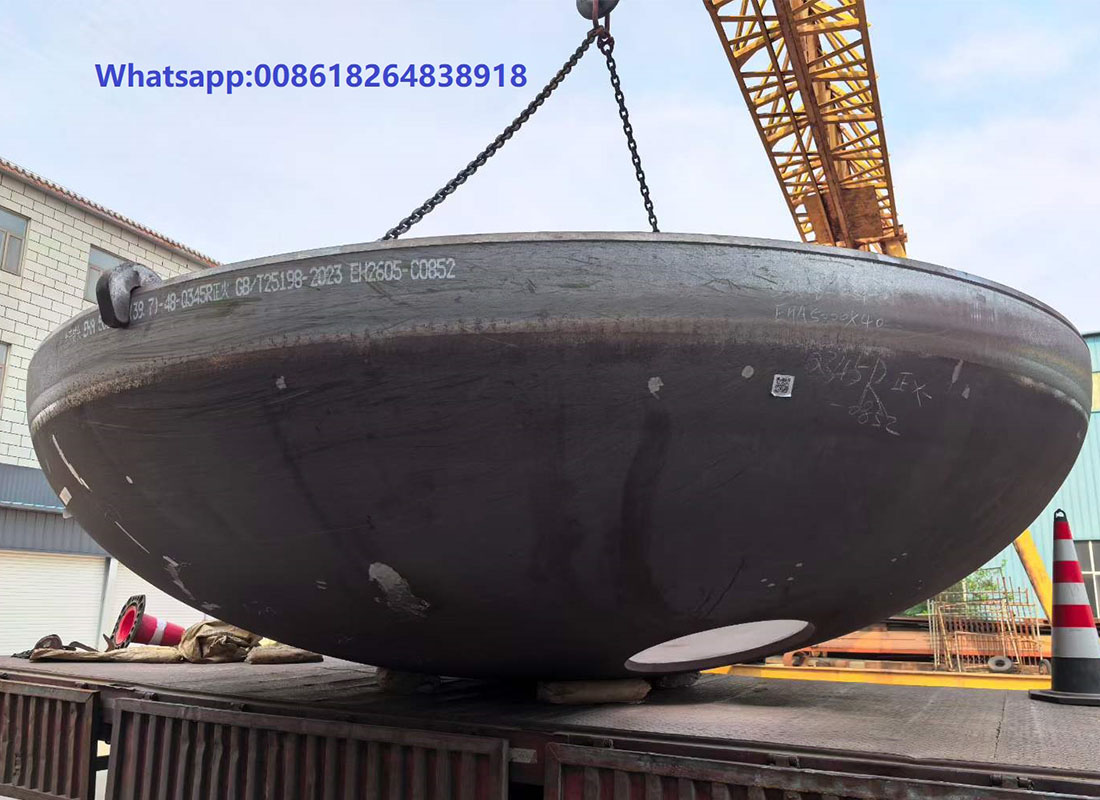

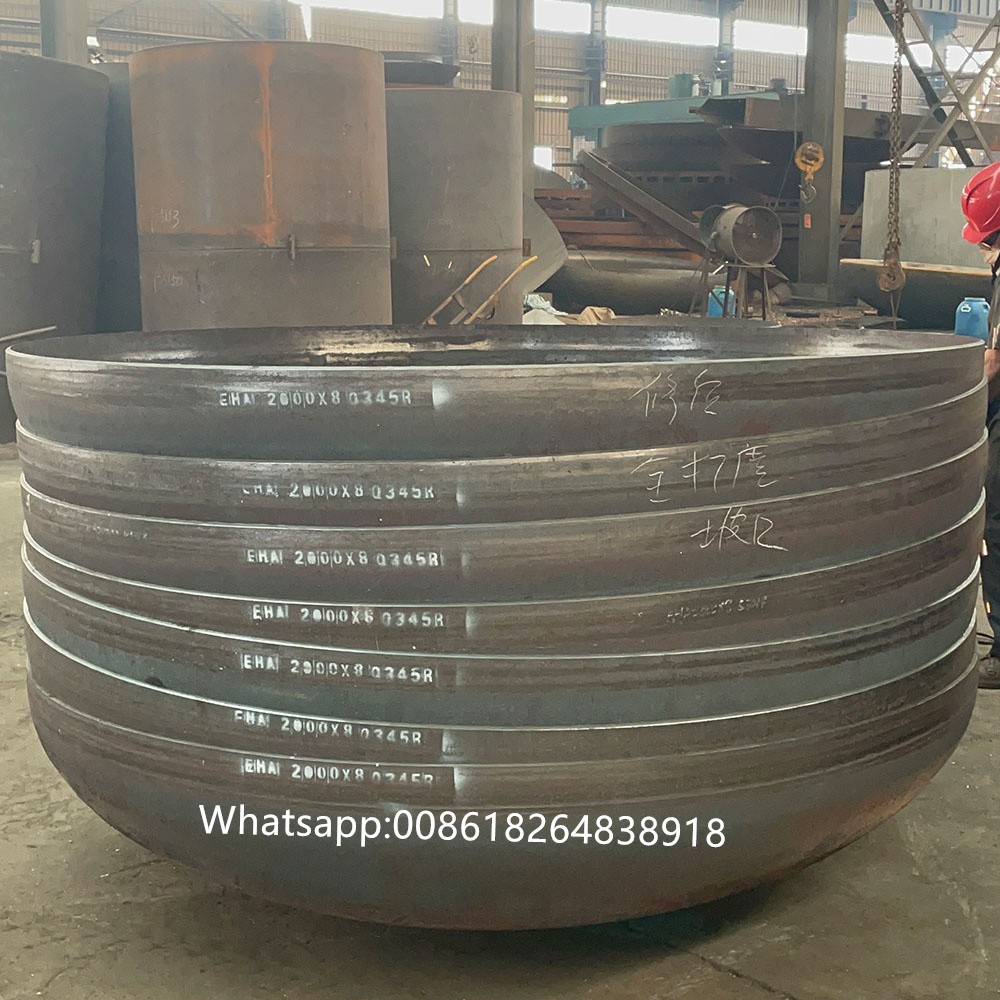

Elliptical Heads, also referred to as dished heads, are a crucial component in the design and construction of pressure tanks and vessels. These heads are designed to efficiently distribute pressure, offering both structural integrity and performance advantages in industrial applications. This document introduces two types of elliptical heads based on specific design parameters: 2:1 and 1.9:1 aspect ratios.
The 2:1 elliptical head, also known as a semi-elliptical head, is widely utilized due to its robust pressure-handling capabilities and balanced design. Its geometrical specifications are defined as follows:
Inside Diameter (Di): Derived as Do - 2 × t, where Do is the outside diameter and t is the wall thickness.
Crown Radius (CR): Calculated as 0.9 × Di. This larger radius allows for even pressure distribution.
Knuckle Radius (KR): Set as 0.17 × Di, ensuring smooth transitions between the dished and straight sections.
Straight Flange Height (SF): Determined according to the specific application or design specifications.
Dished Height (DH): Measured as 0.25 × Di, providing the depth required for structural integrity.
Total Height Inside (THi): A summation of SF and DH, representing the overall internal height.
The 2:1 elliptical head’s design provides a balanced combination of strength and material efficiency, making it a popular choice for a variety of tank applications.
The 1.9:1 elliptical head offers a slightly modified aspect ratio for applications requiring specialized performance. The design specifications are as follows:
Inside Diameter (Di): Defined as Da - 2 × t, where Da is the outside diameter and t is the wall thickness.
Crown Radius (CR): Determined as Di / 1.16, providing a tailored pressure distribution.
Knuckle Radius (KR): Calculated as Di / 5.39, offering a unique geometric profile.
Straight Flange Height (SF): Defined in accordance with the NF E 81-103 standard.
Dished Height (DH): Measured as Di / 3.8, ensuring appropriate depth for pressure resistance.
Total Height Inside (THi): Summed up as SF + DH, representing the internal height.
The 1.9:1 elliptical head is engineered for applications requiring enhanced customization while maintaining structural efficiency.
t: Wall thickness.
Do: Outside diameter.
Di: Inside diameter.
CR: Crown radius.
KR: Knuckle radius.
SF: Straight flange height.
DH: Dished height.
THi: Total height inside.
Elliptical heads with 2:1 and 1.9:1 ratios serve as vital components in tank manufacturing, catering to various industrial needs. The differences in their geometric parameters allow for flexibility in design and performance optimization, ensuring compatibility with diverse operational requirements.
Company information
Haipei Industry Elliptical Dished Head Elliptical Tank Heads ASME elliptical 2:1 flanged and dished heads are used in the construction of tanks and for unfired pressure vessels, such as liquefied petroleum gas and air receivers. elliptical dished head for a pressure vessel LPG tank. P355NH Elliptical Heads, elliptical head, elliptical head price, boiler elliptical end cap, Carcasa del intercambiador de calor, Cabezal del recipiente a presión 2:1 Elliptical Flanged & Dished Tank Head Elliptical Dished Heads Haipei Industry is the leading manufacturer and supplier for the elliptical heads, elliptical dished heads, tank heads with free custom services. Elliptical Head Dished Head Pressure Vessel Tank Heads Tank Bottom End Good Quality Cold Forged Elliptical Dished Head for Tank Carbon and stainless steel 2:1 ASME semi-elliptical tank heads available in stock.Semi Elliptical Tank Heads · Industrial Ellipsoidal Heads · Hot Pressed Heads · Carbon Steel Semi Ellipsoidal Heads elliptical head is defined as a component in pressure vessels characterized by its ellipsoidal shape Buy elliptical dish head at factory price from China, ASME Certified Elliptical Dish Head
Haipei industry Elliptical head is a type of pressure vessel head consisting of a curved surface with a shape that resembles an ellipse or a squashed circle. Cold Pressing Elliptical Dished Ellipsoidal Tank Heads Carbon Steel Dished Elliptical Tank Head Semi Tank Elliptical Bottom Dish Ends Elliptical Dome Head For Tanks Cold Formed Tank Heads Elliptical Dished Head Boiler Used Elliptical Dished Tank Heads 2:1 Elliptical Flanged and Dished Tank Head Standard Ellipsoidal Head For Vessel Dished Head ASME Pressure Vessel Dished Heads Elliptical Tank Head Forged Ellipsoidal Pressure Tank Cover For Oil And Gas Elliptical Head Pipe End Cap For Pressure Vessel Tank Bottom We specialize in ASME 2:1 one piece construction elliptical heads and weld on caps. We also manufacture dished only, hemispherical, flanged only 2:1 elliptical tank head is fabricated to have a specific shape instead of a particular dish or knuckle radius. With its reduced metal thickness, 2:1 elliptical tank heads offer an economic solution for medium-pressure tanks Ellipsoidal head according to DIN 28013 Dished discs. Elliptical bottoms Compare tank head types: 2:1 elliptical, ASME F&D, and flat heads. Learn benefits, pressure ratings, and cost differences for your tank application.Ellipsoidal dished ends are characterised by their elliptical shape, providing excellent strength and resistance to internal pressure.
Our Services
We offer our products in the following materials:
Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)
Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)
Copper: O-Temper Material (Forming Only)
Aluminum: O-Temper Material (Forming Only)
Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

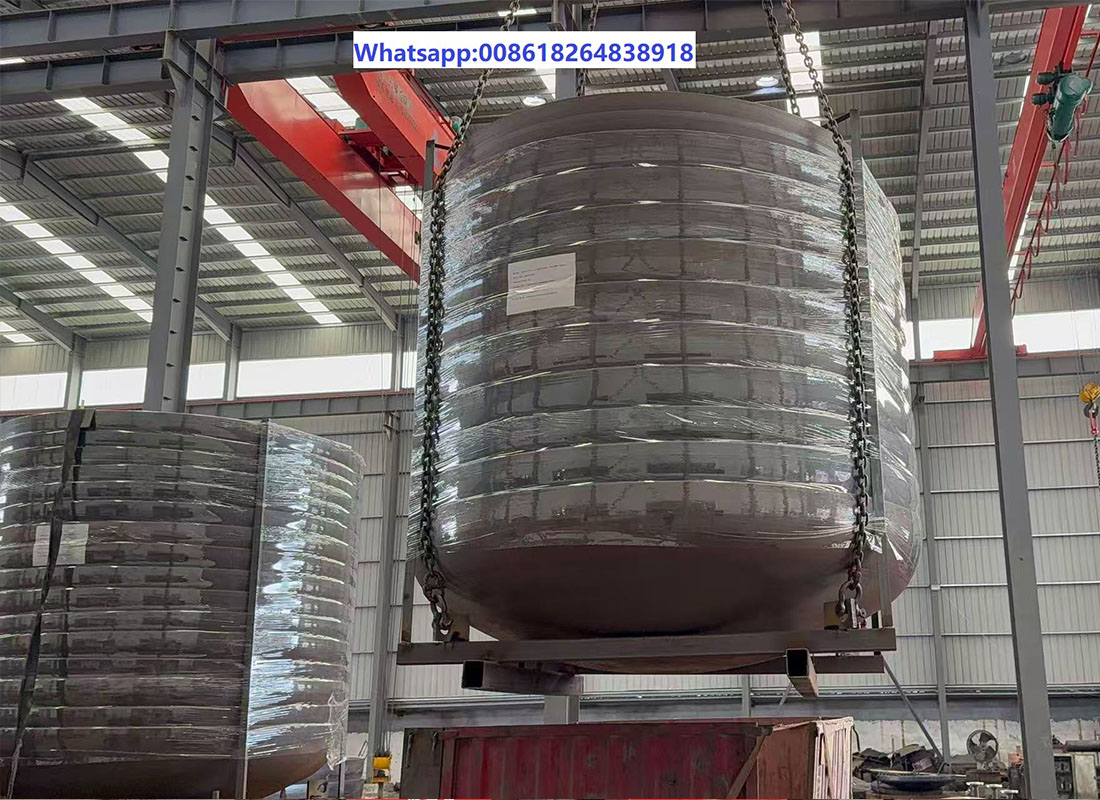

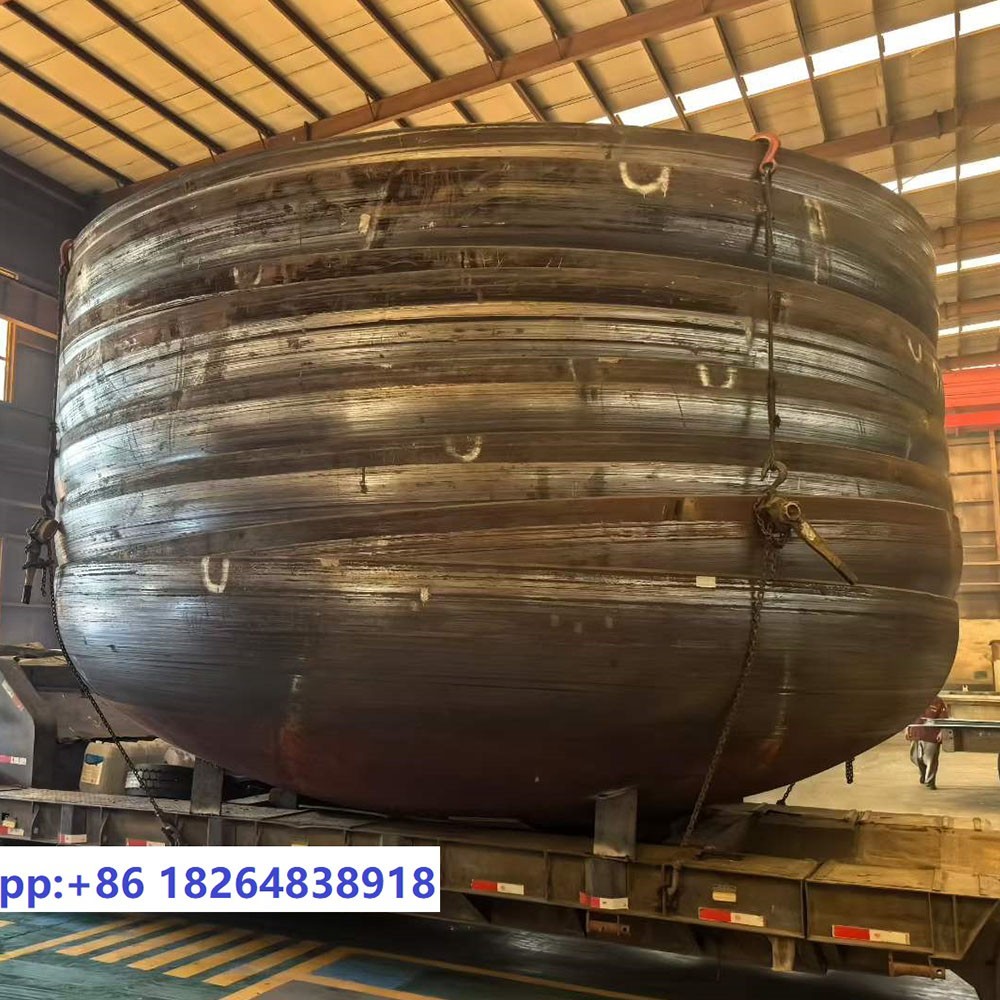

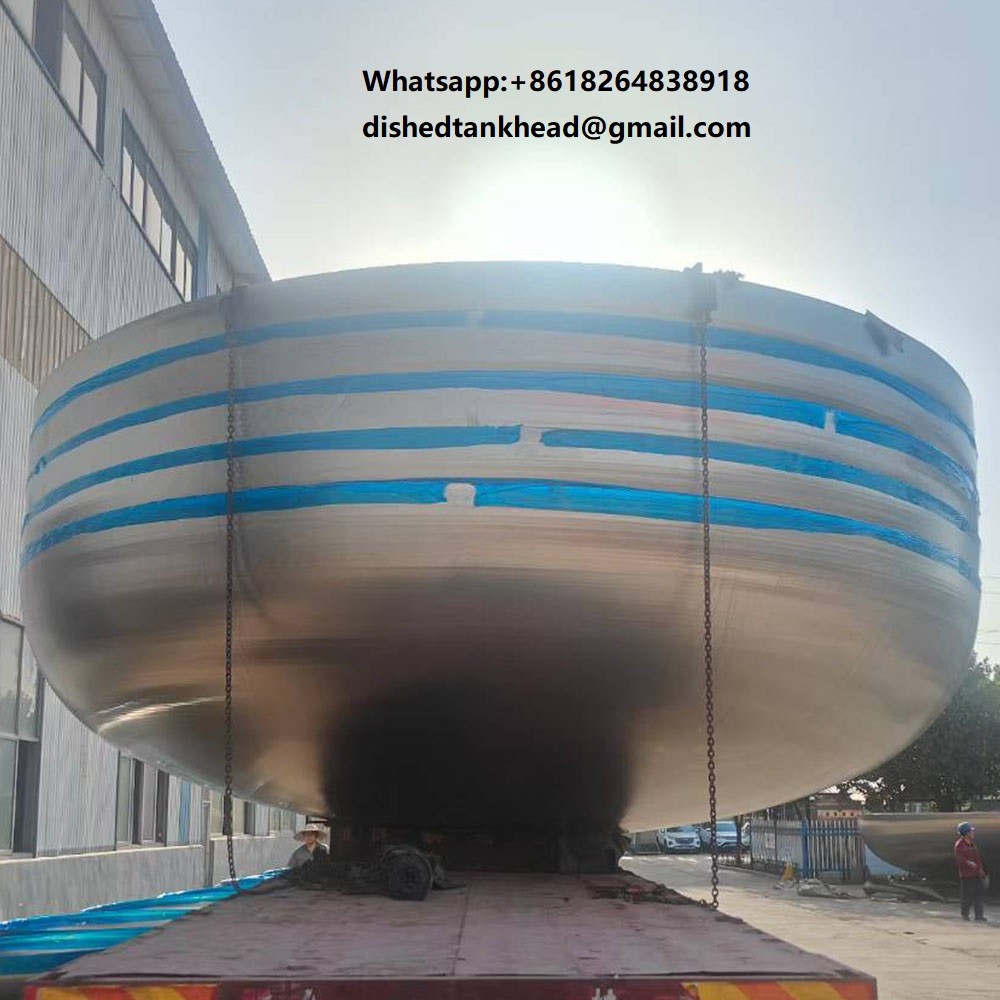

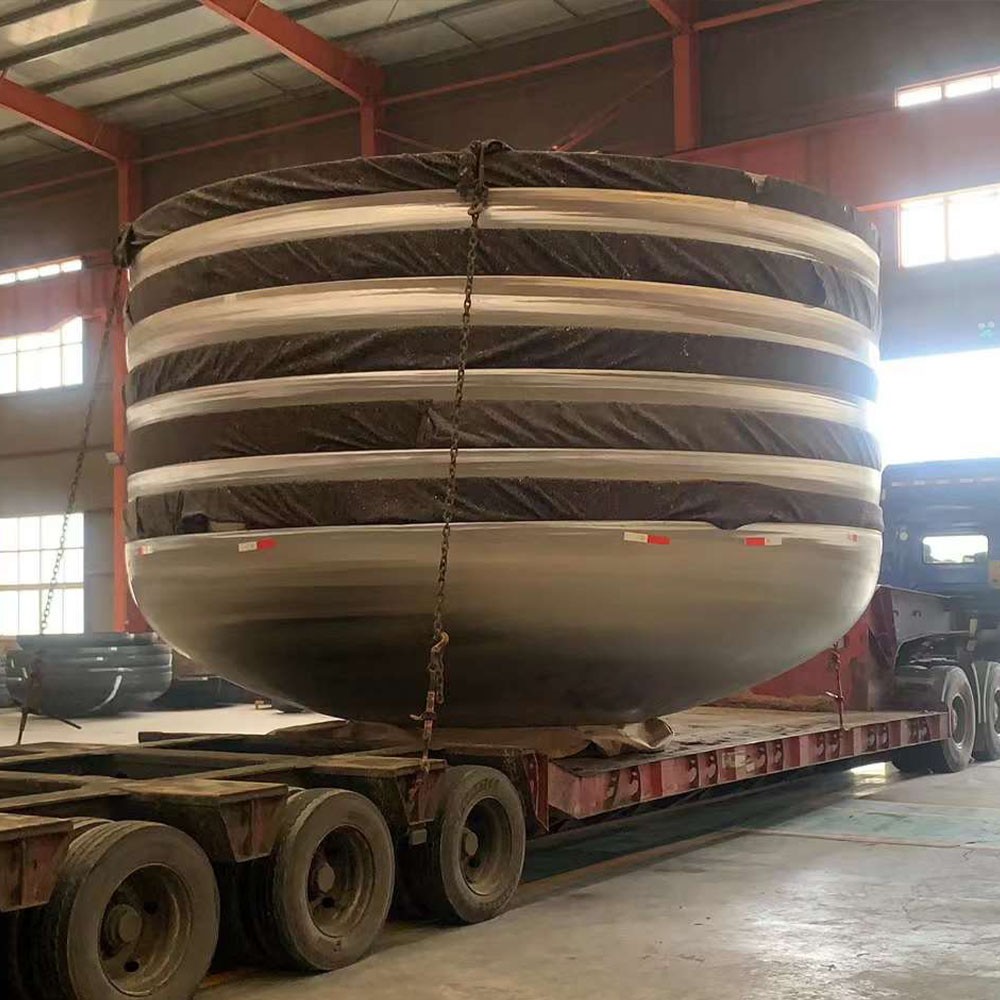

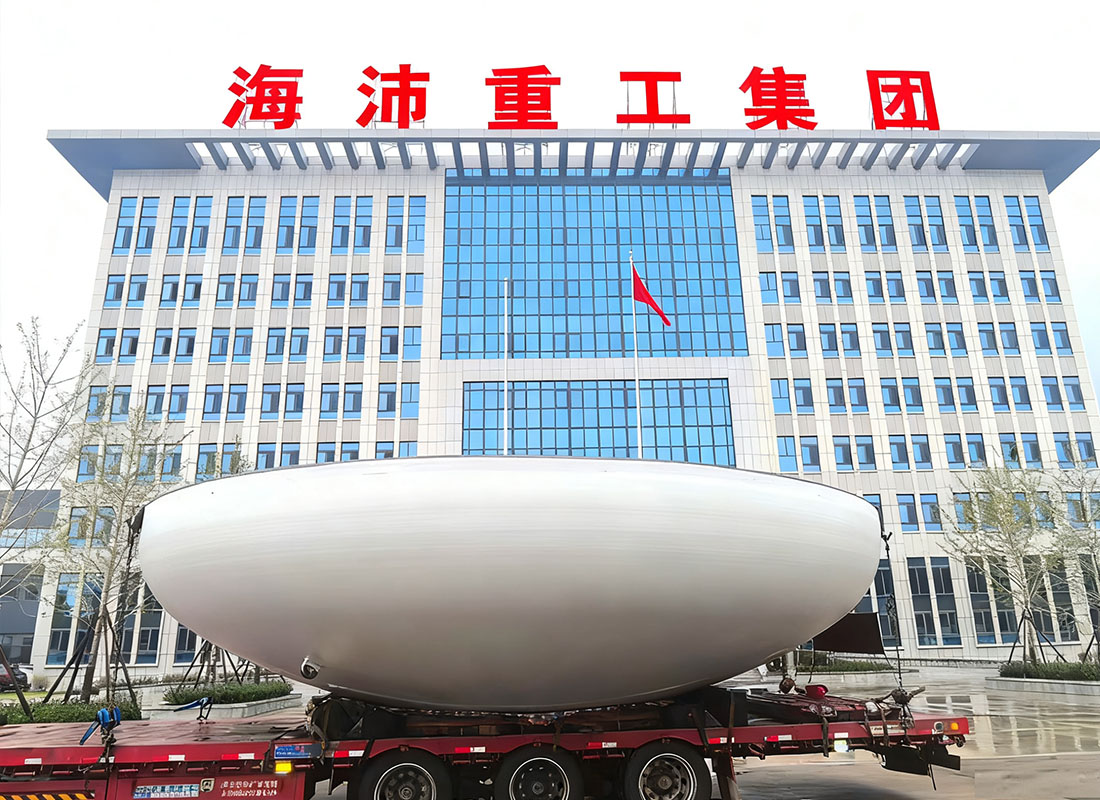

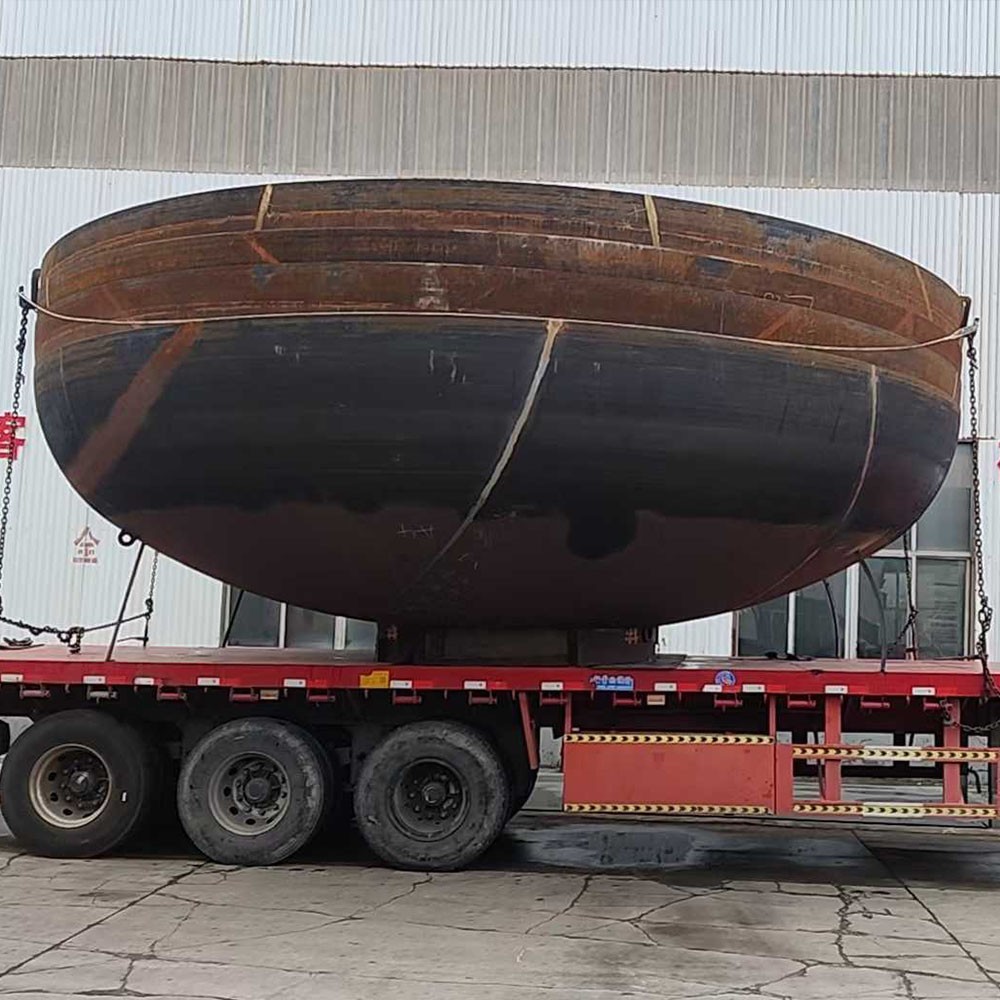

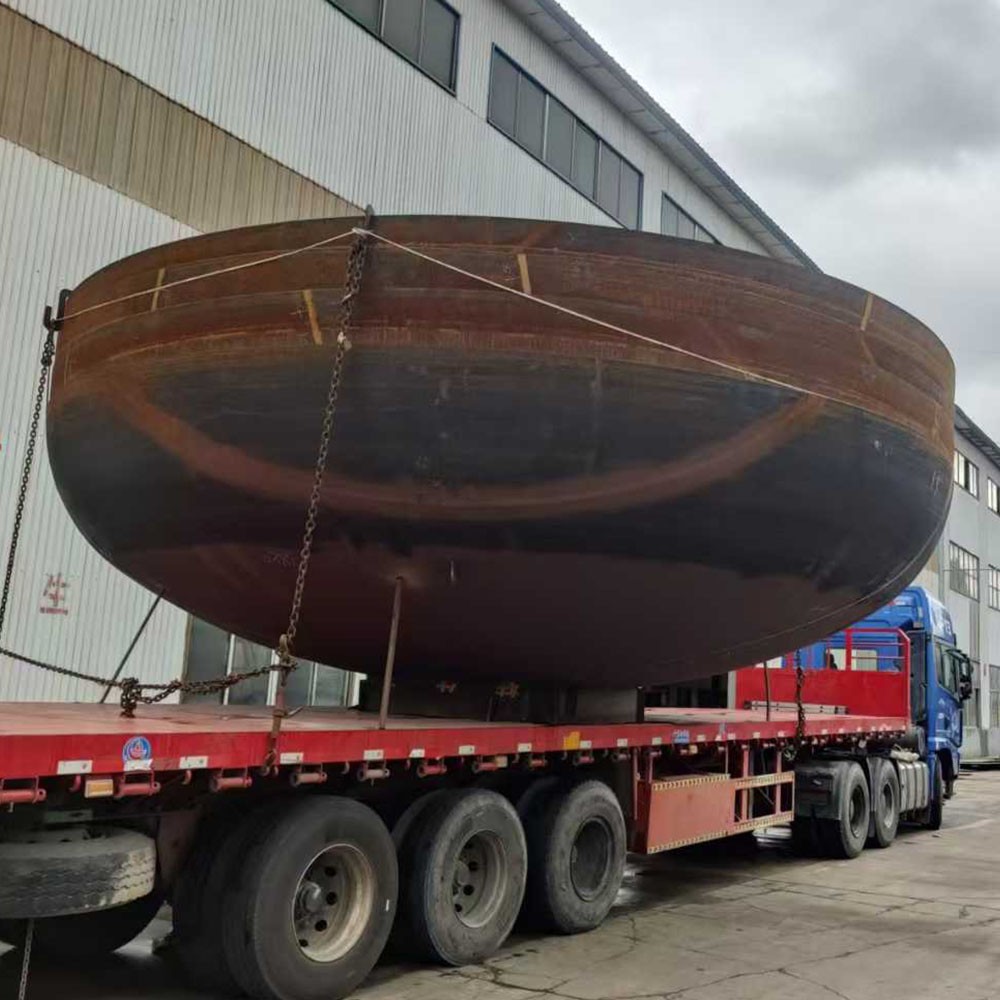

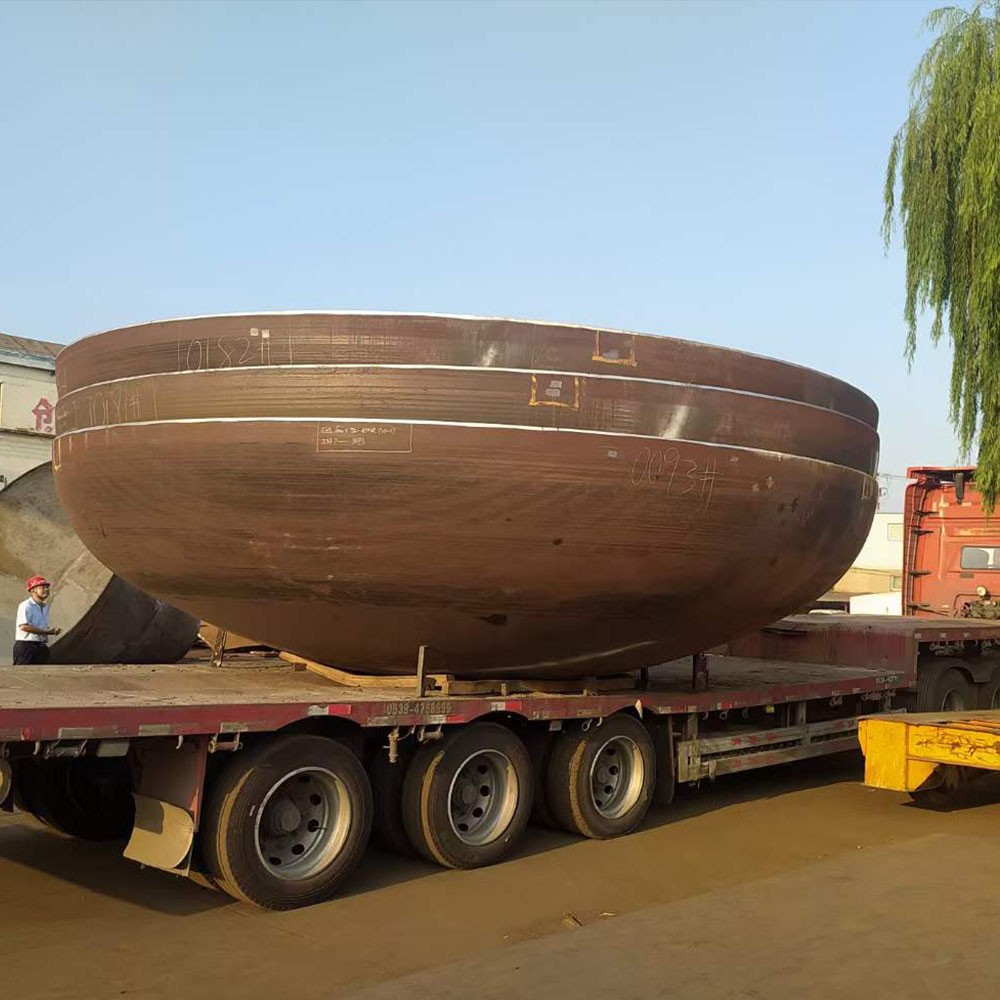

Packaging & Shipping
Haipei Industry Elliptical Dished Head Elliptical Tank Heads ASME

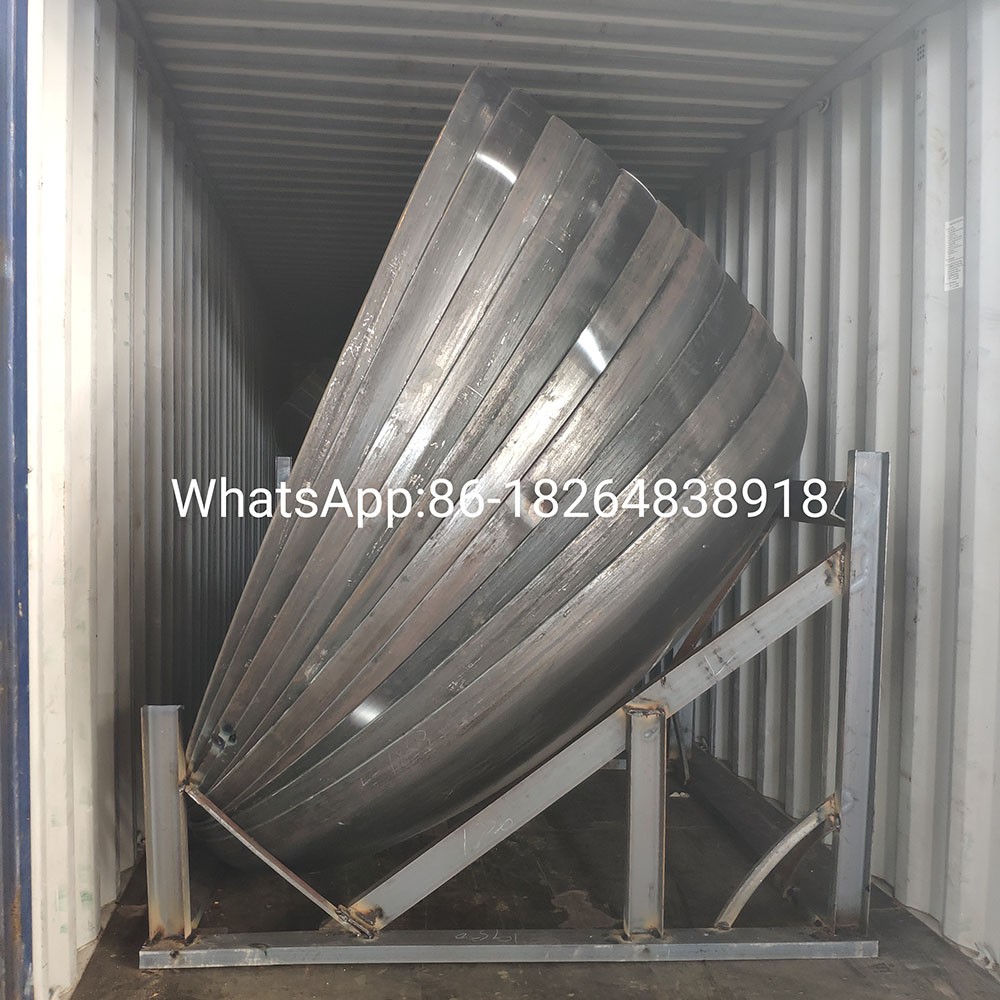

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment
FAQ
Q: What’s the information should I provide when inquiry?
A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
Q: what are surface treatment of the product?
A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
Q: How do you ensure the quality of products?
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
Q: Can you help us matching related products?
A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
