Dished Head Elliptical Dished End

Product Introduction: Dished Heads – Essential Components for Pressure Vessels, Tanks, and Boilers

Dished heads are integral components of pressure vessels, tanks, and boilers. These precision-engineered parts are designed to efficiently manage internal pressure and ensure structural integrity in a wide variety of industrial applications. Available in a variety of shapes, including elliptical, torispherical, hemispherical, and flat, each dished head is tailored to meet specific requirements based on the pressure and environmental conditions.

Our collection of dished heads includes several options, each offering unique features to support both high-pressure and low-pressure applications. Crafted from high-quality carbon steel or stainless steel, all of our dished heads are ASME-compliant, ensuring superior safety and performance.

Key Features of Dished Heads:

• Materials: Available in carbon steel or stainless steel, offering durability and resistance to corrosion.

• Customization: Available in custom sizes to meet the specific needs of your project.

• ASME-Compliant: Manufactured to ASME standards for reliable performance and safety.

• Versatility: Ideal for pressure vessels, tanks, and boilers across industries such as chemical processing, power generation, and more.

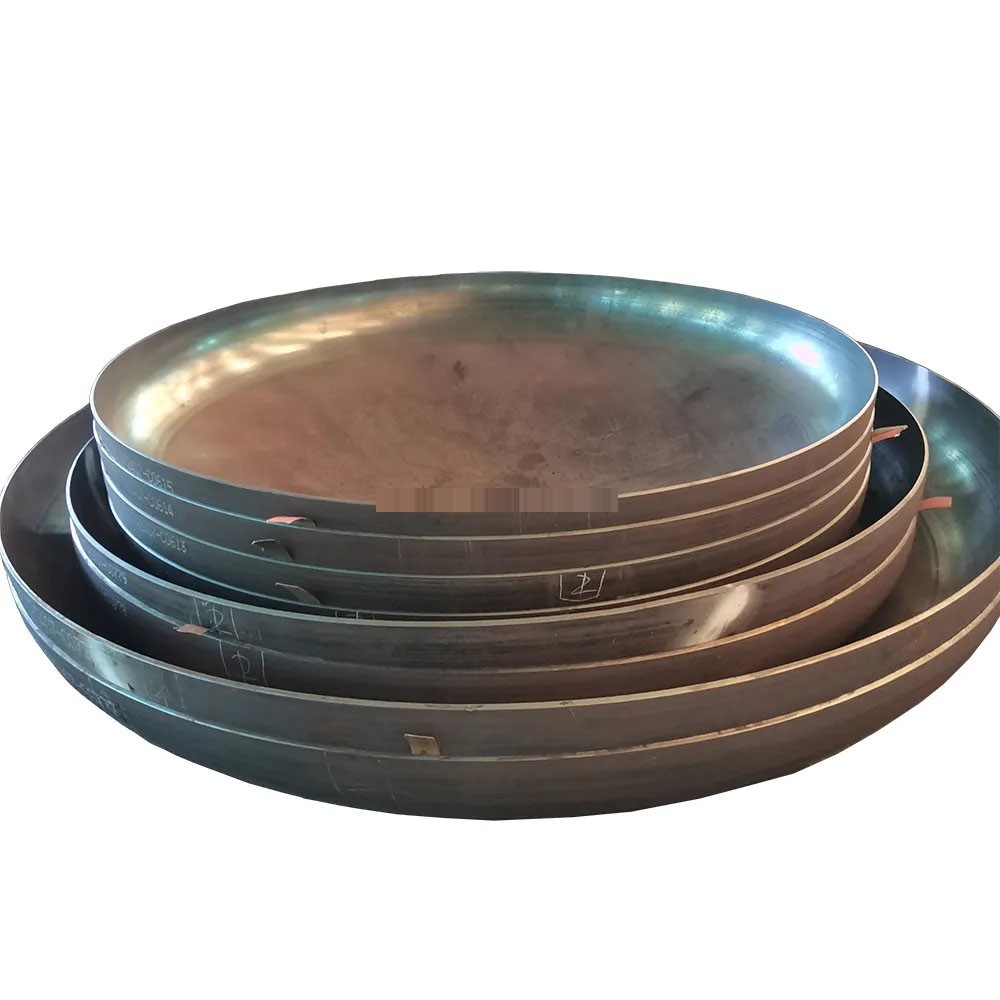

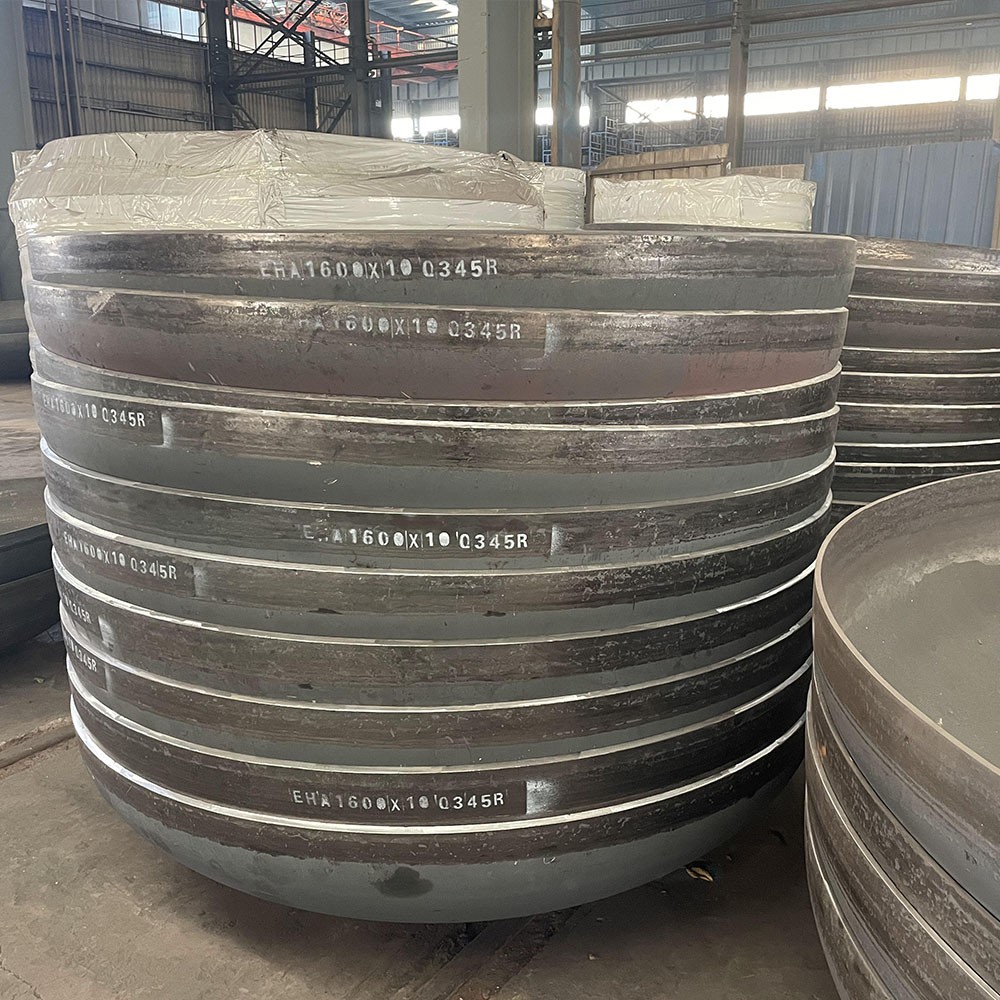

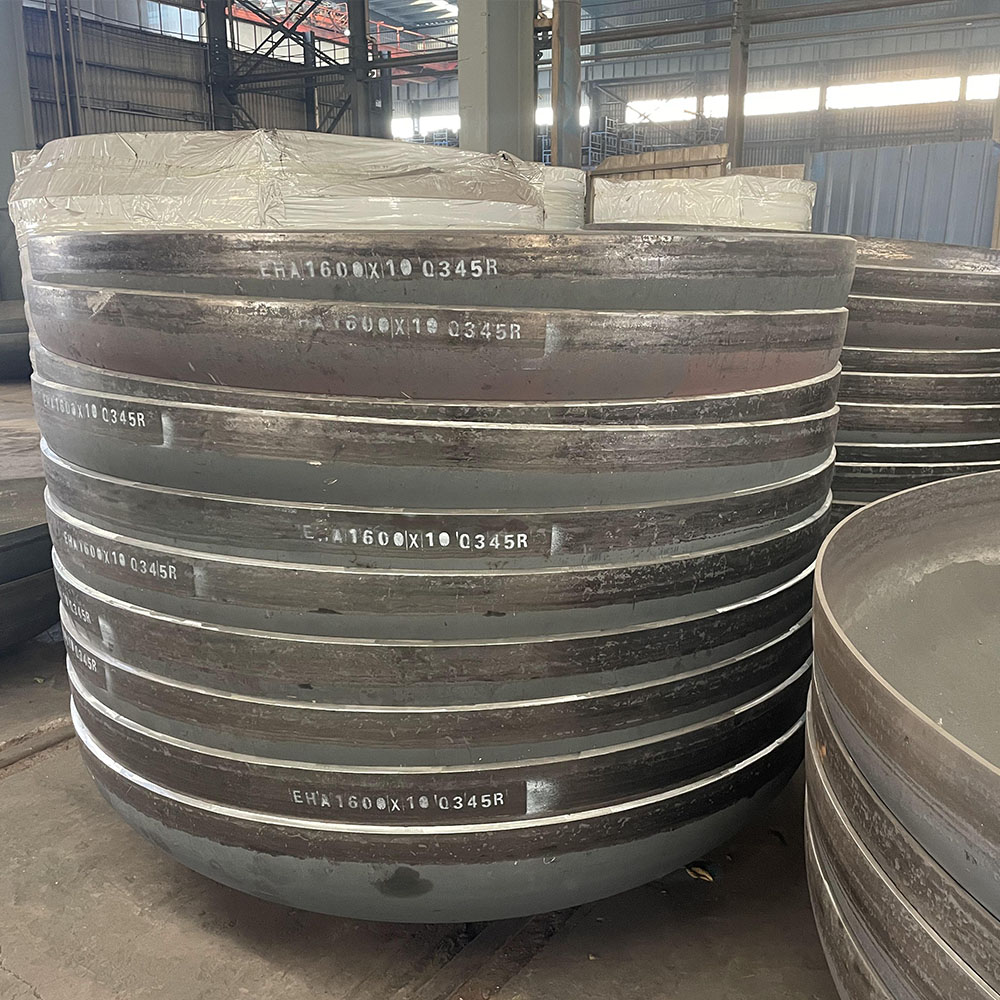

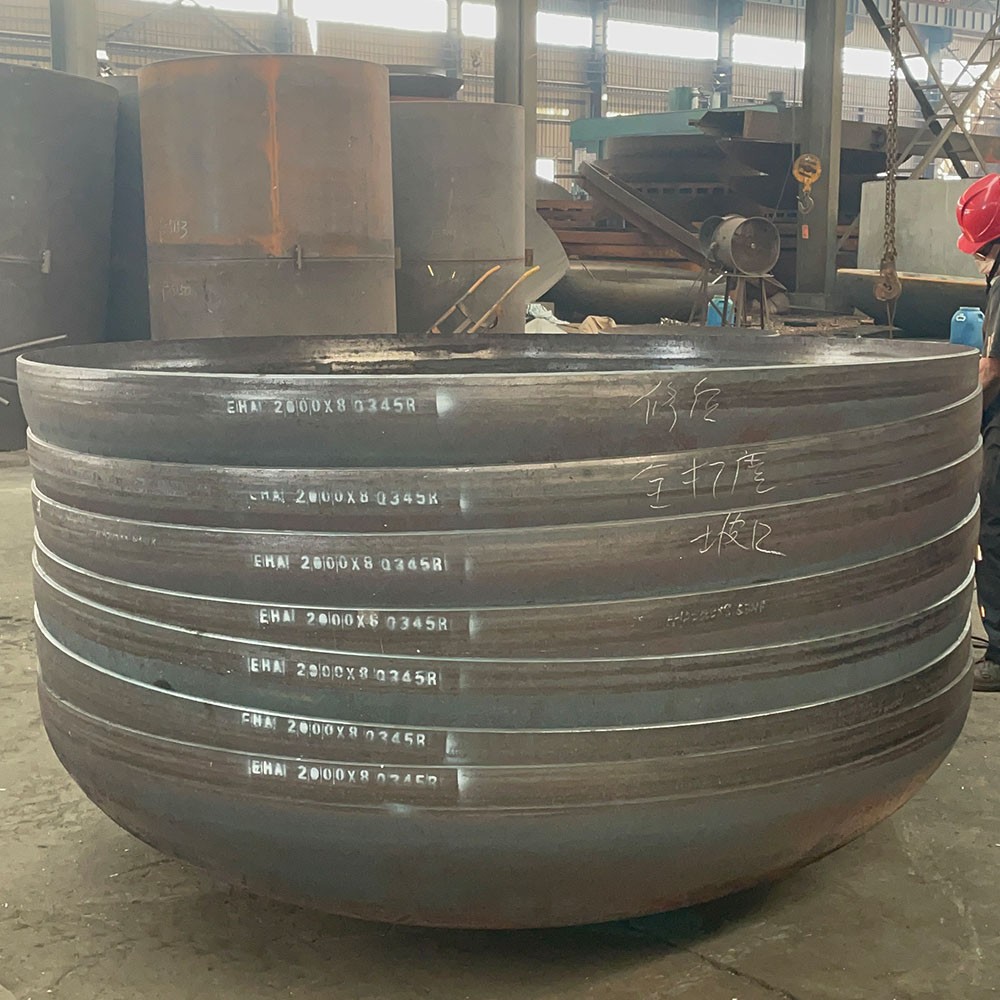

Elliptical Dished Head – A Balanced Solution for Pressure Management

The Elliptical Dished Head is designed to provide a balanced solution for distributing internal pressure evenly, while minimizing stress concentrations. The elliptical shape is especially suited for applications requiring efficient pressure handling and enhanced durability. Ideal for high-performance applications in industries like petrochemical and power generation, the elliptical dished head offers a long-lasting, reliable solution.

Features:

• Made from carbon steel or stainless steel

• Available in custom sizes

• ASME-compliant for safety and performance

Torispherical Dished Head – Precision for Pressure Vessels

The Torispherical Dished Head combines a toroidal and spherical shape, effectively distributing pressure and reducing stress in high-pressure environments. This design is widely used in industries such as chemical processing, power generation, and more.

Features:

• Made from high-grade carbon steel or stainless steel

• Available in custom sizes for various industries

• ASME-compliant for reliable performance

Flat Dished & Flanged Head – A Reliable Option for Moderate Pressure

Our Flat Dished & Flanged Head is engineered for use in pressure vessels and boilers, offering a flat surface with flanged edges for added strength and sealing. Perfect for applications with moderate internal pressure, these heads are versatile and cost-effective.

Features:

• Crafted from premium carbon steel or stainless steel

• Available in custom sizes

• ASME-compliant for durability and safety

Product Table

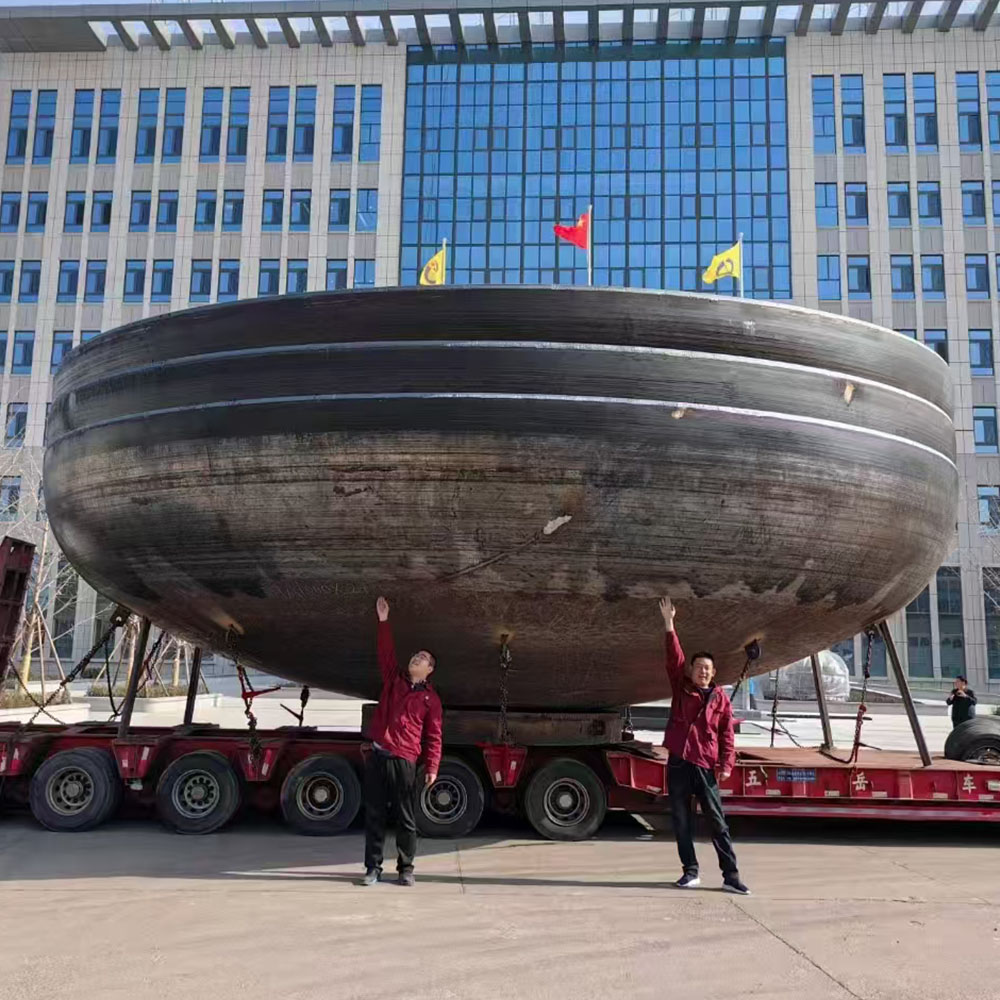

Hemispherical Head – Maximum Strength for Pressure Management

Our Hemispherical Heads are designed to withstand extremely high pressures. The hemispherical shape provides excellent pressure distribution, making them ideal for applications in industries where reliability and strength are critical.

Features:

• Constructed from carbon steel or stainless steel

• Custom sizes available

• ASME-compliant for optimal safety

Crown and Petals (Segmental) Dished Head – Innovative and Flexible Design

The Crown and Petals (Segmental) Dished Head offers a unique segmental design that enhances both strength and pressure distribution. This innovative design is ideal for applications that require flexibility combined with structural integrity.

Features:

• Available in carbon steel or stainless steel

• Custom sizes to meet specific needs

• ASME-compliant for reliability and safety

Whether you need a flat, elliptical, hemispherical, or custom-designed dished head, we provide a wide range of options to meet your specific industrial needs. Designed for superior strength, reliability, and pressure management, our dished heads are engineered to enhance the performance of pressure vessels, tanks, and boilers.

Explore our range today to discover the perfect solution for your system’s needs.

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

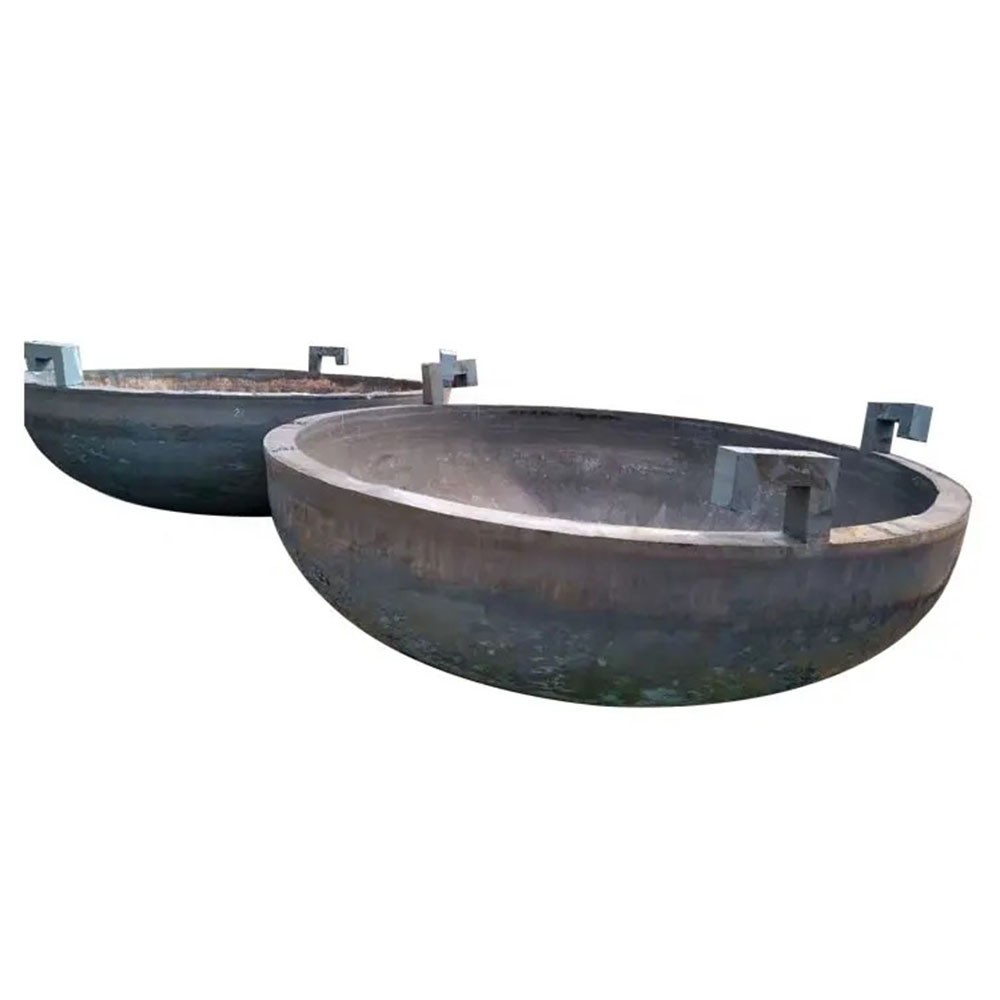

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
