Specification:

Tank heads are a critical component in various industries, including pharmaceuticals, chemical processing, and food and beverage storage. At Haipei Industry, we specialize in fabricating custom tank and pressure vessel heads, ensuring our clients receive high-quality products tailored to their specific applications. Our expertise and commitment to precision manufacturing make us a trusted partner in the industry.

Our Range of Tank Heads

Haipei Industry offers a diverse selection of tank heads to accommodate different industrial needs. Our experienced team works closely with customers to develop custom solutions that meet their exact specifications. Below are the types of tank heads we fabricate:

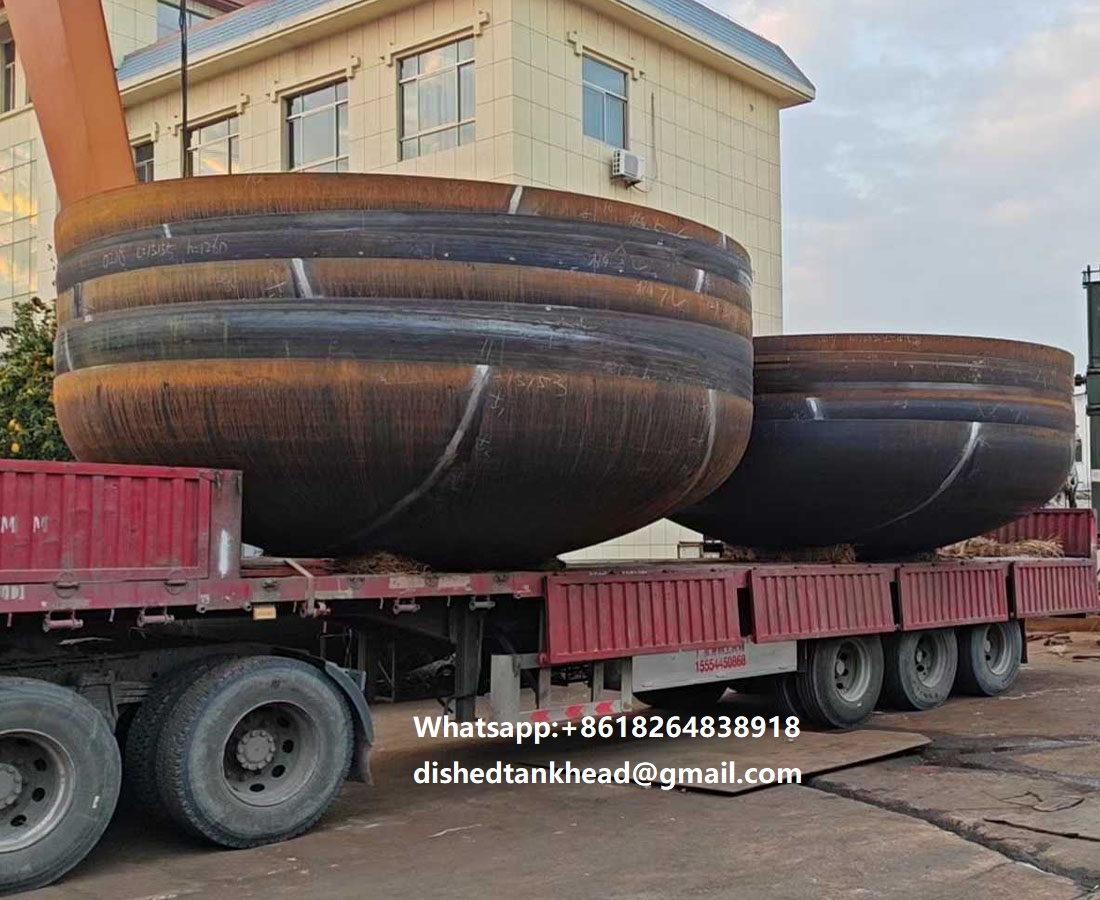

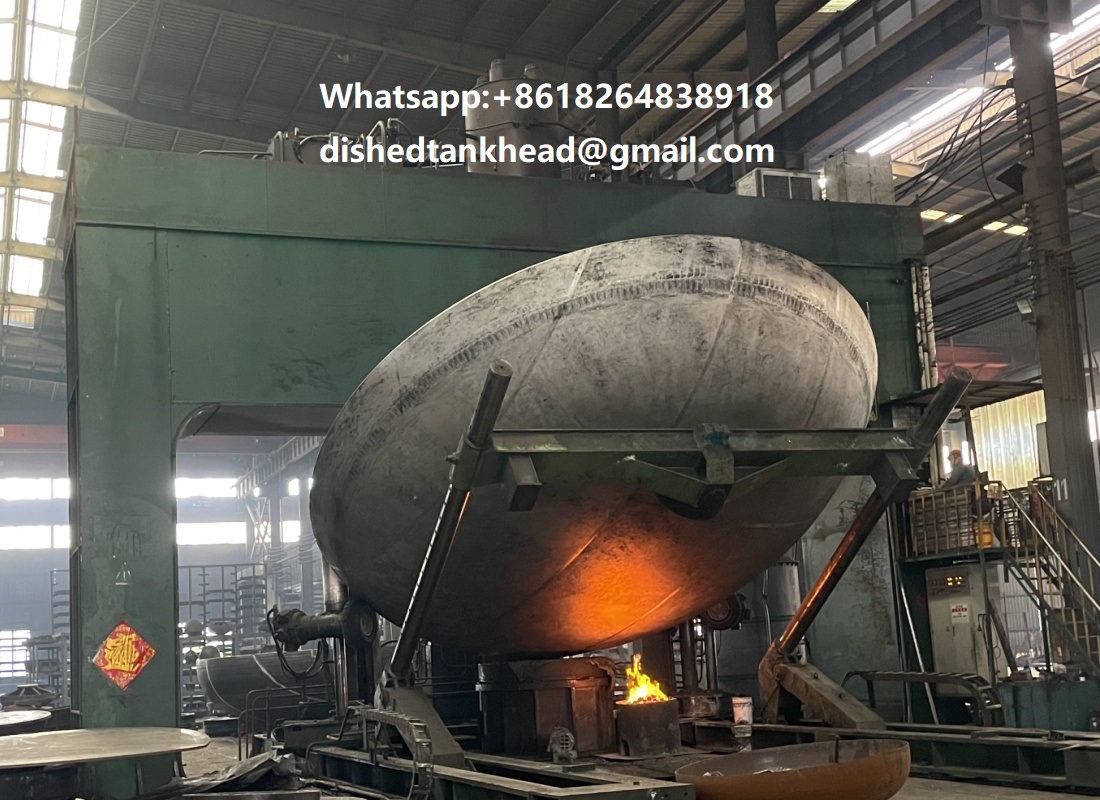

2:1 Elliptical Tank Heads

These tank heads are commonly used in pressure vessels due to their efficient design, which optimizes metal thickness while ensuring structural integrity. With a depth equivalent to one-quarter of the vessel’s internal diameter, they provide a cost-effective option for medium-pressure tanks. Available materials include:

• Carbon steel

• Stainless steel

• Clad

• Various ferrous and non-ferrous metals and alloys

90/17 Style 2:1 Elliptical Tank Heads

This type closely resembles the 2:1 elliptical design and adheres to ASME Section VIII Div. 1 UG 32 specifications.

ASME 80/10 Tank Heads

Engineered in accordance with ASME pressure vessel codes, these heads feature an internal dish radius equal to 80% of the diameter and a knuckle radius of 10%, ensuring compliance with safety regulations.

ASME Flanged & Dished (F&D) Tank Heads

These heads are designed to meet ASME standards and include:

• An internal dish radius equal to 100% of the diameter

• A knuckle radius of at least 6% of the diameter

They are ideal for applications where moderate pressure is required, and overall height considerations are crucial.

Conical Tank Heads

Commonly used in processing equipment such as evaporators, spray driers, crystallizers, and settling tanks, conical heads facilitate the collection and discharge of solids, making them ideal for specific industrial processes.

Dished-Only Tank Heads

Suitable for pressure vessels, reinforcement pads, vacuum chambers, domed roofs, and liners, these heads are available in:

• Carbon steel

• Stainless steel

• Clad

• Aluminum

• Other ferrous and non-ferrous alloys

Flanged-Only Tank Heads

These tank heads are widely used in liquid storage, particularly in the gas and petroleum sectors. While often applied in non-code applications, they can also be fabricated to meet ASME compliance under specific conditions.

Flared & Dished Tank Heads

Designed for industrial non-code uses such as bolt-on covers, hinged lids, and tank ends, these heads can be manufactured from:

• Carbon steel

• Stainless steel

• Aluminum

• Various ferrous and non-ferrous alloys

Reversed-Flanged & Dished Tank Heads

Featuring a concave dish and a knuckle radius, these tank heads are well-suited for vessels positioned on flat surfaces, such as steel tanks placed on concrete foundations. They provide structural reinforcement while serving as a load-bearing surface.

Shallow Tank Heads

With a radius exceeding the tank’s outer diameter, shallow heads are primarily used for horizontal storage tanks. However, they are not permitted in pressure-code applications.

Standard Flanged & Dished Tank Heads

Commonly found in storage tanks where ASME certification is not required, these heads feature:

• An internal dish radius equal to 100% of the diameter

• A knuckle radius of at least three times the material thickness

Toriconical Tank Heads

Unlike standard conical heads, toriconical heads incorporate a knuckle radius at the larger end, helping to minimize localized stress concentration. These are often used in hoppers and towers.

Why Choose Haipei Industry?

At Haipei Industry, we are committed to delivering exceptional quality, customization, and customer satisfaction. Our tank heads are manufactured with precision, meeting the highest industry standards. Whether you require a standard model or a custom-designed solution, our team is ready to assist you in finding the ideal tank head for your application.

For more details, reach out to us today and let Haipei Industry provide you with top-tier tank head solutions tailored to your needs.

Feature:

1.Hard Materials

Temperature and pressure resistance, corrosion resistance.
2.Strong resistance to pressure
Made of high-quality steel, strong pressure resistance.
3.Long use time
Not easy to rust, long use time, suitable for a variety of working environments.
4.Stable chassis
Standard thickness, good processing performance.
5.Various specifications
Various types of tank heads can be customized according to customer requirements.

Company information

Haipei industry Tank heads are the end caps on cylindrically-shaped pressure vessels. They can also be used on distillation towers, reactors, drive cylinders, storage tanks dished-only ends for pressure vessels and storage tanks Available in carbon and stainless steel. Fast supply  approved Dished Ends manufacturer in India, buy all types of Stainless Steel Dish Ends, DIN 28011 Torispherical Heads, Carbon Steel Ellipsoidal Dish End ASME and Custom Tank Heads precise dished, torispherical, and conical heads in pressure vessel production.Haipei Industry manufactures both hot and cold formed tank heads to ASME code & standard shapes in carbon and stainless steel, as well as aluminum. Custom Tank & Vessel Heads ASME Flanged & Dished Tank Heads Commercial Metal Forming manufactures ASME flanged and dished tank heads for pressure vessels and industrial applications ASME-certified industrial steel tank head manufacturer Forming with precision Torispherical heads. Torispherical heads Semi ellipsoidal heads Ellipsoidal heads. Ellipsoidal heads Hemispherical heads Torispherical heads, ellipsoidal heads, dished bottoms for tanks and further specially formed parts for vessels.

Dished Heads Supply & Formed Ends Dished heads (also called dish ends, tank heads, or vessel ends) are curved metal closures welded onto cylindrical tanks, boilers, and pressure vessels to provide structural integrity and pressure containment We are a professional manufacturer of high-quality Dished Heads. Our Custom Dished Heads and Dished Ends are precision-engineered to meet ASME standards Buy low priced Dished Tank Heads from Dished Tank Heads factory, We provide good quality Dished Tank Heads from China. dished heads are produced through cold forming process, with materials provided by the customer or our certified raw material.Torispherical Conical Tank Caps Dish Ends Elliptical Head Pressure Vessel Heads. Find high quality torispherical heads, dished heads, tank heads online, we can offer reliable quality, best services and worldwide shipping for you. Torispherical Head | Dished Heads - Elliptical Tank Head Tank Heads. Customized to ensure structural integrity and ASME compliance. Tailored to your vessel's pressure, size, and cleanability needs We manufacture top quality dished ends for tanks, boilers, industrial equipment, etc. We specialize in polishing dished ends.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

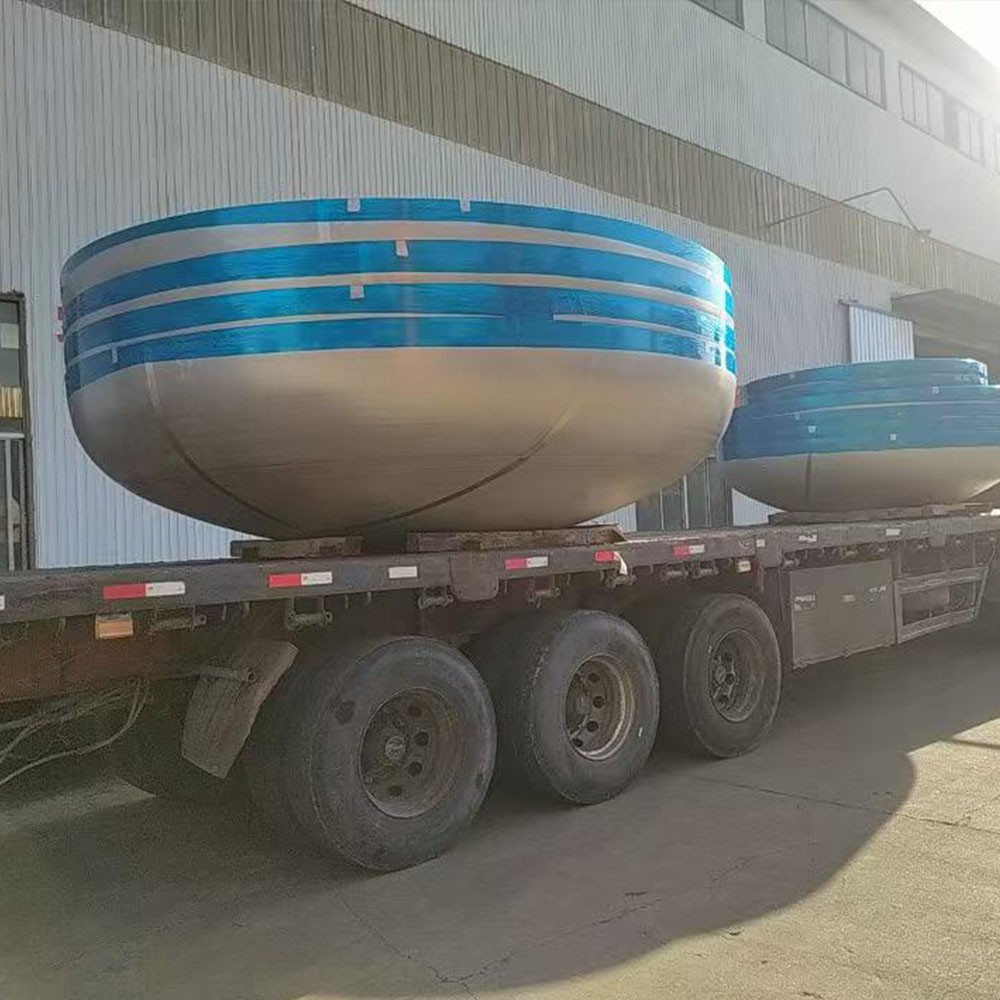

Packaging & Shipping

Dished Heads Supply & Formed Ends Dished Heads

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
