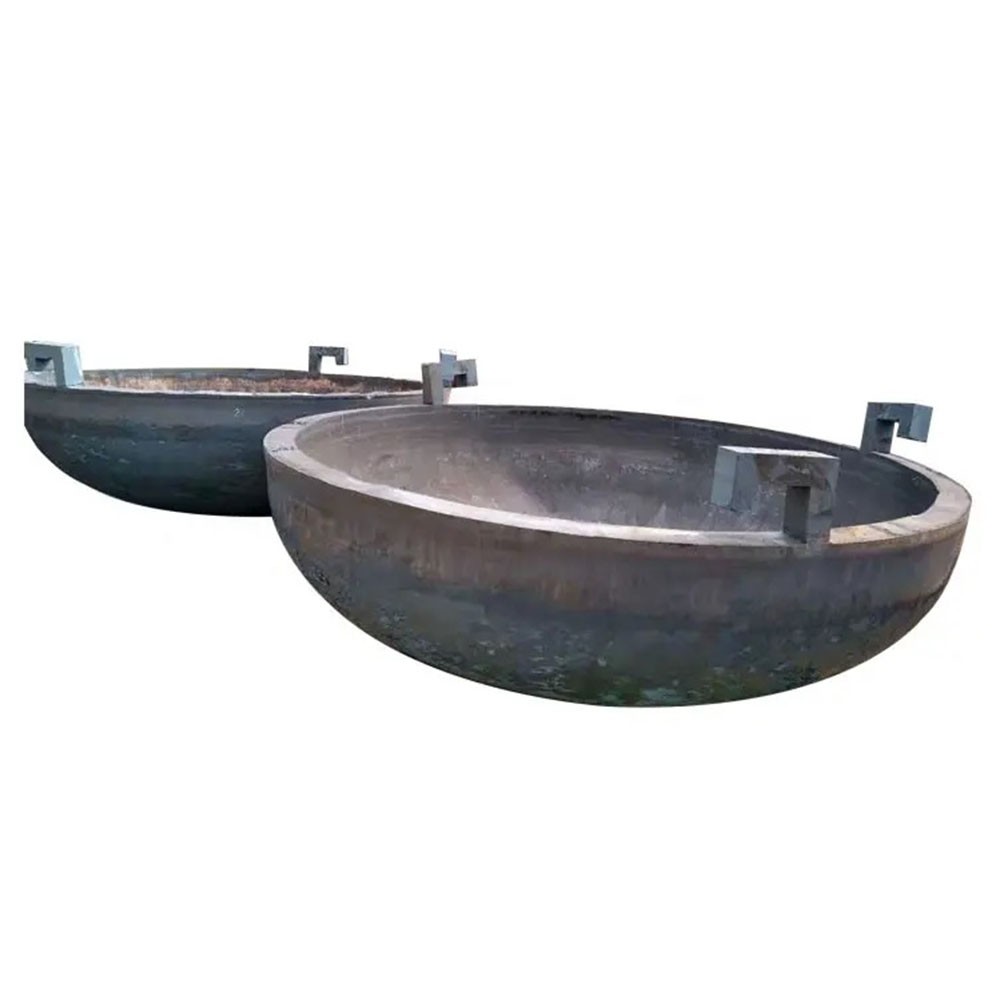

The elliptical head ( or named ellipsoidal head ) which is a head consisting of two parts: a rotating ellipsoidal sphere and a cylindrical straight section.

Elliptical tank head is fabricated to have a certain shape instead of a particular dish radius or knuckle radius. The dish radius is approximately 90% of the diameter and the knuckle radius is approximately 17% of the diameter. 2:1 elliptical flanged and dished heads are ASME compliant.

1.Material:mild steel,low alloy steel,carbon steel,stainless steel,clad plate,etc

2.Processing Scope: Di:300-12000m              Thickness:3-150mm

                                     Do:300-12000mm          SF:0-50mm

Features of our tank head:

1.Haipei Industry tank head is composed of half ellipsoid and a cylindrical straight segments. The Straight section can avoid mutation of radius of curvature between the connection welds of the head and cylinder, thus improving the stress status of the welds.

2.As The Meridian curvature change of ellipsoidal part of the tank head is smooth and continuous, the stress distribute uniformly.

3.Easy to punch forming compared  with  the hemispherical head, because the depth of ellipsoidal head is smaller than the hemispherical head. (torispherical heads)

Types of Tank Heads

There are different types of tank heads that are designed and manufactured to meet the needs of various applications. These include:

ASME Flanged Heads

ASME tank heads meet or exceed the regulatory standards set by the American Society of Mechanical Engineers (ASME). They are often matched with ASME-regulated stainless steel tanks. All flanged tank heads have a flanged edge or knuckle radius that aligns with the cylindrical shape of the main tank body.

Standard Flanged Heads

Standard flanged tank heads have a smaller knuckle radius than most ASME flanged heads. They have a simple construction that allows for easy factory and field use, and they’re a budget-friendly alternative to ASME tank heads.

Elliptical Heads

Most tank heads are distinguished by the size of their dish radius or knuckle radius. However, elliptical heads are categorized based on their shape. These heads have a deeper dome shape and can allow for more volume. Elliptical tank heads are also ASME compliant for safety and overall product quality.

Dished Heads

Dished tank heads don’t have the flanged component around the circumference of the tank head. They’re commonly used for storage tank roofs, pressure vessel reinforcement, and vacuum chambers.

Custom Tank Head Manufacturing

At Haipei Industry, we offer custom tank head manufacturing capabilities to meet the needs of various industries and applications. We employ advanced hydroforming and metal spinning processes to produce tank heads up to 15’’ in diameter and 10’’ in depth. For applications requiring larger tank heads, we can produce tank heads up to 72’’ in diameter with different thickness capabilities based on the type of metal:

Aluminum: 0.625″

Stainless steel: 0.250″

Steel: 0.375″

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

Featured Wholesale tank heads For Any Piping Needs

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
