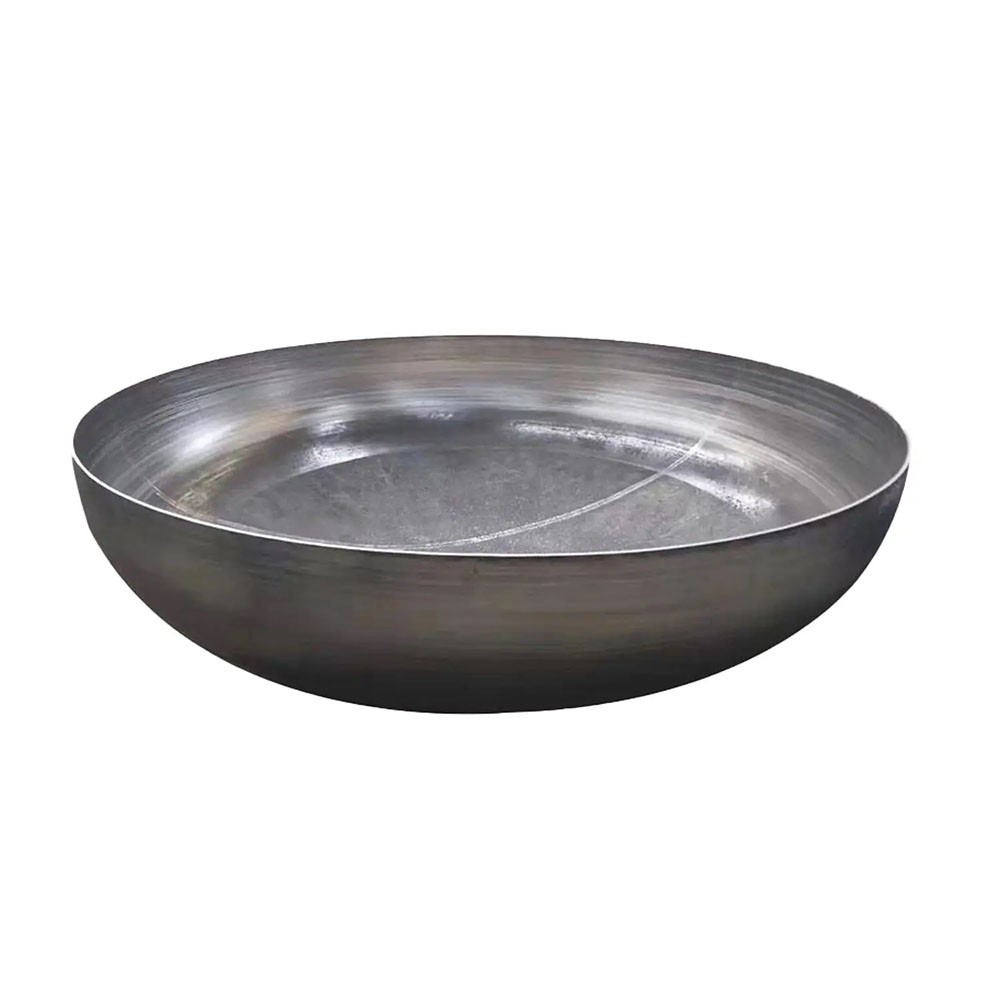

ASME – Elliptical Tank Heads
Customized size

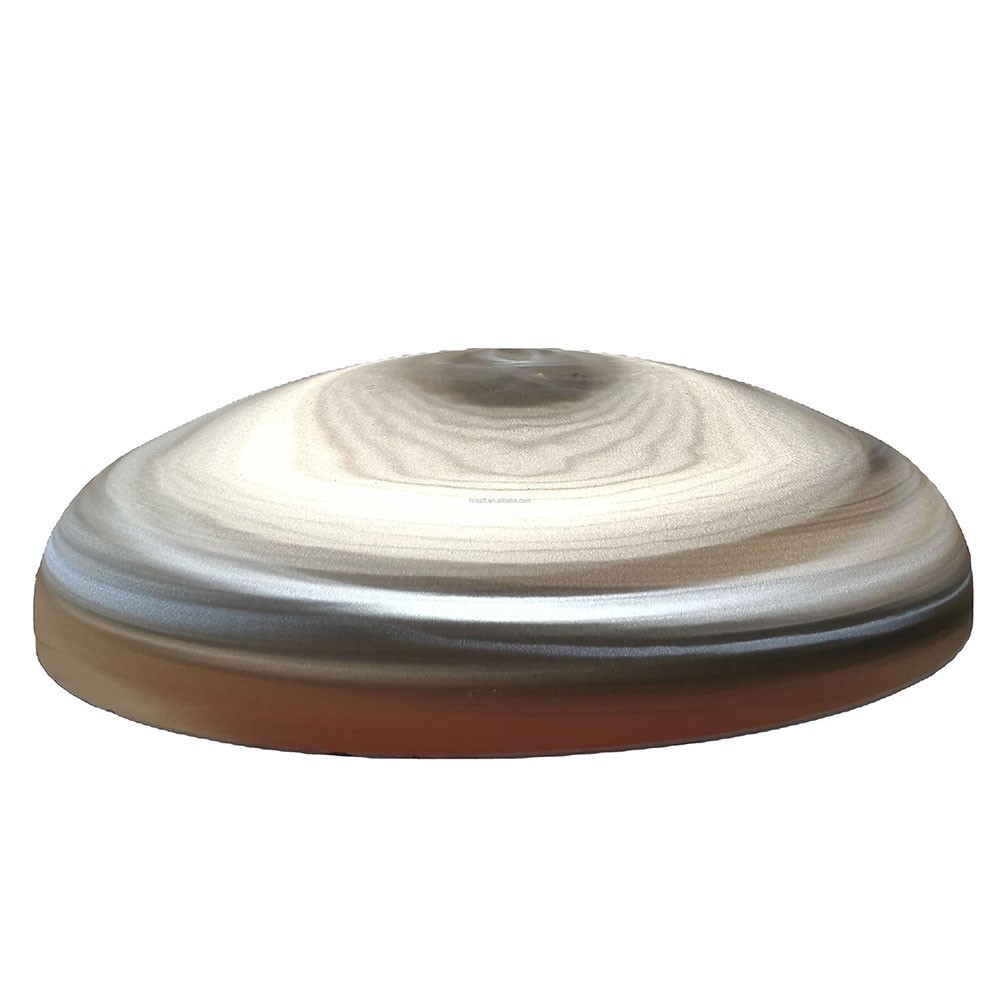

torispherical dish head
Tank Vessel Heads
Realiable quanlity
Affordable price

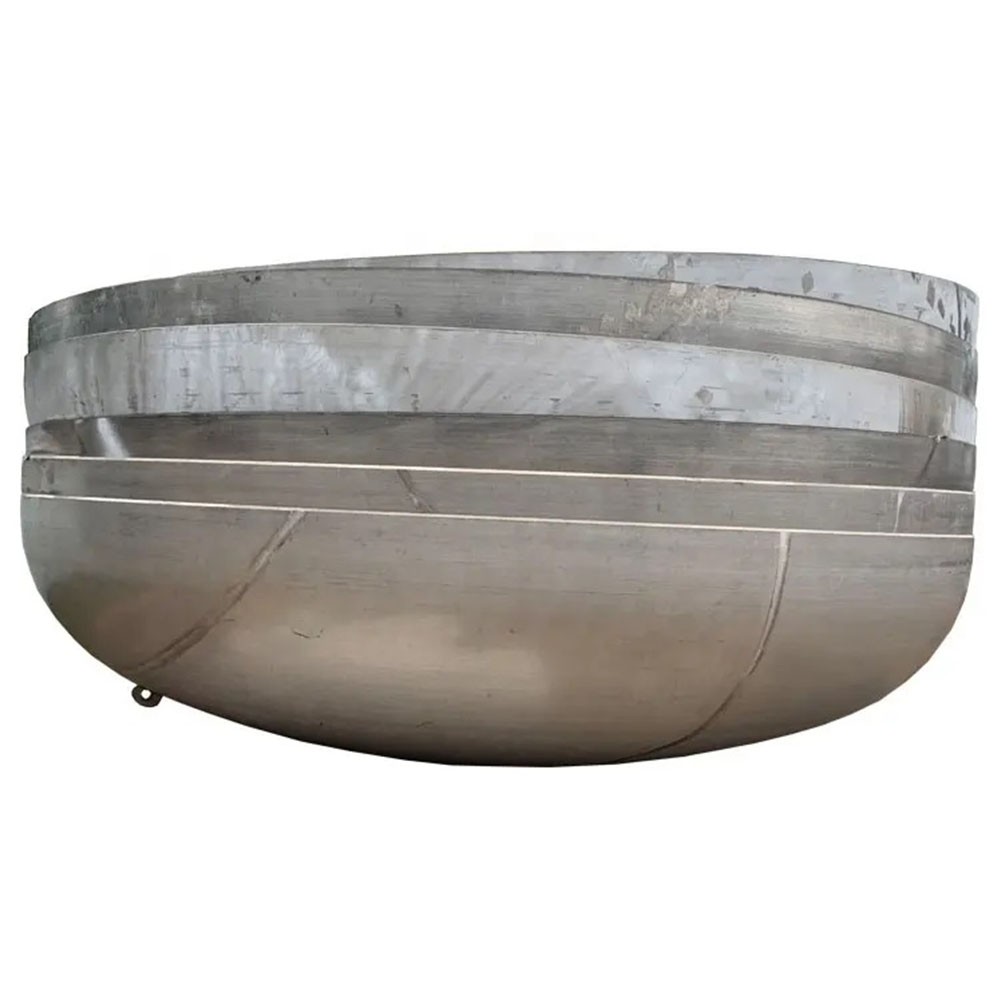

Haipei Custom Tank Vessel Heads: Excellence in Engineering and Fabrication
Tank heads are a critical component in industries ranging from pharmaceuticals and chemical processing to food and beverage storage. Haipei Industry, a trusted leader in custom tank and pressure vessel heads, provides top-quality, precision-engineered solutions to meet the specific needs of our customers. With a diverse range of tank head types and materials, we ensure reliability, durability, and compliance with industry standards.
At Haipei Industry, we specialize in manufacturing a variety of tank heads, each designed to serve a specific purpose. Whether you require elliptical, flanged, dished, or conical heads, our experienced team will help you select the best option for your application.
| Tank Head Type | Description |
|---|---|
| 2:1 Elliptical | Commonly used for pressure vessels, with a depth equal to one-quarter of the vessel’s internal diameter. An economical option due to reduced metal thickness. |
| 90/17 Style 2:1 Elliptical | An ASME-approved alternative to the standard 2:1 elliptical design, maintaining compliance with Section VIII Div. 1 UG 32. |
| ASME 80/10 | Designed with an 80% inside dish radius and a 10% inside knuckle radius, meeting ASME pressure vessel code requirements. |
| ASME Flanged & Dished (F&D) | Ideal for mild-pressure applications where overall height is a constraint, with an inside dish radius typically equal to 100% of the diameter. |
| Conical | Suitable for process equipment like evaporators and spray driers, allowing for the accumulation and removal of solids. |
| Dished-Only | Used in pressure vessels, domed roofs, vacuum chambers, and reinforcement pads. |
| Flanged-Only | Frequently used for liquid storage, including petroleum and gas. These flat heads feature a knuckle radius for added strength. |
| Flared & Dished | Applied in non-code industrial applications such as bolt-on covers, hinged covers, and tank ends. |
| Reversed Flanged & Dished | Designed for vessels against a plane surface, offering additional strength and a load-bearing surface. |
| Shallow Heads | Primarily used in horizontal storage tanks; not suitable for pressure applications. |
| Standard Flanged & Dished | Commonly used for non-code storage tanks, featuring an inside dish radius of 100% of the diameter. |
| Toriconical | Features a knuckle radius at the large end to reduce localized stresses, ideal for hoppers and towers. |
Haipei Industry manufactures tank heads using a variety of high-quality materials, ensuring optimal performance for different industrial applications.
| Material Type | Applications |
| Carbon Steel | Pressure vessels, storage tanks, reinforcement pads. |
| Stainless Steel | Pharmaceutical, food and beverage, and chemical processing industries. |
| Clad Steel | Provides corrosion resistance while maintaining structural strength. |
| Aluminum | Lightweight applications, including transport tanks and non-corrosive environments. |
| Other Ferrous & Non-Ferrous Alloys | Custom applications requiring specific mechanical and chemical properties. |
Precision Engineering: Our tank heads are fabricated with strict adherence to ASME and industry standards.
Customization Options: We tailor each tank head to your specifications, ensuring a perfect fit for your application.
High-Quality Materials: We offer a wide range of metal options to meet durability and compliance requirements.
Industry Expertise: With years of experience, we deliver reliable, long-lasting tank head solutions.
For custom tank head fabrication that meets your exact requirements, trust Haipei Industry. Contact us today to discuss your needs and get started on your custom solution.

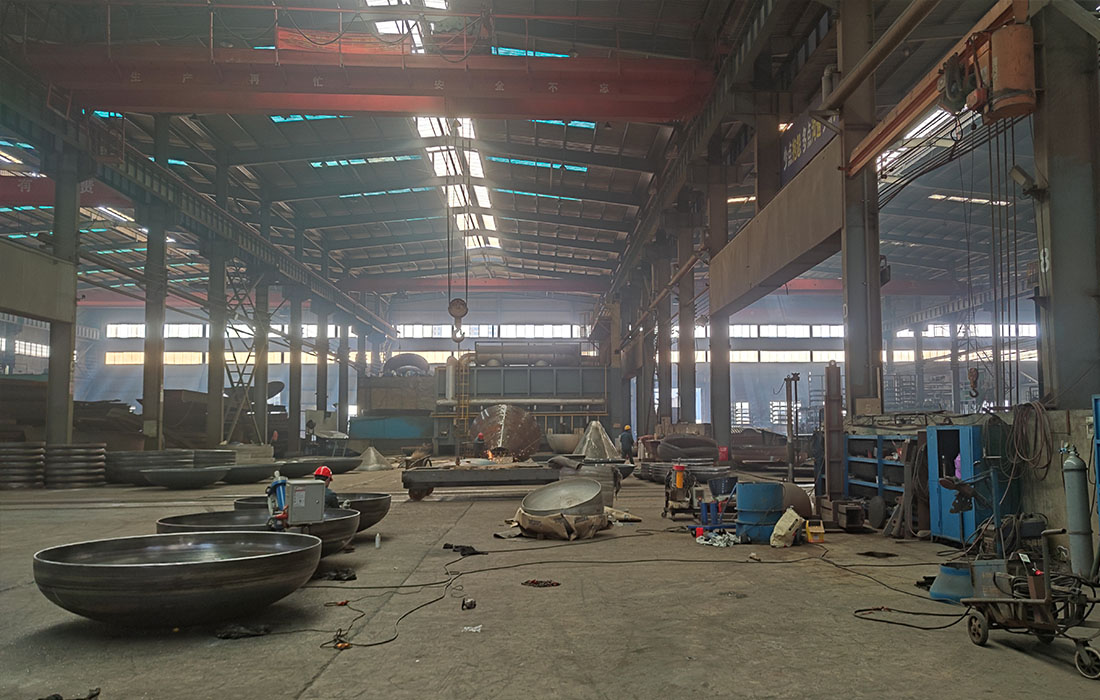

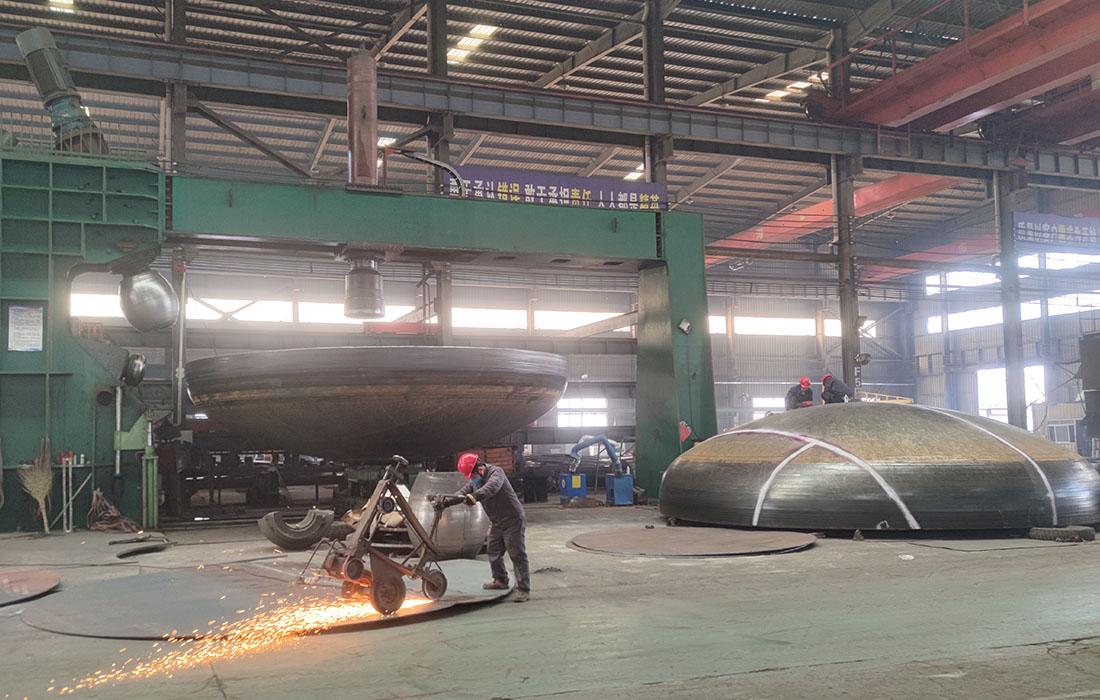

Company information
Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.
Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Our Services
We offer our products in the following materials:

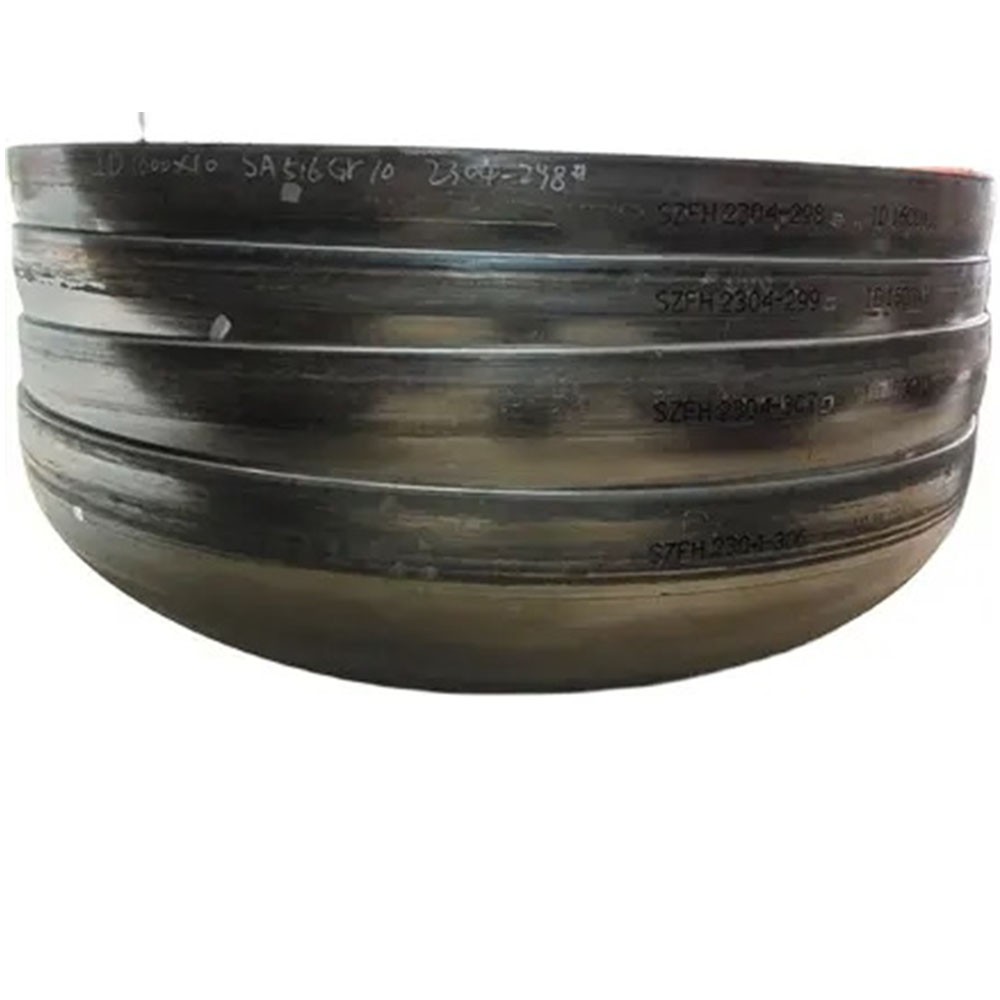

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

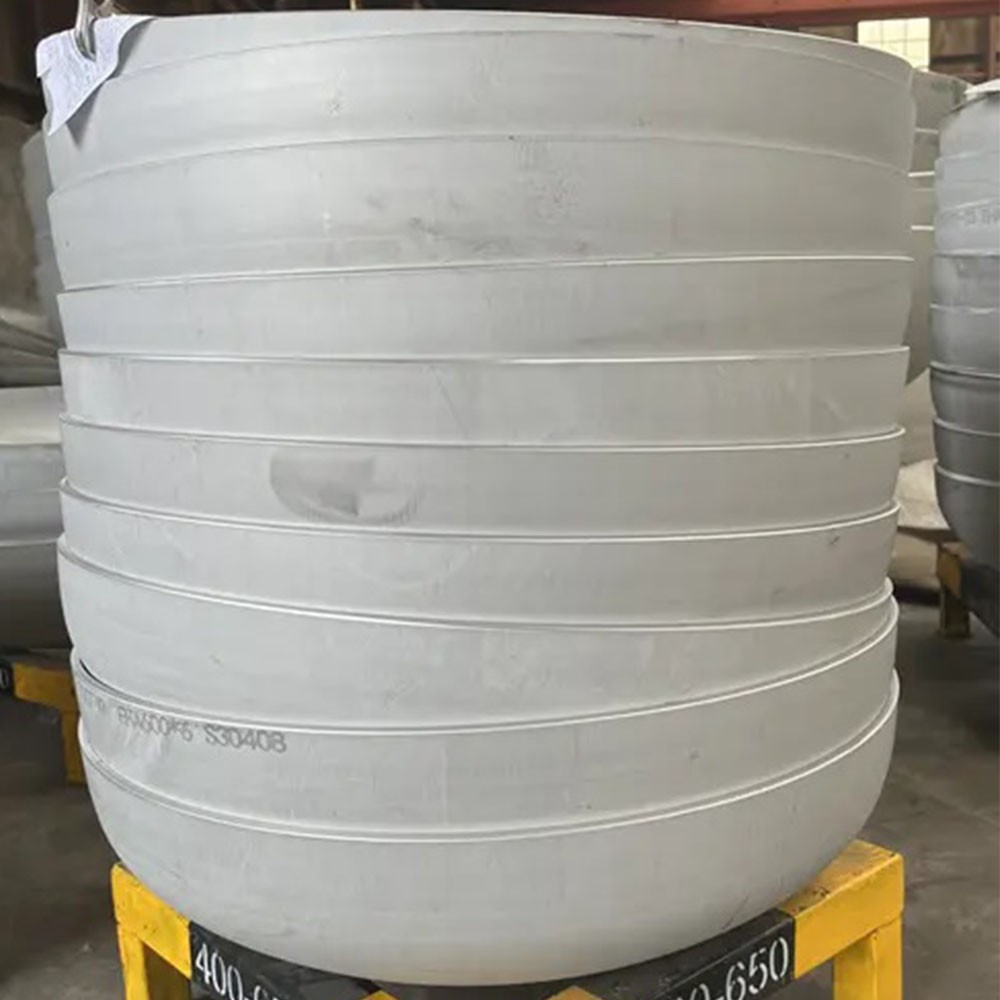

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)
Copper: O-Temper Material (Forming Only)
Aluminum: O-Temper Material (Forming Only)
Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

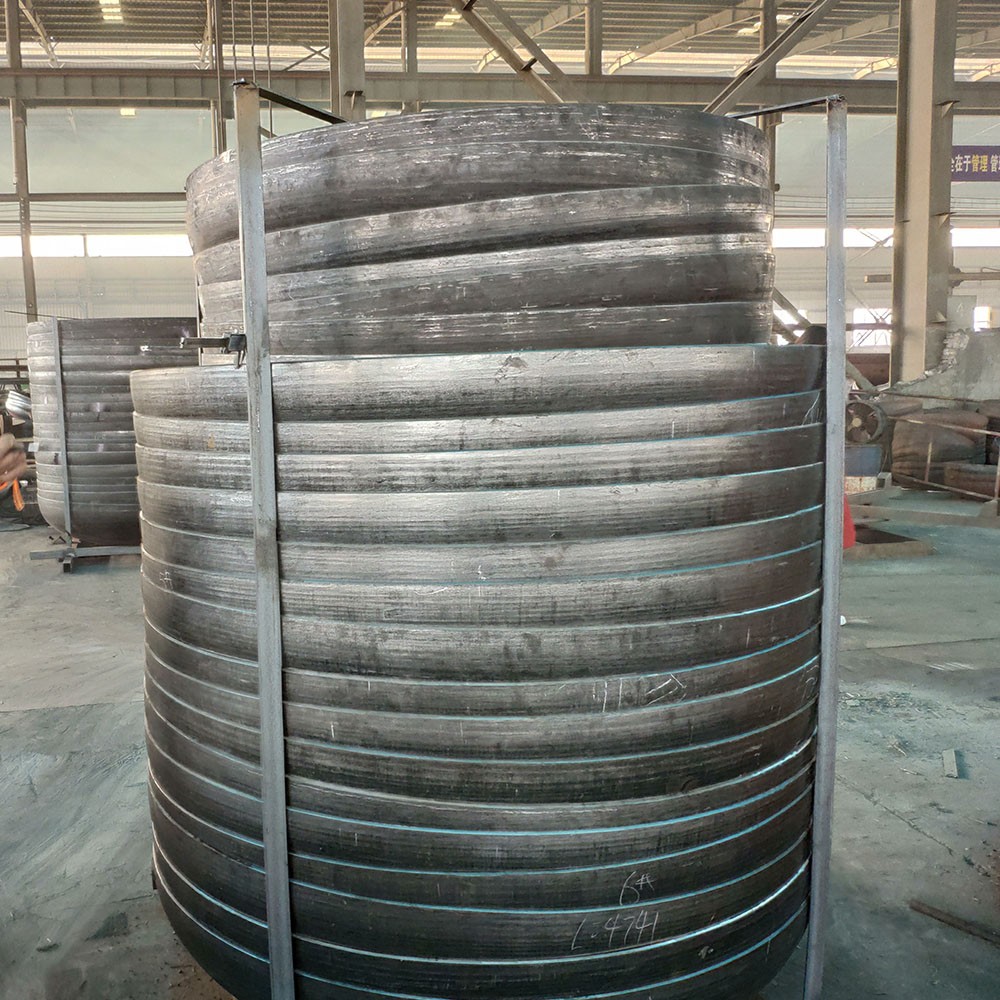

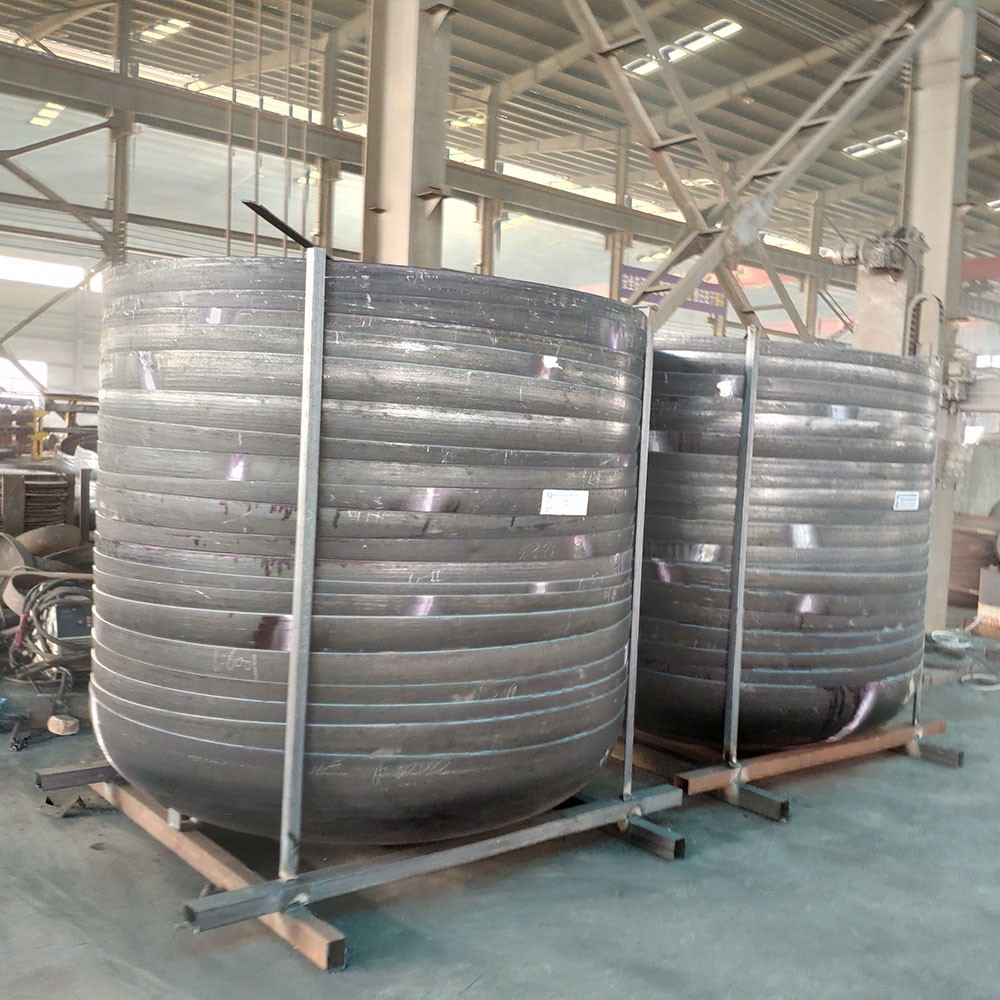

Packaging & Shipping
Haipei Custom Tank Vessel Heads
1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment
FAQ
Q: What’s the information should I provide when inquiry?
A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
Q: what are surface treatment of the product?
A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
Q: How do you ensure the quality of products?
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
Q: Can you help us matching related products?
A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
