Haipei Industry Segmented Tank Heads

Haipei Industry Segmented Tank Heads Elliptical Dished Tank Heads

Product Description

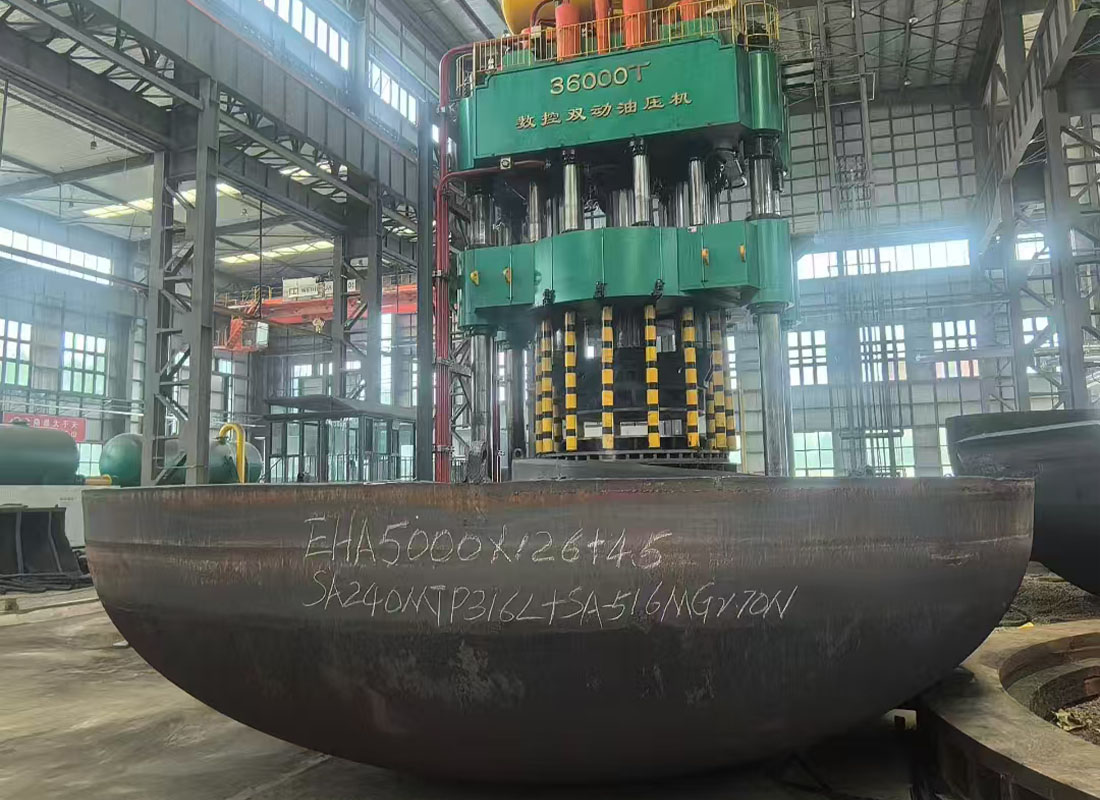

Ellipsoidal head is also called elliptical head or elliptical dish end. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

Production Process of Heads:
Manufacturer Supplier Dished End Elliptical Caps Stainless Steel Torispherical Dish Head

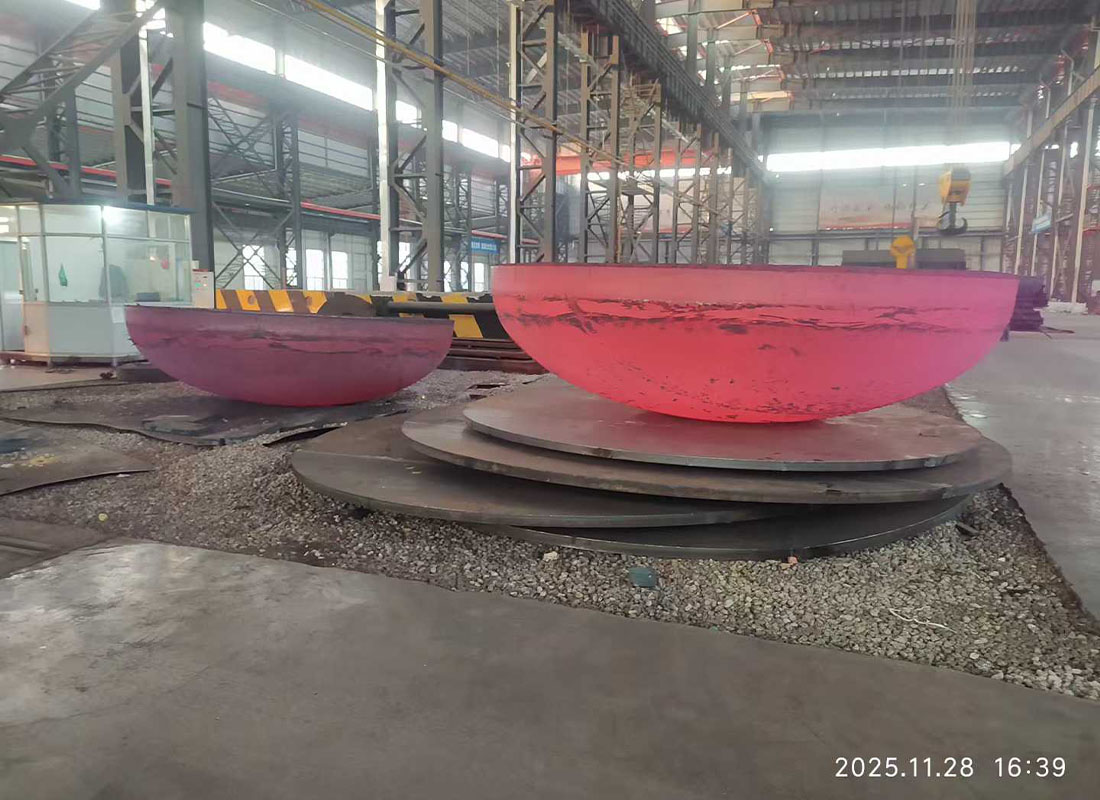

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

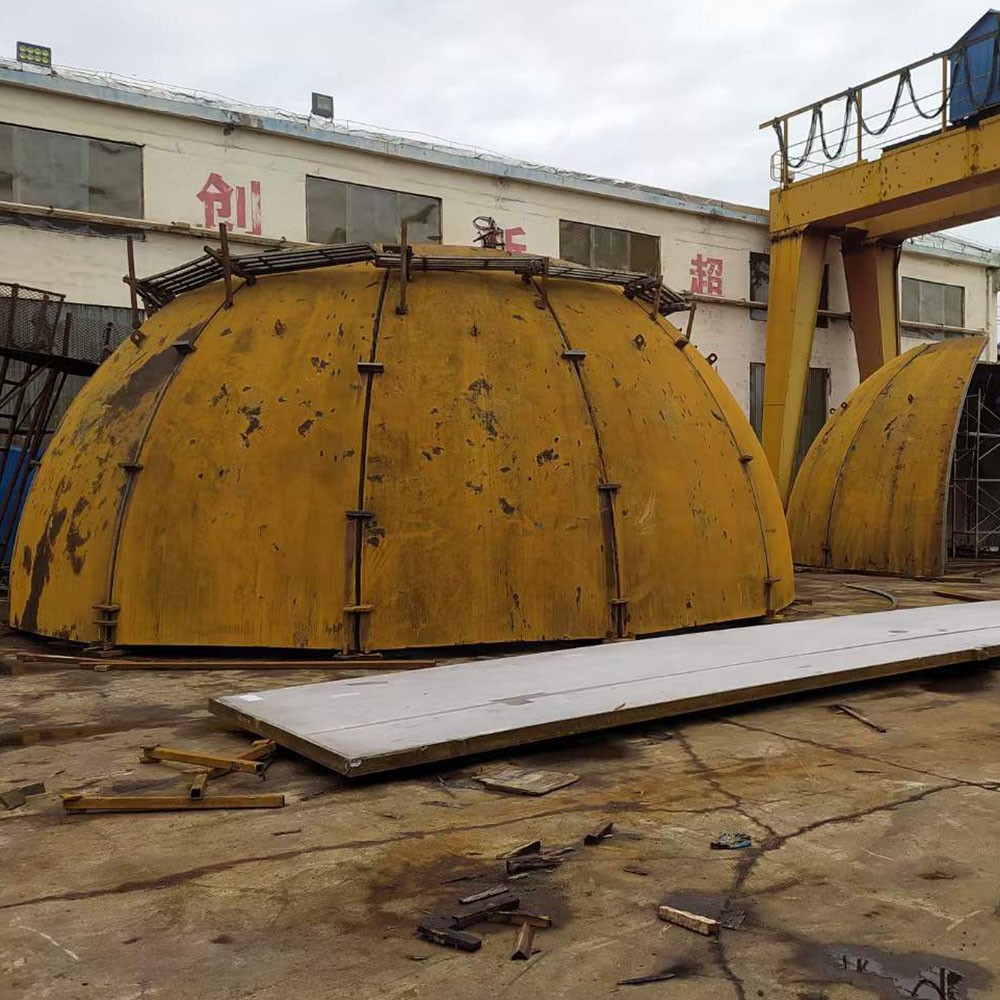

Segmented heads are installed on many plant facilities, including LNG tanks and LPG tanks. Thick sheet steel is often used to manufacture strong containers that are able to withstand high pressures.

Our company has successfully delivered a large number of heads that were manufactured using the segmented manufacturing process, and has manufactured heads of up to 60 m in diameter.

Haipei Industry Segmented Tank Heads fabricated segmented domes, hemispheres, 2:1 elliptical, and ASME flanged & dished heads when projects call for larger pressing capacities. Segmented heads are installed on many plant facilities, including LNG tanks and LPG tanks. Thick sheet steel is often used to manufacture strong containers.

We have a wealth of experience delivering large-scale heads.

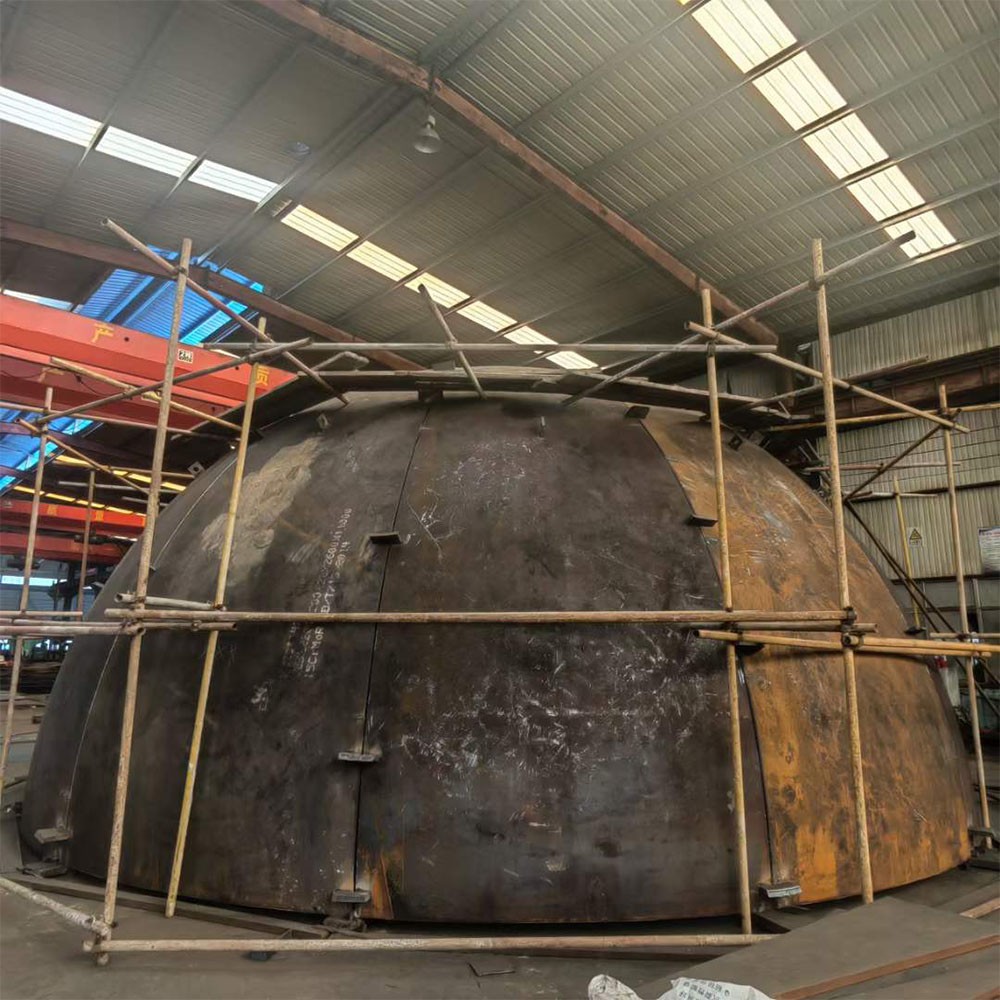

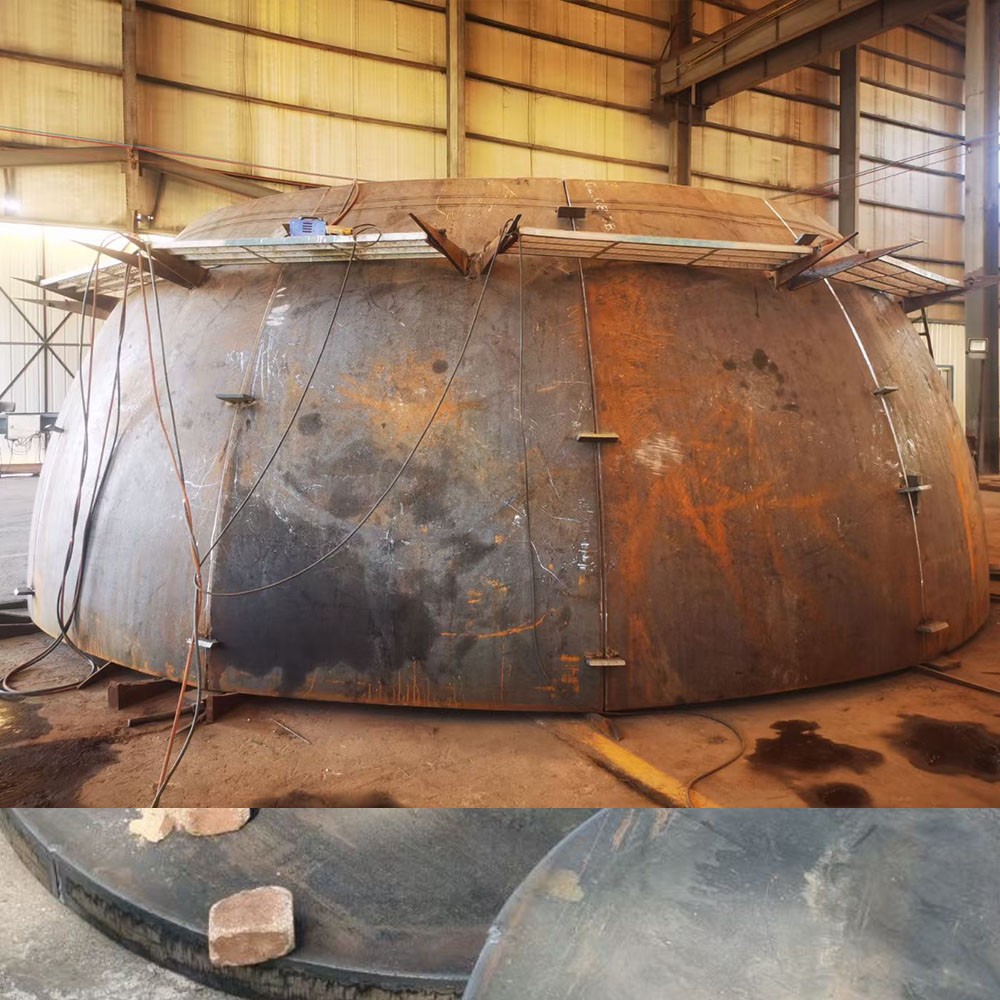

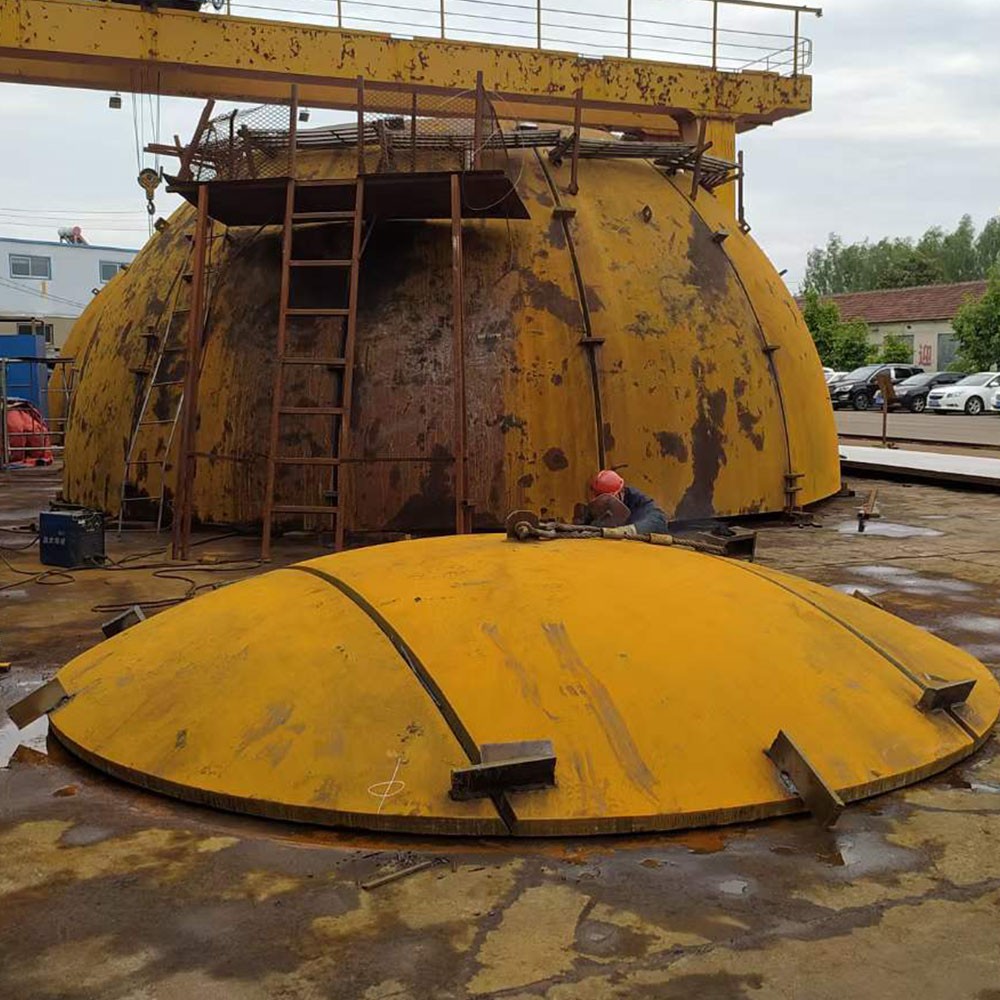

Heads that were manufactured in segments must be assembled and welded on-site, which makes it necessary for the heads to be manufactured with high accuracy.

Haipei Industry performs stamping, bending, spinning, and assembly inspections internally, and also performs quality inspections so that the head can be reassembled smoothly on-site.

Thick sheet steel is often used to manufacture strong containers. Segmented Tank Head Manufacturers, Factory, Suppliers From China, We welcome new and old customers from all walks of life to contact us for future business Leader in the fabrication of segmented tank heads with capabilities to produce large diameter with no limit in sizes and thickness.

We can also create inspection sheets and other documents related to the product at the customer’s request.

In addition, we can also manufacture and attach jigs, etc., such as hanging pieces, to the segments that will facilitate efficient assembly of the parts on-site at the customer’s request.

Whatsapp:008618264838918 Spherical Tank Head Segmented Head

Haipei Industry main products are elliptical head , dish head , flat head , hemisphere head , conical head which other different types of tank head Large-Sized Segmented Elliptical Disc-Shaped Head From small boilers to large pressure vessels, we have the solution.Dish Head Elliptical Head Hemispherical Head Conical Head Flat Bottom Head Special Shape Head Segmented dished tank heads

Company Information

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

Our Services

1.No cracks,delamination, inclusion ,and other defects;

2.The warranty time is 6 months,except the wearing parts;

3.We provide the best service based on professional and sincerely attitude.

Product Pictures

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

Packaging & Shipping

Manufacturer Supplier Dished End Elliptical Caps Stainless Steel Torispherical Dish Head

6 pieces packed on a pallet for Large Spherical Outdoor Decorated steel firepit sphere

Wooden cases ,wooden pallet plastic bag or as per customers requirement

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
