Industrial 2 to 1 Elliptical Heads Supplier

Introducing the 2:1 Elliptical Heads by Haipei Industry: Durable, High-Quality Solutions for Heavy Industry

At Haipei Industry, we are proud to offer our premier line of 2:1 Elliptical Heads, designed and manufactured for a wide range of industrial applications. Known for their exceptional quality, strength, and durability, these elliptical heads are ideal for pressure vessels, tanks, and other heavy-duty industrial equipment.

Product Overview:

Our 2:1 Elliptical Heads come in two primary configurations:

• 120” OD x 1-1/8” Min Thick SA516-70N 2:1 Elliptical Head

• 120” OD x 3/8” Min Thick SA516-70N 2:1 Elliptical Head

Crafted from high-strength SA516-70N steel, these heads are designed to withstand high-pressure environments while maintaining their structural integrity. Whether you're constructing or retrofitting pressure vessels, our elliptical heads are the ideal choice for industries ranging from oil and gas to chemical processing.

Key Features:

1. High-Strength SA516-70N Material: The SA516-70N steel provides excellent weldability, notch toughness, and is highly resistant to corrosion, ensuring the longevity and reliability of the product under extreme conditions.

2. Customizable Thickness: The heads are available with varying thicknesses—1-1/8” minimum thickness for heavy-duty applications and 3/8” minimum thickness for more standard configurations, offering flexibility for different types of projects.

3. Optimal 2:1 Elliptical Ratio: The 2:1 elliptical shape is known for its excellent strength-to-weight ratio, making it ideal for pressure vessels that need to endure both internal pressure and external forces. This geometry also ensures ease of fabrication while maximizing performance.

4. Large 120” Outer Diameter: The generous 120” outer diameter makes these heads suitable for large-scale industrial systems, where size and strength are critical.

5. Precision Engineering: Each elliptical head is manufactured with the highest level of precision to ensure a perfect fit, minimizing installation time and improving overall system reliability.

Why Choose Haipei Industry's 2:1 Elliptical Heads?

At Haipei Industry, we understand the challenges industrial systems face, particularly when it comes to maintaining integrity under pressure. That's why we offer:

• Expert Craftsmanship: Our engineers use state-of-the-art technology and quality control processes to deliver products that meet the highest industry standards.

• Comprehensive Customer Support: From custom orders to technical advice, our team is here to assist you in every stage of your project.

• Industry-Leading Durability: The use of SA516-70N steel ensures that our elliptical heads stand up to tough environments, offering long-term performance and reducing downtime.

Applications:

Our 2:1 Elliptical Heads are commonly used in industries such as:

• Oil & Gas: For pressure vessels and storage tanks used in drilling and refining operations.

• Chemical & Petrochemical: In reactors, separators, and other critical equipment where pressure and temperature are significant factors.

• Power Generation: In steam and gas turbines, pressure vessels, and heat exchangers.

• Water Treatment: For high-pressure storage and filtration systems.

Conclusion:

Haipei Industry’s 2:1 Elliptical Heads offer an unbeatable combination of strength, precision, and customization. Whether you need heavy-duty pressure vessel heads or more standard solutions, we have the right product to fit your requirements. Get in touch with us today to learn more about how our elliptical heads can help take your industrial projects to the next level.

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

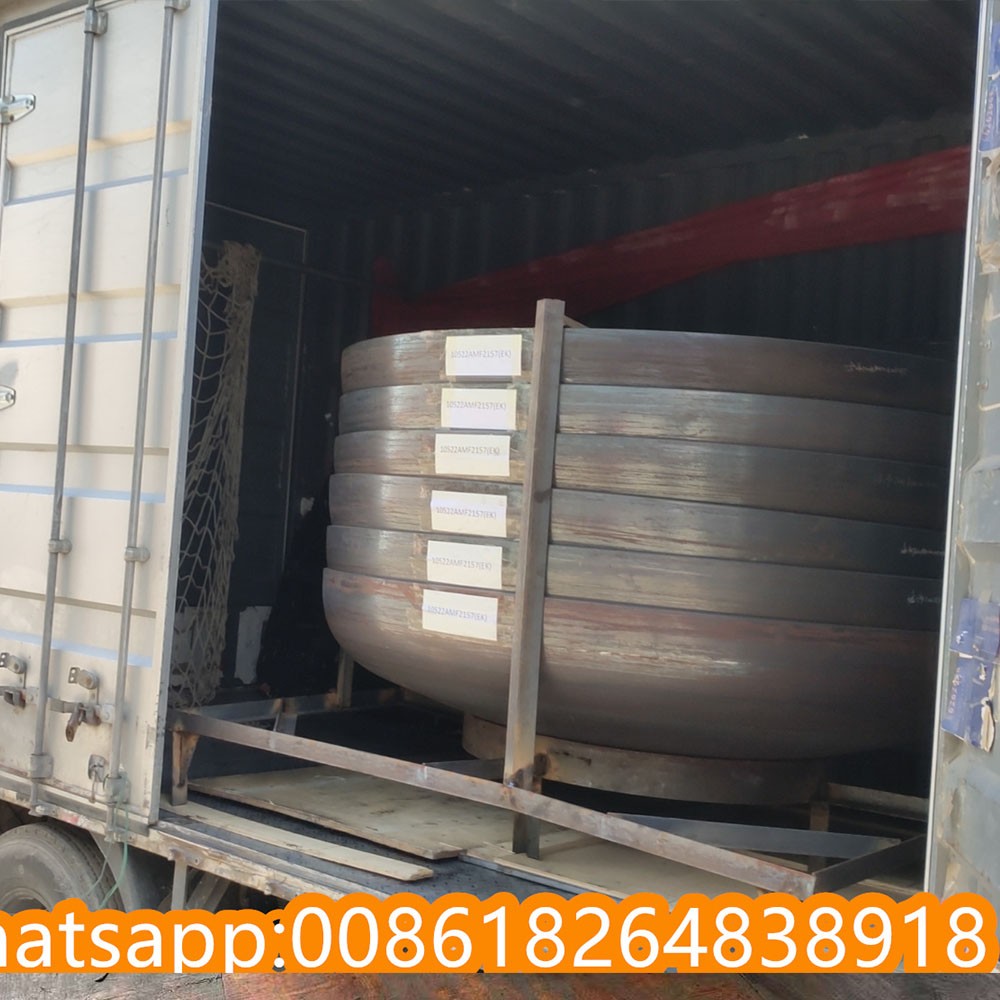

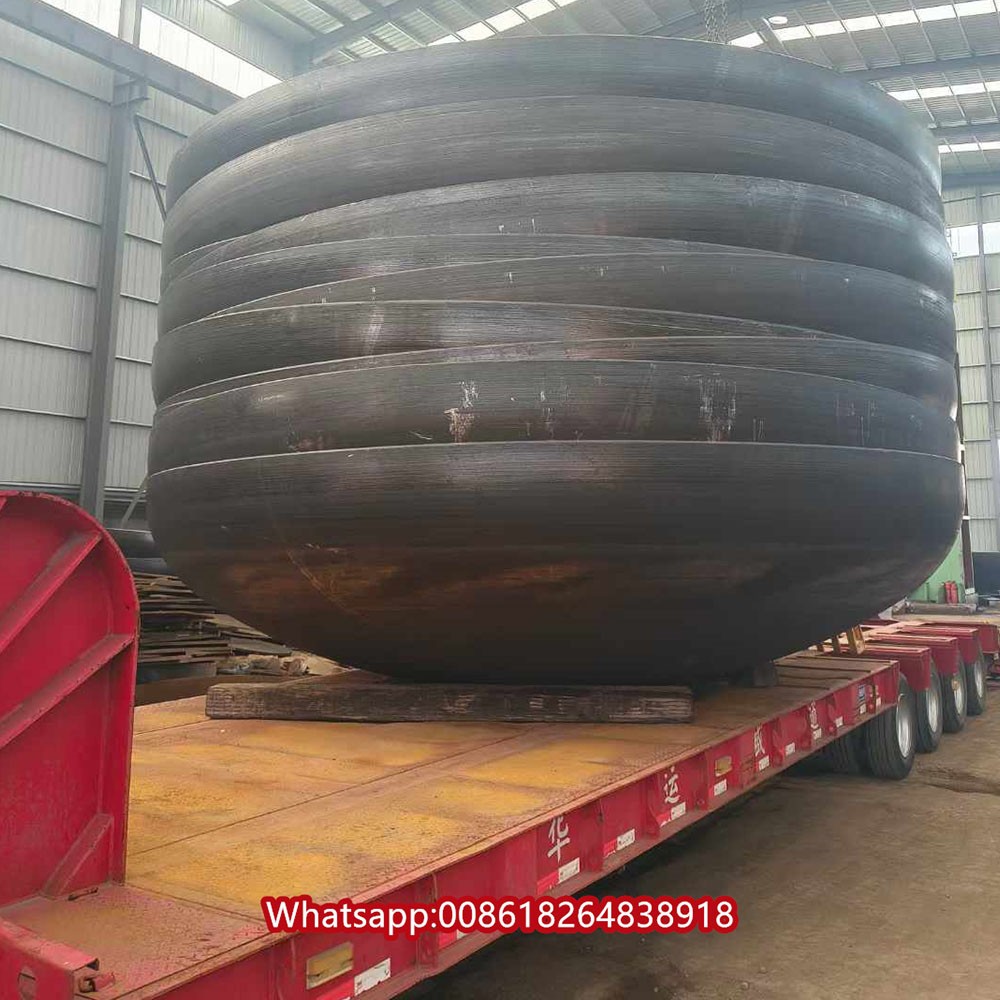

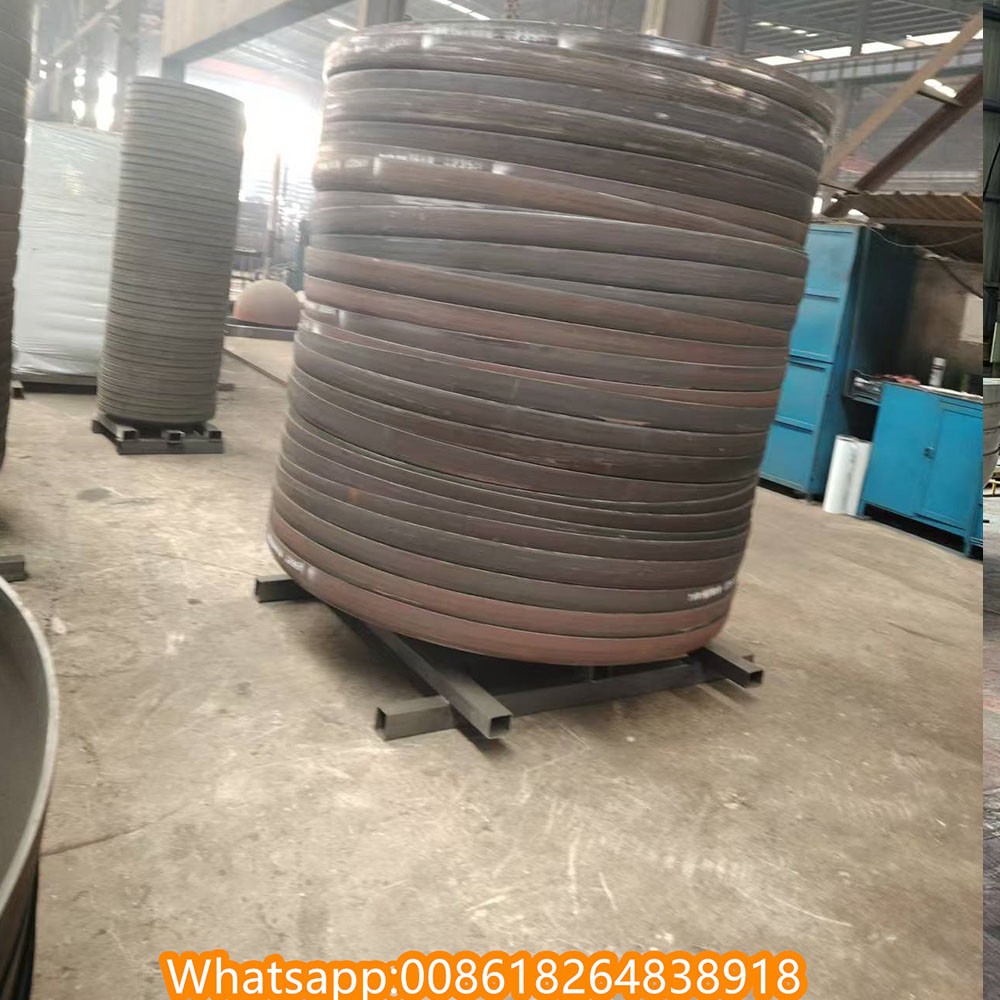

Packaging & Shipping

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
