Haipei Industry SA516 Gr. 70 Carbon Steel With SS316L-Clad Dished Heads

 Haipei Industry SA516 Gr. 70 Carbon Steel With SS316L-Clad Dished Heads

The elliptical head, also known as the ellipsoidal head, is a highly versatile and reliable component in various industrial applications. Its innovative design combines functionality with compliance to ensure optimal performance across a wide range of industries.

What Are Elliptical Heads?

Elliptical heads consist of two key sections: a rotating ellipsoidal sphere and a cylindrical straight section. Unlike heads with a specific dish radius or knuckle radius, elliptical heads are crafted with precise proportions to achieve their distinctive shape. The dish radius is approximately 90% of the diameter, and the knuckle radius is about 17% of the diameter. These proportions are not only mathematically elegant but also engineered for compliance with ASME standards, particularly the widely used 2:1 elliptical flanged and dished heads.

Key Specifications of Elliptical Heads

• Product Names: Elliptical Heads, elliptical head price, boiler elliptical end cap.

• Diameter: Ranges from 90 mm to 5000 mm, with customizable options.

• Thickness: Between 2 mm and 200 mm, ensuring flexibility for various applications.

• Reduction Ratio (R): About 10%.

• Materials: Available in carbon steel, stainless steel, aluminum, copper, titanium, nickel, and nickel alloy steel.

• Certification: ISO 9001:2015 certified.

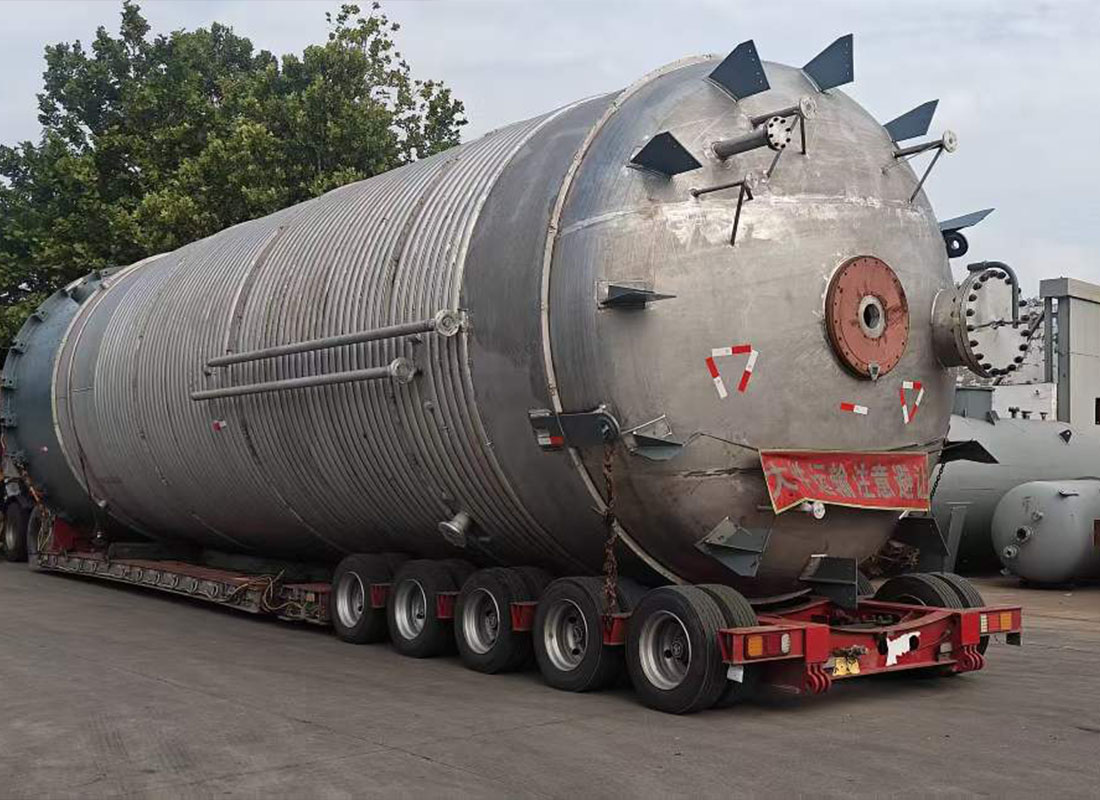

• Applications: Commonly used in pressure vessels, heat exchangers, and tanks.

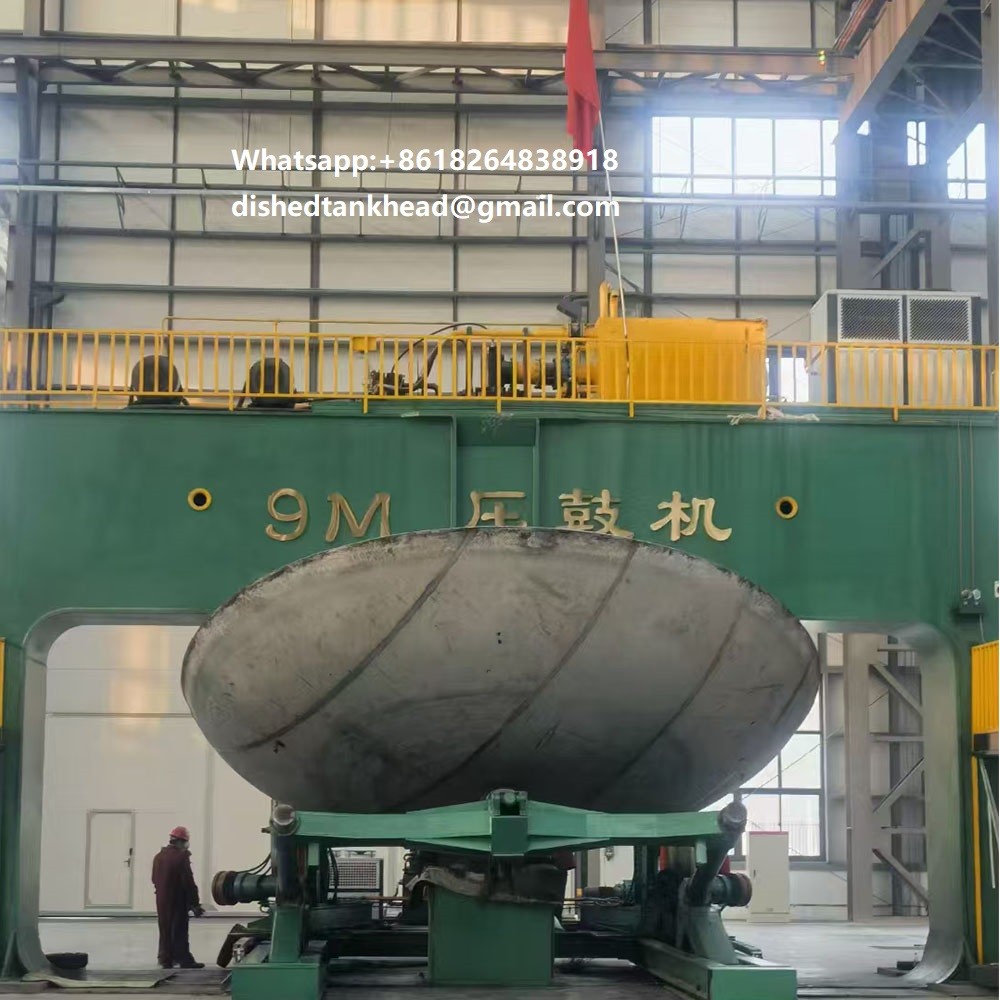

• Manufacturing Technologies: Includes both cold pressing and hot pressing methods.

• Surface Treatment Options: Pickling, sandblasting, or as per customer requirements.

• Packaging: Delivered in secure wooden boxes or iron shelves, or customized packaging as needed.

• Delivery Time: Approximately 30 days.

Ellipsoidal dish end (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. Our tank head can be customized according to your needs. We can choose the most suitable model for you depending on your demands on shape, thickness, material and diameter.

 Elliptical head is composed of half ellipsoid and a cylindrical straight segments. The Straight section can avoid mutation of radius of curvature between the connection welds of the head and cylinder, thus improving the stress status of the welds.

- As The Meridian curvature change of ellipsoidal part of the tank head is smooth and continuous, the stress distribute uniformly.
- Easy to punch forming compared with the hemispherical head, because the depth of ellipsoidal head is smaller than the hemispherical head. (elliptical end cap)

Applications Across Industries

Elliptical heads serve as a vital component in numerous industries, such as:

• Petroleum: For secure storage and transport of oil and gas.

• Electronics: Supporting cooling systems and vacuum chambers.

• Chemicals: Providing corrosion-resistant solutions for reactors and tanks.

• Pharmaceuticals: Ensuring clean and durable vessels for sensitive processes.

• Food: Safe and hygienic storage for liquids and gases.

• Construction and Machinery: Offering structural integrity in heavy-duty equipment.

• Aerospace and Military: Meeting rigorous standards for strength and reliability.




• 1. Pressure Vessel Industry      2. Petroleum Industry                   3. Chemical Industry

• 4. Pharmaceutical Industry       5. Sewage Treatment Industry      6. Food Industry

• 7. Nuclear Power Industry        8. Gas Industry                              9. Aerospace Industry

• 10. Machinery Industry            11. Construction Industry               12. Shipbuilding Industry

• 13. Cosmetic Industry             14. General Storage Industry         15. Steam Boiler Industry

Material Options

Elliptical heads can be manufactured from various materials to meet specific needs:

• Carbon Steel: Ideal for cost-effective durability (e.g., SA516 GR60N, GR70N).

• Stainless Steel: Provides superior corrosion resistance (e.g., SA240 304, 316).

• Titanium Alloys: Lightweight and highly resistant to extreme conditions (e.g., SB256 GR1, GR2, GR5).

Quality Assurance

Every elliptical head undergoes stringent quality control, including:

1. Physical and chemical material tests.

2. Hot forging and forming.

3. Heat treatment for enhanced durability.

4. Detailed inspections at each production stage.

5. Final finishing, marking, and packing.

Choosing the Right Head

When selecting an elliptical head, consider the following:

1. Customer Requirements: Ensure the design aligns with operational goals.

2. Chemical Process Needs: For liquid masses, elliptical heads or spherical heads are optimal; conical heads are better for solid masses.

3. Pressure Levels: Elliptical heads are ideal for medium to low-pressure applications, while spherical heads are recommended for high-pressure scenarios.

4. Stress Analysis: Assess the stress transition zones and local stress levels to determine the most suitable head type.

Conclusion

The elliptical head is an indispensable solution for various industrial and engineering needs. With its precision design, material flexibility, and compliance with global standards, it offers unparalleled performance and reliability. Whether you’re dealing with pressure vessels, boilers, or heat exchangers, elliptical heads are the perfect choice to meet your needs.

Company information

Haipei Industry SA516 Gr. 70 Carbon Steel With SS316L-Clad Dished Heads combine a high-strength carbon or low-alloy steel base with a corrosion-resistant SS316L stainless steel cladding layer, providing an economical and structurally reliable solution for industrial pressure vessels ss316l elliptical dish head Material Structure: Built with a thick structural backing (such as SA516 Gr. 70 carbon steel) bonded to a thinner corrosion-resistant SS316L interior cladding layer SA516gr70n + SS316L Clad Bottom Tank Spherical Hemispherical Bottom Dished Cap Ends Stainless steel heads provide corrosion resistance and clean surfaces for vessels and tanks. Elliptical hemispherical and dished forms can be customized 316L Stainless Steel Hemispherical Dished End Tank Heads ANSI Standard Welding Process Stainless Steel Ball Product Manufacturers, Suppliers and exporters of Ellipsoidal Dish Head Plate, Hemispherical Head, Approximate ellipsoidal dished head Plate, Deep dished head Plate Professional Stainless Steel 316 316L Elliptical dished heads Tank Heads Torispherical Dish head. ASME Cold Formed Carbon Steel Ellipsoidal Head.Buy low priced Stainless Steel Dish Head from Stainless Steel Dish Head factory, We provide good quality Stainless Steel Dish Head from China.

Stainless Steel 304 316L Presssure End Head Elliptical Dish Vessel Head with Claded Material.316L 321 Stainless Steel Dished Tank Heads Types Of Dish End In Pressure Vessel 316L stainless steel dished tank heads, 321 stainless steel dished tank heads, GB carbon steel tank end cap ASME PED Standard Carbon Steel Add Stainless Steel Clad Dish Head Elliptical carbon and stainless steel clad dished head is the main pressure-bearing part of the pressure vessel to close the end of the vessel for sealing, it is welded to the vessel shell.The main clad dish head materials is carbon steel and stainless steel,the common one is SA516Gr70 and 304,316 and so on. ASME PED Standard Carbon Steel Add Stainless Steel Clad Dish Head Elliptical carbon and stainless steel clad dished head is the main pressure-bearing part of the pressure vessel to close the end of the vessel for sealing, it is welded to the vessel shell.The main clad dish head materials is carbon Customized SA516-70 & SA316L Clad Plate Pressure Vessel Head.Clad Head For Pressure Vessels are the end closures that are designed to contain and maintain pressure within the vessel Fabrication of dome tops, tank heads, and complex compound dishing of aluminum and steel.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

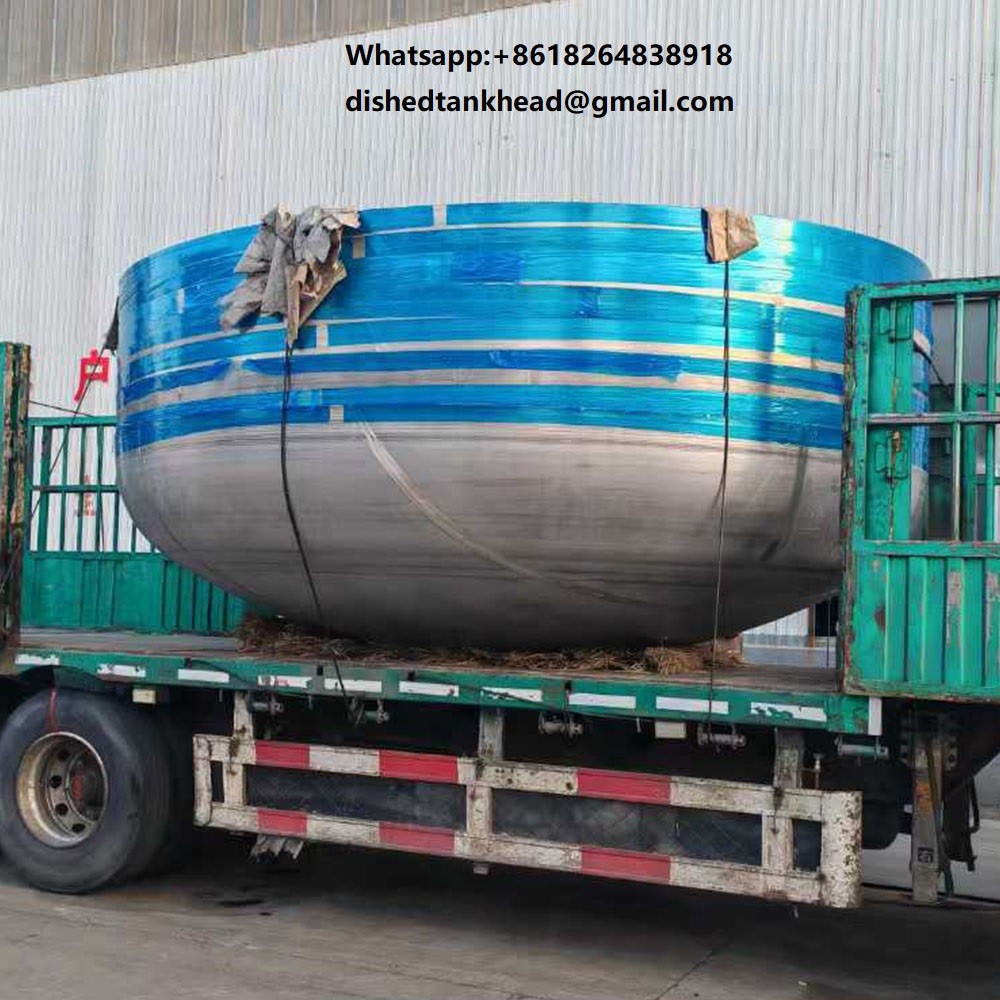

Packaging & Shipping

SA516 Gr. 70 Carbon Steel With SS316L-Clad Dished Heads

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
