Product Description

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

 Torispherical Head Specifications

Materials: Ferritic, austenitic and non ferritic metals that can be cold worked.

Fabrication Method: cold dishing and flanging or pressing.

Dimensions: up to 8,000 mm diameter and 30mm thickness.

Edge preparation: according to your requirement.

Approval: ASME.

Inspections: by TÜV or other inspection companies.

Applications of Torispherical Head

Compared with elliptical head,  due to its easier manufacturing processes, the torispherical head is often used in addition to the pressure is larger diameter pressure vessel.

  We are the professional dished heads manufacturers who had been dedicated in supplying industrial autoclave, storage tank and tank head products and solutions to worldwide customer over 20 years. We can produce up to 8,000 mm diameter asme torispherical dish end depending upon thickness of material and wall thickness up to 30 mm depending upon material and diameter. custom forms and dimensions are also available.

Size range: 50mm-13000mm with integral formed,larger sizes with subsection formed can be specified.

Thickness: 2mm--400mm

Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA

Material: stainless steel,carbon steel, aluminum,special steel etc.

Application: mainly for pressure vesselsin diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military.

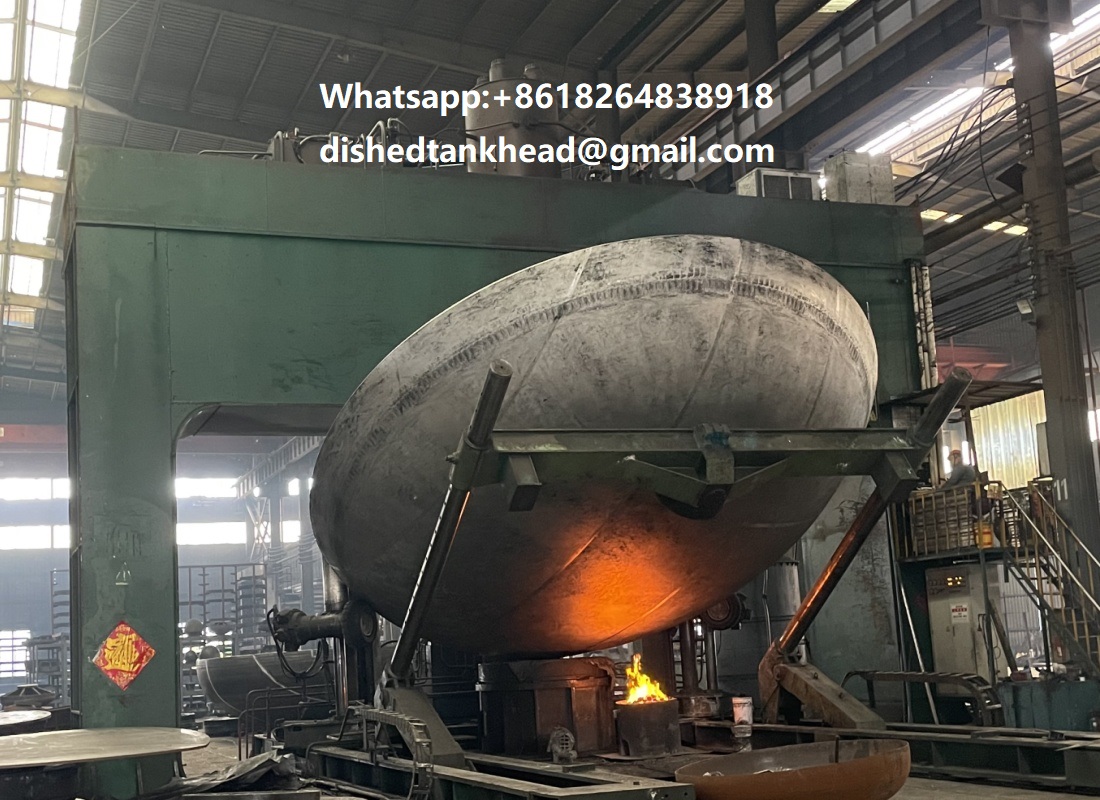

Hot pressed dished heads, also known as hot formed dished heads, are specialized components used in the construction of pressure vessels and tanks. In the fabrication of hot pressed dished heads, a metal plate is heated to an appropriate temperature and then pressed against a mold or die with the desired curvature. This method ensures a precise and uniform shape, resulting in heads that offer improved structural integrity and stress distribution compared to other shapes.Vessel dished head is an indispensable and important part of pressure vessel equipment in many industries from petrochemical, atomic energy to food and pharmaceutical.

The vessel dished head is the end cap on the pressure vessel and is a major pressure-bearing part of the pressure vessel. The role played is that of sealing. Firstly, it is made into the upper and lower bottom of the tank-shaped pressure vessel, secondly, when the pipe reaches the head and is not ready to extend forward, a head is used to seal the pipe in the form of welding. Products with similar functions as heads are blind plates and pipe caps, but these two products can be dismantled. But these two products can be disassembled, whereas a head cannot be disassembled after it has been welded. The fittings used with them are pressure vessels, pipes, flanges, elbows, tees, crosses and other products.

The quality of the vessel dished ends are directly related to the long-term safe and reliable operation of the pressure vessel.

Production Process of Heads:
Haipei Industry Stainless Steel Tank Heads Elliptical Dished Head

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

Company Information

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

Our Services

1.No cracks,delamination, inclusion ,and other defects;

2.The warranty time is 6 months,except the wearing parts;

3.We provide the best service based on professional and sincerely attitude.

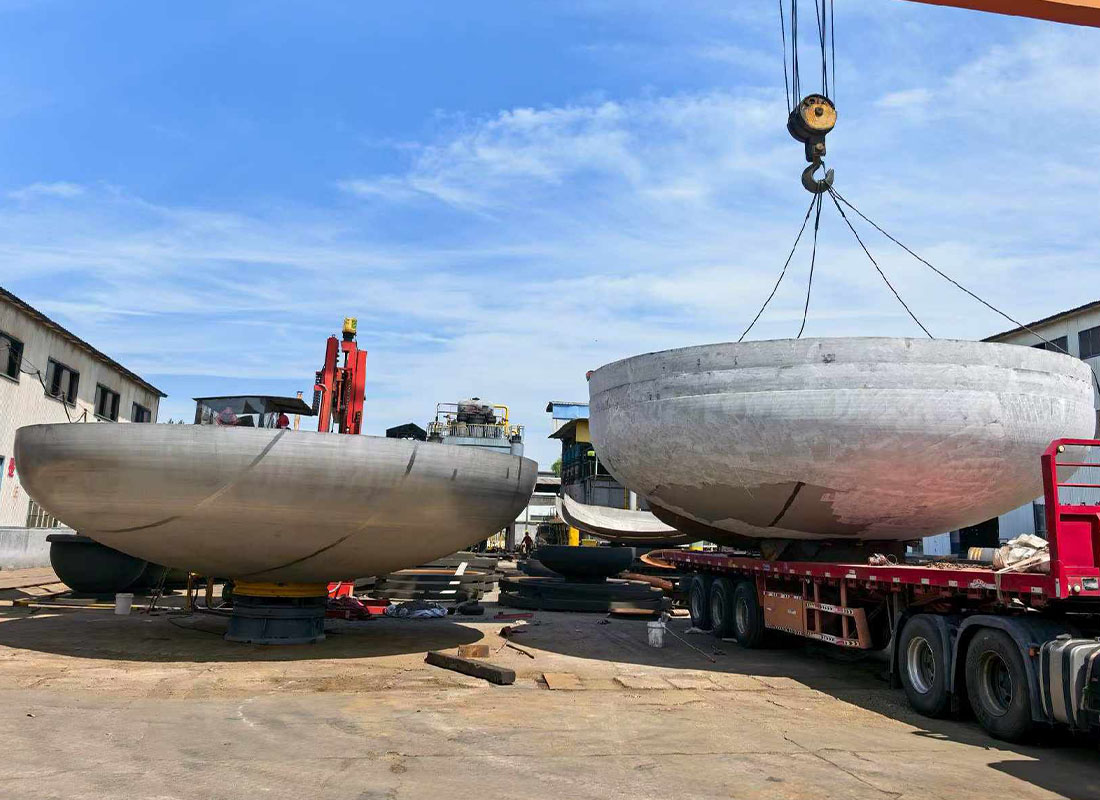

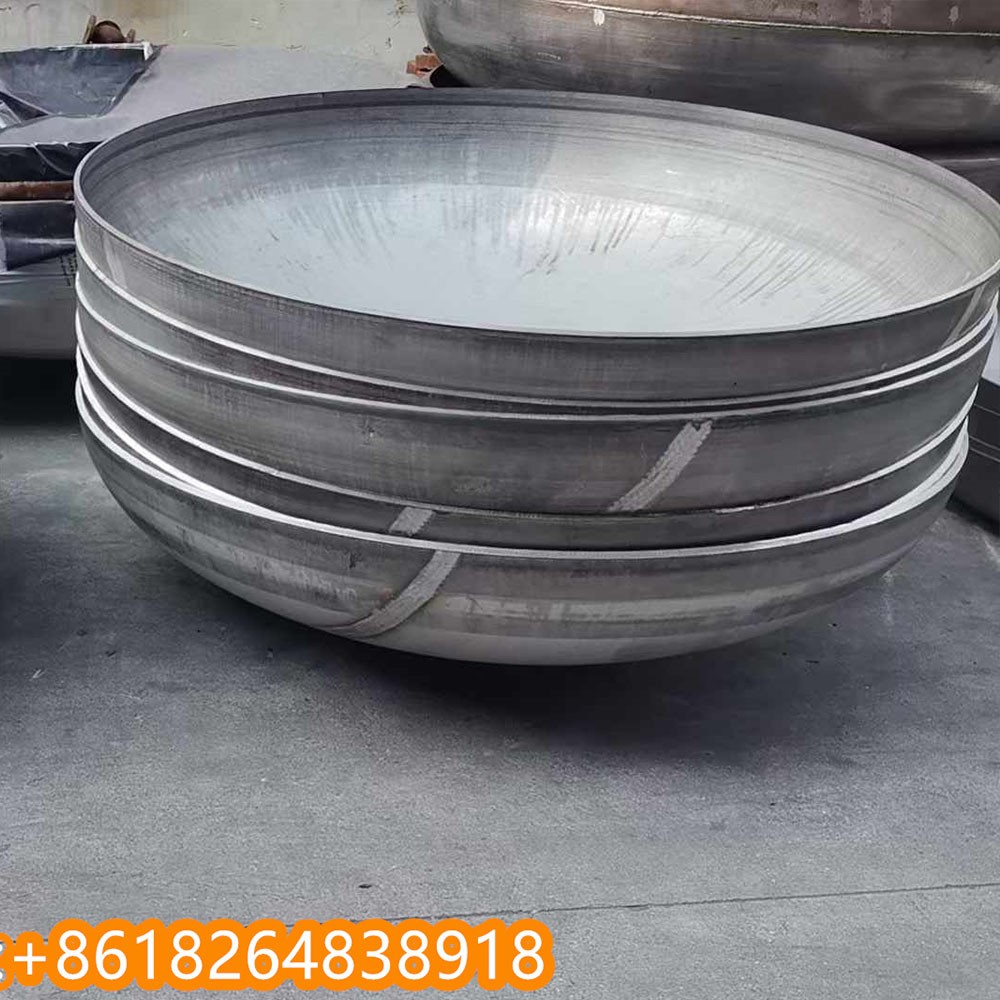

Product Pictures

Stainless Steel Tank Heads Elliptical Dished Head, custom-made for oil, chemical, and water industries. Durable, welded, and tested to standards.Stainless Steel Dished Heads Tank Top and Bottom Covers Caps Pipe Fittings Stainless steel dished tank heads serve as curved end closures for pressure vessels, storage tanks, and industrial piping We manufacture our own carbon and stainless steel tank heads from 12" to ten feet in diameter, and keep hundreds in stock to ensure the fastest possible manufactures custom stainless steel tank components from heads and cones to shells and vents with expert in‑house fabrication We specialize in the fabrication of stainless steel, aluminum, and carbon steel tank heads for many different industries. Stainless steel dished head is a kind of product used to seal stainless steel pipeline. It is a kind of product that is used for container after the pipe Tank heads are a critical piece of your tank fabrication, whether it's ASME flanged and dished, 2:1 elliptical, standard flanged and dished only Our asme hemispherical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked Dish Head ASME Dished Tank Heads Stainless Steel Elliptical Head hese circular dished heads provide a curved end-closure component for welded tanks, shells and large-diameter fabrication enquiries Custom Tank Heads & Pressure Vessel Heads

Custom Tank & Vessel Heads elliptical heads 1.9:1 from China Manufacturers ASME tank heads can be used in a wide range of applications, such as in the chemical and petrochemical industries, oil and gas storage, water tank All heads are hot-formed, seamless, and descaled (Note: We can shot blast for carbon and low-chrome alloys, sand blast for stainless steels Torispherical Head | Dished Heads - Elliptical Tank Head Find high quality torispherical heads, dished heads, tank heads online, we can offer reliable quality, best services and worldwide shipping for you. Formed Metal Tank Heads Elliptical carbon and stainless steel clad dished head is the main pressure-bearing part of the pressure vessel to close the end of the vessel for sealing 2:1 Ellipsoidal Dished Heads/Cold Pressing Stainless Steel Tank Ends Choose from our selection of dished heads, including ASME-code compressed air storage tanks, ASME-code expansion tanks for water, and more. Stainless Steel Dished Ends Tank End Cap ASME Pressure Vessel Dished Heads Elliptical Tank Head Leading dish head manufacturer & tank head supplier offering custom and standard ASME pressure vessel heads with fast turnaround and certified quality.Oil Tank Stainless Steel Dish Head · Stainless Steel Ellipsoidal Dish End 2200mm Diameter 25mm Thickness · Stainless Steel Ellipsoidal Dish Heads 2:1 For Propane

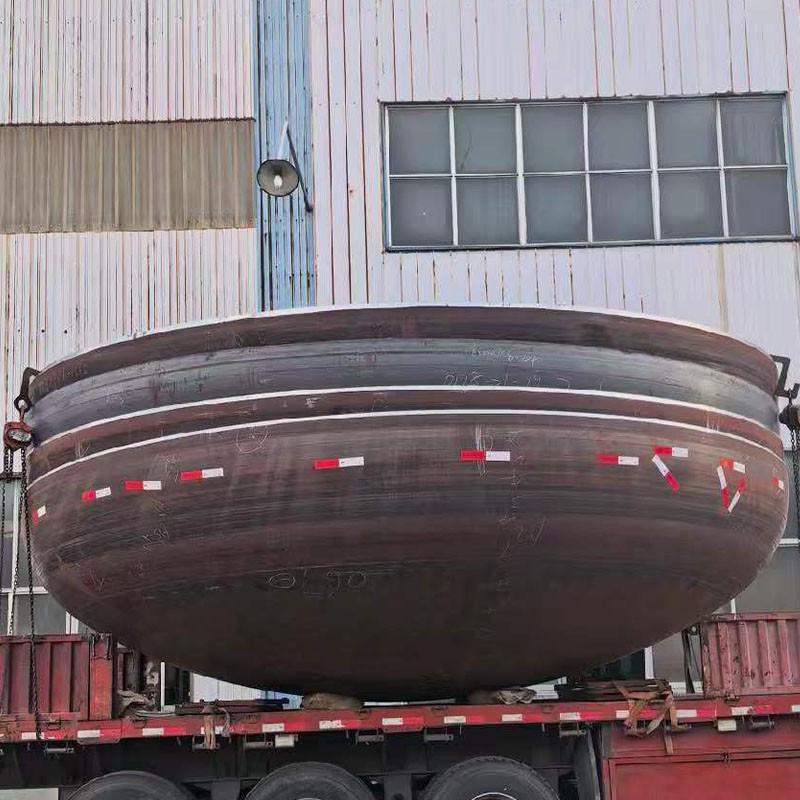

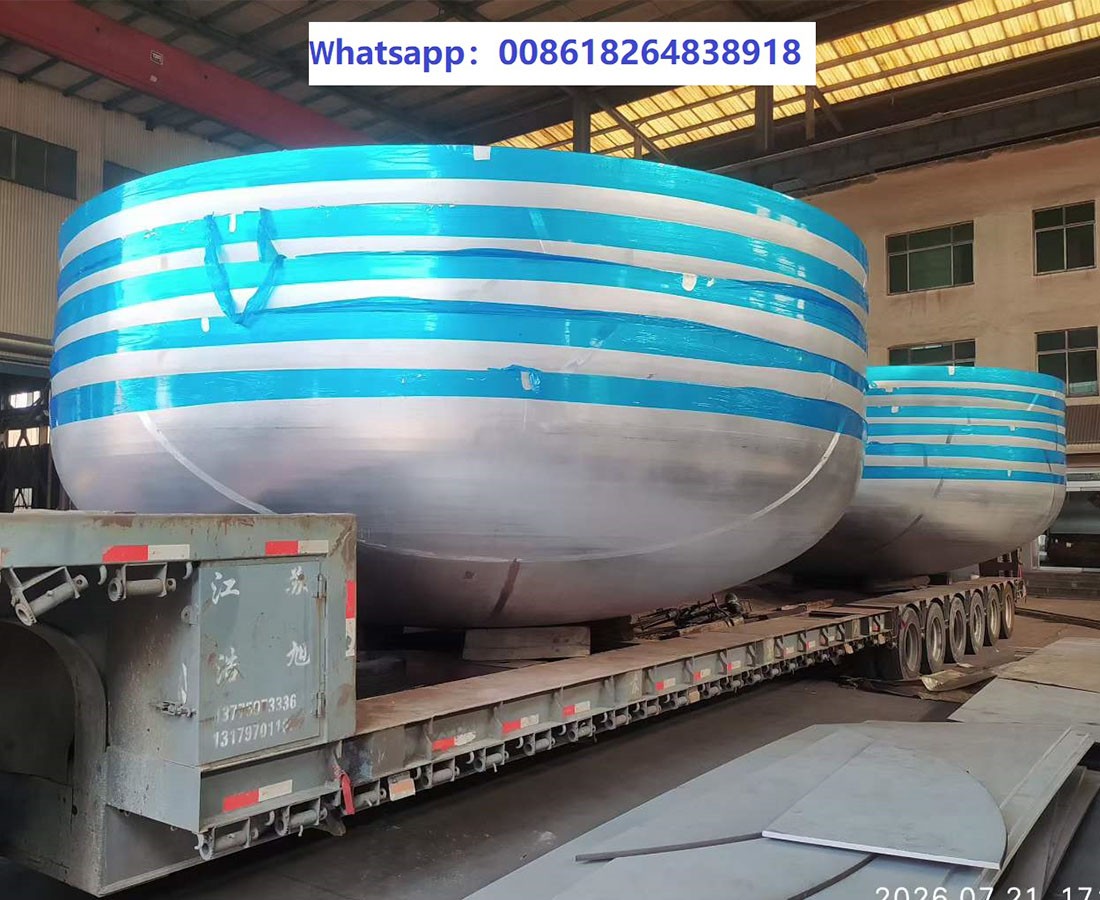

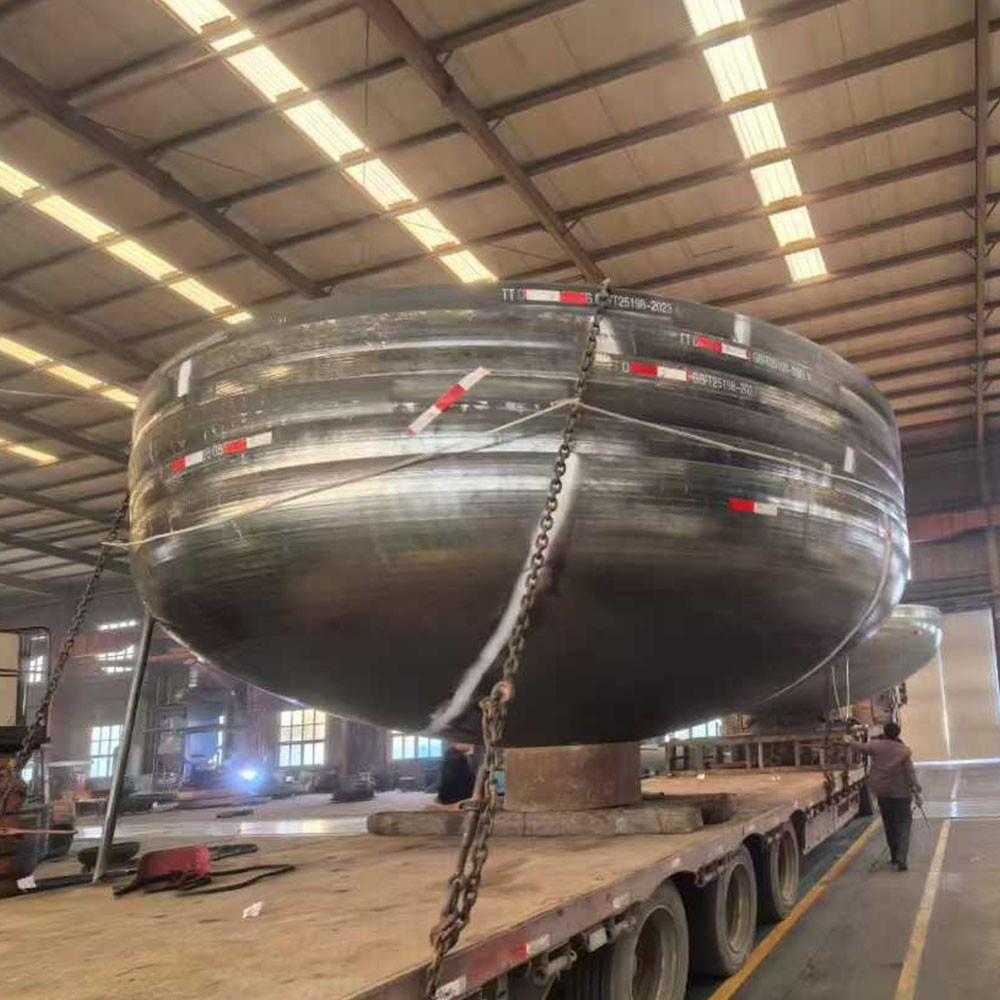

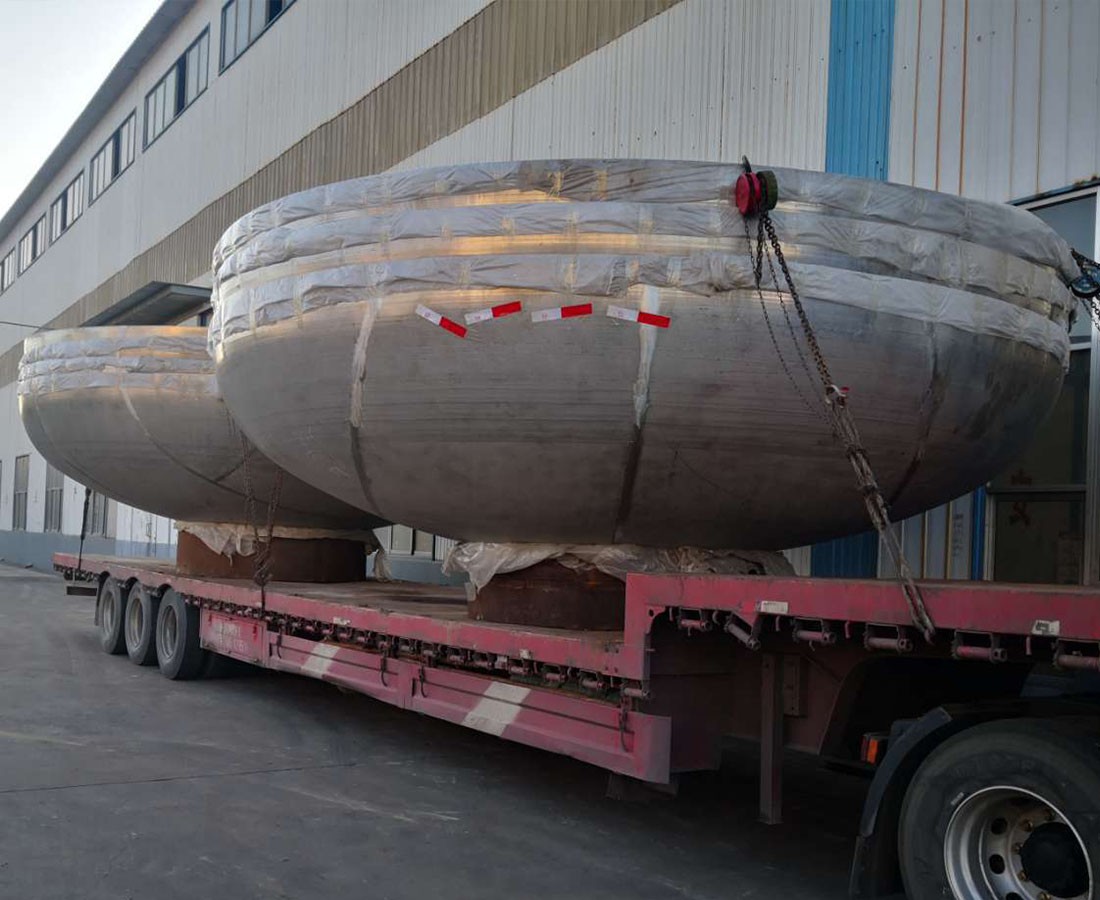

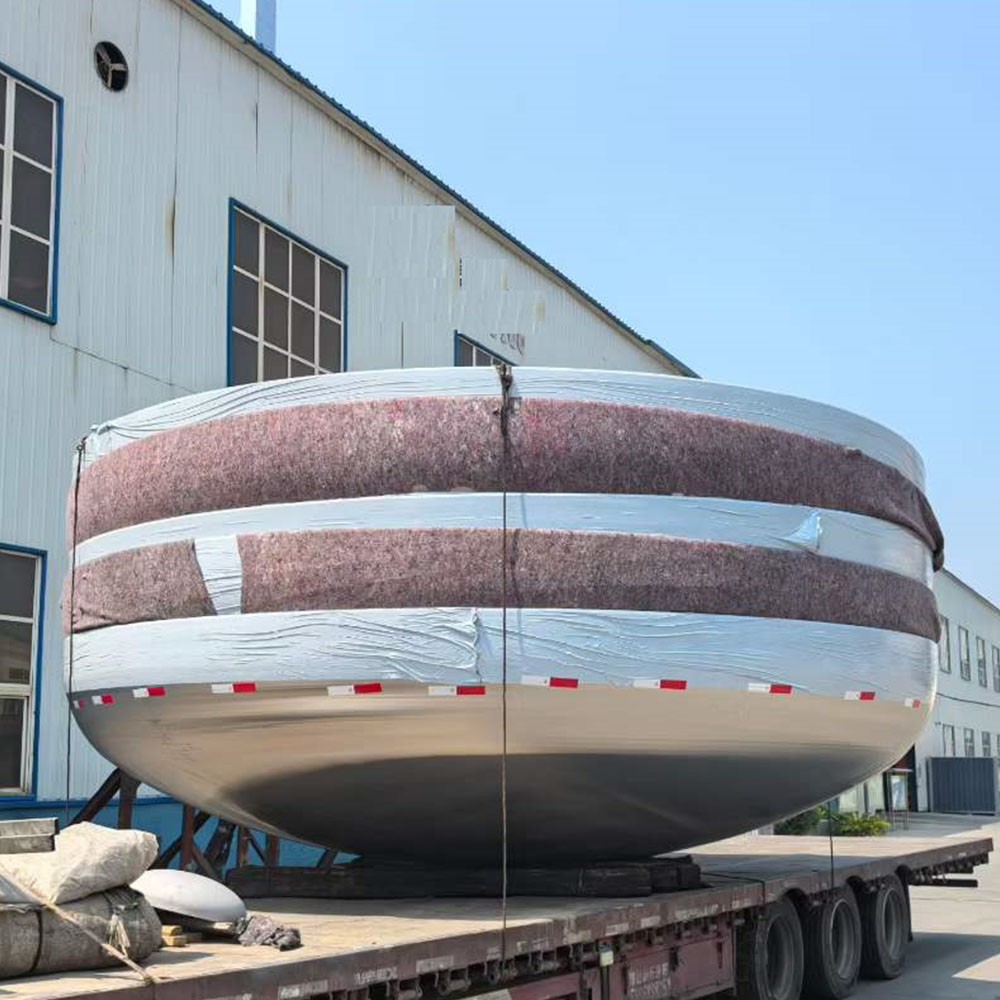

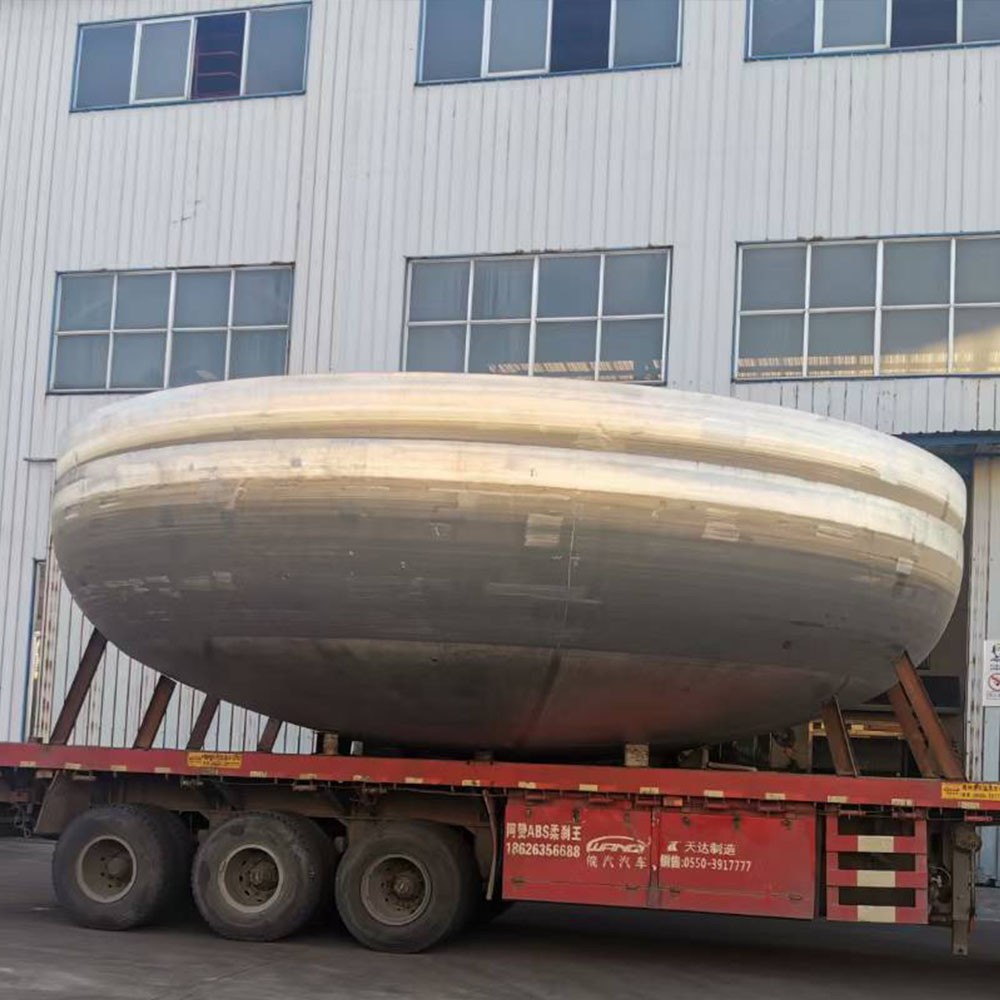

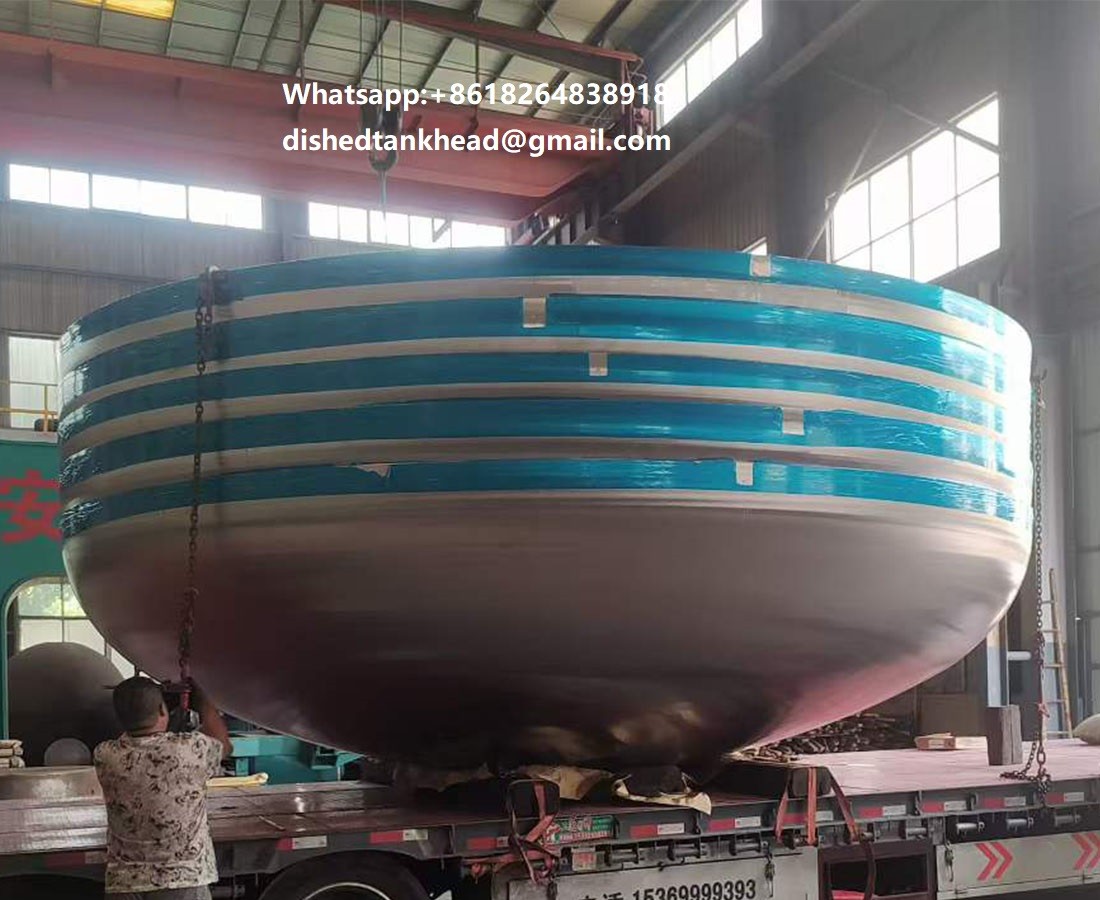

Packaging & Shipping

Haipei Industry Dished Head Custom Tank & Vessel Heads

6 pieces packed on a pallet for Large Spherical Outdoor Decorated steel firepit sphere

Wooden cases ,wooden pallet plastic bag or as per customers requirement

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
