Tank Heads Tank Top and Bottom Covers with Hemispherical Dished Head

Product Description

Item :	Tank Heads Tank Top and Bottom covers with Hemispherical Dished head
Diameter:	89mm--13000mm
Thickness:	2mm--100mm
Reduction Ratio:	about 10%
Material:	Carbon stee(A3,20#,Q235,Q345B,16Mn), Alloy steel(15Mo3 15CrMoV 35CrMoV 45CrMo),
	Stainless steel (304,321,304L,316,316L), etc
	According to customers requirement (If you can use Chinese material is the best.)
Technology:	Hot pressing, cold pressing
Surface Treatment:	Sand Blasting, Transparent oil, Rust-proof oil, Galvanizing
Test:	UT,RT,MT,PT,ET
Applicable Standard	ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB
Certificate:	ISO9001 ,ISO14001,OHSAS18001
Applications:	Such as: oil, chemical industry, water conservancy, electric power,
Applications:	boiler, machinery, metallurgy, sanitary construction etc.
Product Character	Rustproof, good corrosion resistance, anti-wearing, good-appearance, excellent mechanical properties.
Connection	Butt-welding
Packaging:	Standard seaworthy export packing: Plywood Box, Plywood or Steel Pallet or as per customers requirement
Delivery time:	According to customers requirement
OEM,ODM	Available
Others:	1. Special design available according to your drawing.
	2. Anti-corrosion and high-temperature resistant with black painting
	3. All the production process are made under the ISO9001:2000 strictly.
	4. A conformity rate of ex-factory inspection of products.

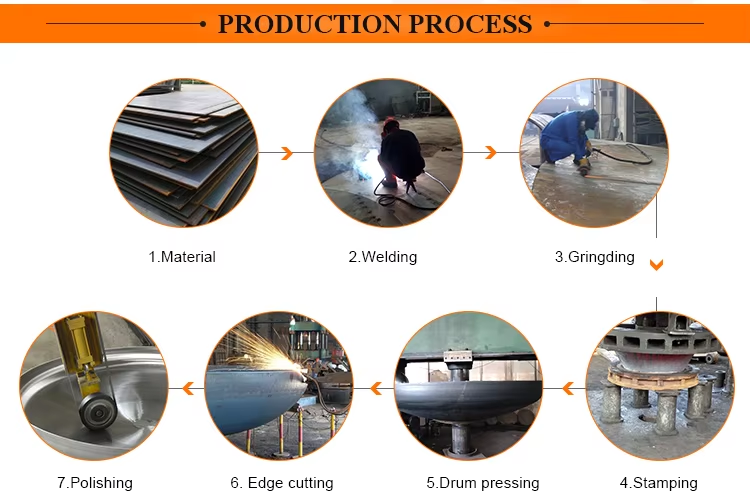

Production Process of Heads:
Tank Heads Tank Top and Bottom Covers with Hemispherical Dished Head

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

Haipei dish heads.jpg

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

haipei dish head.jpg

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

haipei dish heads.jpg

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.
