Torispherical Head Dished Heads

Introducing Torispherical Head Dished Heads: Superior Performance for a Range of Applications

Torispherical heads are essential components in the design and construction of pressure vessels, boilers, and other industrial equipment that require efficient and durable forming techniques. With their robust structure and versatility, Torispherical heads are available in a wide range of sizes and specifications, tailored to meet the demands of diverse applications.

Key Specifications

The Torispherical heads are designed with a maximum diameter of up to 8000mm, offering compatibility with a broad scope of projects. The standard dimensions are defined by:

• De: Maximum of 8000mm

• R: Based on Di (Diameter) values

• h*: Determined as Di/10 (on request depending on size)

• S: Thickness range of 2.5 to 60 mm

While these parameters represent standard offerings, Haipei Industry can work on customized designs to suit specific needs. A detailed feasibility study will be conducted for every request to evaluate the required dimensions, materials, and thickness. In cases where the dimensions fall outside the specified ranges, Haipei’s experts are available to provide custom solutions through cold or hot forming processes.

Customizable Design Options

In addition to the standard Torispherical heads, Haipei Industry also offers a range of customized heads designed for specific requirements. The product lineup includes:

• Outwards Beaded Torispherical Heads

• Inwards Beaded Torispherical Heads

• Torispherical Customized Heads (with or without brims)

• Reversed Flanged and Dished Heads

• Flared and Dished Heads

Each of these variants can be tailored to fit particular industrial needs, from ensuring pressure resistance to optimizing the design for space-saving or ease of manufacturing. The flexibility of these heads allows them to be integrated into various systems, including chemical reactors, pressure vessels, storage tanks, and more.

Material and Forming Techniques

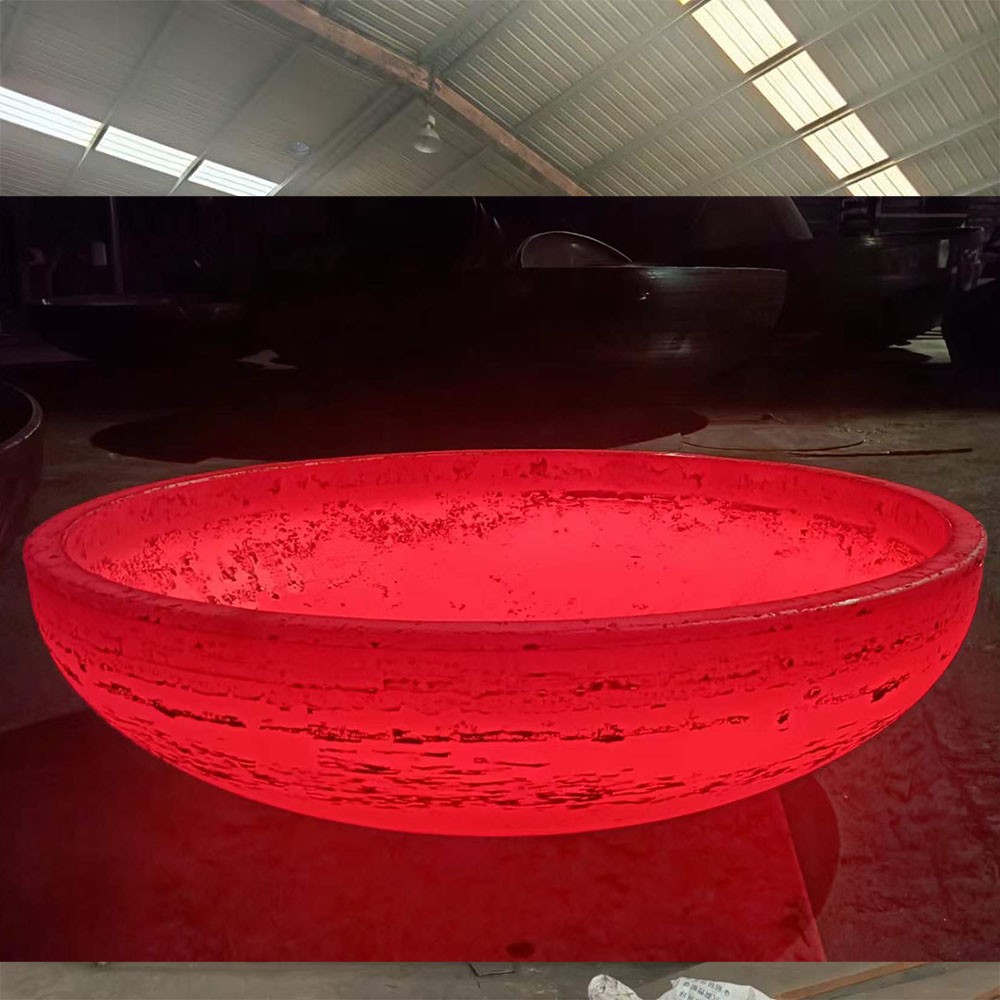

Depending on the required properties such as material, thickness, and dimensions, Haipei Industry can employ different working techniques. These could include cold forming, hot forming, or other specialized processing methods to achieve the best mechanical and functional results. For custom projects, consultation with Haipei’s engineering team is encouraged to guarantee optimal design, material selection, and performance.

Quality and Durability

All Torispherical heads produced by Haipei Industry are crafted to meet rigorous industry standards for safety, strength, and reliability. The use of high-quality materials ensures superior performance in high-pressure environments, making these heads ideal for use in industries such as petrochemical, pharmaceutical, food processing, and energy production.

Conclusion

Whether you need standard, custom, or specialized Torispherical heads, Haipei Industry offers solutions that meet your engineering and operational needs. Our focus on quality, customization, and precision ensures that every head we produce is perfectly suited for its intended application. Reach out to Haipei Industry for expert consultation and to receive a feasibility study tailored to your project requirements.

For more information or to discuss your project in detail, please contact Haipei Industry's customer support team. We are here to provide solutions that ensure the success of your project!

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

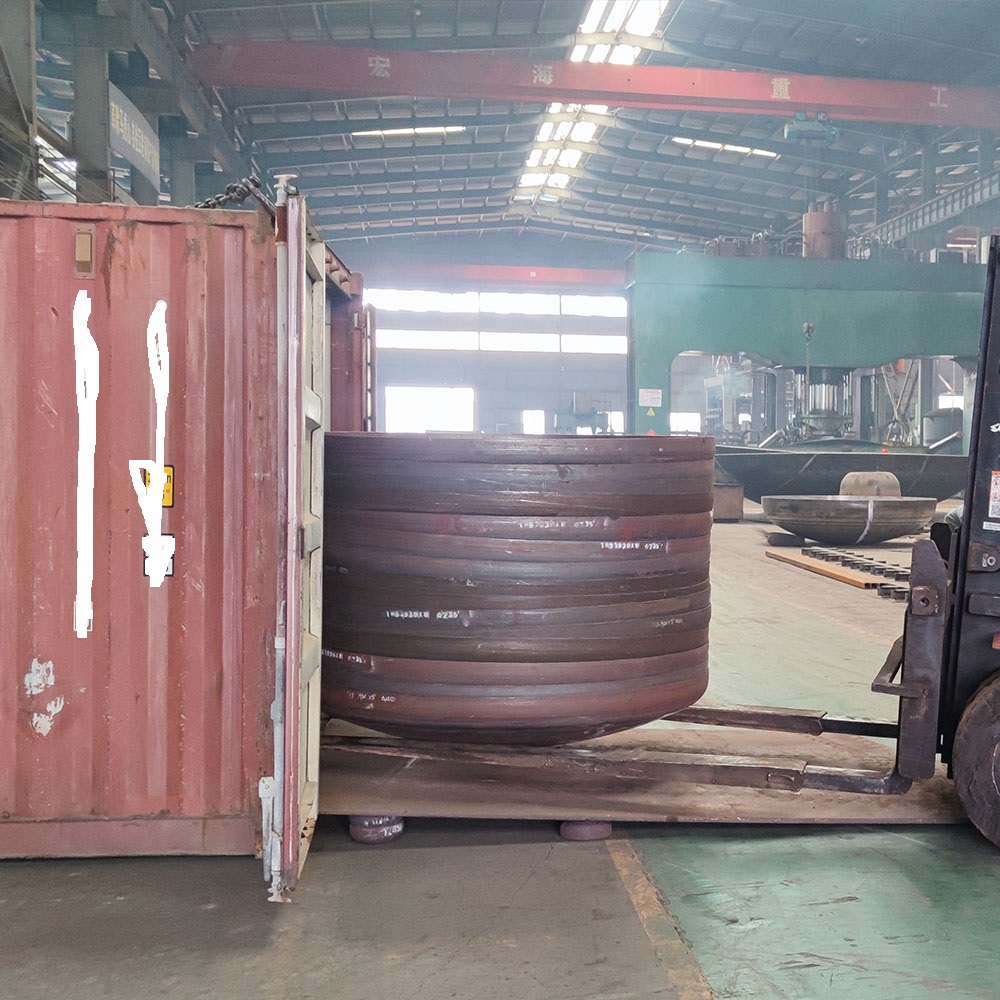

Packaging & Shipping

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
