Dish Ends

Dish Ends

Product Description

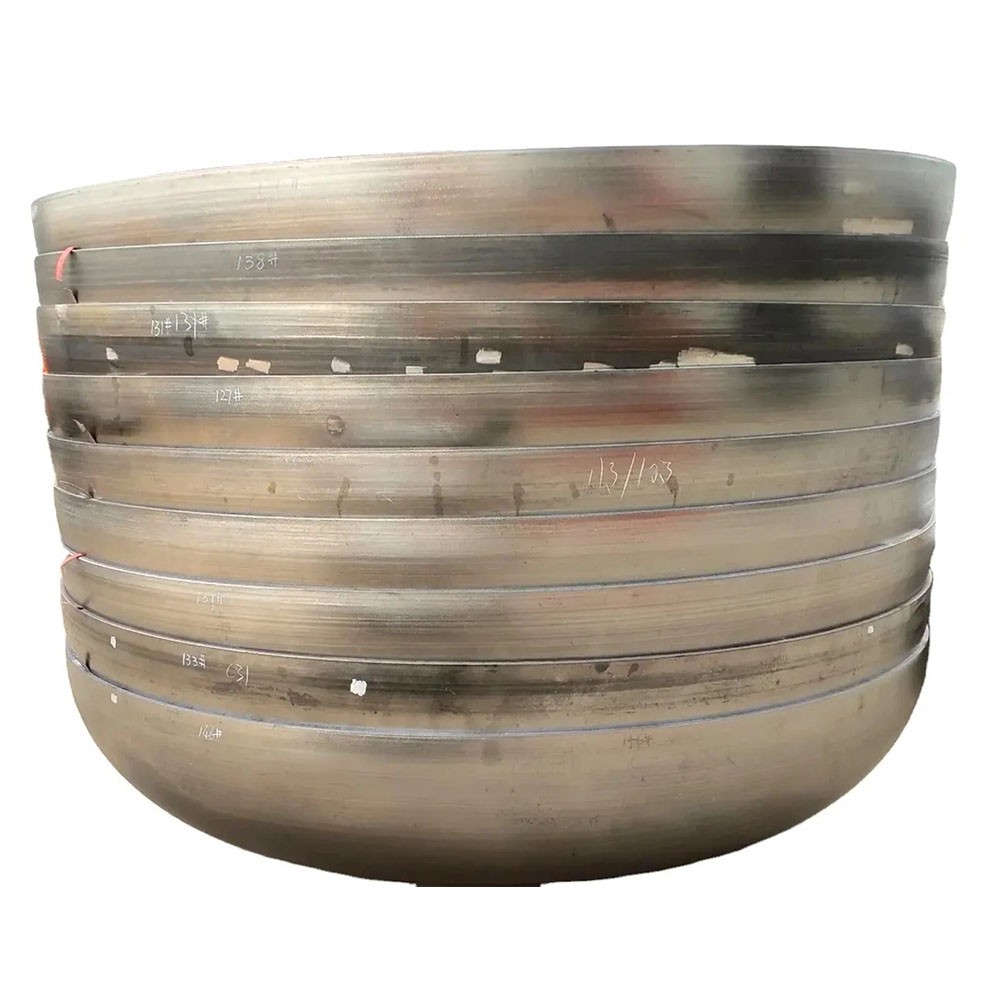

Dish Ends: Essential Components for Industrial Applications

IntroductionDish ends, also known as dished heads or tank heads, are specialized hemispherical or torispherical components used to close the ends of pressure vessels, storage tanks, and boilers. These components are crucial for maintaining structural integrity, withstanding pressure, and ensuring the smooth flow of fluids and gases within industrial equipment. Manufactured from high-quality materials such as carbon steel, stainless steel, and other alloys, dish ends undergo precise forming processes to achieve dimensional accuracy and strength. Their versatile design and critical functionality make them indispensable in industries such as oil and gas, chemical processing, pharmaceuticals, and food production, enhancing efficiency, safety, and reliability in industrial operations.

What You Get From UsAs a trusted provider of dish ends, we specialize in delivering high-quality, precision-crafted components tailored to meet the unique requirements of various industrial applications. Utilizing advanced forming techniques, our dish ends guarantee durability, reliability, and performance across different industries.

Our products are integral to the oil and gas sector, aiding in the construction of pressure vessels and storage tanks. In the aerospace industry, our dish ends contribute to the manufacturing of critical aircraft components. Additionally, they play a significant role in the chemical processing, pharmaceutical, and food industries, where they are used in reactors, boilers, and storage containers. By continuously refining our manufacturing processes, we provide customized solutions that enhance operational efficiency, safety, and compliance with industry standards.

Range

• Thickness: Up to 250 mm

• Diameter: Up to 22 meters

Advantages

• Customization: We offer tailor-made pressure vessels designed to specific requirements, ensuring optimal performance for diverse applications.

• Quality Control: Stringent quality control measures are implemented at every stage to meet industry standards and regulatory requirements.

• Efficiency: Our designs maximize space utilization, energy efficiency, and operational performance, leading to cost savings over time.

• Durability: Constructed using high-quality materials and advanced techniques, our dish ends withstand harsh operating conditions.

• Flexibility: We incorporate specialized features such as insulation and advanced monitoring systems to enhance functionality and longevity.

• Scalability: Our fabrication processes are scalable, allowing for the production of pressure vessels in varying sizes and quantities to meet changing demands.

Application Areas

• Oil and Gas Industry: Dish ends are extensively used in pressure vessels and storage tanks essential for oil and gas extraction, refining, and transportation.

• Chemical Processing: They are crucial for reactors and boilers used in chemical production.

• Pharmaceutical Industry: Dish ends contribute to the manufacturing of sterile storage containers and processing equipment.

• Food Industry: Used in food storage and processing tanks, ensuring hygiene and safety.

• Aerospace: Integral to aircraft component manufacturing, ensuring precision and durability.

Our Process

1. Consultation

• We assess project goals, technical specifications, and industry-specific requirements to provide tailored solutions.

2. Contract Agreement

• A legally binding contract outlines the scope of work, responsibilities, payment terms, and project timeline, ensuring transparency and accountability.

3. Production

• Utilizing advanced metal forming methods such as cold, hot, and spinning techniques, we craft each dish end with precision and expertise.

4. Quality Control

• Rigorous inspections are conducted before delivery to ensure each product meets size, strength, and aesthetic specifications, guaranteeing superior quality.

By choosing our dish ends, you invest in high-quality, durable, and customized solutions designed to meet the evolving demands of industrial applications. Partner with us for reliable and efficient fabrication services that drive success in your industry.

Production Process of Heads:

Dish Ends

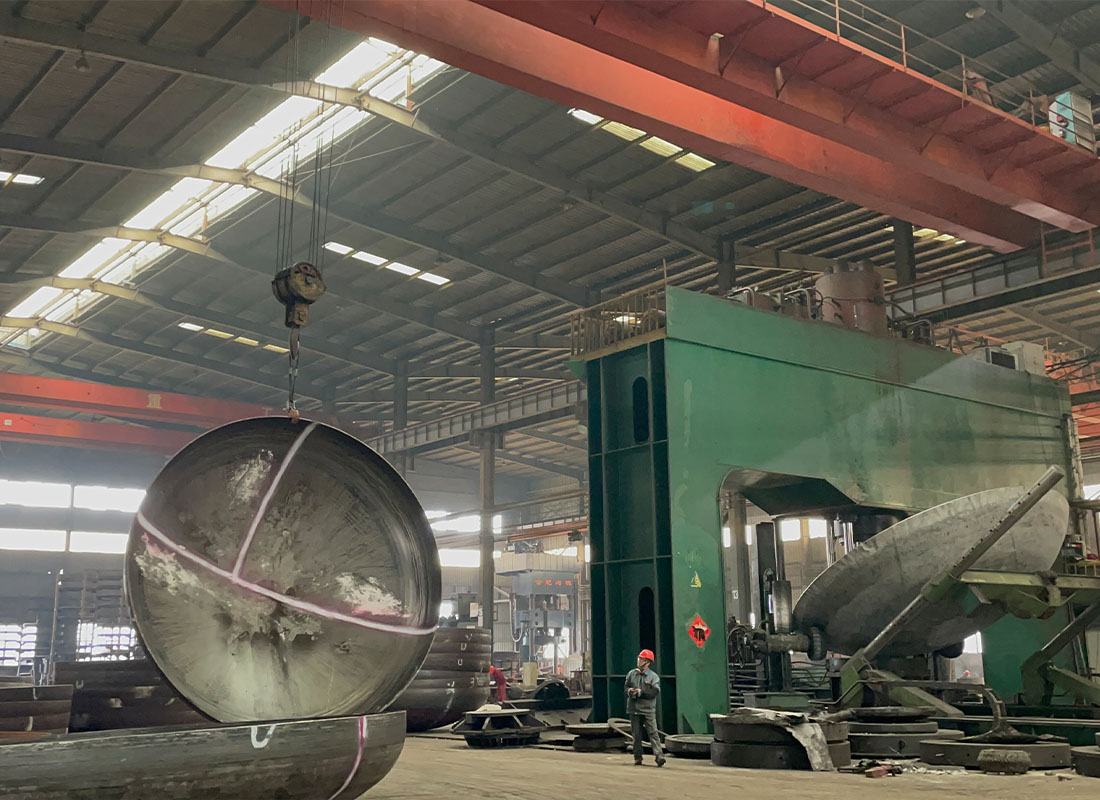

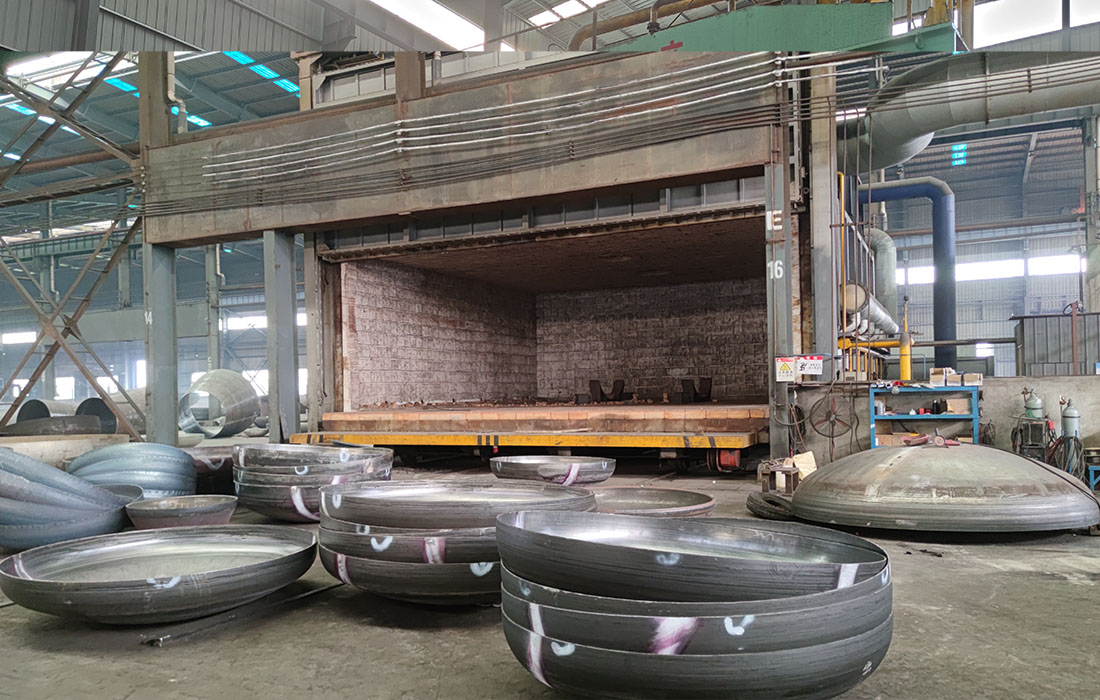

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

Company Information

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

Our Services

1.No cracks,delamination, inclusion ,and other defects;

2.The warranty time is 6 months,except the wearing parts;

3.We provide the best service based on professional and sincerely attitude.

Product Pictures

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

Packaging & Shipping

Dish Ends

6 pieces packed on a pallet for Large Spherical Outdoor Decorated steel firepit sphere

Wooden cases ,wooden pallet plastic bag or as per customers requirement

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
