Product Description

Ellipsoidal head is also called elliptical head or elliptical dish end. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

Manufactured via integrated hot forming using large-scale spinning equipment, these components cover a full range of thickness specifications and support customization with special materials such as SA537 CL2.

They undergo X-ray non-destructive testing and heat treatment calibration prior to dispatch, with dimensional tolerances strictly controlled.

They are suitable for engineering projects including oil and gas storage tanks, chemical pressure vessels, and heating system tanks.

The vessel dished head is the end cap on the pressure vessel and is a major pressure-bearing part of the pressure vessel. The role played is that of sealing. Firstly, it is made into the upper and lower bottom of the tank-shaped pressure vessel, secondly, when the pipe reaches the head and is not ready to extend forward, a head is used to seal the pipe in the form of welding. Products with similar functions as heads are blind plates and pipe caps, but these two products can be dismantled. But these two products can be disassembled, whereas a head cannot be disassembled after it has been welded. The fittings used with them are pressure vessels, pipes, flanges, elbows, tees, crosses and other products.

The quality of the vessel dished ends are directly related to the long-term safe and reliable operation of the pressure vessel.

Production Process of Heads:
Elliptical Tank Heads for Various Pressure Vessels

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

Company Information

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

Our Services

1.No cracks,delamination, inclusion ,and other defects;

2.The warranty time is 6 months,except the wearing parts;

3.We provide the best service based on professional and sincerely attitude.

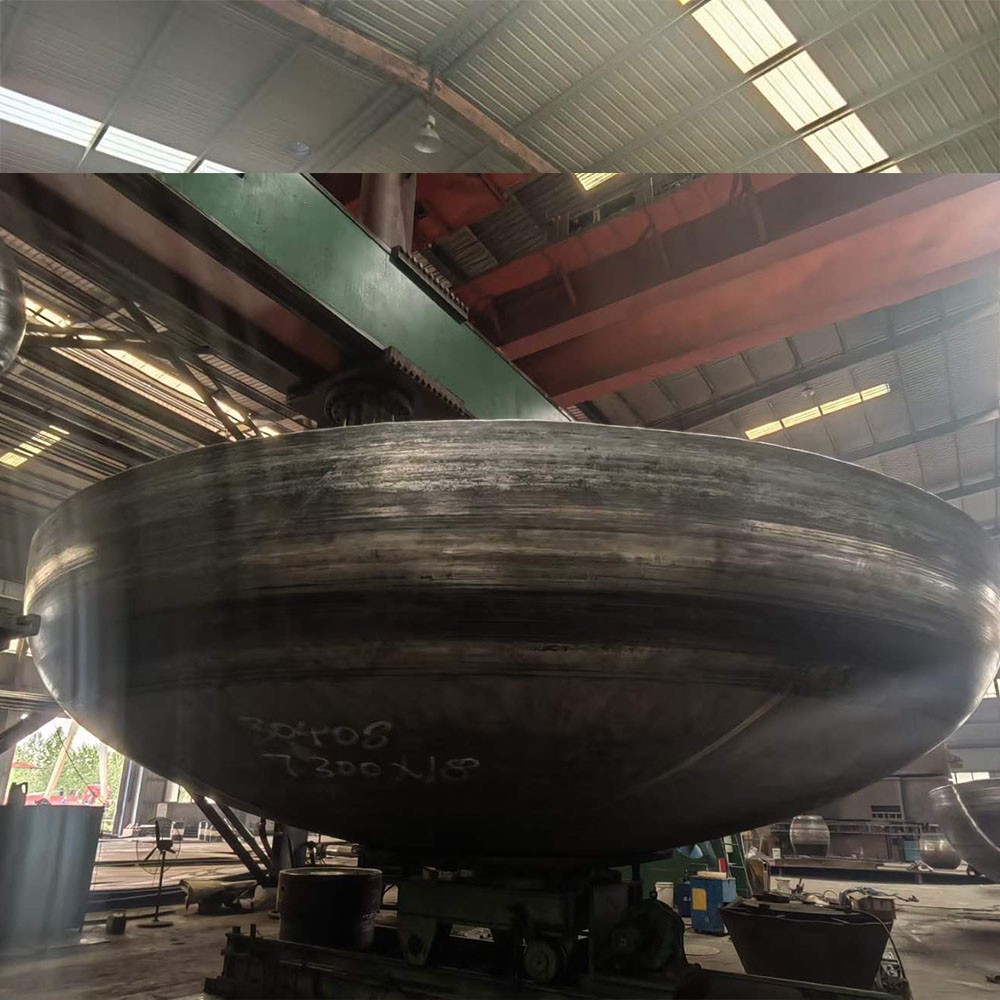

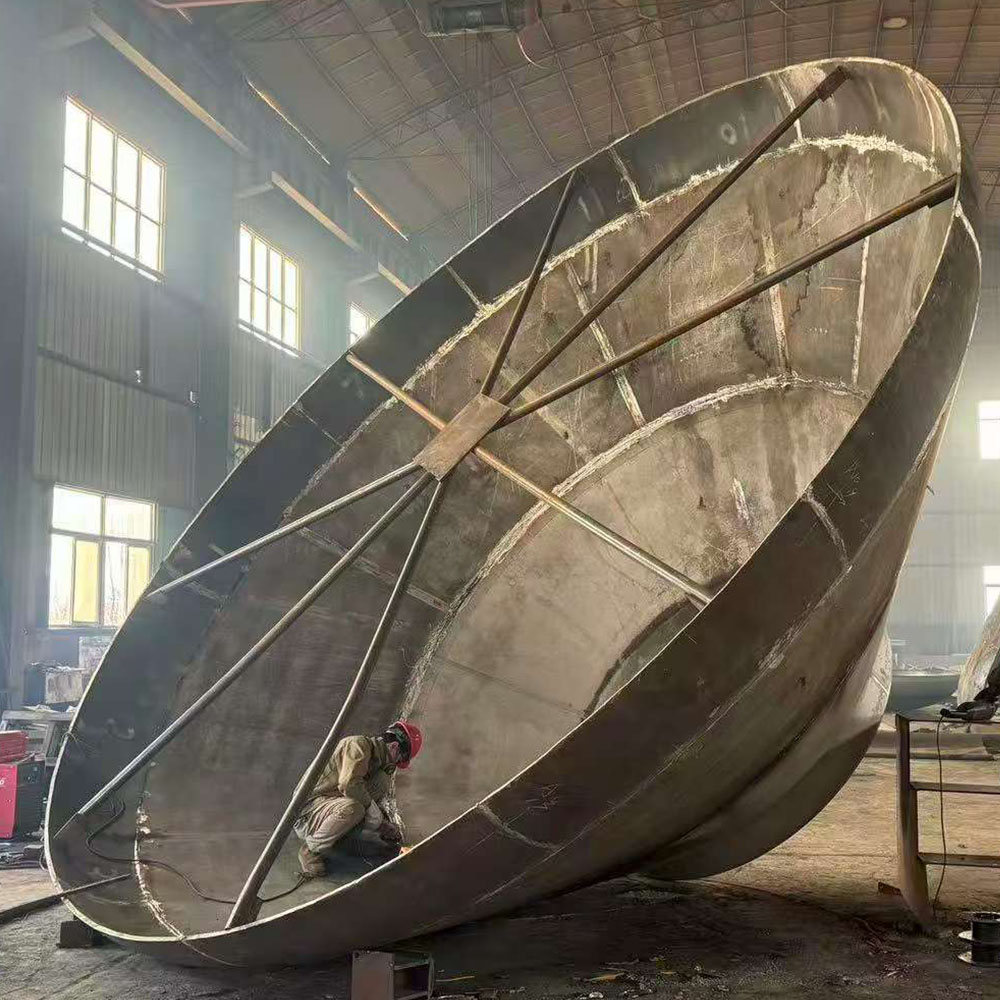

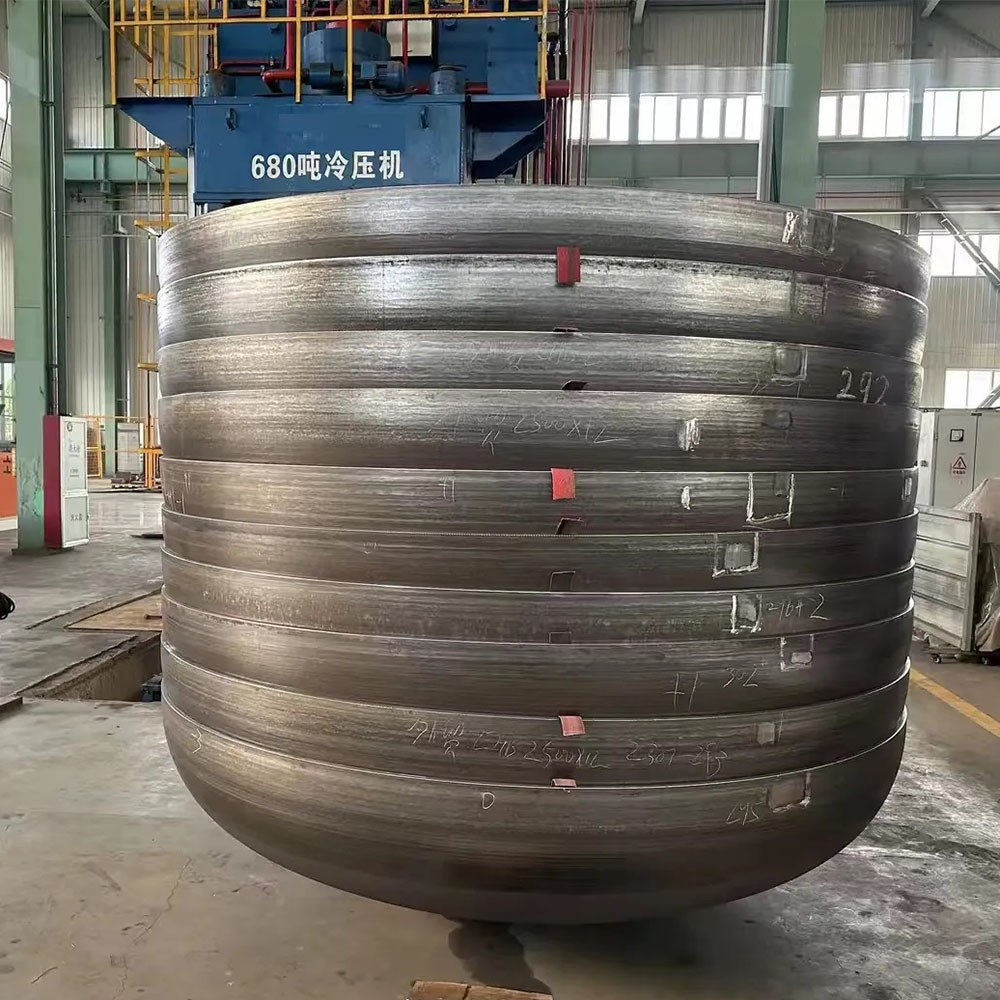

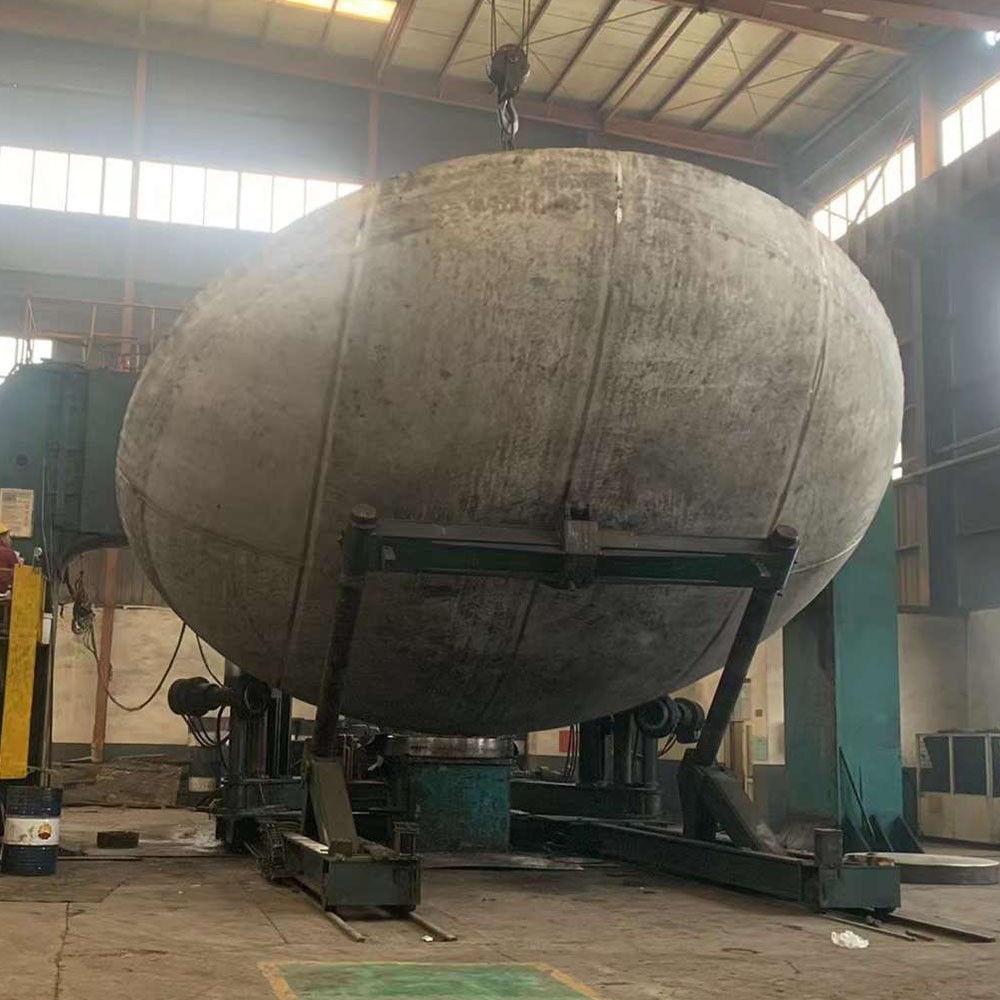

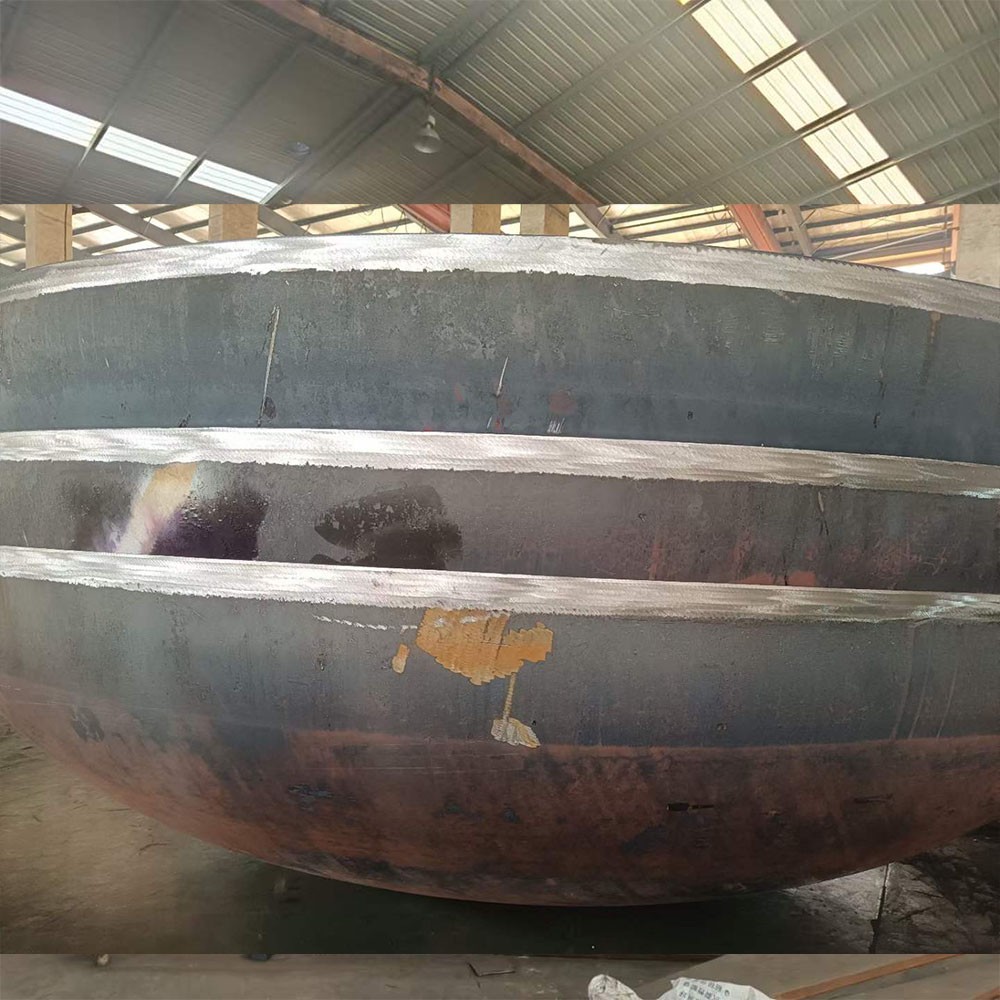

Product Pictures

Haipei Industry elliptical heads manufacturers Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals Cold-Form Head Ellipsoidal Head Elliptical Torispherical Dished Tank Head for Pressure Vessel Industrial Ellipsoidal Heads · Carbon Steel Semi Ellipsoidal Heads · Semi Elliptical Tank Heads · Carbon Steel Cone Heads · Hot Pressed Heads · end cap for aluminium Looking for the best supplier and manufacturer for cold pressing elliptical dished ellipsoidal tank heads online, we can offer the best price and quality Elliptical heads are widely used pressure vessel end closures featuring a 2:1 Elliptical head is a type of pressure vessel head consisting of a curved surface with a shape that resembles an ellipse or a squashed circle We Continuously Increase Investment In Equipment To Produce Quality elliptical heads. Whatsapp:008618264838918

Haipei Industry Elliptical Tank Heads is leading elliptical tank heads deal for various pressure vessels. Economical, efficient, and built to ASME standards.We are the leading manufacturer and supplier for the elliptical heads, Cold Pressing Elliptical Dished,Elliptical Dished Heads fabricated segmented domes, hemispheres, 2:1 elliptical, and ASME flanged & dished heads when projects call for larger pressing capacities.Dome Head ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receiver  elliptical head is defined as a component in pressure vessels characterized by its ellipsoidal shape, where the ratio of the major to minor axis asme pressure vessel dome ends Elliptical Dish Head Customizable 14mm Thickness Torispherical Dished Head with Ultrasonic Testing for Pressure Vessels 40mm 4000mm Half Spherical Pressure Vessel Ends Dished Head Whatsapp:008618264838918 #dishhead #dishend #pressurevessel #ASMEhead #ellipticalhead #ellipsoidalhead #hemisphericalhead

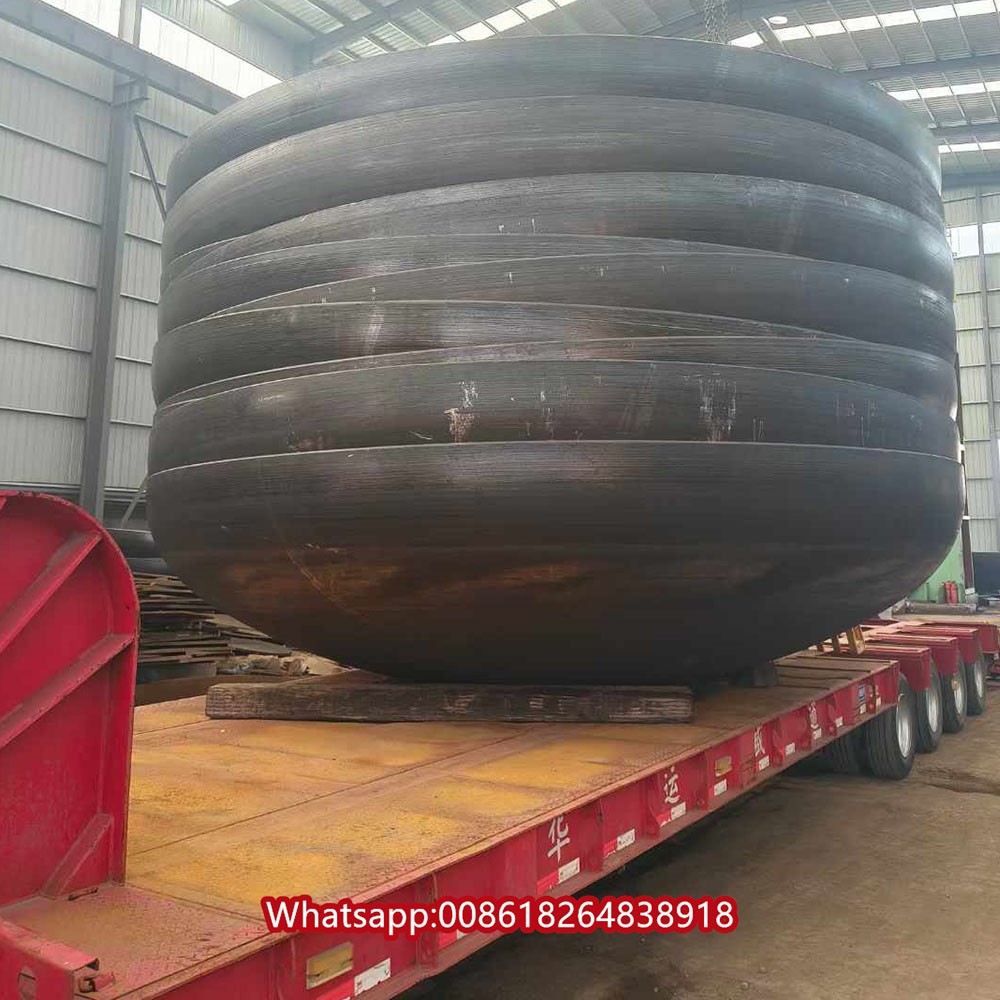

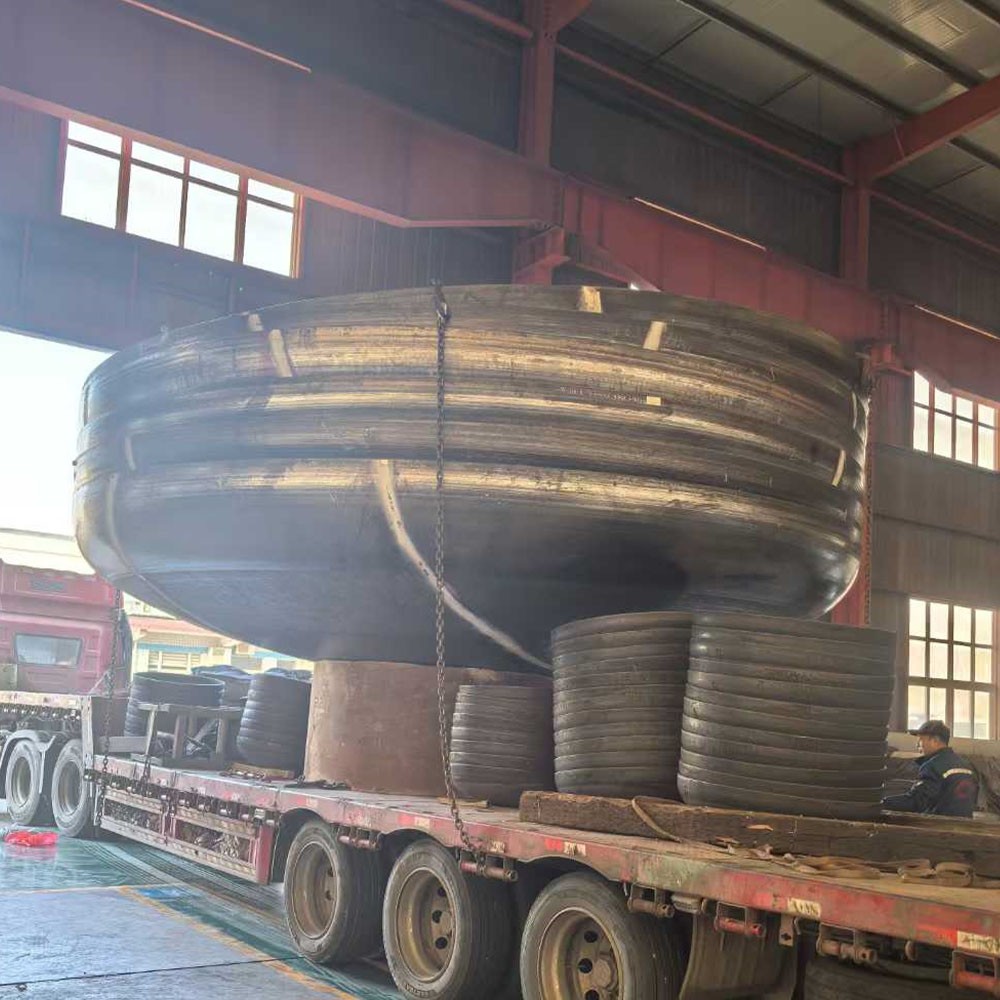

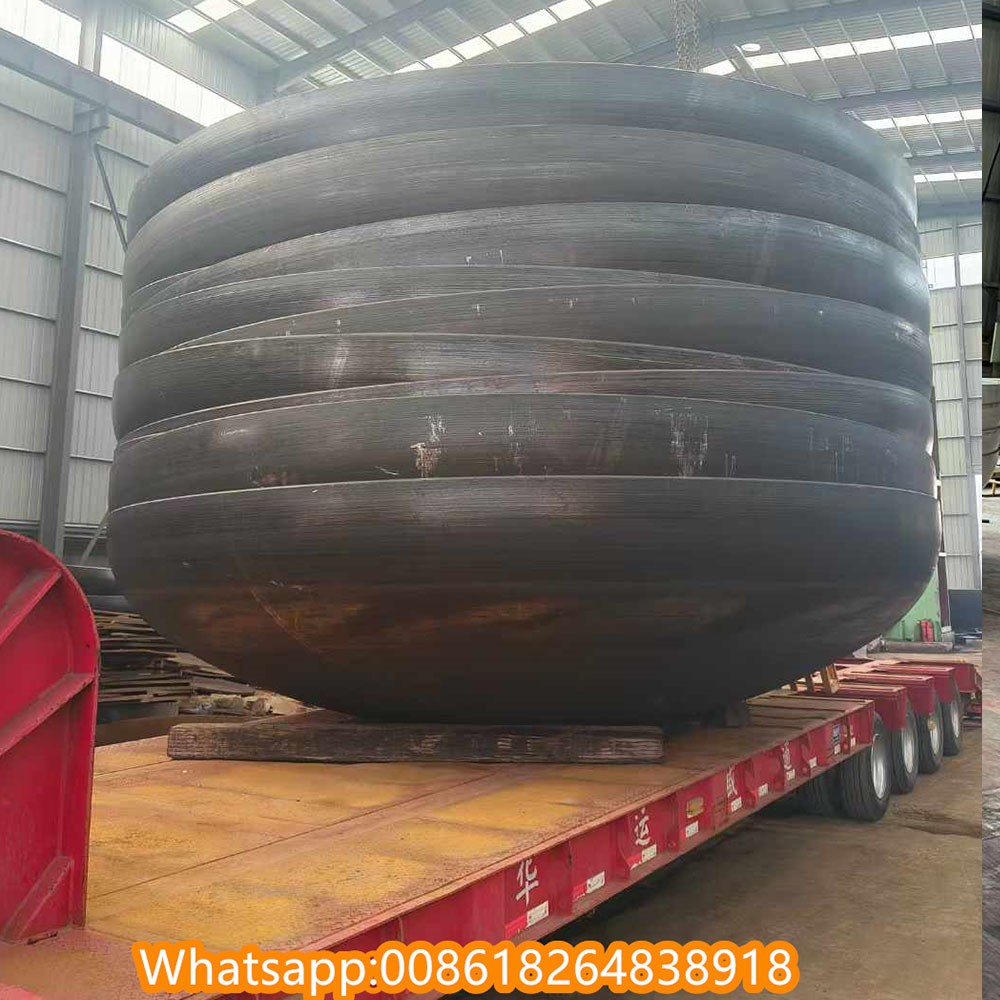

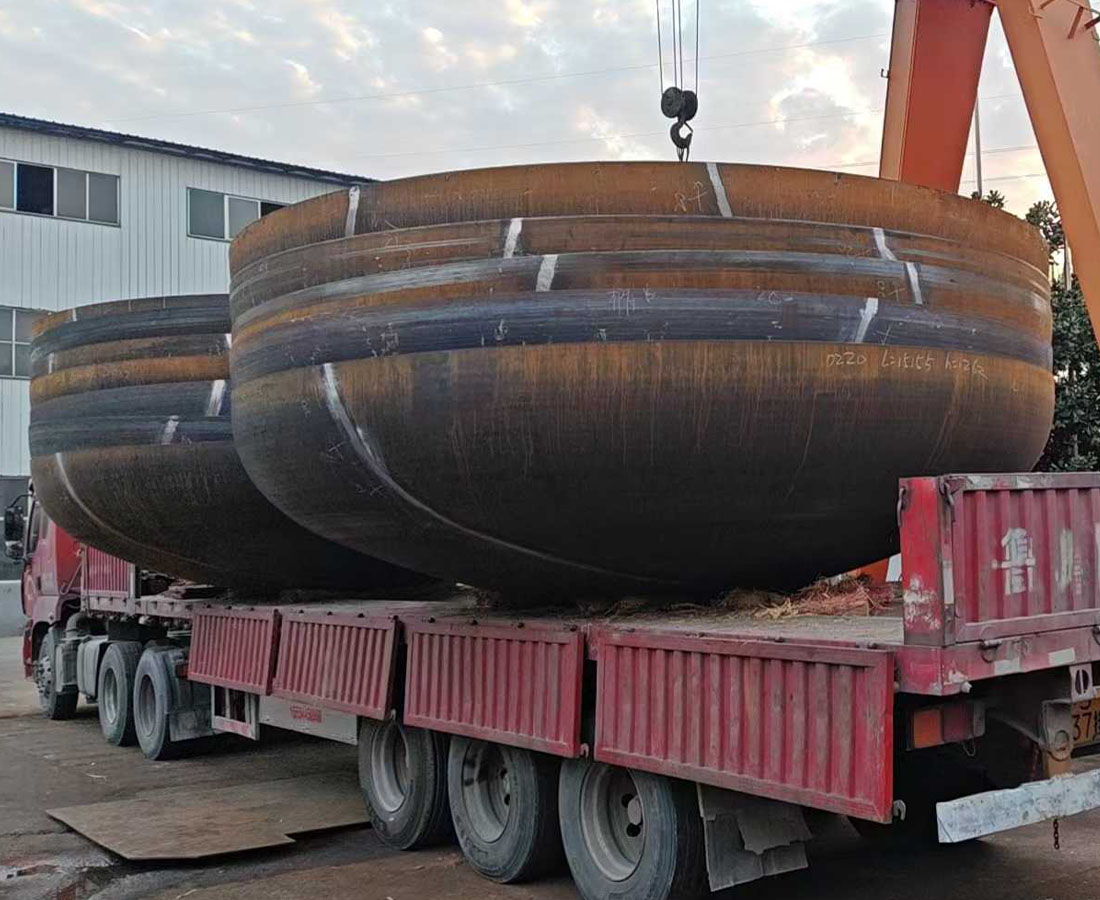

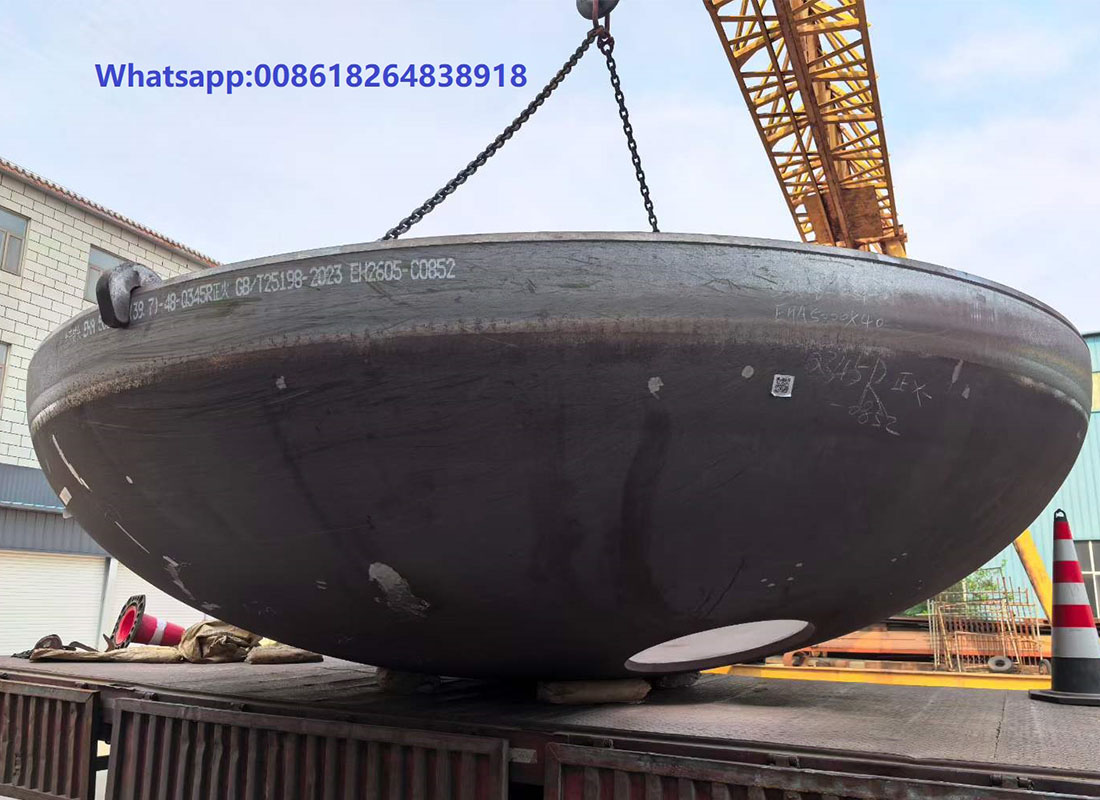

Packaging & Shipping

Elliptical Tank Heads for Various Pressure Vessels

6 pieces packed on a pallet for Large Spherical Outdoor Decorated steel firepit sphere

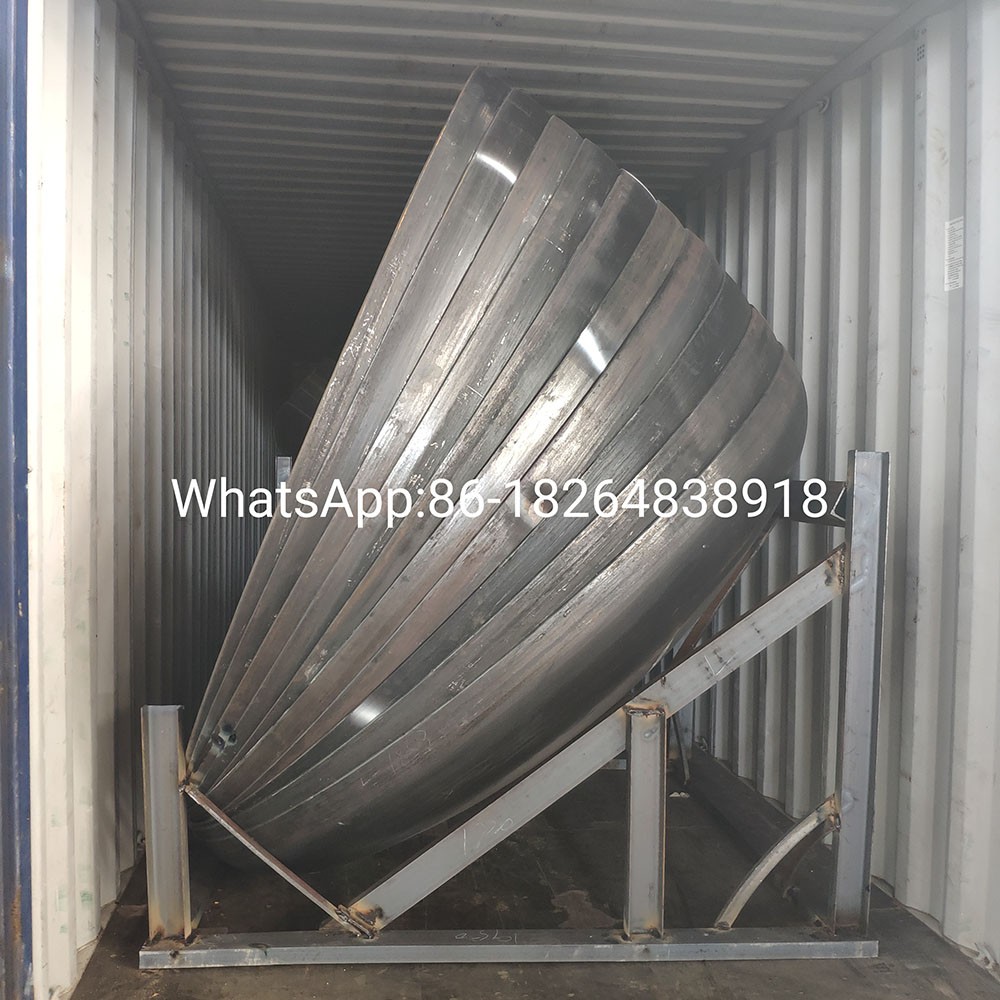

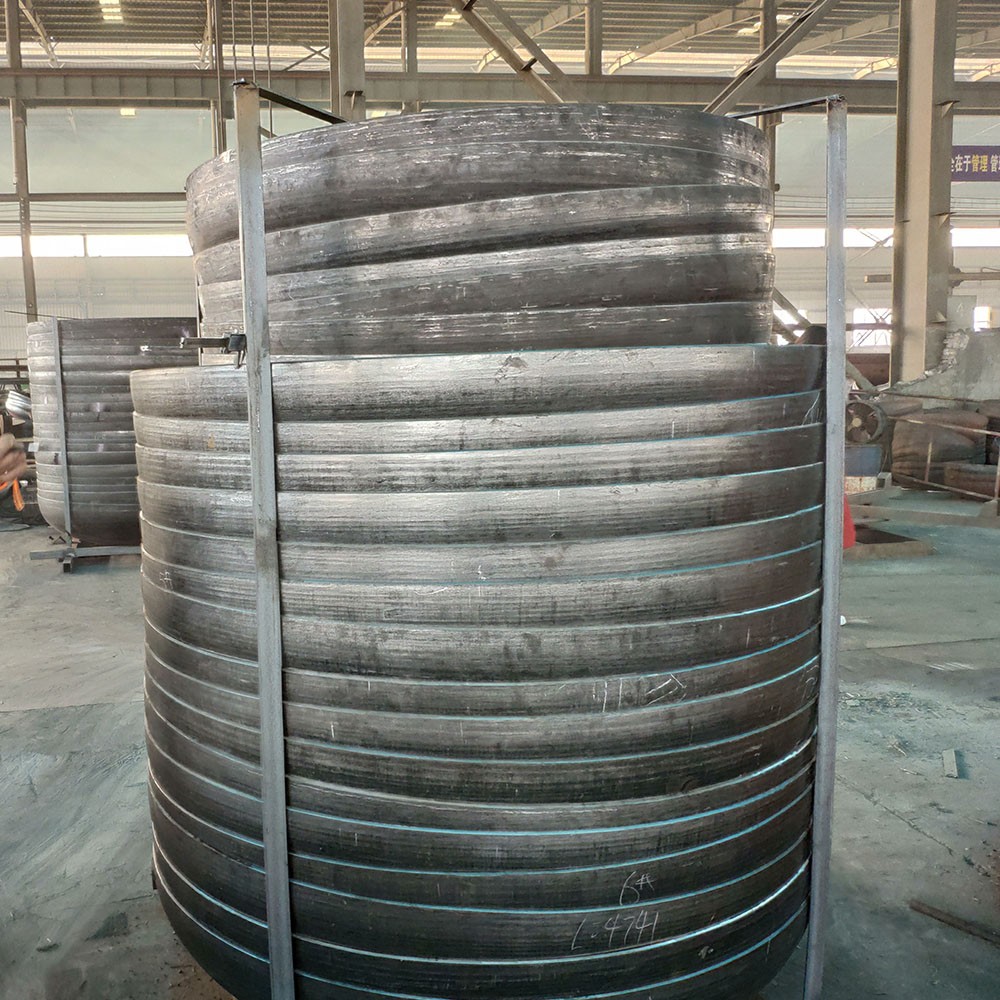

Wooden cases ,wooden pallet plastic bag or as per customers requirement

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
