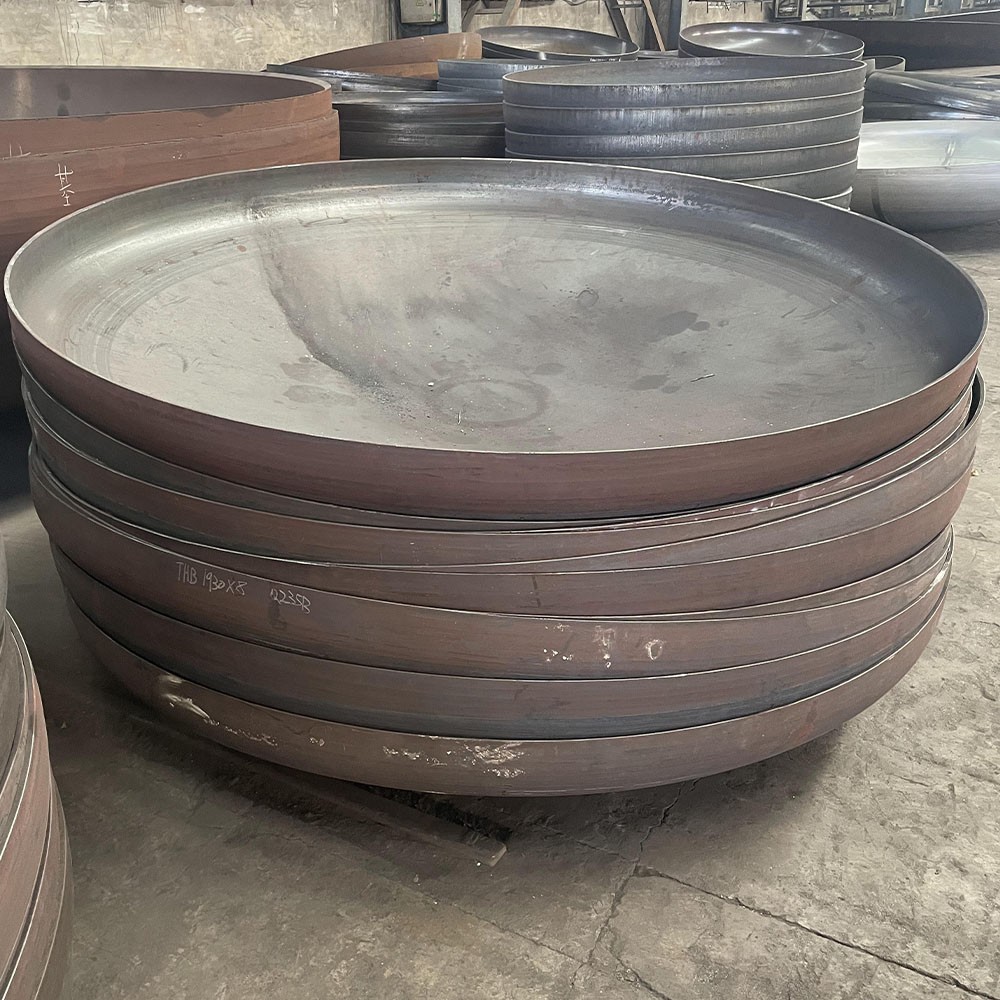

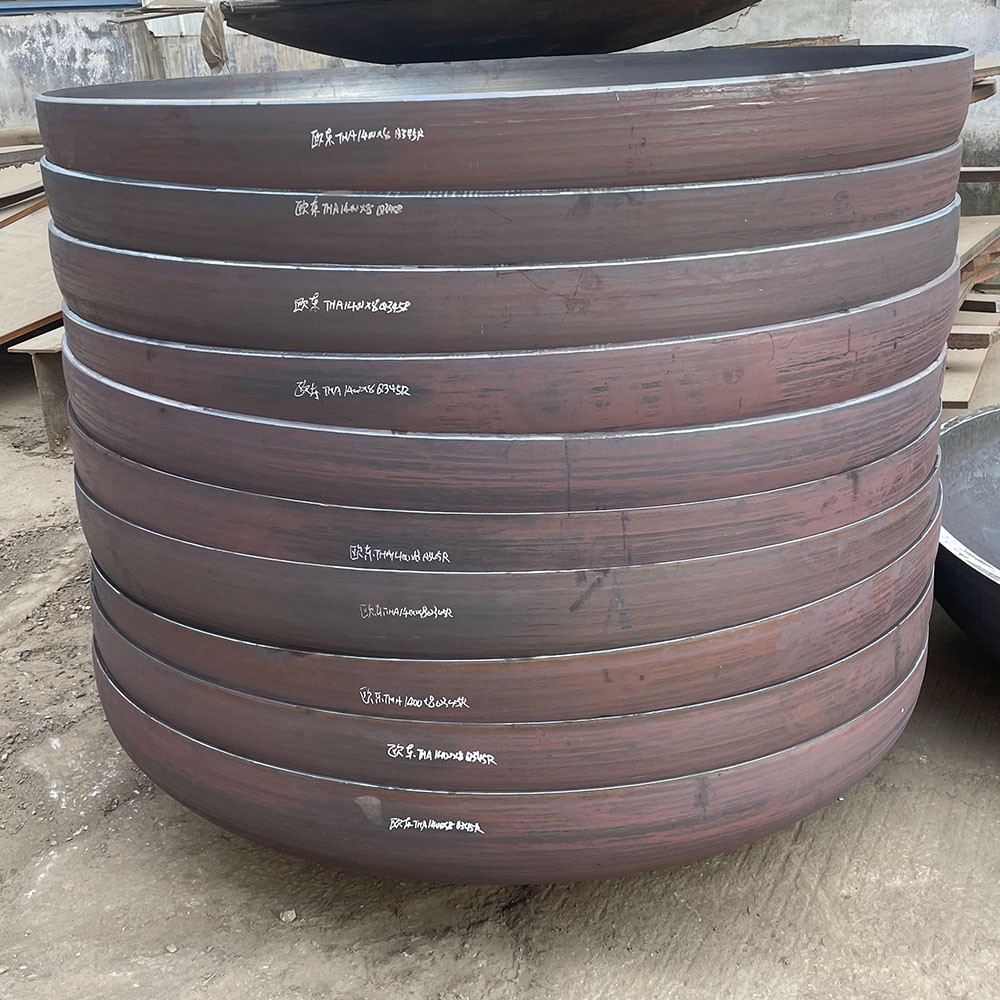

Product Description

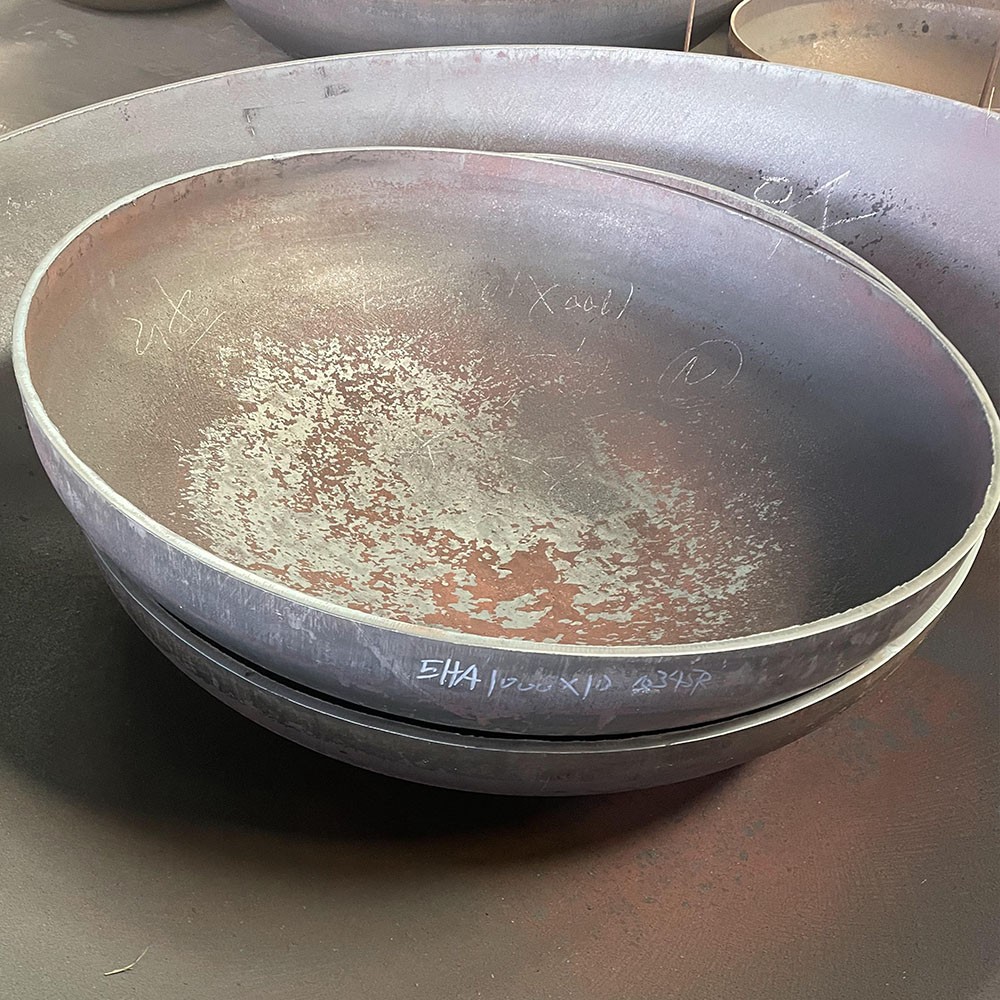

Ellipsoidal head is also called elliptical head or elliptical dish end. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

Hot pressed dished heads, also known as hot formed dished heads, are specialized components used in the construction of pressure vessels and tanks. In the fabrication of hot pressed dished heads, a metal plate is heated to an appropriate temperature and then pressed against a mold or die with the desired curvature. This method ensures a precise and uniform shape, resulting in heads that offer improved structural integrity and stress distribution compared to other shapes.Vessel dished head is an indispensable and important part of pressure vessel equipment in many industries from petrochemical, atomic energy to food and pharmaceutical.

The vessel dished head is the end cap on the pressure vessel and is a major pressure-bearing part of the pressure vessel. The role played is that of sealing. Firstly, it is made into the upper and lower bottom of the tank-shaped pressure vessel, secondly, when the pipe reaches the head and is not ready to extend forward, a head is used to seal the pipe in the form of welding. Products with similar functions as heads are blind plates and pipe caps, but these two products can be dismantled. But these two products can be disassembled, whereas a head cannot be disassembled after it has been welded. The fittings used with them are pressure vessels, pipes, flanges, elbows, tees, crosses and other products.

The quality of the vessel dished ends are directly related to the long-term safe and reliable operation of the pressure vessel.

Production Process of Heads:
Hot Pressed Dished Heads

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

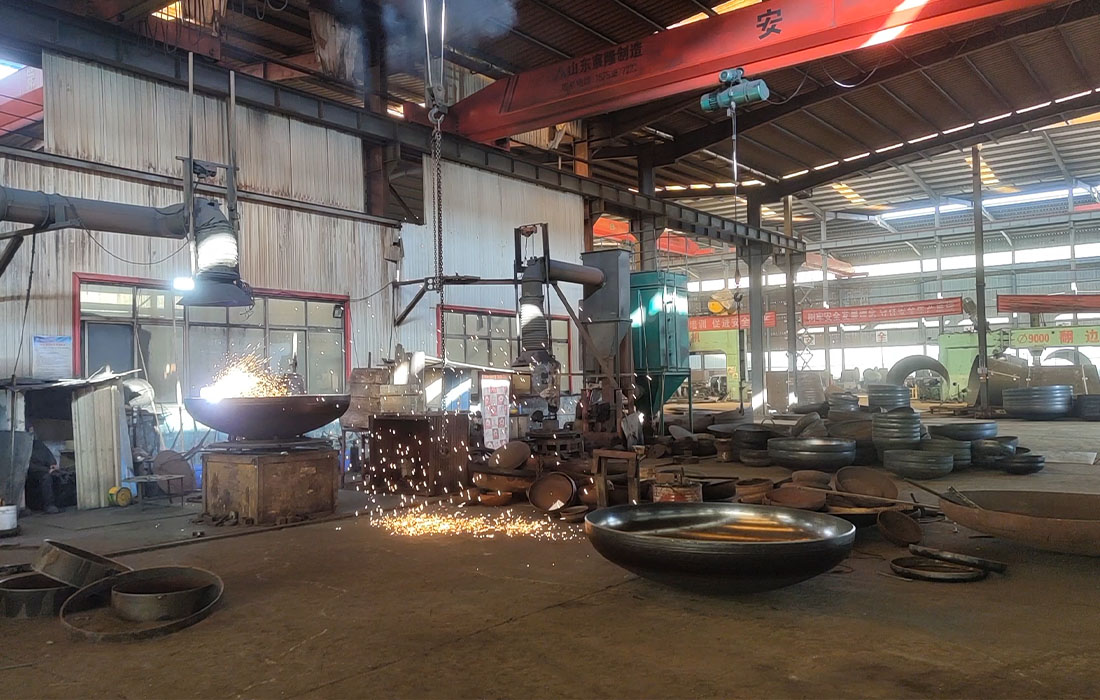

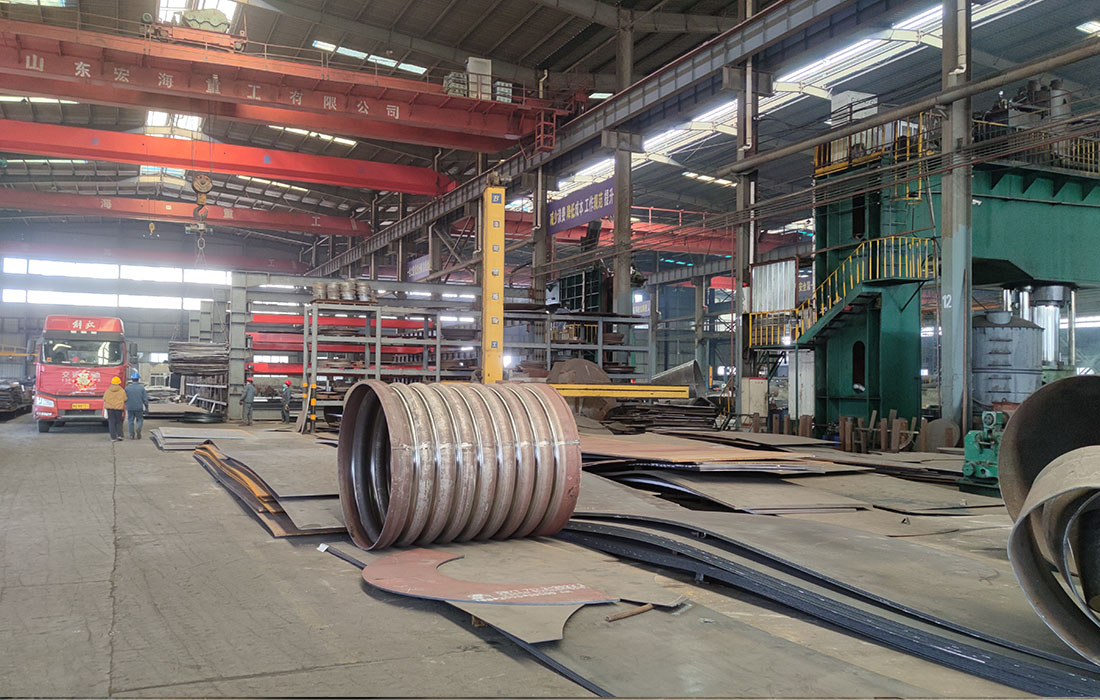

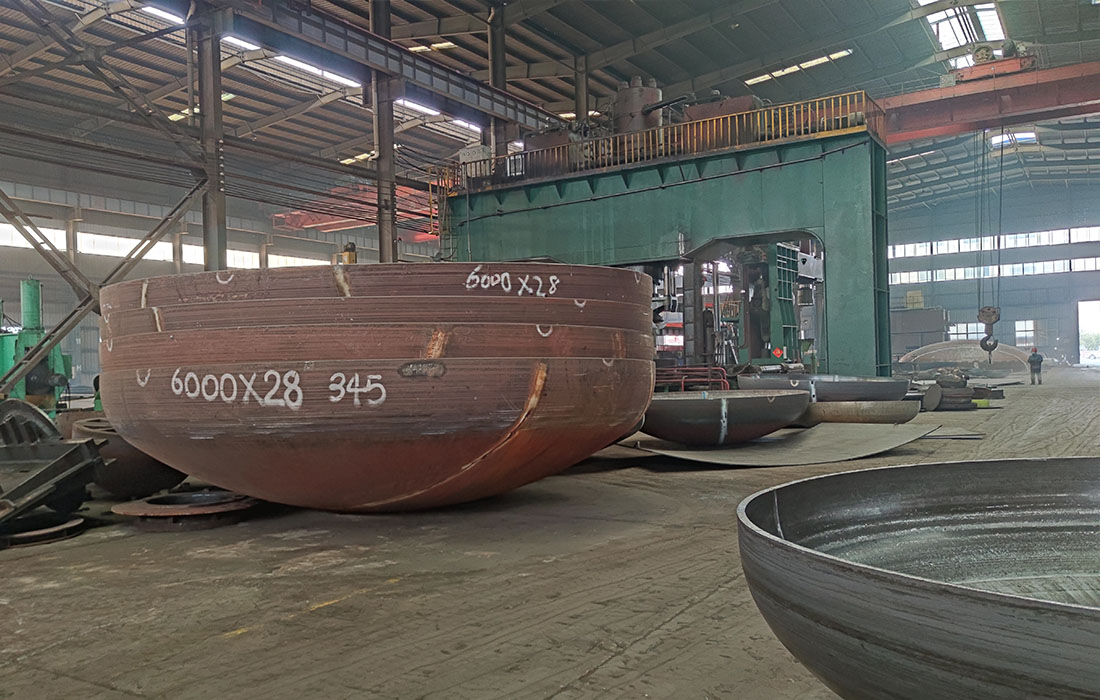

Company Information

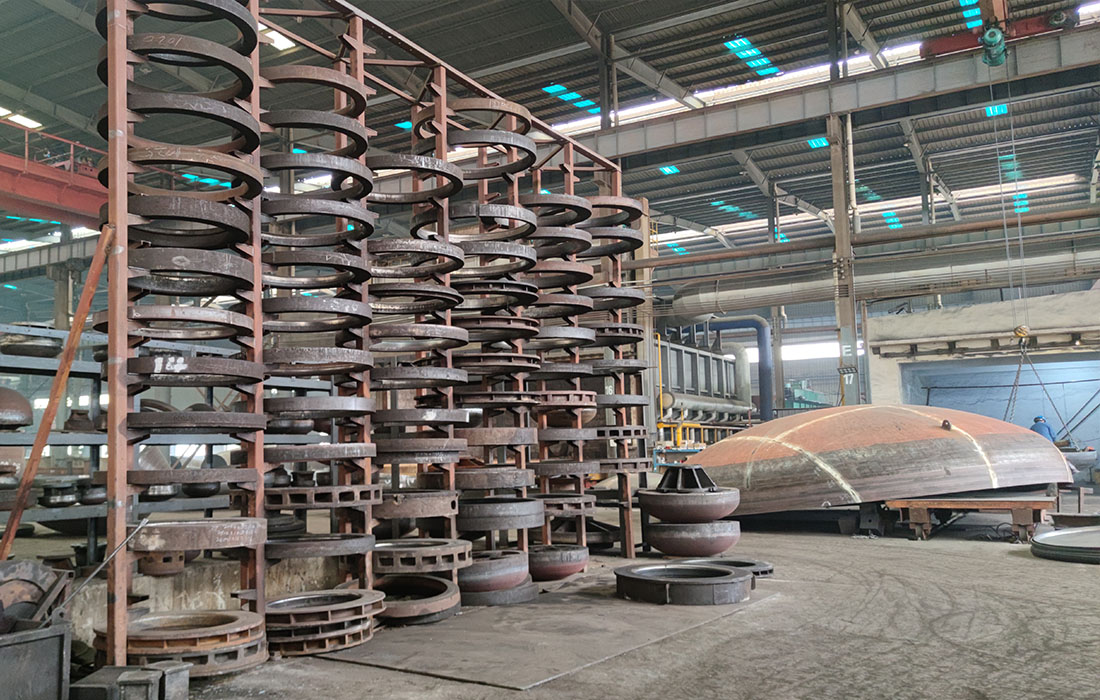

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

Our Services

1.No cracks,delamination, inclusion ,and other defects;

2.The warranty time is 6 months,except the wearing parts;

3.We provide the best service based on professional and sincerely attitude.

Product Pictures

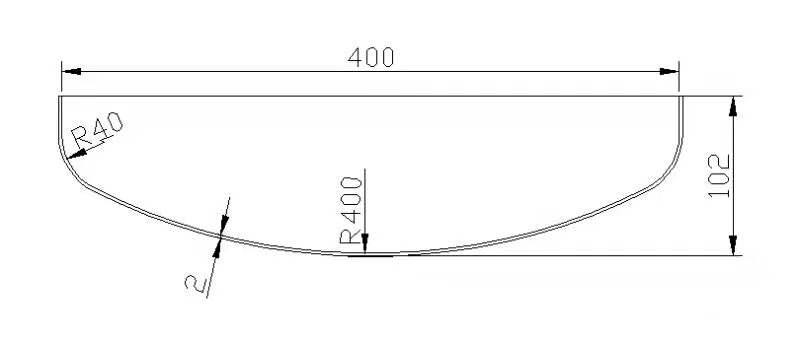

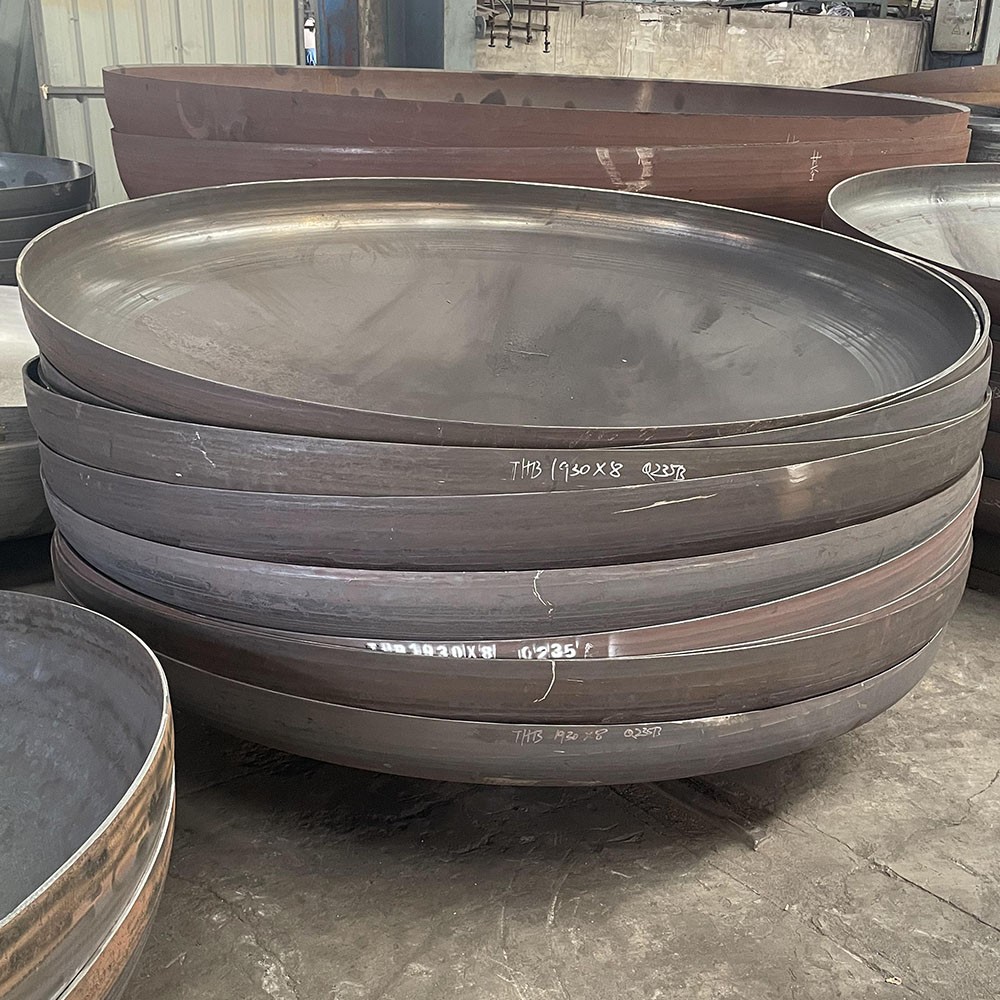

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

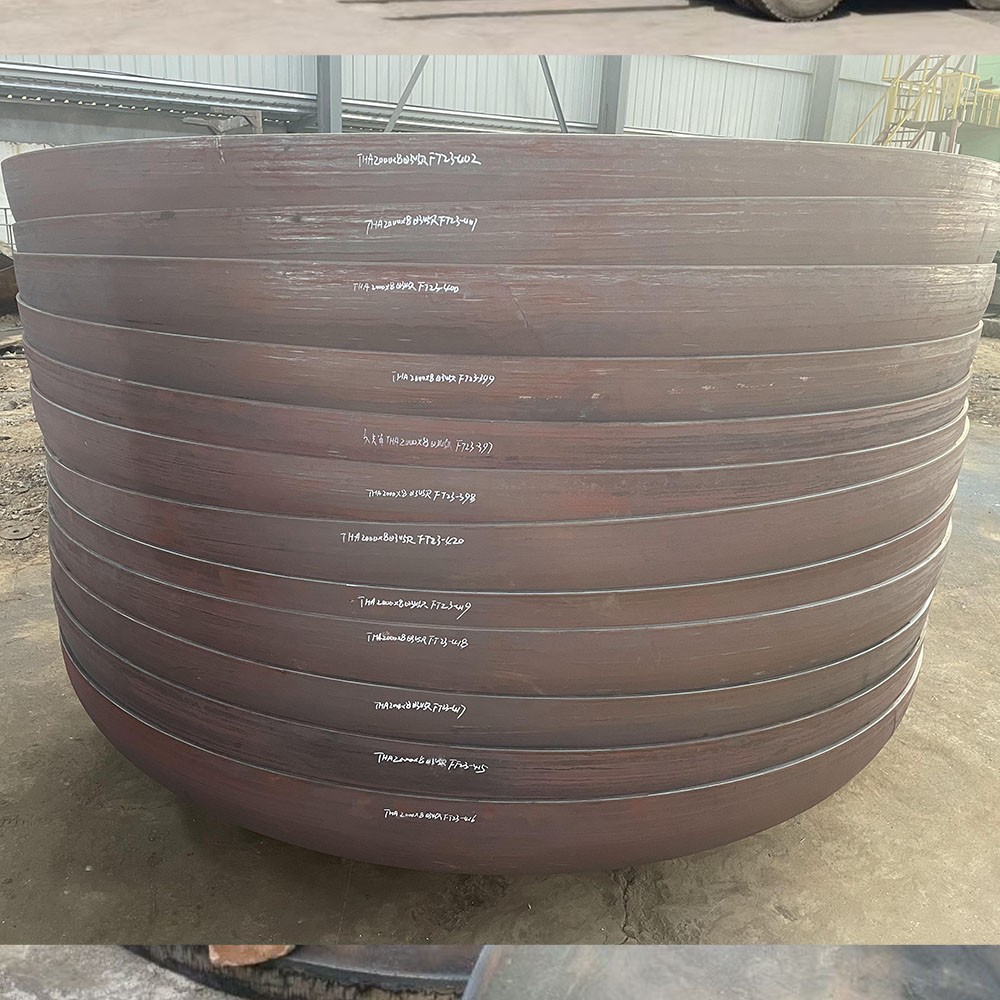

Packaging & Shipping

Hot Pressed Dished Heads

6 pieces packed on a pallet for Large Spherical Outdoor Decorated steel firepit sphere

Wooden cases ,wooden pallet plastic bag or as per customers requirement

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
