Elliptical Tank Heads

Designed for medium-pressure tanks, 2:1 elliptical tank heads provide a cost-effective option. These heads require less metal thickness, making them an economical choice for such applications.

Specifications:

• 2:1 Elliptical Heads

• 120″ OD x 1-1/8″ Minimum Thickness – SA516-70N

• 120″ OD x 3/8″ Minimum Thickness – SA516-70N

A 2:1 elliptical tank head is manufactured with a specific contour rather than a set dish or knuckle radius. The dish radius is approximately 90% of the internal diameter, with the head depth being one-quarter of the vessel’s internal diameter. These heads are widely used in pressure vessels.

Haipei Industry offers high-speed, one-stop solutions for cold-formed tank heads, segmented umbrella domes, and spherical shroud gores.

Features of 2:1 Elliptical Tank Heads:

• Cost-effective for medium-pressure tanks due to reduced material thickness

• Also known as ellipsoidal heads, comprising two sections: a rotating ellipsoidal sphere and a cylindrical straight portion

• Type: Cap

• Shape: Semi-elliptical

• Materials: Carbon steel, stainless steel

• Manufacturing: Custom punching available based on client specifications

• Compliance: ASME standards for carbon steel dished ends in cylindrical pressure vessels

Applications:

Our tank heads are utilized in various industries, including pharmaceutical, chemical, biotech, cryogenic, and more.

Dimensions & Materials:

• Diameter Range: 89mm to 13,000mm

• Thickness: 2mm to 400mm

• Reduction Ratio: Around 10%

• Materials Available: Duplex steel, carbon steel, stainless steel

Calculation of Overall Head Height:

Overall Height = Internal Diameter + Straight Flange + Material Thickness

We maintain an extensive inventory of 2:1 stainless steel semi-elliptical tank heads, with over 12,600 heads in stock and 3,400 more in production, ranging in size from 12″ to 48″.

Additional Options:

• ASME 2:1 Semi-Elliptical Tank Heads

• Diameter: 6-5/8″ to 192″

• Thickness: 3/16″ to 3″

• ASME Flanged & Dished Tank Heads

• Diameter: 14″ to 250″

Industrial Uses:

These tank heads are widely applied in:

• Heat exchangers

• Pressure vessels

• Power generation

• Desalination

• Water treatment

• Chemical processing

• Oil and gas exploration

We specialize in fabricating segmental tank heads with advanced capabilities for efficiently producing large-diameter, multi-piece heads.

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

Pressure Tanks Elliptical Tank Heads

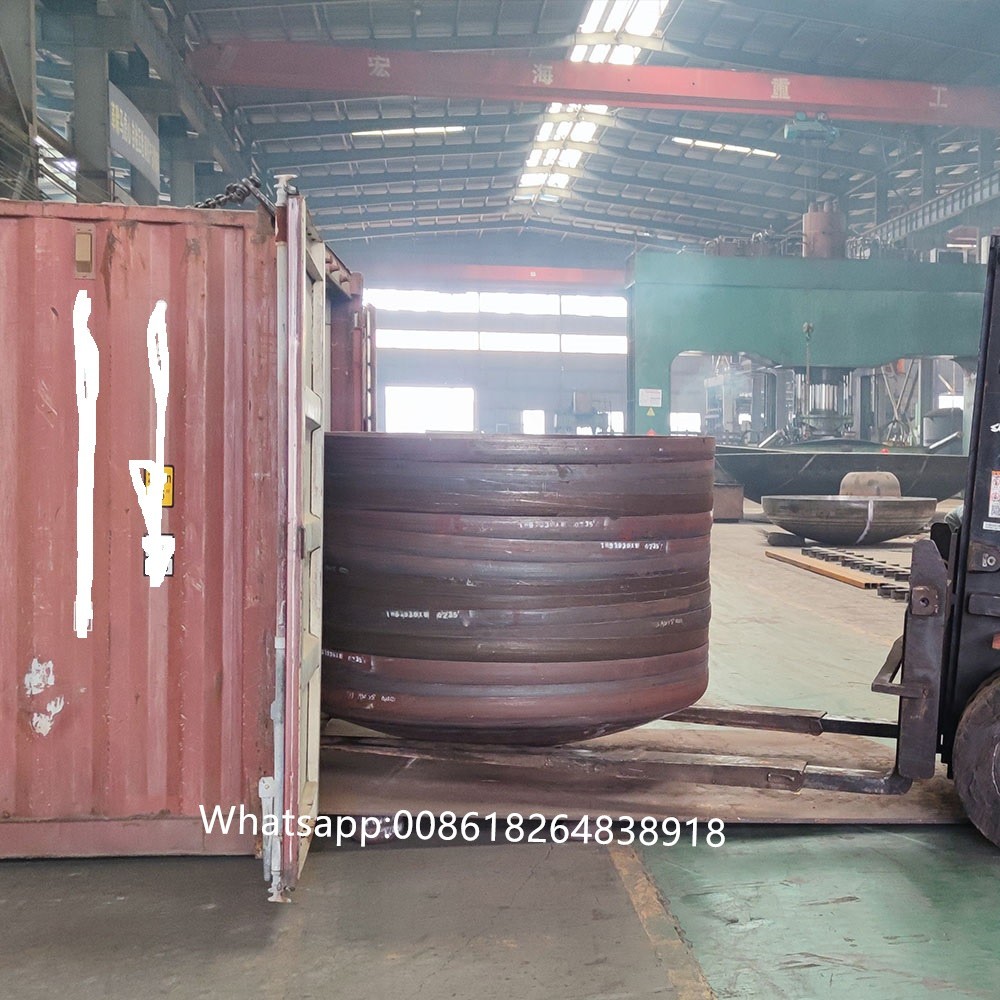

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment
