Manufacturer Sale Large Dished Head 2:1 Elliptical Tank Head Ellipsoid Dished Seal Head - 副本 - 副本

OEM Design Tank Head Elliptical Dish End for Pressure Vessel Storage Tank

Product Description

Haipei Industry excels in developing, producing, and selling diverse head products like elliptical, dished, spherical, conical, and segmented spherical heads. Serving aerospace, military,petroleum，chemical Industry,metallurgical, food, and engineering industries Elliptical head

The elliptical head is a head composed of a rotating elliptical spherical surface and a cylindrical straight section.Dished head

Dished head, also known as spherical head with hem, is also called butterfly-shaped head. It consists of a spherical surface, a straight edge of a cylinder at a certain height, and a transition part whose radius of curvature connecting the above two parts is smaller than the radius of the spherical surface.Hemispherical head

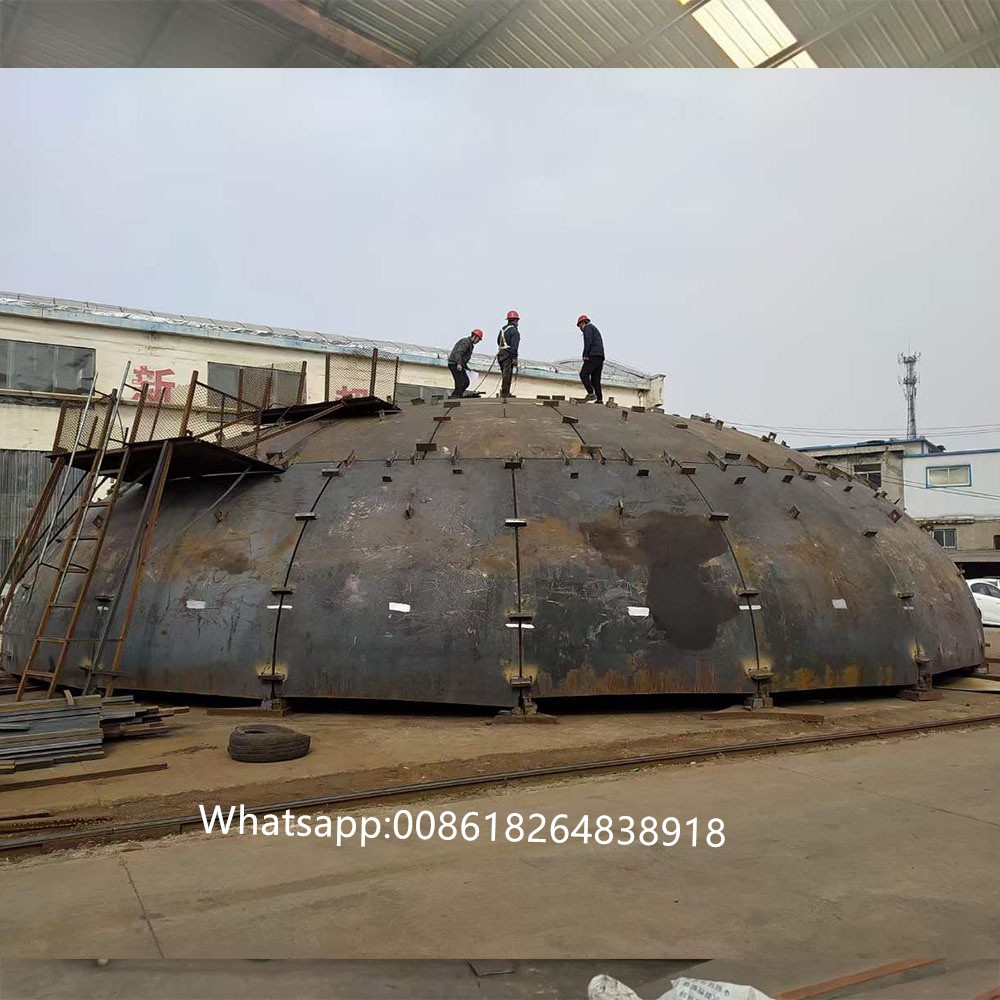

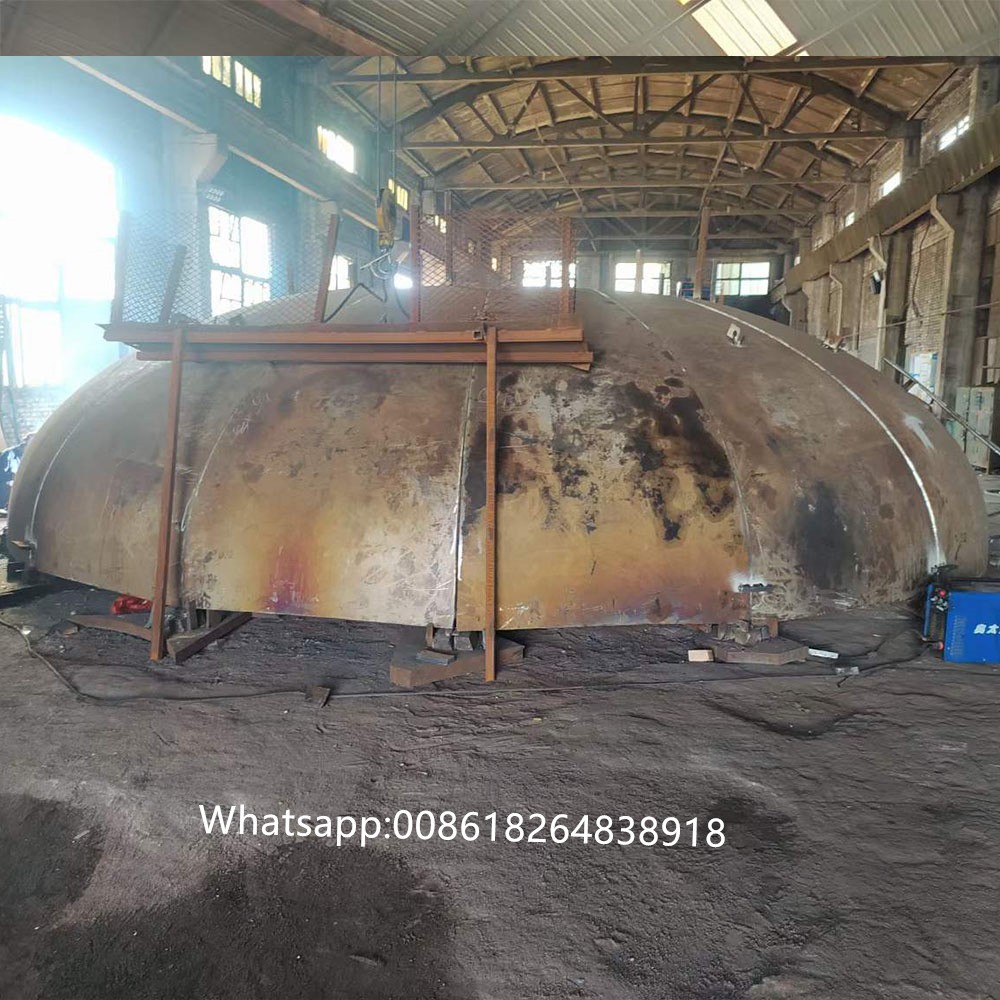

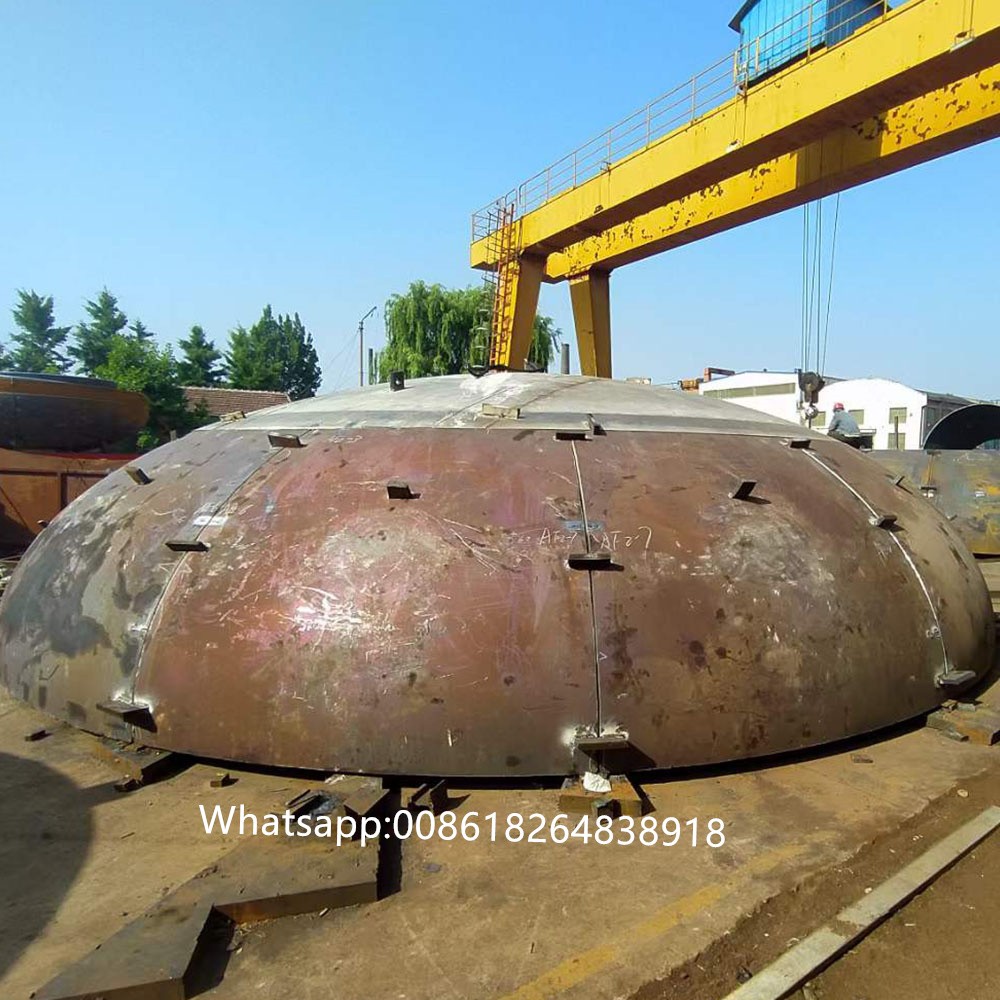

The hemispherical head bears greater pressure than any other head. A hemispherical head with a smaller diameter can be pressed into a whole shape, but for a larger diameter, it is composed of multiple trapezoidal spherical lobes of the same size and a circular spherical plate (arch) at the top center, and the number depends on the size of the head and the thickness of the plate to be used. The depth of the head is half the diameter.Spherical Crown Head

Spherical Crown Head/Non Straight Edge Spherical Head/Shallow Head The head is a part of the container, which is connected to the cylinder by welding. According to the different geometric shapes, it can be divided into spherical ellipse, dish, spherical crown, cone shell and flat cover. In welding, it is divided into butt welding head and socket head.

Production Process of Heads:

OEM Design Tank Head Elliptical Dish End for Pressure Vessel Storage Tank

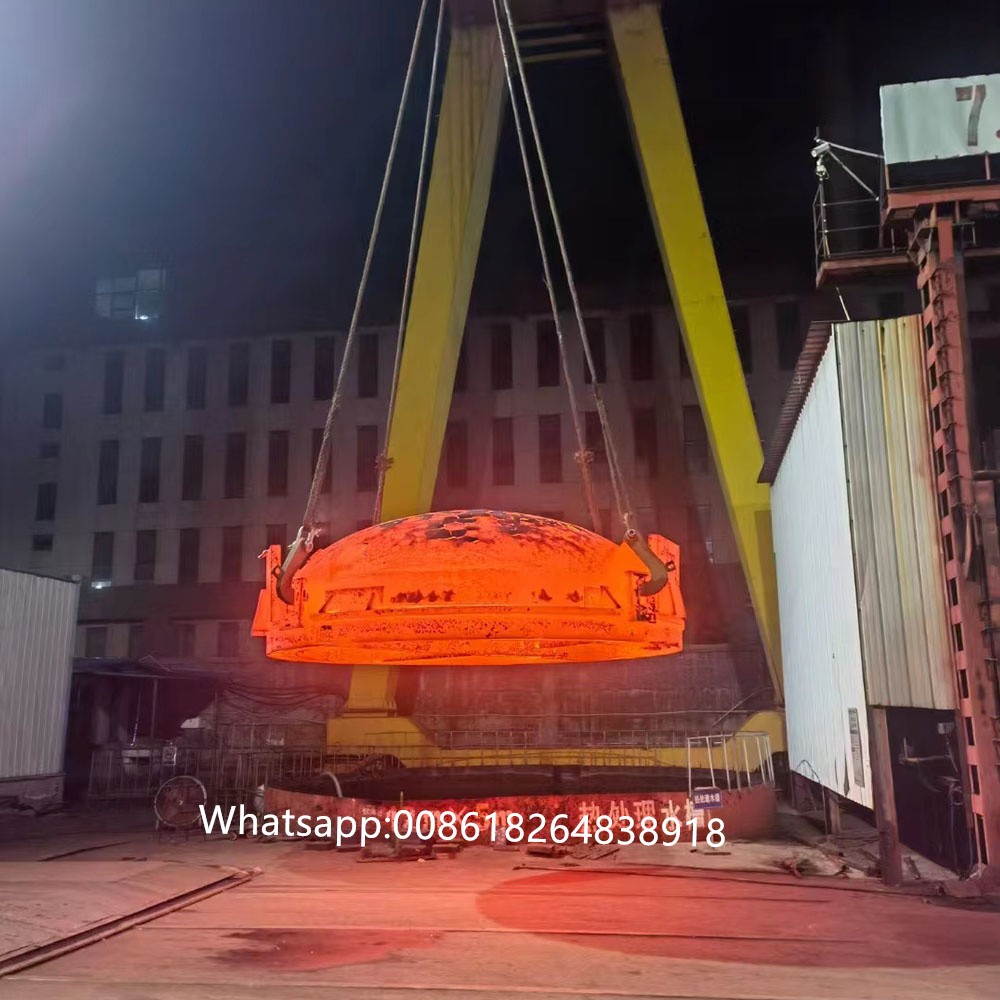

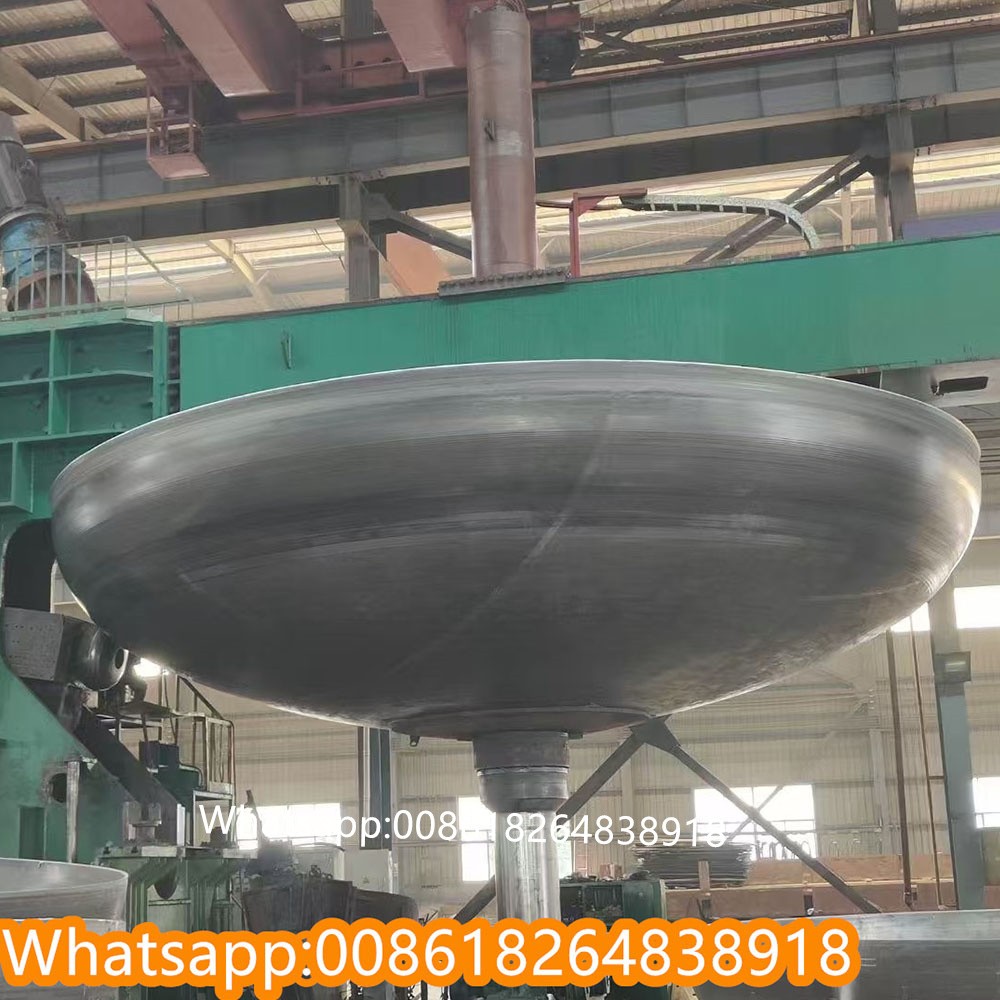

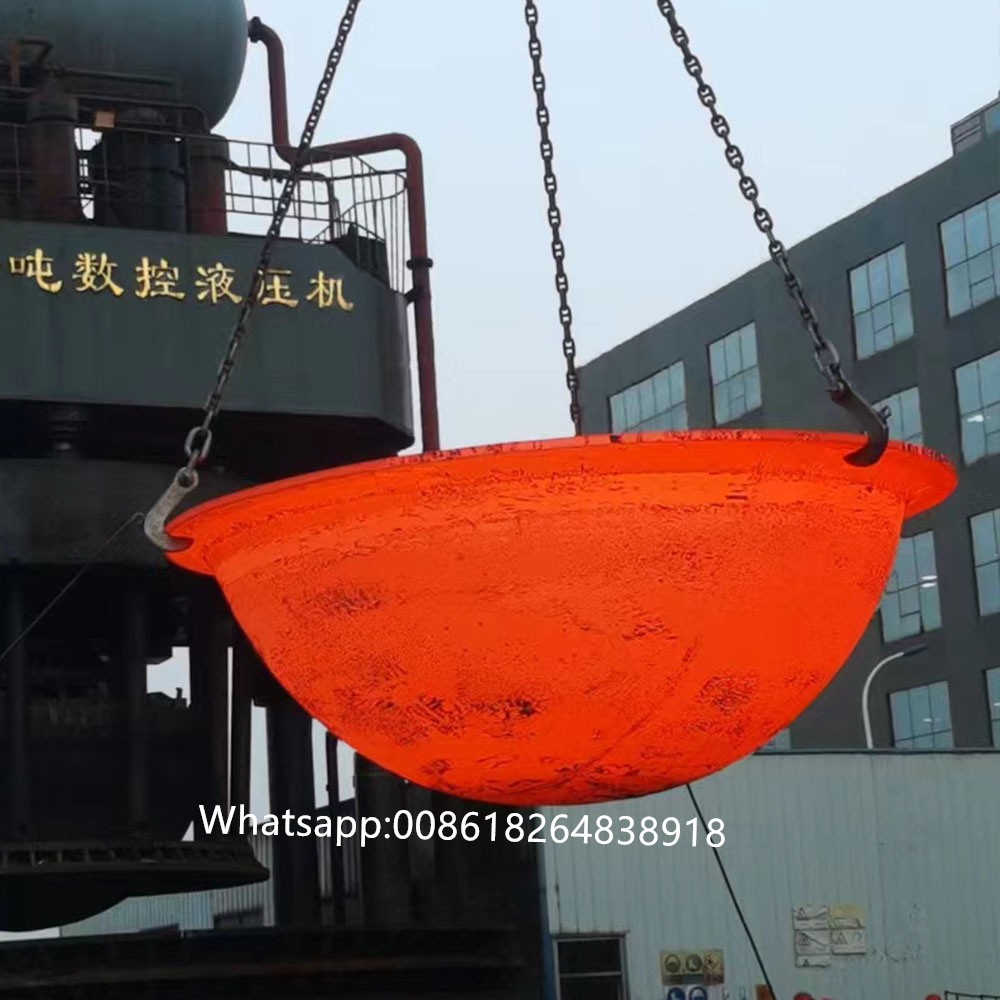

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transporttation

Company Information

Haipei Industry is a specialized manufacturer of tank head. With over 30 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.

The main products of the company are: shell plate, elliptical head,torispherical heads,spherical dished heads, flat heads, spherical head, expansion joint, corrugated furnace and non-standard parts, and all kinds of stock heads are available for customers. The products are sold to more than 20 provinces and cities and regions in China and exported to foreign countries.

Advantages

 ♦ Small order advantage, flexibly in dealing with orders;

♦ Quality: Strict control of raw materials and the production process;

♦ Advanced technology,best quality,customer satisfaction,reputation first,good after-service;

♦No cracks , delamination, inclusion ,and other defects;

Our Services

1.No cracks,delamination, inclusion ,and other defects;

2.The warranty time is 6 months,except the wearing parts;

3.We provide the best service based on professional and sincerely attitude.

Product Pictures

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

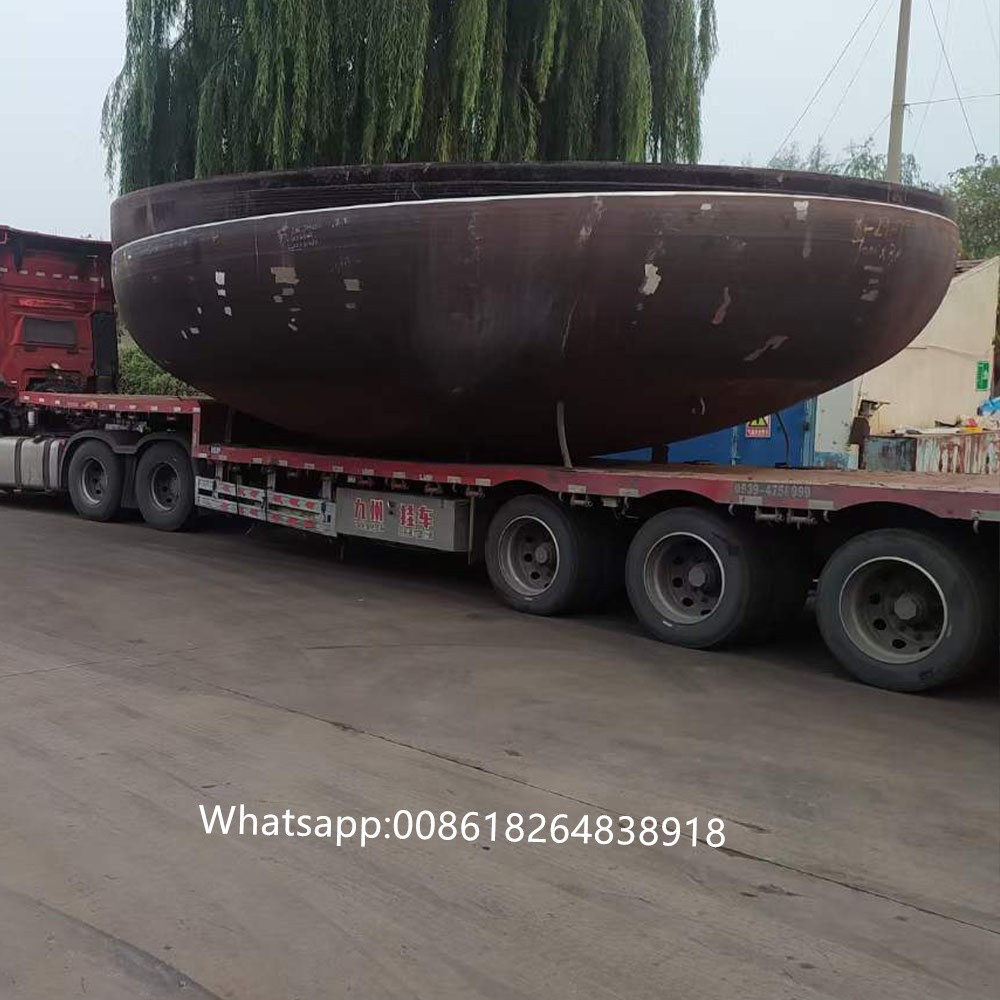

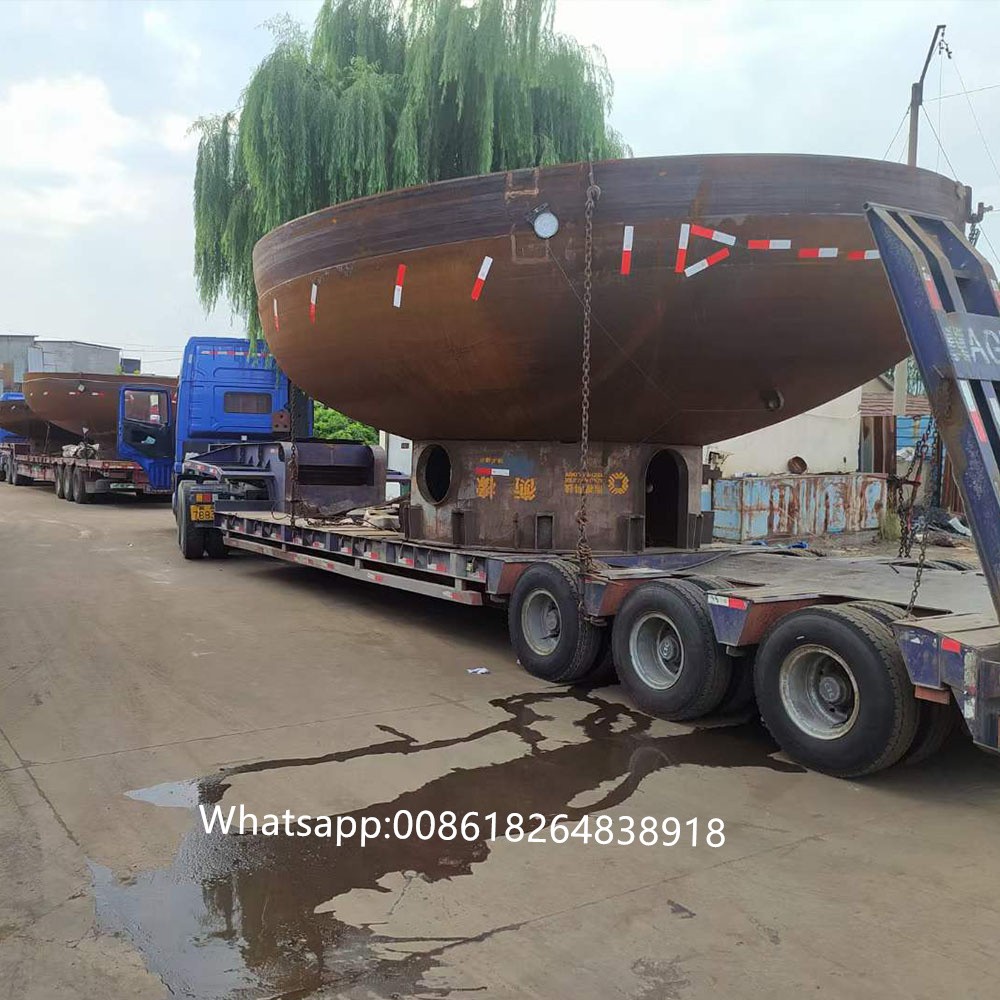

Packaging & Shipping

OEM Design Tank Head Elliptical Dish End for Pressure Vessel Storage Tank

1, Shipment by bulk OD more then 5000mm

2, GP Containers for OD within 2200mm
3, FR Container OD within 4000mm
4, Iron Cage and wooden pallets accordingly.

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
