Semi-Ellipsoidal and Torispherical Dished Ends

Semi-Ellipsoidal and Torispherical Dished Ends

Product Description

1. Grade: Carbon steel, Stainless steel, Aluminum,Titanium,etcAccording to customers requirement.

2. Size: 89mm--10000mm

3. Standard: ANSI, ASME ,MSS, API, DIN, JIS

4. Certification: ISO9001 ,ISO14001,OHSAS18001

5.Name: Bottom Tank Head Price,Steel Dished End Elliptical Head Hemispherical Head

Producing-Process

Semi-Ellipsoidal and Torispherical Dished Ends

Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transportation

Product Show

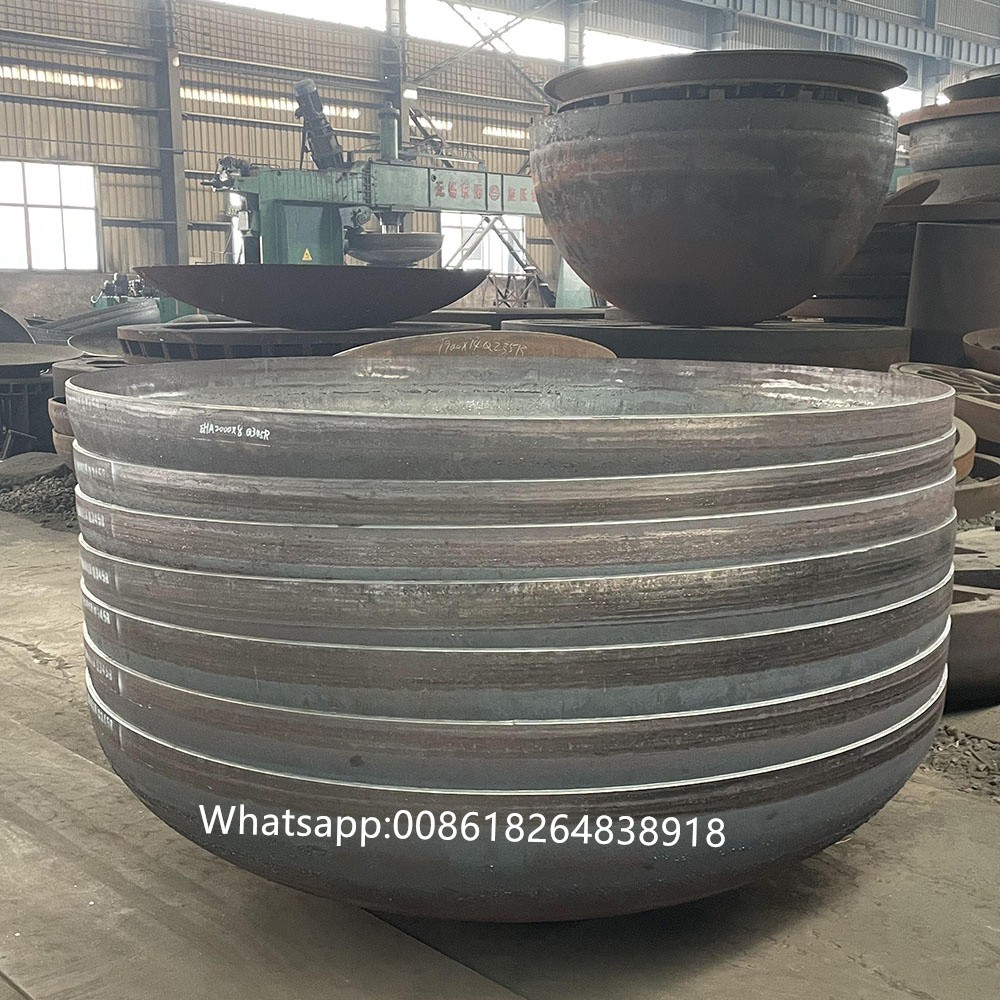

Hemispherical Head (also called hemispherical tank heads or hemispherical dish ends) is widely applied to make pressure tanks to storage liquids and gasses. Our asme hemispherical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. Hemispherical is the ideal shape for development of hemispherical dish end, because the pressure in the vessel is divided equally across the surface of the head. The radius (Ri) of the head equals the radius of the cylindrical part of the vessel. This type of hemispherical tank heads or hemispherical dish ends are made in most popular sizes and thicknesses.

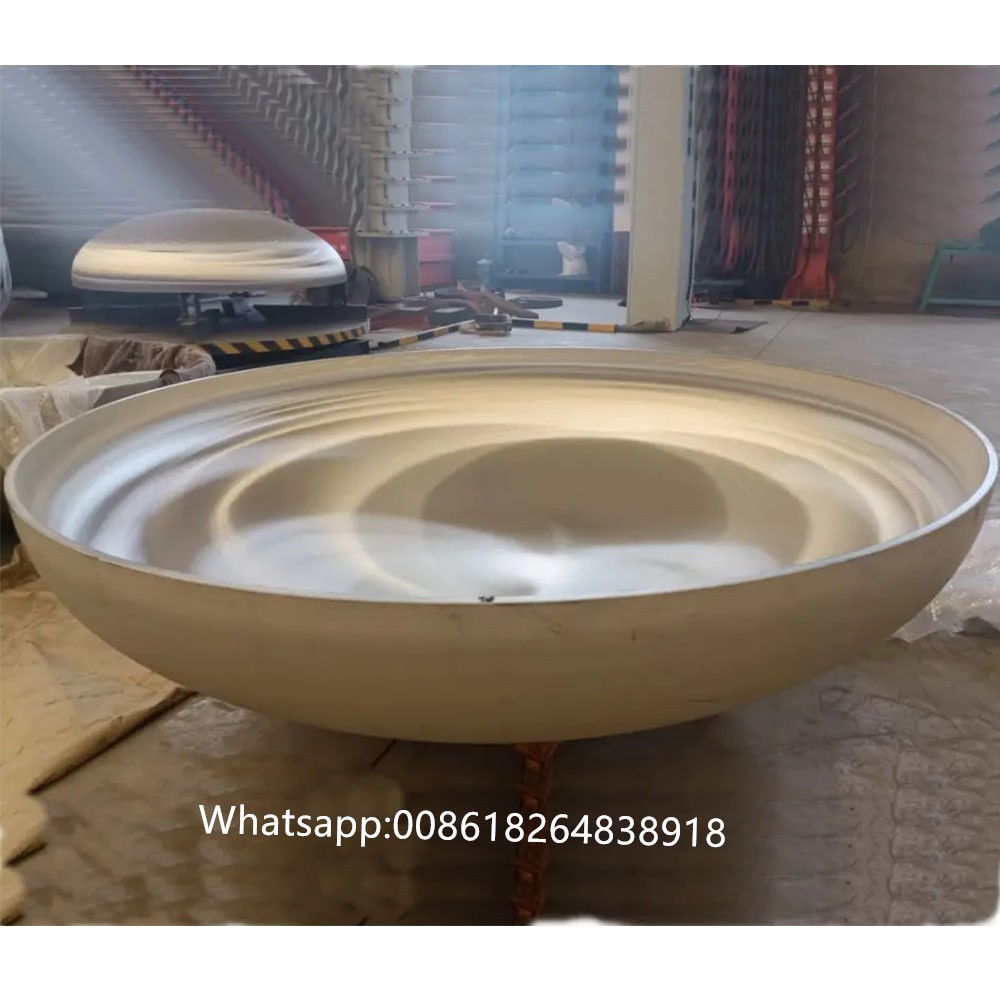

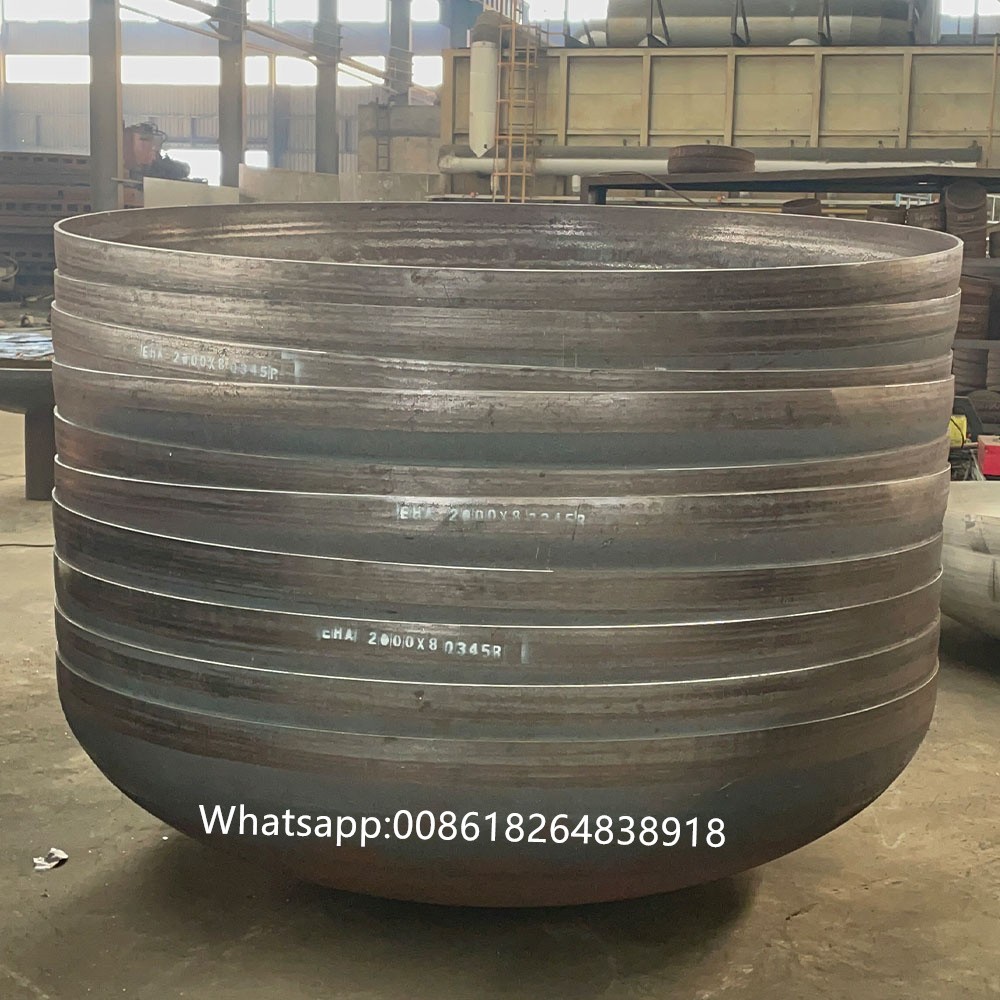

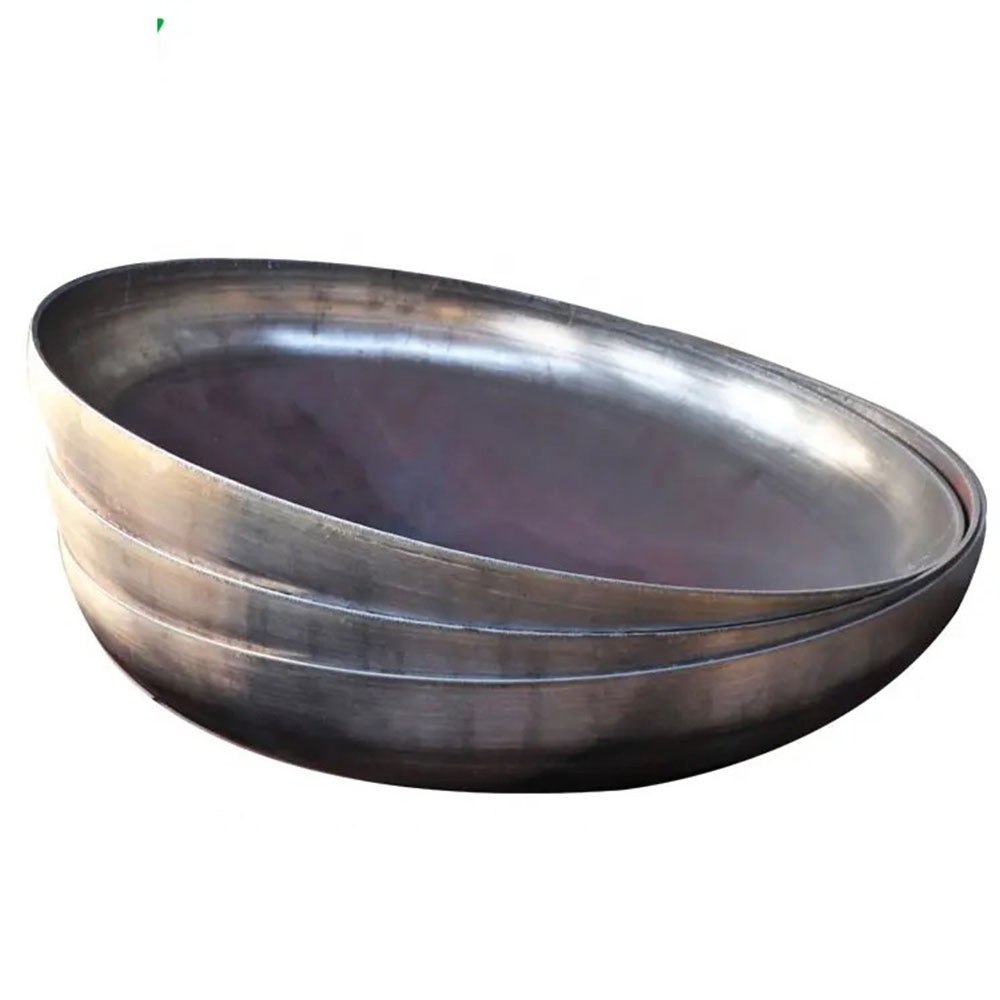

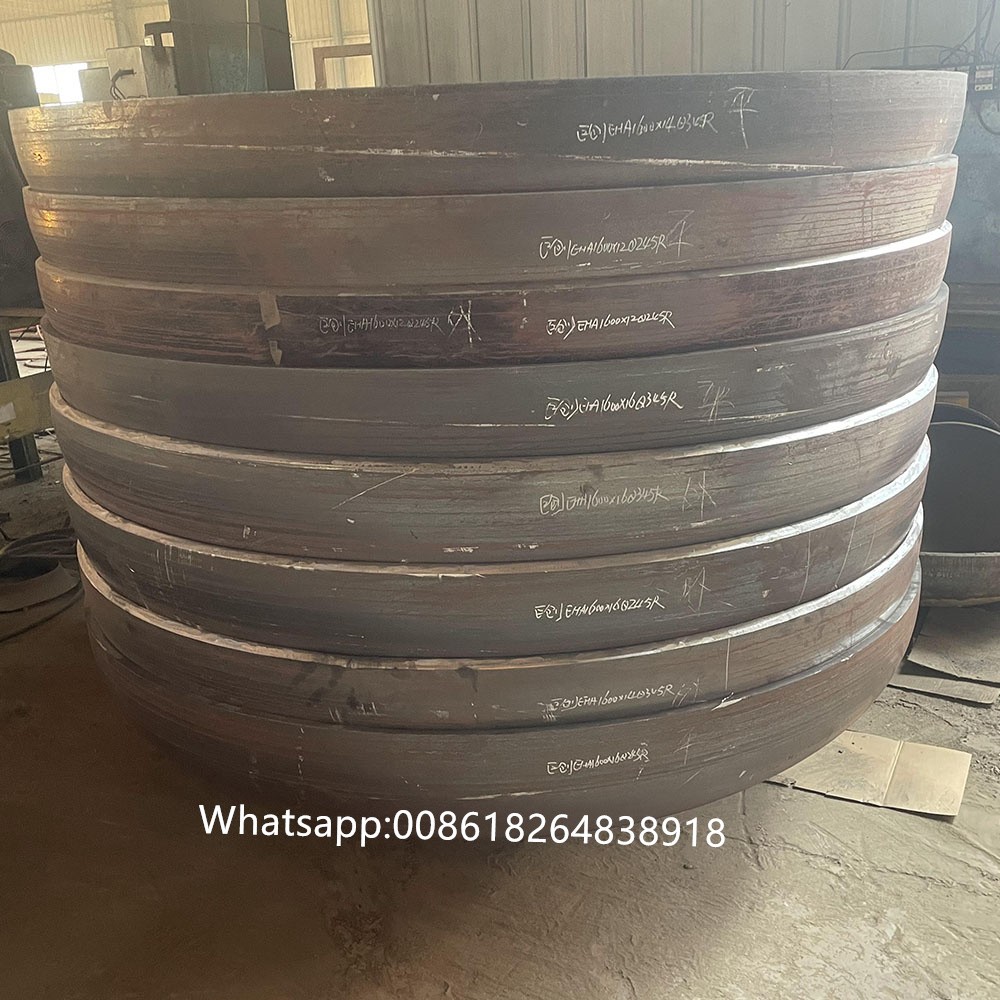

Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

We can produce up to 8,000 mm diameter asme torispherical dish end depending upon thickness of material and wall thickness up to 30 mm depending upon material and diameter. custom forms and dimensions are also available.

We specialized in Exotic Material / Special shaped / Super-thickness / Ultra Heavy head of GB,ASME standards and ours service involving the bespoke manufacture of blue drawing, sample, raw material .

Dish-shaped head is also known as a hem-shaped spherical head, it consists of a spherical surface, a straight side of a cylinder of a certain height, and a transition portion connecting the above two portions with a radius of curvature smaller than the radius of the spherical surface. The dish-shaped head is a continuous curved surface. At the three-part joint, the curvature radius of the warp is abrupt, and there is a bending stress due to the curvature change. The result of the superposition of bending stress and tensile stress causes the stress of this part to protrude from other parts.

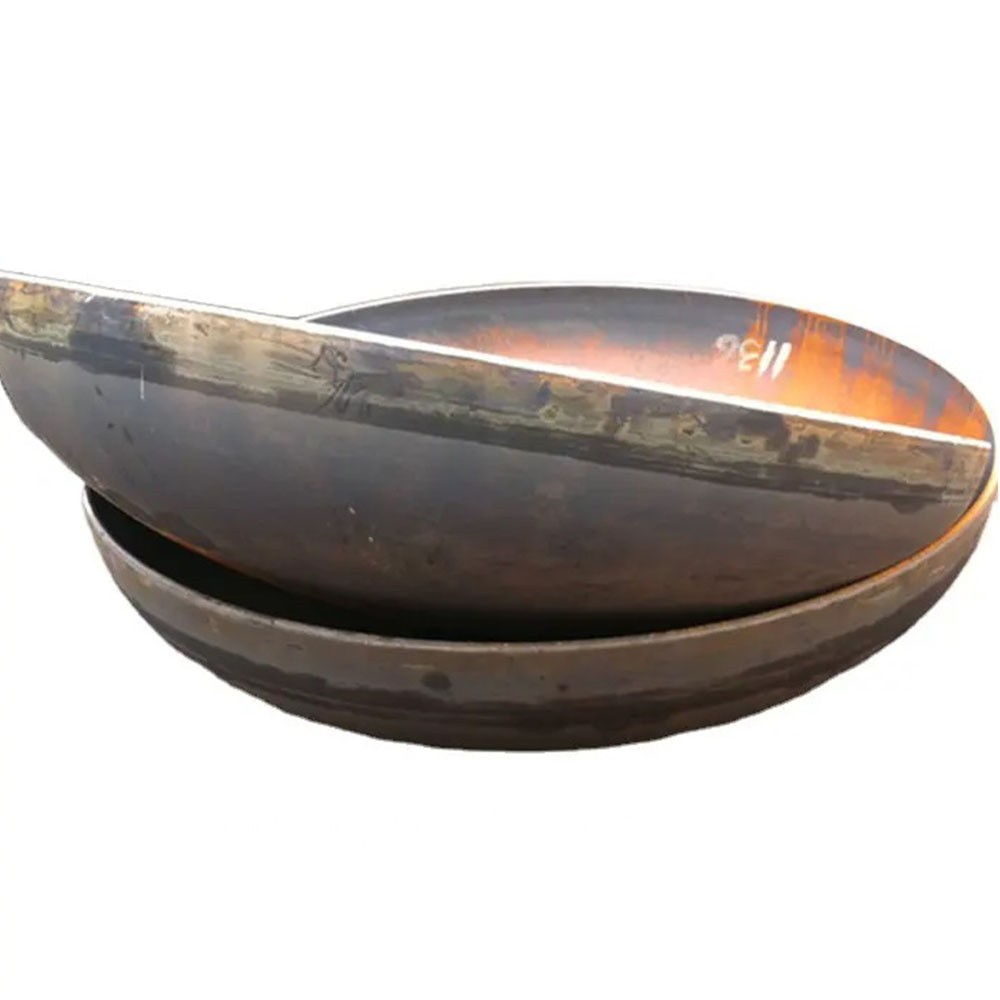

Torispherical Head (also called torispherical dish end or torispherical ends) is widely applied for pressure tanks to storage liquids and gasses. The torispherical head consists of a spherical surface, a cylindrical edge of a certain height, and a transition section connecting the above two parts with a radius of curvature smaller than the radius of the sphere. Our asme torispherical head can be made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The stress distribution of torispherical dish head is not as uniform as elliptical head, but the manufacturing processing of the torispherical head is easier. However, torispherical dish end is the better option when the elliptical head of the mold processing is difficult. We can fabricate torispherical ends in most popular sizes and thicknesses.

Conical Head (also called the tapered tank head) is widely used for vessel bottom or cover plates. With the shape of concentric cone, the toriconical head consists of a large end cone and a small end. Cone and large end of the connection, due to geometric discontinuity, the radius of curvature of the mutation, so there will be a large lateral thrust, causing a large edge stress, prone to bending, it is necessary to strengthen.the tapered head The cone head type is divided into CHA (30), CHA (45), CHA (60) by half angle.

The tank head is a part of the container, which is connected to the cylinder by welding. According to the different geometric shapes, it can be divided into spherical ellipse, dish, spherical crown, cone shell and flat cover. In welding, it is divided into butt welding head and socket head.

Torispherical head is used in petroleum,electronics,chemical,pharmaceutical,textile,food,machinery,construction,nuclear power,aerospace,and other industries.

Feature

1.Hard Materials Temperature and pressure resistance, corrosion resistance

2.Strong resistance to pressure Made of high-quality steel, strong pressure resistance

3.Long use time Not easy to rust, long use time, suitable for a variety of working environments

4.Stable chassis Standard thickness, good processing performance

5.Various specifications Various types of tank heads can be customized according to customer requirements

Packaging & Shipping

Semi-Ellipsoidal and Torispherical Dished Ends

1. Iron Frame

2. Wooden Box

3. Iron pallet

4.Wooden pallet.

5.Professional fixation

6. Curstomed requirment

Carbon and stainless steel 2:1 ASME semi-elliptical tank heads. In stock tank head sizes minimum order $ 400. Pricing and quantities are subject to change.

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
