Tank Head Profiles: Custom and Standard Solutions for Every Application

Tank heads, crucial components in the construction of tanks, pressure vessels, and storage containers, come in a wide variety of profiles and sizes. Whether you're designing a system for pressure vessel code applications or a simple storage tank, the right tank head profile ensures the durability and efficiency of the entire structure. At Haipei Industry, we provide a range of standard and custom tank head profiles to suit your specific requirements, all manufactured to meet the highest quality standards.

Flanged Dish and ASME HeadsFlanged dish heads are the most cost-effective and commonly used solution for ASME pressure vessel code applications. These heads are designed with a flange for easy connection to other parts of the tank. They are available in various sizes, typically ranging from 14" to 240" in diameter, with thicknesses from 3/16" to 1-3/8". ASME-approved, these heads undergo rigorous inspection to ensure they meet stringent safety and performance standards. Whether you need a simple, flanged-dish or a more intricate elliptical-flanged dish, we can cater to all specifications.

Flanged Only HeadsFlanged only heads are another popular option, featuring flanges without the dish shape. This profile is commonly used in tanks where the main body is cylindrical, and the head needs only to serve as a sealing or connecting point.

Dish Only HeadsThe dish-only head profile is ideal for applications requiring a simple, concave structure. These heads are often used for vacuum chambers, pressure vessels, and large storage tanks. Our dish-only heads are available in diameters ranging from 10" to 162" with thicknesses from 18 gauge to 1/2" plate. This straightforward design provides reliability at an affordable price.

Elliptical Flanged Dish HeadsElliptical flanged dish heads are typically used for applications requiring both strength and a more efficient pressure distribution. These heads come in a variety of sizes, with thickness options ranging from 12 gauge to 8 gauge. The elliptical shape helps reduce material stress, making them ideal for pressure vessels that need to withstand high-pressure conditions.

Flanged Reverse Dish HeadsFor applications that demand greater depth or more volume, flanged reverse dish heads are the perfect choice. This profile features a reverse curve that offers enhanced strength, providing more capacity for pressure vessels while maintaining structural integrity.

Flared Dish HeadsFlared dish heads are designed with a wider, flared edge, offering better distribution of stresses. These heads are commonly used in large storage tanks and vessels where space is crucial.

Conical HeadsConical heads are used in applications where the vessel requires an inclined shape. Haipei Industry provides both shallow and deep flanged conical heads, available in a range of sizes and thicknesses. Whether you're working on a custom configuration or require a standard conical head, our tanks are designed for both pressure containment and ease of fabrication.

Customization and Quality AssuranceAt Haipei Industry, we understand that one size does not fit all. That’s why we offer a range of customizable tank head profiles. Whether you need a specific size or a unique profile, we work closely with you to deliver a product tailored to your needs. Our team can handle anything from standard tank heads to completely custom designs.

Tank Head Materials and Additional ServicesWe provide a broad selection of materials to meet the needs of various applications, including stainless steel, carbon steel, and alloy materials. Our machining and polishing services allow for additional precision and surface finishes to ensure your tank heads are ready for assembly. With optional machining, we offer highly customizable solutions for your specific project.

At Haipei Industry, we are committed to delivering high-quality tank heads that meet your performance requirements, on time and on budget. Our tank heads are built to last, providing you with the reliability you need for your pressure vessel and storage tank projects.

Explore Our RangeWhether you're looking for standard tank heads or custom configurations, we have the products and expertise to help you build the right solution. Contact us today to learn more about our tank head profiles, materials, and services!

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

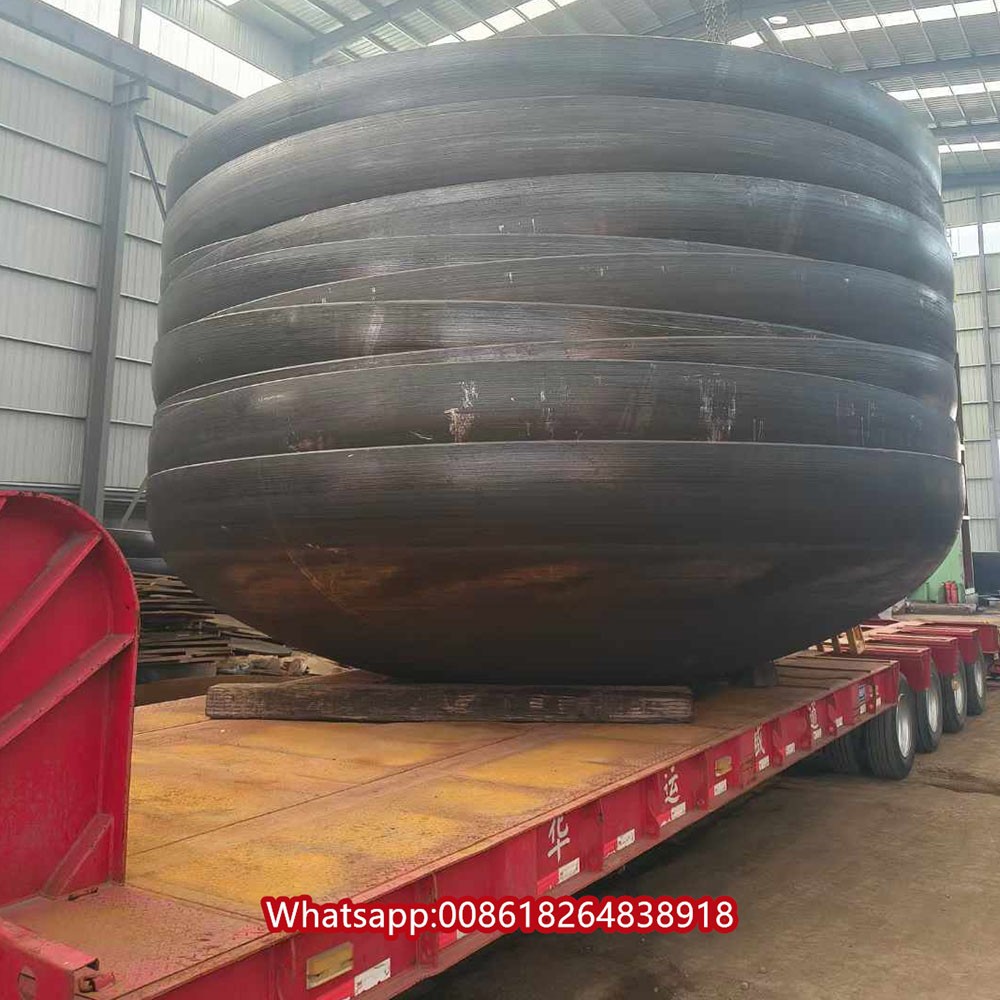

Packaging & Shipping

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
