Tank Heads Prices Semi Elliptical Tankheads

Dished Heads for Tanks: A Comprehensive Guide

Welcome to Hiapei Industry, your trusted source for high-quality pressure vessels and tank components. As a major Chinese manufacturer, we provide a full range of ASME-certified tanks and pressure vessel heads, ensuring durability, safety, and compliance with international standards. Our expertise lies in manufacturing, testing, and supplying a wide variety of tanks, and we ship thousands of units every month. Whether you need a standard or custom-built tank, our direct-from-mill steel sourcing and ASME technical support guarantee top-tier products tailored to your specifications.

Understanding Dished Heads for Tanks

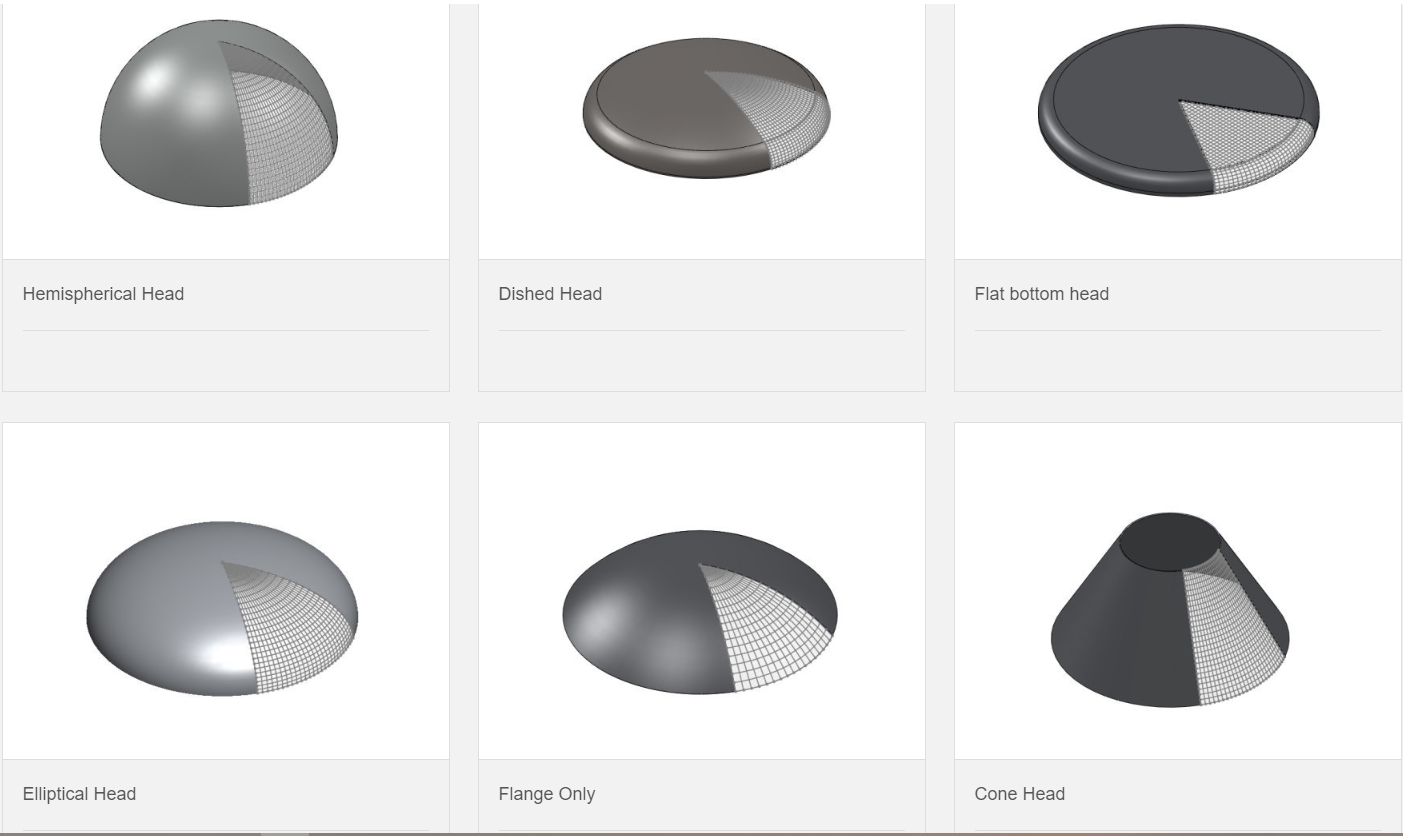

Dished heads, or pressure vessel heads, play a crucial role in tank design by providing end closures that sustain internal pressures efficiently. The choice of head type affects the overall strength, stress distribution, and suitability of the tank for different applications. Below, we introduce the four most common types of dished heads used in pressure vessels.

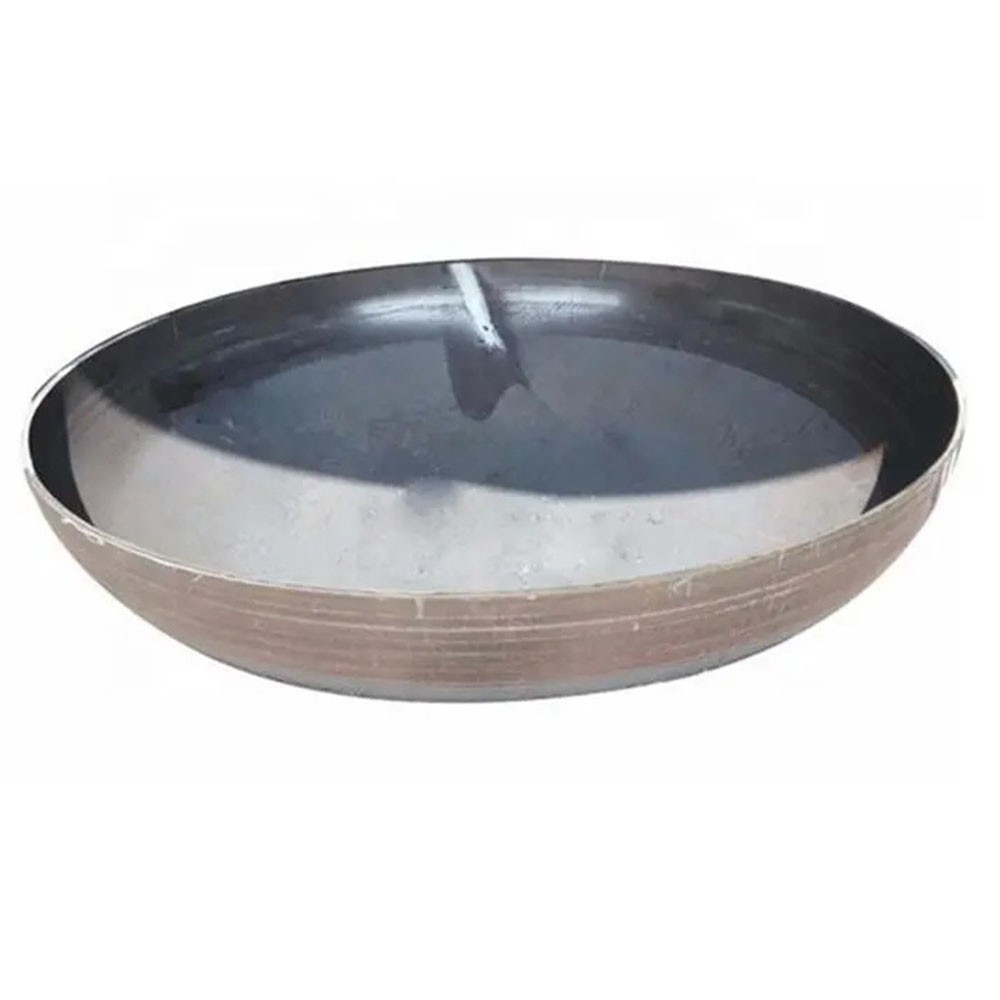

1. Elliptical Heads (2:1 Elliptical Heads)

Characteristics:

• Feature an elliptical shape with a 2:1 aspect ratio, meaning the major axis is twice the length of the minor axis.

• Provide smooth stress transition from the tank body, reducing stress concentrations and improving durability.

• Offer excellent structural integrity, making them ideal for high-pressure environments.

Applications:

• Used extensively in petrochemical, oil and gas, and power generation industries.

• Commonly found in boilers, storage tanks, and heat exchangers.

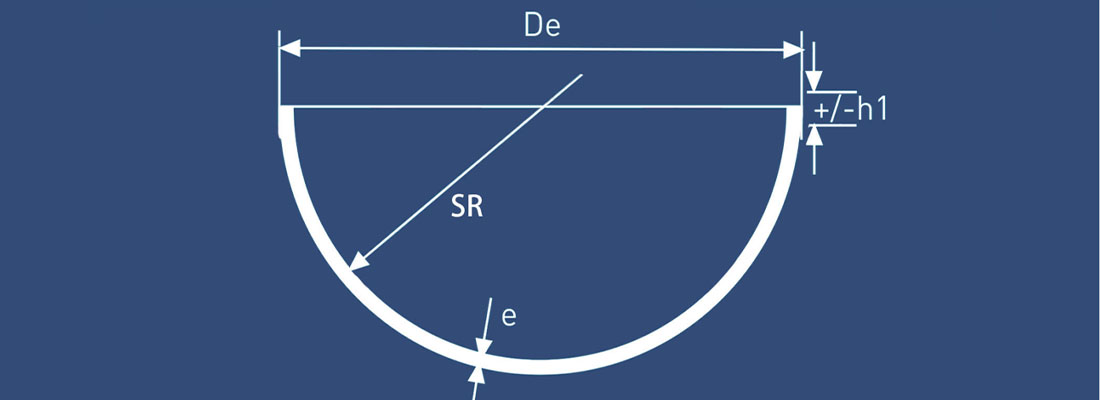

2. Hemispherical Heads

Characteristics:

• Resemble half of a sphere, ensuring uniform curvature and superior stress distribution.

• Offer the highest strength among head types, making them suitable for extreme pressure conditions.

• Provide optimal volume-to-surface area ratio, improving efficiency in high-pressure containment.

Applications:

• Commonly used in high-pressure gas storage tanks, industrial autoclaves, and nuclear reactors.

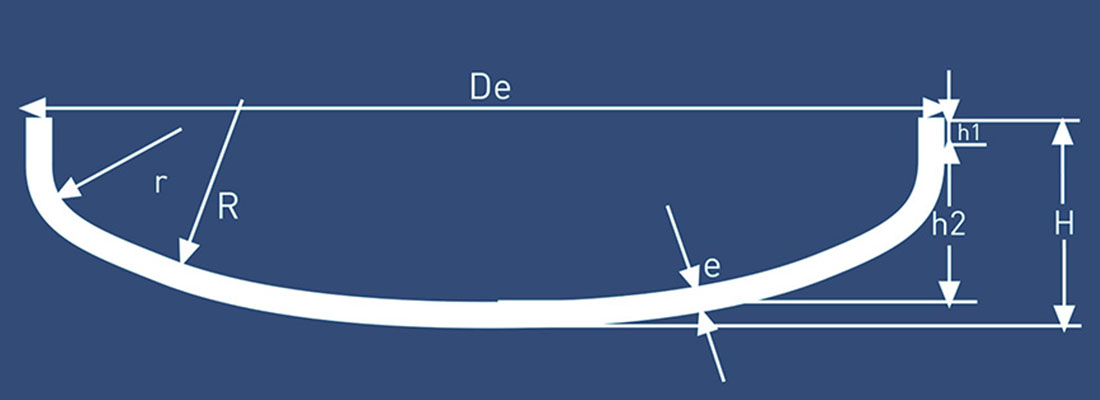

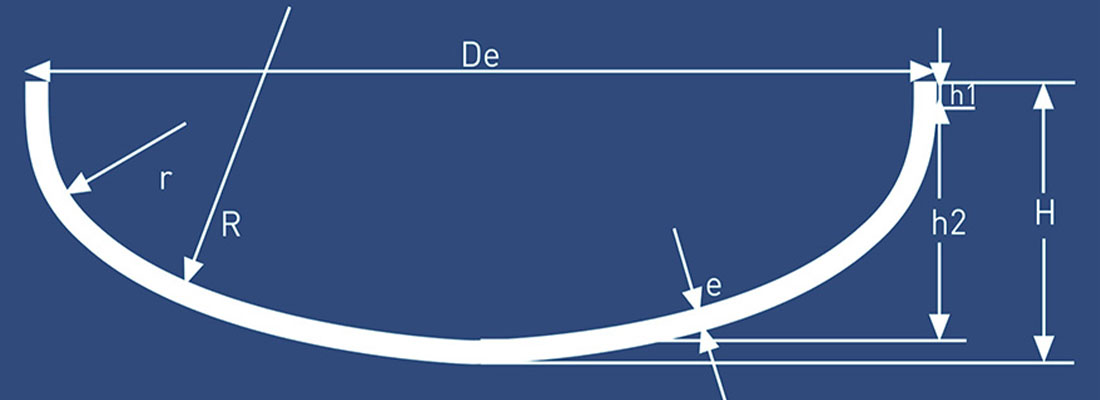

3. Torispherical Heads (ASME F&D Heads)

Characteristics:

• Feature a spherical crown with a conical knuckle, creating a slightly flattened spherical shape.

• Deliver good stress distribution and structural strength.

• The knuckle radius can be customized to meet specific design requirements.

Applications:

• Widely utilized in chemical processing, food and beverage, and pharmaceutical industries.

• Ideal for medium to high-pressure applications such as storage tanks, distillation columns, and reactors.

4. Flat Heads (Dished Heads)

Characteristics:

• Consist of a simple flat plate design, making them cost-effective and easy to manufacture.

• Best suited for low-pressure or atmospheric tanks due to their limited pressure containment capability.

• Provide straightforward installation and fabrication, ideal for certain storage applications.

Applications:

• Typically used in low-pressure or non-pressurized storage tanks.

• Found in applications where cost and ease of manufacturing take precedence.

Why Choose Hiapei Industry for Your Pressure Vessel Needs?

• Direct Manufacturer: We are not brokers or wholesalers; we manufacture every tank from raw steel plates in our own facilities.

• ASME-Certified: Our tanks meet ASME Boiler and Pressure Vessel Code standards, ensuring reliability and safety.

• Proven Expertise: With thousands of tanks shipped monthly, we have the experience and capacity to meet your needs.

• Custom Solutions: We can design and manufacture tanks to your exact specifications with surprisingly fast turnaround times.

• Quality Assurance: Each tank undergoes rigorous testing beyond its design pressure to guarantee performance and safety.

At Hiapei Industry, we are committed to providing top-quality pressure vessel solutions for your industrial applications. Contact us today to discuss your requirements or place an order for your next high-performance tank.

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

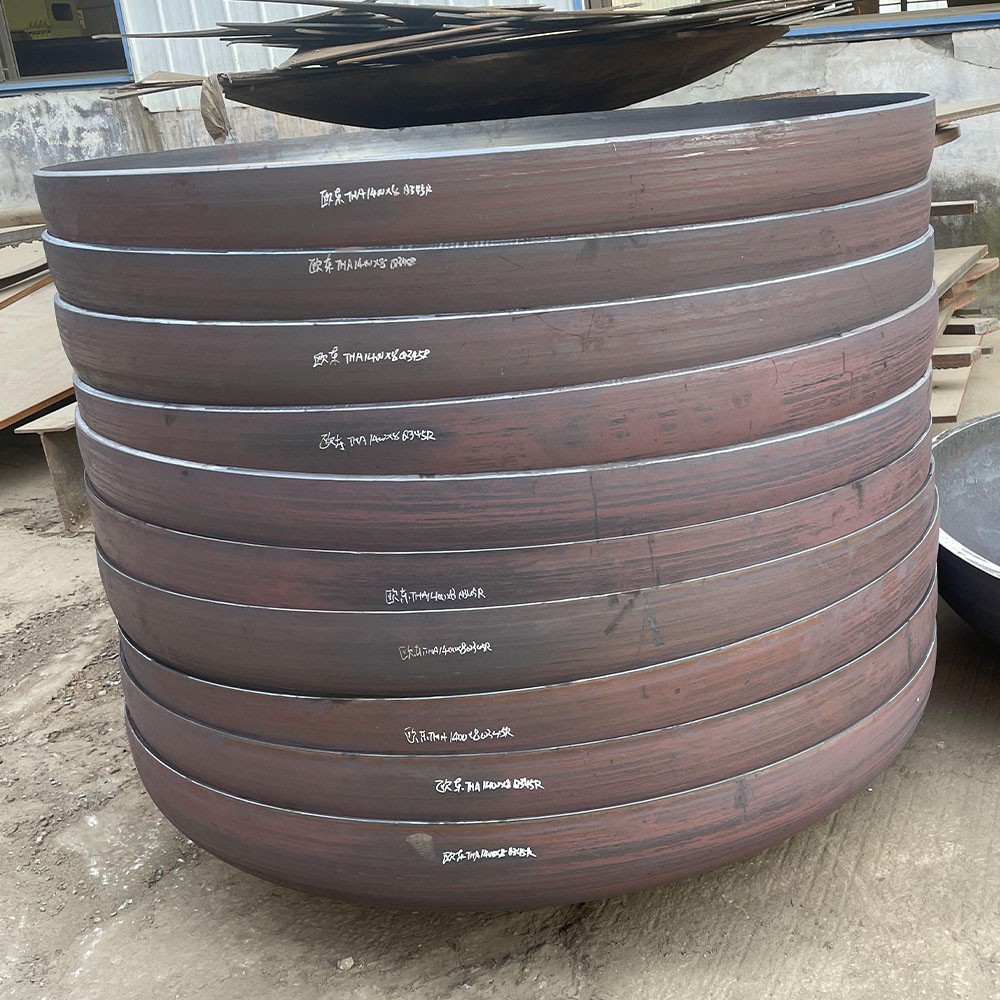

Dish End Heads

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
