An In-Depth Exploration of Dished Heads: Essential Components in Pressure Containment Technology

Introduction: Defining the Dished Head

In the realm of industrial engineering, particularly where the safe containment and processing of fluids under pressure are paramount, certain components stand out for their critical role in ensuring structural integrity and operational efficiency. Among these indispensable elements are dished heads, also commonly referred to as vessel heads or end closures. These components represent the specially formed ends used to cap cylindrical shells, thereby completing the enclosure of pressure vessels, storage tanks, boilers, heat exchangers, and a multitude of other container types. Characterized by their distinct inwardly curved, or concave, geometry when viewed from the outside (convex from the inside), they bear a resemblance to the bottom section of a bowl or dish, hence their descriptive name. This specific curvature is not merely an aesthetic choice; it is a fundamental design feature engineered to effectively manage the stresses induced by internal or external pressure, ensuring the vessel's safety, longevity, and reliability under demanding service conditions. Dished heads provide a smooth, contiguous, and often rounded termination to the cylindrical body of a vessel, moving away from the inherent structural weaknesses associated with flat end closures under significant pressure loading. Their ubiquity across diverse industries underscores their importance as foundational elements in modern process engineering and storage solutions.

The Fundamental Imperative: Why Curved End Closures?

To truly appreciate the significance of dished heads, one must first consider the challenges posed by containing pressure within a cylindrical structure. If a simple flat plate were used to close the end of a cylinder under internal pressure, the forces acting perpendicular to that plate would induce significant bending stresses, particularly concentrated at the sharp corner junction between the flat head and the cylindrical shell. Flat heads are inherently inefficient at managing pressure-induced stress over large diameters; the required thickness to safely withstand even moderate pressures quickly becomes impractical and uneconomical. Bending stresses are generally less desirable than membrane stresses (tensile or compressive forces acting within the plane of the material) in pressure components, as they can lead to higher localized stress peaks.

This is where the genius of the curved geometry of a dished head comes into play. By adopting a concave shape, the head transforms the perpendicular pressure load into predominantly membrane stresses – primarily tensile forces acting tangentially (hoop stress) and meridionally (longitudinal stress) along the curved surface of the head itself. This mechanism mirrors the structural efficiency observed in naturally occurring shapes like eggshells or architectural structures like domes and arches, which leverage curvature to distribute loads effectively. The smooth transition provided by the curve minimizes abrupt changes in geometry, thereby drastically reducing the stress concentration factors that plague the sharp corners of flat head-to-shell junctions. High stress concentrations are dangerous focal points where material fatigue can initiate, cracks can propagate, and ultimately, catastrophic failure can occur, especially under cyclic loading or in the presence of minor material imperfections. Therefore, the primary engineering driver for employing dished heads is their superior ability to distribute internal pressure forces more evenly across the material, minimizing peak stresses and allowing for a thinner, lighter, and more material-efficient design compared to a flat head for the same pressure rating. This translates directly into enhanced safety, improved structural integrity, greater resistance to fatigue, and often, reduced manufacturing costs.

Principal Advantages Offered by Dished Head Designs

The adoption of dished heads in vessel construction yields a multitude of significant benefits, extending beyond the primary advantage of stress management:

1. Optimized Stress Distribution: As elaborated above, this is the cornerstone advantage. The curved profile ensures that internal pressure is primarily resisted by tensile membrane stresses within the head material, rather than high bending stresses. This leads to a much more uniform stress field across the head's surface compared to flat closures. Different types of dished heads offer varying degrees of stress uniformity, with hemispherical heads being the theoretical optimum.

2. Reduced Peak Stresses and Stress Concentrations: The gradual change in direction inherent in the curved shape significantly mitigates stress risers, particularly at the transition zone where the head joins the cylindrical shell. This reduction is critical for preventing premature failure mechanisms like fatigue cracking, brittle fracture, or localized yielding.

3. Enhanced Structural Integrity and Safety: By minimizing stress concentrations and promoting a more favourable stress state, dished heads contribute directly to the overall robustness and safety factor of the pressure vessel. This allows vessels to reliably withstand design pressures, transient overpressure events, and cyclic loading conditions throughout their intended service life.

4. Material Efficiency and Cost Savings: Because the curved shape handles pressure more efficiently, a dished head can often be fabricated from thinner material compared to a flat head designed for the same pressure and diameter. This reduction in material thickness translates to lower material costs, reduced weight (which impacts transportation, foundation, and support structure costs), and potentially lower welding costs.

5. Improved Durability and Longevity: The reduction in peak operating stresses and fatigue-inducing stress cycles contributes to a longer operational lifespan for the vessel, reducing the need for premature replacement and associated downtime.

6. Versatility in Design: The availability of various standardized and custom dished head geometries allows engineers to select the most appropriate profile based on specific application requirements, including pressure levels, space constraints, volume optimization, drainage needs, and cost targets.

7. Facilitation of Internal Processes: The smooth internal contour of many dished heads can be advantageous for processes involving mixing, agitation, or fluid flow, preventing dead zones where material might accumulate. Certain shapes, like conical heads, are specifically chosen for their ability to promote efficient draining or solids discharge.

8. Enhanced Inspectability and Cleanability: The absence of sharp internal corners, particularly in ellipsoidal and hemispherical heads, can make internal inspection, cleaning (Clean-In-Place, CIP systems), and sterilization processes more effective and reliable, which is crucial in sanitary applications like food, beverage, and pharmaceutical manufacturing.

9. Aesthetic Appeal: While primarily functional components, the smooth, flowing lines of a dished head can impart a more refined, professional, and modern appearance to the finished vessel compared to the potentially more abrupt look of a flanged flat head. This can be a consideration in applications where the equipment is visible or contributes to the overall aesthetic of a facility.

A Taxonomy of Dished Heads: Exploring Common Configurations

The engineering world utilizes several distinct types of dished heads, each defined by its unique geometric profile and possessing characteristic performance attributes. The selection of a specific type hinges on a careful balance of factors including the design pressure, operating temperature, vessel diameter, space limitations, cost considerations, and the specific functional requirements of the application. Let's delve into the most prevalent configurations:

1. Torispherical Heads (Flanged and Dished Heads - F&D):

• Geometry: Perhaps the most widely encountered type, especially for moderate pressure applications, the torispherical head is a composite shape. It consists of a central spherical segment, known as the crown radius (R), connected to the cylindrical shell's straight flange by a transition section with a smaller radius, called the knuckle radius (r). The straight flange (SF) provides a necessary length for welding the head to the vessel shell. Common variants include the ASME F&D head, where typically R = D (vessel diameter) and r = 6% of D, and the 80-10 head where R = 80% of D and r = 10% of D.

• Stress Distribution: While significantly better than a flat head, the torispherical geometry inherently creates a stress concentration in the knuckle region due to the transition between the two radii and the straight flange. The magnitude of this stress concentration is influenced by the ratio of the crown radius to the knuckle radius and the head's thickness. Compared to ellipsoidal and hemispherical heads, torispherical heads generally exhibit higher localized stresses under the same pressure conditions.

• Advantages:

• Cost-Effectiveness: Generally, torispherical heads are among the least expensive dished head types to manufacture, particularly in standard sizes and for lower to moderate pressures. The forming process is well-established.

• Shallow Profile: They typically have a shallower depth compared to ellipsoidal or hemispherical heads of the same diameter, which can be advantageous where vertical space is limited.

• Wide Availability: Due to their common usage, standard torispherical heads are readily available in various materials and sizes.

• Disadvantages/Limitations:

• Stress Concentrations: The knuckle region is a point of concern for stress intensification, making them less suitable for very high pressures, cyclic loading, or applications demanding maximum fatigue resistance compared to other types. Design codes often impose stricter thickness requirements or limitations on the geometric ratios for torispherical heads, especially at higher pressures.

• Less Optimal Stress Distribution: The stress distribution is less uniform than that achieved with ellipsoidal or hemispherical heads.

• Typical Applications: Widely used for storage tanks, air receivers, LPG tanks, water heaters, boilers, and general-purpose pressure vessels operating at low to moderate pressures where cost is a significant driver.

2. Ellipsoidal Heads (Elliptical Heads or 2:1 Elliptical Heads):

• Geometry: As the name suggests, the ellipsoidal head has a shape derived from an ellipse. The most common form is the 2:1 ellipsoidal head, where the major axis of the generating ellipse is twice the length of the minor axis. This results in the depth of the head (inside the straight flange) being one-quarter of the vessel's diameter (h = D/4). The curvature is continuously changing, starting steepest at the center and becoming flatter towards the tangent line (where it joins the cylindrical shell).

• Stress Distribution: The ellipsoidal shape provides a significantly more favorable stress distribution compared to the torispherical head. The continuously varying curvature helps to smooth out stress concentrations, particularly at the transition to the cylindrical shell. While not as theoretically perfect as a hemisphere, the 2:1 ellipsoidal head offers an excellent balance between stress management and manufacturability. Stresses are generally lower and more uniformly distributed than in a torispherical head of equivalent pressure rating.

• Advantages:

• Good Stress Resistance: Offers superior resistance to internal pressure compared to standard torispherical heads due to lower stress concentrations. Suitable for medium to high-pressure applications.

• Improved Fatigue Life: The smoother stress profile generally leads to better performance under cyclic loading conditions.

• Greater Volume Capacity: For a given diameter, a 2:1 ellipsoidal head provides slightly more internal volume than a typical torispherical head.

• Good Balance: Represents a well-regarded compromise between the performance of a hemispherical head and the cost/shallowness of a torispherical head.

• Disadvantages/Limitations:

• Higher Cost: Manufacturing ellipsoidal heads is typically more complex and thus more expensive than producing torispherical heads. The forming dies are more intricate.

• Greater Depth: They are deeper than standard torispherical heads, requiring more vertical space (headroom).

• Typical Applications: Frequently specified for process reactors, heat exchangers, distillation columns, higher-pressure storage vessels, and applications where improved stress characteristics and fatigue resistance are needed compared to torispherical designs. Common in chemical processing, oil and gas, and power generation industries.

3. Hemispherical Heads:

• Geometry: A hemispherical head is simply one-half of a perfect sphere. Its radius (R) is equal to half the diameter (D/2) of the cylindrical shell it attaches to. This geometry results in the deepest profile among the common dished head types (depth = D/2).

• Stress Distribution: From a purely theoretical standpoint regarding internal pressure, the hemispherical head represents the optimal shape for a dished end closure. In an ideal hemisphere under uniform internal pressure, the stresses developed are purely biaxial tensile membrane stresses (hoop and meridional stresses are equal) and are uniformly distributed throughout the head. There are virtually no bending stresses induced by the pressure itself (though some localized discontinuity stresses occur at the junction with the shell if thicknesses differ). This uniformity means it can withstand the highest pressure for a given thickness or, conversely, requires the minimum thickness for a given pressure rating.

• Advantages:

• Optimal Pressure Resistance: Provides the best possible stress distribution, making it the strongest common head type for containing internal pressure. Ideal for very high-pressure applications.

• Maximum Stress Uniformity: Minimizes stress concentrations, leading to excellent fatigue life and suitability for demanding cyclic services.

• Thinnest Required Wall: For a given pressure and diameter, a hemispherical head allows for the thinnest wall construction, potentially saving material weight, although manufacturing costs might offset this.

• Disadvantages/Limitations:

• Highest Manufacturing Cost: Forming a perfect hemisphere, especially in large diameters or thick materials, is the most challenging and expensive process among the common head types.

• Maximum Depth: Requires the most vertical space (headroom) due to its depth (D/2), which can be a limitation in space-constrained installations.

• Potential Fabrication Issues: Welding a potentially thin hemisphere to a thicker cylindrical shell requires careful consideration of discontinuity stresses at the junction.

• Typical Applications: Specified for high-pressure reactors, nuclear reactor vessels, petrochemical process vessels operating under extreme pressures, vessels subject to severe cyclic loading, and applications in aerospace (e.g., rocket propellant tanks) and subsea environments where strength-to-weight ratio and absolute pressure integrity are critical. Also used in pharmaceutical and food processing for sanitary reasons due to the smooth, easily cleanable internal surface.

4. Conical Heads (and Toriconical Heads):

• Geometry: A conical head, or cone section, forms a tapering transition. It is defined by its half-apex angle (α), which is the angle between the cone's axis and its side wall. The head connects a larger diameter (usually the vessel shell) to a smaller diameter opening (often for an outlet nozzle or connection to other equipment) or sometimes terminates at a point (apex). Often, to mitigate the high stresses at the sharp junction between the cone and the cylinder, a knuckle radius is introduced at the large end, resulting in a toriconical head. A similar knuckle may be used at the small end if it doesn't terminate in a nozzle.

• Stress Distribution: The junction between the conical section and the cylindrical shell is a location of significant stress concentration, particularly bending stresses, due to the abrupt change in geometry and angle. The magnitude of these stresses increases as the cone angle (α) increases (i.e., as the cone becomes flatter). The presence of a knuckle radius in a toriconical head significantly reduces these discontinuity stresses, making the design much more robust, especially for higher pressures or larger angles. Stresses within the conical section itself also vary depending on the angle and location.

• Advantages:

• Drainability/Solids Handling: The primary advantage of conical heads is their shape, which naturally funnels contents towards the smaller outlet. This makes them ideal for vessels that require complete drainage, or for hoppers and silos designed to discharge granular materials or slurries.

• Transitional Geometry: They serve as effective transitions between different diameters within a process system.

• Potentially Shallow Profile: Depending on the angle, they can offer a relatively shallow profile compared to dished heads if a large diameter reduction is not required.

• Disadvantages/Limitations:

• High Junction Stresses: Without a knuckle radius (i.e., a simple conical head), the cone-to-cylinder junction is a major weak point, limiting its use to low-pressure applications or requiring significant local reinforcement (increased thickness). Toriconical designs are generally preferred for pressure applications.

• Complex Stress Analysis: The stress state is more complex than in spherical or ellipsoidal heads, particularly at the junctions.

• Manufacturing Complexity: Fabricating cones, especially toriconical sections with precise knuckle radii, can be complex and costly.

• Typical Applications: Bottom heads of storage tanks, silos, hoppers for solids discharge, clarifiers, separators, crystallizers, bottoms of some types of reactors and fermenters where easy emptying is crucial, and as transition sections between different diameter shells in columns or vessels.

Material Selection: Choosing the Right Foundation

The material chosen for constructing a dished head is as critical as its geometry. The selection process involves considering a range of factors dictated by the intended service environment and operational parameters:

• Pressure and Temperature: The material must possess adequate yield strength, tensile strength, and creep resistance at the design temperature and pressure to prevent yielding, rupture, or time-dependent deformation. Low-temperature applications also require materials with sufficient toughness to avoid brittle fracture.

• Corrosion Resistance: The material must be compatible with the process fluids, cleaning agents, and external environment to prevent corrosion (general, pitting, crevice, stress corrosion cracking) that could compromise structural integrity over time. A corrosion allowance (extra thickness) is often added to account for expected metal loss.

• Product Purity Requirements: In industries like pharmaceuticals, food, and beverage, materials like stainless steel (e.g., 304L, 316L) or specialized alloys are chosen for their inertness, cleanability, and resistance to contamination.

• Weldability: The material must be readily weldable to the vessel shell material using available and qualified welding procedures, ensuring the integrity of the critical head-to-shell joint.

• Manufacturability: The material's formability (ability to be shaped without cracking) is important, especially for complex curvatures or thick sections requiring hot or cold forming.

• Cost and Availability: Economic considerations and the availability of the required material in the necessary plate form and thickness play a significant role in the final selection.

Common Materials Used:

• Carbon Steels: (e.g., ASME SA-516 Grade 70) Widely used for general-purpose pressure vessels due to their good strength, toughness, weldability, and relatively low cost. Suitable for moderate temperatures and non-corrosive or mildly corrosive services.

• Stainless Steels: (e.g., Austenitic grades 304/304L, 316/316L; Duplex grades) Offer excellent corrosion resistance across a wide range of environments, making them suitable for chemical processing, food, beverage, pharmaceutical, and water treatment applications. Different grades offer varying levels of resistance to specific corrosive agents and temperatures.

• Low Alloy Steels: (e.g., Chrome-Moly steels like SA-387) Used for elevated temperature service (e.g., in power generation, refining) where enhanced creep strength and resistance to hydrogen attack are required.

• Nickel Alloys: (e.g., Hastelloy, Monel, Inconel) Employed for highly corrosive environments, high temperatures, or specific chemical compatibility requirements where stainless steels are inadequate. Significantly more expensive.

• Titanium and Zirconium: Used in extremely corrosive services, particularly involving certain acids or chlorides, where even high nickel alloys may fail. Very high cost.

• Clad Materials: Consist of a carbon or low alloy steel base material (for strength and cost-effectiveness) with a metallurgically bonded layer of a corrosion-resistant alloy (like stainless steel or nickel alloy) on the process-contacting side. Offers a compromise between cost and corrosion performance.

Manufacturing Processes: Shaping the Heads

Creating the precise curvature of a dished head requires specialized manufacturing techniques. The primary methods include:

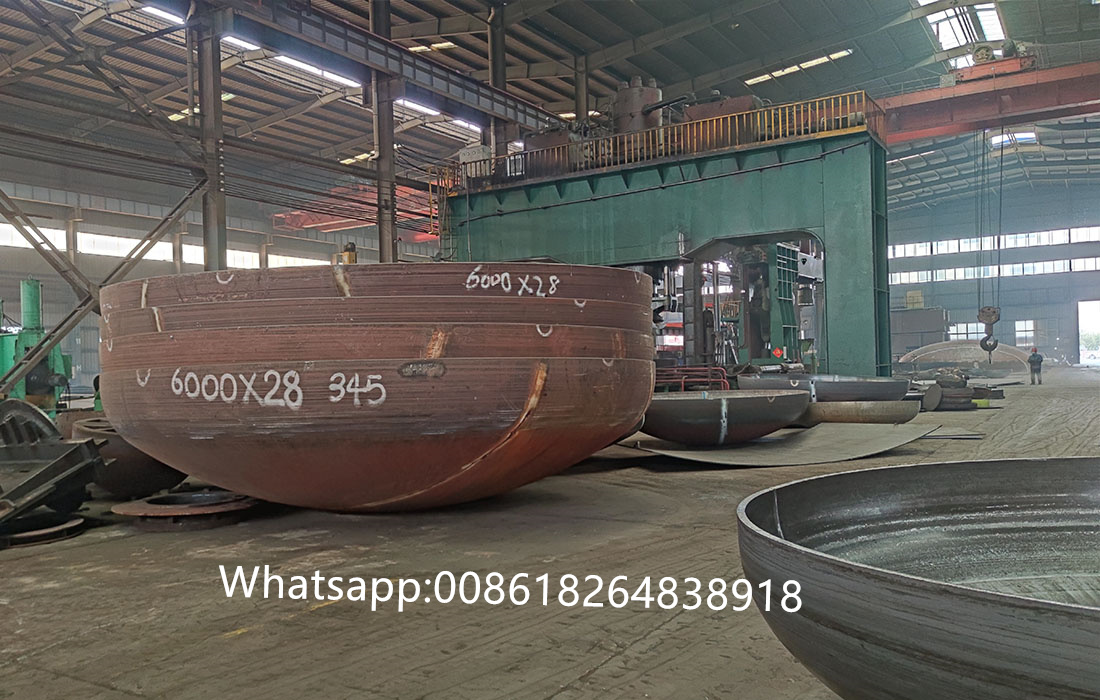

1. Cold Forming (Pressing or Spinning):

• Pressing: Metal plate blanks are pressed between shaped dies (male and female) in a large hydraulic press. This is common for standard sizes and shapes like torispherical and ellipsoidal heads, particularly in thinner materials. Multiple pressing stages might be needed.

• Spinning: A circular plate blank is clamped against a rotating mandrel (chuck) shaped like the desired head profile. A roller tool then progressively forces the plate material onto the mandrel. Spinning is versatile and can produce various head shapes, including hemispherical and complex profiles, often used for thicker plates or non-standard dimensions. Cold forming increases the material's strength (work hardening) but may reduce ductility, sometimes necessitating post-forming heat treatment (stress relieving or annealing).

2. Hot Forming (Pressing or Spinning):

• Similar to cold forming, but the plate blank is heated to a specific temperature (below melting point but high enough to significantly reduce its yield strength and increase ductility) before pressing or spinning. Hot forming is necessary for thick plates, materials with limited cold formability (like some alloy steels), or complex shapes to avoid cracking and reduce the required forming forces. Hot forming operations typically require subsequent heat treatment (e.g., normalizing, quenching and tempering) to restore desired mechanical properties and refine the grain structure.

3. Segmental Construction (Crown and Petal):

• For very large diameter heads or extremely thick sections that exceed the capacity of forming presses or spinning machines, heads can be fabricated by welding together smaller formed segments. A hemispherical head might be made from a central circular "crown" piece and several orange-peel-shaped "petal" segments. Conical heads are often made by rolling a flat plate into a cone shape and welding the longitudinal seam. This method requires extensive, high-quality welding and rigorous inspection (NDT) of all seams.

Regardless of the method, precise control over geometry, dimensions, tolerances, and surface finish is crucial. Post-forming operations often include trimming the edges, machining bevels for welding to the shell, heat treatment (if required by code or material), and thorough inspection.

Design Considerations, Standards, and Codes

The design of dished heads is rigorously governed by established engineering codes and standards to ensure safety and reliability. The most widely recognized code for pressure vessels, particularly in North America, is the ASME Boiler and Pressure Vessel Code (BPVC), specifically Section VIII (Rules for Construction of Pressure Vessels), Divisions 1, 2, and 3. Other international standards include the European EN 13445 (Unfired Pressure Vessels) and various national codes (e.g., AD Merkblätter in Germany, CODAP in France).

Key design considerations codified in these standards include:

• Minimum Required Thickness: Formulas are provided to calculate the minimum thickness needed for the head based on the chosen material, design pressure, design temperature, diameter, head type (geometry), weld joint efficiency, and corrosion allowance. The formulas account for the different stress states in various head types.

• Geometric Limitations: Codes often place restrictions on the geometric ratios for certain head types (e.g., knuckle radius vs. crown radius for torispherical heads) to control stress concentrations.

• Material Selection and Properties: Allowable stresses for approved materials are specified as a function of temperature. Rules for impact testing (to ensure toughness) at low temperatures are given.

• Fabrication Tolerances: Permissible deviations from the nominal shape (out-of-roundness, profile deviations) are defined.

• Welding Procedures and Qualifications: Requirements for welding processes, welder qualifications, and weld joint design (e.g., head-to-shell attachment) are detailed.

• Non-Destructive Examination (NDE): The type and extent of NDE (e.g., radiographic testing (RT), ultrasonic testing (UT), magnetic particle testing (MT), liquid penetrant testing (PT)) required for materials, formed heads, and welds depend on the vessel's service conditions, material, thickness, and the specific division of the code being followed.

• Pressure Testing: Completed vessels, including the dished heads, must typically undergo a hydrostatic or pneumatic pressure test to prove their integrity before being placed into service.

Engineers utilize these codes alongside advanced analytical tools like Finite Element Analysis (FEA) to verify designs, especially for non-standard geometries, complex loading conditions, or when optimizing for weight or performance. FEA allows for a detailed visualization of stress distribution throughout the head and at critical junctions.

Integration and Welding: Joining Head to Shell

The connection between the dished head and the cylindrical shell is one of the most critical structural elements of a pressure vessel. This joint is almost invariably made by welding. Proper execution of this weld is paramount for the vessel's integrity. Key aspects include:

• Weld Preparation: The edges of the head's straight flange and the end of the shell cylinder must be accurately machined (usually with a specific bevel profile) to ensure proper fit-up and facilitate a sound weld.

• Welding Process: Common processes include Shielded Metal Arc Welding (SMAW), Gas Tungsten Arc Welding (GTAW or TIG), Gas Metal Arc Welding (GMAW or MIG/MAG), and Submerged Arc Welding (SAW). The choice depends on material, thickness, position, required quality, and economics.

• Weld Quality: The weld must achieve complete penetration and fusion, be free from significant defects (like cracks, porosity, slag inclusions, lack of fusion), and meet the mechanical property requirements specified by the design code. Welder performance and welding procedures must be qualified according to code requirements.

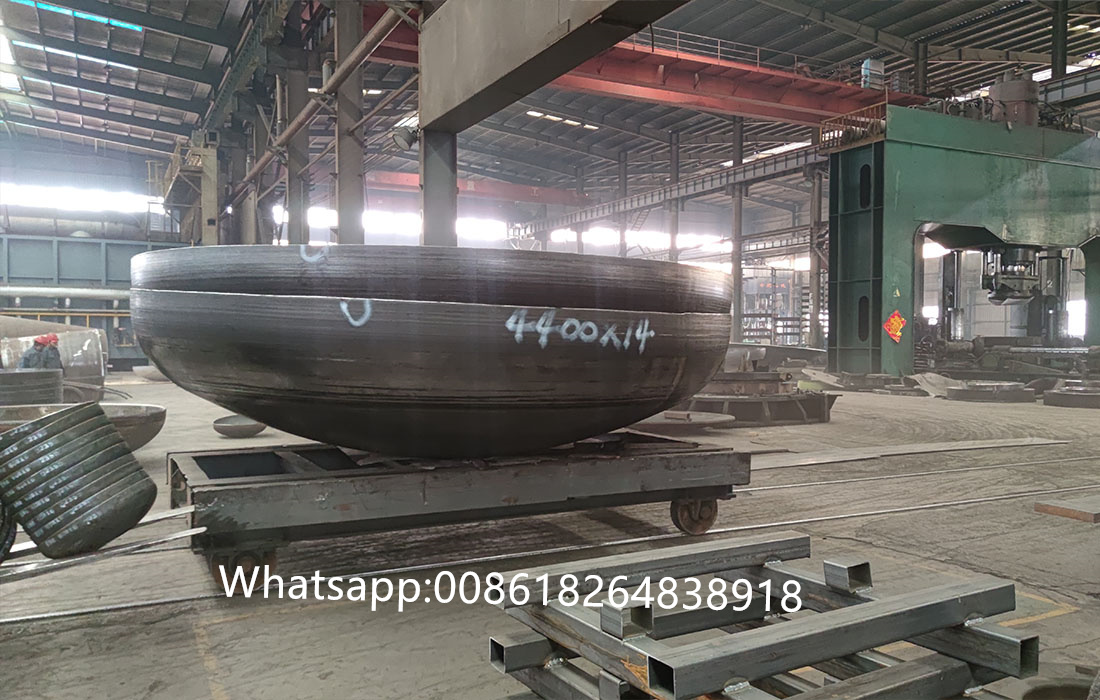

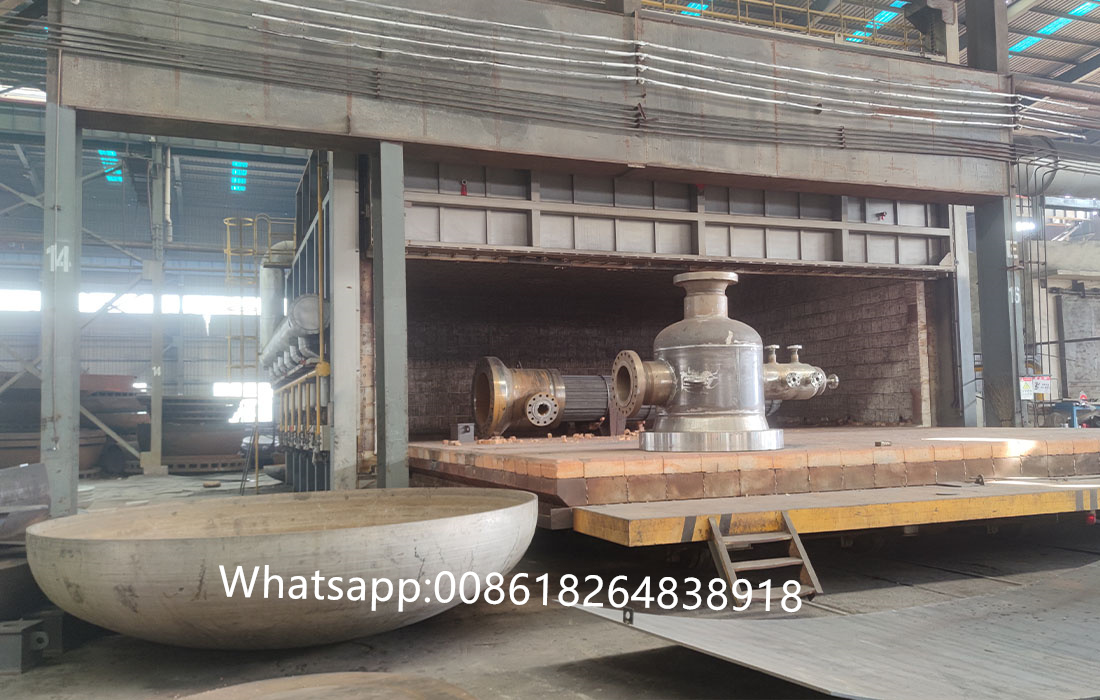

• Post-Weld Heat Treatment (PWHT): Depending on the material, thickness, and service conditions, the completed head-to-shell weld (and sometimes the entire vessel) may require PWHT. This controlled heating and cooling cycle relieves residual stresses induced by welding and forming, improves toughness, and can enhance resistance to stress corrosion cracking.

Inspection and Testing: Ensuring Quality and Safety

Throughout the manufacturing process and upon completion, dished heads and the final vessel assembly undergo rigorous inspection and testing:

• Material Verification: Confirming raw materials meet specifications (mill test reports).

• Dimensional Checks: Verifying the head's profile, diameter, thickness, straight flange length, and out-of-roundness against design drawings and code tolerances.

• Visual Inspection: Checking for surface defects, imperfections, and weld quality.

• Non-Destructive Examination (NDE): As mandated by the code, NDE methods are applied to detect subsurface or surface-breaking flaws in the base material, formed head, and critical welds (especially the head-to-shell seam). RT and UT are common for volumetric examination, while MT and PT are used for surface defect detection.

• Hydrostatic Testing: The final assembled vessel is typically filled with water and pressurized to a specific level (usually 1.3 to 1.5 times the design pressure, adjusted for temperature) to demonstrate its ability to withstand pressure without leakage or distortion. Pneumatic testing (using air or inert gas) is sometimes used but carries higher risks due to the stored energy of compressed gas.

Aesthetics and Functional Finishing Touches

While structural performance is primary, the final appearance and surface condition of dished heads can also be relevant:

• Surface Finish: Heads can be supplied with various finishes, from a standard "mill finish" (as-formed) to smoother finishes achieved by grinding or polishing. Highly polished surfaces (e.g., mirror finish) are often required for sanitary applications to facilitate cleaning and prevent bacterial growth.

• Coatings and Linings: For enhanced corrosion protection or specific process requirements, heads and the entire vessel interior/exterior may be coated (e.g., paint, epoxy, rubber lining) or lined (e.g., glass lining).

• Architectural Applications: The inherent visual appeal of smoothly curved forms means dished heads sometimes find use in architectural elements or large sculptures, where aesthetics are a primary driver.

Broad Spectrum of Applications Across Industries

The versatility and reliability of dished heads make them indispensable across a vast range of industrial sectors. Their presence is fundamental to the safe and efficient operation of countless processes:

• Oil and Gas: Reactors, separators (gas-oil, oil-water), fractionating columns, accumulators, slug catchers, storage tanks for crude oil, refined products, and LPG. High pressures and demanding service conditions are common.

• Chemical Processing: Reactors, mixers, distillation columns, evaporators, crystallizers, storage vessels for raw materials, intermediates, and finished chemical products (often highly corrosive).

• Power Generation: Boiler drums, feedwater heaters, condensers, heat exchangers, deaerators, reactor vessels in nuclear power plants (requiring the highest levels of integrity).

• Pharmaceutical and Biotechnology: Fermenters, bioreactors, sterile holding and mixing tanks, process vessels for drug synthesis. Emphasis on high purity, cleanability (CIP/SIP), and smooth, crevice-free surfaces (often requiring polished stainless steel or alloys).

• Food and Beverage: Processing tanks (heating, cooling, mixing), pasteurizers, storage silos (grains, powders), brewery tanks (fermentation, conditioning, bright beer tanks), dairy processing equipment. Sanitary design is critical.

• Water Treatment: Filter housings, ion exchange vessels, reverse osmosis membrane housings, softeners, storage tanks for potable or treated water.

• Pulp and Paper: Digesters (for breaking down wood chips), bleach towers, storage tanks for process chemicals (e.g., black liquor).

• Mining and Metallurgy: Autoclaves (for high-pressure leaching), thickeners, storage tanks.

• Aerospace and Defense: Rocket propellant tanks, high-pressure gas storage for launch vehicles, components for submarines and other defense applications requiring high strength-to-weight ratios and reliability under extreme conditions.

• General Manufacturing: Air receivers for compressed air systems, hydraulic accumulators, water heater tanks, expansion tanks in HVAC systems.

Maintenance, Longevity, and End-of-Life Considerations

While designed for durability, dished heads, like all pressure equipment components, require appropriate maintenance and inspection throughout their service life to ensure continued safe operation. Factors influencing longevity include:

• Operating within design limits (pressure, temperature).

• Rate and severity of corrosion or erosion.

• Presence and magnitude of cyclic loading (fatigue).

• Quality of initial fabrication and welding.

• Effectiveness of the maintenance and inspection program.

Routine inspections may involve visual checks, thickness measurements (using ultrasonic testing) to monitor corrosion/erosion rates, and periodic NDE of critical areas if warranted by service conditions or code requirements. Eventually, due to factors like excessive thinning, irreparable cracking, or changes in service requirements, a vessel with its dished heads may reach the end of its safe operating life and require decommissioning and replacement.

Conclusion: The Unsung Heroes of Pressure Containment

Dished heads are far more than simple end caps for cylindrical vessels; they are meticulously engineered components fundamental to the safety, efficiency, and reliability of countless industrial processes and storage facilities worldwide. Their characteristic curved geometries represent elegant solutions to the complex challenge of managing pressure-induced stresses, transforming potentially destructive forces into manageable membrane stresses. From the cost-effective torispherical heads suitable for moderate duties to the optimally strong hemispherical heads for extreme pressures, and the functionally specific conical heads for drainage, the diverse range of available types allows engineers to tailor vessel designs precisely to application needs.

The selection of the appropriate head type, combined with careful material choice, adherence to stringent design codes (like ASME BPVC or EN 13445), precise manufacturing techniques, high-quality welding, and thorough inspection, all contribute to creating vessels capable of safely containing substances under pressure, often under harsh temperatures and corrosive environments. Their impact is felt across nearly every major industry, underpinning the production of energy, chemicals, pharmaceuticals, food, water, and manufactured goods that define modern life. While often hidden from view within complex facilities, the humble dished head stands as a testament to sound engineering principles, playing a critical, albeit often unsung, role in ensuring the integrity and safety of vital industrial infrastructure. Their continued refinement through advanced materials, improved manufacturing methods, and sophisticated analysis techniques ensures they will remain essential components in pressure containment technology for the foreseeable future.
