This article provides a comprehensive guide to understanding torispherical heads, crucial components in pressure vessels. We'll delve into the intricacies of their design, focusing on volume and weight calculation in accordance with ASME standards. From understanding the crown radius for torispherical heads to navigating Section VIII Division 1 of the ASME Code, this article equips engineers and designers with the knowledge to confidently work with these essential elements. If you're involved in pressure vessel design, fabrication, or inspection, this detailed explanation of torispherical head geometry, ASME compliance, and calculation methods will be invaluable.

1. What is a Torispherical Head?

A torispherical head is a type of dished head commonly used to close the ends of cylindrical pressure vessels. The geometry of a torispherical head is characterized by two radii: the crown radius and the knuckle radius. The crown radius is the radius of the main, spherical portion of the dished head, while the knuckle radius is the radius of the toroid, or curved section, that connects the spherical portion to the cylindrical shell.

Torispherical heads are popular due to their relatively cost-effective manufacturing and good performance under internal pressure. They offer a balance between the simpler geometry of flat heads and the superior strength of hemispherical heads or ellipsoidal heads. The combination of the crown radius and knuckle radius distributes stress more effectively than a single radius, making them a suitable choice for many pressure vessel applications.

2. Why are Torispherical Heads Important in Pressure Vessel Design?

Torispherical heads are essential components in pressure vessel design for several reasons. Compared to flat heads, torispherical heads offer significantly improved resistance to deformation and failure under pressure. While hemispherical heads offer the best pressure resistance, they are also the most expensive to manufacture. Similarly, ellipsoidal heads offer good pressure resistance, but can be more complex to fabricate than torispherical heads.

The torispherical head represents a practical compromise. Its curved shape allows for a more even distribution of stresses compared to a flat head, reducing the risk of stress concentrations that could lead to cracking or failure. The specific dimensions of the crown radius and knuckle radius can be optimized for specific pressure and temperature conditions, providing a tailored solution for a wide range of applications. The torispherical head used allows designers to balance cost, manufacturability, and performance.

3. Understanding the Geometry: Crown Radius for Torispherical Heads

The crown radius for torispherical heads is a critical geometric parameter that significantly influences its structural integrity and performance. It represents the radius of curvature of the main spherical portion of the head. The crown radius for a torispherical head is typically denoted as 'L'.

The crown radius is closely related to the diameter of the head (D) and the knuckle radius (r). According to ASME standards, there are limitations on the values of these radii. For instance, the ASME design code does not allow the knuckle radius to be any less than a specified percentage of the head diameter. The crown radius is equal to or less than the outside diameter of the head. Selecting the appropriate crown radius for a torispherical head ensures that the head can withstand the applied pressure without excessive stress concentrations. The relationship between crown radius, diameter and the knuckle radius impacts the overall calculation of stress distribution and minimum required thickness.

4. ASME Standards for Torispherical Heads: Section VIII, Division 1

The ASME Code, specifically Section VIII Division 1, provides comprehensive guidelines for the design, fabrication, inspection, and testing of pressure vessels, including pressure vessel heads. This section of the ASME code includes specific requirements for torispherical heads, covering aspects such as minimum thickness, allowable stress values, and design formulas. The ASME code's rules are intended to ensure the safety and reliability of ASME-certified pressure vessels.

Section VIII Division 1 addresses the design of torispherical heads subjected to internal pressure. It dictates the methods for determining the required wall thickness based on the crown radius, knuckle radius, material properties, and the design pressure. Furthermore, it specifies requirements for welding, inspection, and testing to ensure the integrity of the formed heads. Adhering to Section VIII of the ASME Code is crucial for manufacturers seeking ASME pressure certification and for ensuring the long-term safety of the equipment.

5. Torispherical Head Volume and Weight Calculation: A Step-by-Step Guide

To calculate the volume and weight of a torispherical head, you need to consider its geometry and material properties. The volume calculation involves determining the volume of the spherical cap (defined by the crown radius) and subtracting the volume of the toroidal section (defined by the knuckle radius). Here's a general approach:

1. Determine the dimensions: Obtain the diameter of the head (D), the crown radius (L), and the knuckle radius (r). Also, determine the straight flange height (if any) for the overall height of the torispherical head.

2. Calculate the height of the spherical cap (h): h = R - sqrt(R^2 - (D/2)^2), where R is the inside crown radius.

3. Calculate the volume of the spherical cap (Vs): Vs = (pi h^2 / 3) (3R - h)

4. Calculate the volume of the toroidal section (Vt): This calculation is more complex and often requires numerical integration or approximation methods. A simplified approach can be found in many engineering handbooks or specialized software.

5. Calculate the total volume (V): V = Vs - Vt

6. Calculate the weight (W): Determine the material density (ρ) and multiply it by the volume and the wall thickness: W = V * ρ

7. Calculation of Torispherical head volume and weight is not simple, so use computer or specialized tools for easier and more accurate calculation.

Keep in mind that these calculations provide an estimate. For accurate results, particularly for critical applications, using specialized software or consulting with a qualified engineer is recommended.

Here's a table summarizing the key parameters and formulas:

Here's a table with the steps to calculating the volume:

6. What's the Difference Between Ellipsoidal, Hemispherical, and Torispherical Heads?

Pressure vessel heads come in various shapes, each offering different characteristics in terms of strength, cost, and manufacturability. Ellipsoidal heads, hemispherical heads, and torispherical heads are three common types.

• Hemispherical Heads: These heads have the shape of a half-sphere. They offer the best pressure resistance because the stress is evenly distributed across the surface. However, they are typically the most expensive to manufacture due to the complexity of forming a perfect hemisphere.

• Ellipsoidal Heads (or Elliptical Heads): These heads have an elliptical profile. Common ratios are 2:1 elliptical heads. They offer good pressure resistance and are generally less expensive to manufacture than hemispherical heads.

• Torispherical Heads: As discussed earlier, these heads combine a spherical crown radius with a toroidal knuckle radius. They offer a good balance between pressure resistance and cost-effectiveness, making them a popular choice for many pressure vessel applications.

The choice of which head to use depends on specific design requirements, including the operating pressure, temperature, material properties, and cost constraints.

7. How Does Internal Pressure Affect the Design and Calculation of Torispherical Heads?

Internal pressure is a primary factor in the design and calculation of torispherical heads. The ASME pressure design code dictates how the internal pressure affects the required wall thickness and the overall structural integrity of the head. Higher internal pressure necessitates a thicker wall thickness to withstand the increased stress.

The design formulas in Section VIII Division 1 explicitly incorporate the internal pressure as a key variable. These formulas are used to determine the minimum required thickness of the head to prevent yielding or rupture under the specified operating pressure. Furthermore, the internal pressure influences the selection of appropriate materials with sufficient strength and ductility to withstand the applied stress. The code takes into consideration all of these factors to ensure the selection of a proper asme torispherical head to satisfy safe practice.

8. Exploring Standard Profiles and Options Available for Torispherical Heads

While the fundamental geometry of a torispherical head is defined by the crown radius and knuckle radius, several standard profiles exist, each with specific characteristics. Common standard profiles include those defined by ASME standards, which specify allowable ranges for the crown radius and knuckle radius relative to the diameter of the head.

In addition to standard profiles, options are available for customization to meet specific application requirements. These options are available include variations in the crown radius, knuckle radius, and wall thickness. Furthermore, options are available for different materials of construction, surface finishes (flanged and dished polished heads), and nozzle or fitting attachments. The selection of appropriate options depends on the specific requirements of the pressure vessel and the intended operating conditions.

9. Calculation Checking for Torispherical Heads: Ensuring Accuracy and Compliance

Calculation checking is a crucial step in the design process to ensure the accuracy of the results and compliance with ASME standards. Errors in calculation can have serious consequences, potentially leading to structural failure and safety hazards. A calculation checking process should involve several steps:

1. Independent Verification: Have a second qualified engineer independently verify the calculations using the same input parameters and formulas.

2. Software Validation: If using specialized software, verify that the software is properly validated and that the results are consistent with hand calculations or other reliable methods.

3. Dimensional Consistency: Check the dimensional consistency of all input and output values, ensuring that units are correctly applied and converted.

4. Comparison with Existing Designs: Compare the results with existing designs for similar pressure vessels to identify any significant discrepancies.

5. Finite Element Analysis (FEA): For complex or critical applications, consider performing FEA to validate the results and identify potential stress concentrations.

By implementing a thorough calculation checking process, errors can be identified and corrected, ensuring the safety and reliability of the torispherical head and the pressure vessel as a whole.

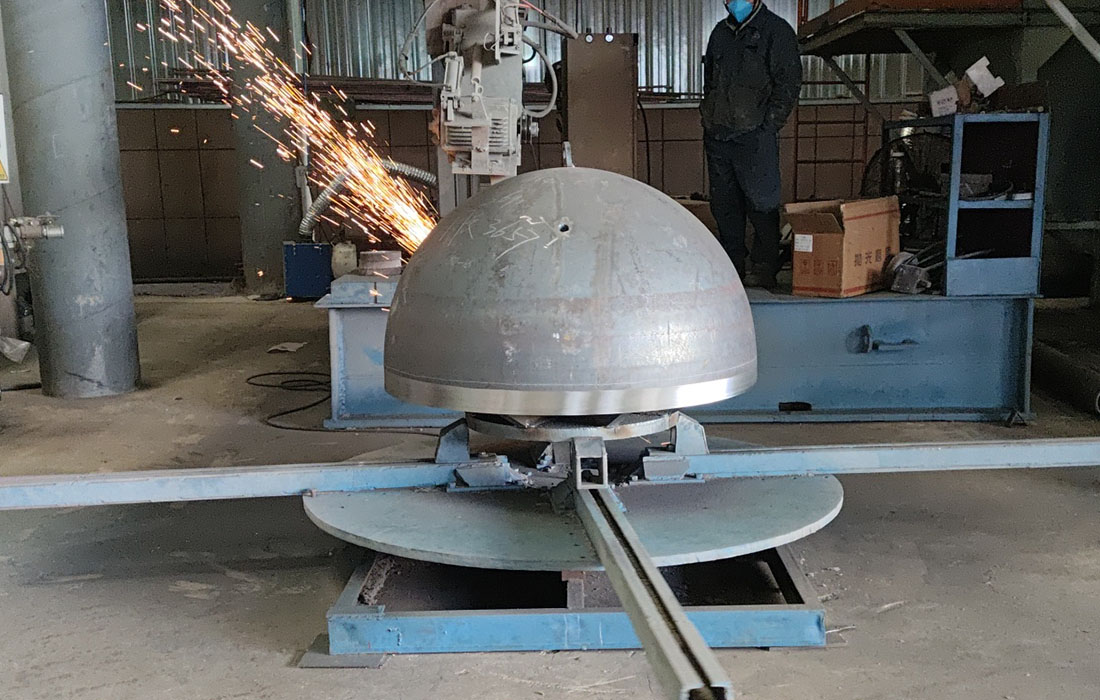

10. Boldrini Head Press and Flanged and Dished Polished Heads: Innovations in Torispherical Head Manufacturing

Manufacturing processes for torispherical heads have evolved significantly over time. The boldrini head press represents a modern innovation in this area. Boldrini is recognized as a leading manufacturer of equipment for producing formed heads, boldrini flanging machine and other components for pressure vessels. Boldrini Head Press is very well known in pressure vessel industry.

Flanged and dished polished heads are another example of advanced manufacturing techniques. These heads undergo a polishing process to achieve a smooth, mirror-like surface finish. This is especially important for applications in the food, beverage, and pharmaceutical industries, where hygiene and cleanability are critical. Achieving mirror polish finishes requires specialized equipment and skilled operators. These innovations in manufacturing contribute to the production of higher-quality, more reliable, and more efficient torispherical heads for a wide range of applications. Boldrini is proud to specialize in manufacturing custom solutions using a boldrini flanging machine that are used for forming flanged and dished polished heads. Since 1905, the company is delivering the best solutions for metal forming.

Summary: 10 Key Things to Remember About Torispherical Heads

• A torispherical head is a common end closure for pressure vessels, offering a balance between cost and performance.

• The crown radius and knuckle radius are the two key geometric parameters that define the shape of a torispherical head.

• ASME Section VIII Division 1 provides comprehensive guidelines for the design, fabrication, and inspection of torispherical heads.

• Internal pressure is a primary factor in determining the required wall thickness of a torispherical head.

• The calculation of volume and weight involves considering the geometry of the spherical cap and toroidal section.

• Ellipsoidal heads, hemispherical heads, and torispherical heads offer different characteristics in terms of strength, cost, and manufacturability.

• Standard profiles and options are available for customization to meet specific application requirements.

• Calculation checking is crucial to ensure accuracy and compliance with ASME standards.

• Modern manufacturing techniques, such as the boldrini head press and flanged and dished polished heads, contribute to higher-quality products.

• Understanding the geometry, ASME standards, and calculation methods is essential for working with torispherical heads in pressure vessel design.
