This article provides an in-depth exploration of hemispherical tank heads, essential components in various industries for their superior strength and efficient pressure distribution. Learn about their design, applications, and why they are a critical choice for tank construction. If you’re looking for tank heads, this guide offers the knowledge to make informed decisions, covering everything from manufacturing processes to industry standards.
A hemispherical head is a type of tank head that resembles half of a sphere. They are commonly used as end caps for tanks and pressure vessels, particularly in applications requiring high structural integrity. The shape of a hemispherical head allows for the pressure in the vessel to be divided equally across its surface, making it an efficient and robust design. The simple radial geometry is crucial for managing internal pressure in the vessel equally, making them ideal for high-pressure applications. These tank head designs are valued for their ability to withstand high pressure due to their geometry.
The importance of hemispherical tank heads lies in their superior strength-to-weight ratio compared to other types of tank heads. This means that for a given internal pressure, a hemispherical head can be thinner and lighter than, say, an elliptical or torispherical head. This can lead to significant cost savings in material and fabrication, especially for large-diameter tanks. Because the hemisphere divides the pressure in the vessel equally, it requires less material to contain the same pressure as other tank head shapes.
Many industries utilize hemispherical tank heads in their operations. The oil and gas industry uses them extensively in pressure vessels for storage and processing of hydrocarbons. Chemical processing plants also rely on these tanks for storage and reaction vessels due to their ability to withstand corrosive environments and high pressures.
Pharmaceutical manufacturing utilizes stainless steel tanks with hemispherical heads for sterile storage and mixing. The food and beverage industry uses tanks with hemispherical heads for storage and processing of liquids, often requiring stainless steel or other materials suitable for sanitary conditions. Aerospace and defense applications sometimes employ hemispherical tank heads in fuel tanks and other high-stress components. These applications all benefit from the structural integrity and reliable performance that hemispherical tank heads provide. The industry demands are varied, but the need for reliable and safe tanks remains constant.
Several key advantages make hemispherical tank heads a preferred choice in many applications. Their superior strength-to-weight ratio has been previously mentioned. This results in material savings and reduced overall tank weight. Because the hemisphere divides the pressure in the vessel equally, they can withstand higher pressures compared to other tank head designs with the same thickness.
The efficient pressure distribution minimizes stress concentrations, leading to a longer lifespan for the tank. The simple radial geometry of the hemispherical head allows for easier inspection and non-destructive testing, ensureing ongoing safety and reliability. They are also relatively easy to manufacture, particularly in large-diameter sizes, making them a competitive option despite potentially higher initial fabrication costs. Because the hemispherical head divides the pressure in the vessel equally, it allows for a more uniform stress distribution, improving overall structural integrity.
Besides hemispherical heads, there are several other common types of tank heads, each with its own set of advantages and disadvantages. These include Elliptical Heads, torispherical heads, cone heads, and flat heads.
Elliptical Heads: Also known as 2:1 elliptical heads, these are often a compromise between cost and performance. They provide better pressure resistance than torispherical heads but are not as strong as hemispherical heads.
Torispherical Heads: These heads consist of a central dish and a knuckle radius. They are more economical to manufacture than elliptical or hemispherical heads but have lower pressure ratings and can experience higher stress concentrations at the knuckle.
Cone Heads: These are used when a gradual transition between the tank shell and a smaller diameter is required. They are not as strong as dished heads and are often used in lower pressure applications.
Flat Heads: These are the simplest and cheapest to manufacture, but they are only suitable for very low pressure applications. They require significant reinforcement to withstand even moderate pressure.
In comparison, hemispherical heads offer the highest pressure rating for a given thickness but can be more expensive to manufacture, especially in smaller sizes. The choice of tank head depends on the specific requirements of the application, considering factors such as pressure, temperature, cost, and ease of fabrication.
The robust design of hemispherical tank heads makes them ideal for a wide range of demanding applications. They are frequently used in:
High-Pressure Storage Vessels: Chemical plants, oil refineries, and gas processing facilities use hemispherical tank heads in vessels designed to contain materials under pressure.
Aerospace Applications: Fuel tanks and other components in aircraft and rockets benefit from the strength-to-weight ratio of hemispherical heads.
Submersible Vessels: The ability to withstand external pressure makes hemispherical heads suitable for submarine hulls and deep-sea exploration equipment.
Nuclear Power Plants: Containment structures and reactor vessels in nuclear facilities utilize hemispherical heads for their exceptional safety and reliability.
Pharmaceutical and Food Processing: Sanitary stainless steel tanks with hemispherical heads are used for storing and processing sensitive materials.
These applications highlight the versatility and dependability of hemispherical tank heads in critical infrastructure and high-performance environments. The choice of hemispherical heads comply with the need for high reliability and safety in these demanding fields.

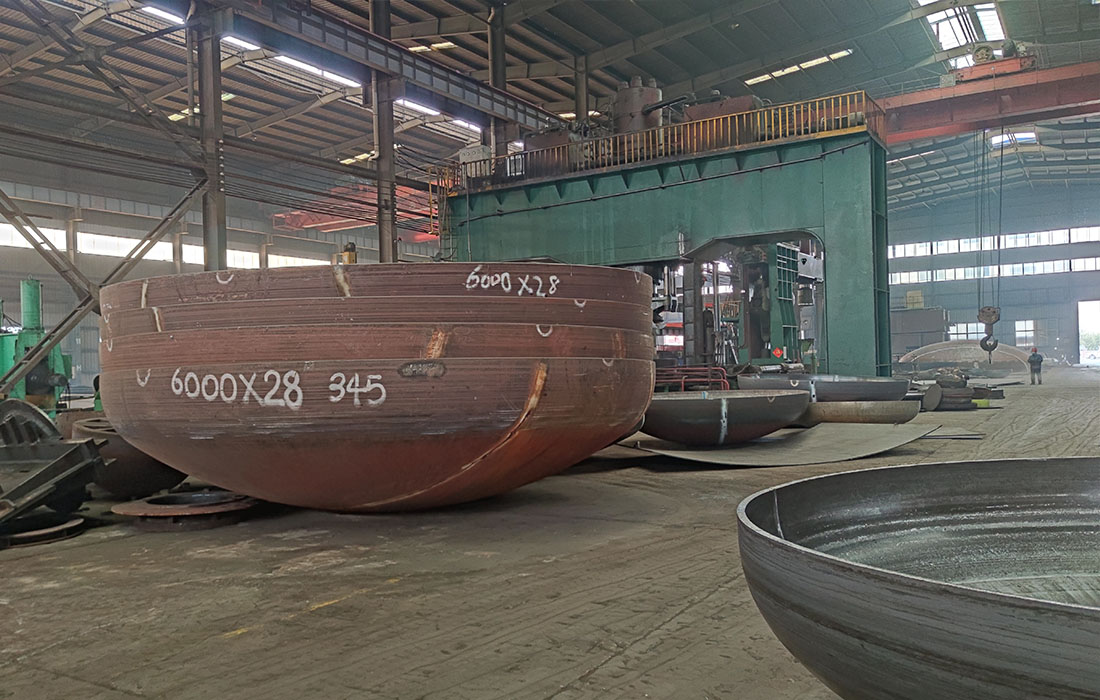

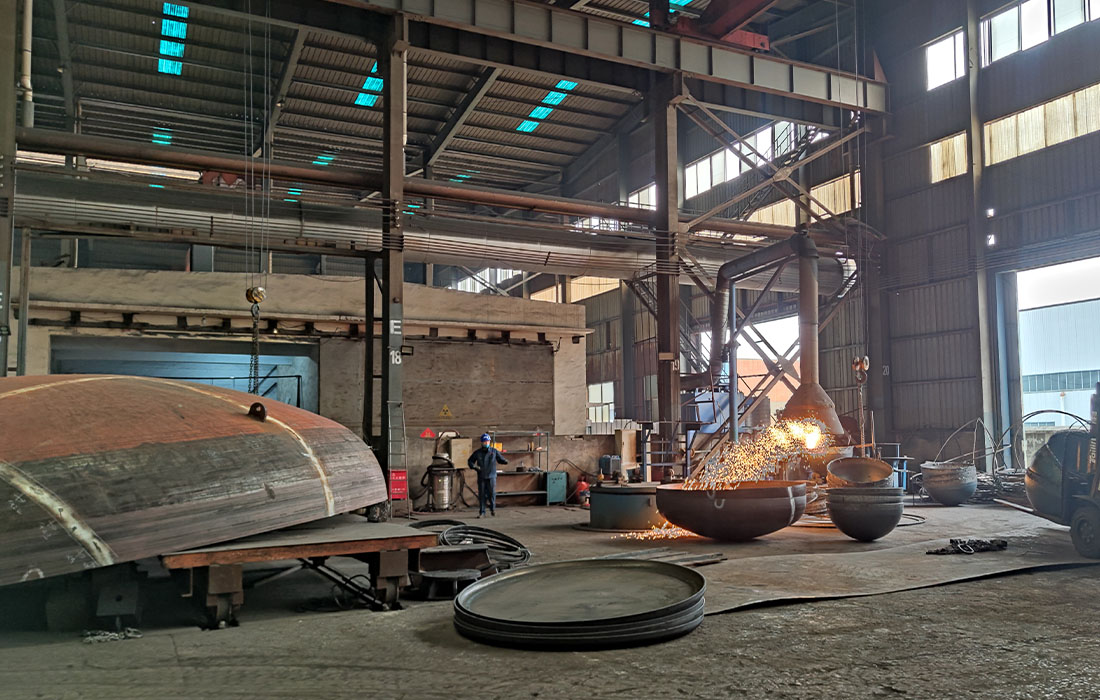

The manufacture of hemispherical tank heads involves several key steps, depending on the size and material. The process generally begins with cutting a circular blank of steel (or other material) to the required diameter. This blank is then formed into the desired dish shape using various techniques.
Common forming methods include:
Spinning: The circular blank is rotated at high speed while a forming tool gradually shapes the material against a mandrel. This method is suitable for large-diameter heads.
Pressing: The blank is placed in a die, and a hydraulic press applies force to form the material into the desired shape. This can be done in a single step or multiple stages.
Cold Forming: This involves shaping the metal at room temperature.
Hot Forming: This involves heating the metal to make it more malleable before shaping. This is often necessary for thicker materials and large-diameter heads.

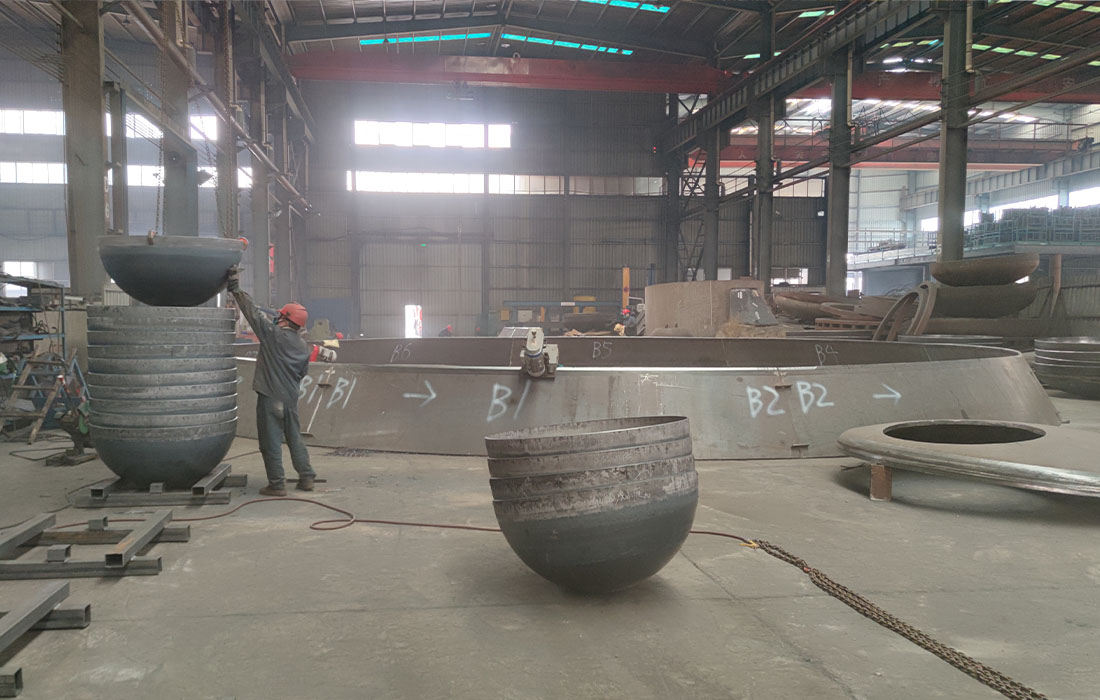

After forming, the hemispherical head undergoes trimming to remove excess material and achieve the precise final dimensions. Welding may be required to join multiple segments together, especially for large-diameter heads. Finally, the head is subjected to rigorous inspection and testing, including non-destructive testing (NDT) methods like ultrasonic testing (UT) and radiographic testing (RT), to ensure structural integrity and compliance with ASME standards. Throughout the manufacture process, quality control is paramount to deliver the highest quality products.
Haipei Industry specializes in the manufacture of high-quality hemispherical tank heads in various materials, including steel, stainless steel, aluminum, duplex, and nickel alloys. Their product description emphasizes precision engineering and adherence to international standards like ASME. They offer a range of sizes and thicknesses to meet diverse application needs, and can also make the components from cladded material combinations.
Their hemispherical tank heads are available in various finishes, including polished, sandblasted, and painted, depending on the customer's requirements. Haipei Industry also offers custom fabrication services, allowing customers to specify their exact dimensions, material grades, and other specifications. Whether you’re looking for tank, Haipei Industry aims to provide solutions tailored to your needs.
Packaging and shipping are critical aspects of delivering hemispherical tank heads safely and efficiently. Mingyi Intelligent Equipment employs robust packaging methods to protect the heads from damage during transit. This typically involves wrapping the heads in protective materials, such as bubble wrap or foam, and securing them to wooden pallets or crates.
For even large items, special handling equipment and procedures are used to ensure safe loading and unloading. Shipping options include sea freight via Tianjin Sea Port, as well as air freight for urgent deliveries. Haipei Industry has a comprehensive quality control system in place to ensure that all hemispherical tank heads meet or exceed customer expectations. This system includes rigorous inspection at every stage of the manufacture process, from raw material sourcing to final examination before shipment. All products have certification to guarantee quality.
Non-destructive testing (NDT) methods are used extensively to detect any flaws or imperfections in the steel. Haipei Industry is committed to providing customers with the highest quality products and services.
Beyond hemispherical tank heads, Haipei Industry provides a comprehensive range of products and services to support your tank construction and vessel needs. These related categories include:
Elliptical Tank Heads: Offering a balance of cost and performance.
Torispherical Tank Heads: Providing an economical solution for moderate pressure applications.
Cone Heads: For applications requiring a gradual transition in diameter.
Cylinder Shells: Providing cylindrical sections to complete the tank body.
In addition to tank heads and shells, Haipei Industry can also supply manways, even specialty fittings, ferrule, flange, access ports, sight glasses, light assemblies, gasket, and clamp, providing a one-stop shop for all your tank component needs. They can assist helping them develop and make the tanks, offering optimal manufacturing experience.
The TCI mission statement, where TCI means Haipei Industry focuses on providing customers with the highest quality products and services, maintaining good product quality, and fostering long-term relationships built on honesty and trustworthiness. They hope to cooperate with customers to meet their specific needs and exceed their expectations. Mingyi Intelligent Equipment strives for excellence in all aspects of their business, from product description and engineering to fabrication and customer service.
To request a free quote today or learn more about their products and services, you can contact Haipei Industry through their website. The "Contact Us" page typically includes a form where you can send your message with your specific requirements and contact information. Please note that response times may vary depending on the complexity of your request. You can also find contact details, including phone number and email address, on their website. Please reach out with any questions you may have. With competitive prices and efficient delivery, Haipei Industry is a reliable partner for all your tank head and vessel component needs.
Table 1: Comparison of Tank Head Types
| Tank Head Type | Strength-to-Weight Ratio | Cost | Ease of Fabrication | Common Applications |
|---|---|---|---|---|
| Hemispherical | Highest | High | Moderate | High-pressure vessels, aerospace, submersibles |
| Elliptical (2:1) | Moderate | Moderate | Easy | General-purpose pressure vessels |
| Torispherical | Low to Moderate | Low | Easy | Low to moderate pressure tanks |
| Cone | Low | Moderate | Easy | Hoppers, transitions between diameters |
| Flat | Very Low | Very Low | Very Easy | Low-pressure tanks, requires significant reinforcement |
Table 2: Materials Used for Hemispherical Tank Heads
| Material | Advantages | Disadvantages | Common Applications |
|---|---|---|---|
| Steel | High strength, good weldability, relatively low cost | Susceptible to corrosion | General-purpose pressure vessels |
| Stainless Steel | Excellent corrosion resistance, hygienic, high strength | Higher cost than steel | Food processing, pharmaceutical, chemical storage |
| Aluminum | Lightweight, good corrosion resistance | Lower strength than steel, difficult to weld | Aerospace, transportation |
| Duplex | High strength, excellent corrosion resistance, good weldability | Higher cost than stainless steel | Offshore oil and gas, chemical processing |
| Nickel Alloys | Exceptional corrosion resistance, high-temperature strength, good weldability | Very high cost, difficult to manufacture | Chemical reactors, high-temperature applications |
Final Summary: 10 Key Takeaways About Hemispherical Tank Heads
Hemispherical tank heads offer the highest strength-to-weight ratio among common tank head designs.
Their simple radial geometry allows for efficient distribution of pressure in the vessel equally.
They are ideal for high-pressure applications in various industries.
Steel, stainless steel, aluminum, duplex, and nickel alloys are common materials used in their manufacture.
Manufacturing involves forming, trimming, welding, and rigorous inspection.
Haipei Industry offers a wide range of sizes, materials, and custom fabrication options.
Robust packaging and shipping procedures ensure safe delivery.
ASME standards and other certifications guarantee quality and compliance.
Besides hemispherical tank heads, Haipei Industry also supply manways and offers a comprehensive suite of tank components.
Every customer can find details and price by contacting Haipei Industry for a free quote today and benefit from their competitive prices and commitment to honesty and trustworthiness.
I hope this comprehensive guide has provided you with valuable insights into the world of hemispherical tank heads!
