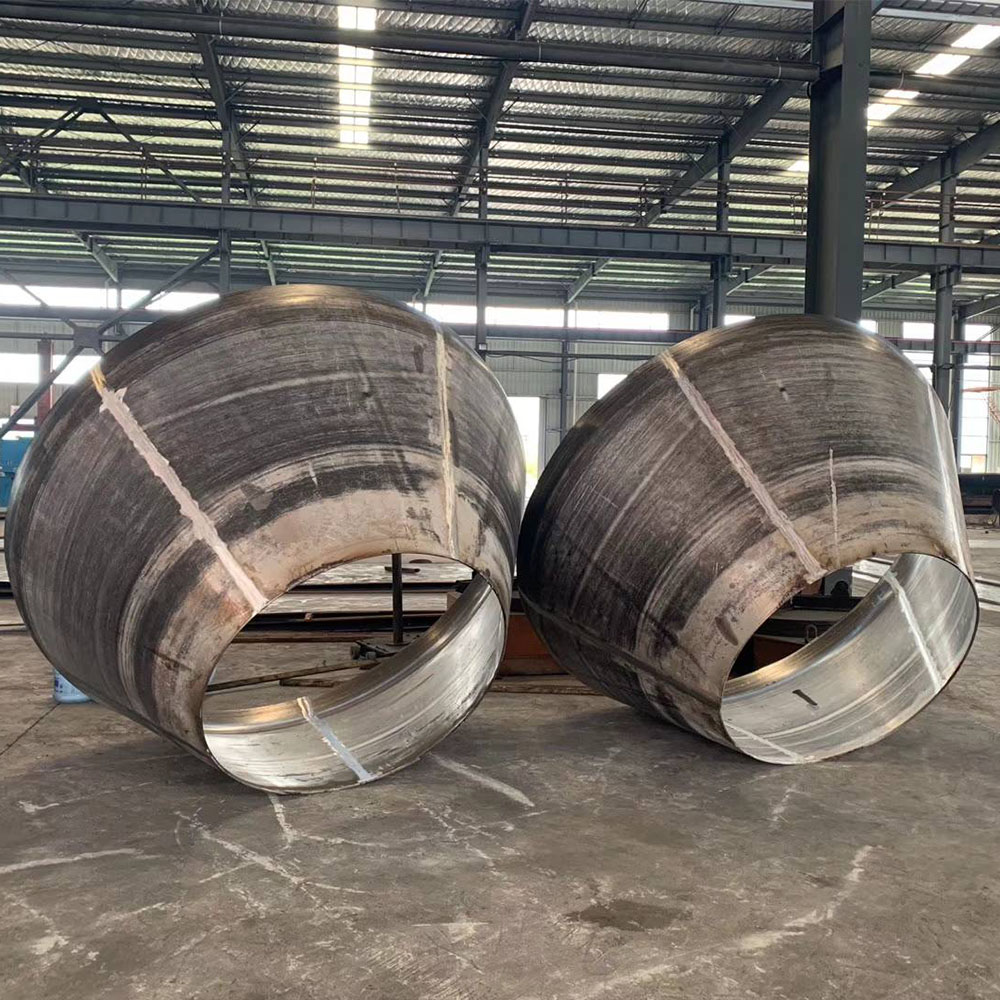

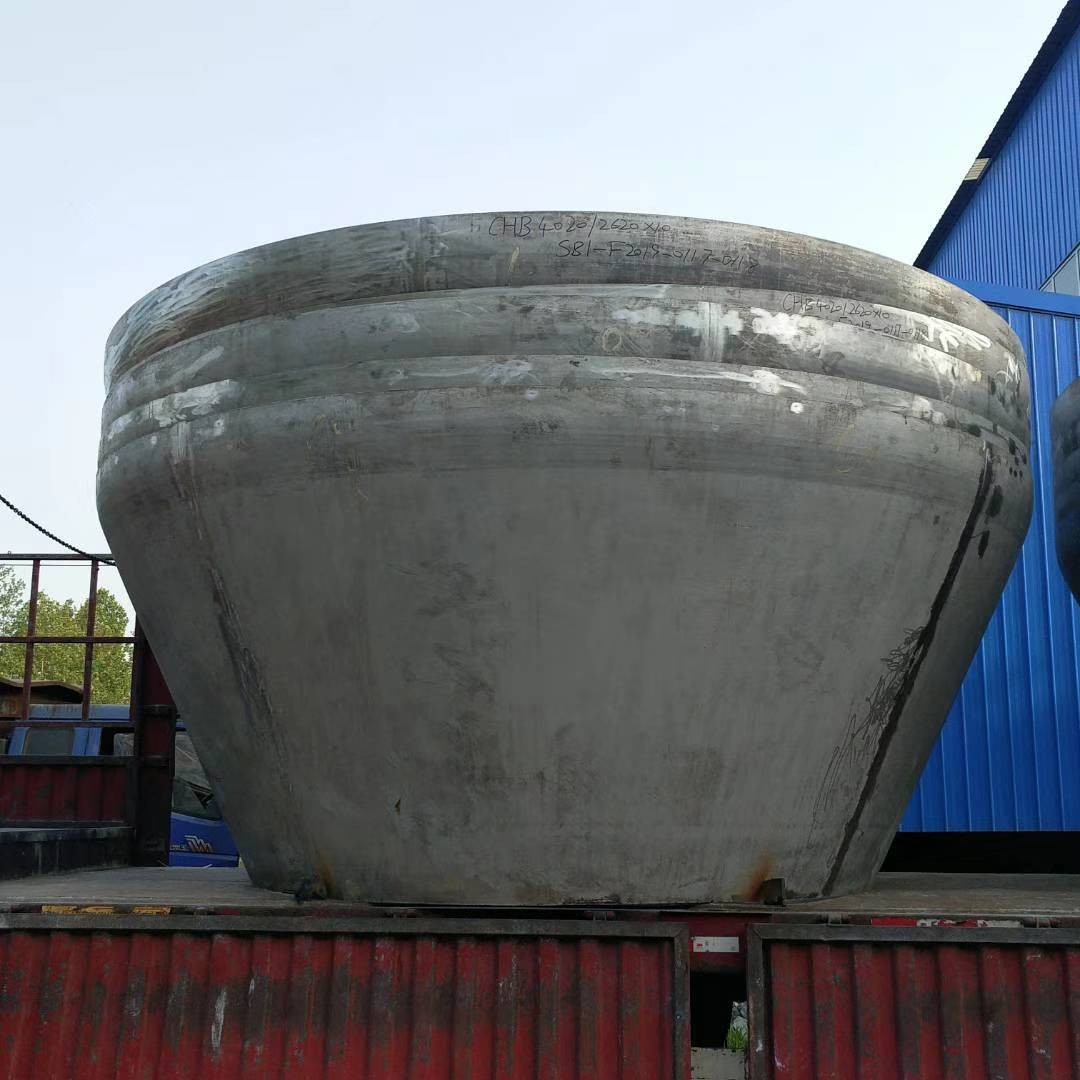

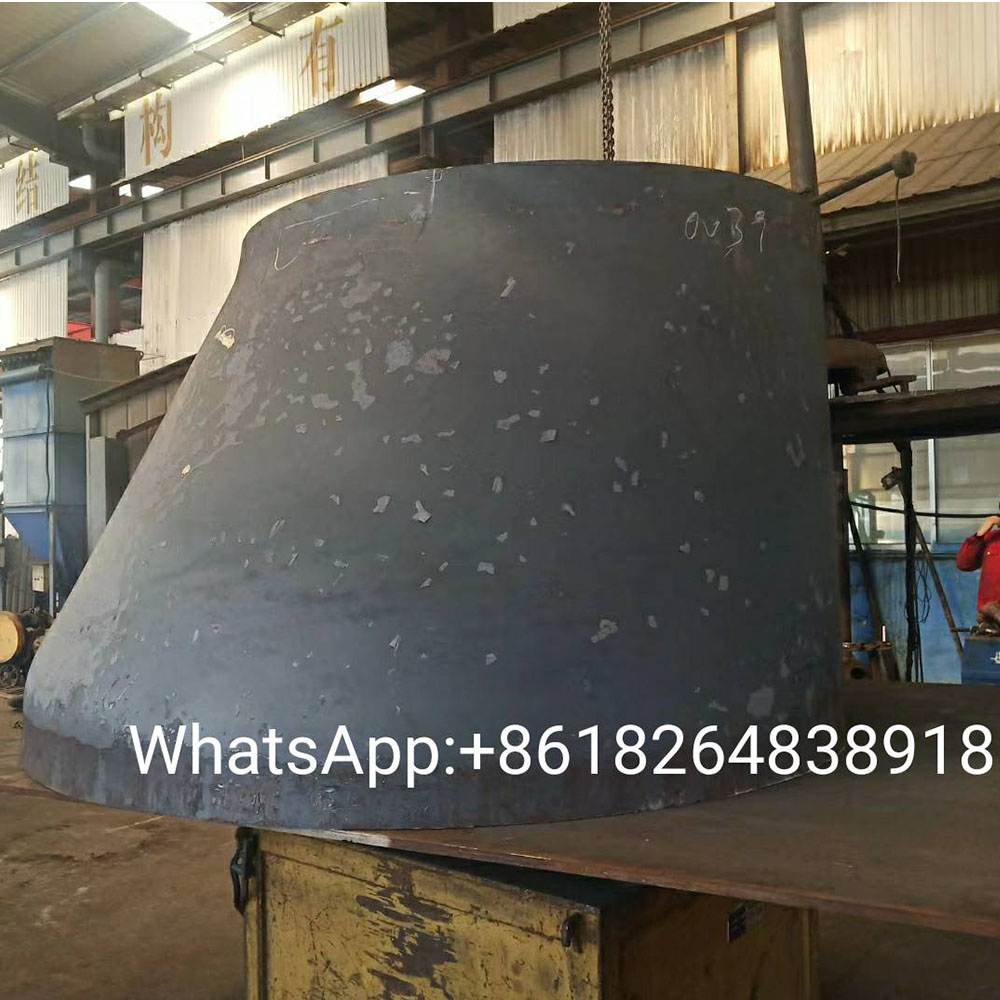

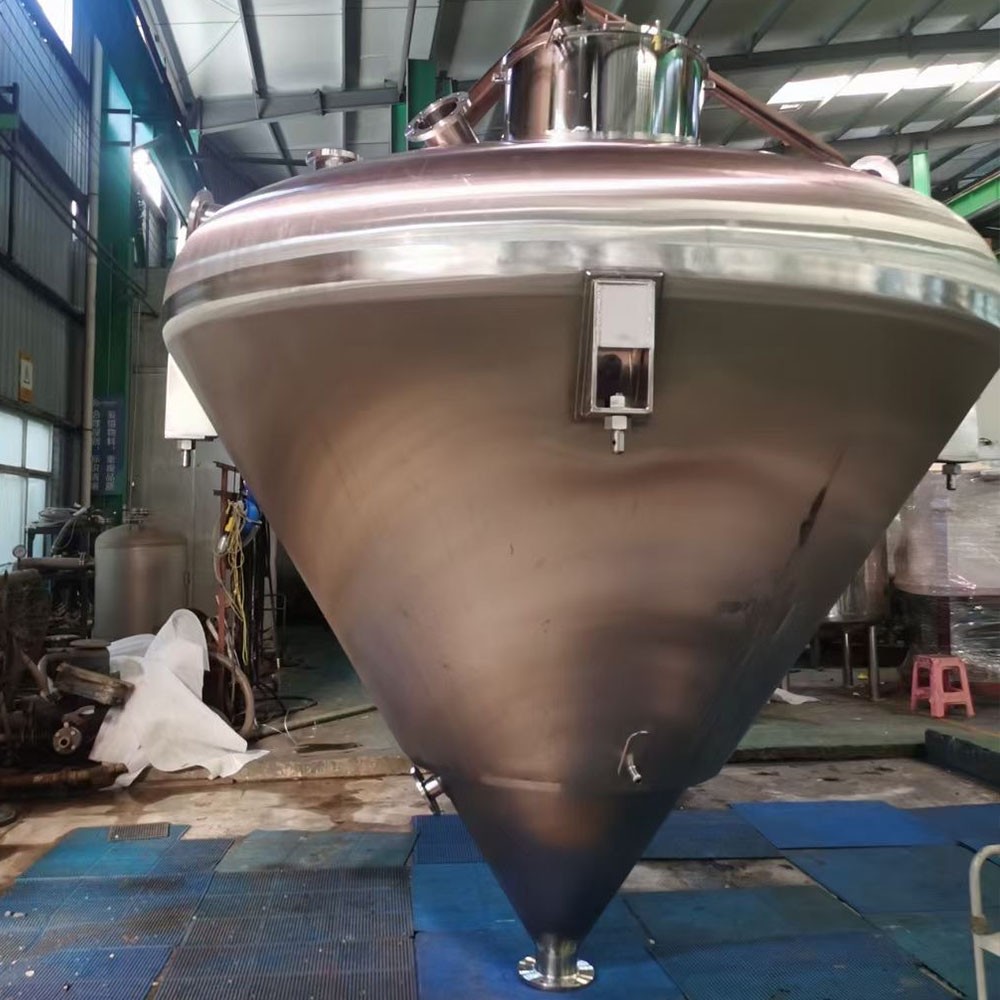

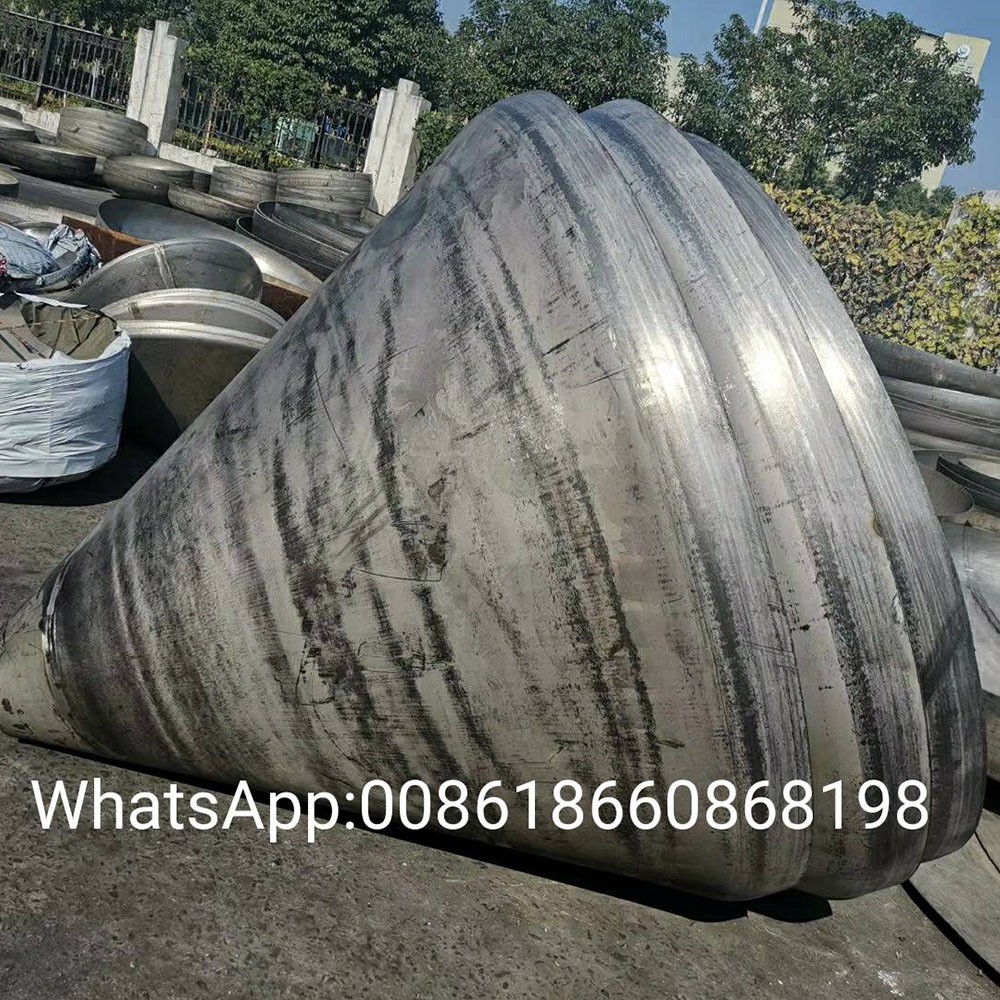

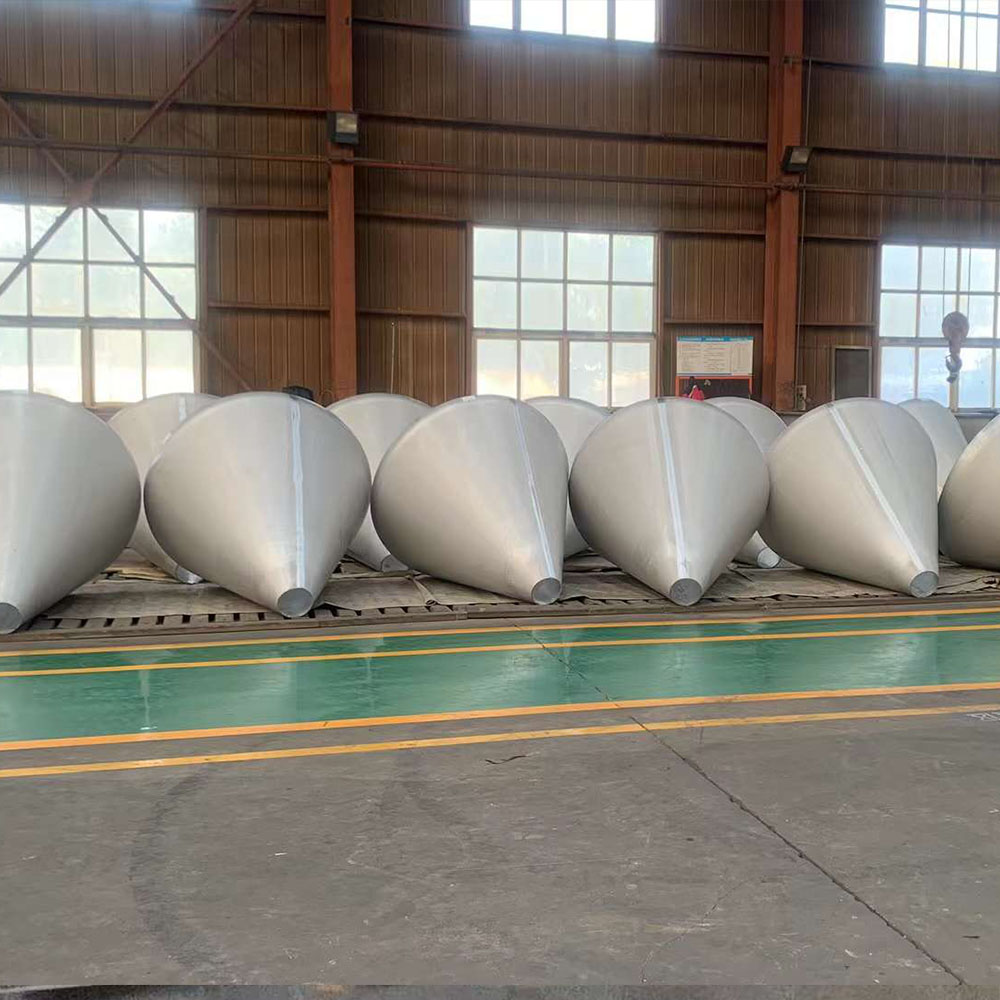

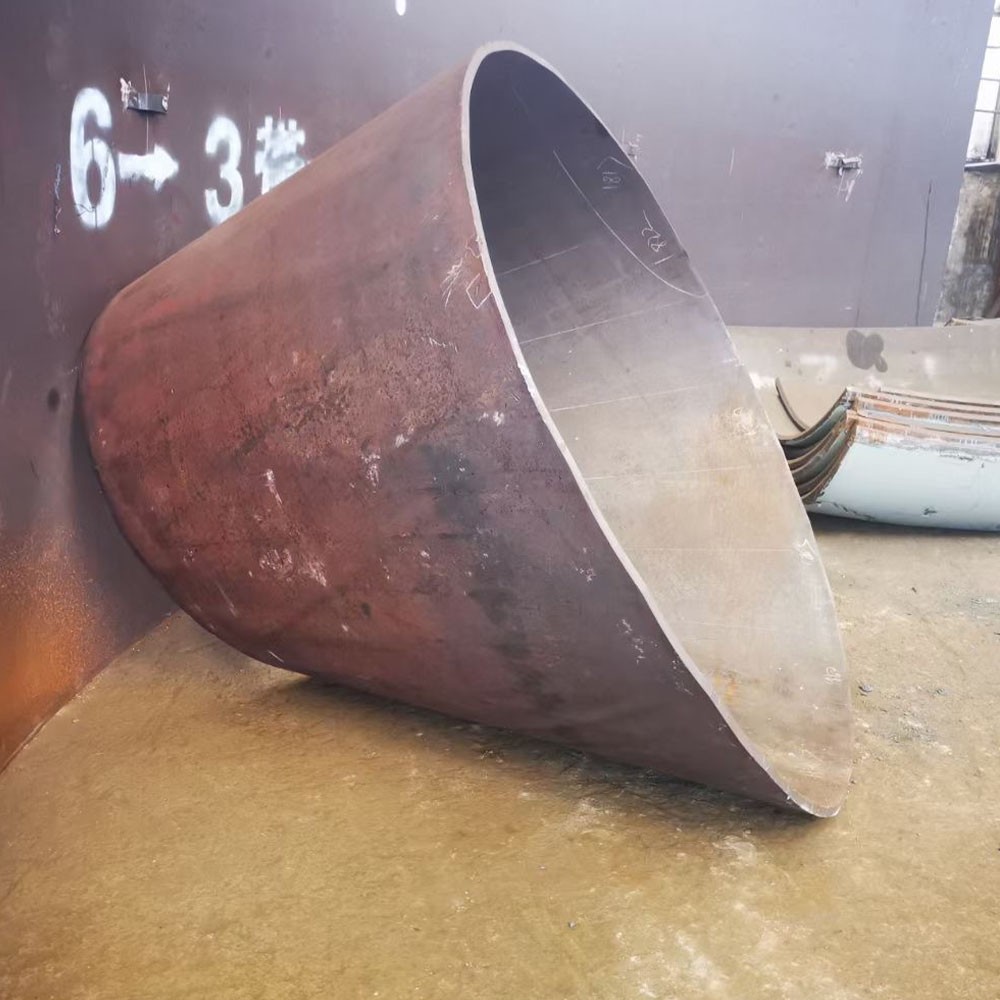

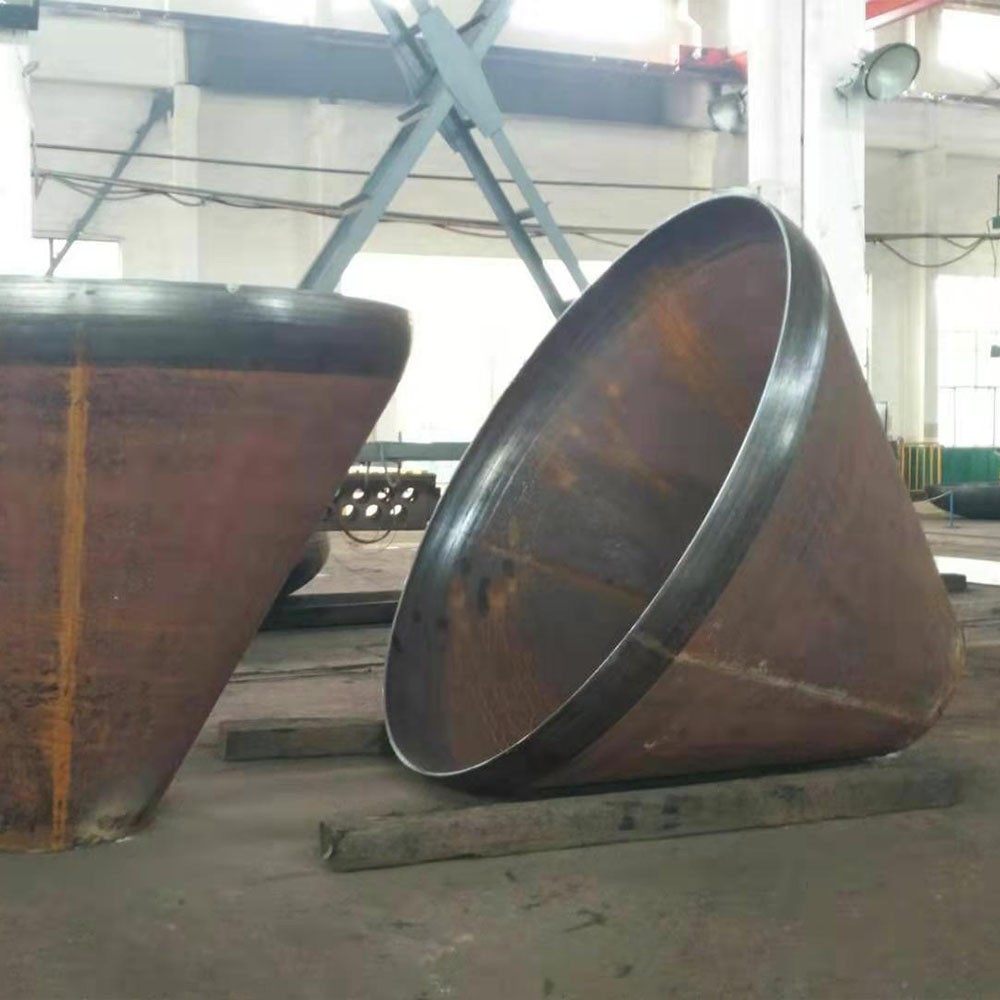

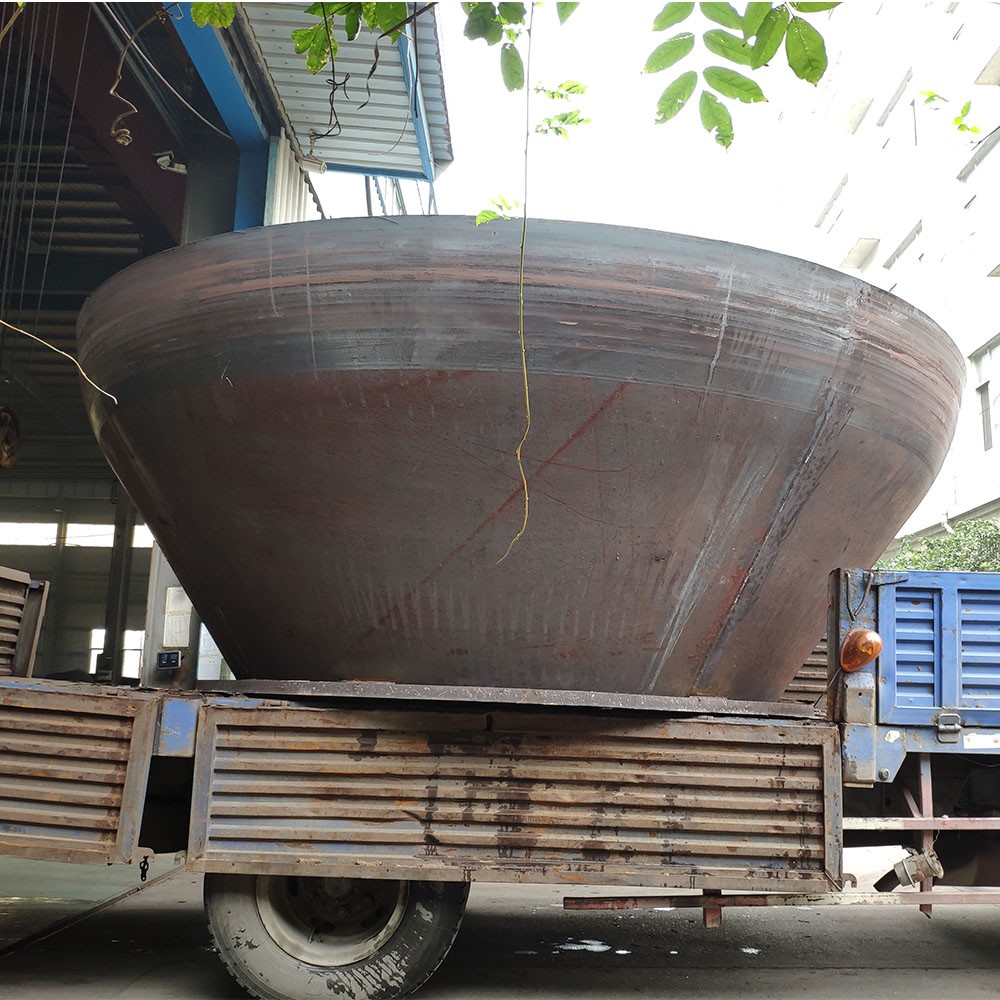

Conical Dished Head

Conical Dished Head: Precision Engineering for High-Performance Applications

The Conical Dished Head is an essential component used in a variety of industrial applications, including pressure vessels, heat exchangers, LPG, and LNG storage tanks. Designed with a conical shape, this head provides excellent structural integrity and enhanced performance under high-pressure conditions.

Superior Manufacturing Process

Crafted using advanced dishing and pressing techniques, the Conical Dished Head ensures precision in every detail. The reduction ratio of approximately 10% contributes to its optimal balance between strength and weight, making it a reliable choice for demanding engineering requirements.

Comprehensive Testing Standards

To guarantee safety and durability, our Conical Dished Heads undergo rigorous testing procedures, including:

• Ultrasonic Testing (UT)

• Radiographic Testing (RT)

• Magnetic Particle Testing (MT)

• Penetrant Testing (PT)

• Time-of-Flight Diffraction (TOFD)

These quality control measures ensure that each unit meets stringent industry standards and performs efficiently in critical applications.

Premium Surface Treatment

For enhanced durability and resistance to corrosion, the Conical Dished Head is subjected to high-quality surface treatments, including sandblasting and pickling. These processes not only improve the material’s longevity but also enhance its aesthetic and functional qualities.

Versatile Applications

The Conical Dished Head is engineered for use in a wide range of industrial sectors, such as:

• Pressure Vessels – Ensuring structural integrity in high-pressure environments

• Heat Exchangers – Facilitating efficient thermal energy transfer

• LPG and LNG Tanks – Providing secure containment for liquefied gases

Conclusion

With its precise manufacturing, rigorous testing, and high-quality surface treatments, the Conical Dished Head is a premium solution for industries requiring superior pressure containment and performance reliability. Whether for energy storage, chemical processing, or industrial manufacturing, this product offers unmatched durability and efficiency.

For more information or to place an order, contact us today and experience the excellence of our Conical Dished Heads!

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
