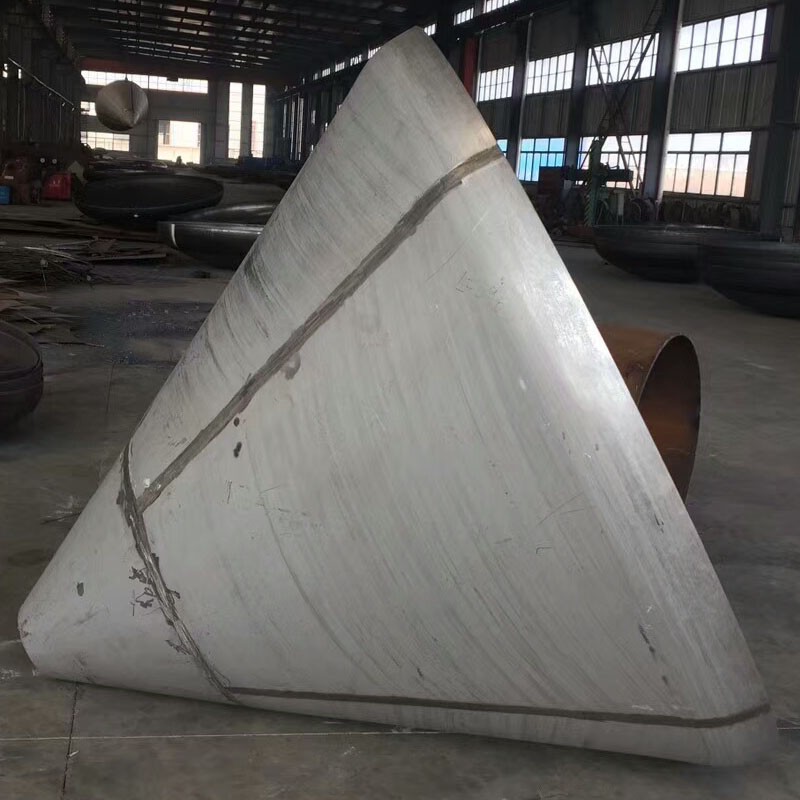

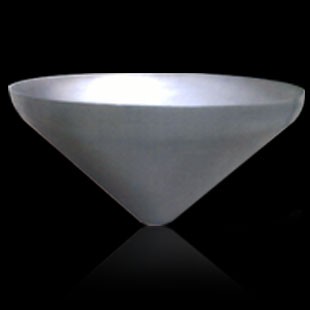

Conical Heads Cones

Introducing Haipei Industry's Stainless Steel Conical Heads - Cones

At Haipei Industry, we specialize in the manufacturing and supply of high-quality stainless steel conical heads (cones) designed to meet the needs of various industrial applications. With our expertise in metal fabrication, we ensure precision, durability, and compliance with industry standards.

Technical Characteristics

A conical head is generally defined by the following factors:

• Big Diameter (Gd.Diam.)

• Small Diameter (Pt.Diam.)

• Bottom Angle

• Knuckle Radius (Rc)

• Height (in certain specifications)

Knuckle Radius Options

Depending on the manufacturing process, the possible knuckle radius (Rc) values are:

For 15° cones, we have the capability to manufacture them without welding seams, ensuring strength and a smooth finish.

Manufacturing Excellence

Haipei Industry manufactures conical heads using premium stainless steel plate stock. We have complete control over quality and production timelines, ensuring that our products meet customer requirements efficiently.

Key Features:

• Qualified Welders: Our team is certified with Welder’s Qualification (WQ) and adheres to strict Welding Process System (WPS) standards.

• Optimized Plate Usage: We stock large plate widths to minimize the number of welding seams.

• Machine Polishing: Available for enhanced aesthetics and corrosion resistance.

• Custom Openings: We can create openings on cones before or after forming, based on your needs.

• Precision Shell Manufacturing: Our shells are produced to the exact expansion length of conical heads, ensuring easy assembly.

Other Tank Heads Available

Apart from conical heads, Haipei Industry also manufactures:

• Flat Heads

• Spherical Caps

• Half Spheres (Demi-Sphère Inox)

• Dished Heads (Fond GRC)

Additional Services

We offer a range of services to enhance the functionality and finish of our products:

At Haipei Industry, we are committed to providing the best conical heads for your industrial needs. Contact us today for a consultation, or subscribe to our newsletter to stay updated on our latest innovations and offerings!

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
