Conical Head Supplier & Manufacturer – High-Quality Vessel Heads for Industrial Applications

Introduction to Conical Heads

Conical heads are an essential component in various industrial applications, offering a unique design that facilitates efficient flow and discharge of materials. As a leading supplier and manufacturer of vessel heads, we specialize in producing high-quality conical heads with superior performance and durability.

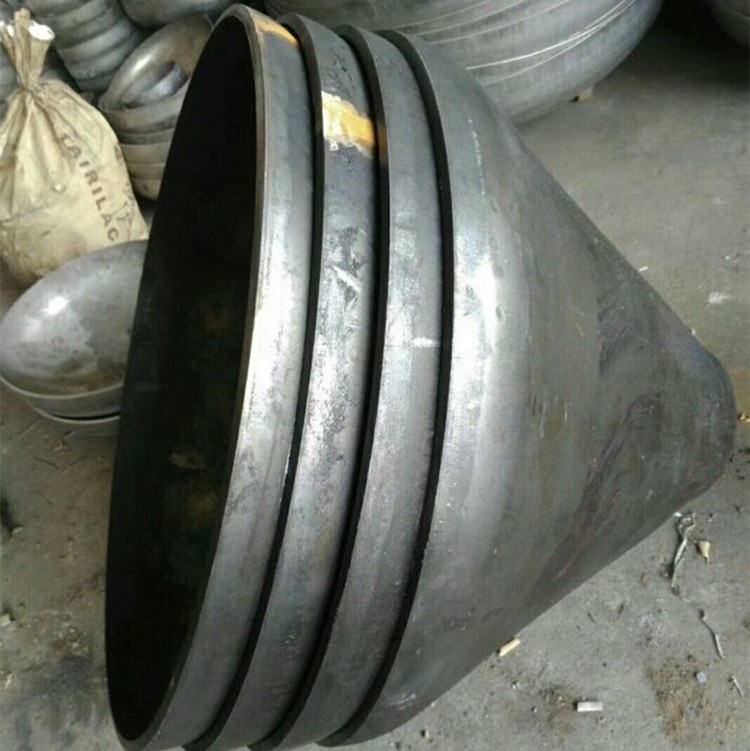

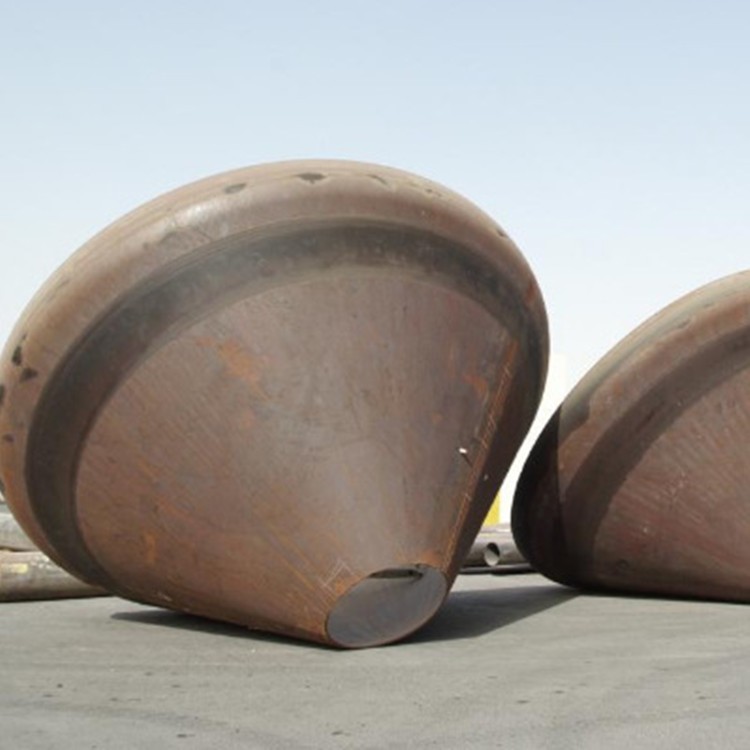

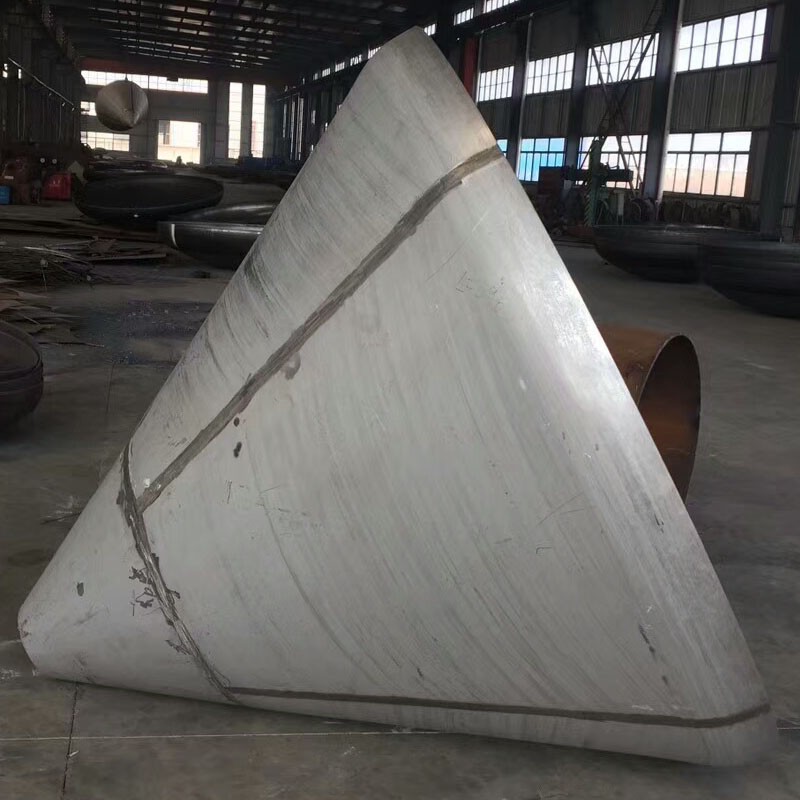

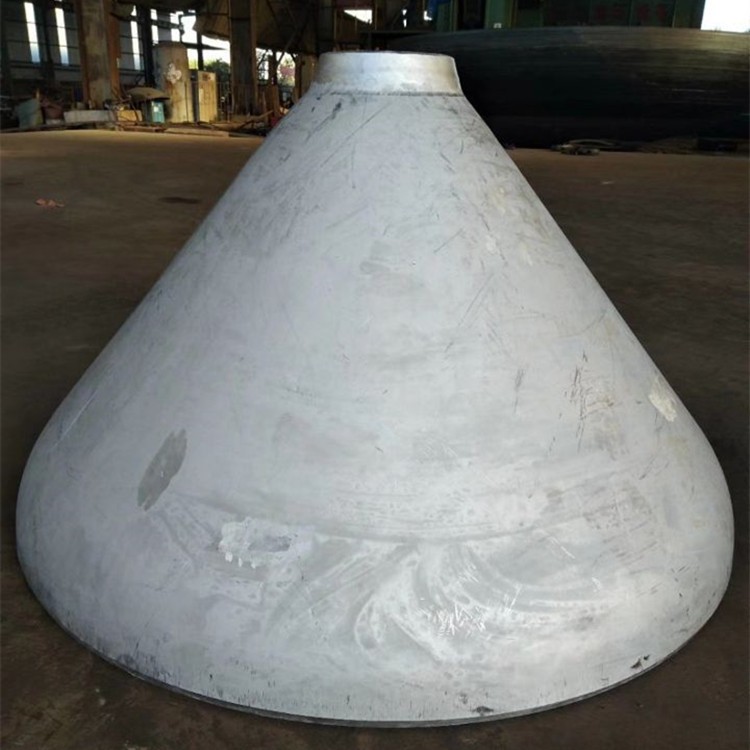

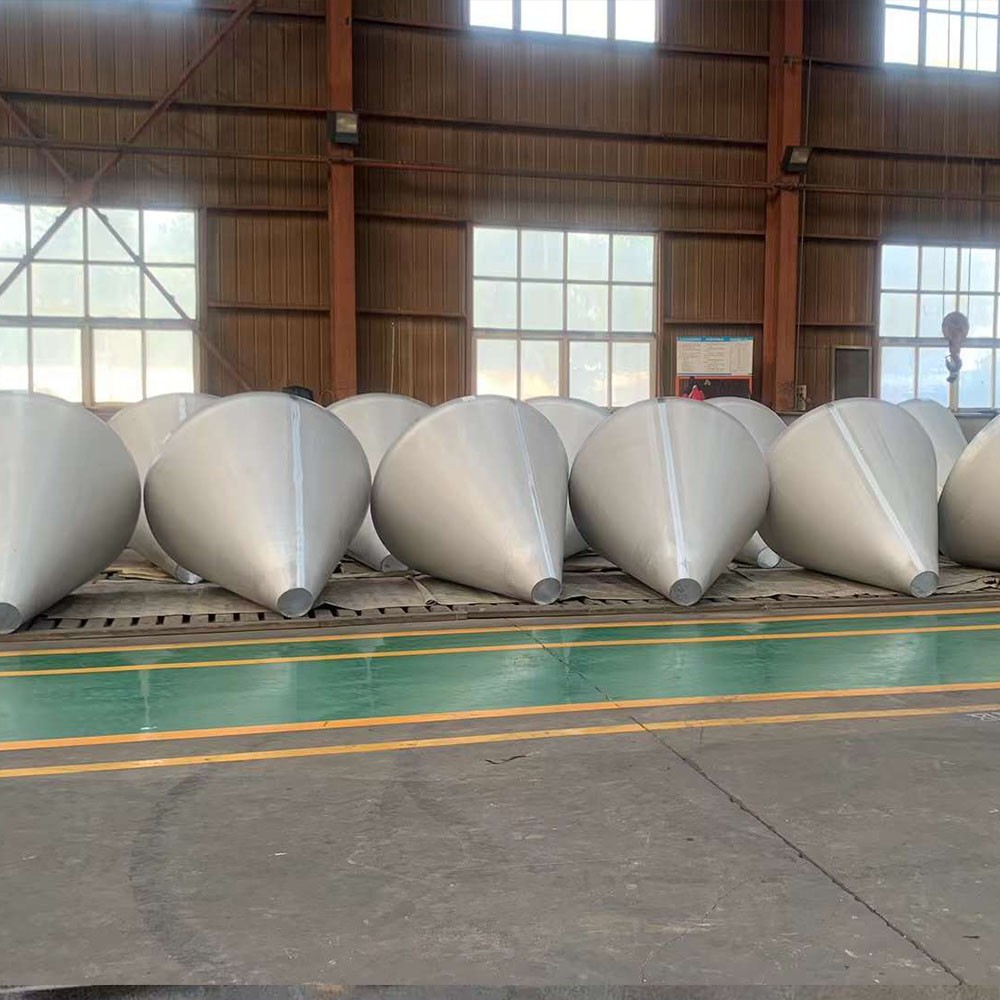

A conical head features a shell with a conical surface, allowing media to pass through with a uniform change in speed. This design is particularly advantageous for unloading viscous liquids and materials containing solid particles. However, it is essential to consider that the mechanical properties of conical heads are relatively weaker, and they experience significant discontinuous stress at the connection points with the cylinder or receiver due to sudden shape changes.

Types and Specifications of Conical Heads

Conical heads can be categorized based on their half-angle and end type:

• By Half Angle: CHA (30°), CHA (45°), CHA (60°)

• By End Type: Non-folding conical tank head and hemming conical dished head

Product Specifications

Shapes & Parameters

Several factors define the shape and application of conical heads, including:

• Di – Inside Diameter

• THK – Thickness

• Do – Outside Diameter

• DH – Depth of Conical Section

• SF – Straight Flange

• KR – Knuckle Radius

• R – Inside Dish Radius

• V – Volume

• α – Opening Angle

• THi – Internal Cone Height

Applications of Conical Heads

Conical heads are widely utilized across multiple industries due to their ability to manage flow dynamics effectively. Some of the key application areas include:

• Petrochemical & Oil Industry – Used in pressure vessels, storage tanks, and separators.

• Pharmaceutical Industry – Suitable for precise liquid and solid material containment.

• Aerospace & Nuclear Power – Applied in high-performance structures requiring durable vessel heads.

• Shipbuilding & Steel Industry – Used in boilers, pressure vessels, and large storage tanks.

• Concrete Mixing Machines – As integral parts in mixing and material transportation systems.

Quality Control & Manufacturing Process

Ensuring the highest quality standards, our conical head production process includes the following steps:

1. Raw Material Procurement – Sourcing premium carbon and stainless steel materials.

2. Physical & Chemical Testing – Ensuring compliance with industry standards.

3. Hot Forging & Forming – Shaping the conical head through advanced techniques.

4. Heat Treatment – Enhancing durability and mechanical strength.

5. Inspection & Finishing – Thorough quality checks to ensure defect-free products.

6. Marking & Packaging – Proper labeling and packaging for safe transportation.

7. Shipping – Reliable logistics for timely delivery.

Why Choose Us?

• Precision Engineering: We manufacture conical heads with high accuracy and durability.

• Customization Options: Tailor-made designs to meet specific industry requirements.

• Comprehensive Testing: Our products undergo rigorous quality assurance tests.

• Global Supply Chain: Efficient distribution and delivery worldwide.

As a trusted supplier and manufacturer of vessel heads, we ensure premium quality, reliability, and efficiency in our conical head solutions. Contact us today for customized conical head solutions for your industrial applications!

Company information

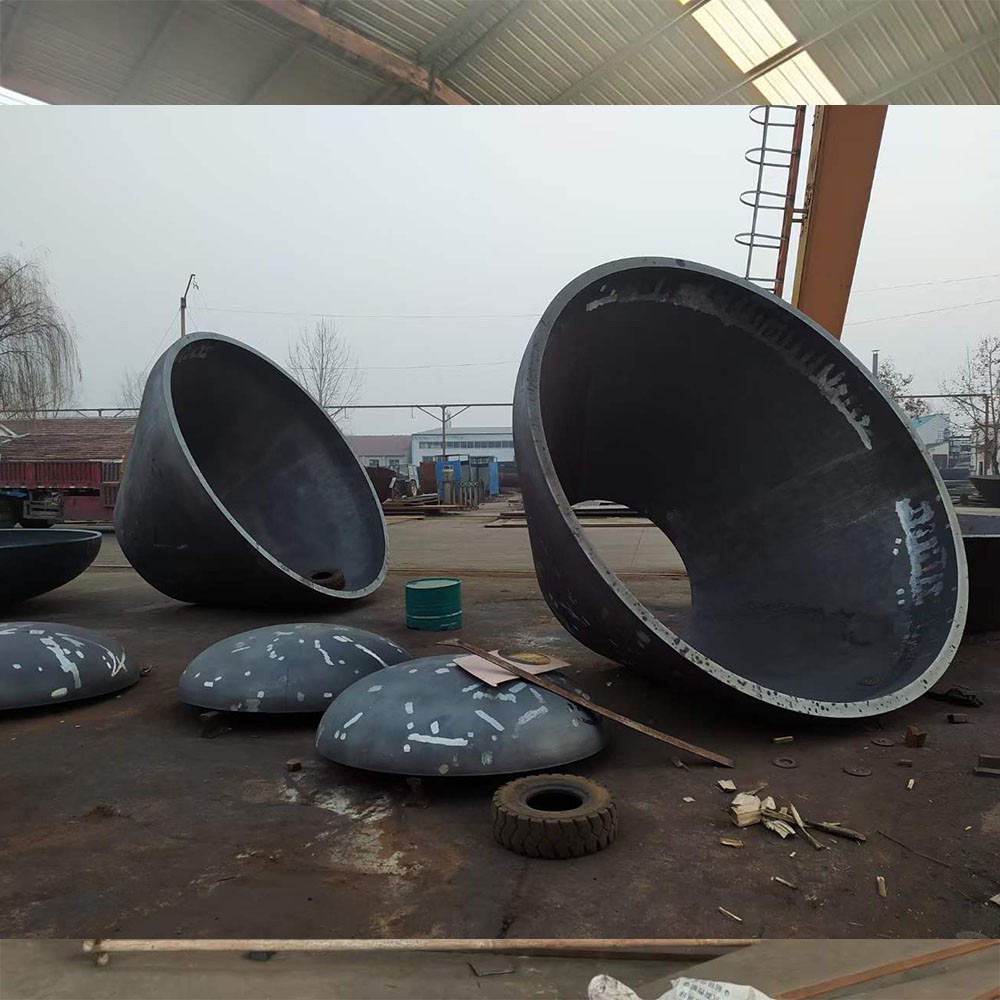

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
