This article provides a comprehensive overview of tank heads, specifically focusing on carbon steel and stainless steel options. We’ll delve into the different types of heads, ASME standards, and the critical factors to consider when selecting the right head for your tank. Whether you're a seasoned engineer or new to the field, this guide will equip you with the knowledge you need to make informed decisions regarding steel tank heads. It's worth reading because it consolidates essential information about tank head design, material selection, and regulatory compliance, all in one place, saving you time and potential costly mistakes.
A tank head is the end cap on a cylindrical tank, closing off the vessel. It’s a crucial component for any pressure vessel or tank, playing a vital role in containment and structural integrity. The head's primary function is to seal the tank, preventing leaks of the contained product, whether it's liquid, gas, or a solid. Beyond containment, the tank head also contributes significantly to the overall structural strength of the tank. It must withstand the internal pressure exerted by the contents, external forces, and environmental conditions. A properly designed and manufactured tank head ensures the safety and longevity of the entire tank system.
The shape of the head, its material (e.g., carbon or stainless steel), and its thickness are all critical design parameters. Selecting the wrong type of head, using a substandard material, or specifying an inadequate thickness can lead to catastrophic failures, especially in pressure vessel applications. Therefore, careful consideration of these factors is paramount to ensure safe and reliable operation. The dish of the head is particularly important as it distributes the stress more evenly than a flat plate.
The steel industry offers a variety of tank heads to suit different applications and tank designs. The most common types include:
Hemispherical Heads: These heads are spherical and provide excellent strength-to-weight ratio, making them ideal for high-pressure vessels. However, they are also more expensive to manufacture.
Semi-Elliptical Heads: Also known as ellipsoidal heads, they are another good choice for high-pressure applications, offering a compromise between strength and cost.
Dished Tank Heads: These heads have a curved profile that transitions smoothly to a cylindrical shell.

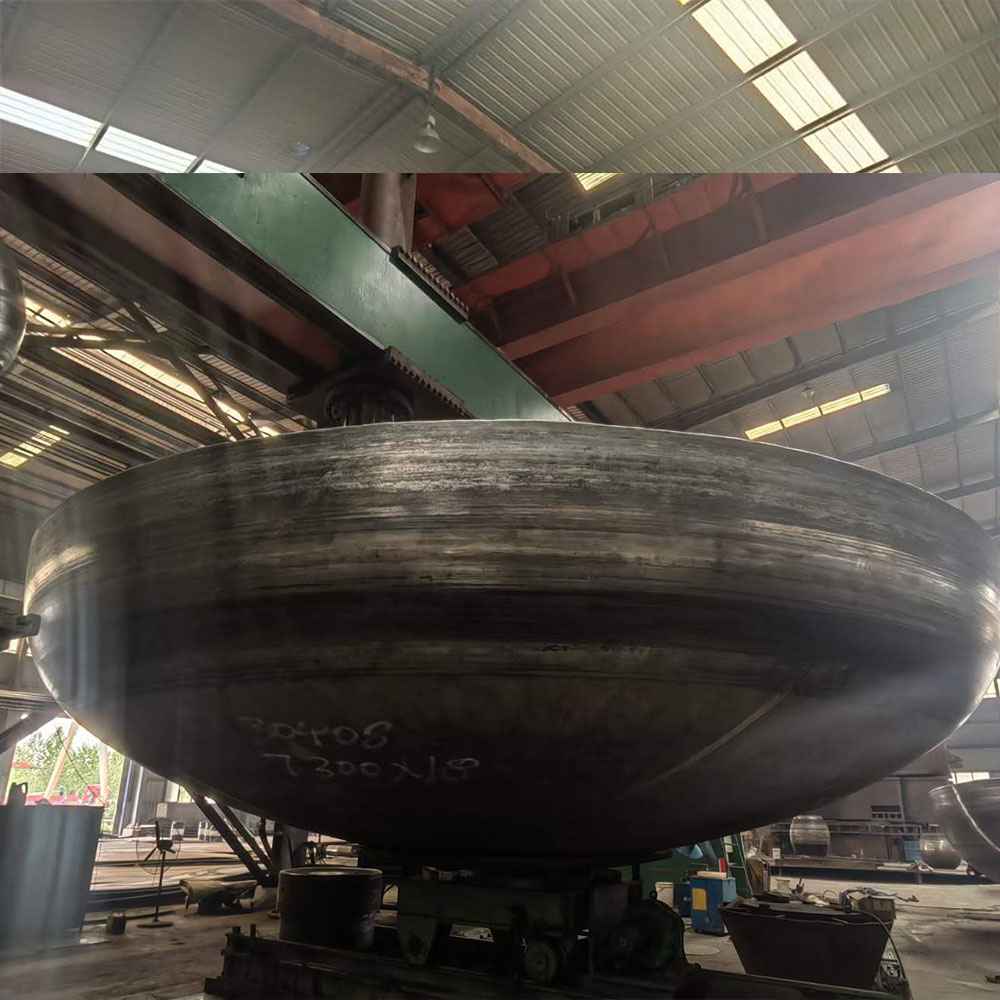

Flanged and Dished Tank Heads: These are dished heads with a straight flange for easy welding to the tank shell. This design simplifies fabrication and is widely used.
Conical Heads: Used for hoppers and silos where gravity discharge is needed.
Flat Heads: While simple to manufacture, flat heads require significant reinforcement and are generally used for low-pressure applications.
Each type has its own advantages and disadvantages regarding cost, strength, and ease of fabrication. Tank fabricators select the appropriate type based on the specific requirements of the tank. The selection also depends on the material to be used.
Carbon steel is a popular choice for tank head manufacture due to its cost-effectiveness, high strength, and wide availability. Carbon steel tank heads are suitable for a broad range of applications where corrosion is not a significant concern. Different grades of carbon steel are available, allowing engineers to select the material with the appropriate mechanical properties for the intended service. The standard carbon steel grades used in tank manufacture are known for their good weldability, making fabrication relatively straightforward. This contributes to lower mfg costs compared to some other materials.
Carbon steel tank heads are commonly found in industries such as oil and gas, water treatment, and general industrial storage. They meet the requirements of many standard pressure vessel designs and are often the preferred choice when budget constraints are a primary consideration. Surface treatments, such as painting or coatings, can be applied to carbon steel heads to enhance their corrosion resistance and extend their service life. Proper material selection and surface protection are essential to ensure the long-term reliability of carbon steel tank heads. The selection can be different types of steel.
While carbon steel is a strong choice, stainless steel tank heads are essential in environments where corrosion resistance and hygiene are paramount. Stainless steel's inherent resistance to corrosion, due to its chromium content, makes it ideal for applications involving corrosive chemicals, food processing, pharmaceuticals, and other demanding industrys. The stainless steel tank is perfect for chemical storage.
Stainless steel tank heads are significantly more expensive than carbon steel counterparts, but the investment is justified in situations where product purity and equipment longevity are critical. Different grades of stainless steel offer varying levels of corrosion resistance, allowing engineers to select the most appropriate material for the specific application. For example, 304 stainless steel is commonly used for general-purpose applications, while 316 stainless steel, with its molybdenum content, offers enhanced resistance to chloride corrosion. Stainless steel is the preferred choice for these applications. stainless is a perfect material for tank head.
When specifying a tank head, several key dimensions must be considered to ensure proper fit and functionality. These include:
Diameter: The diameter of the head must match the diameter of the tank shell. Accurate measurement is critical to ensure a proper weld joint.
Dish Radius: The dish radius determines the curvature of the head. A larger radius results in a shallower dish, while a smaller radius results in a deeper dish. The dish radius affects the head's strength and volume capacity.
Knuckle Radius: The knuckle radius is the radius of the curve where the dish transitions to the flange. A larger knuckle radius reduces stress concentration in this area.
Straight Flange Length: The straight flange length is the length of the straight section of the head that is welded to the tank shell. This length must be sufficient to provide a strong and reliable weld.
Thickness: The thickness of the head is a critical factor in determining its ability to withstand internal pressure. The required thickness is calculated based on the tank's design pressure, diameter, and the material's strength.
These dimensions must be specified precisely to ensure that the tank head meets the design requirements and can be safely integrated into the tank.
The thickness of a tank head is directly related to its ability to withstand stress caused by internal pressure, external loads, and thermal expansion. A thicker head can handle higher stresses without deforming or failing. The required thickness is typically calculated using formulas provided in ASME standards or other relevant codes. These calculations consider the design pressure, tank diameter, material properties, and safety factors.
If the thickness is insufficient, the head may experience excessive deformation, leading to leaks or even catastrophic failure. Conversely, specifying an overly thick head increases material costs and may not provide a significant improvement in performance. Therefore, accurately calculating the required thickness is crucial for both safety and cost-effectiveness. The thickness is one of the most important factors to ensure the safety of the tank. The thickness is calculated with a standard.
The manufacture of tank heads for pressure vessels is governed by strict ASME standards to ensure safety and reliability. The most relevant standard is the ASME code Boiler and Pressure Vessel Code (BPVC), specifically Section VIII, Division 1. This code provides detailed requirements for the design, materials, fabrication, inspection, and testing of pressure vessels and their components, including tank heads. Compliance with the ASME code is often mandatory for pressure vessels used in many industries.
The ASME standard specifies allowable stresses for various materials, sets requirements for weld quality, and outlines procedures for hydrostatic testing. Tank head manufacturers must have a thorough understanding of the ASME code and implement quality control measures to ensure that their products meet the required standards. Adherence to the ASME standard is essential for obtaining certification and well as asme is important for operating legally in many jurisdictions. The requirements are often a.s.m.e.
The manufacture of flanged and dished tank heads typically involves several key steps:
Material Selection: The appropriate grade of steel (carbon or stainless) is selected based on the application requirements.
Plate Cutting: Steel plate is cut to the required size and shape using methods such as plasma cutting or laser cutting.
Forming: The plate is heated and then cold formed tank heads using hydraulic presses and specialized dies to achieve the desired dish radius and knuckle radius.
Flanging: The straight flange is formed by bending the edge of the dished plate using a flanging machine.

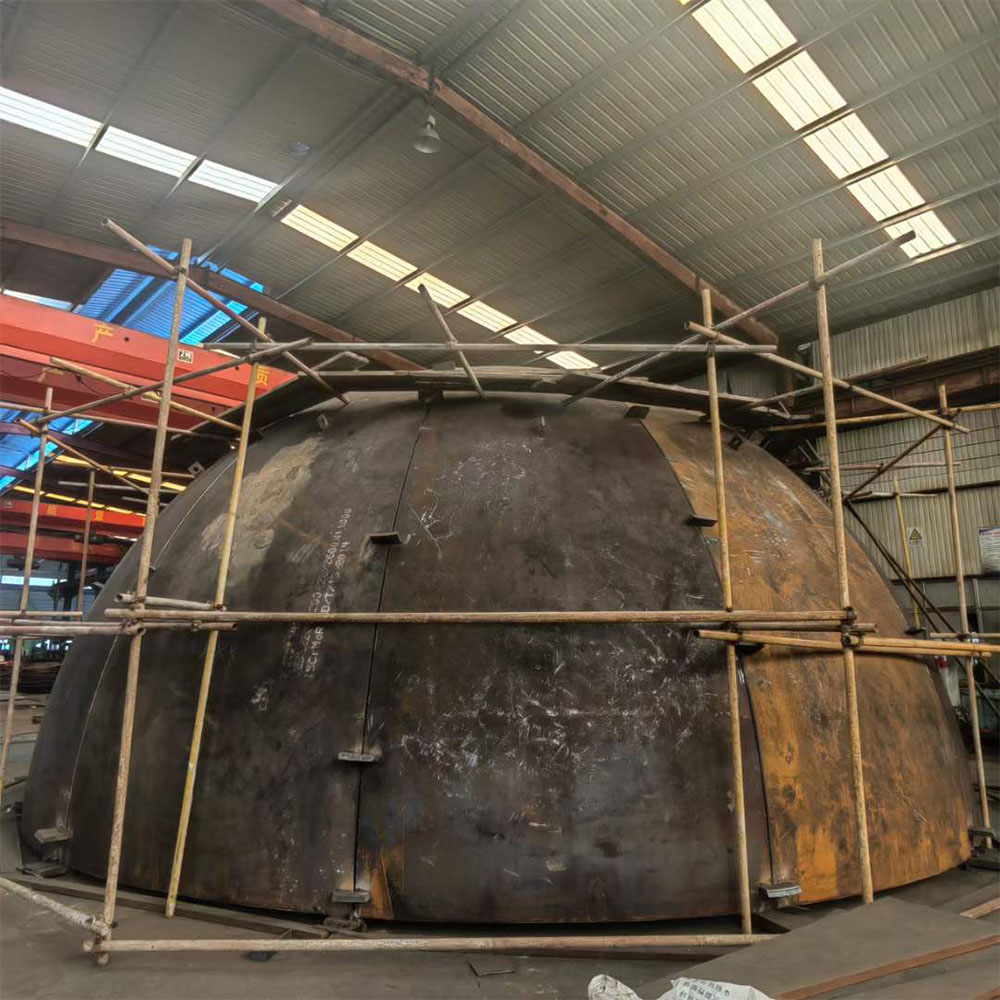

Welding (if applicable): If the head is fabricated from multiple segments, the segments are welded together using standard welding techniques.
Heat Treatment (if applicable): Heat treatment may be performed to relieve stresses induced during the forming process.
Inspection: The head is inspected to ensure that it meets the required dimensions, surface finish, and weld quality specifications.
Testing: Hydrostatic testing may be performed to verify the head's ability to withstand the design pressure.
Throughout the entire process, strict quality control measures are implemented to ensure that the final product meets the specified requirements and ASME standards.
Tank head manufacturers offer a wide range of products and services to serve the needs of various industrys. These typically include:
Standard and Custom Tank Heads: Manufacturers supply both standard dimension tank heads as well as custom-designed heads to meet specific customer requirements.
Material Selection Assistance: Manufacturers can offer guidance on selecting the appropriate material (carbon or stainless) based on the intended application and operating conditions.
Design and Engineering Support: Some manufacturers offer design and engineering services to assist customers in developing optimal tank head designs.
Fabrication Services: Manufacturers provide complete fabrication services, including cutting, forming, welding, and heat treatment.
Inspection and Testing: Manufacturers conduct thorough inspection and testing to ensure that the tank head meets the required standards and specifications.

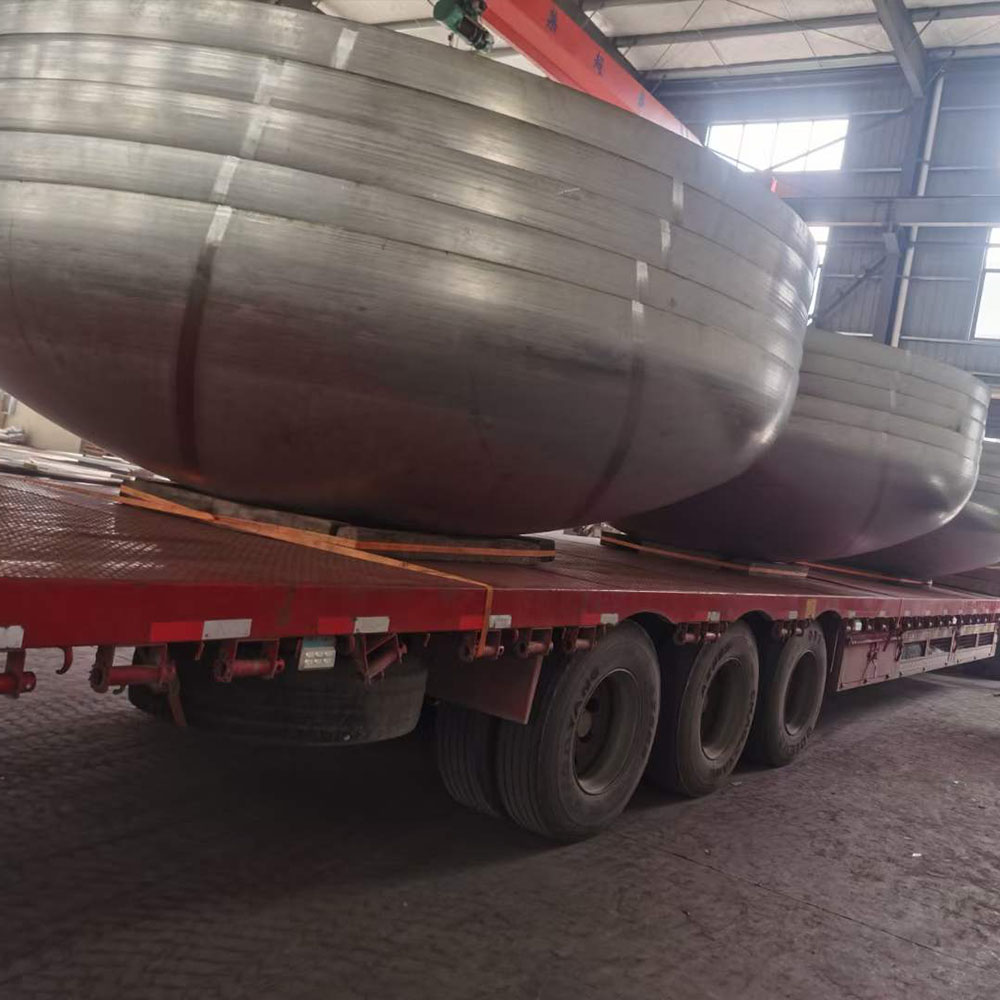

Delivery and Logistics: Manufacturers provide delivery and logistics services to ensure that the tank heads are delivered to the customer's facility on time and in good condition.
By providing a comprehensive suite of products and services, tank head manufacturers serve as valuable partners to tank fabricators and end-users. The company can have a large facility.
Selecting the right tank head manufacturer is critical to ensure the success of your project. Consider the following factors:
Experience and Reputation: Choose a manufacturer with a proven track record and a strong reputation for high quality products and reliable service. The company must be known for its quality.
ASME Certification: Ensure that the manufacturer is certified to manufacture tank heads in accordance with the ASME code. Proud manufacturers will display their certifications prominently.
Manufacturing Capabilities: Verify that the manufacturer has the necessary equipment and expertise to manufacture tank heads to your specifications.
Material Expertise: Choose a manufacturer with expertise in both carbon and stainless steel fabrication.
Customer Service: Select a manufacturer that provides responsive and helpful customer service.
Cost: While cost should not be the sole determining factor, it's important to obtain competitive quotes from multiple manufacturers.
Turnaround Time: Ensure that the manufacturer can meet your required delivery schedule.
Quality Management System: Verify the manufacturer has a robust quality management system in place to ensure consistent product quality.
Choosing the right partner will ensure you receive top quality vessels and on-time delivery of tank heads that fully meet your project requirements.
The products and services are typically available in north america
Key Takeaways: Top 10 Things to Remember
Tank heads are critical for tank integrity and safety.
Choose the right head type (e.g., flanged and dished, hemispherical, semi elliptical, spherical) for your application.
Carbon steel is cost-effective, while stainless steel offers superior corrosion resistance.
ASME standards govern the manufacture of pressure vessel heads.
Thickness is a crucial factor in determining stress resistance.
Accurate dimensions are essential for proper fit and performance.
Surface treatments can enhance the durability of carbon steel heads.
Select a reputable tank head manufacturer with relevant certifications.
Consider all relevant factors, including cost, quality, and turnaround time.
Prioritize safety and compliance with regulatory standards.
