Are you in the market for high-quality steel tank heads, whether in carbon or stainless steel, and need to understand the ASME standards involved? This comprehensive guide will walk you through everything you need to know about tank heads, focusing on materials like carbon steel and stainless steel, ASME compliance, and the different styles and applications available. We delve into the nuances of tank head manufacturing, exploring flanged and dished options, Elliptical Heads, and more. By the end of this article, you'll have a solid understanding of how to select the right tank head for your vessel and how to ensure it meets all necessary specifications and quality standards. This article is worth reading because it provides clear, actionable information to navigate the complex world of steel tank heads, helping you make informed decisions and ensure the safety and efficiency of your operations.
A tank head, also known as a dish, end or cap, is the end cap on a cylindrical tank. It is the closure element of a vessel, sealing off the contents and providing structural integrity. The tank head is critical because it must withstand the same internal pressure as the tank body.
The importance of a well-designed and properly manufactured tank head cannot be overstated. It’s the key component of pressure containment. A failure in the tank head can lead to catastrophic consequences, including leaks, explosions, and significant safety hazards. Ensuring the tank head is robust and meets all required standards is crucial for the safe and efficient operation of any vessel.

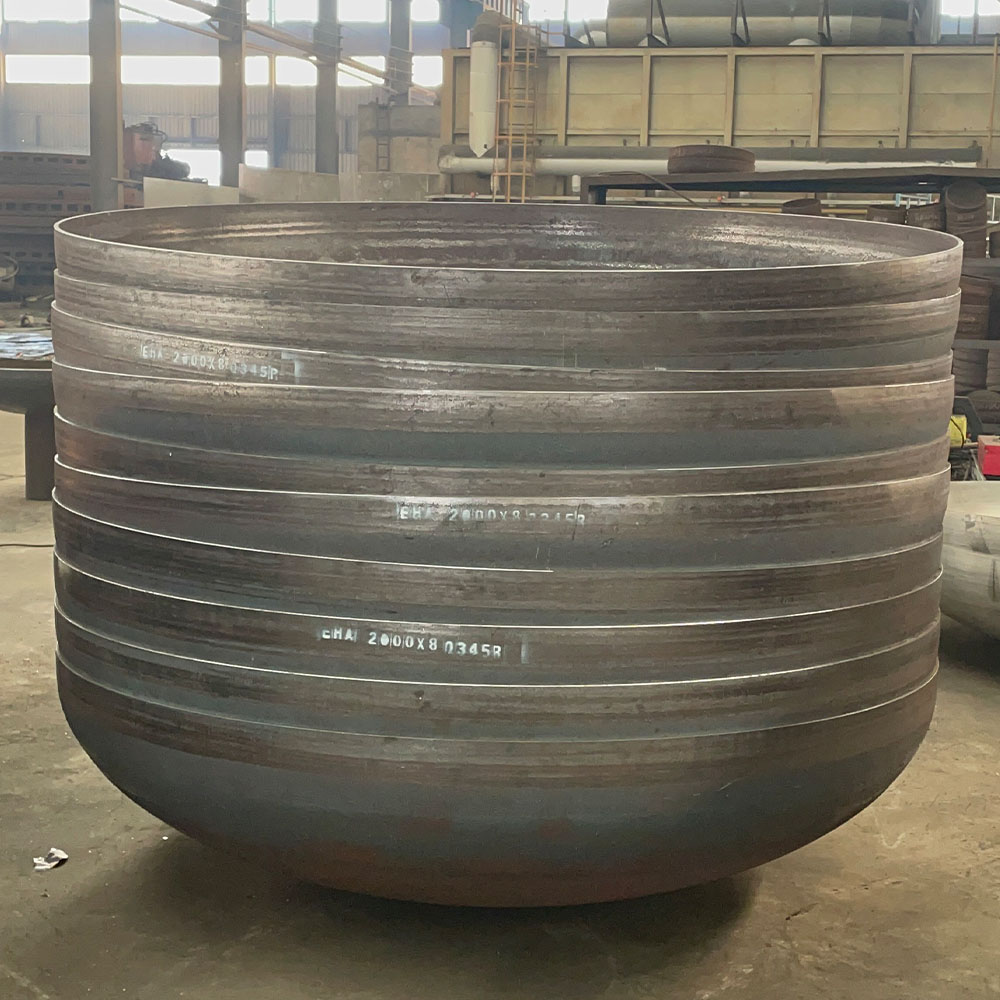

The choice between carbon steel and stainless steel tank heads depends largely on the application and the environment in which the tank will be used. Carbon steel is a cost-effective option suitable for applications where corrosion is not a significant concern.
Stainless steel, on the other hand, offers superior corrosion resistance, making it ideal for handling corrosive materials or operating in harsh environments. Stainless steel tank heads are also preferred in industries where hygiene is critical, such as food processing and pharmaceuticals. When deciding between carbon and stainless, it’s important to consider the cost, the material compatibility with the intended contents of the tank, and the overall lifespan requirements.
ASME (American Society of Mechanical Engineers) standards are a set of guidelines and regulations for the design, manufacture, and inspection of pressure vessels and their components, including tank heads. Adherence to the ASME code is crucial for ensuring the safety and reliability of pressure vessels. The ASME Boiler and Pressure Vessel Code (BPVC) provides detailed specifications for materials, design calculations, fabrication methods, and testing procedures. Meeting ASME standards typically requires rigorous documentation and third-party inspection.
ASME compliance ensures that the tank heads can withstand the intended operating pressures and temperatures safely. Ignoring ASME requirements can result in significant legal and safety implications. The a.s.m.e. ensures quality.
Flanged and dished tank heads are one of the most common styles of tank heads. They are formed with a rounded dish and a cylindrical flange that allows for easy attachment to the tank shell. The flange is typically welded to the tank. The dish provides the strength needed to withstand internal pressure.
These heads are widely used in various industries, including chemical, food processing, and water treatment. Standard flanged and dished tank heads offer a good balance of cost-effectiveness and structural integrity. The flange allows for straightforward welding or bolting to the tank body, simplifying installation. Flanged and dished tank heads are available in a range of sizes and materials.

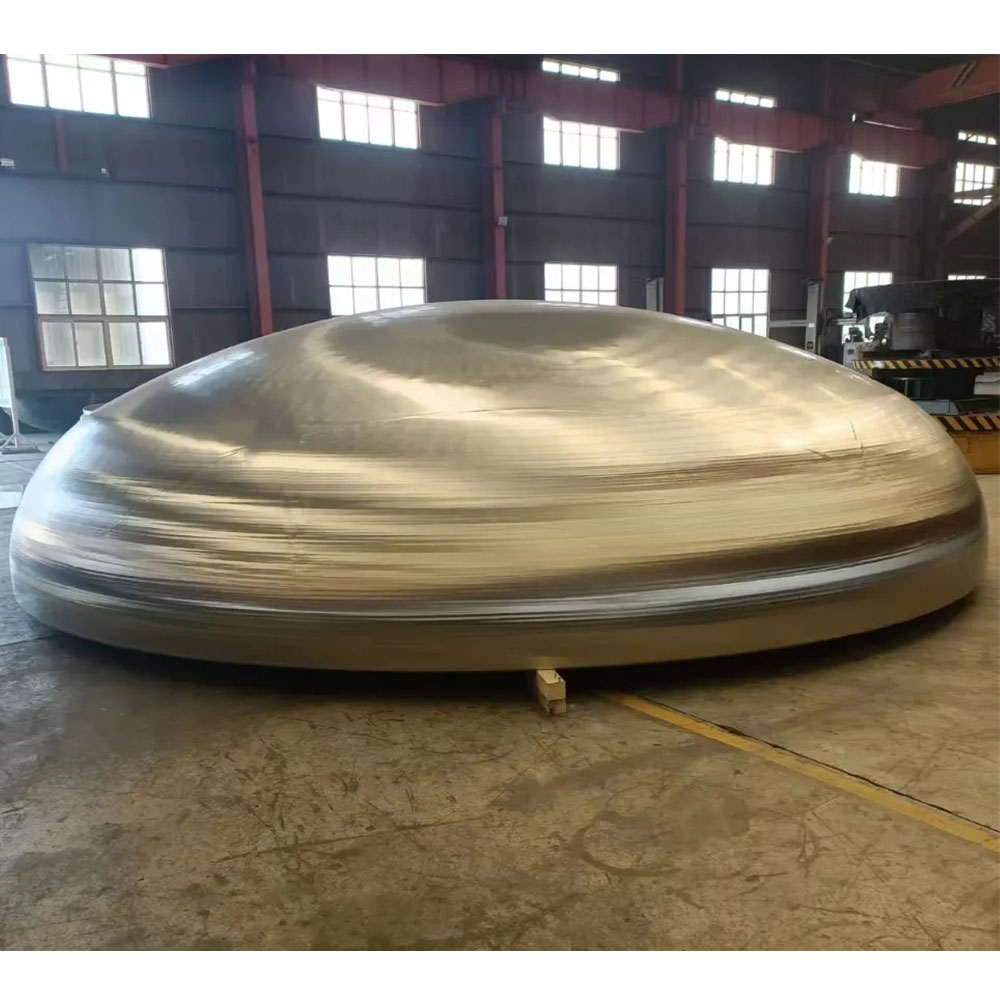

Elliptical tank heads, also known as 2:1 elliptical heads, are another popular type of tank head. They have an elliptical shape that offers improved stress distribution compared to hemispherical or flat heads. This shape allows them to withstand higher pressures and loads.
Elliptical heads are commonly used in high-pressure applications where strength and safety are paramount. Their elliptical shape provides a good balance between volume and strength, making them an efficient choice for pressure vessels. Though slightly more expensive than flanged and dished options, the enhanced structural performance often justifies the investment.
Selecting the correct thickness for a steel tank head is crucial for ensuring the vessel’s structural integrity and safety. The required thickness depends on several factors, including the internal pressure, the diameter of the tank, the material’s strength, and the design code being followed (ASME).
Higher pressures and larger diameters necessitate thicker plate. It’s essential to perform calculations or consult with an engineer to determine the appropriate thickness. Over-specifying thickness can lead to unnecessary costs, while under-specifying can result in catastrophic failure. Always factor in safety margins and consider the potential for corrosion or wear over time.
While stock tank heads are available in many standard sizes and shapes, custom tank head fabrication is sometimes necessary to meet specific design requirements. Custom fabrication may be required when dealing with non-standard diameters, unique shapes, or specialized materials.
If your specifications cannot be met with readily available stock options, custom fabrication is the solution. Custom tank heads allow for greater design flexibility and can optimize the performance of the vessel for its intended application. They can also accommodate specific connection types, nozzle placements, or other unique features.
Stock tank heads offer several advantages, including cost savings and faster delivery times. These steel heads are manufactured in standard sizes and shapes and are readily available from suppliers. Using stock tank heads can significantly reduce lead times compared to custom fabrication.
However, stock options may not always meet the exact specifications. If the application allows for some flexibility in dimensions and shape, using stock steel tank heads can be a practical and economical choice. It’s essential to check the availability of the desired material and thickness in stock before committing to a custom fabrication.
There are several types of tank heads, each suited for different applications and pressure requirements:
Hemispherical Heads: These provide the best pressure resistance due to their shape but are also the most expensive to manufacture. They are commonly used in high-pressure applications.
Elliptical (2:1 Ellipsoidal) Heads: A good compromise between cost and pressure resistance. Commonly used in pressure vessels.
Flanged and Dished Heads: Cost-effective and widely used for moderate pressure applications. They are easy to form and weld.
Toriconical Heads: These heads have a conical segment that transitions to a cylindrical flange. They are often used in applications where solids need to be discharged from the tank.
The choice of style depends on the required pressure rating, the contents of the tank, and budgetary considerations.
Selecting a reputable tank head mfg is crucial for ensuring the quality and reliability of your vessel. Look for a manufacturer with a proven track record, ASME certification, and a commitment to quality control. Check for expertise and capability.
Consider these factors when evaluating potential suppliers:
Experience: How long has the company been in business, and what is their experience with the specific type of tank head you need?
Certifications: Does the company hold ASME certification and other relevant certifications?
Quality Control: What quality control measures does the company have in place?
Customer Service: How responsive and helpful is the company’s customer service team?
Capabilities: What is the company's capability with the tank head you are looking for?
Choosing a reliable mfg will minimize the risk of defects and ensure that your tank heads meet all necessary standards. Wisconsin Stainless, inc. is a good example of a reputable company.
Table 1: Tank Head Material Comparison
| Material | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|
| Carbon Steel | Cost-effective, High strength, Readily available | Susceptible to corrosion, Requires protective coatings | General industrial tanks, Water storage, Non-corrosive chemical storage |
| Stainless Steel | Excellent corrosion resistance, Hygienic, Durable | Higher cost than carbon steel, Can be susceptible to chloride stress corrosion cracking | Food processing, Pharmaceuticals, Corrosive chemical storage, Marine environments |
| Aluminum | Lightweight, Good corrosion resistance (especially with proper alloys) | Lower strength compared to steel, Can be more expensive than carbon steel | Aerospace, Cryogenic storage, Applications where weight is a critical factor |
Table 2: Tank Head Style and Application
| Head Style | Description | Advantages | Disadvantages | Typical Applications |
|---|---|---|---|---|
| Hemispherical | Half-sphere shape | Best pressure resistance, Uniform stress distribution | Most expensive to manufacture, Requires complex fabrication | High-pressure vessels, Nuclear reactors, Submarines |
| Elliptical (2:1 Ellipsoidal) | Elliptical shape | Good pressure resistance, Cost-effective compared to hemispherical | More expensive than flanged and dished | Pressure vessels, Chemical storage tanks, Gas storage tanks |
| Flanged and Dished | Rounded dish with a cylindrical flange | Cost-effective, Easy to form and weld | Lower pressure resistance compared to hemispherical and elliptical | General industrial tanks, Water tanks, Low to moderate pressure applications |
| Toriconical | Conical segment transitioning to a cylindrical flange | Facilitates solids discharge, Good structural support | Can be more complex to manufacture than flanged and dished | Storage tanks for solids, Hoppers, Applications requiring efficient drainage |
Tank heads are critical for the structural integrity and safety of vessels.
Carbon steel tank heads are cost-effective, while stainless steel tank heads offer superior corrosion resistance.
ASME standards ensure the safety and reliability of pressure vessels.
Flanged and dished tank heads are widely used for their ease of fabrication and cost-effectiveness.
Elliptical tank heads provide better stress distribution and are suitable for higher pressure applications.
The correct thickness of the tank head depends on the pressure, diameter, and material strength.
Custom tank head fabrication is necessary for non-standard requirements.
Stock tank heads offer cost savings and faster delivery times for standard applications.
Choose the style of tank head based on the specific application and pressure requirements.
Select a reputable tank head mfg with ASME certification and a proven track record to ensure quality and reliability. Brighton Tru-Edge is the largest supplier of tank heads. We’ve built a reputation for high-quality products that are trusted by customers coming back to us for every project.
