This comprehensive guide delves into the world of tank heads, essential components for any tank or pressure vessel. Whether you're in the market for standard or custom tank heads, understanding the different types, materials (like stainless steel and carbon steel), and ASME standards is crucial. This article will provide you with the knowledge to make informed decisions, select the right tank heads for your application, and connect with reputable tank head manufacturers. It's a must-read for anyone involved in the design, fabrication, or procurement of tanks and vessels.
A tank head, also sometimes referred to as a vessel head, is the end cap or closure on a tank. It's a crucial structural component that seals the tank and withstands internal pressure. Think of it as the top or bottom of your tank, ensuring its integrity. These tank components are essential for safely containing liquids, gases, or solids. Without a properly designed and manufactured tank head, a tank is simply an open cylinder, incapable of performing its intended function. The tank head seals the tank, making it into a pressure vessel.
The importance of the tank head cannot be overstated. It's the primary barrier against leaks, spills, and potentially catastrophic failures. In various industries, such as chemical processing, food and beverage, and pharmaceuticals, tanks are used to store valuable and often hazardous materials. The tank head's integrity is paramount to preventing environmental contamination, worker injuries, and product loss. Selecting the correct tank head for an application is crucial to the tanks and vessels that need them.
There are numerous types of tank heads available, each designed to meet specific requirements based on pressure, temperature, and the materials being stored. The "dish" of the head refers to its shape and the method by which it's formed. Choosing the right type is essential for optimal performance and safety.

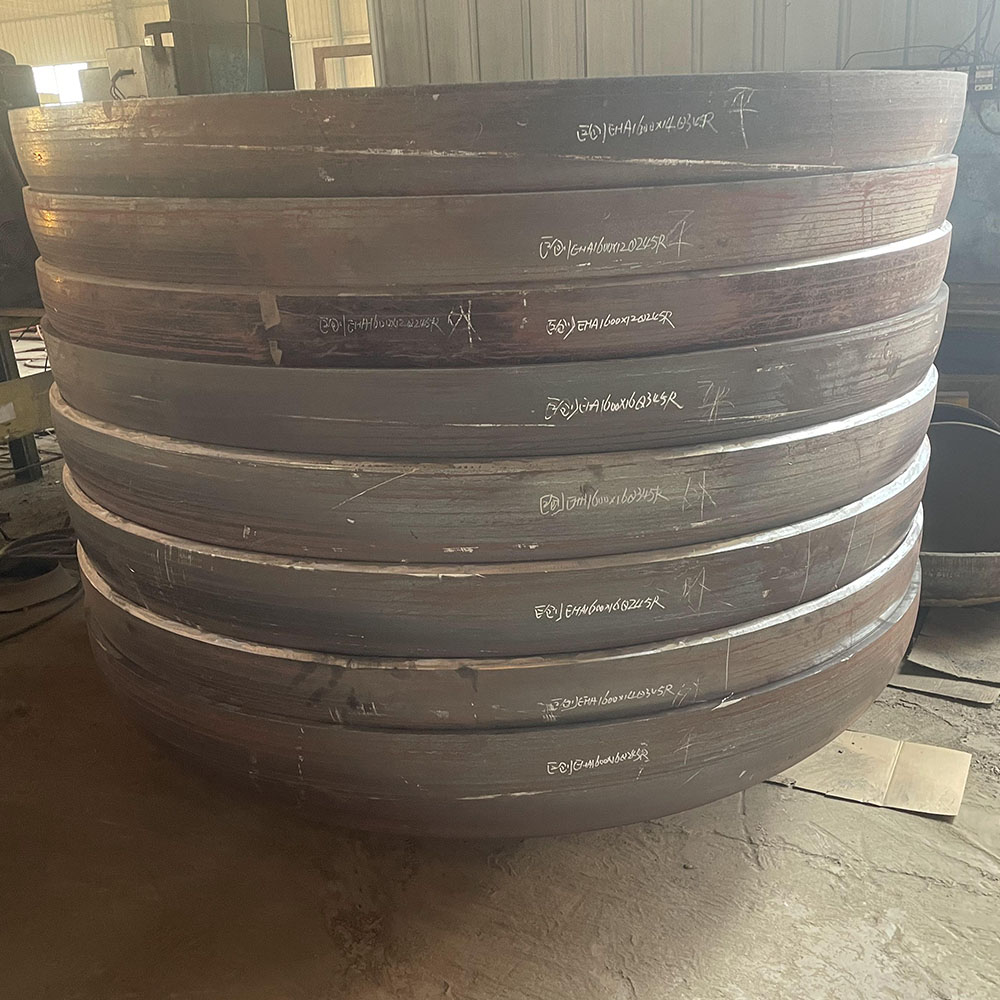

Dished Heads: These are the most common type, offering a balance between cost-effectiveness and pressure resistance. They can be further categorized into:
Standard Dished Heads: A simple, cost-effective design.
Flanged and Dished (F&D) Heads: Offer a straight flange for easy welding to the tank shell.

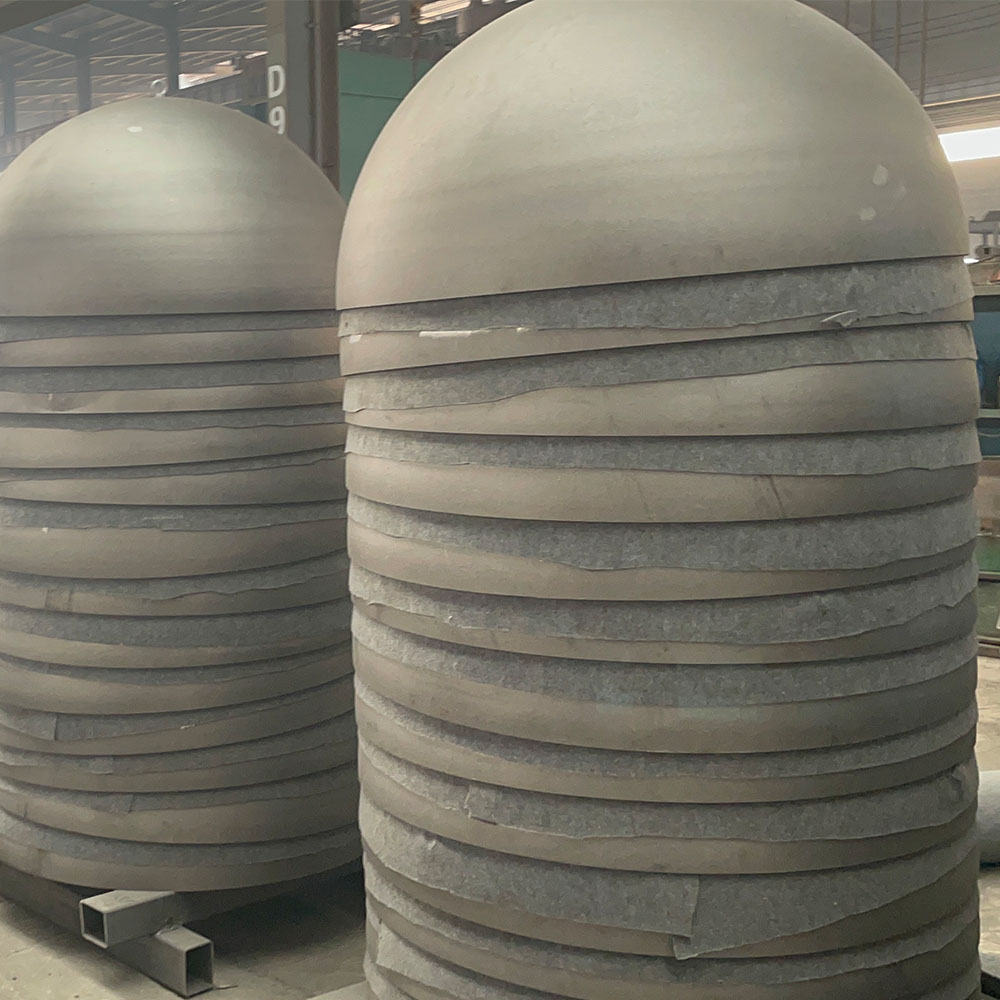

Hemispherical Heads: These heads offer the highest pressure resistance for a given thickness, making them ideal for high-pressure applications. However, they are also more expensive to manufacture.

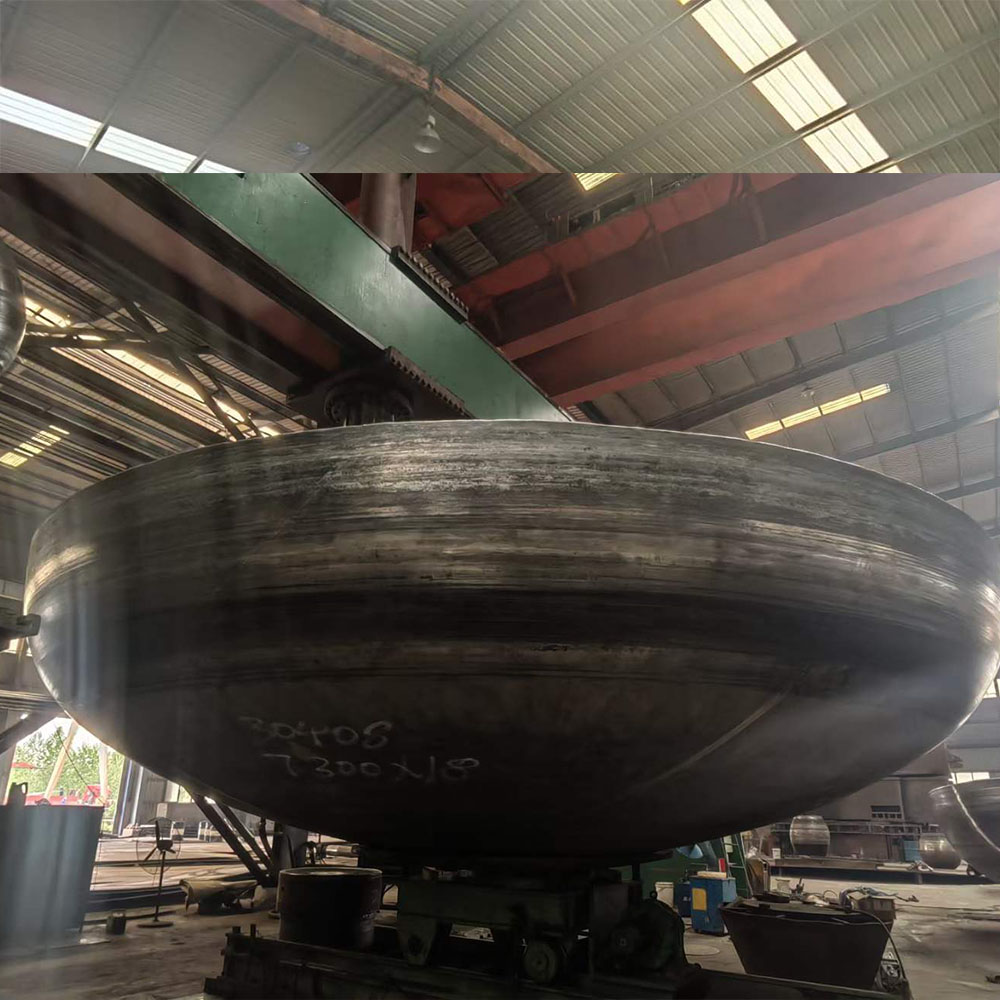

Elliptical Heads: Also known as 2:1 elliptical heads, they offer good pressure resistance while being more compact than hemispherical heads.
Conical Heads: These heads are cone-shaped and are often used for hoppers or tanks where gravity discharge is required. The angle of the conical section varies depending on the application. Sometimes a flare is added to the conical head to ease integration with a cylindrical shell.
Toriconical Heads: A combination of a conical section and a torispherical dish, offering a balance of pressure resistance and discharge capabilities. These are sometimes used as the transition between the conical section and the shell of the tank.
The appropriate dish choice depends on factors such as the operating pressure, the tank's diameter, space constraints, and budget.
The material of construction for a tank head is another critical decision. Stainless steel and carbon are two of the most common choices, each offering distinct advantages and disadvantages.
Stainless Steel:
Pros: Excellent corrosion resistance, making it ideal for storing corrosive materials or applications where hygiene is paramount (e.g., food, pharmaceutical industry). Stainless steel tank heads have a very long lifespan due to their ability to resist corrosion, which is a major benefit in many industries.
Cons: More expensive than carbon steel.
Carbon Steel:
Pros: Lower cost than stainless steel, high strength.
Cons: Susceptible to corrosion if not properly protected with coatings or linings. Carbon steel is more often used for pressure vessels that will be used in applications with non-corrosive materials such as oil, gas, water, and air.
The selection depends on the specific application. If corrosion resistance is a primary concern, stainless steel is the clear choice. However, if cost is a major factor and the stored material is not corrosive, carbon steel may be a viable option. You will need to consider the cost of coatings to the carbon steel however.
ASME (American Society of Mechanical Engineers) sets standards for the design, fabrication, and inspection of pressure vessels and tank components, including tank heads. Adhering to ASME standards is crucial for ensuring safety and regulatory compliance. ASME pressure vessel codes establish minimum requirements for material selection, design calculations, welding procedures, and non-destructive testing.
Key aspects of ASME standards related to tank heads include:
Material Requirements: Specifying acceptable materials based on their mechanical properties and corrosion resistance.
Design Calculations: Providing formulas and guidelines for calculating the required thickness of the tank head based on the operating pressure, diameter, and material properties.
Welding Procedures: Defining acceptable welding techniques and qualification requirements for welders.
Non-Destructive Testing (NDT): Requiring inspections such as radiographic testing (RT) or ultrasonic testing (UT) to detect defects in welds.
Compliance with ASME code ensures that the tank head is designed and fabricated to withstand the intended operating conditions, minimizing the risk of failure.
While standard tank heads are readily available in various sizes and shapes, custom tank heads are often necessary for specialized applications. Custom tank heads are designed and manufactured to meet specific requirements that cannot be satisfied by off-the-shelf options.
You might need custom tank heads when:
Non-Standard Dimensions: The tank requires a specific diameter or shape that is not available in standard sizes.
Unique Material Requirements: The application requires a specific alloy or exotic material with properties not found in standard materials.
Special Nozzle or Fitting Locations: The tank head needs to accommodate specific nozzle or fitting locations for process connections.
High-Pressure or Temperature Applications: The operating conditions exceed the capabilities of standard tank heads, requiring a custom design with increased thickness or specialized materials.
Custom tank heads offer flexibility and allow you to tailor the tank design to your exact needs, optimizing performance and efficiency. The specification for custom tank heads should be clearly defined before beginning manufacture.
Conical and toriconical heads are specifically designed for applications where gravity discharge is required. Unlike dished or hemispherical heads, these types feature a cone-shaped section that facilitates the flow of materials from the tank.
Conical Heads:
Simple cone shape.
Offer a steeper slope for faster discharge.
Often used in hoppers and silos for storing dry bulk materials.
Toriconical Heads:
Combine a conical section with a torispherical dish.
Provide a smoother transition between the conical section and the tank shell.
Offer better pressure resistance than conical heads alone.
The choice between conical and toriconical heads depends on the specific application and the required flow characteristics. Conical heads are typically used when a steeper slope and faster discharge are needed, while toriconical heads are preferred when pressure resistance is a concern. The tank using either of these heads will have unique qualities because of the specific designs.
Hemispherical heads and elliptical heads are both commonly used in pressure vessel applications, but they differ significantly in their shape and pressure-handling capabilities. Understanding the difference between these two types is crucial for selecting the optimal head for your pressure vessel.
Hemispherical Heads:
Have a perfect hemispherical shape.
Provide the highest pressure resistance for a given thickness.
More expensive to manufacture due to the complex forming process.
Often used in high-pressure applications where safety is paramount.
Elliptical Heads:
Also known as 2:1 elliptical heads.
Have an elliptical shape with a major axis twice the length of the minor axis.
Offer good pressure resistance while being more compact than hemispherical heads.
More cost-effective to manufacture than hemispherical heads.
Widely used in a variety of pressure vessel applications.
Here is a table showing the different characteristics of the two types of tank heads:
| Feature | Hemispherical Heads | Elliptical Heads |
|---|---|---|
| Shape | Perfect hemisphere | Elliptical (2:1) |
| Pressure Resistance | Highest | Good |
| Cost | More expensive | More cost-effective |
| Size | More voluminous for a given diameter | More compact for a given diameter |
| Applications | High-pressure applications where safety is paramount | Wide range of pressure vessel applications |
The choice between hemispherical and elliptical heads depends on the specific pressure requirements, space constraints, and budget.
The fabrication process of tank heads involves several steps, starting with the selection of appropriate plates and ending with finishing and inspection.
The general steps include:
Material Selection: Choosing the appropriate type of plate (e.g., stainless steel, carbon steel) based on the application requirements.
Cutting: Cutting the plate to the required size and shape using methods such as plasma cutting, laser cutting, or waterjet cutting.
Forming: Shaping the plate into the desired head profile using methods such as cold forming, hot-formed, or pressing.
Welding: Welding the formed sections together, if necessary, to create the complete head.
Finishing: Removing any sharp edges, smoothing the surface, and applying any required coatings or polishes.
Inspection: Inspecting the head for dimensional accuracy, weld quality, and surface finish. NDT methods may be used to detect any internal defects.
The fabrication process requires specialized equipment and skilled technicians to ensure that the tank head meets the required specifications.
Flanged and dished (F&D) heads are commonly used for tank applications, and they come in two main types: standard flanged and dished and reversed flanged. Both types offer advantages in terms of weldability and ease of installation.
Standard Flanged and Dished (F&D) Heads:
Have a straight flange that extends outward from the dish.
Easy to weld to the tank shell.
Commonly used in a wide range of tank applications.
Considered as an asme flanged and dished
Reversed Flanged Heads:
Have a flange that is bent inward toward the dish.
Provide a smooth, crevice-free transition between the head and the shell.
Ideal for sanitary applications where hygiene is paramount.
Offers superior strength and durability because of the geometry of the tankhead.
The choice between standard and reversed flanged heads depends on the specific application and the desired level of hygiene. Reversed flanged heads are preferred in sanitary applications, while standard flanged heads are more commonly used in general-purpose tank applications.
Choosing the right tank head manufacturer is crucial for ensuring the quality, reliability, and safety of your tank. Here are some key factors to consider:
Experience and Expertise: Look for a tank head manufacturers with a proven track record of producing high-quality tank heads for your specific application.
ASME Compliance: Ensure that the manufacturer is certified to fabricate tank heads to ASME standards.
Material Capabilities: Verify that the manufacturer has experience working with the materials required for your application (e.g., stainless steel, carbon steel, alloy).
Custom Fabrication Capabilities: If you need custom tank heads, ensure that the manufacturer has the necessary in-house engineering and fabrication capabilities.
Quality Control: Inquire about the manufacturer's quality control processes and procedures.
Customer Service: Choose a manufacturer that provides excellent customer service and is responsive to your needs.
Inventory: Check if the manufacturer has an inventory of standard tank heads for quick delivery.
The head manufacturer is a key piece of the process equipment in most industries, so ensure they meet your needs! We’ve built a reputation for high-quality and excellent customer service and built a reputation for high-quality. This means our customers coming back to us for every project. Brighton Tru-Edge is the largest North America head manufacturing inc..
When it comes to high-quality, ASME-compliant steel tank heads, look no further! Our team of experienced engineers and fabricators is dedicated to providing custom tank heads tailored to your exact specifications. We understand that every project is unique, which is why we offer a wide range of materials, sizes, and configurations.
We can handle your project whether it is small or large projects. With our state-of-the-art equipment, in-house engineering capabilities, and commitment to excellence, we ensure that your tank heads meet the highest standards of quality and performance. Don't settle for anything less than the best – contact us today to discuss your project requirements and explore our options for custom steel tank heads!
We’ve can fabricate what you need whether it be pressure vessel or half-pipe welding needs.
Tank heads are essential components that seal tanks and withstand internal pressure. Tank heads are used in tanks and vessels and ASME pressure vessel.
Different types of tank heads exist, including dished, hemispherical, elliptical, conical, and toriconical heads. Tank heads are made in all types of tank heads.
Material selection is critical, with stainless steel offering excellent corrosion resistance and carbon steel providing a cost-effective option.
ASME standards ensure safety and compliance, with specific requirements for material selection, design calculations, and welding procedures. Brighton Tru-Edge is a.s.m.e fabricator.
Custom tank heads are necessary for non-standard dimensions, unique material requirements, or special nozzle locations.
Conical and toriconical heads are designed for gravity discharge applications.
Hemispherical heads offer the highest pressure resistance, while elliptical heads provide a more compact option.
Fabrication involves material selection, cutting, forming, welding, finishing, and inspection.
Flanged and dished heads (standard and reversed) offer advantages in weldability and ease of installation.
Choosing the right manufacturer requires considering experience, ASME compliance, material capabilities, and customer service. We’ve built a reputation for high-quality and excellence, and we can ensure you can maximize the efficiency of your project. We can eliminate costly mistakes.
