This article delves into the world of ASME vessel heads, dished heads, and tank head options. Understanding the different types, materials, and manufacturing processes is crucial for ensuring the safety and efficiency of your pressure vessel systems. This comprehensive guide is essential reading for engineers, designers, and anyone involved in the specification, procurement, or maintenance of tank components. We'll explore various head types, material considerations like stainless steel and carbon, and the importance of ASME compliance.
A tank head, often referred to simply as a "head," is a crucial tank component that forms the end caps of cylindrical pressure vessels. These heads are designed to contain pressure and provide structural integrity to the entire tank. The shapes of tank heads are crucial to their function. The tank head's primary function is to seal the tank and prevent leaks, but it also plays a vital role in distributing stress evenly across the tank structure.
The shape of a head, especially the dish and flange, is carefully engineered to withstand the internal or external pressures the tank will be subjected to. Without properly designed and manufactured heads, a tank could be prone to failure, leading to catastrophic consequences, especially in industries dealing with hazardous materials. This is why proper head design and selection, along with adherence to standards like ASME, are paramount.
The terms "dished only heads" and "flanged and dished" (F&D) heads refer to two distinct types of tank heads differentiated by their construction. A dished only head, as the name implies, is simply a curved plate formed into the desired shape. These heads are typically used when welding directly to the shell of the tank is required, or when a minimal profile is desired.
A flanged and dished head, on the other hand, incorporates both a dished radius (the curved portion) and a flange (a straight section around the edge). The flange provides a surface for bolting or welding to a mating flange on the tank shell. Flanged and dished heads offer greater ease of installation and alignment, and they are often preferred when frequent access to the inside of the tank is required.
The shape of a tank head significantly impacts its pressure-bearing capacity and overall tank design. Several common head shapes exist, each suited for specific applications:

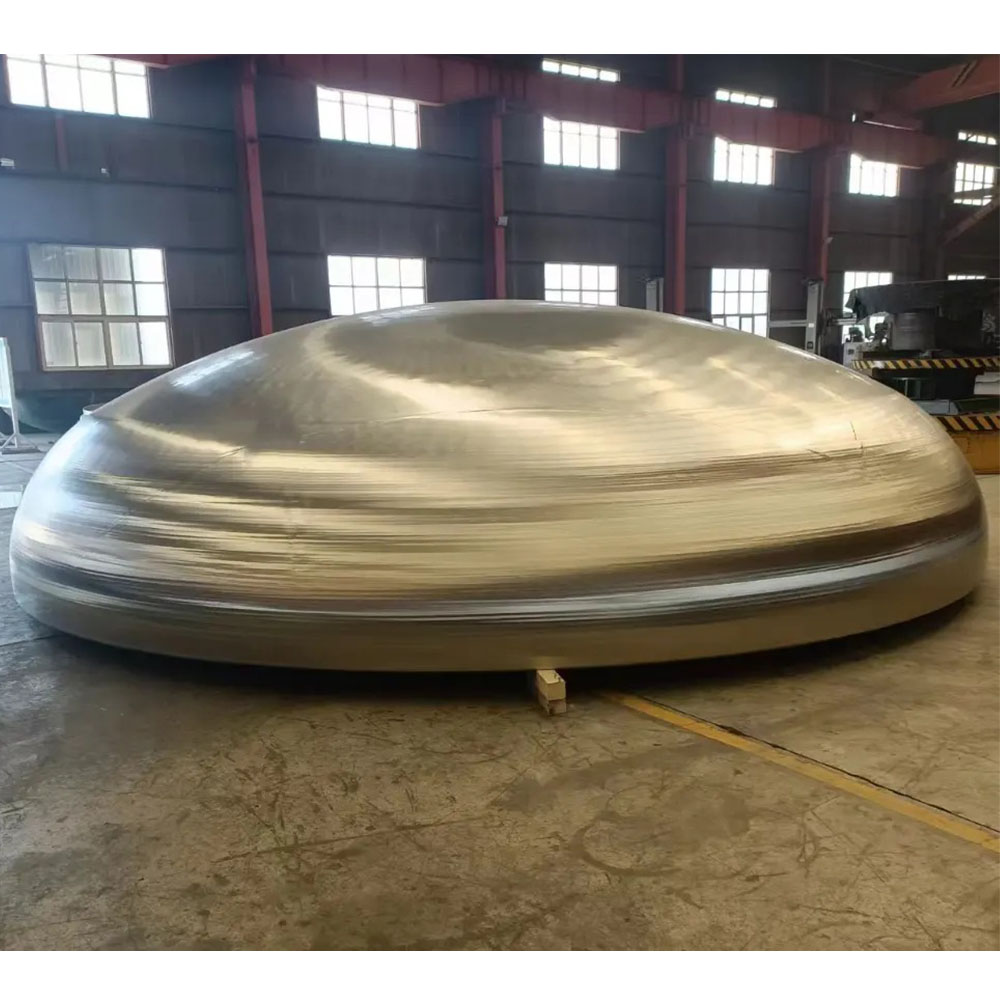

Elliptical Heads: Semi-elliptical tankheads are a popular choice due to their balance of strength and cost-effectiveness. They offer good pressure resistance and are relatively easy to manufacture.
Hemispherical Heads: Hemispherical heads are the strongest shape for a given thickness. Their spherical geometry allows for uniform stress distribution, making them ideal for high-pressure applications like vacuum chambers. However, they are also more expensive to manufacture than other head types.
Conical Heads: Conical heads are used to transition between different diameters in a tank or to facilitate drainage. They are less efficient at handling pressure compared to elliptical or hemispherical heads.
Toriconical Heads: Toriconical heads combine a conical section with a toroidal (doughnut-shaped) knuckle radius. This design helps reduce stress concentrations at the cone-to-cylinder junction.
Selecting the appropriate head shape depends on factors such as the operating pressure, tank diameter, material of construction, and budget.
The ASME (American Society of Mechanical Engineers) Boiler and Pressure Vessel Code (asme code) sets standards for the design, manufacture, and inspection of pressure vessels and tank components. Adhering to these standards is crucial for ensuring the safety and reliability of these critical systems. The a.s.m.e. provides guidelines for material selection, welding procedures, non-destructive examination, and other aspects of vessel construction.
When it comes to tank heads, ASME standards specify requirements for dimensions, tolerances, and material properties. Manufacturers who adhere to these standards demonstrate their commitment to quality and safety. Specifying ASME-compliant tank heads provides assurance that the components will perform as intended and meet regulatory requirements. An ASME flanged tank head ensures that the head has been manufactured and tested to comply with specific ASME standards related to flanged connections.
The material of construction for a tank head is a critical consideration that depends on factors such as the fluid being stored, operating temperature, pressure, and environmental conditions. Stainless steel heads are popular because they offer excellent corrosion resistance, making them suitable for a wide range of applications, including the pharmaceutical, beverage, and food industries. Different grades of stainless steel are available, each with its own unique properties.

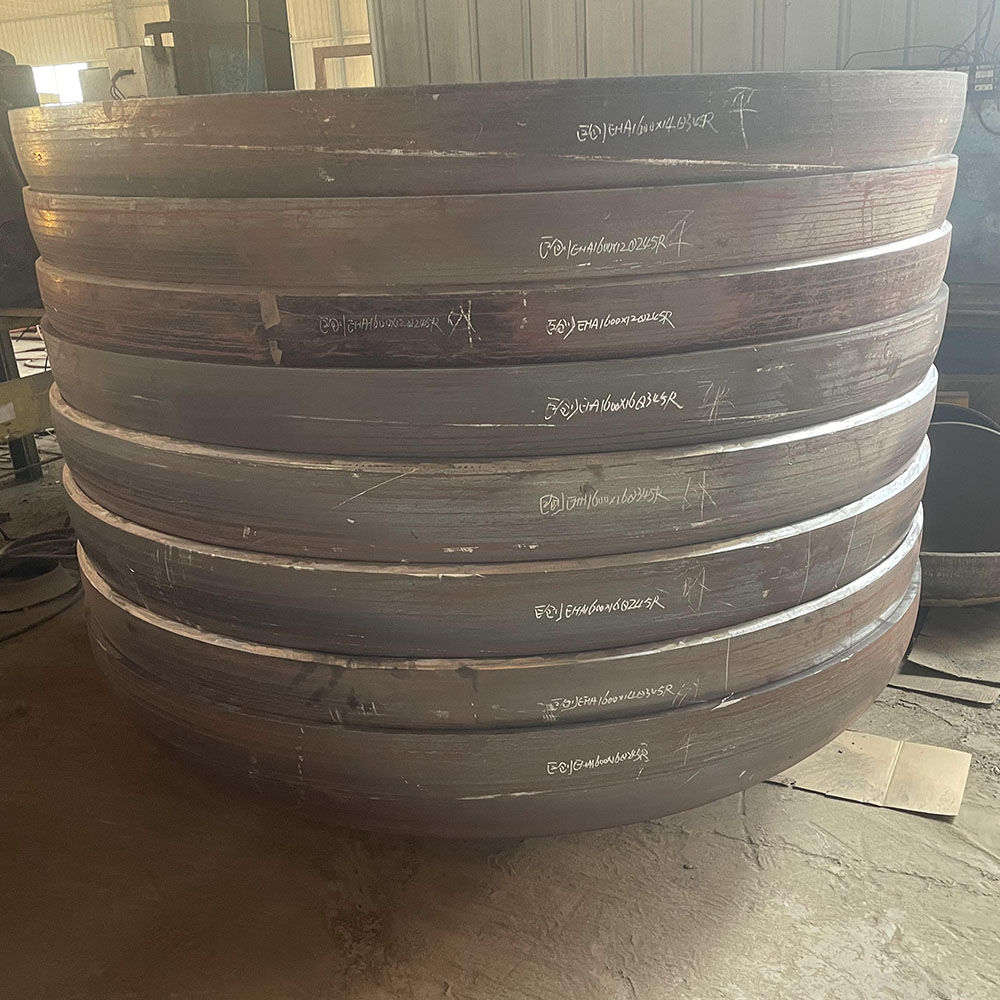

Carbon steel is another common material choice for tank heads. Carbon steel offers good strength and weldability, making it a cost-effective option for many applications. However, carbon steel is susceptible to corrosion in certain environments, so it is important to consider protective coatings or linings when using it.
In addition to stainless steel and carbon, other materials such as aluminum, copper, AL6XN, Duplex 2205, and Inconel® may be used for tank heads in specialized applications where exotic materials are required to resist specific types of corrosion or high temperatures.
While standard tank heads are available in a variety of shapes and sizes, some projects require custom tank heads to meet specific design requirements. Tank head manufacturers specializing in custom fabrication can produce heads with unique dimensions, shapes, or material properties.
Custom tank heads may be necessary when dealing with non-standard tank diameters, unusual process requirements, or limited space constraints. Working with a reputable tank head manufacturer ensures that the custom heads are properly designed and manufactured to meet all applicable standards and specifications.
Flanges are used to connect tank heads to the tank shell or to other tank components. Several types of flanges are available, each designed for different pressure ratings and applications. Some common flange types include:
Weld Neck Flanges: These flanges are welded directly to the tank shell or head, providing a strong and reliable connection.
Slip-On Flanges: Slip-on flanges are slid over the pipe or nozzle and then welded in place. They are less expensive than weld neck flanges but offer slightly lower strength.
Blind Flanges: Blind flanges are used to close off the end of a pipe or vessel.
Reversed Flanged Heads: Reversed flanged heads have a flange that extends inward, allowing for bolting from the inside of the tank.
The choice of flange type depends on factors such as the operating pressure, temperature, and fluid being handled.
Head dimension is the diameter and thickness of the head, and it directly influences the pressure-bearing capacity, structural integrity, and overall performance of the pressure vessel. The diameter of the head dictates the surface area subjected to pressure. Larger diameter heads require greater material thickness to withstand the same pressure as smaller diameter heads.
The thickness of the head is also a critical factor in determining its ability to resist pressure. Thicker heads can withstand higher pressures than thinner heads of the same diameter and material. A vessel head dimension, including knuckle radius, is crucial to consider during vessel design.
Selecting the appropriate head dimensions requires careful consideration of the operating conditions, material properties, and applicable ASME standards. In-house engineering and fabrication of custom tank heads ensure that the head is properly designed and manufactured to meet all specific project needs.
Tank head manufacturers play a critical role in ensuring the quality, safety, and compliance of these crucial tank components. Reputable tank head manufacturers employ skilled engineers, welders, and quality control personnel who are knowledgeable about ASME standards and best practices for vessel head manufacturing. Brighton Tru-Edge is the largest head manufacturer in North America.
These manufacturers utilize advanced manufacturing processes, such as forming, welding, and non-destructive examination, to produce high-quality tank heads that meet or exceed industry standards. They also maintain rigorous quality control programs to ensure that each head is inspected and tested before it is shipped to the customer. Tank head manufacturers provide services such as half-pipe welding for reinforcement.
When selecting a tank head manufacturer, it is important to consider their experience, reputation, quality control processes, and ability to meet your specific project requirements. Tank head manufacturers ensure that the equipment provided to customers is of top quality.
At TCI, our mission statement is to provide high-quality tank components industries with superior ASME pressure vessel heads and exceptional customer service. We offer a wide variety of tank head options, including standard and custom designs in stainless steel, carbon, and other exotic materials.
We invite you to contact us today to discuss your specific tank head needs. Our experienced team of engineers and sales professionals can help you select the right head for your application and ensure that it meets all applicable standards and specifications. We’ve built a reputation for high-quality products and excellent customer service, and we are committed to providing our customers with the best possible solutions for their pressure vessel needs. We are happy to explore our options and eliminate costly mistakes.
Our Values
Customers Coming Back to Us
Back to Us for Every Project
Us for Every Project
Here are 10 essential points to remember about tank heads:
Tank heads are critical components of pressure vessels, providing closure and structural integrity.
ASME standards are paramount for ensuring the safety and reliability of tank heads.
Different head shapes (elliptical, hemispherical, conical, toriconical) are suited for specific applications.
Material selection (stainless steel, carbon, etc.) depends on the fluid being stored, operating conditions, and environmental factors.
Flanged and dished heads offer ease of installation and alignment compared to dished only heads.
Head dimension significantly impacts the pressure-bearing capacity of the vessel.
Custom tank heads can be fabricated to meet specific project needs.
Flanges are used to connect tank heads to the tank shell or other components.
Tank head manufacturers play a crucial role in ensuring quality and compliance.
Working with a reputable manufacturer with in-house engineering helps ensure optimal vessel performance and long-term reliability.
