Cold Forming vs. Hot Forming for Head Manufacturing: A Detailed Comparison

Cold Forming vs. Hot Forming for Head Manufacturing: A Detailed Comparison

The fabrication of heads, crucial components in pressure vessels, tanks, and other industrial applications, relies on various forming techniques. Two prominent methods are cold forming and hot forming. The selection between these processes hinges on factors such as the material being used, the desired mechanical properties of the final product, dimensional accuracy requirements, surface finish specifications, and overall cost considerations. This document provides a detailed comparison of cold forming and hot forming, highlighting their respective advantages and disadvantages, particularly concerning material integrity, dimensional accuracy, consistency, and surface finish quality.

I. Introduction to Cold and Hot Forming

A. Cold Forming: Shaping at Ambient Temperatures

Cold forming, also known as cold working, encompasses a range of manufacturing processes where metal is shaped plastically at or near room temperature. These processes typically involve applying high pressures to the material, causing it to deform permanently without the need for heating. Common cold forming techniques include:

• Cold Drawing: Pulling a metal bar or wire through a die to reduce its cross-sectional area and increase its length.

• Cold Rolling: Passing metal between rollers at room temperature to reduce its thickness and improve its surface finish.

• Cold Forging: Shaping metal by compressive forces using dies, often employed for creating complex shapes with tight tolerances.

• Cold Extrusion: Forcing metal through a die to create a desired shape.

• Cold Heading: Upsetting the end of a wire or rod to form a larger head, commonly used in fastener manufacturing.

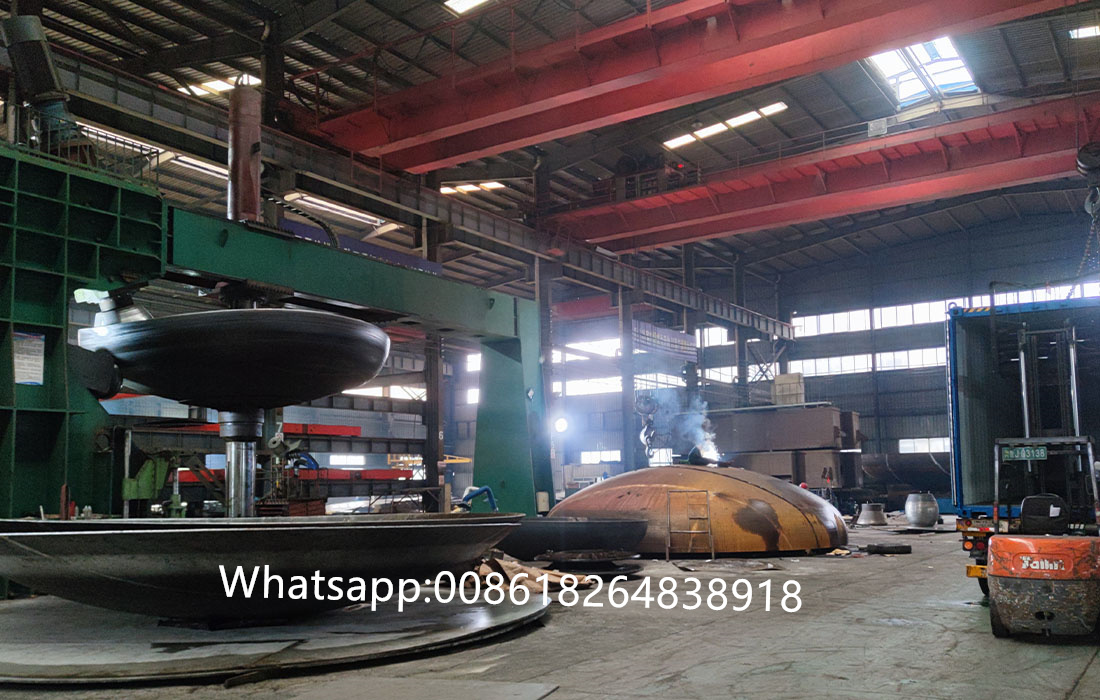

• Spin Forming (Cold): Rotating a metal disc or blank against a forming tool to create a seamless, hollow shape.

• Deep Drawing (Cold): Forming a flat sheet of metal into a cup-shaped or box-shaped part using a punch and die.

• Bending (Cold): Forming a metal sheet or bar into a desired angle or curve.

• Stamping (Cold): Using a die to cut, bend, or form metal sheets.

The key characteristic of cold forming is that it occurs below the recrystallization temperature of the metal. Recrystallization is the process where new, strain-free grains form within a metal, relieving internal stresses induced by deformation. Because cold forming occurs below this temperature, the metal's microstructure is altered, leading to increased strength and hardness due to a phenomenon called "strain hardening" or "work hardening."

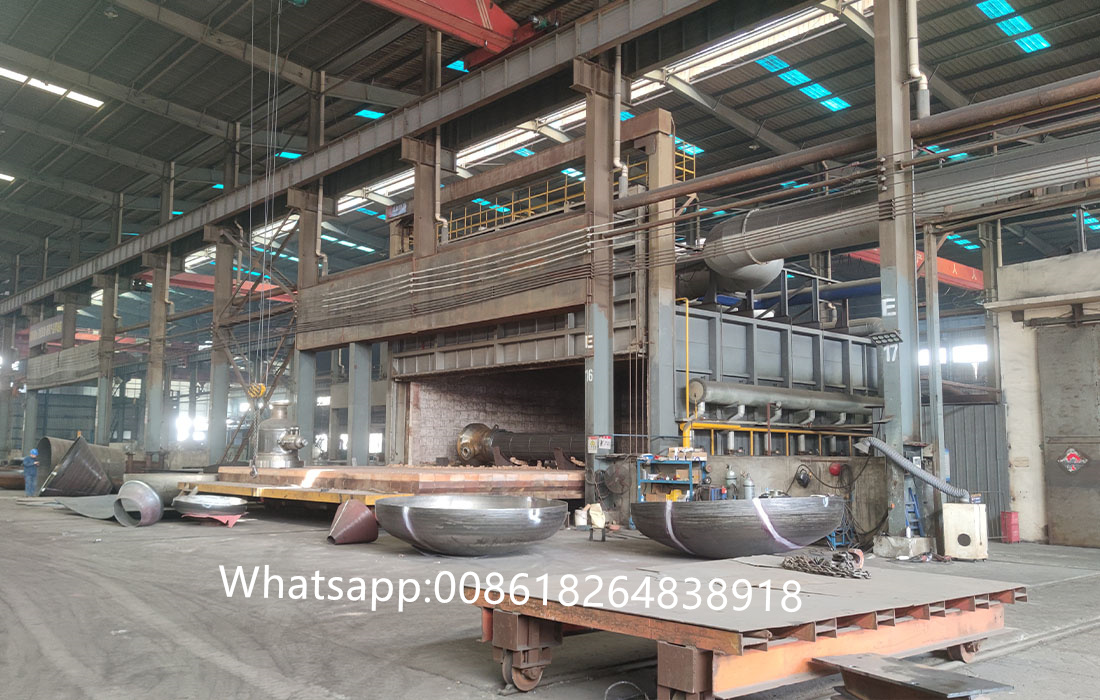

B. Hot Forming: Shaping at Elevated Temperatures

Hot forming, conversely, involves shaping metal at temperatures significantly above its recrystallization temperature. Heating the metal reduces its yield strength and increases its ductility, making it easier to deform. This allows for the creation of more complex shapes with less force compared to cold forming. Common hot forming techniques include:

• Hot Rolling: Passing metal between rollers at elevated temperatures to reduce its thickness and improve its surface finish.

• Hot Forging: Shaping metal by compressive forces using dies at high temperatures, suitable for large and complex parts.

• Hot Extrusion: Forcing metal through a die at high temperatures to create a desired shape.

• Spin Forming (Hot): Rotating a metal disc or blank against a forming tool at high temperatures to create a seamless, hollow shape.

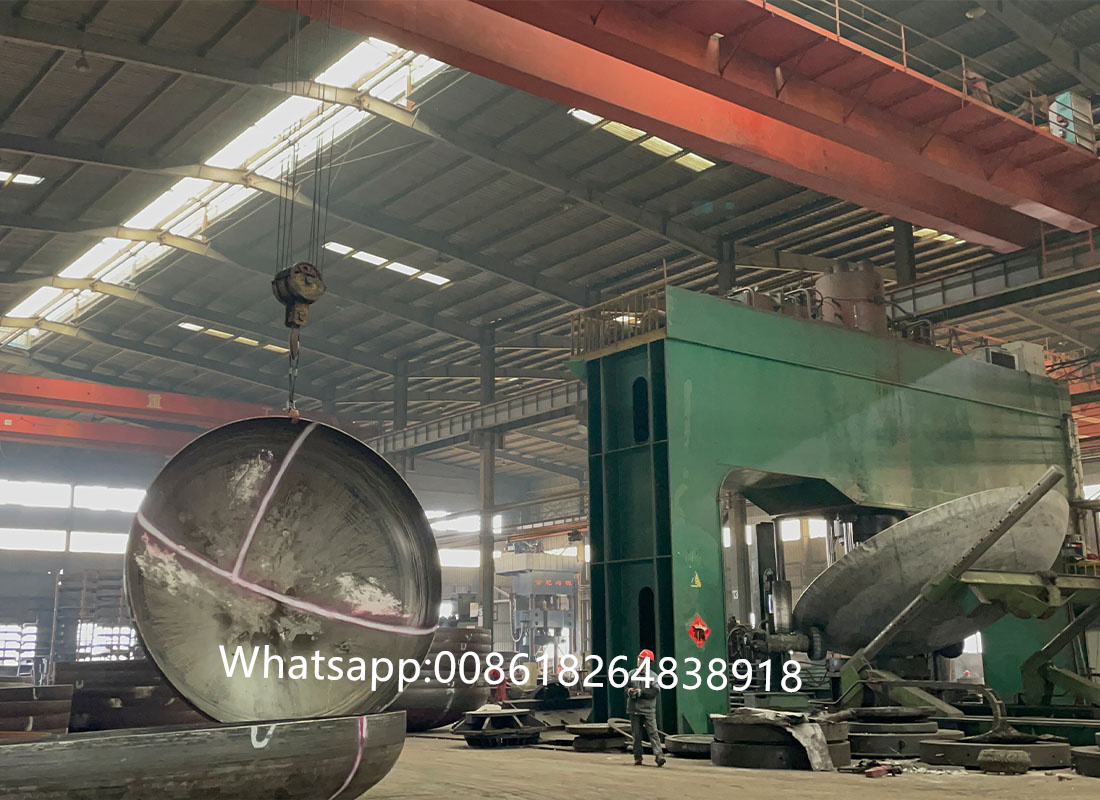

• Pressing (Hot): Shaping metal using hydraulic or mechanical presses at high temperatures.

The high temperatures involved in hot forming allow the metal to continuously recrystallize during deformation, preventing strain hardening. This results in a more uniform microstructure and allows for greater deformation without the risk of cracking. However, the elevated temperatures also introduce challenges related to material oxidation, dimensional control due to thermal expansion and contraction, and potential changes in the metal's microstructure.

II. Comparison of Cold Forming and Hot Forming for Head Manufacturing

The choice between cold forming and hot forming for manufacturing heads depends on a variety of factors, as discussed below.

A. Material Integrity: Preserving the Metal's Properties

• Cold Forming: Maintaining Original Material Properties

  Cold forming offers a significant advantage in preserving the original material properties of the metal, particularly when dealing with corrosion-resistant alloys like stainless steel or specialized alloys. Because the process avoids heating, it eliminates the risk of:

  Elaboration on Stainless Steel Heads: The advantage of cold forming is particularly pronounced when manufacturing stainless steel heads. Stainless steels are widely used in applications requiring excellent corrosion resistance, such as in the chemical, pharmaceutical, and food processing industries. Maintaining the integrity of the chromium oxide layer is crucial for the long-term performance of these components. Cold forming ensures that this layer is not compromised during the manufacturing process. Furthermore, some stainless steels are prone to sensitization (chromium carbide precipitation at grain boundaries, reducing corrosion resistance) at certain temperatures. Cold forming eliminates the risk of sensitization.

  The preservation of material integrity in cold forming directly translates to:

• Increased Component Lifespan: Heads manufactured by cold forming, especially from corrosion-resistant alloys, are less susceptible to degradation and failure, resulting in a longer service life.

• Enhanced Reliability: The consistent material properties achieved through cold forming ensure that the heads perform predictably and reliably under various operating conditions.

• Reduced Maintenance Costs: The increased lifespan and reliability of cold-formed heads translate to lower maintenance costs, as they require less frequent inspection, repair, and replacement.

• Improved Safety: Maintaining material integrity is paramount for safety, especially in pressure vessel applications. Cold-formed heads provide a higher degree of safety due to their resistance to corrosion and other forms of degradation.

• Oxidation: High temperatures promote oxidation, where the metal reacts with oxygen in the atmosphere, forming oxides on the surface. This can lead to scaling, pitting, and a reduction in the metal's cross-sectional area, weakening the component. Cold forming circumvents this issue entirely.

• Decarburization: In steel, heating can cause carbon to migrate from the surface layers, reducing the steel's hardness and strength. This phenomenon, known as decarburization, is not a concern in cold forming.

• Grain Growth: Elevated temperatures can cause the grains within the metal's microstructure to grow larger. While grain growth can sometimes improve certain properties, it can also lead to a reduction in strength and toughness. Cold forming avoids uncontrolled grain growth.

• Phase Transformations: Some alloys undergo phase transformations at specific temperatures, which can alter their mechanical properties. Avoiding heating prevents unwanted phase transformations and ensures the material retains its desired characteristics.

• Reduced Corrosion Resistance: Certain alloys, particularly stainless steels, rely on a passive chromium oxide layer on their surface for corrosion resistance. High temperatures can disrupt this layer, reducing the alloy's resistance to corrosive environments. Cold forming preserves the integrity of this passive layer.

• Hot Forming: Potential for Material Degradation

  Hot forming, while offering advantages in terms of formability, introduces the potential for material degradation due to the elevated temperatures involved. The severity of this degradation depends on several factors, including:

  While protective atmospheres (e.g., inert gases) can be used to minimize oxidation, they add to the complexity and cost of the hot forming process. Even with protective measures, it can be challenging to completely eliminate the risk of material degradation.

  Impact on Corrosion Resistance: For stainless steel heads, hot forming can significantly reduce corrosion resistance due to the disruption of the passive chromium oxide layer. The high temperatures can cause the chromium to react with oxygen, forming a scale on the surface. This scale is often difficult to remove completely and can leave behind areas that are more susceptible to corrosion. Furthermore, the heat-affected zone (HAZ) near welds in hot-formed heads can be particularly vulnerable to corrosion.

  Mitigation Strategies for Hot Forming: To mitigate the risk of material degradation in hot forming, several strategies can be employed:

  However, these mitigation strategies often add to the cost and complexity of the hot forming process. Even with these measures, achieving the same level of material integrity as cold forming can be challenging.

• Controlled Heating: Carefully controlling the heating temperature and duration can minimize oxidation and grain growth.

• Protective Atmospheres: Using inert gases or vacuum furnaces can reduce oxidation.

• Surface Coatings: Applying protective coatings can prevent oxidation and decarburization.

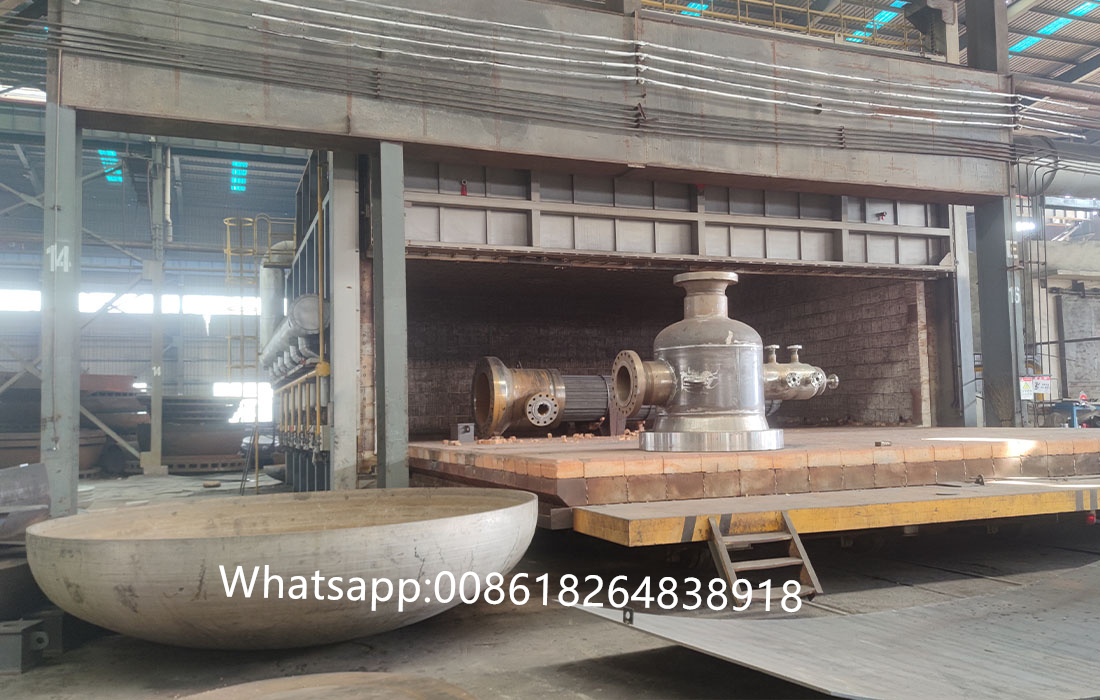

• Post-Forming Heat Treatment: Heat treatment after hot forming can sometimes restore the material's original properties.

• Material Selection: Choosing alloys that are less susceptible to degradation at high temperatures.

• The specific alloy being used: Some alloys are more susceptible to oxidation, decarburization, and grain growth than others.

• The temperature and duration of heating: Higher temperatures and longer heating times increase the risk of degradation.

• The atmosphere surrounding the metal during heating: An oxidizing atmosphere accelerates oxidation.

B. Dimensional Accuracy and Consistency: Achieving Precise Shapes

• Cold Forming: Precision and Repeatability

  Cold forming excels in achieving high dimensional accuracy and consistency due to the absence of thermal expansion and contraction. The process maintains close control over the shape of the head, ensuring that it conforms precisely to the design specifications. The key benefits are:

  The dimensional accuracy and consistency of cold-formed heads are critical in applications where tight tolerances are required, such as in pressure vessels that must meet strict regulatory standards. The ability to produce parts with consistent dimensions also simplifies assembly and reduces the need for rework.

• No Cooling Shrinkage: Unlike hot forming, cold forming does not involve heating the metal, eliminating the problem of cooling shrinkage. Cooling shrinkage occurs when the metal cools down after hot forming, causing it to contract and distort. This contraction can be difficult to predict and control, leading to dimensional inaccuracies.

• Precise Die Control: Cold forming relies on precisely machined dies to shape the metal. These dies are designed to produce parts with very tight tolerances. The absence of thermal expansion ensures that the die's dimensions remain constant throughout the process, resulting in consistent part dimensions.

• Minimal Springback: Springback is the elastic recovery of a metal after it has been bent or formed. While springback can occur in cold forming, it is generally less pronounced than in hot forming. The amount of springback can be accurately predicted and compensated for in the die design.

• Consistent Material Properties: The consistent material properties achieved through cold forming contribute to dimensional accuracy. Variations in material properties can affect the way the metal deforms during forming, leading to inconsistencies in part dimensions.



• Hot Forming: Challenges in Dimensional Control

  Hot forming presents several challenges in achieving high dimensional accuracy and consistency:

  Strategies for Improving Dimensional Control in Hot Forming: To improve dimensional control in hot forming, several strategies can be employed:

  However, these strategies add to the cost and complexity of the hot forming process. Even with these measures, achieving the same level of dimensional accuracy as cold forming can be challenging, especially for complex shapes and tight tolerances.

• Precise Temperature Control: Maintaining precise temperature control throughout the process is crucial for minimizing thermal expansion and contraction.

• Accurate Mold Design: The mold design must accurately account for thermal expansion and contraction. Finite element analysis (FEA) can be used to simulate the hot forming process and predict the amount of thermal distortion.

• Controlled Cooling: Controlling the cooling rate can minimize distortion.

• Die Lubrication: Proper die lubrication can reduce friction and wear, improving dimensional accuracy.

• Post-Forming Machining: Machining after hot forming can be used to achieve the desired dimensions.

• Thermal Expansion of the Mold: The high temperatures used in hot forming cause the mold to expand. This expansion must be carefully accounted for in the mold design to ensure that the final part dimensions are correct. However, predicting the exact amount of thermal expansion can be difficult, especially for complex mold shapes.

• Cooling Shrinkage of the Head: As the hot-formed head cools down, it contracts. This contraction can cause the part to distort and shrink in unpredictable ways. The amount of cooling shrinkage depends on several factors, including the material's coefficient of thermal expansion, the cooling rate, and the part's geometry.

• Die Wear and Degradation: The high temperatures and pressures involved in hot forming can cause the dies to wear and degrade over time. This can lead to changes in the part dimensions and a reduction in consistency.

• Scale Formation: The formation of scale on the surface of the head during hot forming can also affect dimensional accuracy. The scale can interfere with the die closure, preventing the part from being formed to the desired dimensions.

C. Surface Finish: Achieving Desired Aesthetics and Functionality

• Cold Forming: Preserving the Original Surface Smoothness

  Cold forming typically maintains the original surface finish of the metal, resulting in a smooth and aesthetically pleasing appearance. This is because the process does not involve heating, which can cause oxidation and scaling on the surface. The benefits of cold forming in terms of surface finish include:

  The smooth surface finish of cold-formed heads is particularly important in applications where aesthetics are a consideration, such as in architectural components or consumer products. It also contributes to improved corrosion resistance, as a smooth surface is less susceptible to corrosion than a rough surface.

• Minimal Oxidation: The absence of high temperatures minimizes oxidation, preventing the formation of scale on the surface.

• No Scaling: Scaling is a common problem in hot forming, where a layer of oxide forms on the surface of the metal. This scale is often difficult to remove completely and can leave behind a rough and uneven surface. Cold forming eliminates this problem.

• Burnishing Effect: Some cold forming processes, such as cold rolling, can actually improve the surface finish by burnishing the metal. Burnishing is a process that smooths and polishes the surface by rubbing it against a hard, smooth tool.

• Reduced Need for Secondary Finishing Operations: The smooth surface finish achieved through cold forming often reduces the need for secondary finishing operations, such as grinding, polishing, or blasting. This can save time and money.



• Hot Forming: Surface Scaling and Challenges in Achieving Smoothness

  Hot forming typically results in a rough surface finish due to the formation of scale on the surface of the metal. This scale is difficult to remove completely and can compromise the appearance of the head. The challenges associated with surface finish in hot forming include:

  Strategies for Improving Surface Finish in Hot Forming: To improve surface finish in hot forming, several strategies can be employed:

  However, these strategies add to the cost and complexity of the hot forming process. Achieving the same level of surface smoothness as cold forming can be challenging, especially for complex shapes.

• Protective Atmospheres: Using inert gases or vacuum furnaces can reduce oxidation and scale formation.

• Surface Coatings: Applying protective coatings can prevent oxidation.

• Scale Inhibitors: Adding scale inhibitors to the heating furnace can reduce the amount of scale that forms.

• Descaling During Forming: Some hot forming processes incorporate descaling steps during the forming operation.

• Secondary Finishing Operations: Grinding, polishing, or blasting can be used to improve the surface finish after hot forming.

• Mechanical Cleaning: Wire brushing, grinding, or blasting can be used to remove the scale. However, these methods can be time-consuming and may damage the surface of the head.

• Chemical Cleaning: Pickling in an acid solution can be used to dissolve the scale. However, pickling can be hazardous and may require special handling and disposal procedures.

• Significant Scaling: The high temperatures used in hot forming promote oxidation, resulting in the formation of a thick layer of scale on the surface.

• Difficult Scale Removal: The scale is often tightly bonded to the metal surface and can be difficult to remove completely. Common scale removal methods include:

• Compromised Appearance: Even after scale removal, the surface may still be rough and uneven. The scale can leave behind pits and imperfections that detract from the appearance of the head.

• Increased Need for Secondary Finishing Operations: The rough surface finish of hot-formed heads often requires secondary finishing operations, such as grinding, polishing, or blasting, to achieve the desired appearance. This adds to the cost and complexity of the manufacturing process.

III. Summary Table: Cold Forming vs. Hot Forming

IV. Factors Influencing the Choice Between Cold and Hot Forming

The selection of the appropriate forming method for head manufacturing depends on a complex interplay of factors, including:

• Material Properties: The type of metal being used is a primary consideration. Some metals are more amenable to cold forming, while others require hot forming to achieve the desired shape.

• Part Geometry: The complexity of the head's shape influences the choice of forming method. Hot forming is generally better suited for complex shapes with deep draws or tight bends.

• Dimensional Accuracy Requirements: If tight tolerances are required, cold forming is typically the preferred method.

• Surface Finish Specifications: If a smooth surface finish is essential, cold forming offers a significant advantage.

• Production Volume: Cold forming is generally more cost-effective for high-volume production runs, while hot forming may be more economical for lower volumes.

• Equipment Availability: The availability of appropriate equipment for each forming method is a practical consideration.

• Cost: The overall cost of the manufacturing process, including material, tooling, labor, and energy, must be considered.

V. Conclusion

Both cold forming and hot forming offer distinct advantages and disadvantages for head manufacturing. Cold forming excels in preserving material integrity, achieving high dimensional accuracy and consistency, and producing smooth surface finishes. It is particularly well-suited for manufacturing stainless steel heads and other components where corrosion resistance and precision are paramount. However, cold forming is limited in terms of formability and may not be suitable for complex shapes.

Hot forming, on the other hand, offers greater formability and is capable of producing more complex shapes. However, it introduces the potential for material degradation, challenges in dimensional control, and a rough surface finish. While mitigation strategies can be employed to minimize these drawbacks, achieving the same level of quality as cold forming can be challenging.

The optimal choice between cold forming and hot forming depends on a careful evaluation of the specific application requirements, material properties, and cost considerations. A thorough understanding of the advantages and disadvantages of each method is essential for making an informed decision that results in a high-quality and cost-effective manufacturing process. Carefully consider the pros and cons to make the best choice for your manufacturing needs.
