Pressure Vessel Head Manufacturing: A Comprehensive Guide

The pressure vessel head, a critical component of any pressure vessel, directly impacts the vessel's safe and reliable operation through its sealing capability. Designing the manufacturing process for these heads requires careful consideration and adherence to specific guidelines, encompassing the following key areas:

1. Material Selection: The initial step involves choosing the appropriate material for the head. Common choices include carbon steel, stainless steel, and alloy steel, each possessing distinct properties. The selection process must account for the operating environment of the pressure vessel, specifically considering temperature, pressure levels, and the chemical substances the vessel will contain.

2. Dimensional Design: Based on the pressure vessel's design specifications and size requirements, the head's geometry, diameter, and radius must be determined. Heads come in various shapes, such as hemispherical, elliptical, and flat. The chosen shape should consider ease of access for loading and unloading, required strength, and how it integrates with other vessel components.

3. Manufacturing Process Selection: The ideal manufacturing process depends on the chosen head shape and the material's characteristics. Common processes include cold forming (stamping), hot forming, and welding of pre-formed sections. Each process affects the final head's accuracy, surface finish, and overall strength.

4. Manufacturing Process Control: Rigorous quality control is crucial throughout the manufacturing process. This includes inspecting material quality, meticulously controlling dimensions during machining, and carefully managing process parameters. Special attention should be paid to the head's surface finish, ensuring it is free from imperfections such as dents, cracks, or porosity.

5. Non-Destructive Testing (NDT): Once manufactured, the head must undergo NDT to verify the absence of internal flaws like cracks or inclusions. Common NDT methods include ultrasonic testing, eddy current testing, and radiographic testing.

6. Comprehensive Quality Assurance: Stringent quality control measures should be implemented throughout the entire manufacturing process. This includes establishing detailed process flows, creating comprehensive documentation, defining critical inspection points, and setting clear quality standards. This ensures that the finished head meets all relevant industry standards and specifications.

In summary, a robust pressure vessel head manufacturing process design demands careful consideration of material selection, dimensional design, manufacturing process selection, rigorous process control, and thorough quality assurance. Only through a well-designed process and meticulous execution can the quality and safety of the head be guaranteed, ultimately enhancing the lifespan and operational safety of the entire pressure vessel. The pressure vessel sealing head is a key part of the vessel, handling extreme pressure and temperature, sealing the vessel by linking with its body, and keeping it running safely.

Let's expand on each of these areas with much more detail, exceeding 4000 words:

1. Material Selection: A Deep Dive

The selection of the appropriate material for a pressure vessel head is a cornerstone of its structural integrity and operational safety. The material must withstand the complex interplay of stresses, temperatures, and chemical environments within the vessel. A misjudgment in material selection can lead to premature failure, catastrophic accidents, and significant economic losses.

1.1. Common Material Choices:

• Carbon Steel: This is often the most economical choice for pressure vessels operating under moderate temperatures and pressures, where corrosion is not a primary concern. Carbon steel offers good weldability and machinability. However, its susceptibility to corrosion, especially in acidic or oxidizing environments, necessitates protective coatings or alternative materials. Different grades of carbon steel are available, each with varying strength and ductility. For example, SA-516 Grade 70 is a common choice for pressure vessels due to its good strength and weldability.

• Stainless Steel: Stainless steels offer superior corrosion resistance compared to carbon steels, making them suitable for vessels handling corrosive fluids or operating in corrosive environments. The corrosion resistance is due to the formation of a passive chromium oxide layer on the surface. Different types of stainless steel exist, each with its own unique composition and properties. Austenitic stainless steels (e.g., 304, 316) are commonly used in pressure vessels due to their excellent corrosion resistance, weldability, and formability. Ferritic and martensitic stainless steels offer higher strength but may have lower corrosion resistance and weldability.

• Alloy Steel: Alloy steels are carbon steels to which other elements, such as nickel, chromium, molybdenum, vanadium, and manganese, have been added to enhance specific properties like strength, toughness, hardenability, and creep resistance. These steels are often used in high-pressure, high-temperature applications. Chromium-molybdenum steels (e.g., 2.25Cr-1Mo steel) are commonly used in the petrochemical industry for vessels handling hydrogen and other high-temperature fluids.

• Other Materials: In specialized applications, other materials like aluminum, titanium, nickel alloys (e.g., Inconel, Hastelloy), and even composites may be used for pressure vessel heads. These materials are chosen for their exceptional corrosion resistance, high strength-to-weight ratio, or other unique properties. Nickel alloys, for instance, are often used in extremely corrosive environments where stainless steels are inadequate.

1.2. Factors Influencing Material Selection:

• Operating Temperature: Temperature significantly affects the strength and creep resistance of materials. At elevated temperatures, materials can experience creep, a slow deformation under sustained stress. The chosen material must maintain adequate strength and creep resistance at the maximum operating temperature. The ductile-to-brittle transition temperature (DBTT) is also crucial. Below this temperature, the material becomes brittle and prone to fracture.

• Operating Pressure: The material must possess sufficient tensile and yield strength to withstand the internal pressure without exceeding allowable stress limits. The thickness of the head is directly related to the operating pressure and the material's strength. Higher pressures necessitate stronger materials or thicker sections.

• Chemical Environment: The compatibility of the material with the fluids contained within the vessel is paramount. Corrosion can significantly weaken the material and lead to premature failure. Factors like pH, chloride concentration, and the presence of specific chemicals must be considered. Material selection charts and corrosion data are invaluable resources in this process.

• Code Requirements: Pressure vessel design and fabrication are governed by strict codes and standards, such as the ASME Boiler and Pressure Vessel Code (Section VIII, Division 1 & 2). These codes specify allowable stress values, material requirements, and fabrication procedures. Compliance with these codes is mandatory for ensuring the safety and reliability of the pressure vessel.

• Fabrication Considerations: The ease of fabrication, including welding, forming, and machining, is an important consideration. Some materials are more difficult to weld than others, requiring specialized techniques and qualified welders. The chosen material should be readily available and cost-effective to fabricate.

• Cost: While not the primary factor, cost is always a consideration. Balancing performance requirements with cost is essential. Sometimes, a slightly more expensive material that offers significantly improved performance and longevity can be the most cost-effective solution in the long run.

1.3. Material Testing and Certification:

All materials used in pressure vessel construction must be properly tested and certified to ensure they meet the required specifications. This includes:

• Tensile Testing: Determines the material's tensile strength, yield strength, and elongation.

• Impact Testing: Measures the material's resistance to brittle fracture, particularly at low temperatures.

• Chemical Analysis: Verifies the material's chemical composition to ensure it conforms to the specified grade.

• Non-Destructive Testing: Includes methods like ultrasonic testing and radiographic testing to detect internal flaws.

Material certifications, such as Mill Test Reports (MTRs), provide documentation of these tests and ensure traceability of the material.

2. Dimensional Design: Shaping the Head for Performance

The dimensional design of the pressure vessel head is crucial for its structural integrity, efficiency, and ease of operation. The geometry, diameter, radius, and thickness of the head must be carefully calculated to withstand the internal pressure and external loads.

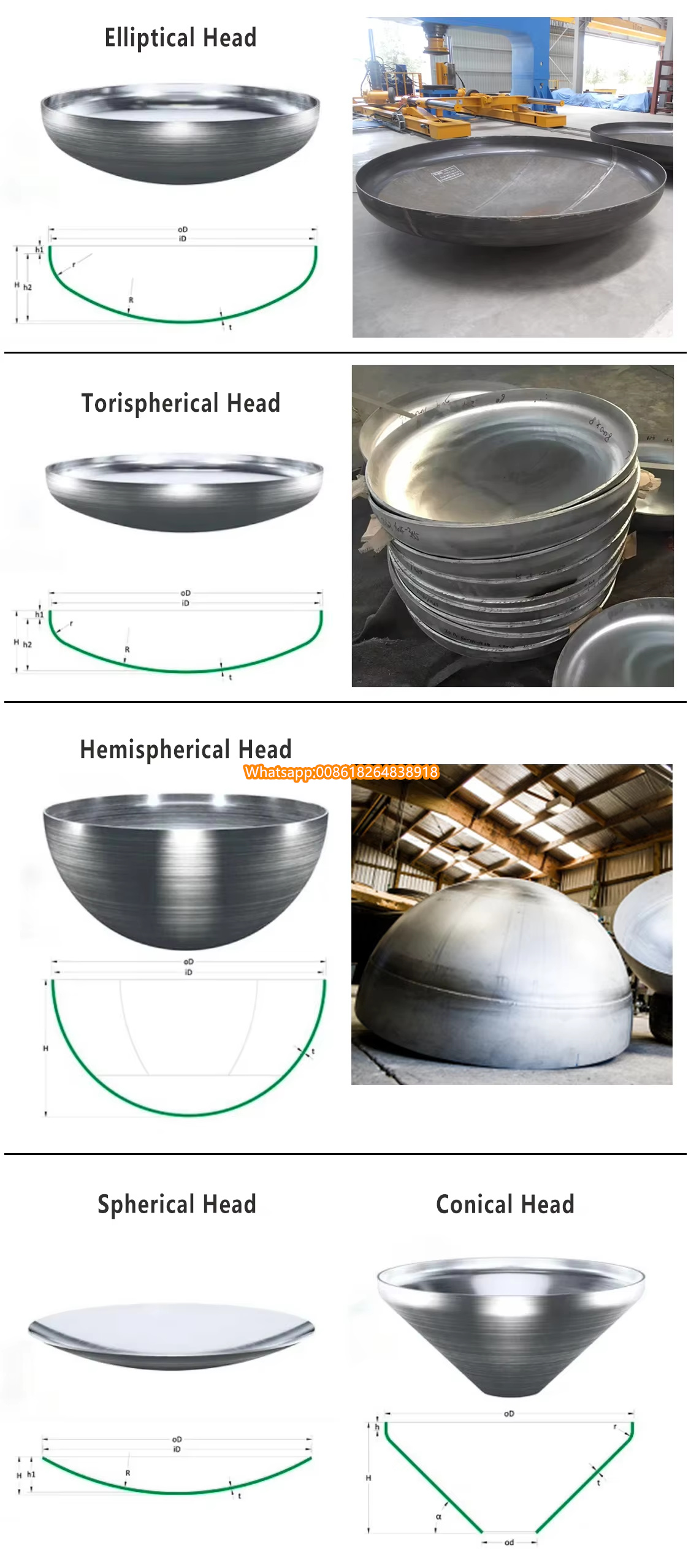

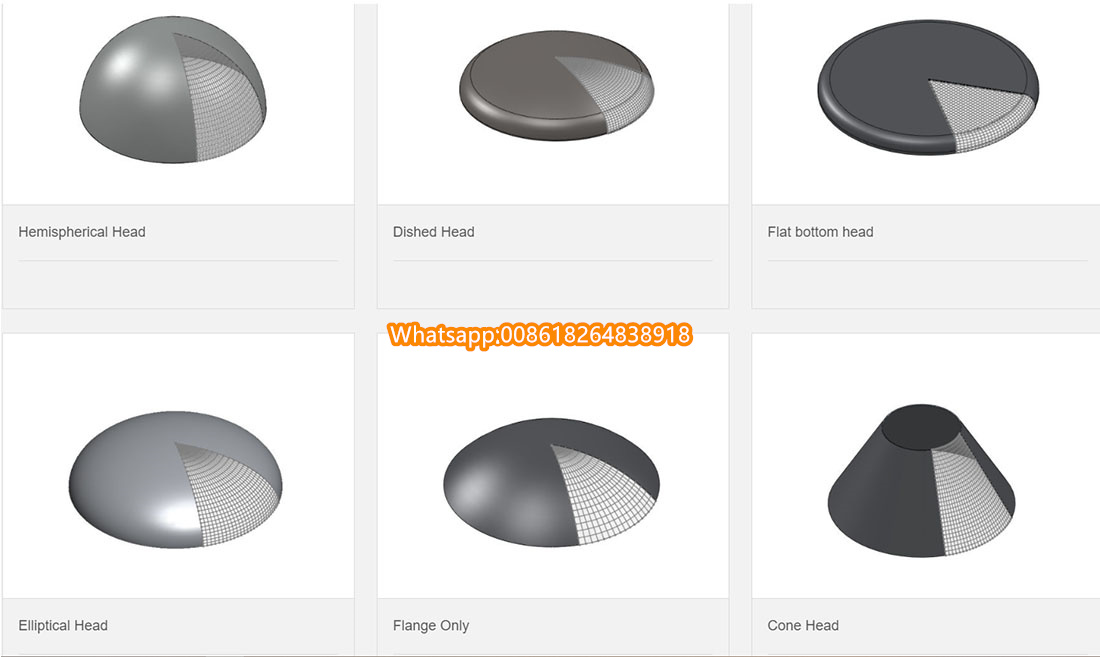

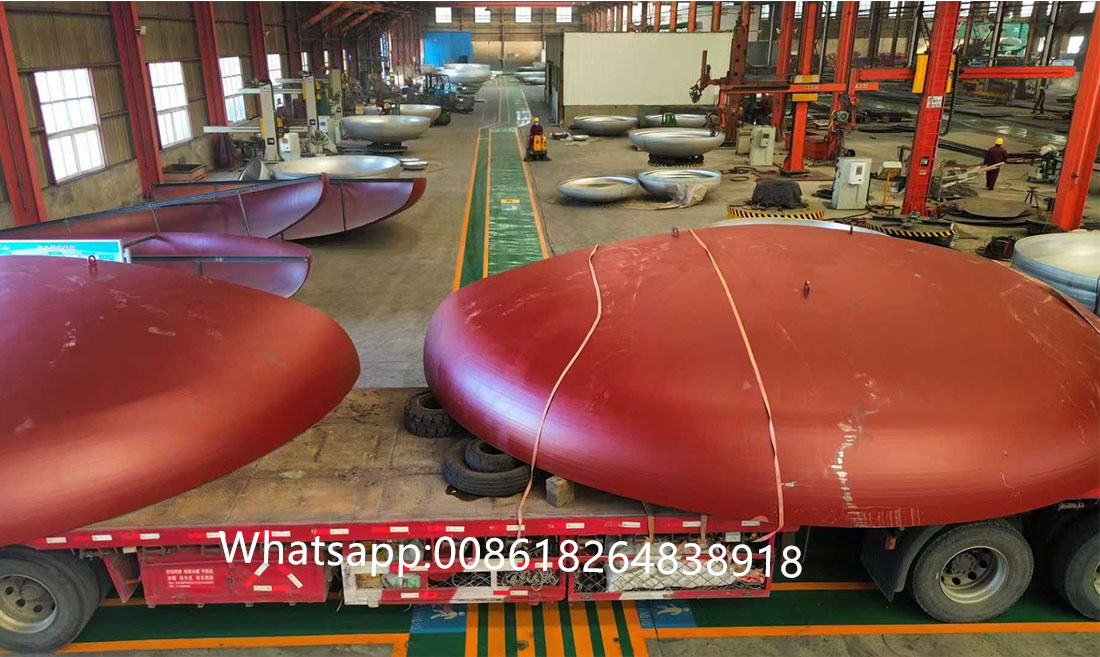

2.1. Common Head Shapes:

• Hemispherical Heads: These are the strongest and most efficient head shapes, requiring the least amount of material for a given pressure. The stress is evenly distributed throughout the head. However, they are also the most expensive to fabricate due to their complex geometry.

• Ellipsoidal Heads: These heads offer a good balance between strength and cost. They are less expensive to fabricate than hemispherical heads but are not as strong. The most common ellipsoidal head is the 2:1 ellipsoidal head, where the major axis is twice the minor axis.

• Torispherical Heads: These heads consist of a spherical dish and a knuckle radius. They are easier to fabricate than ellipsoidal heads but are also less strong. The knuckle radius helps to reduce stress concentrations at the junction between the dish and the shell.

• Flat Heads: These are the simplest and least expensive heads to fabricate. However, they are also the weakest and require the thickest material. Flat heads are typically used for low-pressure applications.

• Conical Heads: These heads are used to transition between different diameters of the pressure vessel. They are typically used in conjunction with a cylindrical shell.

2.2. Design Parameters:

• Internal Pressure: The maximum internal pressure the vessel will experience during operation is a primary design parameter.

• External Pressure: If the vessel is subjected to external pressure (e.g., vacuum conditions), this must also be considered in the design.

• Temperature: The operating temperature affects the material's strength and creep resistance.

• Diameter: The diameter of the vessel shell determines the required diameter of the head.

• Thickness: The thickness of the head is calculated based on the internal pressure, material strength, and the chosen head shape.

• Corrosion Allowance: An additional thickness is added to account for potential corrosion during the vessel's service life.

• Design Code: The relevant design code (e.g., ASME Boiler and Pressure Vessel Code) dictates the allowable stress values and design equations.

2.3. Design Equations:

The ASME Boiler and Pressure Vessel Code provides detailed equations for calculating the required thickness of different head shapes. These equations take into account the internal pressure, material strength, diameter, and other relevant parameters. For example, the equation for calculating the thickness of a hemispherical head is:

t = (P * D) / (2 * S * E - 0.2 * P)

Where:

• t = Required thickness

• P = Internal pressure

• D = Inside diameter

• S = Allowable stress

• E = Joint efficiency

Similar equations exist for other head shapes. It's crucial to use the correct equation for the chosen head shape and to ensure that all parameters are accurately determined.

2.4. Finite Element Analysis (FEA):

For complex head shapes or unusual loading conditions, Finite Element Analysis (FEA) can be used to perform a more detailed stress analysis. FEA involves creating a computer model of the head and simulating the stresses and strains under various loading conditions. This allows engineers to identify potential stress concentrations and optimize the design to ensure structural integrity.

2.5. Considerations for Loading and Unloading:

The shape of the head can also affect the ease of loading and unloading the vessel. For example, a hemispherical head may provide better access than a flat head.

2.6. Connection with Other Parts:

The head must be designed to connect seamlessly with the vessel shell. This typically involves welding the head to the shell. The design of the weld joint is critical for ensuring a strong and leak-tight connection.

3. Manufacturing Process Selection: Shaping the Head with Precision

The manufacturing process selection plays a vital role in determining the final quality, accuracy, and strength of the pressure vessel head. The chosen process depends on several factors, including the head shape, material characteristics, production volume, and available equipment.

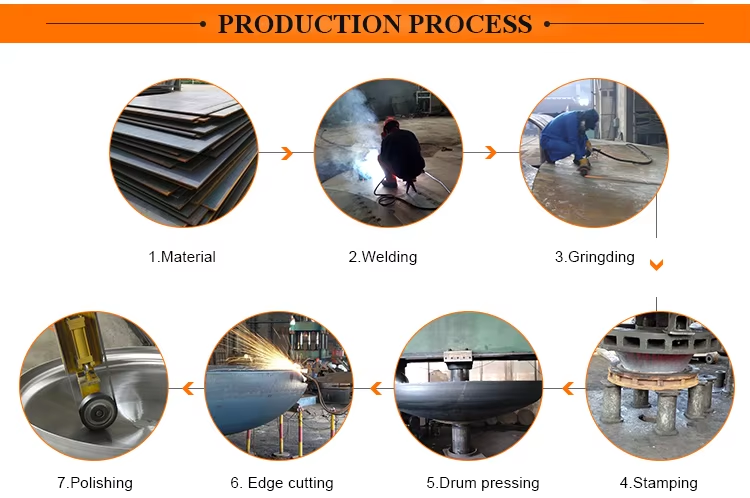

3.1. Common Manufacturing Processes:

• Cold Forming (Stamping): This process involves shaping the head by pressing a flat sheet of metal between dies at room temperature. Cold forming is suitable for producing heads with relatively simple shapes and high production volumes. It offers good dimensional accuracy and surface finish.

• Hot Forming: This process involves heating the metal sheet to a high temperature before forming it between dies. Hot forming is used for producing heads with complex shapes and thicker materials. The elevated temperature reduces the material's resistance to deformation.

• Spinning: This process involves rotating a metal disk while applying pressure with a forming tool. Spinning is suitable for producing heads with axisymmetric shapes, such as hemispherical and ellipsoidal heads.

• Pressing: This process involves using a hydraulic press to form the head between dies. Pressing is used for producing heads with a variety of shapes and sizes.

• Welding of Pre-Formed Sections: This process involves welding together multiple pre-formed sections to create the final head shape. This method is often used for producing large-diameter heads or heads with complex geometries. The sections can be formed using any of the processes described above.

• Hydroforming: This process uses pressurized fluid to form the head. It is known for creating complex shapes with high precision and minimal thinning of the material.

3.2. Factors Influencing Process Selection:

• Head Shape: The shape of the head is a primary factor in determining the appropriate manufacturing process. Complex shapes may require hot forming or welding of pre-formed sections.

• Material Characteristics: The material's ductility, strength, and workability influence the choice of process. Some materials are more easily cold-formed than others.

• Production Volume: For high production volumes, cold forming or spinning may be the most cost-effective option. For low production volumes, welding of pre-formed sections may be more suitable.

• Equipment Availability: The availability of specific equipment, such as hydraulic presses, spinning machines, or welding equipment, can limit the choice of process.

• Cost: The cost of each process is an important consideration. Cold forming is typically less expensive than hot forming.

• Dimensional Accuracy: Each process offers different levels of dimensional accuracy. Cold forming and spinning typically provide the highest accuracy.

• Surface Finish: The surface finish of the head is affected by the manufacturing process. Cold forming and spinning typically provide a smoother surface finish than hot forming.

• Material Thickness: Each process has limitations on the material thickness that can be formed.

3.3. Detailed Process Descriptions:

• Cold Forming (Stamping): In this process, a flat sheet of metal is placed between two dies, and a press is used to force the dies together, shaping the metal into the desired head form. The dies are precisely machined to the required dimensions. Cold forming is ideal for producing heads in large quantities with good dimensional accuracy. However, it is limited to relatively simple shapes and thinner materials.

• Advantages: High production rate, good dimensional accuracy, good surface finish, lower cost compared to hot forming.

• Disadvantages: Limited to simple shapes, limited to thinner materials, requires high tooling costs.

• Hot Forming: In this process, the metal sheet is heated to a high temperature (typically above the recrystallization temperature) before being formed between dies. The elevated temperature reduces the material's yield strength, making it easier to deform. Hot forming is used for producing heads with complex shapes, thicker materials, or materials that are difficult to cold form.

• Advantages: Can form complex shapes, can form thicker materials, suitable for materials that are difficult to cold form.

• Disadvantages: Lower production rate, lower dimensional accuracy compared to cold forming, higher cost compared to cold forming, requires heating equipment.

• Spinning: In this process, a metal disk is rotated at high speed while a forming tool is applied to the surface. The forming tool gradually shapes the metal into the desired head form. Spinning is suitable for producing heads with axisymmetric shapes, such as hemispherical and ellipsoidal heads.

• Advantages: Suitable for producing axisymmetric shapes, can produce heads with varying thicknesses, relatively low tooling costs.

• Disadvantages: Lower production rate compared to cold forming, requires skilled operators.

• Welding of Pre-Formed Sections: In this process, the head is fabricated by welding together multiple pre-formed sections. The sections can be formed using any of the processes described above. This method is often used for producing large-diameter heads or heads with complex geometries.

• Advantages: Can produce large-diameter heads, can produce heads with complex geometries, can use different materials for different sections.

• Disadvantages: Requires welding, requires careful alignment and fitting of sections, requires non-destructive testing of welds.

4. Manufacturing Process Control: Ensuring Quality at Every Stage

Effective manufacturing process control is paramount for ensuring the quality, consistency, and reliability of pressure vessel heads. This involves implementing rigorous procedures and monitoring key parameters throughout the entire manufacturing process, from material receipt to final inspection.

4.1. Key Elements of Process Control:

• Material Verification: Ensure that the materials received meet the specified requirements. This includes verifying material grade, dimensions, and certifications.

• Process Parameter Control: Monitor and control key process parameters, such as temperature, pressure, forming speed, and welding parameters.

• Dimensional Control: Verify that the dimensions of the head conform to the design specifications. This includes checking diameter, radius, thickness, and other critical dimensions.

• Surface Finish Control: Inspect the surface finish of the head to ensure that it is free from defects, such as scratches, dents, or porosity.

• Welding Control (if applicable): Implement strict controls over the welding process, including welder qualification, welding procedures, and inspection of welds.

• Heat Treatment Control (if applicable): If heat treatment is required, carefully control the temperature and duration of the heat treatment process.

• Documentation: Maintain detailed records of all manufacturing processes, inspections, and tests.

4.2. Specific Control Measures:

• Material Quality Inspection: Upon receipt of materials, perform visual inspections to check for surface defects, such as rust, scratches, or dents. Verify the material's identity by checking the markings and comparing them to the material certifications. Perform dimensional measurements to ensure that the materials meet the specified dimensions.

• Size Processing: During size processing, use calibrated measuring instruments to accurately measure the dimensions of the head. Monitor and control the cutting parameters, such as cutting speed and feed rate, to ensure that the cut edges are smooth and free from burrs. Use appropriate lubrication to minimize friction and heat buildup.

• Process Parameter Control: For forming processes, carefully control the forming pressure, temperature, and speed. Use calibrated sensors to monitor these parameters and make adjustments as needed. For welding processes, use qualified welders and approved welding procedures. Monitor the welding parameters, such as current, voltage, and travel speed, and verify that they are within the specified ranges.

• Surface Quality Control: Inspect the surface of the head for defects, such as scratches, dents, porosity, and weld spatter. Use appropriate cleaning methods to remove any contaminants from the surface. Use non-destructive testing methods, such as visual inspection, liquid penetrant testing, or magnetic particle testing, to detect surface cracks.

4.3. Statistical Process Control (SPC):

SPC can be used to monitor and control manufacturing processes. SPC involves collecting data on key process parameters and using statistical techniques to identify and correct process variations. Control charts are a common tool used in SPC. Control charts plot process data over time and identify trends or patterns that indicate a process is out of control.

4.4. Calibration and Maintenance:

All measuring instruments and equipment used in the manufacturing process must be properly calibrated and maintained. This ensures that the measurements are accurate and reliable. Regular calibration schedules should be established and followed.

5. Non-Destructive Testing (NDT): Unveiling Hidden Flaws

Non-Destructive Testing (NDT) is a critical component of pressure vessel head manufacturing, used to detect internal and surface flaws without damaging the component. This ensures the structural integrity and safety of the head before it is put into service.

5.1. Common NDT Methods:

• Ultrasonic Testing (UT): UT uses high-frequency sound waves to detect internal flaws, such as cracks, inclusions, and porosity. The sound waves are transmitted into the head, and the reflected waves are analyzed to identify any discontinuities.

• Radiographic Testing (RT): RT uses X-rays or gamma rays to create an image of the head's internal structure. Flaws appear as dark or light areas on the radiograph.

• Liquid Penetrant Testing (PT): PT is used to detect surface cracks and other surface defects. A liquid penetrant is applied to the surface of the head, and then a developer is applied to draw the penetrant out of any cracks. The cracks are then visible as colored lines on the surface.

• Magnetic Particle Testing (MT): MT is used to detect surface and near-surface cracks in ferromagnetic materials. A magnetic field is applied to the head, and then magnetic particles are sprinkled on the surface. The particles will accumulate at any cracks or discontinuities.

• Eddy Current Testing (ET): ET uses electromagnetic induction to detect surface and near-surface flaws. An alternating current is passed through a coil, which generates an electromagnetic field. The field interacts with the head, and any flaws will alter the flow of current.

5.2. NDT Acceptance Criteria:

The acceptance criteria for NDT are based on the relevant design code and the severity of the potential flaws. The ASME Boiler and Pressure Vessel Code specifies acceptance criteria for different NDT methods and different types of flaws.

5.3. NDT Procedures:

NDT should be performed by qualified personnel using written procedures. The procedures should specify the NDT method, equipment, calibration, scanning techniques, and acceptance criteria.

5.4. Documentation:

Detailed records of all NDT results should be maintained. The records should include the NDT method, equipment used, date of inspection, results, and the name of the inspector.

6. Comprehensive Quality Assurance: Building Trust and Reliability

Comprehensive quality assurance is an overarching system that encompasses all aspects of the manufacturing process, from design and material selection to fabrication, inspection, and testing. It is a proactive approach to preventing defects and ensuring that the final product meets the required standards and specifications.

6.1. Key Elements of Quality Assurance:

• Quality Management System (QMS): A well-defined QMS, such as ISO 9001, provides a framework for managing quality throughout the organization.

• Process Flow: A detailed process flow should be established for each manufacturing process. The process flow should identify all key steps, inputs, outputs, and control points.

• Process Documents: Comprehensive process documents should be created for each manufacturing process. The documents should include detailed instructions, drawings, specifications, and acceptance criteria.

• Inspection Points: Critical inspection points should be identified throughout the manufacturing process. At these inspection points, the head should be inspected to ensure that it meets the required standards and specifications.

• Quality Standards: Clear quality standards should be established for each manufacturing process. The standards should specify the acceptance criteria for each inspection point.

• Training: All personnel involved in the manufacturing process should be properly trained and qualified. Training should cover all aspects of the process, including safety, quality, and technical requirements.

• Auditing: Regular audits should be conducted to verify that the QMS is being effectively implemented. Audits should cover all aspects of the manufacturing process, including design, material selection, fabrication, inspection, and testing.

• Corrective Action: A system should be in place to address any defects or non-conformances that are identified. The system should include procedures for investigating the root cause of the problem and implementing corrective actions to prevent recurrence.

6.2. Continuous Improvement:

Quality assurance is not a one-time effort, but rather a continuous process of improvement. Data should be collected and analyzed to identify opportunities for improvement. Changes should be implemented to improve the efficiency, quality, and safety of the manufacturing process.

Conclusion: The Art and Science of Pressure Vessel Head Manufacturing

The manufacturing process design for pressure vessel heads is a complex and demanding undertaking that requires a thorough understanding of materials, manufacturing processes, design codes, and quality assurance principles. By carefully considering all of these factors and implementing a robust quality management system, manufacturers can ensure the safety and reliability of their products and contribute to the safe operation of pressure vessels worldwide. The dedication to precision, quality, and continuous improvement is not just an engineering pursuit, it's a commitment to safety and operational excellence.
