This article delves into the critical world of pressure vessel heads, specifically focusing on ellipsoidal and torispherical designs. Understanding the nuances of these head types is crucial for engineers and designers involved in creating safe and efficient pressure vessels. We will explore the characteristics, advantages, and disadvantages of each type, providing a comprehensive comparison to help you make informed decisions for your specific application. Why is this article worth reading? Because it cuts through the complexity, providing clear, concise explanations and practical insights that are essential for anyone working with pressure vessels. Whether you're a seasoned professional or new to the field, this guide will equip you with the knowledge to select the optimal head type for your needs, ensuring the integrity and performance of your pressure vessel.
Pressure vessels are closed containers designed to hold liquids, gases, or vapors at pressures substantially different from ambient pressure. The end of a pressure vessel is closed by structures called heads. These are integral components, forming the top of the vessel and bottom, sealing the vessel and allowing it to safely contain pressure in various industrial applications. The integrity of these heads is paramount for the overall safety and efficiency of the pressure vessel. A failure in the head can lead to catastrophic consequences, including explosions and release of hazardous materials. Therefore, careful consideration must be given to head design and material selection.
The primary function of a pressure vessel head is to effectively contain internal pressure while withstanding external loads and environmental factors. Different type of pressure vessel head are available, each with unique characteristics that make them suitable for specific applications. Factors such as pressure rating, operating temperature, and material compatibility all play a crucial role in determining the appropriate head type for a given vessel. The selection of the correct head type is not just about meeting regulatory requirements; it's about ensuring the long-term reliability and safety of the entire system.

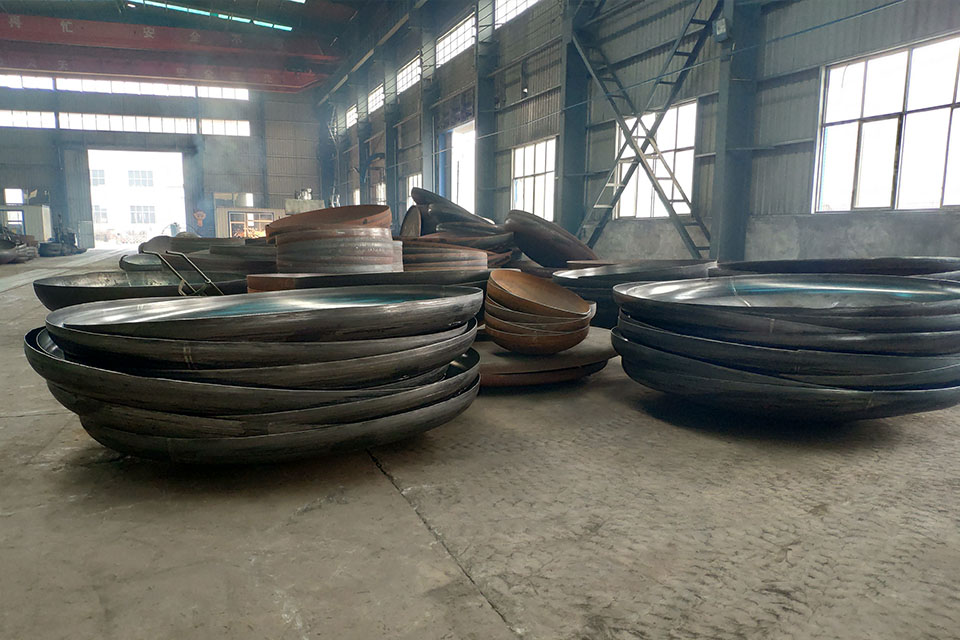

An ellipsoidal head, also known as an elliptical head, is a pressure vessel head shaped like a partial ellipsoid. This type of head is characterized by its smooth, curved surface, which allows it to efficiently distribute stress under pressure. Ellipsoidal heads are commonly used in applications where moderate pressure are involved. Because the elliptical shape helps distribute stress across the surface, reducing stress concentrations compared to other head designs.
One of the key advantages of an ellipsoidal head is its ability to provide a good balance between cost and performance. Compared to hemispherical heads, ellipsoidal heads require less material for a given pressure rating, making the head is more economical. This can result in significant cost savings, particularly for large-scale projects. Furthermore, ellipsoidal heads offer a relatively compact design, minimizing the overall height of the head. This is particularly beneficial in applications where space is limited. In summary, ellipsoidal heads are widely used due to their cost-effectiveness, efficient stress distribution, and compact design.

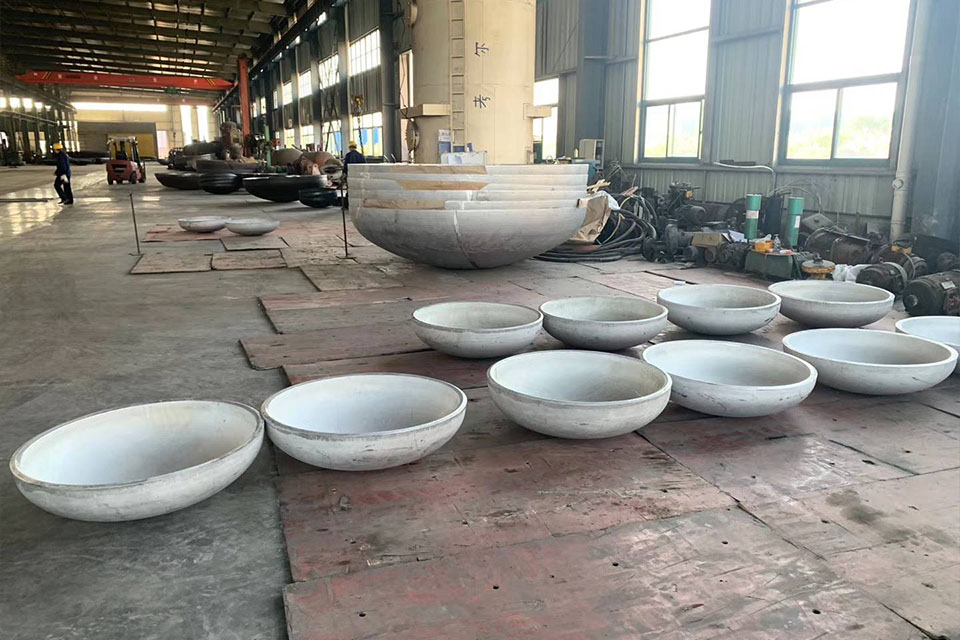

A torispherical head is another common type of pressure vessel head, characterized by a central spherical dish and a toroidal knuckle connecting the dish to the cylindrical shell. If you want to picture torispherical head in your mind, you can imagine spherical dish connected to a knuckle. The knuckle is the curved portion that joins the dish to the vessel wall. This design provides a good compromise between the high strength of a spherical head and the lower cost of a flat head.
The key difference between ellipsoidal and torispherical heads lies in their geometry. While ellipsoidal heads have a continuously curved surface, torispherical heads have a distinct transition between the spherical dish and the cylindrical shell. This knuckle is designed to reduce stress concentrations at the junction. Torispherical heads are generally more economical than ellipsoidal heads for certain applications, particularly when the required thickness is not a primary concern. However, they may not distribute stress as evenly as ellipsoidal heads, especially at the knuckle region. This makes them better suited for lower-pressure applications compared to the ellipsoidal counterpart. Understanding the differences between ellipsoidal and torispherical is essential for making informed design choices.

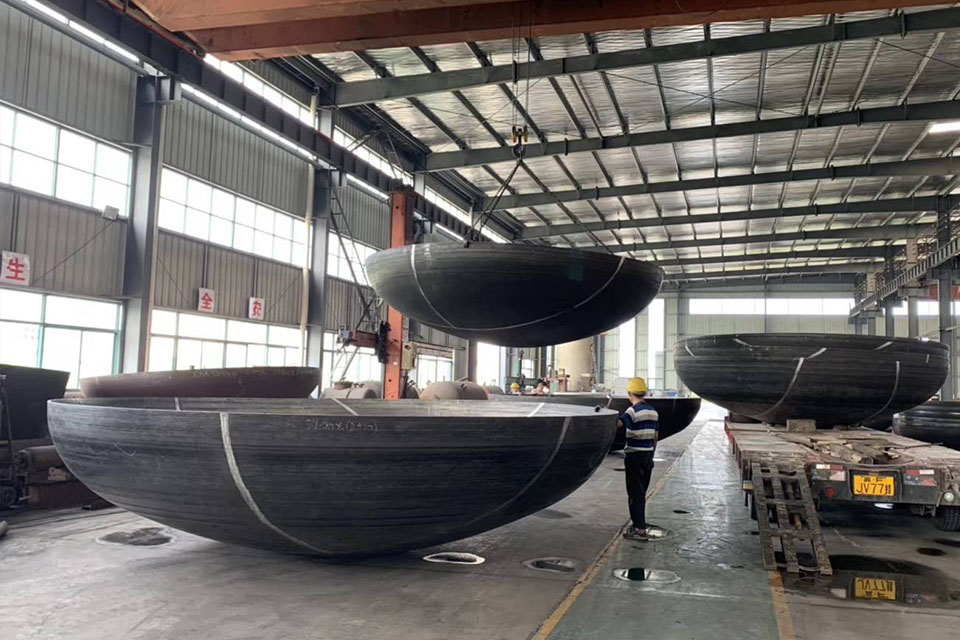

Hemispherical heads, shaped like half of a sphere, are known for their superior strength and ability to efficiently distribute stress. These heads are ideal for high-pressure applications because their spherical shape minimizes stress concentrations. The reason hemi heads perform better is the way it contains the internal pressure.
However, hemispherical heads are generally more expensive to manufacture due to the increased material required and more complex fabrication processes. Compared to ellipsoidal and torispherical heads, a hemispherical head requires more material for the same vessel diameter and pressure rating, driving up costs. Although they provide excellent strength, hemi heads are often reserved for extreme pressure conditions where the added expense is justified. Ellipsoidal and torispherical heads offer a more cost-effective solution for applications with moderate to high pressure, providing a balance between performance and economy. Moreover, cylinder and hemi head combination is more common in high-pressure applications.
The table below summarizes the key differences between hemispherical, ellipsoidal, and torispherical heads:
| Feature | Hemispherical Head | Ellipsoidal Head | Torispherical Head |
|---|---|---|---|
| Shape | Half-sphere | Partial Ellipsoid | Spherical dish with toroidal knuckle |
| Pressure Rating | High | Moderate to High | Moderate |
| Stress Distribution | Excellent | Good | Fair |
| Cost | High | Moderate | Low to Moderate |
| Material Usage | High | Moderate | Low |
Flat heads are, as the name suggests, flat plates used to close the end of a pressure vessel. Unlike rounded heads, flat head doesn’t naturally distribute stress effectively, making them suitable only for low-pressure applications or specialized designs. Because flat heads are relatively simple and inexpensive to manufacture, they are often used in applications where cost is a primary concern and pressure requirements are minimal.
However, flat heads require substantial reinforcement to withstand even moderate pressures. The absence of curvature means that the entire load is concentrated at the point where the head is attached to the vessel shell. This necessitates the use of thick plates and/or extensive bracing to prevent deformation or failure. Due to the need for significant reinforcement, flat heads can become quite heavy and bulky, offsetting any initial cost savings.
Furthermore, flat heads are prone to stress concentrations at the corners and edges, making them susceptible to fatigue failure over time. For these reasons, flat heads are generally avoided in high-pressure applications or where cyclic loading is expected. Formulas for flat heads result in heads that are suitable for specific, low-pressure conditions. In conclusion, while flat heads may be a cost-effective option for certain low-pressure applications, their limitations must be carefully considered to ensure the safety and integrity of the pressure vessel.
When it comes to stress distribution, ellipsoidal heads generally outperform torispherical heads. The smooth, continuous curvature of an ellipsoidal head allows for a more even distribution of stress across the surface, minimizing stress concentrations. This is particularly important in applications where the pressure vessel is subjected to high pressures or cyclic loading.
In contrast, torispherical heads have a distinct transition between the spherical dish and the cylindrical shell, creating a knuckle region where stress concentrations can occur. While the knuckle is designed to reduce stress concentrations, it is still a potential weak point compared to the uniform curvature of an ellipsoidal head. Therefore, under similar pressure conditions, an ellipsoidal head tends to exhibit lower stress levels than a torispherical head.
However, it's important to note that the specific stress distribution pattern will depend on various factors, including the geometry of the head, the material properties, and the applied loading conditions. Finite element analysis (FEA) can be used to accurately predict the stress distribution in both ellipsoidal and torispherical heads, allowing engineers to optimize the design for specific applications. Ellipsoidal heads distribute stress better because of its ellipsoidal geometry.
The ASME Boiler and Pressure Vessel Code (BPVC) provides comprehensive standards for the design, fabrication, and inspection of pressure vessels, including pressure vessel heads. These standards are designed to ensure the safety and reliability of pressure vessels in various industries. Section VIII, Division 1 of the ASME BPVC covers the requirements for the design and fabrication of pressure vessels operating at internal or external pressure.
ASME standards specify minimum thickness requirements for ellipsoidal, torispherical, and other type of heads, based on factors such as the design pressure, material properties, and head geometry. The code also provides guidelines for the design of openings and attachments in pressure vessel heads, as well as requirements for welding, non-destructive examination, and pressure testing.
Compliance with ASME standards is often a legal requirement for pressure vessels used in many jurisdictions. In addition to ensuring safety, ASME certification demonstrates that a pressure vessel has been designed and manufactured to a recognized industry standard, enhancing its marketability and acceptance. The ASME code rules are more focused for safe operations.
Head depth, defined as the distance from the tangent line of the shell to the deepest point of the head, significantly impacts the performance of both ellipsoidal and torispherical heads. For ellipsoidal heads, a deeper head (i.e., a larger major-to-minor axis ratio) generally results in a more uniform stress distribution and a higher pressure rating. However, deeper heads also require more material, increasing the cost and weight of the vessel.
For torispherical heads, the head depth is determined by the knuckle radius and the dish radius. A larger knuckle radius can reduce stress concentrations at the transition between the dish and the shell, but it also increases the overall head depth. A larger dish radius, on the other hand, can decrease the head depth but may also increase stress levels in the dish region.
Optimizing the head depth is crucial for achieving the desired balance between performance, cost, and weight. Finite element analysis can be used to evaluate the impact of head depth on stress distribution and pressure rating, allowing engineers to fine-tune the design for specific applications. Typically, the required thicknesses depends on the head depth.
Yes, you can calculate nozzles in flanged and dished head (F&D) which includes both ellipsoidal and torispherical heads. The design and calculation of nozzles in F&D heads must comply with the requirements of the ASME Boiler and Pressure Vessel Code, Section VIII, Division 1. The code provides detailed rules for determining the required reinforcement around openings in pressure vessel heads.
The calculation of nozzles in F&D heads involves several factors, including the size and location of the opening, the design pressure, the material properties, and the geometry of the head. The code specifies minimum reinforcement requirements based on these factors, ensuring that the head is adequately strengthened to compensate for the reduction in material caused by the opening.
In addition to the ASME code, finite element analysis can be used to verify the adequacy of nozzle designs in F&D heads. FEA allows engineers to accurately predict the stress distribution around the nozzle, ensuring that stress concentrations are within acceptable limits. It's important to note that the design and calculation of nozzles in F&D heads can be complex, and it's essential to consult with experienced engineers and to follow the applicable codes and standards to ensure the safety and integrity of the pressure vessel. F&D heads are known to require careful design to accommodate nozzles.
Choosing the right head type between ellipsoidal or torispherical requires careful consideration of several factors, including:
Pressure Rating: The design pressure of the vessel is a primary consideration. Ellipsoidal heads are generally preferred for higher-pressure applications due to their superior stress distribution characteristics.
Cost: Torispherical heads are often more economical than ellipsoidal heads, particularly for larger vessels or lower-pressure applications.
Space Constraints: Ellipsoidal heads offer a more compact design, minimizing the overall height of the vessel.
Material Availability: The availability and cost of materials can influence the choice of head type.
Fabrication Complexity: Torispherical heads are typically easier to fabricate than ellipsoidal heads, reducing manufacturing costs.
Code Requirements: Compliance with applicable codes and standards, such as the ASME BPVC, is essential.
Nozzle Requirements: The size, location, and number of nozzles can impact the stress distribution in the head, influencing the choice of head type.
Operating Conditions: Factors such as temperature, corrosion, and cyclic loading can affect the long-term performance of the head.
Weight Considerations: In applications where weight is a critical factor, the weight difference between ellipsoidal and torispherical heads may be significant.
Finite Element Analysis: FEA can be used to evaluate the performance of different head types under specific loading conditions, providing valuable insights for the selection process.
Ellipsoidal heads offer superior stress distribution, ideal for higher-pressure applications.
Torispherical heads are generally more cost-effective for moderate-pressure scenarios.
Hemispherical heads excel in high-pressure environments but come with a higher cost.
Flat heads are only suitable for low-pressure applications and require significant reinforcement.
ASME standards dictate design, fabrication, and inspection requirements for pressure vessel heads.
Head depth significantly impacts the performance of both ellipsoidal and torispherical heads.
Nozzles in flanged and dished heads require careful calculation to ensure structural integrity.
Choosing the right head involves balancing pressure rating, cost, space constraints, and other factors.
Finite element analysis (FEA) is a valuable tool for optimizing head design and verifying performance.
Understanding the differences between ellipsoidal and torispherical dished ends is essential for safe and efficient pressure vessel design.
