In-Depth Exploration of Elliptical Heads: Design, Applications, Manufacturing Challenges, and Solutions

In-Depth Exploration of Elliptical Heads: Design, Applications, Manufacturing Challenges, and Solutions

This comprehensive analysis delves into the intricacies of elliptical heads, a crucial component in numerous industrial applications, particularly within high-pressure containment systems. We will explore their geometry, classifications, manufacturing processes, common defects, and the corrective measures employed to ensure their structural integrity and optimal performance.

I. Defining the Elliptical Head: Geometry and Classification

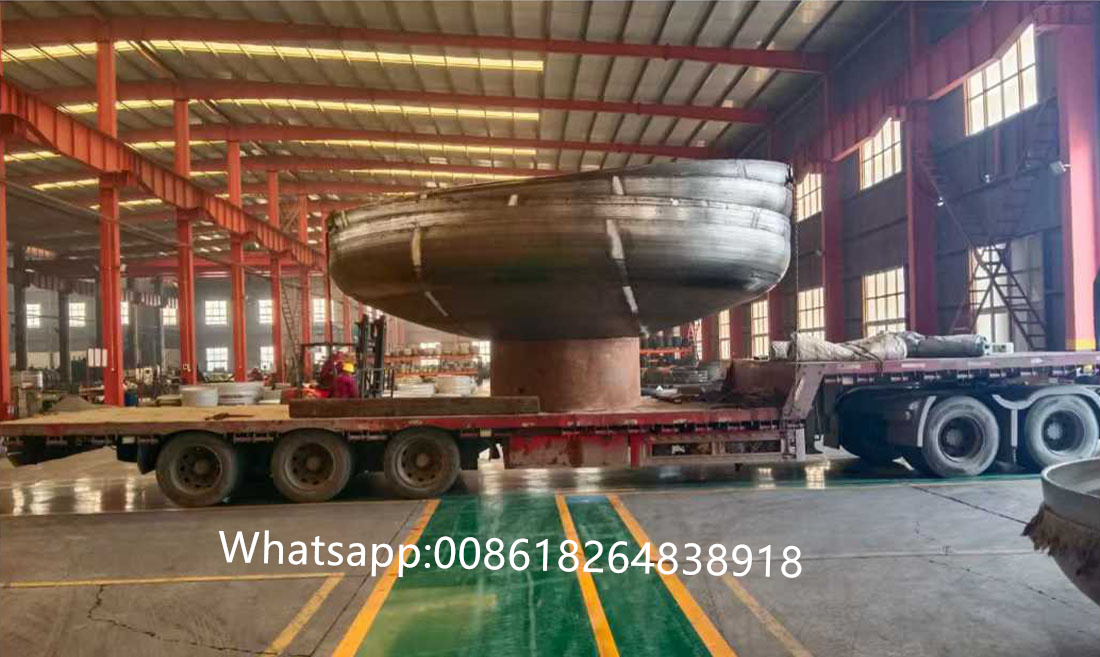

At its core, an elliptical head is a type of vessel closure characterized by a unique geometric profile. While the opening of the head maintains a circular form, its cross-sectional shape transitions into an ellipse. This specific geometry offers a balance between structural strength and efficient material usage, making it a preferred choice for various pressure vessel applications.

A defining characteristic of elliptical heads is the ratio between their major and minor axes. The most commonly utilized elliptical heads feature a 2:1 ratio, meaning that the major axis (the longer diameter of the ellipse) is twice the length of the minor axis (the shorter diameter of the ellipse). This 2:1 elliptical head configuration is widely accepted due to its favorable stress distribution under pressure, offering a robust and reliable closure solution.

Within the broader category of elliptical heads, further classifications exist based on the reference point used for dimensional specification. Two primary types are distinguished:

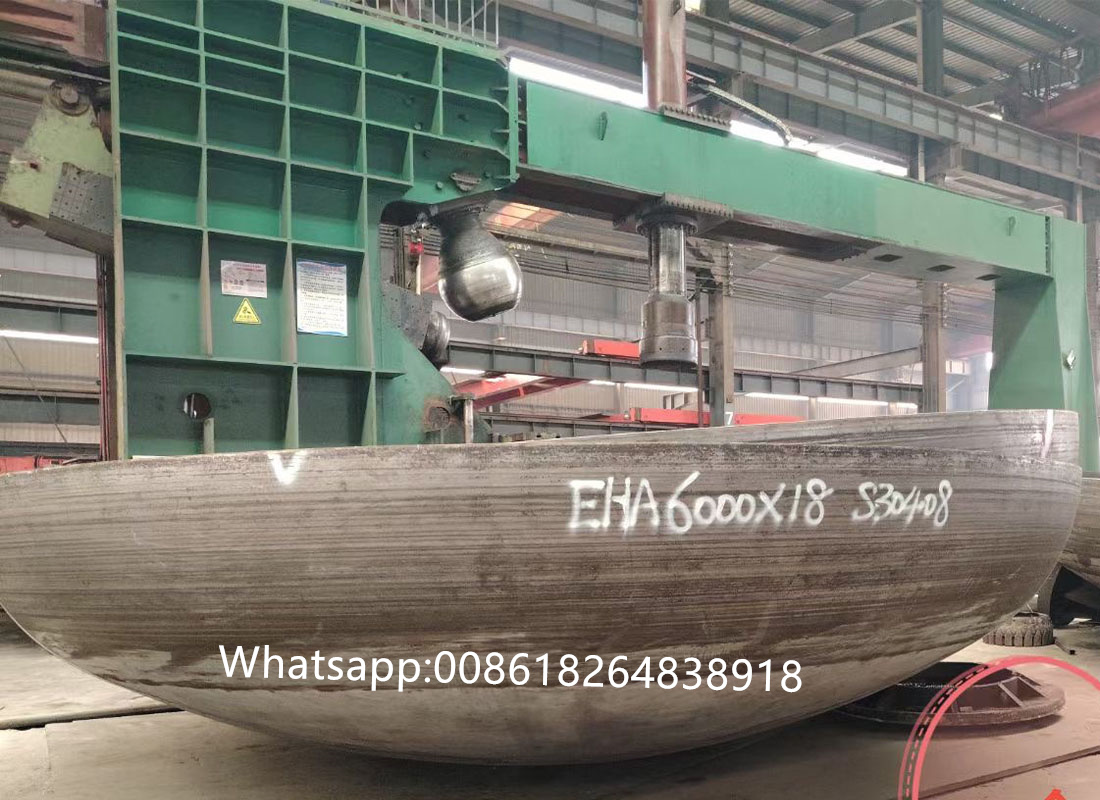

• EHA Heads: These elliptical heads are defined and categorized based on their inner diameter. The inner diameter refers to the measurement across the interior of the circular opening. This classification is particularly relevant when the internal dimensions of the vessel are critical to the application, such as maintaining specific flow rates or accommodating internal components.

• EHB Heads: Conversely, EHB heads are classified based on their outer diameter. The outer diameter refers to the measurement across the exterior of the circular opening. This classification is often favored when the external dimensions of the vessel are crucial, for instance, in applications where the vessel needs to fit within a specific space or integrate with other external components.

Irrespective of whether they are classified as EHA or EHB, these heads are collectively known and referred to as "elliptical heads," highlighting their shared geometric and functional characteristics.

II. Applications of Elliptical Heads: A Versatile Component

Elliptical heads find extensive use in a wide array of industrial applications, primarily serving as end closures for pressure vessels and tanks. Their robust design and ability to withstand high pressures make them indispensable components in various industries, including:

• Storage Tanks: Elliptical heads are commonly used to seal the ends of storage tanks designed to hold liquids, gases, or bulk solids. Their ability to withstand internal pressure and provide a leak-proof seal is crucial for maintaining the integrity of the stored contents and ensuring safe operation.

• Heat Exchangers: In heat exchangers, elliptical heads serve as closures for the shell and tube sides of the equipment. They must withstand the pressure and temperature fluctuations associated with the heat transfer process while providing a reliable seal to prevent leakage of the working fluids.

• Towers: Distillation towers, absorption towers, and other types of process towers utilize elliptical heads at their top and bottom ends. These heads provide a sealed enclosure for the internal components of the tower and must withstand the pressure and temperature conditions specific to the separation process being conducted.

• Reactors: Chemical reactors, which often operate under high pressure and temperature conditions, rely on elliptical heads to ensure containment of the reacting substances. The heads must be resistant to corrosion and degradation from the chemical environment while providing a secure seal to prevent leaks.

• Heating Furnaces: Elliptical heads also find application as components within heating furnaces, providing a durable and pressure-resistant enclosure for the heating chamber.

• Separation Equipment: A wide range of separation equipment, including separators, filters, and centrifuges, utilizes elliptical heads as closures to contain the separation process and maintain the necessary pressure and temperature conditions.

Essentially, any vessel that requires a pressure-tight enclosure can potentially benefit from the use of elliptical heads. Their versatility and adaptability make them a fundamental component in numerous industrial processes.

III. Manufacturing Process: An Overview

The manufacturing of elliptical heads involves a series of carefully controlled processes to ensure the final product meets the required specifications for dimensional accuracy, material properties, and structural integrity. The specific manufacturing techniques employed can vary depending on the size, material, and application of the head, but the general process typically involves the following stages:

1. Material Selection: The first step involves selecting the appropriate material for the elliptical head. This selection is based on factors such as the operating pressure, temperature, corrosive environment, and any specific regulatory requirements. Common materials include carbon steel, stainless steel, alloy steel, and other specialized alloys.

2. Cutting and Forming: Once the material is selected, it is cut into a circular blank of the appropriate size. This blank is then subjected to a forming process to achieve the desired elliptical shape. Several forming methods are commonly used, including:

• Pressing: This method involves using a hydraulic press to gradually form the circular blank into the elliptical shape. Dies of the desired shape are used to guide the deformation process. Pressing is suitable for producing large quantities of elliptical heads with consistent dimensions.

• Spinning: Spinning is a process where the circular blank is rotated at high speed while a forming tool is applied to its surface. The tool gradually deforms the blank into the elliptical shape. Spinning is often used for producing custom or small-batch elliptical heads with complex geometries.

• Cold Forming: For some materials and applications, cold forming techniques can be used to create the elliptical shape at room temperature. This process offers advantages in terms of surface finish and dimensional accuracy but may be limited to certain materials and thicknesses.

• Hot Forming: This method involves heating the circular blank to a high temperature before forming it into the elliptical shape. Hot forming reduces the material's resistance to deformation and allows for the creation of larger and more complex shapes.

3. Heat Treatment (Optional): Depending on the material and the forming process used, a heat treatment step may be necessary to relieve residual stresses and improve the material's mechanical properties. Heat treatment typically involves heating the formed elliptical head to a specific temperature, holding it at that temperature for a predetermined time, and then cooling it down in a controlled manner.

4. Trimming and Machining: After forming, the elliptical head may require trimming and machining to achieve the final desired dimensions and surface finish. This may involve removing excess material, smoothing rough edges, and creating precise features for welding or attachment.

5. Welding (If Applicable): If the elliptical head is to be welded to a vessel shell or other components, welding is performed at this stage. Careful attention must be paid to the welding process to ensure a strong and leak-proof joint. Welding procedures are typically qualified and inspected to ensure they meet the required standards.

6. Inspection and Testing: The final step in the manufacturing process is inspection and testing. This involves visually inspecting the elliptical head for any defects, verifying its dimensions against the specified tolerances, and performing non-destructive testing (NDT) methods such as ultrasonic testing or radiographic testing to detect any internal flaws. The head may also be subjected to pressure testing to verify its ability to withstand the designed operating pressure.

IV. Challenges in Manufacturing and Potential Defects

The manufacturing of elliptical heads is not without its challenges. Various factors can lead to defects that can compromise the head's structural integrity and performance. Some of the most common defects include:

• Deformation: Deformation refers to deviations from the intended elliptical shape. This can occur due to inconsistencies in the forming process, uneven heating or cooling during heat treatment, or variations in the material's thickness. The primary cause of deformation stems from the mismatch between the initial, flat disc and the final curved shape, coupled with variations in material thickness at the joint. Furthermore, inconsistent force applied during punching or uneven temperature gradients during heat treatment can exacerbate this issue.

• Solution: Addressing deformation requires a delicate balance of controlled heating and cooling. The principle of thermal expansion and contraction can be effectively employed. By carefully heating the deformed head and then rapidly quenching it with water, the material can be manipulated to revert towards its intended shape. In some cases, a spinning process may also be used to correct the deformation, gradually reshaping the head back to its desired form.

• Scratches: Scratches are surface imperfections that can occur during transportation or handling. They are often caused by contact with sharp objects, such as hooks or forklift blades.

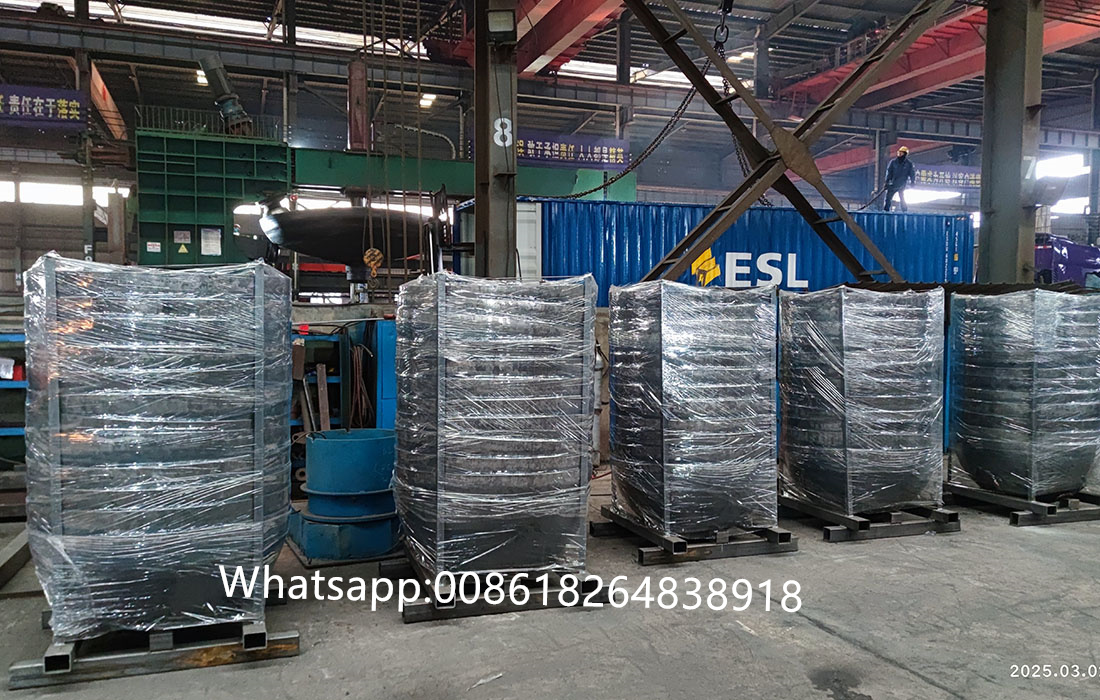

• Solution: Preventing scratches is paramount. Implementing protective measures during transportation and handling is crucial. This includes padding the contact surfaces between the lifting equipment (hooks, forklifts) and the head with protective films or cushions. If scratches do occur, their severity dictates the corrective action. Minor scratches can be addressed by polishing the affected area. However, more severe scratches may require repair welding, followed by polishing to restore a smooth surface. If the scratched area exceeds a predefined threshold (e.g., 25% of the surface area), a more comprehensive assessment and potential rework of the entire head may be necessary.

• Thinning: Thinning refers to a reduction in the material thickness of the elliptical head during the forming process. This can occur due to excessive stretching of the material in certain areas, leading to localized weakening.

• Solution: Maintaining a uniform thickness across the entire formed head is essential for preventing stress concentrations and extending its service life. Achieving this requires careful consideration of the manufacturing process and ensuring adequate processing allowances. The manufacturing process should be carefully designed to minimize material thinning during forming. The initial blank thickness should be selected to account for potential thinning and ensure that the final thickness meets the minimum required specifications. Furthermore, the processing allowance should be strategically determined based on the specific manufacturing process employed. This allowance must ensure that the thickness of the convex head and the hot-rolled section after forming remains above a critical threshold: the nominal thickness of the component minus the negative deviation allowed for the steel plate.

• Orange Peel: The "orange peel" effect refers to a surface texture that resembles the skin of an orange. This defect is caused by the uneven deformation of the material's grain structure during forming, often due to inherent lamination within the plate itself, undetectable to the naked eye. This issue typically manifests during the stamping and drum pressing phases of production.

• Solution: Addressing the orange peel effect depends on its severity. Relatively shallow orange peel can be effectively removed through fine grinding. However, deeper instances require a more involved approach. Repair welding is necessary to fill in the affected areas, followed by meticulous polishing to restore a smooth and uniform surface.

V. The Critical Importance of Quality Control and Testing

To ensure the safe and reliable operation of pressure vessels and other equipment that utilize elliptical heads, rigorous quality control and testing procedures are essential throughout the manufacturing process. These procedures help to identify and eliminate defects before the heads are put into service, minimizing the risk of failure and potential hazards.

The quality control process should encompass the following aspects:

• Material Inspection: Incoming materials should be thoroughly inspected to verify their composition, mechanical properties, and conformance to the required specifications.

• Dimensional Verification: Dimensions of the elliptical head should be carefully measured at various stages of the manufacturing process to ensure they meet the specified tolerances.

• Visual Inspection: Visual inspection should be performed to detect any surface defects, such as scratches, dents, or cracks.

• Non-Destructive Testing (NDT): NDT methods, such as ultrasonic testing, radiographic testing, and magnetic particle testing, should be employed to detect any internal flaws or defects that may not be visible on the surface.

• Pressure Testing: The elliptical head should be subjected to pressure testing to verify its ability to withstand the designed operating pressure without leaking or failing.

The results of all inspections and tests should be carefully documented and reviewed to ensure that the elliptical head meets the required quality standards. Any deviations from the specifications should be addressed and corrected before the head is approved for use.

VI. Advanced Techniques and Future Trends

The manufacturing of elliptical heads is a constantly evolving field, with ongoing research and development efforts focused on improving efficiency, reducing costs, and enhancing the quality and performance of the final product. Some of the key trends and advanced techniques being explored include:

• Finite Element Analysis (FEA): FEA is a computer-based simulation technique that can be used to predict the behavior of elliptical heads under various loading conditions. This allows engineers to optimize the design of the heads and identify potential weak points before they are manufactured.

• Advanced Forming Techniques: New and improved forming techniques, such as hydroforming and electromagnetic forming, are being developed to reduce material thinning and improve dimensional accuracy.

• Automated Manufacturing: The use of automated manufacturing systems, including robotic welding and automated inspection systems, is increasing to improve efficiency and reduce labor costs.

• Additive Manufacturing (3D Printing): Additive manufacturing, also known as 3D printing, is emerging as a potential method for producing custom elliptical heads with complex geometries. This technology offers the potential to create heads with optimized shapes and internal features that would be difficult or impossible to manufacture using conventional methods.

• Smart Manufacturing: The integration of sensors and data analytics into the manufacturing process is enabling real-time monitoring of process parameters and early detection of potential defects. This allows for proactive adjustments to the manufacturing process to ensure consistent quality and reduce scrap rates.

VII. Conclusion

Elliptical heads are indispensable components in a wide range of industrial applications, particularly in the construction of pressure vessels and tanks. Their unique geometry offers a balance between structural strength and efficient material usage, making them a preferred choice for containing fluids and gases under pressure.

The manufacturing of elliptical heads involves a series of carefully controlled processes, including material selection, forming, heat treatment, machining, welding, and testing. Various challenges can arise during the manufacturing process, leading to defects such as deformation, scratches, thinning, and orange peel.

Rigorous quality control and testing procedures are essential to ensure the safe and reliable operation of elliptical heads. These procedures help to identify and eliminate defects before the heads are put into service, minimizing the risk of failure and potential hazards.

The field of elliptical head manufacturing is constantly evolving, with ongoing research and development efforts focused on improving efficiency, reducing costs, and enhancing the quality and performance of the final product. Advanced techniques such as FEA, advanced forming techniques, automated manufacturing, and additive manufacturing are being explored to push the boundaries of what is possible in the design and manufacturing of elliptical heads.

By understanding the intricacies of elliptical head design, manufacturing, and testing, engineers and manufacturers can ensure that these critical components meet the demanding requirements of their intended applications, contributing to the safe and efficient operation of numerous industrial processes. The future of elliptical head technology holds promise for even more advanced materials, manufacturing processes, and quality control methods, further solidifying their role as essential components in the modern industrial landscape.
