This article offers a comprehensive guide to torispherical heads, crucial components in pressure vessels and boilers. We delve into their design, comparing them with other types of vessel heads like elliptical and hemispherical ones. By exploring the intricacies of their construction and adherence to standards like DIN 28011, you'll gain a clear understanding of why torispherical heads are vital for safe and efficient operation in various industries. This information is essential for engineers, designers, and anyone involved in pressure vessel fabrication and maintenance.
The torispherical head is a type of vessel head commonly used as an end closure on pressure vessels and boilers. It's characterized by its unique shape, a combination of a spherical cap centered around a central point and a toroidal section (the knuckle) connecting it to the cylindrical shell of the vessel. The head consisting of a dish with a toroidal section. This design provides a balance between cost-effectiveness and structural integrity, making it a popular choice across various industries.
Torispherical heads are widely used in applications where moderate pressure and temperature conditions are present. You'll find them in various industries, from chemical processing and oil & gas to food and beverage production, and power generation. These vessels can be used to store, process, and transport liquids, gases, and other materials, and the torispherical head plays a critical role in safely containing the pressure within the vessel. The head consisting of a dish with a fixed radius.
The geometry of a torispherical head is defined by two key radii: the crown radius and the knuckle radius. The crown radius refers to the radius of the spherical portion of the dish, while the knuckle radius defines the curvature of the toroidal section that connects the spherical cap to the cylindrical shell. The knuckle is the curved transition area.
The knuckle radius is particularly important because it helps to reduce stress concentrations at the transition between the cylindrical shell and the spherical cap. A larger knuckle radius distributes the stress more evenly, while a smaller knuckle radius can lead to higher stress concentrations and potential failure. Understanding the knuckle radius is essential for safe head design. The appropriate selection of both the crown and knuckle radii is crucial for ensuring the structural integrity and longevity of the pressure vessel.
While both torispherical and ellipsoidal heads are commonly used in pressure vessels, there are key differences that influence their selection for specific applications. The main difference lies in their geometry. An ellipsoidal head has an elliptical profile, while a torispherical head has a combination of a spherical cap and a toroidal knuckle. This difference in geometry affects their stress distribution characteristics.
Ellipsoidal heads, particularly those with a 2:1 ratio, tend to have a more uniform stress distribution compared to torispherical heads. This often allows for a thinner wall thickness for the ellipsoidal head, potentially leading to material cost savings. However, ellipsoidal heads are typically more expensive to manufacture than torispherical heads, especially for large diameter vessels. Therefore, choose ellipsoidal head when pressure vessels with a head. The choice between them depends on factors such as cost, pressure requirements, and desired weight. The differences between elliptical head are important when designing pressure vessels.
| Feature | Torispherical Head | Ellipsoidal Head |
|---|---|---|
| Shape | Spherical cap with toroidal knuckle | Elliptical profile |
| Stress Distribution | Less uniform | More uniform |
| Wall Thickness | Generally thicker | Generally thinner |
| Manufacturing Cost | Typically lower | Typically higher |
| Applications | Moderate pressure, cost-sensitive | Higher pressure, weight-sensitive |
DIN 28011 is a German standard that specifies the requirements for flanged and dished head used at the end with toroidal profile, primarily used for pressure vessels. It covers various aspects, including the material, dimensions, and manufacturing tolerances of these heads. While other standards like ASME also exist, DIN 28011 is widely recognized and used, particularly in Europe.
The DIN 28011 standard defines specific requirements for the knuckle radius and crown radius based on the diameter and required pressure rating of the vessel. Adhering to DIN 28011 ensures that the torispherical head meets the necessary safety standards and is suitable for the intended application. It's important to note that while DIN 28011 provides a comprehensive framework, it's crucial to consult with qualified engineers and pressure vessel specialists to ensure the design meets all applicable regulations and safety requirements. DIN 28011 provides detailed guidelines for pressure vessel design.
The choice of material for a torispherical head depends on factors such as the operating pressure, temperature, and the properties of the fluid or gas being contained. Carbon steel is a commonly used material due to its affordability, good weldability, and adequate strength for many applications. Carbon steel is widely used in torispherical head fabrication.
However, for more demanding applications involving high pressures, high temperatures, or corrosive environments, alloy steel may be required. Alloy steels offer superior strength, corrosion resistance, and heat resistance compared to carbon steel. Other materials, such as stainless steel and aluminum, can also be used in specialized applications. The material must be carefully selected to ensure that the torispherical head can withstand the intended operating conditions.
Torispherical heads offer a compelling combination of advantages that make them a popular choice for pressure vessels. Firstly, their design provides a good balance between structural integrity and cost-effectiveness. They are generally less expensive to manufacture than ellipsoidal or hemispherical heads, while still providing adequate strength for many pressure applications.
Secondly, the torispherical shape provides a relatively smooth transition between the cylindrical shell and the end closure, minimizing stress concentrations. The knuckle radius plays a key role in this stress reduction. Finally, torispherical heads are relatively easy to fabricate using common forming techniques, making them a readily available and practical option for pressure vessel manufacturers. This allows for safe head design.

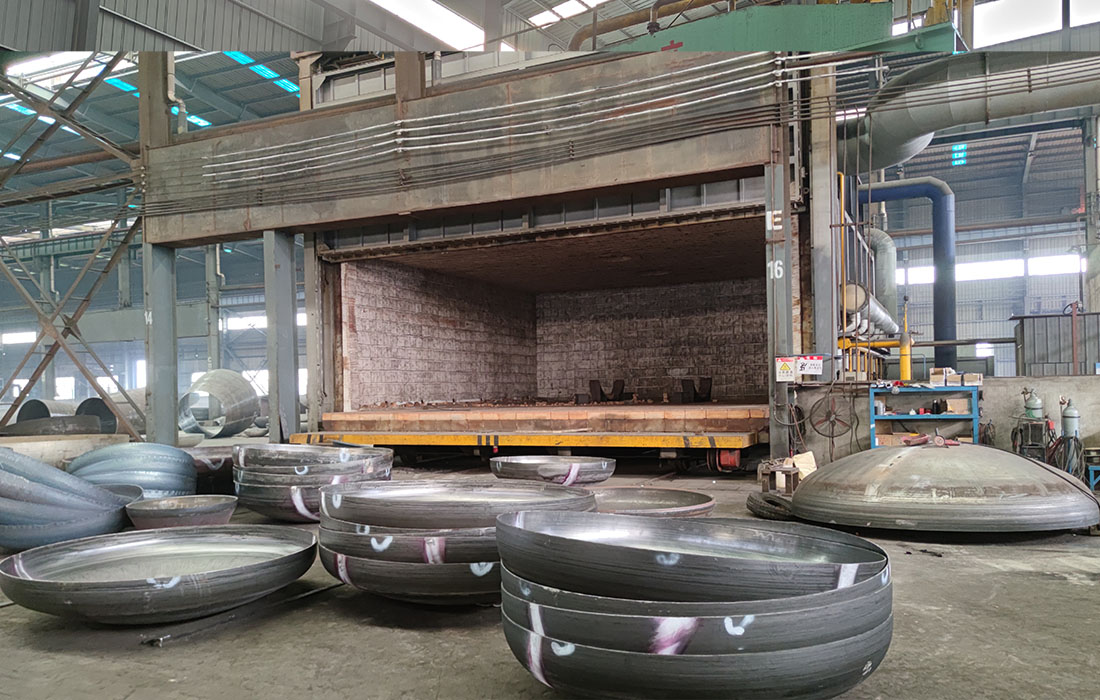

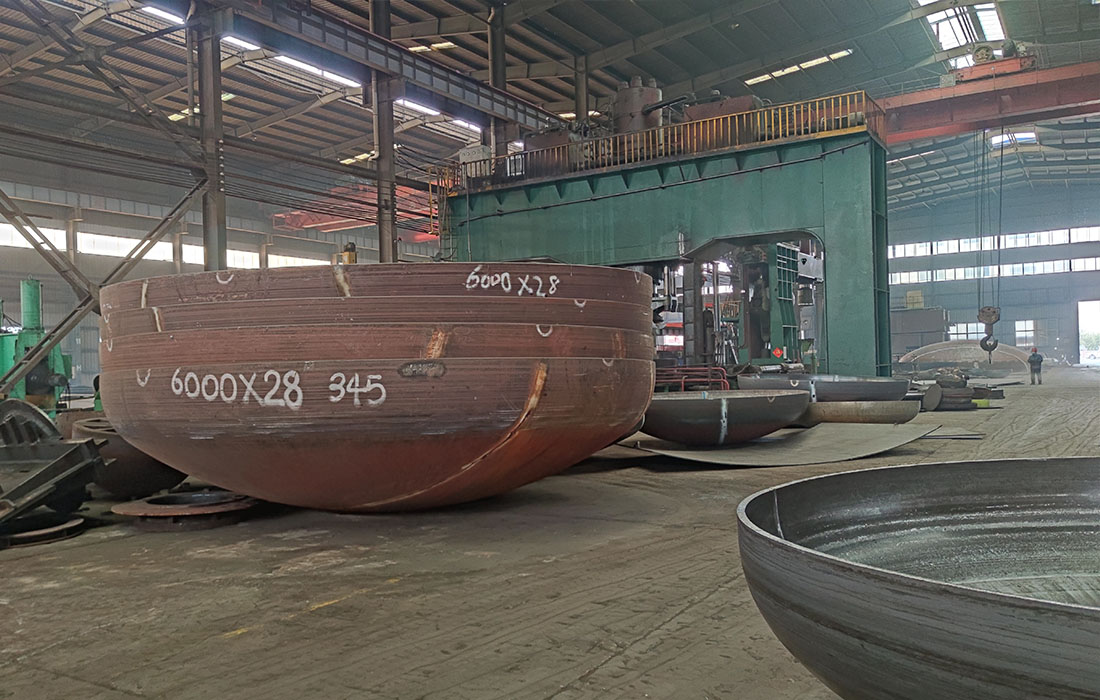

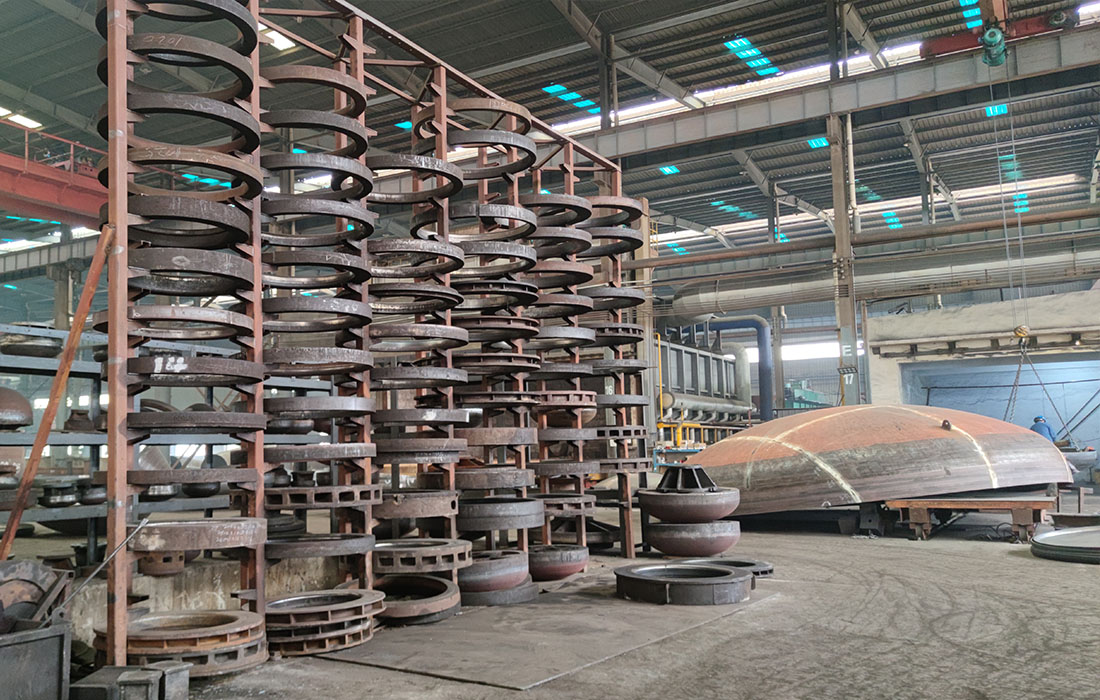

Torispherical heads are typically manufactured using a combination of forming processes. One common method involves pressing or deep drawing a circular plate of material into the desired shape. This can be done using hydraulic presses and specialized dies. The dish is formed gradually.
Another method involves spinning, where a circular blank is rotated at high speed while a forming tool is applied to gradually shape the head. Hot forming may be used for thicker materials or more complex shapes. After the forming process, the head is typically trimmed to the required dimensions and may undergo heat treatment to relieve stress. Finally, the flange is attached, and the head is welded to the cylindrical shell of the pressure vessel.
While torispherical heads are widely used, other types of vessel heads offer different advantages and are suitable for specific applications. Elliptical Heads, as discussed earlier, provide a more uniform stress distribution and often allow for a thinner wall thickness. Hemispherical heads, consisting of half a spherical shell and a straight cylindrical straight edge, offer the best stress distribution characteristics and are used for very high-pressure applications.
Conical heads, consisting of half a spherical shell and a straight, are used to connect sections of different diameters or to provide a sloping bottom for drainage. Flat head and flanged and dished head (f&d head) also can be used. Each type of head has its own unique characteristics and is selected based on the specific requirements of the pressure vessel.
Head depth refers to the distance from the tangent line of the cylindrical shell to the deepest point of the dish. Head depth can significantly influence the performance of a torispherical head. A deeper head will generally provide better stress distribution and can withstand higher pressures. However, a deeper head will also require more material and may increase the overall weight and cost of the vessel.
A shallower head, on the other hand, will use less material but may be more susceptible to stress concentrations. The optimal head depth is typically determined based on a combination of factors, including the desired pressure rating, material properties, and cost considerations. A shallower head will use less space.
Selecting the right torispherical head for a pressure vessel involves careful consideration of several factors. These include:
Operating Pressure and Temperature: The head must be able to withstand the maximum pressure and temperature expected during operation.
Material Compatibility: The head material must be compatible with the fluid or gas being contained to prevent corrosion or other forms of degradation.
Vessel Diameter: The head diameter must match the diameter of the cylindrical shell.
Code Requirements: The head must comply with all applicable codes and standards, such as ASME or DIN 28011.
Cost: The cost of the head should be considered in relation to its performance and longevity.
Manufacturing Feasibility: The head design should be readily manufacturable using available techniques.
Application: The specific application of the pressure vessel (e.g., chemical processing, oil & gas, food and beverage) will influence the head selection.
By carefully considering these factors, you can ensure that you select the right torispherical head for your pressure vessel application.
Here are the 10 most important things to remember about torispherical heads:
A torispherical head is a common type of end cap used in pressure vessels.
It's characterized by a spherical cap and a toroidal knuckle.
The knuckle radius is crucial for reducing stress concentrations.
DIN 28011 is a key standard for dished head design and manufacturing.
Carbon steel and alloy steel are commonly used materials.
Torispherical heads offer a good balance of cost and structural integrity.
Head depth affects the performance of the head.
Elliptical and hemispherical heads are alternative options with different characteristics.
Material compatibility and code compliance are critical considerations.
Proper head selection is essential for safe and efficient pressure vessel operation.
