Pressure vessels are essential devices utilized to contain, transport, or process a wide array of gases and liquids. These vessels generally consist of a shell or body and an end closure, known as a head. As a crucial component of any pressure vessel, the selection of the head's material and its design are paramount to ensuring the vessel's safety and long-term reliability. Choosing the appropriate head type for a specific pressure vessel application is therefore of utmost importance.

This document will detail the characteristics and suitable applications for various common pressure vessel head types. Understanding these distinctions is key to selecting the optimal head for a given pressure vessel design.

1. Spherical Heads:

Spherical heads, characterized by their round, ball-like shape, are a frequently employed head configuration. These heads are best suited for pressure vessels that are also spherical or have a curved geometry, such as spherical storage tanks and reactors. Spherical heads offer the advantage of distributing stress uniformly across their surface, resulting in a high capacity to withstand internal pressure. This makes them well-suited for pressure vessels operating under elevated pressure conditions. Furthermore, spherical heads are aesthetically pleasing, relatively easy to manufacture and install, and are often preferred for pressure vessels with larger diameters.

Key Advantages of Spherical Heads:

• Uniform Stress Distribution: Minimizes stress concentrations, improving pressure resistance.

• High Internal Pressure Capacity: Ideal for high-pressure applications.

• Ease of Manufacturing and Installation: Relatively straightforward fabrication process.

• Aesthetically Pleasing: Can enhance the visual appeal of the vessel.

• Suitable for Large Diameters: Commonly used in large spherical tanks.

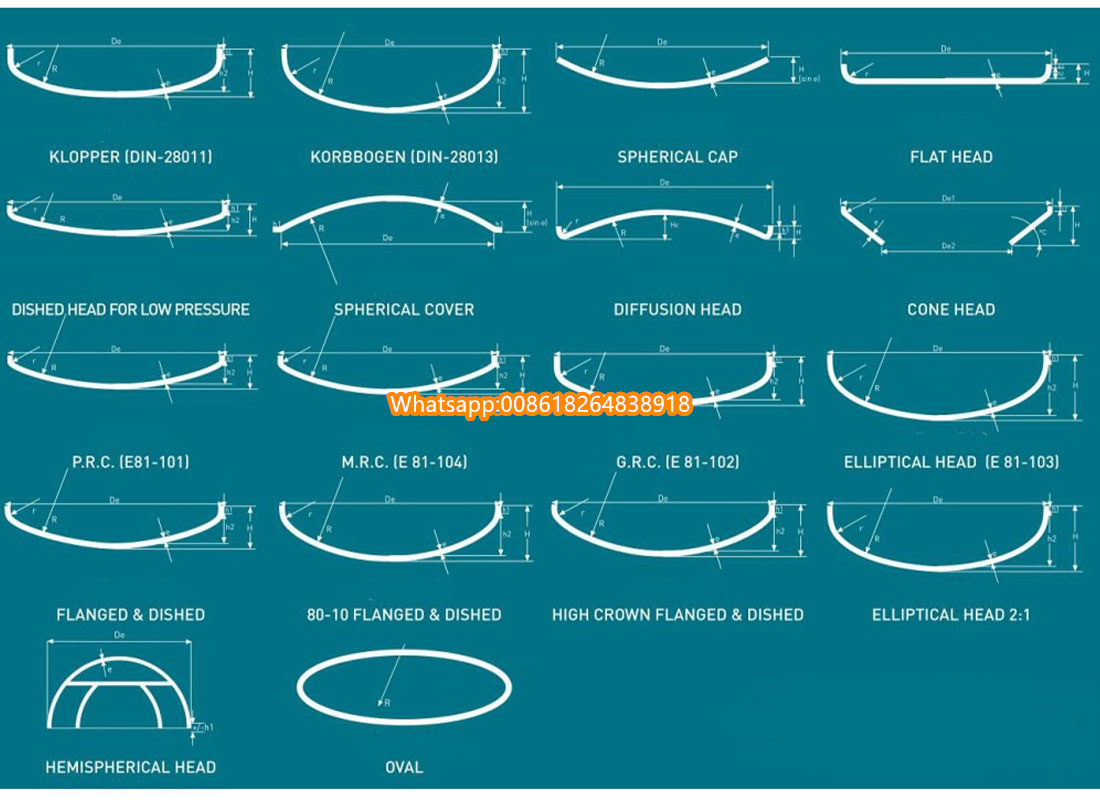

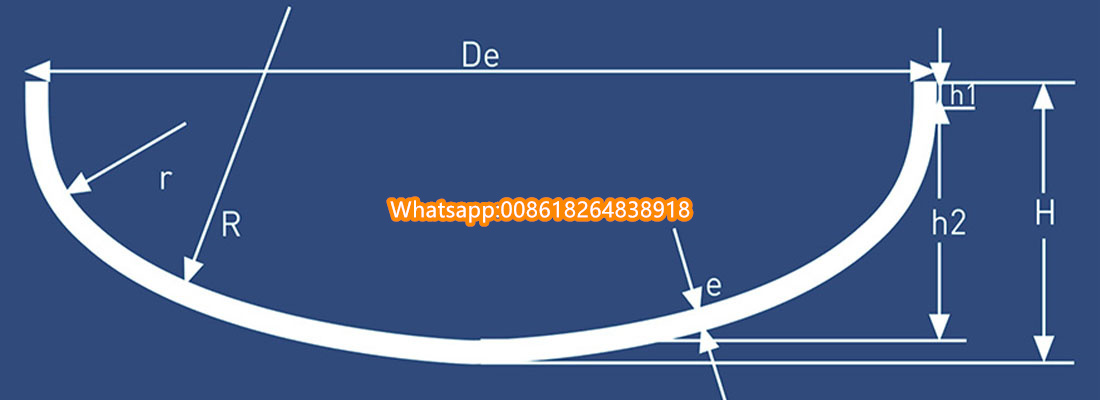

2. Ellipsoidal Heads:

Ellipsoidal heads, also known as Elliptical Heads, have an oval or elliptical shape. They are typically used with cylindrical pressure vessels that have a significant length-to-diameter ratio, examples being storage tanks and separation vessels. Compared to spherical heads, ellipsoidal heads offer a more economical solution and possess better stiffness. They are particularly suitable for longer cylindrical pressure vessels where internal pressure requirements are moderate. Ellipsoidal heads also exhibit good formability, allowing for relatively easy shaping, and offer adequate internal pressure resistance. Because of this, they are frequently seen in large storage tanks and similar applications.

Key Advantages of Ellipsoidal Heads:

• Cost-Effective: Generally less expensive than spherical heads.

• Good Rigidity: Provides structural stability.

• Suitable for Long Cylindrical Vessels: Well-suited for tanks with high length-to-diameter ratios.

• Good Formability: Relatively easy to manufacture.

• Adequate Internal Pressure Resistance: Suitable for moderate pressure applications.

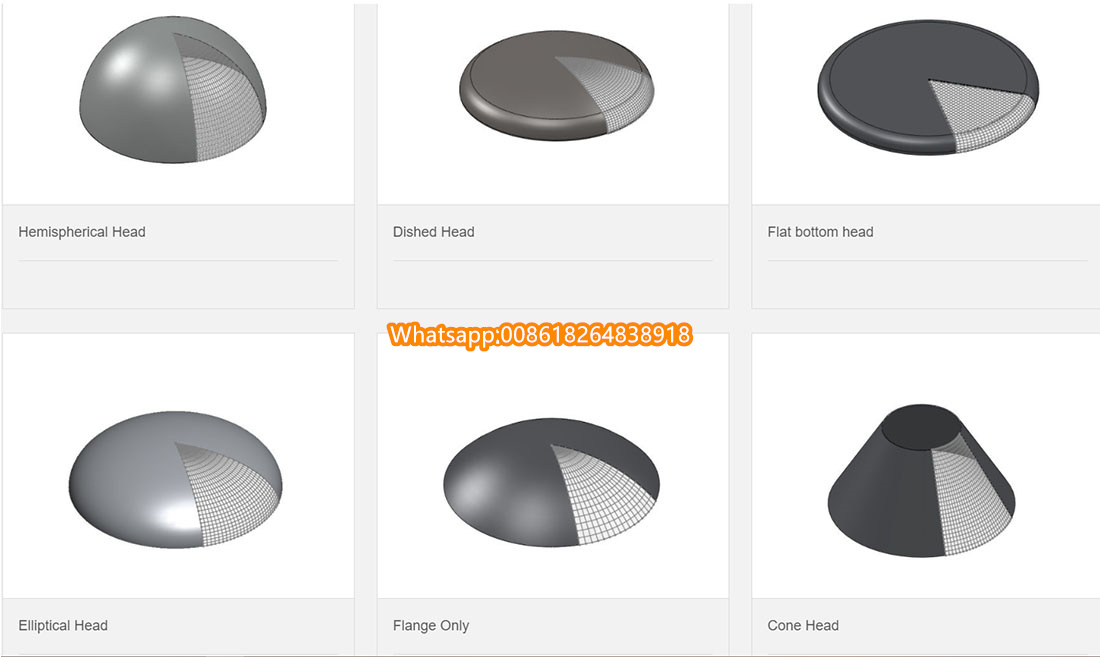

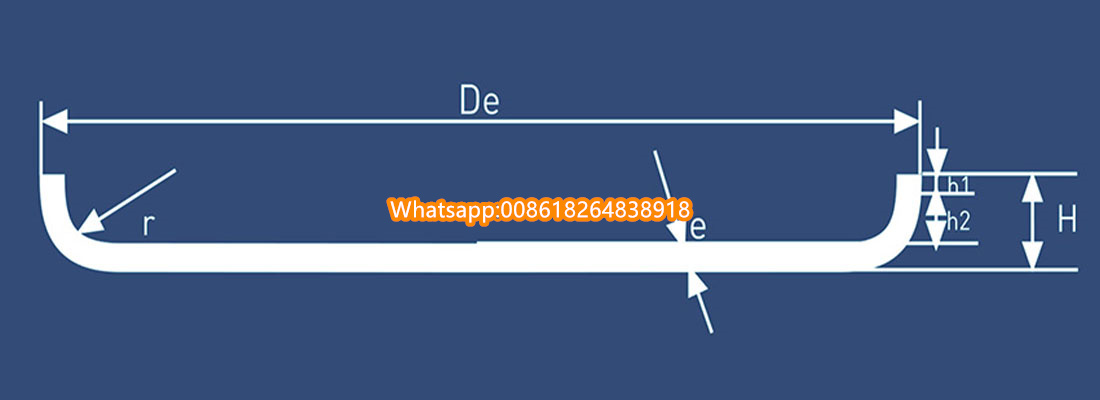

3. Flat Heads:

Flat heads, as the name suggests, are flat, planar end closures. They are typically used in cylindrical pressure vessels with smaller diameters and lower heights, such as small storage tanks and pipeline systems. Flat heads benefit from a simple manufacturing process and low overall cost, making them an attractive option for pressure vessels operating under relatively low internal pressure. Furthermore, flat heads offer a large internal volume relative to their surface area, which can be advantageous in applications where maximizing volume is a priority.

Key Advantages of Flat Heads:

• Simple Manufacturing: Easiest and least expensive head type to manufacture.

• Low Cost: An economical choice for low-pressure applications.

• Suitable for Small Diameter Vessels: Commonly used in smaller tanks and piping.

• Large Volume-to-Surface Area Ratio: Maximizes internal volume.

• Best in low pressure applications.

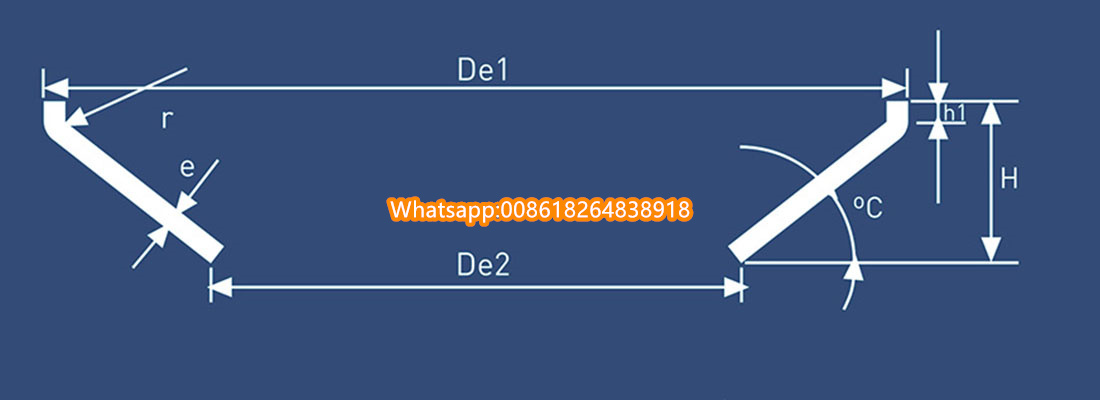

4. Conical Heads:

Conical heads feature a conical or cone-shaped geometry. They are typically employed in conical pressure vessels, such as conical bottom tanks and inclined tank reactors. Conical heads provide enhanced fluid flow characteristics and improved mixing performance, making them suitable for pressure vessels where efficient fluid movement is critical. Additionally, conical heads generally offer higher strength and internal pressure resistance compared to flat heads, making them appropriate for inclined or inverted pressure vessel configurations.

Key Advantages of Conical Heads:

• Good Fluid Flow: Facilitates smooth fluid movement and drainage.

• Improved Mixing: Enhances mixing efficiency in reactors and other applications.

• Suitable for Conical Vessels: Designed specifically for use with conical tank bodies.

• Higher Strength: Offers improved resistance to pressure compared to flat heads.

• Appropriate for Inclined Vessels: Well-suited for tanks that are not vertically oriented.

Head Selection: A Comprehensive Approach

The selection of the most appropriate head type for a pressure vessel requires careful consideration of several factors, including the vessel's design parameters, the specific process requirements, and the environmental conditions in which the vessel will operate. When choosing the head material, it is essential to evaluate its ability to withstand pressure, its weldability, and its resistance to corrosion. Similarly, the selection of the head structure should involve a comprehensive assessment of the pressure vessel's geometric shape and the demands of the specific process.

Furthermore, it is imperative to ensure that the selected head meets all relevant national and industry safety standards and specifications. This is crucial for guaranteeing the safe and reliable operation of the pressure vessel and protecting personnel and the environment. Adhering to these standards is not just a regulatory requirement but a fundamental principle of responsible engineering practice.
