This article provides an in-depth exploration of Elliptical Heads, commonly used as tank heads in pressure vessels, boilers, and heat exchangers. We'll delve into their design, applications, and considerations under the ASME code. Understanding elliptical heads is crucial for engineers and professionals involved in pressure vessel construction, ensuring safety and efficiency. If you're looking for a resource that covers everything from the basic principles to the practical considerations of using flanged and dished tank heads, this is the article for you. We'll examine why they are preferred for certain applications and how to specify them correctly.

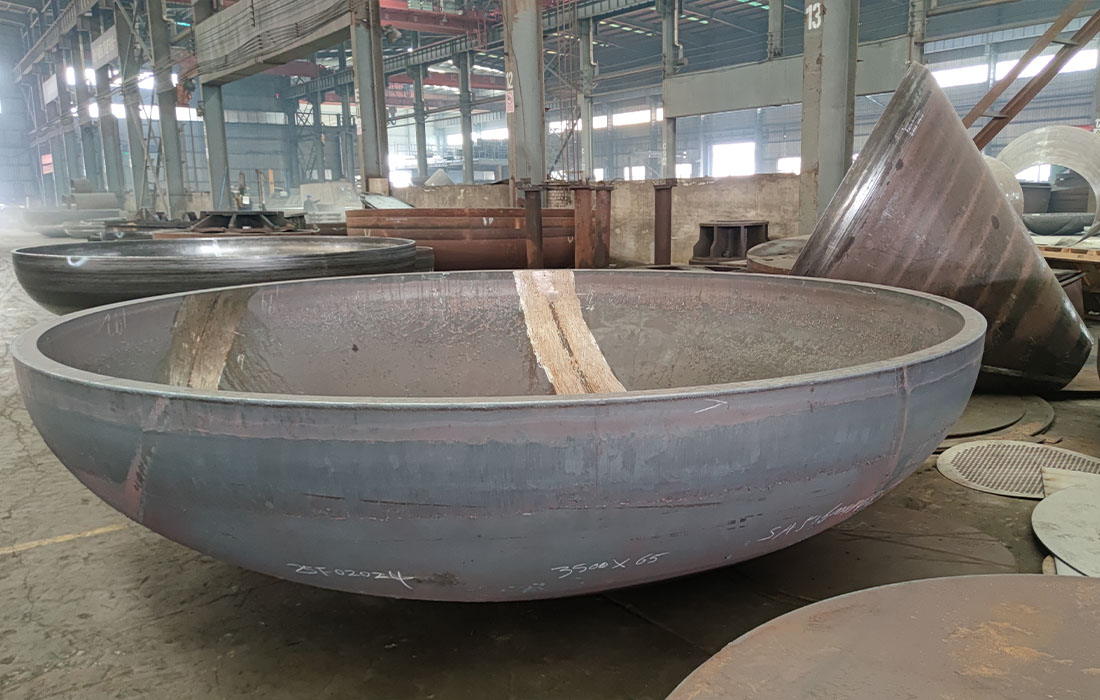

An elliptical head, often referred to as a 2:1 elliptical head, is a type of vessel head commonly used to close the ends of a pressure vessel or tank. Its shape is that of a semi-ellipsoid, providing a smooth transition between the vessel cylinder and the end closure. Elliptical heads are preferred in many pressure vessel construction applications due to their balance between cost, strength, and space efficiency. This makes them an ideal choice for various industrial applications where containing pressure safely and effectively is critical.
One of the primary reasons elliptical heads are widely used is their ability to withstand internal pressure. Compared to other head types, like flat heads, elliptical heads distribute stress more evenly, making them suitable for medium pressure applications. The curvature of the elliptical head allows it to efficiently transfer forces to the cylindrical shell of the pressure vessel, minimizing stress concentrations. The elliptical tank heads offer a good compromise between the strength of a hemispherical head and the space-saving advantages of a flatter head design. The elliptical tank head is fabricated to have a certain shape that facilitates pressure containment.
When designing a pressure vessel, selecting the appropriate vessel head is crucial. The most common types are elliptical, hemispherical, and torispherical heads, each offering distinct advantages and disadvantages. Understanding these differences is essential for making an informed decision based on specific application requirements.
Hemispherical Heads: These heads are shaped like half a sphere. Hemispherical heads offer the best strength-to-weight ratio for containing pressure, as the stress is uniformly distributed throughout the head. However, they are the most expensive to manufacture and require the most space, making them best suited for high pressure applications where performance is paramount.
Torispherical Heads: Also known as flanged and dished heads, torispherical heads consist of a spherical dish and a knuckle radius that connects the dish to the cylinder. Torispherical heads are generally more economical than hemispherical heads and offer good performance for medium and low pressure vessels. However, the knuckle is a stress concentration point. The knuckle radius can affect the strength and lifespan of the vessel.
Elliptical Heads: As discussed, these heads offer a balance between strength, cost, and space. While not as strong as hemispherical heads, elliptical heads are stronger than torispherical heads. Their compact design makes them a good choice where space is limited, but they are still able to handle medium pressure applications.
The choice of vessel head depends heavily on the specific application, considering factors such as pressure requirements, space constraints, and budget. Also, different vessels may also be used in the piping system.
The geometry of an elliptical head is defined by its diameter, dish radius, and knuckle radius (though the knuckle radius is less significant in elliptical heads compared to torispherical). These dimensions are critical for calculating the head's strength and ensuring it meets design requirements. Correctly understanding these dimensions is crucial for proper specification and integration into a pressure vessel.
Diameter: The diameter of the elliptical head is the same as the inside diameter of the cylindrical shell to which it will be attached.
Dish Radius: For a standard 2:1 elliptical head, the major axis is equal to the diameter of the cylinder, and the minor axis is half of that diameter. This results in a depth of the head that is one-quarter of the diameter.
Radius: The internal dish radius is a significant parameter that defines the curvature of the head and influences its ability to withstand pressure. The larger the radius, the lower the stress experienced by the head under pressure.
While the 2:1 elliptical head is the most common, other elliptical ratios can be specified for special purpose applications. These variations will affect the head's depth and stress distribution. The equations used can help in determining the dimensions.
The material used to construct an elliptical tank head significantly impacts its strength, corrosion resistance, and overall lifespan. The selection process must consider factors like operating temperature, pressure, and the chemical properties of the contained fluid.
Carbon Steel: Carbon steel is a common choice for pressure vessels due to its affordability and strength. However, it is susceptible to corrosion and may not be suitable for applications involving corrosive fluids.
Stainless Steel: Stainless steel offers excellent corrosion resistance and is suitable for a wide range of applications, including those in the food, beverage, and pharmaceutical industries. Different grades of stainless steel offer varying levels of corrosion resistance and strength.
Alloy Steel: Alloy steel, such as chrome-moly steel, offers enhanced strength and high-temperature performance. These materials are often used in high-pressure, high-temperature applications.
Other Materials: Other materials, such as aluminum and nickel alloys, can also be used for elliptical heads, depending on the specific application requirements. For example, a traditional aluminium-lithium tank might be used in aerospace applications due to its lightweight properties.
The choice of material must comply with relevant ASME code requirements and consider the long-term operational environment of the pressure vessel. Consideration should also be given to the material's weldability, as this impacts the fabrication process.
The ASME code provides comprehensive guidelines for the design, fabrication, and inspection of pressure vessels, including elliptical heads. Adhering to these standards is crucial for ensuring the safety and reliability of pressure vessels and for complying with legal requirements.
Section VIII, Division 1: This section of the ASME code covers the design and fabrication of pressure vessels operating at pressures up to 3,000 psi. It provides detailed rules for calculating the required wall thickness of elliptical heads based on the design pressure, material properties, and head geometry.
Section VIII, Division 2: This division of the ASME code provides alternative rules for pressure vessel construction, allowing for higher design stresses and more complex analysis techniques. It is often used for high-pressure applications.
Design Considerations: The ASME code specifies minimum design requirements for elliptical heads, including minimum thickness, weld details, and inspection procedures. The design must account for all potential loading conditions, including internal pressure, external pressure, and thermal stresses.
Compliance with the ASME code is essential for pressure vessel manufacturers and users. It requires a thorough understanding of the code requirements and adherence to strict quality control procedures throughout the design, fabrication, and inspection processes. Also, although pressure vessels design must consider a range of factors.
The flange is a critical component of an elliptical head, providing a means of attaching the head to the cylindrical shell of the pressure vessel. The flange must be designed to withstand the forces generated by the internal pressure and any external loads acting on the vessel.
Flange Types: Various flange types can be used with elliptical heads, including weld neck flanges, slip-on flanges, and blind flanges. The choice of flange depends on the specific application requirements and the desired level of strength and leak tightness.
Flange Design: The flange design must comply with relevant ASME code requirements and consider the material properties, dimensions, and bolting arrangement. The design must ensure that the flange can withstand the applied loads without yielding or leaking.
Welding: The flange is typically welded to the elliptical head using a full penetration weld. The weld must be performed by qualified welders using approved welding procedures to ensure the integrity of the connection. The straight flange allows for easy welding.
The flange plays a crucial role in the overall structural integrity of the pressure vessel. Proper design and installation of the flange are essential for ensuring the safe and reliable operation of the vessel. The heads are used in the construction of many vessels.
Selecting the appropriate size for an elliptical head is crucial for ensuring the pressure vessel's structural integrity and safe operation. The size selection process involves several factors, including the vessel's diameter, design pressure, and operating temperature.
Diameter Matching: The diameter of the elliptical head must match the inside diameter of the cylindrical shell to which it will be attached. This ensures a smooth transition between the head and the shell and minimizes stress concentrations.
Thickness Calculation: The required wall thickness of the elliptical head is determined based on the design pressure, material properties, and head geometry, as per ASME code requirements. The thickness calculation must account for all potential loading conditions, including internal pressure, external pressure, and thermal stresses.
Space Constraints: In some applications, space constraints may limit the size of the elliptical head that can be used. In these cases, alternative head designs, such as hemispherical heads, may be considered.
Vertical vessel sized: Vertical vessels may need to be sized appropriately to ensure stability.
The correct size of the elliptical head is critical for the safe and reliable operation of the pressure vessel. Oversized heads can be unnecessarily expensive, while undersized heads may compromise the vessel's structural integrity. The approximate the size of the vessel can be done using various formulas.

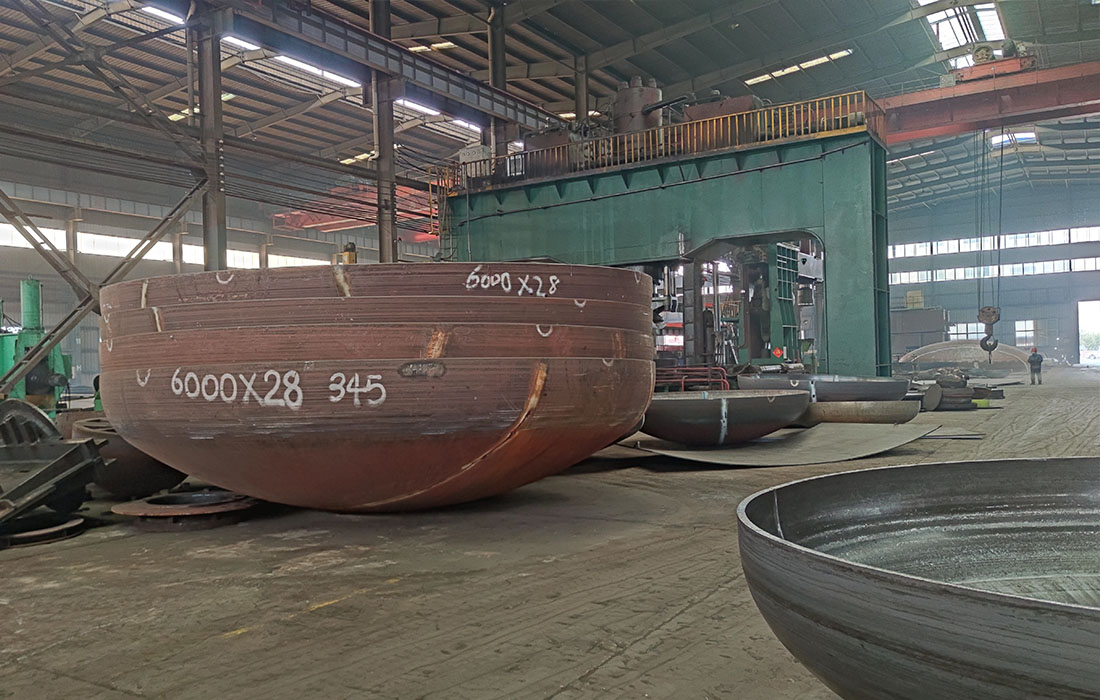

Elliptical tank heads are fabricated using various methods, depending on the material, size, and required tolerances. Understanding these processes is essential for ensuring the quality and integrity of the finished product.
Hot Forming: Hot forming is a common method for manufacturing elliptical heads, especially for large diameter and thick-walled heads. This process involves heating the material to a high temperature and then shaping it using dies and presses. Hot forming allows for the creation of complex shapes with minimal material thinning.
Cold Forming: Cold forming is used for smaller, thinner-walled elliptical heads. This process involves shaping the material at room temperature using dies and presses. Cold forming can provide tighter tolerances and a smoother surface finish than hot forming.
Spinning: Spinning is another method used to form elliptical heads. In this process, a flat circular blank is rotated at high speed while a tool is used to gradually shape it into the desired elliptical form. The head is spun using specialized equipment.
Welding: After the head is formed, it may require welding to attach flanges, nozzles, or other components. Welding must be performed by qualified welders using approved welding procedures to ensure the integrity of the joints.
The manufacturing process significantly impacts the quality and cost of the elliptical head. The choice of process depends on the specific application requirements and the desired level of precision and efficiency.
Elliptical heads are versatile components used in various industries for a wide range of applications. Their strength, efficiency, and adaptability make them suitable for diverse environments.
Oil and Gas: In the oil and gas industry, elliptical heads are used in pressure vessels for storage and processing of crude oil, natural gas, and other petroleum products. They are commonly found in upstream vessel dump systems and surge tanks. For example, a surge tank might use an elliptical head.
Chemical Processing: Chemical plants utilize elliptical heads in reactors, storage tanks, and heat exchangers for handling various chemicals and fluids. The material selection is critical in this industry due to the corrosive nature of many chemicals. They may also be used in discharge volume bottle applications.
Power Generation: Power plants employ elliptical heads in boilers, pressure vessels, and heat exchangers for steam generation and other processes. High-temperature and high-pressure requirements necessitate the use of robust materials and designs. For example, they may also be used in applications of afp to pressure.
Food and Beverage: The food and beverage industry uses elliptical heads in storage tanks, processing equipment, and pressure cookers. Stainless steel is often the preferred material in this industry due to its hygienic properties and corrosion resistance.
Pharmaceutical: The pharmaceutical industry relies on elliptical heads in reactors, storage tanks, and other equipment for manufacturing drugs and pharmaceutical products. Strict hygiene and material compatibility requirements are crucial in this industry.
Elliptical heads are essential components in numerous industrial processes, contributing to the safe and efficient operation of various systems. Their widespread use highlights their versatility and reliability. Also, pressure is sensed by these heads in many applications.
Even with proper design and fabrication, elliptical heads can experience issues over time due to factors like corrosion, fatigue, and mechanical damage. Regular visual inspection and timely troubleshooting are essential for maintaining the integrity and safety of pressure vessels.
Corrosion: Corrosion is a common issue, especially in applications involving corrosive fluids. Visual inspection can reveal signs of corrosion, such as rust, pitting, and thinning of the material.
Cracking: Cracking can occur due to fatigue, stress corrosion cracking, or welding defects. Visual inspection can detect cracks, which may require further investigation using non-destructive testing methods.
Deformation: Deformation can result from excessive pressure, impact damage, or improper support. Visual inspection can identify deformed areas, which may indicate a need for repair or replacement. Stress is higher in areas of deformation.
Weld Defects: Weld defects, such as porosity, lack of fusion, and cracks, can compromise the integrity of the weld joints. Visual inspection can identify weld defects, which may require repair or re-welding.
Visual inspection: Regular visual inspection of elliptical heads is crucial for detecting potential problems early on. Any signs of corrosion, cracking, deformation, or weld defects should be investigated and addressed promptly.
Straight section: A cylindrical straight section can also be part of the head design, where issues may arise.
Effective troubleshooting and visual inspection are essential for ensuring the long-term reliability and safety of pressure vessels with elliptical heads. Addressing issues promptly can prevent catastrophic failures and ensure the continued safe operation of the equipment. Also, finite element analysis can be used to further check the vessel and heads.
Elliptical heads are a popular choice for pressure vessels due to their balance of strength, cost, and space efficiency.
The 2:1 elliptical head is the most common type, with a depth equal to one-quarter of the diameter.
ASME code provides comprehensive standards for the design, fabrication, and inspection of elliptical heads.
Material selection is crucial and depends on the operating environment, with options including carbon steel, stainless steel, and alloy steel.
The flange is essential for connecting the elliptical head to the cylindrical shell and must be properly designed and welded.
Sizing considerations must include matching the head diameter to the vessel diameter and calculating the required wall thickness.
Manufacturing processes vary depending on the size and material of the head, including hot forming, cold forming, and spinning.
Elliptical heads are widely used in industries such as oil and gas, chemical processing, power generation, and food and beverage.
Visual inspection is crucial for detecting issues like corrosion, cracking, and deformation.
Compliance with ASME standards is essential for ensuring the safety and reliability of pressure vessels.
This comprehensive guide has provided a detailed overview of elliptical heads, covering their design, applications, and considerations. By understanding the key principles and best practices discussed in this article, engineers and professionals can make informed decisions and ensure the safe and efficient operation of pressure vessels.
