Elliptical tank heads, also known as flanged and dished heads, are vital components in pressure vessels and storage tanks across various industries. This comprehensive guide explores everything you need to know about elliptical tank heads, from their design and fabrication to their applications and advantages. Whether you're an engineer, a fabricator, or simply curious about these essential vessel components, this article will provide you with valuable insights and industry-leading information. Dive in to learn how elliptical tank heads contribute to the safety, efficiency, and longevity of storage systems and pressure vessels.
Elliptical tank heads, sometimes referred to as flanged and dished heads, are essential components in the construction of various steel vessels and tanks. These heads serve as the end caps for cylindrical tanks, providing a sealed closure that can withstand significant internal pressure. Their shape, which is approximately elliptical, offers a balance between strength and cost-effectiveness compared to other head shapes like hemispherical or conical heads.
The primary purpose of an elliptical tank head is to provide a strong, leak-proof closure for a tank. Because the shape is more stress-distributing than flat heads, they allow for higher pressure ratings. The curvature of the dish provides inherent strength, distributing stress more evenly across the head and into the shell of the tank. This even distribution is crucial in pressure vessel applications where the tank is subjected to high internal pressure. The use of Elliptical Heads, in particular, offers a compromise between the more costly hemispherical heads and the less efficient flat heads.
A wide range of industries rely on elliptical tank heads for their vessel and storage needs. The pressure vessel industry is one of the biggest users, employing elliptical tank heads in vessels that hold pressurized gases or liquids. These vessels are crucial in chemical processing plants, petroleum refineries, and power generation facilities. Because pressure vessels are often subject to very high stress, the proper design and fabrication of the tank head is crucial.
The storage industry also benefits significantly from elliptical tank heads. Storage tanks for water, chemicals, and other fluids commonly use these heads to provide a durable and reliable closure. Pharmaceutical companies, food and beverage producers, and water treatment plants are just a few examples of sectors that utilize storage tanks with flanged and dished heads. The robust nature of steel coupled with the structural integrity of the elliptical shape makes them a preferred choice for safe and efficient storage of various materials.
Choosing the right type of tank head is crucial for the performance and safety of a pressure vessel or tank. Three common types of tank heads are elliptical, hemispherical, and conical heads, each with its own unique characteristics and applications. Understanding the differences between these shapes is essential for engineers and designers.
Elliptical Heads: Elliptical heads, also known as 2:1 elliptical heads, have a profile that is approximately half of an ellipse. This shape provides a good balance between strength and cost. They are more economical than hemispherical heads and offer better pressure resistance than flat heads. They are commonly used in pressure vessels and storage tanks that require moderate pressure ratings.
Hemispherical Heads: Hemispherical heads are shaped like half of a sphere. This shape offers the best pressure resistance because the stress is uniformly distributed across the entire head. However, hemispherical heads are more expensive to fabricate than elliptical heads, and they are typically used in applications where very high pressures are involved. Because of the efficient shape, a reduced metal thickness can be considered for equivalent pressure resistance.
Conical Heads: Conical heads are shaped like a cone. They are often used in applications where the flow of material is important, such as in hoppers or silos. Conical heads are less expensive to fabricate than elliptical or hemispherical heads, but they are not as strong and are not suitable for high-pressure applications. The transition from the cone to the cylinder of the vessel requires careful design to avoid stress concentrations.
The choice between these head types depends on the specific requirements of the application, including the pressure rating, the cost, and the flow characteristics of the material being stored.
The selection of materials for flanged and dished tank heads is a critical consideration that directly impacts the strength, durability, and suitability of the tank for its intended application. Carbon steel and stainless steel are two of the most commonly used materials, each offering distinct advantages.
Carbon Steel: Carbon steel is a popular choice due to its cost-effectiveness, strength, and weldability. It is well-suited for a wide range of applications where corrosion is not a major concern. Different grades of carbon steel can be selected to meet specific strength and temperature requirements. The use of carbon steel flanged and dished heads is prevalent in industries where the stored materials are non-corrosive or where protective coatings can be applied to prevent corrosion.
Stainless Steel: Stainless steel is prized for its exceptional corrosion resistance, making it ideal for applications involving corrosive materials or environments. Stainless steel flanged and dished tank heads are commonly used in the chemical, pharmaceutical, and food and beverage industries, where hygiene and purity are paramount. Various grades of stainless steel offer different levels of corrosion resistance and strength, allowing for tailored material selection based on the specific application requirements.
In addition to carbon steel and stainless steel, other materials such as alloy steels, aluminum, and other specialized alloys may be used for flanged and dished heads in niche applications. The choice of material depends on factors such as the operating temperature, pressure, and the chemical compatibility with the stored material.
The ASME Boiler and Pressure Vessel Code (ASME Code) is a globally recognized standard that governs the design, fabrication, inspection, and testing of boilers and pressure vessels, including the flanged and dished tank heads used in these vessels. Compliance with the ASME Code is crucial for ensuring the safety and reliability of pressure vessels and is often a legal requirement in many jurisdictions.
The ASME Code provides detailed guidelines for the design and manufacture of elliptical tank heads, covering aspects such as material selection, thickness calculation, welding procedures, and non-destructive examination. These guidelines are based on extensive research and engineering principles aimed at preventing failures due to pressure, temperature, and other operating conditions. The code specifies minimum thickness requirements for elliptical heads based on the design pressure, diameter, and material properties. It also outlines acceptable methods for forming the heads, such as cold forming or hot forming, and specifies the allowable tolerances for dimensions and shape.
By adhering to the ASME Code, manufacturers can ensure that their flanged and dished tank heads meet the highest standards of quality and safety. This not only protects the public and the environment but also enhances the reputation and credibility of the manufacturer.
Selecting the appropriate elliptical tank head for a given application involves careful consideration of several key dimensions and specifications. These parameters ensure that the head is compatible with the tank, can withstand the operating conditions, and meets the required performance standards.
Diameter: The diameter of the flanged and dished head must match the internal diameter (ID) or the outside diameter (OD) of the tank shell to ensure a proper fit. The choice between ID and OD matching depends on the welding method and the desired alignment of the head and shell.
Thickness: The thickness of the flanged and dished head is a critical parameter that determines its ability to withstand pressure. The thickness must be calculated in accordance with the ASME Code or other applicable standards, taking into account the design pressure, material properties, and operating temperature.
Dish Radius and Knuckle Radius: These are critical dimensions that define the geometry of the tank head. The dish radius is the radius of the main curved portion of the head, while the knuckle radius is the radius of the curved transition between the dish and the flange. These radii affect the stress distribution in the head and must be carefully controlled during fabrication. Fabricated to have a certain shape instead of a particular dish radius or knuckle radius.
Flange Height: The flange height refers to the length of the straight section of the head that is used for welding to the tank shell. The flange height must be sufficient to allow for proper welding and to provide adequate support to the head.
Material Grade: The material grade specifies the type and grade of steel used to fabricate the head. The material grade must be selected based on the operating conditions, the compatibility with the stored material, and the required strength and corrosion resistance.
In addition to these key dimensions, other specifications such as the surface finish, heat treatment, and non-destructive examination requirements must also be considered when selecting an elliptical tank head. A thorough understanding of these specifications is essential for ensuring the safe and reliable operation of the tank.

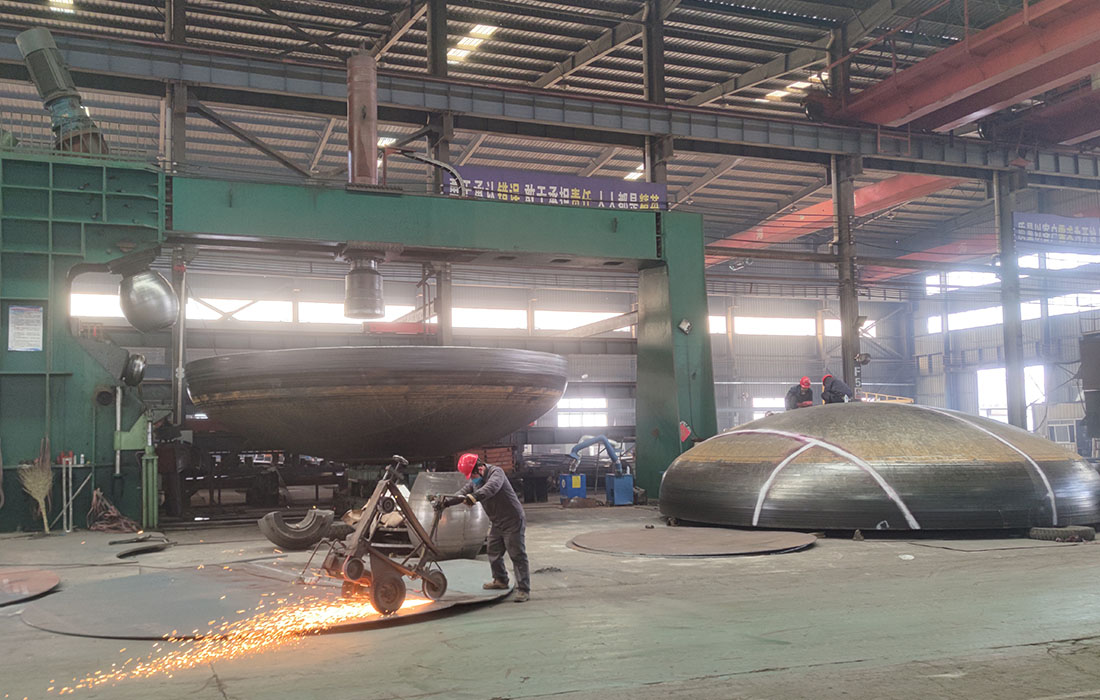

The fabrication of flanged and dished tank heads is a specialized process that requires expertise, precision, and adherence to strict quality control standards. The process typically involves several key steps, from material selection to final inspection.
Material Preparation: The first step is to select the appropriate material based on the design requirements. The steel plate is then cut to the required size and shape, often using automated cutting equipment to ensure accuracy.
Forming: The forming process involves shaping the flat steel plate into the desired elliptical shape. This can be achieved through cold forming or hot forming techniques. Cold forming involves pressing the plate into a die at room temperature, while hot forming involves heating the plate to a high temperature before pressing. Hot forming is typically used for thicker plates or for materials that are difficult to cold form. One method of cold forming tank heads is through use of a segmented die on an press that incrementally forms the plate, segment by segment, until the desired shape is achieved.
Flanging: After forming, the edge of the head is flanged to create the straight section that will be welded to the tank shell. This flanging process can be done using a flanging machine or by manually bending the edge of the head.
Welding (if applicable): If the flanged and dished tank head is fabricated from multiple segments, welding is required to join the segments together. Welding must be performed by qualified welders using approved welding procedures to ensure the integrity of the weld joints.
Heat Treatment (if required): Depending on the material and the forming process, heat treatment may be required to relieve stresses and improve the mechanical properties of the flanged and dished head.
Inspection and Testing: The final step is to inspect and test the flanged and dished tank head to ensure that it meets the required specifications. This includes visual inspection, dimensional checks, and non-destructive examination techniques such as ultrasonic testing or radiographic testing.
Throughout the fabrication process, careful attention must be paid to dimensional tolerances, surface finish, and other quality control parameters to ensure that the finished product meets the highest standards of quality and safety.
The steel thickness of a flanged and dished tank head plays a crucial role in determining the pressure rating of the tank. A thicker head can withstand higher pressures, while a thinner head is limited to lower pressures. The relationship between thickness and pressure rating is governed by the ASME Code and other applicable standards.
The ASME Code provides formulas for calculating the minimum required thickness of an elliptical tank head based on the design pressure, diameter, material properties, and other factors. These formulas take into account the stress distribution in the head and ensure that the head can withstand the applied pressure without yielding or rupturing. Generally, the minimum thickness is proportional to the pressure and diameter and inversely proportional to the material's yield strength.
Increasing the steel thickness of a flanged and dished head will generally increase the pressure rating of the tank. However, there are practical limitations to how thick a head can be made. Thicker heads are more expensive to fabricate, and they also add weight to the tank. Therefore, engineers must carefully balance the need for high-pressure resistance with the cost and weight considerations.
While elliptical tank heads are designed and fabricated to withstand demanding conditions, they can still be susceptible to certain problems if not properly designed, manufactured, or maintained. Understanding these potential issues and implementing preventative measures is crucial for ensuring the long-term reliability and safety of tanks.
One common problem is corrosion, particularly in tanks used to store corrosive materials or exposed to harsh environments. Corrosion can weaken the steel, leading to leaks or even catastrophic failures. To prevent corrosion, appropriate materials such as stainless steel or corrosion-resistant alloys should be selected. Additionally, protective coatings, such as epoxy or polyurethane, can be applied to the surface of the head to provide an extra layer of protection. Proper maintenance, including regular inspections and cleaning, is also essential for preventing corrosion.
Another potential problem is cracking, which can occur due to stress concentrations, welding defects, or fatigue. Stress concentrations can be minimized by careful design and fabrication practices, such as avoiding sharp corners and ensuring smooth transitions between different sections of the head. Welding defects can be prevented by using qualified welders, following approved welding procedures, and performing thorough non-destructive examination of the weld joints. Fatigue can be mitigated by reducing the operating pressure or temperature fluctuations and by conducting regular inspections to detect any signs of cracking.
Deformation or distortion of the head can also occur due to excessive pressure, temperature, or external loads. To prevent deformation, the head must be designed to withstand the expected operating conditions, and the tank must be properly supported to distribute the loads evenly. Regular inspections can help detect any signs of deformation early on, allowing for corrective action to be taken before the problem becomes severe.
By addressing these potential problems through careful design, fabrication, and maintenance practices, the reliability and longevity of flanged and dished tank heads can be significantly improved.
Finding a reliable supplier of industry-leading, high-quality flanged and dished heads is essential for ensuring the safety and performance of your tanks. When searching for a supplier, consider the following factors:
Expertise and Experience: Look for a supplier with a proven track record of manufacturing high-quality flanged and dished heads. The supplier should have experienced engineers and fabricators who are knowledgeable about the ASME Code and other applicable standards. We’ve found that it’s best to choose a company with in-house expertise.
Manufacturing Capability: The supplier should have the necessary equipment and facilities to manufacture flanged and dished heads to your exact specifications. This includes equipment for cutting, forming, welding, and testing.
Quality Control: The supplier should have a robust quality control system in place to ensure that the finished product meets your requirements. This includes inspections, testing, and documentation.
Material Selection: Ensure the supplier can work with a variety of materials, including carbon steel, stainless steel, and other alloys. This allows you to choose the material that is best suited for your application.
Customer Service: Choose a supplier that provides excellent customer service and is responsive to your needs. They should be able to provide technical support, answer your questions, and deliver your order on time and within budget.
By carefully considering these factors, you can find a supplier that can provide you with industry-leading, high-quality flanged and dished tank heads that meet your specific requirements.
Table 1: Comparison of Tank Head Types
| Feature | Elliptical Heads | Hemispherical Heads | Conical Heads |
|---|---|---|---|
| Shape | Approximately elliptical (2:1 ratio) | Half of a sphere | Cone |
| Pressure Resistance | Good | Excellent | Poor |
| Cost | Moderate | High | Low |
| Fabrication Complexity | Moderate | High | Low |
| Common Applications | Pressure vessels, storage tanks | High-pressure vessels, special tanks | Hoppers, silos, low-pressure tanks |
Table 2: Material Selection Guide
| Material | Advantages | Disadvantages | Common Applications |
|---|---|---|---|
| Carbon Steel | Cost-effective, strong, weldable | Susceptible to corrosion | Non-corrosive materials, protective coatings |
| Stainless Steel | Corrosion-resistant, hygienic | More expensive than carbon steel | Corrosive materials, food/beverage industry |
Elliptical tank heads, also known as flanged and dished heads, are essential components for closing the ends of cylindrical tanks.
The shape of an elliptical head provides a good balance between strength and cost-effectiveness.
ASME Code compliance is crucial for ensuring the safety and reliability of pressure vessels with elliptical tank heads.
Carbon steel and stainless steel are commonly used materials, each offering different advantages.
Thickness, diameter, dish radius, and knuckle radius are critical dimensions to consider when selecting a head. The dish radius or knuckle radius is crucial during the flanging process.
The steel thickness directly affects the pressure rating of a tank with elliptical tank heads.
Corrosion, cracking, and deformation are common problems that can be prevented through proper design, fabrication, and maintenance.
Elliptical tank heads are used in a wide range of industries including petroleum, chemical, and storage tanks.
Fabrication involves forming, flanging, welding (if applicable), heat treatment (if required), and inspection.
Choosing a reputable supplier with expertise, manufacturing capability, and quality control is essential.
