This comprehensive guide explores the world of hemispherical heads, crucial components in pressure vessels and tanks. We will delve into their design, applications, ASME compliance, and the factors to consider when choosing the right head for your needs. Whether you're involved in engineering, procurement, or simply curious, this article provides valuable insights into hemispherical tank heads and why they're a popular choice for pressure vessel applications.

1. What is a Hemispherical Head and Why is it Important?

A hemispherical head, also known as a hemisphere head, is a type of tank head used to cap the ends of pressure vessels, tanks, and boilers. Its shape, as the name suggests, is that of a half hemisphere. This shape provides significant advantages in terms of strength and efficiency, making it a popular choice for applications involving high internal pressure.

Why are hemispherical heads so important? Their primary function is to contain the pressure within the vessel. The hemisphere head is an ideal geometric shape for this purpose because it divides the pressure in the vessel equally across the entire surface, minimizing stress concentration and the risk of failure. This makes them particularly suitable for high pressure applications. The hemispherical heads are a popular and safe choice for pressure vessels.

2. Understanding the Design and Geometry of a Hemisphere Head.

The design of a hemispherical head is based on a simple yet effective principle: a hemisphere offers the most efficient distribution of stress under pressure. The key geometric parameter is the diameter, which corresponds to the diameter of the cylinder to which the hemispherical head is attached. The depth of the head is equal to half of the diameter.

When pressure is applied internally, the hemispherical shape ensures that the forces are evenly distributed throughout the head. Unlike other shapes like flat or conical heads, the hemispherical design minimizes stress concentrations, making the component stronger and more resistant to deformation or rupture. This simple radial geometry translates to higher safety margins and longer service life.

3. Applications of Hemispherical Tank Heads Across Industries.

Hemispherical tank heads find widespread use in a variety of industries due to their strength and efficiency. Because the hemisphere shape divides the pressure in the vessel equally, the heads are a popular choice for pressure vessels due to their ideal shape. This choice for pressure vessels due to their ideal shape is particularly important in industries where safety and reliability are paramount.

Here are some key applications:

• Chemical Industry: Pressure vessel heads are used in reactors, storage tanks, and other equipment where corrosive or hazardous materials are processed under high-pressure conditions.

• Petroleum and Gas: They are commonly used on liquid and gas storage tanks and used on liquid and gas storage tanks for storing and transporting petroleum products, natural gas, and other hydrocarbons.

• Water Conservancy: In water treatment plants and other facilities, hemispherical heads are used in tanks and vessels for storing and processing water and wastewater.

• Sanitary Construction: In industries like food and beverage and pharmaceuticals, hemispherical heads are utilized in tanks and vessels where strict hygiene standards are required. Sanitary construction etc benefits from the ease of cleaning and sterilization offered by the smooth, curved surface.

• Machinery

• Metallurgy

• Boiler

4. Why Choose a Hemispherical Head Over Other Pressure Vessel Heads?

When designing a pressure vessel, engineers have a variety of pressure vessel heads to choose from, including elliptical heads, torispherical heads, conical heads, and even flat heads. However, the hemispherical head offers several advantages that make it a preferred choice in many situations.

• Superior Strength: As mentioned earlier, the hemispherical shape provides the most efficient distribution of stress, allowing it to withstand higher pressures compared to other head types.

• Reduced Material Requirements: Because of its strength, a hemispherical head can often be made with thinner material compared to other head designs, leading to weight and cost savings.

• Optimal Space Utilization: While the depth of the head might be larger than some other designs, the overall volume efficiency of a hemispherical tank head is often better, especially in large-diameter pressure vessels.

• Ellipsoidal Head: The ellipsoidal head, also known as an elliptical head, is more economical for lower-pressure applications.

• Torispherical Head: The torispherical head is a compromise between the strength of a hemispherical head and the cost-effectiveness of an ellipsoidal head.

• Flat Head: A flat head requires significantly thicker material due to the stress concentration at the joint with the cylinder.

5. ASME Standards and Code Compliance for Hemispherical Heads.

The American Society of Mechanical Engineers (ASME) sets the standards for the design, fabrication, and inspection of pressure vessels and their components, including hemispherical heads. Compliance with the ASME code is essential for ensuring the safety and reliability of these vessels.

The ASME standard provides detailed guidelines on material selection, welding procedures, testing requirements, and other critical aspects of hemispherical head manufacturing. Manufacturers must adhere to these standards to obtain ASME certification, which is often a legal requirement for operating pressure vessels in many jurisdictions. The hemispherical heads comply with standards to ensure that the highest quality products are used.

6. Materials Used in Hemispherical Head Construction: Steel and Beyond.

The choice of material for a hemispherical head depends on the specific application and the operating conditions of the pressure vessel. While steel is the most common material, other options are available depending on factors such as pressure, temperature, corrosion resistance, and cost.

• Carbon Steel: This is a cost-effective option for many general-purpose applications where corrosion is not a significant concern.

• Stainless Steel: Stainless steel offers excellent corrosion resistance and is often used in the chemical industry, food and beverage, and pharmaceutical industries. The stainless steel options provide hygiene that is required.

• Nickel Alloy: For extreme conditions involving high temperatures and corrosive environments, nickel alloys offer superior performance.

Table 1: Material Properties for Hemispherical Heads

7. Manufacturing Processes: How are Steel Dished Hemispherical Heads Made?

The manufacturing process for steel dished hemispherical heads typically involves several key steps:

1. Material Selection: Choosing the appropriate grade and thickness of steel based on the design requirements and ASME standards.

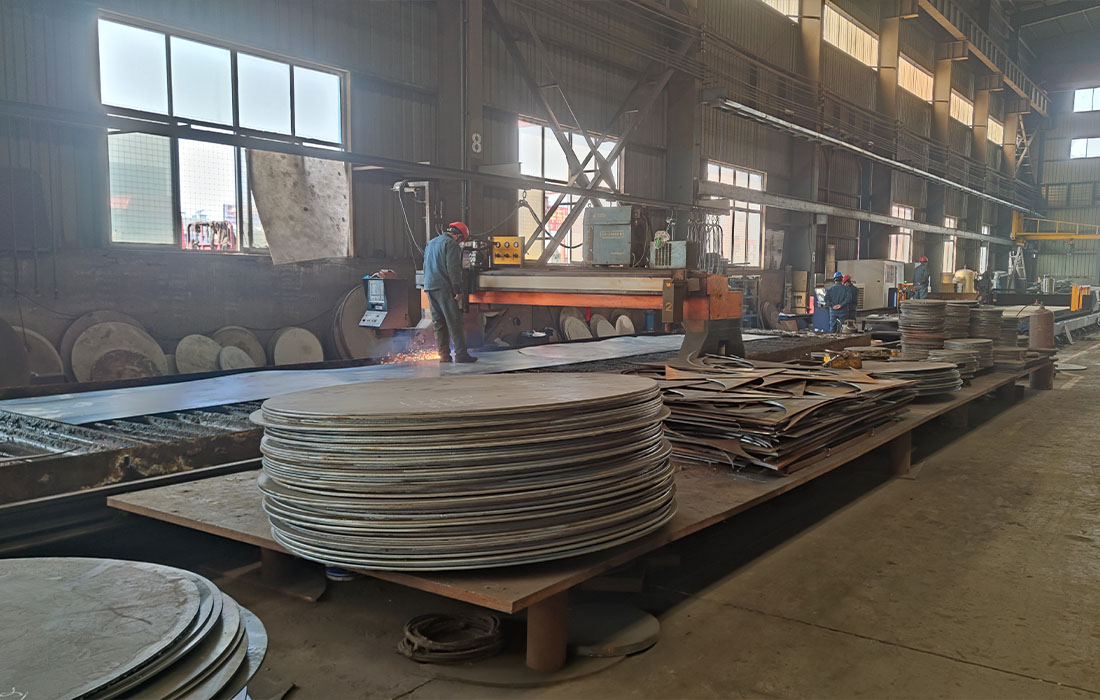

2. Cutting: Cutting the steel plate to the required size and shape.

3. Dishing: Forming the hemispherical shape using a hydraulic press and specialized dies. This process may involve multiple stages to gradually achieve the desired curvature.

4. Welding: If the hemispherical head is fabricated from multiple segments, the segments are welded together using appropriate welding techniques. All welds must meet ASME code requirements.

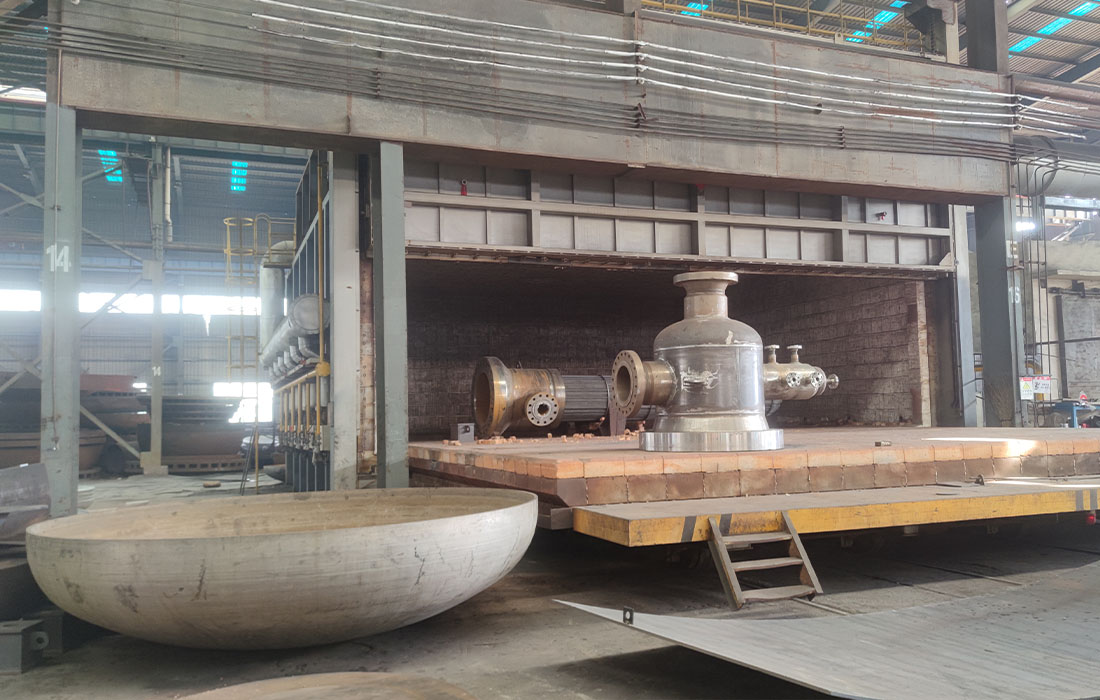

5. Heat Treatment: In some cases, heat treatment may be necessary to relieve stress and improve the mechanical properties of the steel.

6. Descaling: To descale, remove any oxides after welding.

7. Inspection: Thorough inspection to ensure dimensional accuracy, surface finish, and weld quality.

8. Factors to Consider When Selecting a Hemispherical Tank Head.

Selecting the right tank head for a pressure vessel requires careful consideration of several factors:

• Pressure: The maximum operating pressure of the vessel is a primary factor in determining the required thickness of the hemispherical head.

• Diameter: The diameter of the hemispherical head must match the diameter of the cylinder to which it will be attached.

• Temperature: The operating temperature of the vessel affects the material properties and must be considered in the design.

• Corrosion: The corrosive nature of the fluids being stored or processed will influence the choice of material.

• Depth of the Head: While the depth of the head of a hemispherical design is greater than some others, consider if space constraints are important.

• ASME Code Compliance: Ensure that the hemispherical head meets all applicable ASME code requirements.

Table 2: Hemispherical Head Selection Guide

9. Customization and Additional Features: Flanges, Manways, and More.

While a basic hemispherical head provides a sealed end for a pressure vessel, many applications require additional features to facilitate access, connections, and other functionalities.

• Flanges: Flanges are commonly welded to hemispherical heads to allow for bolted connections to other components, such as pipes, valves, or other vessel sections. Different types of flanges are available to meet various pressure and sealing requirements. The flange can be made of different materials, as well. This may be a carbon steel flange.

• Also Supply Manways: Manways are access ports that allow personnel to enter the vessel for inspection, maintenance, or cleaning. They are typically equipped with hinged covers and sealing mechanisms to maintain pressure integrity.

• Access Ports: Small access ports can be incorporated into hemispherical heads to provide access for instrumentation, sampling, or other purposes.

• Even Specialty Fittings: Even specialty fittings such as ferrule, sight glasses, light assemblies, gasket, and clamp can be included.

10. Where to Buy Hemispherical Heads: Finding a Reliable Supplier.

Choosing a reliable supplier is crucial for obtaining hemispherical heads that meet your specific requirements and ASME code compliance. Here are some factors to consider when selecting a supplier:

• Experience and Expertise: Look for a supplier with a proven track record in manufacturing pressure vessel heads.

• Quality Control: Ensure that the supplier has a robust quality control system in place to guarantee the integrity and accuracy of their products.

• Customization Capabilities: If you require custom designs or features, choose a supplier with the ability to meet your specific needs.

• Certifications: Verify that the supplier is ASME certified and complies with all applicable industry standards.

• Customer Service: Select a supplier that provides excellent customer service and technical support.

Here is some additional information from a sample supplier:

• TCI Mission Statement: Commitment to providing exceptional products and services.

• Product Picture Details: Detailed images of the hemispherical heads for visual inspection.

• Recommended Products: Suggestions for complementary products or related items.

• Product Tags: Keywords that describe the product's features and applications.

Product Details:

• Brand Name: The manufacturer's brand name.

• Model Number

• Place of Origin

• Certification

• Minimum Order Quantity: 1 PC

• Price: Negotiable

• Packaging Details: Standard Export Package

• Delivery Time: 10-90 days

• Payment Terms: L/C, T/T

• Supply Ability: 10000 pieces per year.

• Material: stainless steel 304/316L, Carbon Steel, Alloy Steel

• Thickness: 2mm--300mm reduction ratio

• Diameter: 100mm--8000mm glm diameter

• Type: Dished End/ Hemispherical / Elliptical/ Cone/Torispherical

• Standard: ASME/ GB/ DIN/ JIS/ EN/ASME

• Application: hemispherical tank heads make the tanks.

• Surface: Pickling/ Sand Blast

• Product name: tank head designs

Trade Information:

• EXW

• FOB

• CNF

• CIF

• DDP

• DDU

• DAP

We believe in our guiding principles of optimal manufacturing experience, efficient delivery, competitive prices, and an unprecedented approach to services! Please reach out to us for your requirements. Get your free quote today.

Key Takeaways: 10 Important Things to Remember About Hemispherical Heads

• Hemispherical heads are ideal for high-pressure applications.

• The hemisphere head shape evenly divides the pressure in the vessel equally, minimizing stress.

• ASME compliance is crucial for safety and regulatory reasons.

• Stainless steel is a common material choice due to its corrosion resistance.

• The diameter of the hemispherical head must match the cylinder to which it is attached.

• Consider operating conditions like pressure, temperature, and corrosion when selecting a head.

• Customization options like flanges and manways are available.

• Choose a reliable supplier with ASME certification and a strong quality control system.

• Hemispherical heads are commonly used on liquid liquid and gas storage tanks.

• Proper welding is essential for the integrity of the hemispherical head.
