Conical Dished Heads for Tanks

ASME Standard Customized Conical Head for Storage Tank Conical Cone Head End

1. Product Description

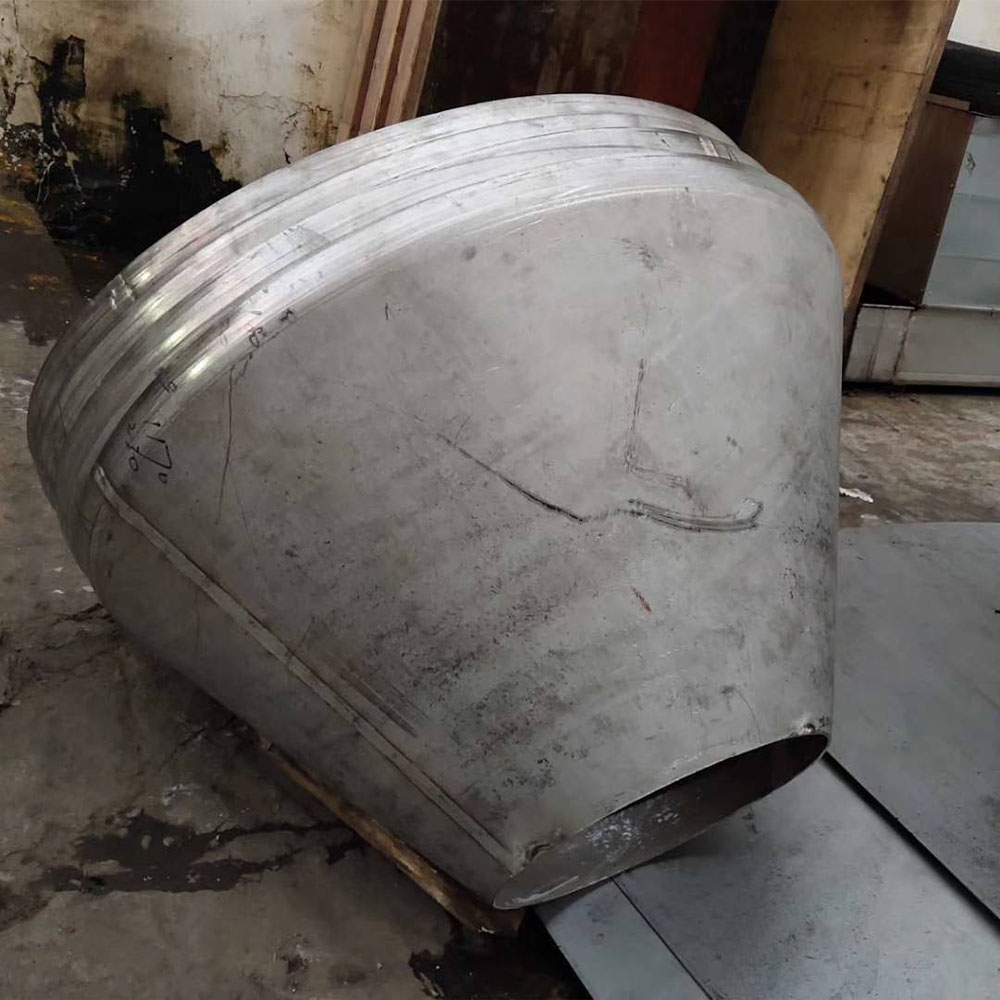

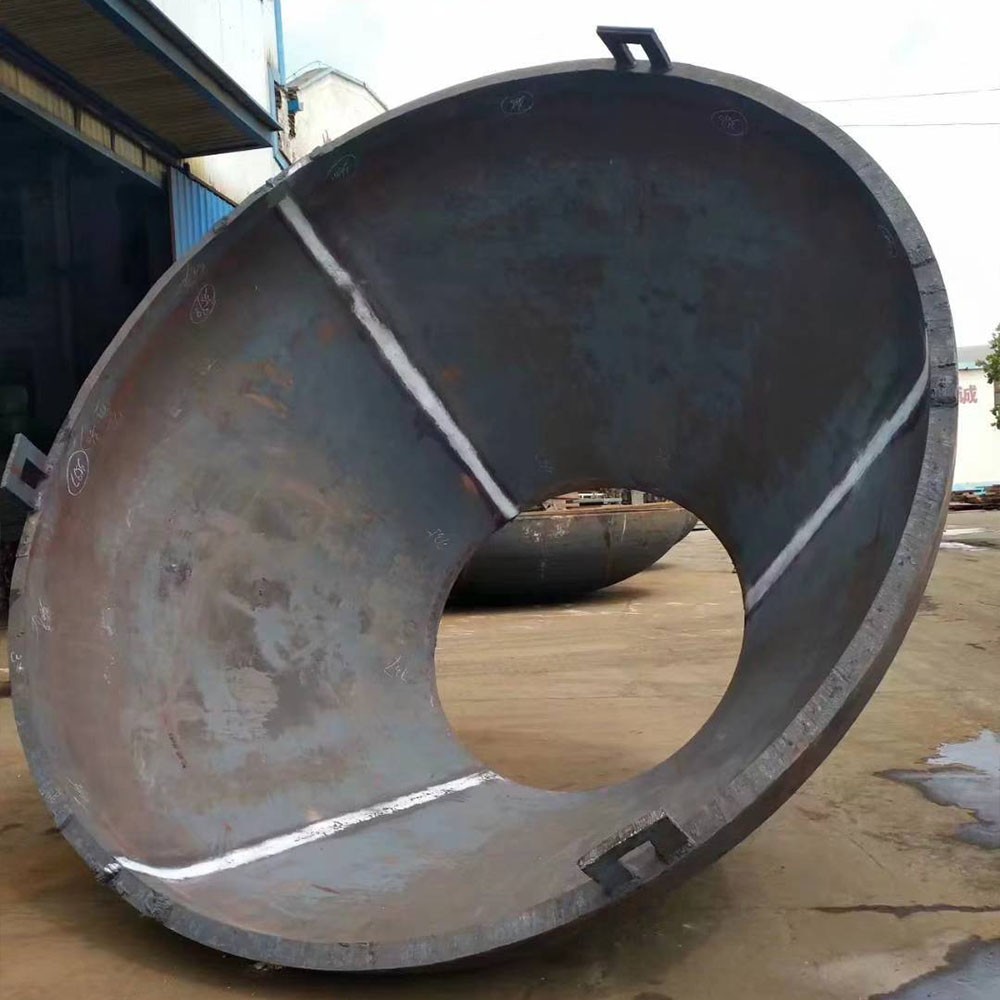

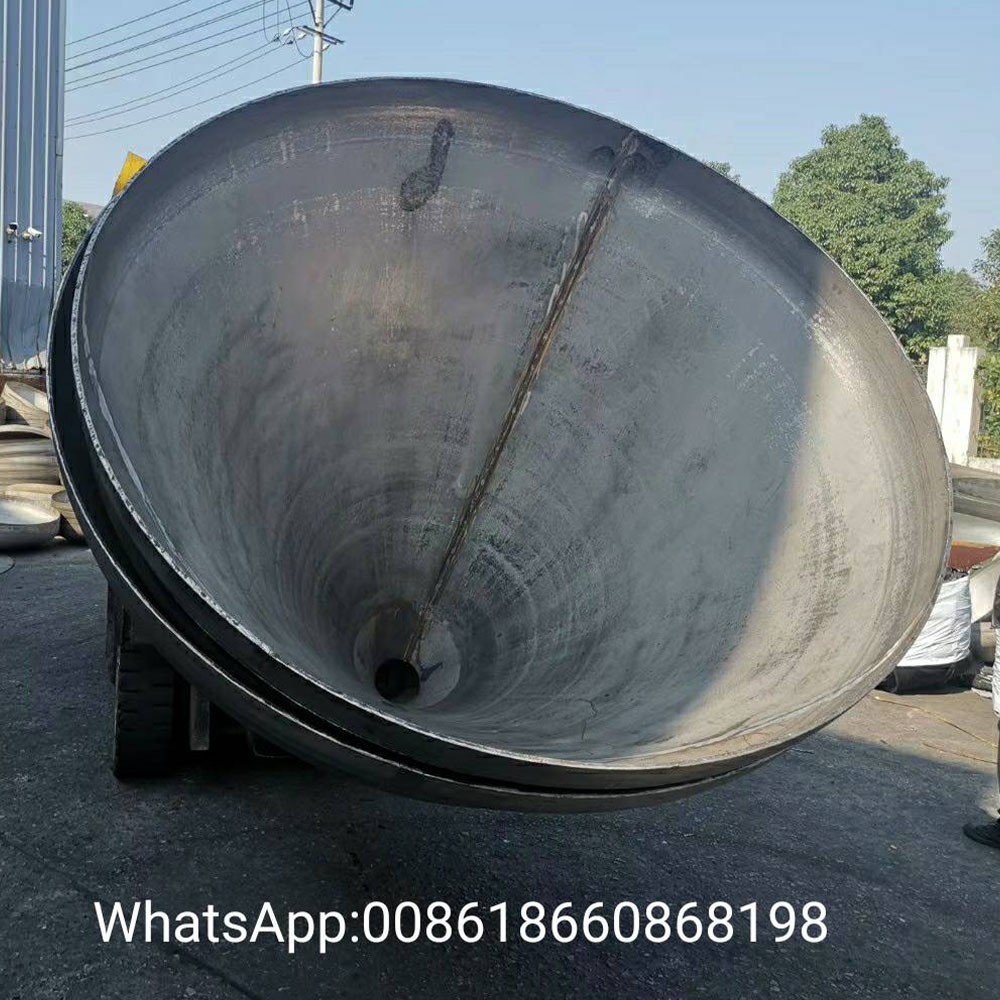

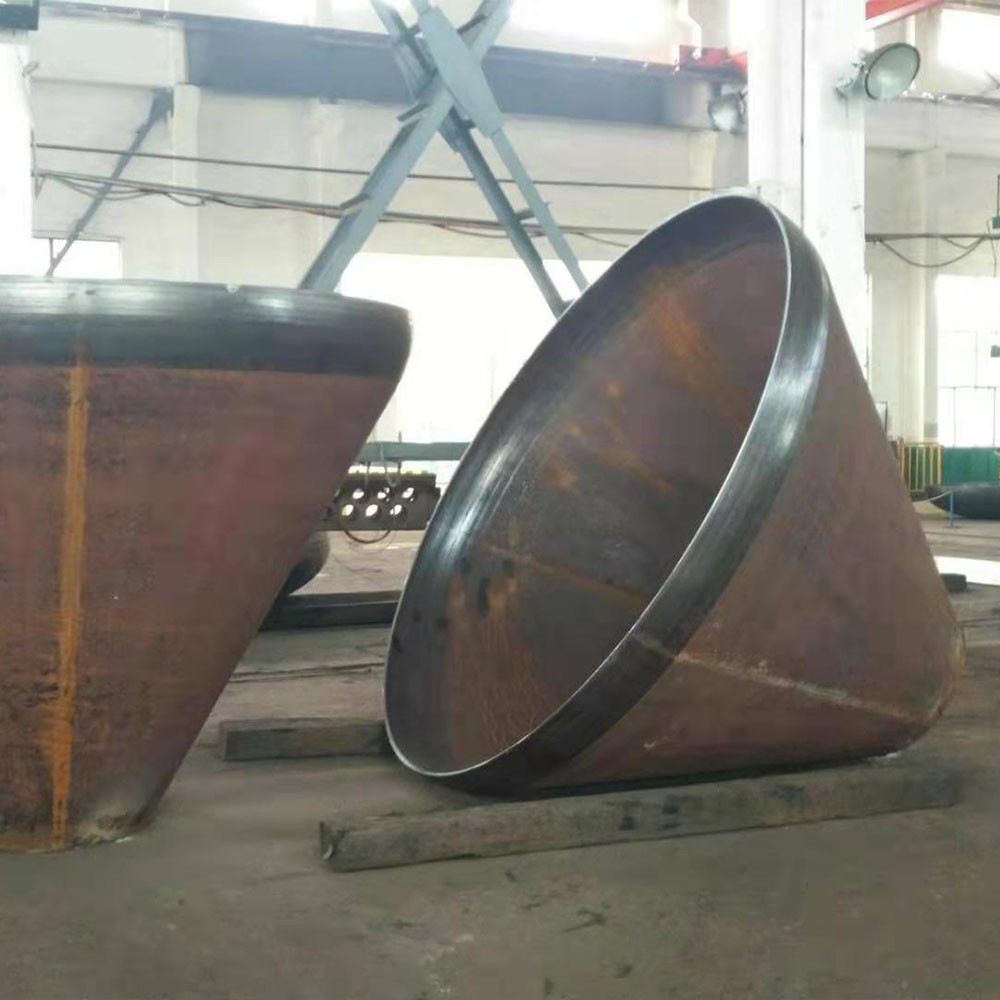

Conical Head (also called the tapered tank head) is widely used for vessel bottom or cover plates. A conical dished head is the end cap on the pressure vessel and is a main pressure bearing component of the pressure vessel. It acts as a seal. One is made into the bottom of the tank pressure vessel, the other is the end of the pipe, not ready to extend forward, then use a head in the form of welding the pipe seal. Our ASME conical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. According to the size of the end of the type is divided into non-folding conical tank head and hemming conical dished head.
Our tank head can be customized according to your needs. We can choose the most suitable model for you depending on your demands on shape, thickness, material and diameter.

2. Main Features
- With the shape of concentric cone, the toriconical head consists of a large end cone and a small end.
- Cone and large end of the connection, due to geometric discontinuity, the radius of curvature of the mutation, so there will be a large lateral thrust, causing a large edge stress, prone to bending, it is necessary to strengthen.
- According to the size of the end of the type is divided into non-folding conical tank head and hemming conical dished head. The conical head is applied for the bottom of the pressure vessel to facilitate the collection and removal of internal materials and for the connection of two-stage vessels of varying diameters (also known as variable diameter sections).

3. Application
1. Pressure Vessel Industry      2. Petroleum Industry                   3. Chemical Industry
4. Pharmaceutical Industry       5. Sewage Treatment Industry      6. Food Industry
7. Nuclear Power Industry        8. Gas Industry                              9. Aerospace Industry
10. Machinery Industry            11. Construction Industry               12. Shipbuilding Industry
13. Cosmetic Industry             14. General Storage Industry         15. Steam Boiler Industry

4. Specifications

5. Why to Choose Us
- We provide advanced tank head manufacture technology to assure your tank head 100% quality stability.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port.
- 7 days x 24 hours service, within 24 hours reply / solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guaranty the tank head long lasting safety and reliability.
- We will consider your all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentations etc. So our respected Users feel so relaxed and easy to get the tank head well. (dished head)

6. FAQ
Q: Can you give us the technical drawing and data?
A: Our products are all custom made. Usually you need to provide us with the drawings. And if you do not have it, some important data is also necessary. We can help you design it after we signed the contract and confidentiality agreement.
Q: Is it possible to know how is my product going on without visiting your company?
A: We will offer a detailed products schedule and send weekly reports with digital pictures and videos which show the machining progress.
Q: Are the products tested before shipping?
A: Yes, all of our products were inspected piece by piece and they are all qualified before shipping.
Q: What is the delivery time?
A: The delivery time is usually within 25 working days once deposits received and product drawing confirmed. If the size is too big, and bulk ship, and it may need more time.
Q: What is the packaging?
A: Wooden cases, steel racks or as per customer's requirement.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance, balance before shipment.

Company information

Haipei industry can produce all types of dished ends heads. They can be manufactured from a number of steel types including pressure vessel and boiler quality, chrome moly and stainless steel. The company also offers 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections.

Haipei industry company is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Packaging & Shipping

Carbon steel Hemispherical spherical head for Industrial hot blast stove

1. Iron Frame2. Wooden Box3. Iron pallet4.Wooden pallet.5.Professional fixation6. Curstomed requirment

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
