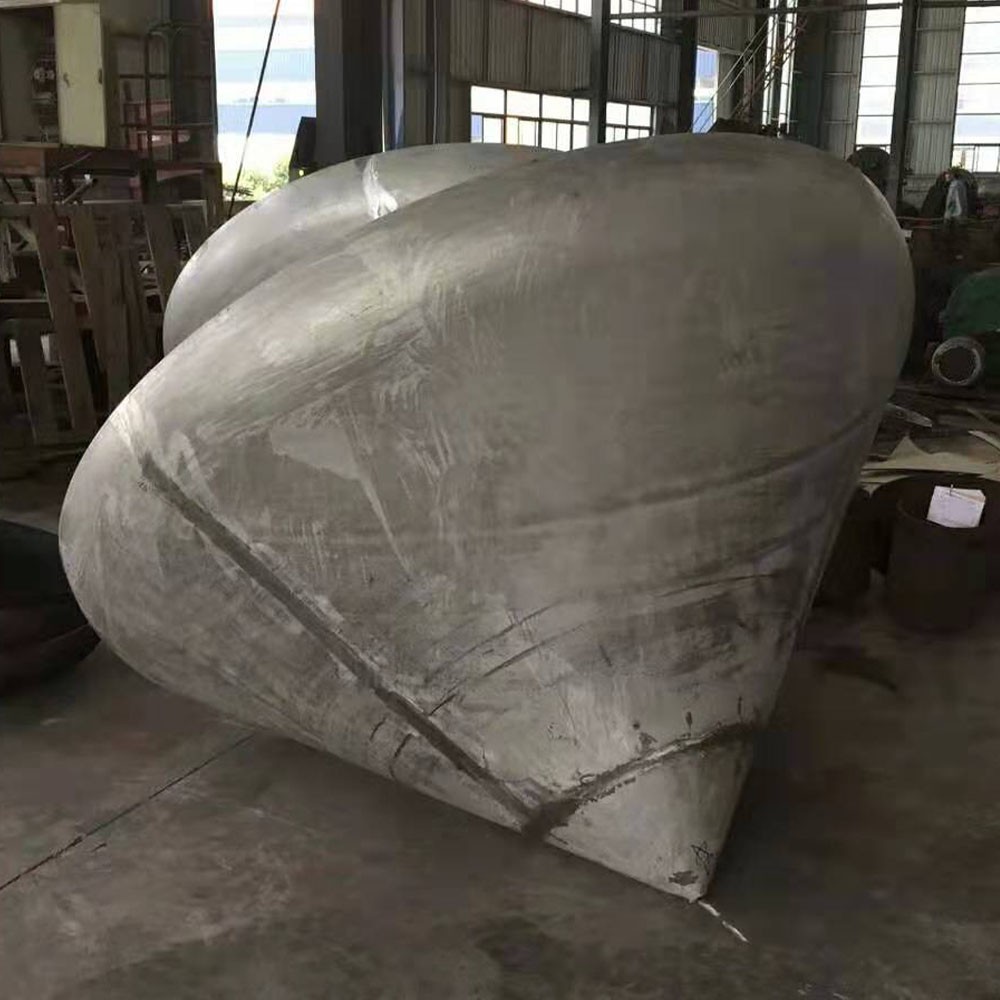

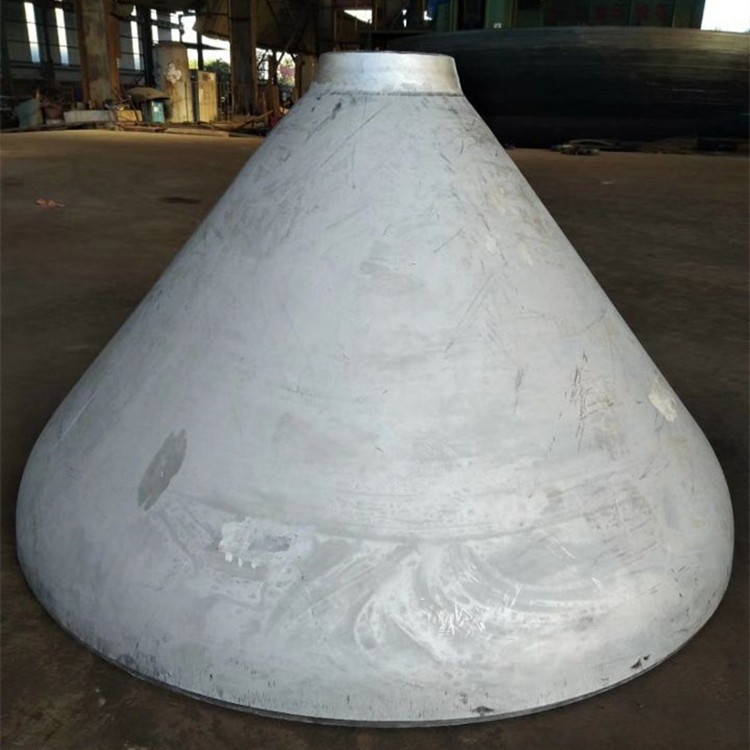

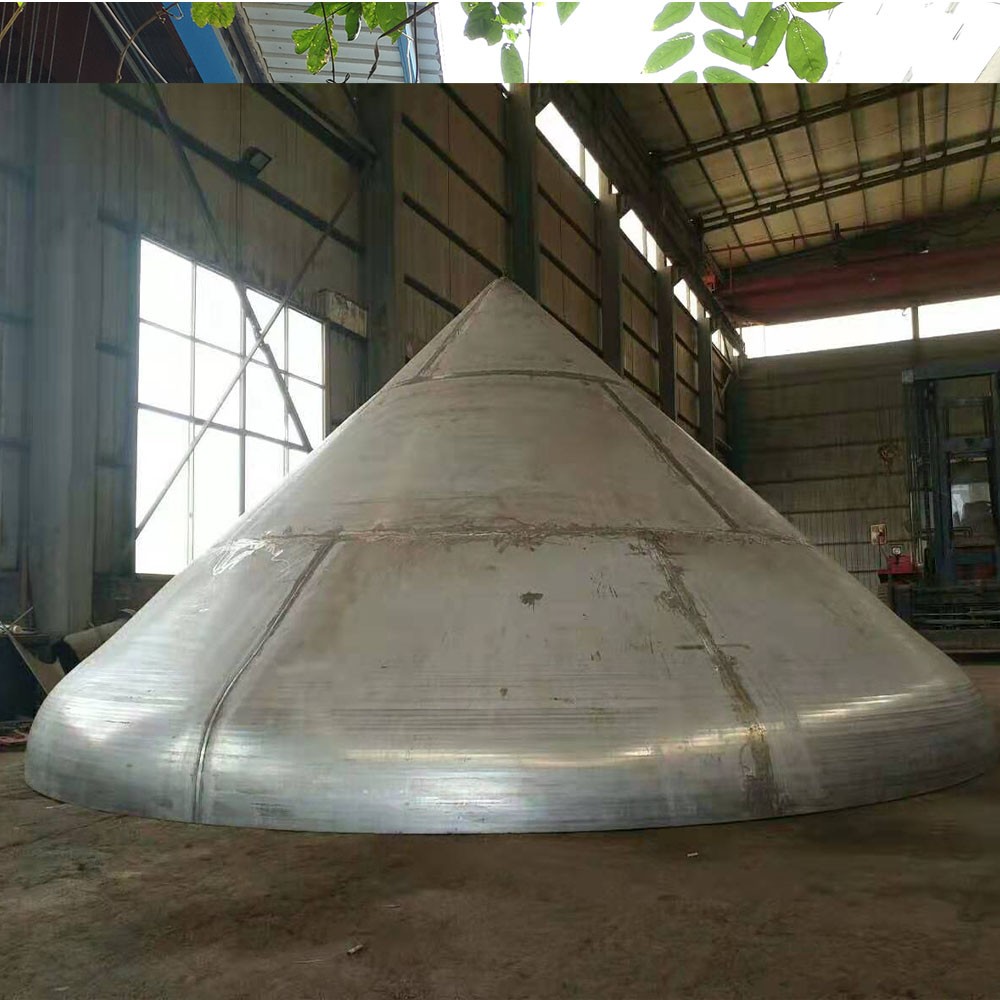

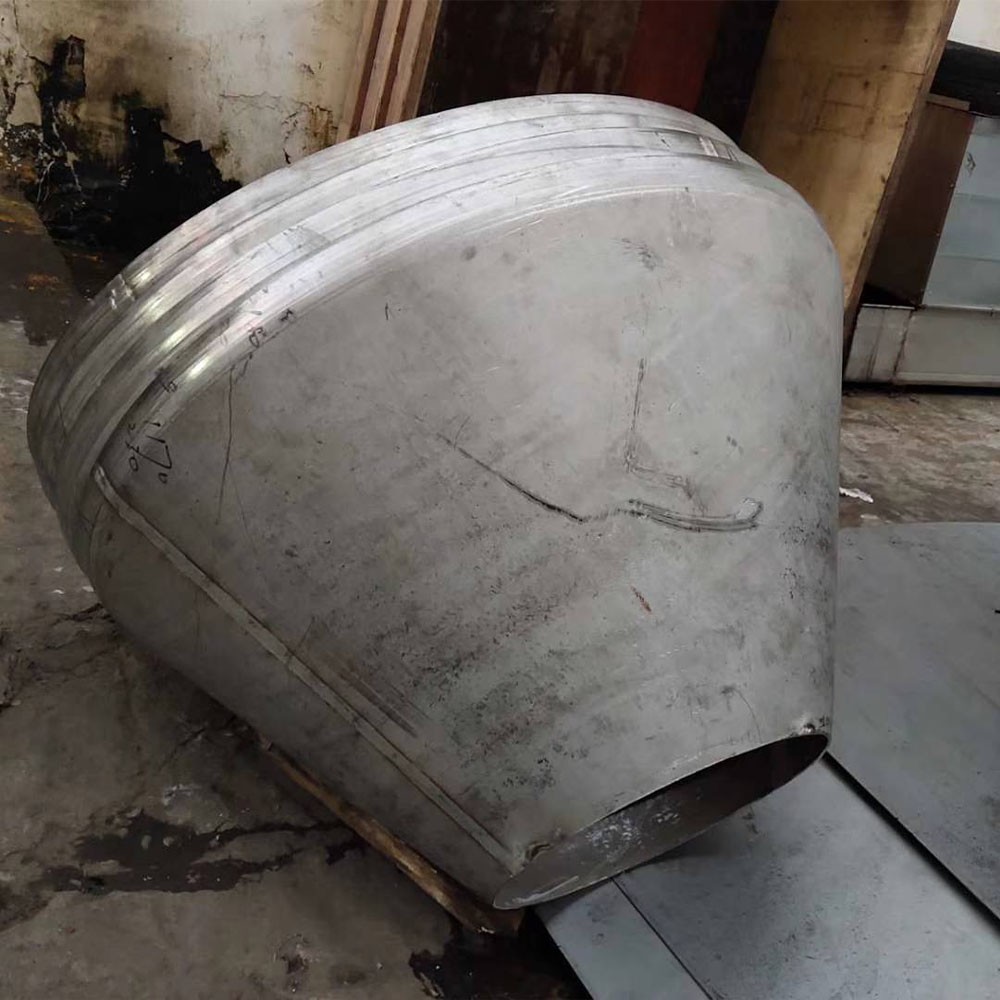

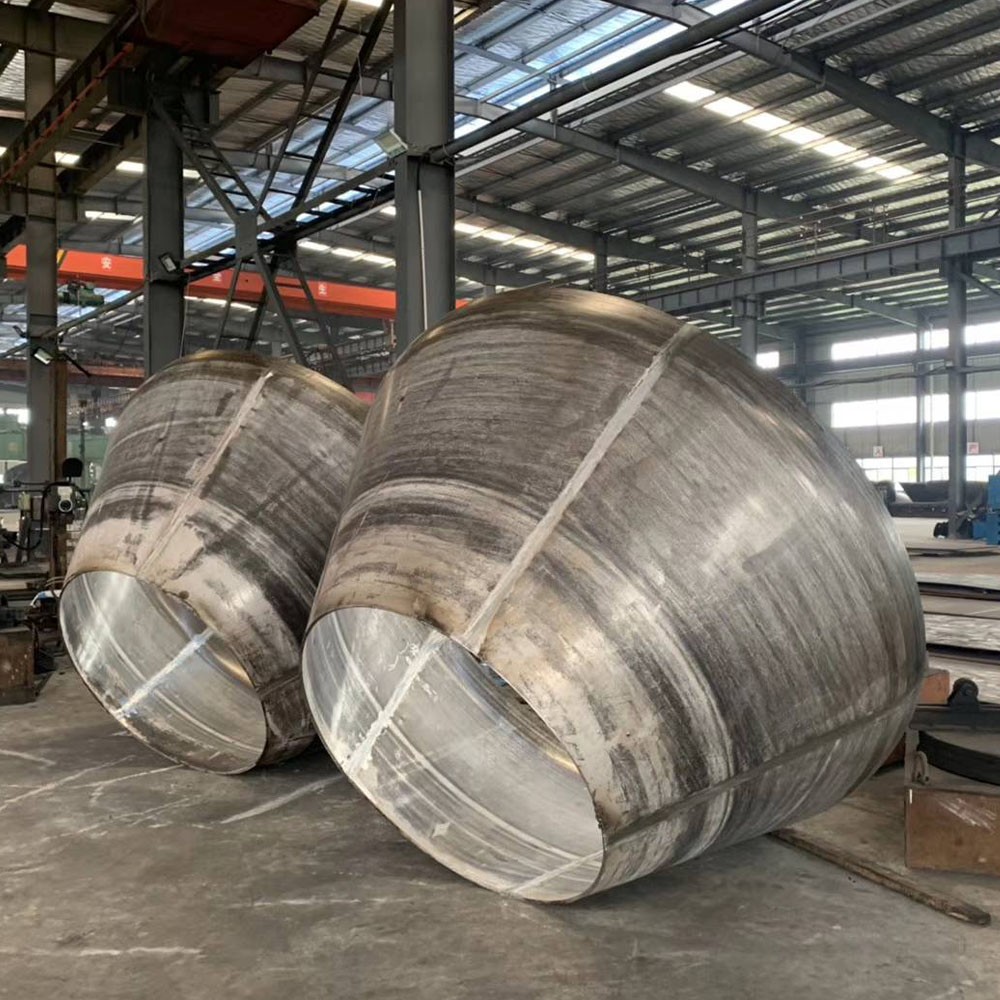

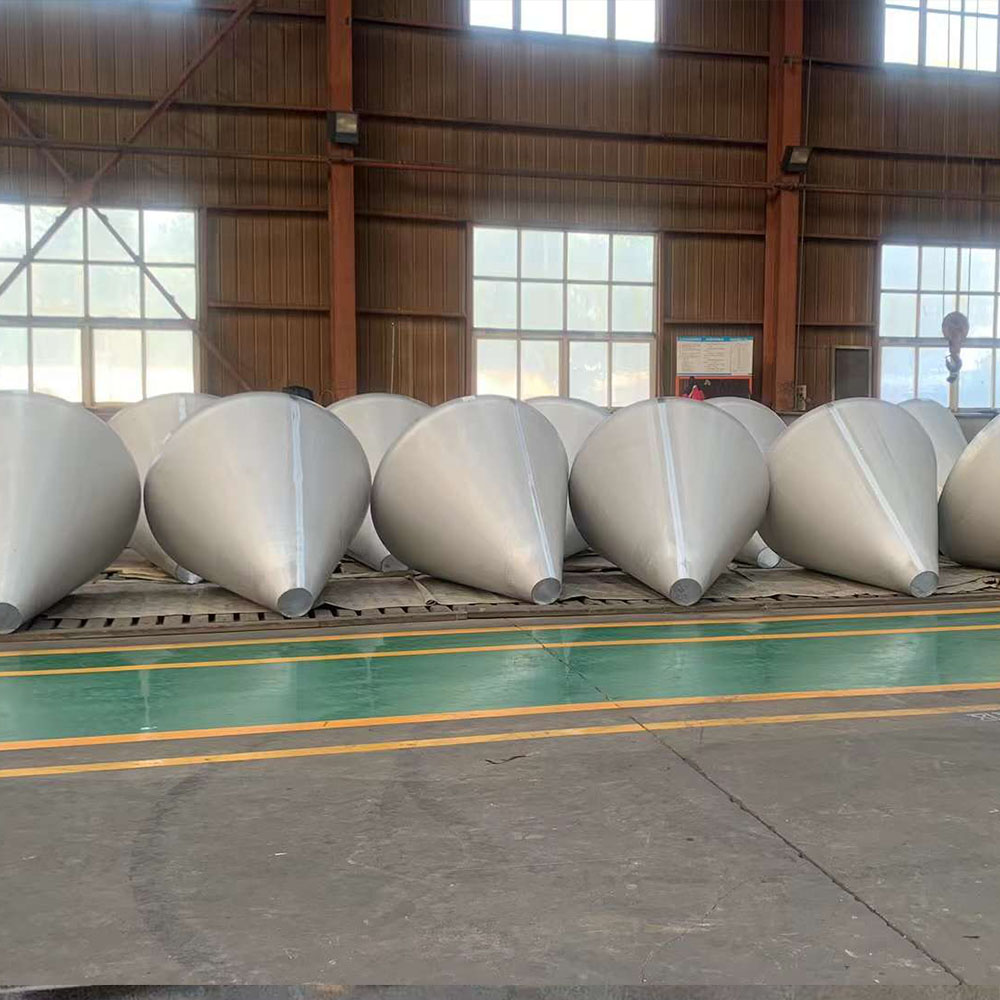

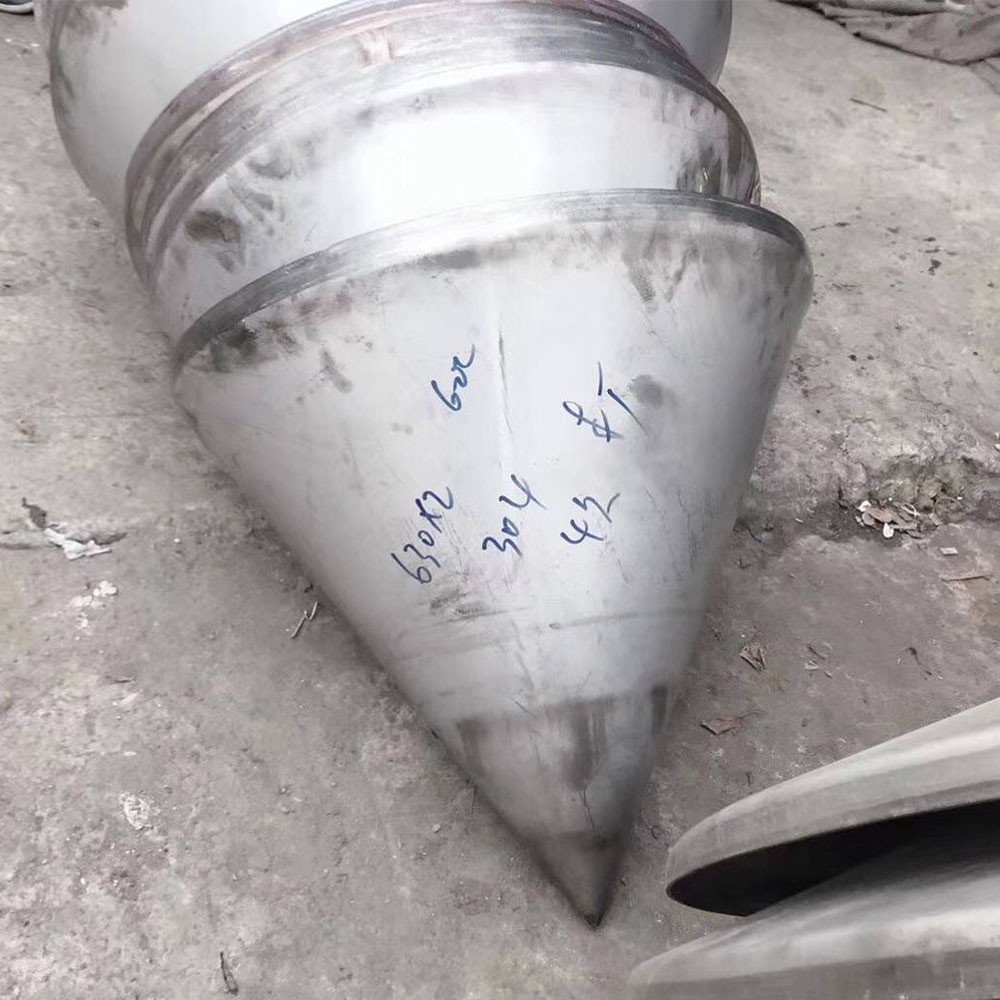

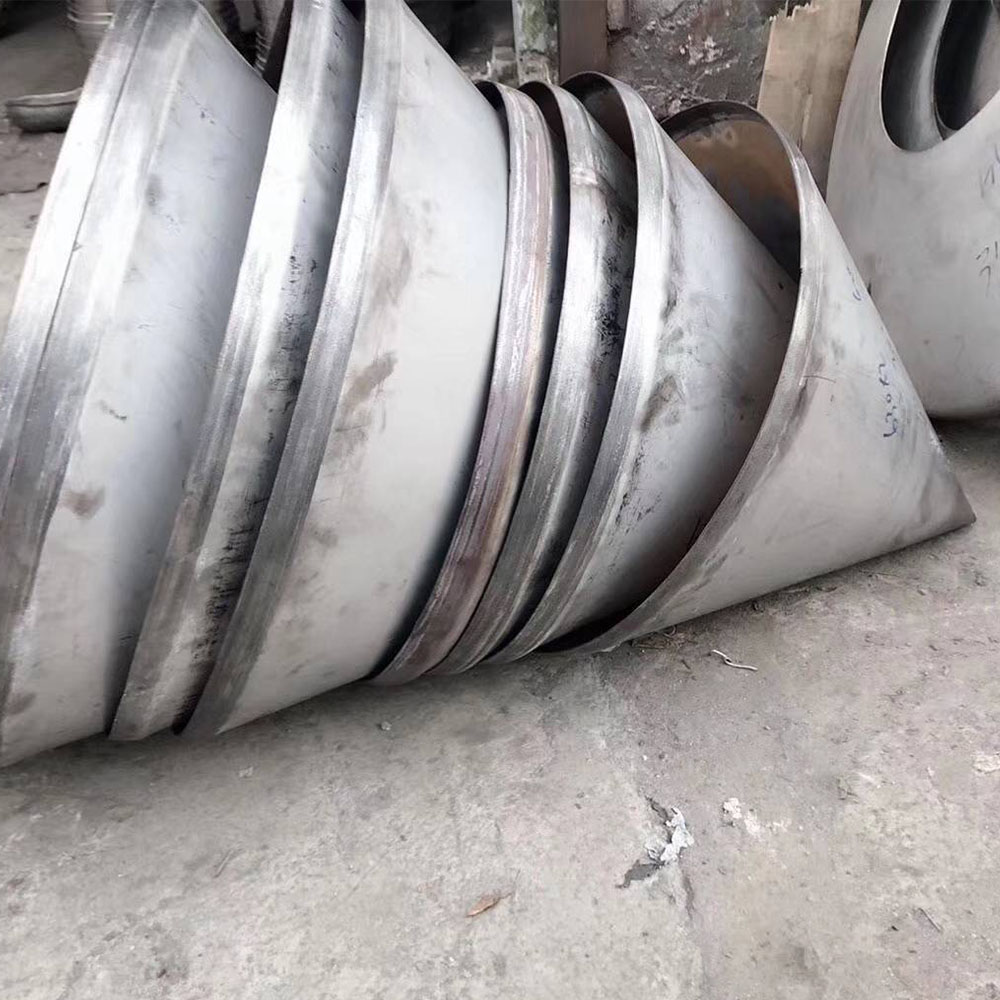

304 Stainless Conical Head Cone Steel End Caps for Tanks

Product Introduction: 304 Stainless Conical Head Cone Steel End Caps for Tanks

Overview

The 304 Stainless Conical Head Cone Steel End Caps for Tanks are essential components in the manufacturing of pressure vessels, storage tanks, and industrial equipment. Designed to provide structural integrity and efficient material flow, these conical heads ensure safety, durability, and compliance with industry standards.

Product Description

The Conical Head, also referred to as a tapered tank head, serves as a crucial part of vessel bottoms and cover plates. Constructed from premium materials such as carbon steel, stainless steel, alloy steel, clad steel, and dual-phase steel, these conical heads offer versatility for various industrial applications.

Manufactured through cold dishing and flanging or hot pressing, the heads are available in diameters of up to 26,000 mm and thicknesses of up to 200 mm. The edge preparation is customized based on specific client requirements, ensuring a precise fit for different industrial setups.

Key Specifications

Design and Performance

The conical head features a concentric cone structure, consisting of a large-end cone and a small-end cone. The connection between the cone and the large end creates a geometric discontinuity, resulting in a high lateral thrust and edge stress. To counteract bending issues, reinforcements are often applied, ensuring optimal performance and durability.

The conical heads are classified based on half-angle measurements into:

• CHA (30°)

• CHA (45°)

• CHA (60°)

Additionally, based on the end type, they are divided into:

• Non-folding conical tank heads

• Hemming conical dished heads

Applications

The 304 Stainless Conical Head Cone Steel End Caps play a vital role in:

1. Pressure Vessel Construction – Providing a stable and efficient end cap for pressure vessels.

2. Storage Tanks – Ensuring durability and safety in liquid and gas storage applications.

3. Material Collection & Removal – Facilitating the movement of internal materials for processing.

4. Variable Diameter Sections – Connecting vessels with varying diameters for industrial processes.

Manufacturing and Inspection Standards

These conical heads meet stringent ASME and China Standard regulations, ensuring high reliability. Third-party inspections from LR, TÜV, BV, and SGS validate their quality, making them a trusted choice for demanding industries.

Conclusion

The 304 Stainless Conical Head Cone Steel End Caps for Tanks offer exceptional strength, durability, and adaptability for a wide range of industrial applications. With customizable dimensions and materials, these conical heads ensure compliance with the highest industry standards, making them an ideal solution for high-performance tanks and vessels.

Packaging & Shipping

alibaba china carbon steel 6204 2rs dish conical head

1. Iron Frame

2. Wooden Box

3. Iron pallet

4.Wooden pallet.

5.Professional fixation

6. Curstomed requirment

Our Services

We offer our products in the following materials:

Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)

Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)

Copper: O-Temper Material (Forming Only)

Aluminum: O-Temper Material (Forming Only)

Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.

Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.

Contact us

Skype:frieda8368
Whatsapp/Weichat:86-18264838918
Email:[email protected]
Frieda

FAQ

Q: What’s the information should I provide when inquiry?

A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

Q: what are surface treatment of the product?

A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

Q: How do you ensure the quality of products?

A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

Q: Can you help us matching related products?

A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
