Conical Heads: An Overview

Conical Heads: An Overview

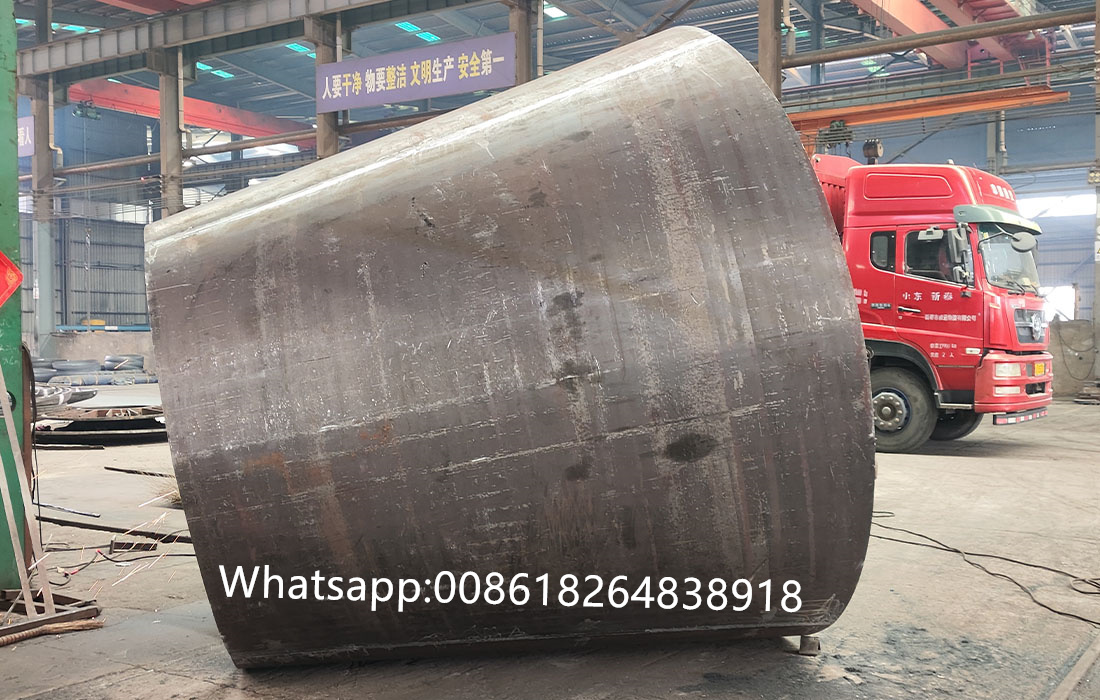

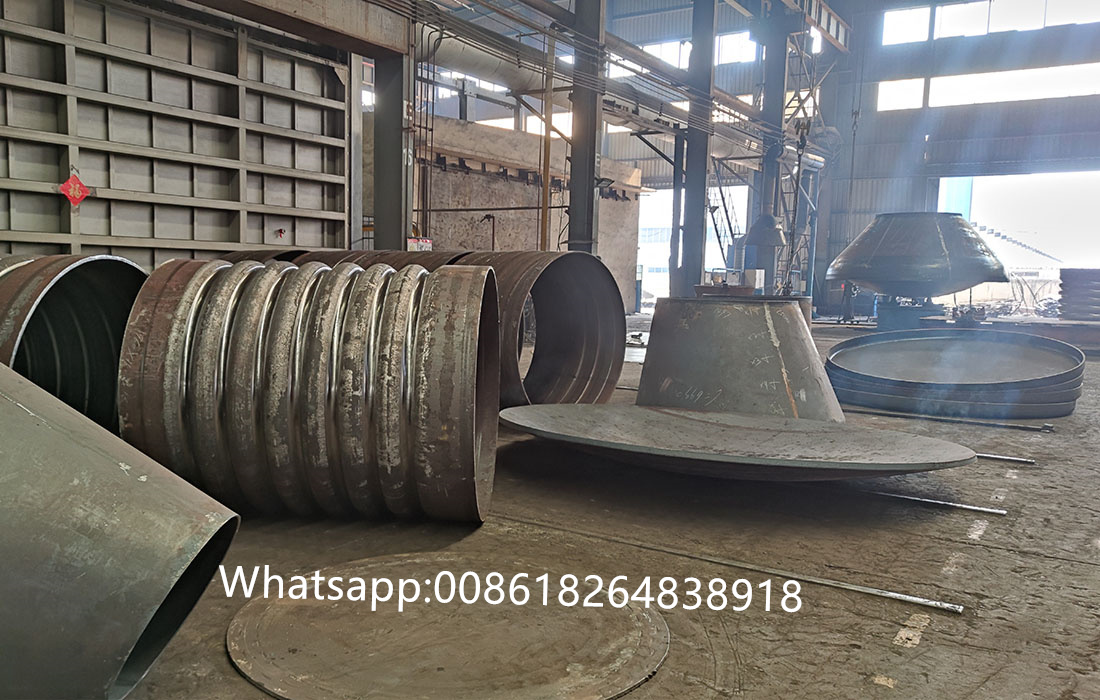

A conical head, also known as a tapered head, is a vessel closure featuring a surface shaped like a cone. A key characteristic of this design is its ability to facilitate a uniform change in fluid velocity over time. This makes it particularly well-suited for handling viscous liquids and mixtures containing fine particulate matter suspended in a liquid. However, conical heads possess inherent structural limitations and are susceptible to localized stress concentrations at the junctions where they connect to cylindrical vessel bodies or transition pieces. These stress concentrations are primarily due to the abrupt change in geometry.

To mitigate these unsustainable stress levels, designers often incorporate reinforcing features. These can include a curved, flared edge or a localized thickening of the material at either the larger or smaller diameter of the cone.

Material Selection for Conical Heads

The choice of materials for conical head fabrication is diverse, depending on the application and operating conditions. Common materials include:

• Alloy Steels: Offer a balance of strength, weldability, and cost-effectiveness.

• High-Alloy Steels: Provide enhanced corrosion resistance or high-temperature performance.

• Clad Materials (Sandwich Panels): Combine the properties of different materials, such as corrosion resistance and strength.

• Stainless Steels: Offer excellent corrosion resistance in various environments.

• Rare Metals (Copper, Aluminum, Titanium): Selected for their specific properties, such as high corrosion resistance (Titanium), high thermal conductivity (Copper and Aluminum) or light weight (Aluminum).

Numerous national standards exist governing the use of these materials in conical head manufacturing.

Manufacturing Process

The production of a conical head typically involves the following steps:

1. Material Procurement: Sourcing the specified raw material.

2. Material Preparation (Physical Chemistry): Pre-treating the material to ensure it meets quality standards.

3. Cutting: Shaping the raw material to the required dimensions.

4. Hot Forming (Hot Forging): Shaping the cone under high temperature to achieve the desired conical shape.

5. Heat Treatment (Quenching and Tempering): Modifying the material's mechanical properties for increased strength and toughness.

6. Non-Destructive Testing: Verifying the integrity of the material and welds using various methods (e.g., ultrasonic testing, radiography).

7. Machining (Deep Processing): Performing final shaping and dimensional adjustments.

8. Final Inspection: Ensuring the finished product meets all specifications.

9. Marking: Identifying the head with relevant information (material, batch number, etc.).

Challenges and Improvements

The conical shape itself presents design and engineering challenges. Under external pressure, the maximum stress within the shell tends to concentrate at the larger diameter of the cone. The geometric discontinuity at the cone-to-cylinder junction causes a significant lateral force, leading to high edge stresses. This effect can make the junction prone to deformation or bending. Therefore, specific design considerations are necessary to address and mitigate these stress concentrations.

Common Issues Leading to Gaps or Weaknesses

Potential issues during manufacturing can lead to defects in the conical head. These include:

1. Substandard Raw Materials: Using materials that do not meet the required specifications.

2. Inappropriate Welding Techniques or Materials: Utilizing welding methods or consumables that are not suitable for the specific application or material.

3. Flawed Cold Forming Process: Employing a cold forming process that introduces excessive stress or weakens the material.

Welding Considerations

The process of welding the conical head to a cylindrical shell requires careful attention. The head and shell are aligned and secured at multiple points using tack welds. Subsequent welding is then performed gradually and uniformly to minimize distortion and residual stress.

Applications and Stress Analysis

Conical heads find widespread use in pressure vessels and other equipment where a transition between different diameters is required. Understanding the stress distribution within a conical head is crucial for ensuring its structural integrity.

1. Large Diameter (Cone-to-Shell Junction): The primary stress at the large end is radial bending stress, a secondary geostress. Design must account for this geostress in addition to conventional stress strength control.

2. Small Diameter (Cone-to-Shell Junction): Stress state comprises average circumferential tensile stress and average axial compressive stress, characteristic of local plastic film stress. While this stress can be controlled, a geostress strength assessment remains critical due to the potential for edge effects exceeding the standard distribution range.

3. Reinforcement Considerations: Regardless of end size, reinforcement thickness must match or exceed the thickness of the connected cone shell. Reinforcement spacing must meet or exceed the diameter of the connecting barrel, ensuring structural integrity.
