Torispherical heads are a common type of pressure vessel head used to close the ends of cylindrical or spherical vessels. This article provides a detailed exploration of torispherical heads, focusing on their design, applications, and compliance with ASME standards. Whether you're a seasoned engineer or new to pressure vessel design, this guide offers valuable insights into understanding and working with torispherical heads, including considerations for calculation of torispherical head volume and weight. Knowing torispherical heads’ details is important, and this article is worth reading because it offers a comprehensive understanding of torispherical head design, manufacturing, and application, all while emphasizing ASME compliance.
A torispherical head is a type of pressure vessel head commonly used as a closure for cylindrical pressure vessels. It consists of a central dish, spherical cap or crown with a certain shape instead of a particular dish, and a toroidal knuckle (or torus) connecting the dish to the cylindrical shell. This knuckle radius is crucial for stress distribution. It is a type of head design.
The geometry of a torispherical head is defined by two main radii: the crown radius and the knuckle radius. The crown radius is the radius of the spherical cap, while the knuckle radius is the radius of the toroidal section connecting the crown to the cylindrical shell. A straight flange is often present, which is a cylindrical extension at the edge of the head that allows for easier welding to the vessel shell. These heads are asme compliant.
Torispherical heads offer a good balance between cost, space, and performance. They are generally more economical to manufacture than hemispherical heads while providing better stress distribution compared to flat heads. The advantages of using a torispherical head include:
Cost-effectiveness: Generally less expensive to manufacture compared to hemispherical or ellipsoidal heads.
Space efficiency: Requires less space compared to a flat head and can be more compact than a hemispherical head.
Ease of fabrication: Simpler manufacturing process compared to some other head types.
Industry standards and exceed customer expectations:
standards and exceed customer expectations:
Reduced stress concentration: The toroidal knuckle helps to reduce stress concentrations compared to a simple flat head.
However, torispherical heads are not without their drawbacks. Compared to hemispherical heads, they can experience higher stresses at the knuckle region. Also, compared to ellipsoidal heads, they may require a larger diameter of the head for the same design pressure. The choice of head type ultimately depends on the specific requirements of the pressure vessel application.
The design and fabrication of pressure vessels, including the flanged and dished head, are governed by the ASME Boiler and Pressure Vessel Code. According to ASME, specific rules apply to the design of torispherical heads under section viii division 1. These rules address the minimum required wall thickness, based on the design pressure, diameter of the head, and material properties.
The ASME code specifies limitations on the allowable dimensions of the crown radius and knuckle radius. For example, the code typically requires that the knuckle radius is at least 6% of the inside diameter. The code also provides guidelines for the straight flange length. The purpose of these limitations is to ensure the structural integrity of the head and prevent premature failure under pressure.
Choosing the right type of head is crucial for the performance and safety of a pressure vessel. Here's a comparison of torispherical, ellipsoidal, and hemispherical heads:
Hemispherical Heads: These are the strongest type of head for a given thickness and diameter because they distribute stress evenly across the surface. However, they are also the most expensive and require the most space. The heads are used in high-pressure applications.
Ellipsoidal Heads: Also known as Elliptical Heads, these heads offer a good balance of strength, cost, and space requirements. They are stronger than torispherical heads but weaker than hemispherical heads. An elliptical tank head is fabricated by stamping or pressing.
Torispherical Heads: As discussed earlier, these heads are the most cost-effective option and are suitable for a wide range of applications. However, they are not as strong as hemispherical or ellipsoidal heads. Torispherical heads have a crown.
The following table summarizes the key differences between these head types:
| Head Type | Strength | Cost | Space | Applications |
|---|---|---|---|---|
| Hemispherical | Highest | Highest | Largest | High-pressure vessels |
| Ellipsoidal | Medium | Medium | Medium | General purpose pressure vessels |
| Torispherical | Lowest | Lowest | Smallest | General purpose, cost-sensitive applications |
The dimensions of a torispherical head are critical to its structural integrity and performance. The key dimensions include:
Crown Radius (Lc): The radius of the spherical cap, which is typically close to the inside diameter.
Knuckle Radius (r): The radius of the toroidal section connecting the crown to the cylindrical shell. ASME design code does not allow the knuckle radius to be any less than 6% of the inside diameter.
Straight Flange (SF): The cylindrical extension at the edge of the head. The presence of a straight flange simplifies welding the head to shell.
Inside Diameter (ID): This value is a critical parameter in determining the overall size and capacity of the vessel.
Outside Diameter (OD): The distance from one outer edge of the head to the opposite edge, measured across the circular plane.
These dimensions must be carefully chosen to meet the design requirements and ASME code specifications. The shape instead of a particular dish affects stress distribution and overall performance.
Torispherical heads are commonly manufactured from carbon steel, stainless steel, and alloy steel. The choice of material depends on the application and the required corrosion resistance and strength. The plate thickness is another variable.

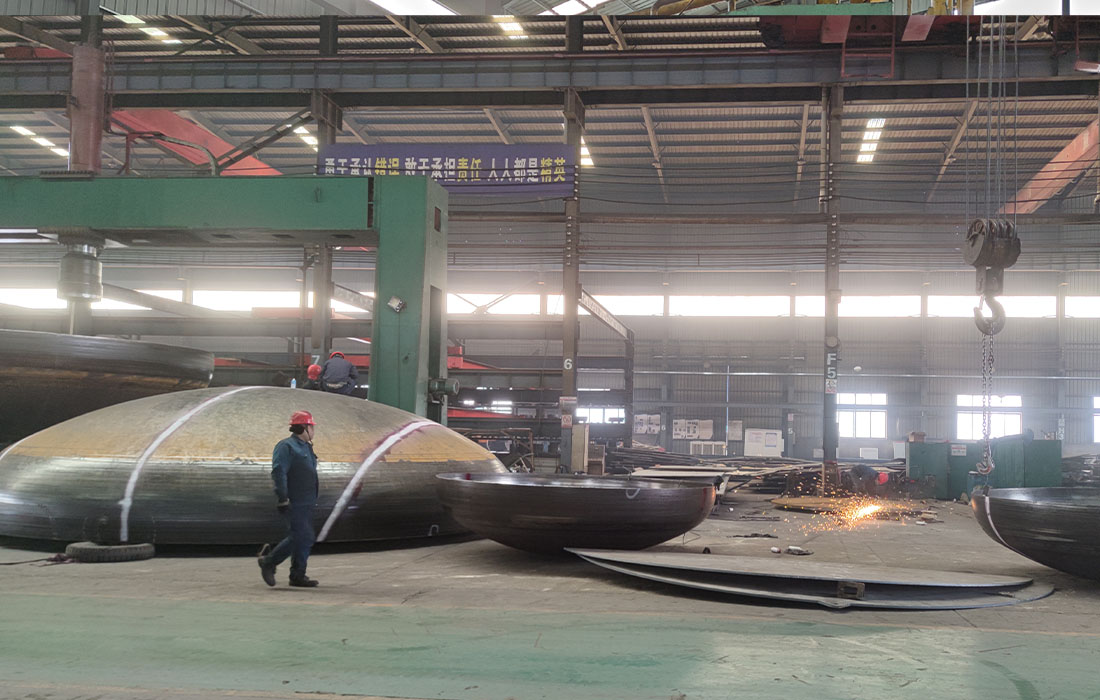

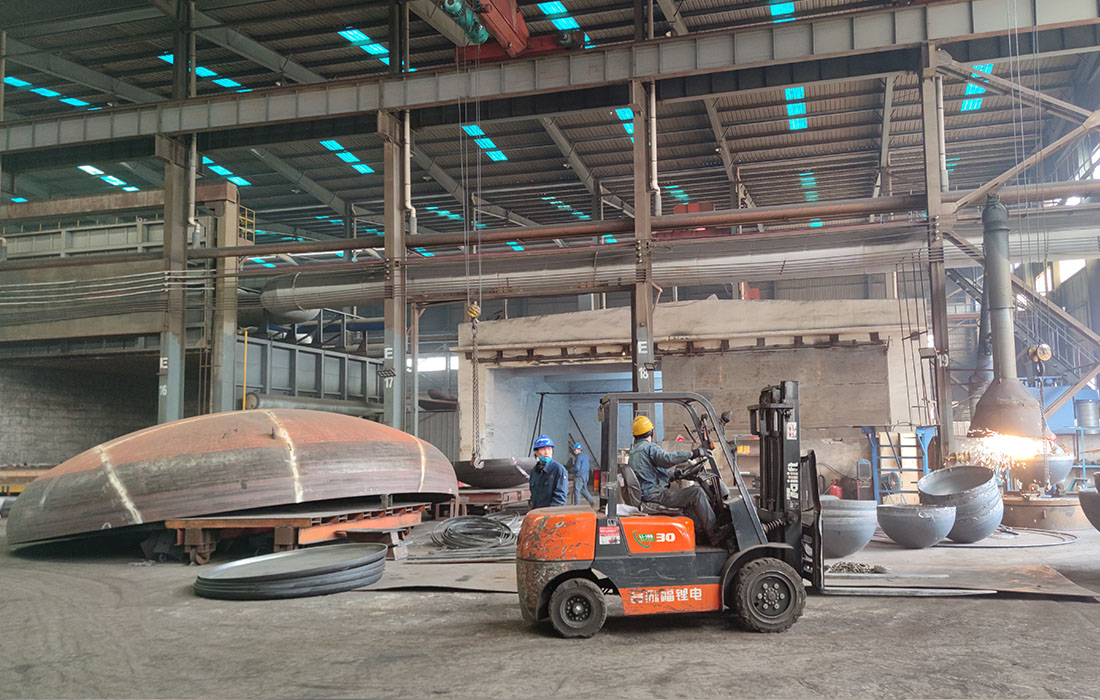

The manufacturing process typically involves several steps:
Blanking: Cutting the steel plate to the required shape and size.
Dishing: Forming the spherical crown using a boldrini dishing press and flanging machine or other specialized equipment.
Flanging: Forming the toroidal knuckle and straight flange.
Trimming: Removing excess material and ensuring accurate dimensions.
Quality control is essential throughout the manufacturing process to ensure that the flanged and dished head meets the required specifications and ASME code requirements. Marks design and metalworks are important in this process.
Calculating the volume and weight of a torispherical head is essential for design and fabrication purposes. The volume can be calculated using the following equation:
V = (π/6) * h * (3a² + h²) + π * r² * (Lc - r)
Where:
V = Volume
h = Height of the spherical cap
a = Radius of the cylindrical shell
r = Knuckle radius
Lc = Crown radius
The weight of the head can be estimated by multiplying the volume by the density of the material. The volume and weight calculations are useful for material procurement and cost estimation.
Torispherical heads are widely used in various industries due to their versatility and cost-effectiveness. Some common applications include:
Chemical Processing: Pressure vessels used in chemical plants often employ torispherical heads.
Petroleum Refining: These heads are used in various stages of oil and gas processing.
Pharmaceutical Manufacturing: Sterile pressure vessels in pharmaceutical plants often utilize torispherical heads.
Food and Beverage Industry: Storage tanks and processing vessels often utilize torispherical heads.
Water Treatment: Pressure vessels used in water treatment plants often employ torispherical heads.
The specific tank requirements dictate the choice of head type and material. They are also used in the dish radius or knuckle radius.
In some applications, such as the pharmaceutical and food industries, a smooth, polished surface finish is required to prevent contamination and facilitate cleaning. This may require flanged and dished polished heads. Achieving this surface finish requires special attention to the manufacturing process:
Material Selection: Using materials with inherent corrosion resistance and good polishing characteristics, such as stainless steel.
Welding Techniques: Employing welding techniques that minimize weld spatter and surface irregularities.
Grinding and Polishing: Using specialized grinding and polishing tools to achieve the required surface finish.
The surface finish is typically specified in terms of roughness average (Ra) and must meet the stringent requirements of the relevant industry standards.
Designing torispherical heads presents several challenges:
Stress Concentration: The knuckle region is prone to stress concentrations. This can be mitigated by careful design of the knuckle radius and the use of appropriate materials.
Buckling: Under external pressure, the head may be susceptible to buckling. This can be addressed by increasing the wall thickness or adding stiffening rings.
Corrosion: In corrosive environments, material selection is critical. Using corrosion-resistant materials or applying protective coatings can help to prevent corrosion.
Best practices in torispherical head design include:
Following ASME Code: Adhering to the ASME pressure: standards is essential for ensuring the safety and reliability of the pressure vessel.
Using Finite Element Analysis (FEA): FEA can be used to analyze the stress distribution in the head and optimize the design. Use FEA for more complicated designs and custom profile.
Careful Material Selection: Choosing the right material for the application is critical for corrosion resistance and strength.
A torispherical head combines a spherical crown and a toroidal knuckle for a cost-effective design.
Crown radius is equal to the outside diameter of the head.
ASME code dictates the design and manufacturing standards for these heads.
Knuckle radius is crucial for stress distribution, and ASME has minimum requirements.
Torispherical heads are less expensive than hemispherical or ellipsoidal heads.
They offer a good balance of cost, space, and performance.
Material selection depends on the application and corrosion resistance needs.
Calculations for volume and weight are crucial for design and fabrication.
Polishing is essential for applications requiring high cleanliness.
Careful design and manufacturing are necessary to address stress concentrations and potential buckling.
Understanding the intricacies of torispherical head design is crucial for any engineer involved in pressure vessel fabrication. By adhering to ASME standards and employing best practices, you can ensure the safety and reliability of your pressure vessel designs.
