Examination of Conical and Flat-Bottom Heads in Pressure Vessels

In-Depth Examination of Conical and Flat-Bottom Heads in Pressure Vessels: Design, Manufacturing, and Material Considerations

Pressure vessels, ubiquitous in a wide array of industrial processes, necessitate robust and reliable end closures to maintain internal pressure and ensure operational safety. These closures, commonly referred to as heads, come in various shapes and configurations, each possessing unique characteristics that dictate their suitability for specific applications. Among the most prevalent head designs are the conical and flat-bottom types, each exhibiting distinct advantages and disadvantages in terms of fluid dynamics, stress distribution, manufacturing complexities, and material requirements. This comprehensive analysis delves into the intricacies of these head designs, exploring their functional principles, manufacturing methodologies, stress mitigation strategies, and material selection criteria.

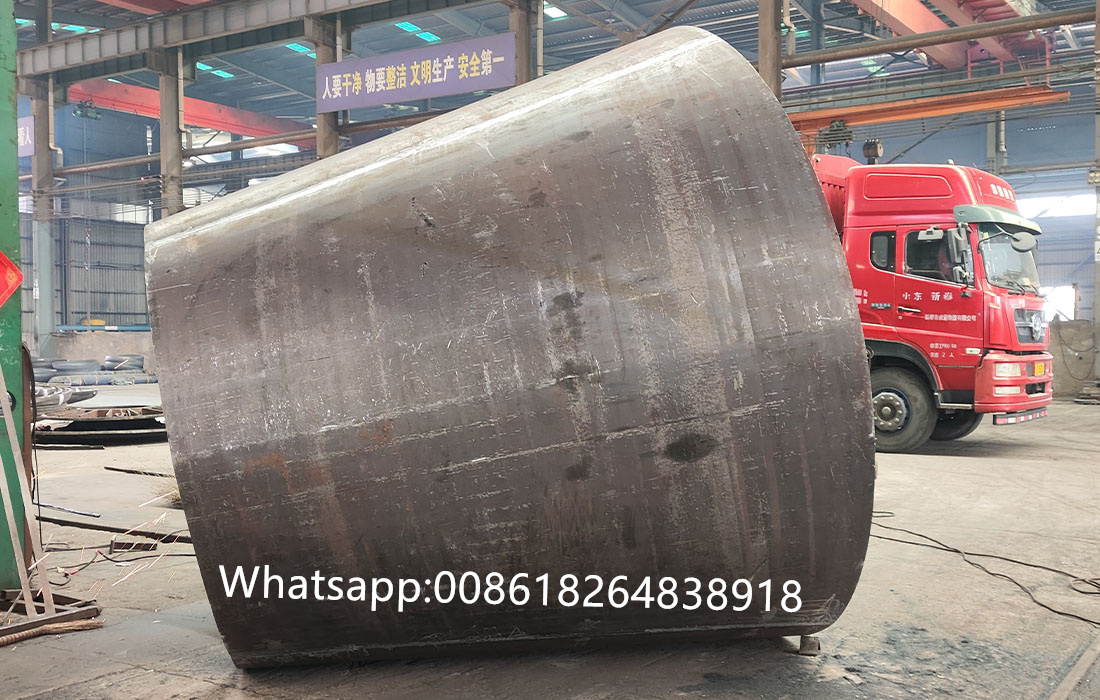

I. The Conical Head: A Conduit for Controlled Flow and Discharge

The conical head, characterized by its converging geometry, finds widespread application in scenarios where controlled flow transition and efficient discharge of viscous liquids or solid particulate matter are paramount. Its sloping walls facilitate a gradual reduction in cross-sectional area, enabling a uniform acceleration of the medium as it traverses the head. This gradual acceleration proves particularly advantageous when handling materials prone to stagnation or clogging, as the converging geometry promotes a smooth and continuous flow, minimizing the risk of material buildup and ensuring efficient discharge.

A. Functional Advantages of the Conical Head:

• Enhanced Flow Control: The conical shape allows for a predictable and controllable variation in fluid velocity, which is crucial in applications where precise flow rates or mixing ratios are required.

• Optimized Discharge of Viscous Materials: The converging geometry effectively minimizes dead zones and promotes self-cleaning, facilitating the discharge of viscous liquids and slurries that would otherwise tend to adhere to the walls.

• Efficient Solids Handling: The sloping walls and converging cross-section aid in the gravitational flow of solid particles, preventing bridging and ensuring complete discharge of particulate materials.

• Adaptability to Varying Flow Regimes: The conical head can be tailored to accommodate a wide range of flow rates and fluid viscosities by adjusting the cone angle and overall dimensions.

B. Mechanical Limitations and Stress Considerations:

Despite its functional advantages, the conical head exhibits inherent mechanical limitations, primarily stemming from its geometric discontinuity at the junction with the cylindrical shell or piping. This abrupt change in shape gives rise to stress concentrations, particularly under pressure loading. The magnitude of these stress concentrations is influenced by the cone angle, the thickness of the shell, and the pressure differential across the head.

• Stress Concentrations at the Junction: The discontinuity in geometry creates a localized area of heightened stress, which can lead to fatigue failure or premature yielding under cyclic loading conditions.

• Susceptibility to Buckling: Conical heads, especially those with large cone angles and thin shells, are prone to buckling instability under compressive loads.

• Limited Pressure-Bearing Capacity: The stress concentrations and potential for buckling limit the maximum allowable pressure that a conical head can withstand, particularly in high-pressure applications.

C. Manufacturing Processes for Conical Heads:

Conical heads can be manufactured using various methods, including:

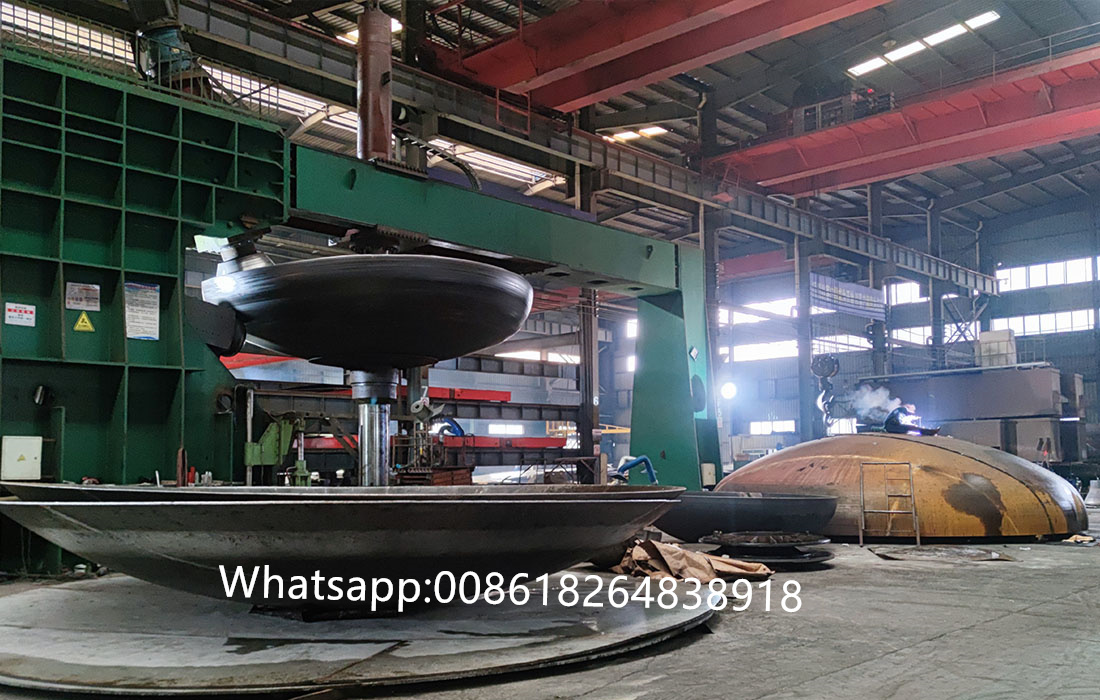

• Forming: This involves shaping a flat plate into the desired conical geometry using a combination of pressing, hammering, or rolling techniques. Forming is suitable for manufacturing conical heads with relatively simple geometries and moderate cone angles.

• Spinning: This process involves rotating a flat plate at high speed while applying pressure with a forming tool to gradually shape the material into a conical form. Spinning is particularly well-suited for producing conical heads with complex geometries and varying wall thicknesses.

• Welding: Conical heads can also be fabricated by welding together multiple segments of formed or spun material. This approach is often used for manufacturing large-diameter conical heads or those with intricate designs.

D. Mitigating Stress Concentrations in Conical Heads:

To address the stress concentration issues inherent in conical head designs, several mitigation strategies can be employed:

• Knuckle Transition: Introducing a curved transition section, often referred to as a knuckle, at the junction between the conical shell and the cylindrical shell reduces the abruptness of the geometric discontinuity, thereby lowering stress concentrations. This knuckle can be formed integrally with the cone or added as a separate component.

• Local Thickening: Increasing the thickness of the shell material in the vicinity of the junction provides additional reinforcement, reducing stress levels and improving the overall structural integrity of the head.

• Reinforcement Rings: Welding reinforcement rings around the circumference of the cone near the junction can effectively distribute stresses and prevent buckling.

• Finite Element Analysis (FEA): Employing FEA techniques during the design phase allows for accurate prediction of stress distributions and optimization of the head geometry to minimize stress concentrations.

E. Material Selection for Conical Heads:

The choice of material for manufacturing conical heads is dictated by the operating conditions, the nature of the contained fluid, and the desired lifespan of the vessel. Common materials include:

• Carbon Steel: Carbon steel is a cost-effective and widely used material for conical heads in applications where corrosion resistance is not a primary concern.

• Low-Alloy Steel: Low-alloy steels offer enhanced strength and toughness compared to carbon steel, making them suitable for higher-pressure applications.

• Stainless Steel: Stainless steel provides excellent corrosion resistance, making it ideal for handling corrosive fluids or operating in harsh environments.

• Composite Plate: Composite plates, consisting of a base material clad with a corrosion-resistant alloy, offer a cost-effective alternative to solid alloy construction in demanding applications.

• Non-Ferrous Metals: Non-ferrous metals such as copper, aluminum, and titanium are used in specialized applications where specific properties like high thermal conductivity, lightweight, or resistance to specific corrosive agents are required.

II. The Flat-Bottom Head: Simplicity and Cost-Effectiveness in Low-Pressure Applications

The flat-bottom head, characterized by its planar end closure, represents the simplest and most economical head design. It is primarily employed in low-pressure applications where the internal forces are relatively modest and the geometric simplicity outweighs the limitations in structural performance. Flat-bottom heads are commonly found in tanks, vessels, and containers designed for atmospheric or low-pressure storage of liquids or solids.

A. Functional Advantages of the Flat-Bottom Head:

• Simplified Manufacturing: The flat geometry allows for straightforward manufacturing processes, resulting in lower production costs.

• Ease of Installation and Maintenance: The flat surface simplifies installation and allows for easy access to the interior of the vessel for cleaning and maintenance.

• Cost-Effectiveness: Flat-bottom heads are generally less expensive than other head designs, making them an attractive option for budget-conscious applications.

• Suitable for Low-Pressure Applications: The flat geometry is adequate for containing low internal pressures, making it suitable for storage tanks and other low-pressure vessels.

B. Mechanical Limitations and Stress Considerations:

The flat geometry of the flat-bottom head inherently limits its ability to withstand high internal pressures. The lack of curvature results in high bending stresses at the junction with the cylindrical shell, making it susceptible to deformation or failure under pressure loading.

• High Bending Stresses: The flat shape concentrates bending stresses at the connection with the cylindrical shell, leading to potential yielding or cracking.

• Limited Pressure-Bearing Capacity: The high bending stresses limit the maximum allowable pressure that a flat-bottom head can withstand.

• Susceptibility to Deflection: Flat-bottom heads are prone to deflection or bulging under pressure, which can compromise the integrity of the vessel.

C. Manufacturing Processes for Flat-Bottom Heads:

Flat-bottom heads are typically manufactured using two primary methods:

• Molding: This involves shaping a flat plate into the desired geometry using a mold or die. Molding produces flat-bottom heads with high flatness and dimensional accuracy, but it is typically more expensive than spinning.

• Spinning: This process, as described previously, involves rotating a flat plate at high speed while applying pressure with a forming tool to gradually shape the material. Spinning is a more cost-effective method for manufacturing flat-bottom heads, although the resulting flatness may be slightly less precise than that achieved with molding.

D. Addressing Flatness Imperfections in Spun Flat-Bottom Heads:

While spinning is a cost-effective manufacturing technique, it can sometimes result in slight deviations from perfect flatness in the finished product. These deviations are often acceptable for general-purpose applications and do not significantly impact the structural integrity of the head. However, in applications where precise flatness is critical, additional steps may be necessary to improve the flatness of the spun head.

• Planishing: This involves hammering or rolling the surface of the spun head to reduce surface irregularities and improve flatness.

• Grinding: Grinding can be used to remove material from high spots and achieve a more uniform surface, thereby improving flatness.

• Quality Control: Implementing rigorous quality control procedures, including flatness measurements and visual inspections, helps to ensure that the finished flat-bottom heads meet the required flatness specifications.

E. Reinforcement Strategies for Flat-Bottom Heads:

To enhance the pressure-bearing capacity of flat-bottom heads, several reinforcement strategies can be employed:

• Increased Thickness: Increasing the thickness of the flat plate reduces bending stresses and improves the overall structural integrity of the head.

• Support Rings: Welding support rings around the circumference of the flat-bottom head provides additional reinforcement and prevents deflection.

• Stiffeners: Adding stiffeners, such as ribs or gussets, to the flat surface provides additional support and reduces bending stresses.

• Bolted Connections: Employing a bolted connection to the cylindrical shell, rather than a welded connection, can distribute stresses more evenly and improve the load-carrying capacity of the head.

F. Material Selection for Flat-Bottom Heads:

The material selection criteria for flat-bottom heads are similar to those for conical heads, with the choice dictated by the operating conditions, the nature of the contained fluid, and the desired lifespan of the vessel. Common materials include carbon steel, low-alloy steel, stainless steel, composite plate, and non-ferrous metals.

III. Specific Considerations for Manufacturing Processes:

A. Conical Heads with Folded Edge Structure:

In order to further mitigate the discontinuous stress at the connection point between the conical head and the main body, adopting a folded edge structure is a viable option. This involves creating a curved or folded transition zone at the junction, effectively smoothing the stress flow and reducing the stress concentration. This method requires precision forming techniques and may increase the overall manufacturing complexity and cost, but it significantly improves the structural integrity and fatigue life of the conical head.

B. Conical Heads with Local Thickening and Arc Transition:

Another effective method is to implement local thickening with an arc transition at either the large or small end of the cone shell. This is often achieved by adding extra material in the areas most susceptible to high stress, coupled with a smooth, curved transition to minimize the abruptness of the geometric change. This approach is particularly beneficial as it can often be integrated directly into the spinning process, reducing the need for additional welding or forming operations.

C. Special Considerations for Spinning Flat Bottom Heads:

When spinning flat bottom heads, it is crucial to implement appropriate measures to prevent deformation during the process. Adding splints, which are essentially reinforcing plates, on both sides of the metal sheet can help maintain the desired shape and prevent warping. Ideally, the splint should be at least twice as thick as the material being spun to provide sufficient support and rigidity. This is especially important for larger diameter flat bottom heads where the risk of deformation is higher.

IV. Dimensional Considerations:

The diameter of flat-bottom heads is primarily determined by the specific requirements of the application. While standardized sizes are available, custom diameters are frequently needed to perfectly match the vessel or tank to which the head will be attached. Ensuring accurate dimensional control is critical for proper fit and sealing, preventing leaks and maintaining the overall integrity of the pressure vessel.

V. Conclusion: Tailoring Head Design to Application Requirements

The selection between conical and flat-bottom heads hinges on a careful evaluation of the specific application requirements. Conical heads offer superior flow control and discharge characteristics, making them suitable for handling viscous liquids and solid particulate matter, but they require careful design and manufacturing to mitigate stress concentrations. Flat-bottom heads, on the other hand, provide a cost-effective solution for low-pressure applications where geometric simplicity is paramount. By understanding the strengths and limitations of each head design, engineers can make informed decisions that optimize the performance, safety, and longevity of pressure vessels across a wide range of industrial processes. The key lies in carefully considering the operating conditions, the nature of the contained fluid, the desired lifespan of the vessel, and the available manufacturing capabilities to select the most appropriate head design for each specific application.
